小白学习spring-cloud(九): Spring Cloud Gateway的断路器(CircuitBreaker)功能

关于断路器(CircuitBreaker)

• 下图来自resilience4j官方文档，介绍了什么是断路器：

1. CLOSED状态时，请求正常放行
2. 请求失败率达到设定阈值时，变为OPEN状态，此时请求全部不放行
3. OPEN状态持续设定时间后，进入半开状态（HALE_OPEN），放过部分请求
4. 半开状态下，失败率低于设定阈值，就进入CLOSE状态，即全部放行
5. 半开状态下，失败率高于设定阈值，就进入OPEN状态，即全部不放行

确认概念

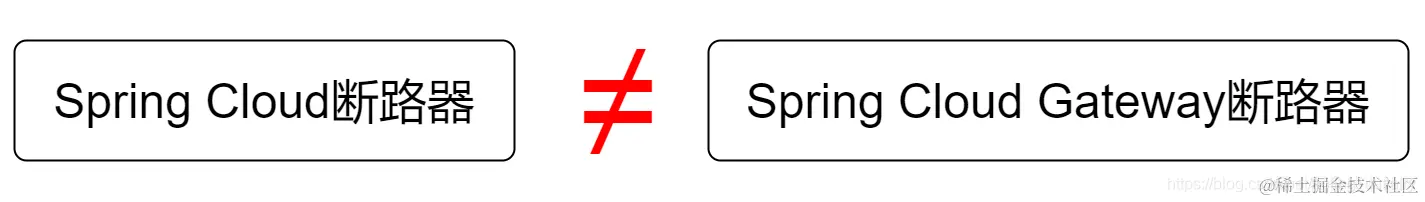

• 有个概念先确认一下，即Spring Cloud断路器与Spring Cloud Gateway断路器功能不是同一个概念，Spring Cloud Gateway断路器功能还涉及过滤器，即在过滤器的规则下使用断路器：

• 本篇的重点是Spring Cloud Gateway如何配置和使用断路器（CircuitBreaker），因此不会讨论Resilience4J的细节，如果您想深入了解Resilience4J，推荐资料是Spring Cloud Circuit Breaker

关于Spring Cloud断路器

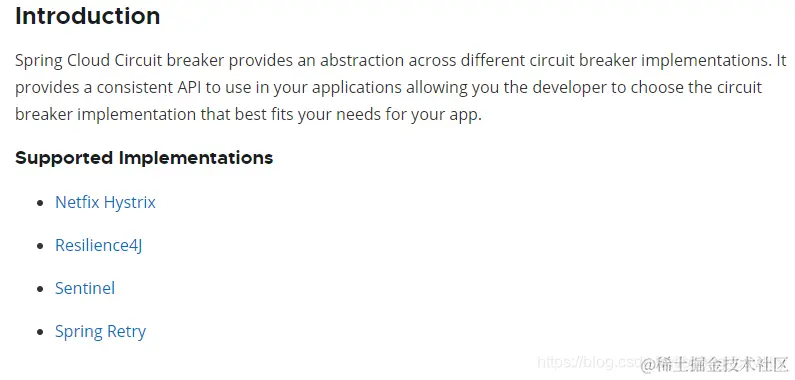

• 先看Spring Cloud断路器，如下图，Hystrix、Sentinel这些都是熟悉的概念：

关于Spring Cloud Gateway的断路器功能

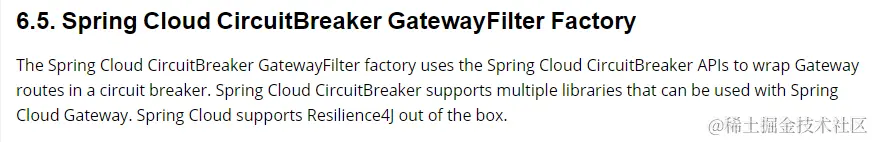

• 来看Spring Cloud Gateway的官方文档，如下图，有几个关键点稍后介绍：

• 上图透露了几个关键信息：

1. Spring Cloud Gateway内置了断路器filter，
2. 具体做法是使用Spring Cloud断路器的API，将gateway的路由逻辑封装到断路器中
3. 有多个断路器的库都可以用在Spring Cloud Gateway（遗憾的是没有列举是哪些）
4. Resilience4J对Spring Cloud来说是开箱即用的

• 简单来说Spring Cloud Gateway的断路器功能是通过内置filter实现的，这个filter使用了Spring Cloud断路器；
• 官方说多个断路器的库都可以用在Spring Cloud Gateway，但是并没有说具体是哪些，这就郁闷了，此时咱们去了解一位牛人的观点：Piotr Mińkowski，就是下面这本书的作者：

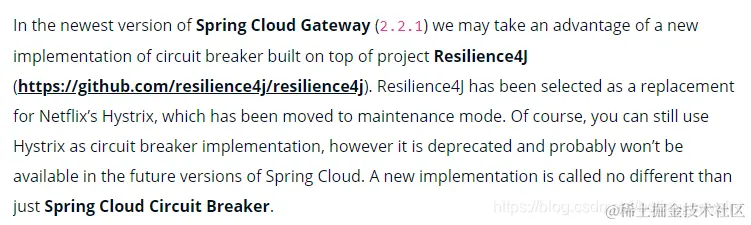

Piotr Mińkowski的博客对Spring Cloud Gateway的断路器功能做了详细介绍，如下图，有几个重要信息稍后会提到：

• 上图可以获取到三个关键信息：

1. 从2.2.1版本起，Spring Cloud Gateway集成了Resilience4J的断路器实现
2. Netflix的Hystrix进入了维护阶段（能理解为即将退休吗？）
3. Netflix的Hystrix依然可用，但是已废弃(deprecated)，而且Spring Cloud将来的版本可能会不支持

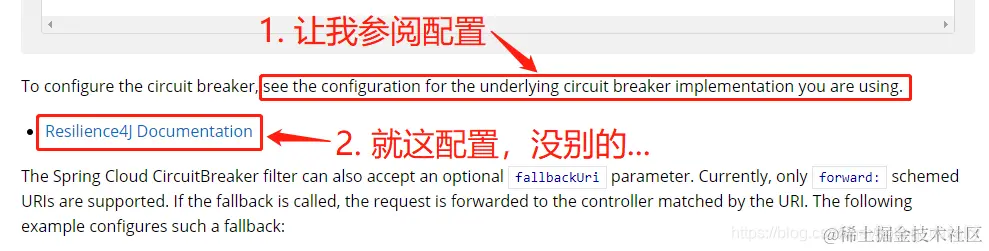

• 再关联到官方文档也以resilience4为例（如下图），胆小的我似乎没有别的选择了，就Resilience4J吧：

理论分析就到此。

实战

• 服务提供者nacos-provider新增/account/{id}接口：

package com.example.controller;

import lombok.extern.slf4j.Slf4j;
import org.springframework.http.HttpHeaders;
import org.springframework.web.bind.annotation.*;

import java.text.SimpleDateFormat;
import java.util.Date;

@Slf4j
@RestController
@RequestMapping("/nacos")
public class NacosController {

    private String dateStr(){
        return new SimpleDateFormat("yyyy-MM-dd hh:mm:ss").format(new Date());
    }

    @GetMapping(value = "/test")
    public String test(){
        return "成功访问服务者接口111";
    }

    @GetMapping("/testHeader")
    public String testHeader(@RequestHeader HttpHeaders headers) {
        log.info("header: {}", headers);

        return "Hello World" + new Date();
    }

    @GetMapping(value = "/account/{id}")
    public String account(@PathVariable("id") int id) throws InterruptedException {
        if(1==id) {
            Thread.sleep(500);
        }

        return "Account" + dateStr();
    }
}

• 新增circuitbreaker-gateway子模块：

1. 添加如下依赖：

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-gateway</artifactId>
    </dependency>

    <dependency>
        <groupId>io.projectreactor</groupId>
        <artifactId>reactor-test</artifactId>
        <scope>test</scope>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-circuitbreaker-reactor-resilience4j</artifactId>
    </dependency>
</dependencies>

2. 配置文件application.yml如下：

server:
  #服务端口
  port: 10012
spring:
  application:
    name: circuitbreaker-gateway
  cloud:
    gateway:
      routes:
        - id: path_route
          uri: http://localhost:9001
          predicates:
            - Path=/nacos/**
          filters:
            - name: CircuitBreakerStatePrinter
            - name: CircuitBreaker
              args:
                name: myCircuitBreaker

3. 启动类：

package com.example;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class CircuitBreakerApplication {
    public static void main(String[] args) {
        SpringApplication.run(CircuitBreakerApplication.class, args);
    }
}

4. 配置类如下，这是断路器相关的参数配置：

package com.example.config;

import io.github.resilience4j.circuitbreaker.CircuitBreakerConfig;
import io.github.resilience4j.timelimiter.TimeLimiterConfig;
import org.springframework.cloud.circuitbreaker.resilience4j.ReactiveResilience4JCircuitBreakerFactory;
import org.springframework.cloud.circuitbreaker.resilience4j.Resilience4JConfigBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.time.Duration;

@Configuration
public class CustomizeCircuitBreakerConfig {


    @Bean
    public ReactiveResilience4JCircuitBreakerFactory defaultCustomizer() {

        CircuitBreakerConfig circuitBreakerConfig = CircuitBreakerConfig.custom() //
                .slidingWindowType(CircuitBreakerConfig.SlidingWindowType.TIME_BASED) // 滑动窗口的类型为时间窗口
                .slidingWindowSize(10) // 时间窗口的大小为60秒
                .minimumNumberOfCalls(5) // 在单位时间窗口内最少需要5次调用才能开始进行统计计算
                .failureRateThreshold(50) // 在单位时间窗口内调用失败率达到50%后会启动断路器
                .enableAutomaticTransitionFromOpenToHalfOpen() // 允许断路器自动由打开状态转换为半开状态
                .permittedNumberOfCallsInHalfOpenState(5) // 在半开状态下允许进行正常调用的次数
                .waitDurationInOpenState(Duration.ofSeconds(5)) // 断路器打开状态转换为半开状态需要等待60秒
                .recordExceptions(Throwable.class) // 所有异常都当作失败来处理
                .build();

        ReactiveResilience4JCircuitBreakerFactory factory = new ReactiveResilience4JCircuitBreakerFactory();
        factory.configureDefault(id -> new Resilience4JConfigBuilder(id)
                .timeLimiterConfig(TimeLimiterConfig.custom().timeoutDuration(Duration.ofMillis(200)).build())
                .circuitBreakerConfig(circuitBreakerConfig).build());

        return factory;
    }
}

• 上述代码有一点需要注意：timeLimiterConfig方法设置了超时时间，服务提供者如果超过200毫秒没有响应，Spring Cloud Gateway就会向调用者返回失败
• 开发完成了，接下来要考虑的是如何验证

单元测试类

为了验证Spring Cloud Gateway的断路器功能，咱们可以用Junit单元测试来精确控制请求参数和请求次数，测试类如下，可见测试类会连续发一百次请求，在前五十次中，请求参数始终在0和1之间切换，参数等于1的时候，接口会有500毫秒延时，超过了Spring Cloud Gateway的200毫秒超时限制，这时候就会返回失败，等失败多了，就会触发断路器的断开：

package com.example;

import io.github.resilience4j.circuitbreaker.CircuitBreaker;
import org.junit.jupiter.api.RepeatedTest;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.extension.ExtendWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.reactive.AutoConfigureWebTestClient;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.test.context.junit.jupiter.SpringExtension;
import org.springframework.test.web.reactive.server.WebTestClient;

@SpringBootTest
@ExtendWith(SpringExtension.class)
@AutoConfigureWebTestClient
public class CircuitbreakerTest {

    // 测试的总次数
    private static int i=0;

    @Autowired
    private WebTestClient webClient;

    @Test
    @RepeatedTest(100)
    void testHelloPredicates() throws InterruptedException {
        // 低于50次时，gen在0和1之间切换，也就是一次正常一次超时，
        // 超过50次时，gen固定为0，此时每个请求都不会超时
        int gen = (i<50) ? (i % 2) : 0;

        // 次数加一
        i++;

        final String tag = "[" + i + "]";

        // 发起web请求
        webClient.get()
                .uri("/nacos/account/" + gen)
                .accept(MediaType.APPLICATION_JSON)
                .exchange()
                .expectBody(String.class).consumeWith(result  -> System.out.println(tag + result.getRawStatusCode() + " - " + result.getResponseBody()));

        Thread.sleep(1000);
    }

}

验证

• 启动nacos（服务提供者依赖的）
• 启动子工程nacos-provider
• 运行咱们刚才开发的单元测试类，控制台输入的内容截取部分如下，稍后会有分析：

state : CLOSED
[2]504 - {"timestamp":"2024-01-19T09:22:21.454+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"35b9be8a"}
state : CLOSED
[3]200 - Account2024-01-19 05:22:22
state : CLOSED
[4]504 - {"timestamp":"2024-01-19T09:22:23.700+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"48d357af"}
state : CLOSED
[5]200 - Account2024-01-19 05:22:24
state : OPEN
[6]503 - {"timestamp":"2024-01-19T09:22:25.738+00:00","path":"/nacos/account/1","status":503,"error":"Service Unavailable","requestId":"e43da69"}
state : OPEN
[7]503 - {"timestamp":"2024-01-19T09:22:26.755+00:00","path":"/nacos/account/0","status":503,"error":"Service Unavailable","requestId":"8a09e9"}
state : OPEN
[8]503 - {"timestamp":"2024-01-19T09:22:27.770+00:00","path":"/nacos/account/1","status":503,"error":"Service Unavailable","requestId":"57918132"}
state : OPEN
[9]503 - {"timestamp":"2024-01-19T09:22:28.782+00:00","path":"/nacos/account/0","status":503,"error":"Service Unavailable","requestId":"7b9ae109"}
state : HALF_OPEN
[10]504 - {"timestamp":"2024-01-19T09:22:30.001+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"3f41d5fa"}
state : HALF_OPEN
[11]200 - Account2024-01-19 05:22:31
state : HALF_OPEN
[12]504 - {"timestamp":"2024-01-19T09:22:32.233+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"729aafe"}
state : HALF_OPEN
[13]200 - Account2024-01-19 05:22:33
state : HALF_OPEN
[14]504 - {"timestamp":"2024-01-19T09:22:34.471+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"71c45d5b"}
state : OPEN
[15]503 - {"timestamp":"2024-01-19T09:22:35.486+00:00","path":"/nacos/account/0","status":503,"error":"Service Unavailable","requestId":"7ef53536"}
state : OPEN
[16]503 - {"timestamp":"2024-01-19T09:22:36.499+00:00","path":"/nacos/account/1","status":503,"error":"Service Unavailable","requestId":"29b9e385"}
state : OPEN
[17]503 - {"timestamp":"2024-01-19T09:22:37.511+00:00","path":"/nacos/account/0","status":503,"error":"Service Unavailable","requestId":"70b6dde8"}
state : OPEN
[18]503 - {"timestamp":"2024-01-19T09:22:38.522+00:00","path":"/nacos/account/1","status":503,"error":"Service Unavailable","requestId":"4bf39267"}
state : HALF_OPEN
[19]200 - Account2024-01-19 05:22:39
state : HALF_OPEN
[20]504 - {"timestamp":"2024-01-19T09:22:40.757+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"5595fb9b"}
state : HALF_OPEN
[21]200 - Account2024-01-19 05:22:41
state : HALF_OPEN
[22]504 - {"timestamp":"2024-01-19T09:22:42.992+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"1cf20304"}
state : HALF_OPEN
[23]200 - Account2024-01-19 05:22:44
state : CLOSED
[24]504 - {"timestamp":"2024-01-19T09:22:45.223+00:00","path":"/nacos/account/1","status":504,"error":"Gateway Timeout","requestId":"1a062662"}
state : CLOSED
[25]200 - Account2024-01-19 05:22:46

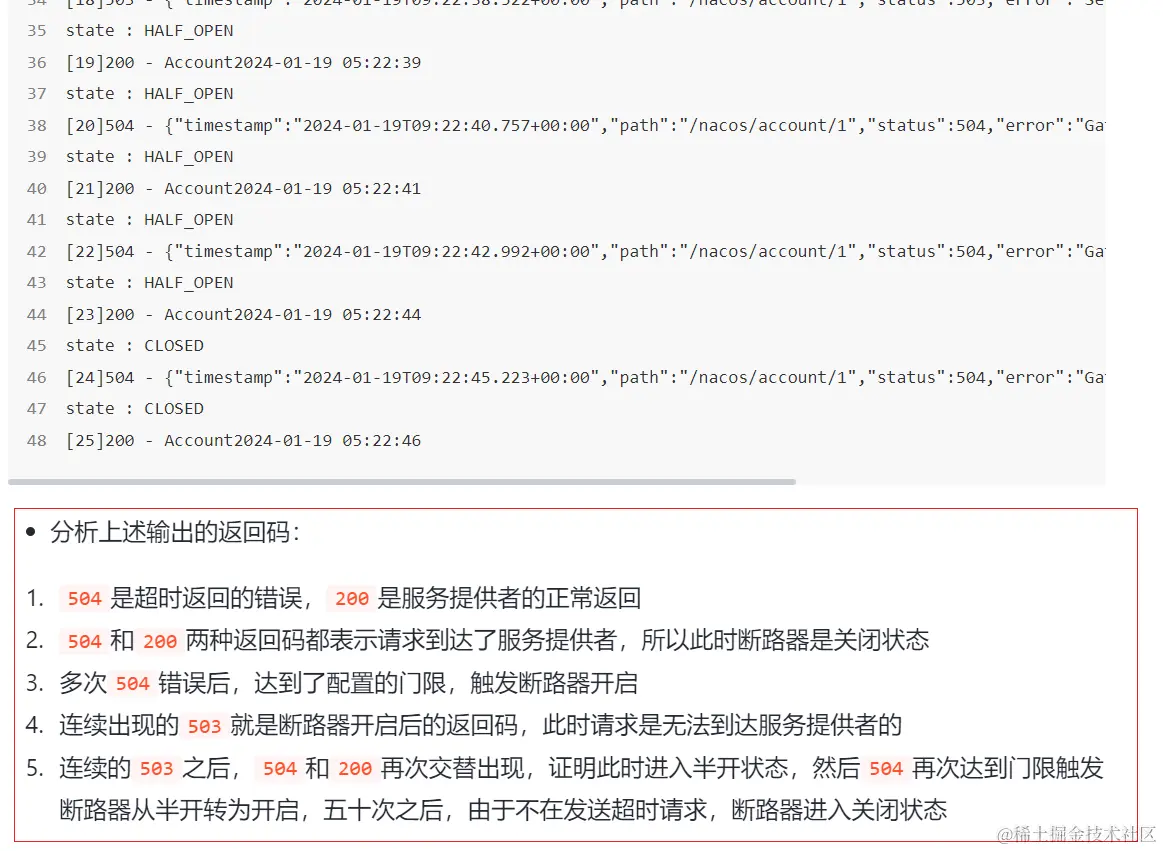

• 分析上述输出的返回码：

1. 504是超时返回的错误，200是服务提供者的正常返回
2. 504和200两种返回码都表示请求到达了服务提供者，所以此时断路器是关闭状态
3. 多次504错误后，达到了配置的门限，触发断路器开启
4. 连续出现的503就是断路器开启后的返回码，此时请求是无法到达服务提供者的
5. 连续的503之后，504和200再次交替出现，证明此时进入半开状态，然后504再次达到门限触发断路器从半开转为开启，五十次之后，由于不在发送超时请求，断路器进入关闭状态

fallback

• 通过上述测试可见，Spring Cloud Gateway通过返回码来告知调用者错误信息，这种方式不够友好，我们可以自定义fallback，在返回错误时由它来构建返回信息
• 在circuitbreaker-gateway工程中添加一个接口：

package com.example.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.text.SimpleDateFormat;
import java.util.Date;

@RestController
public class FallbackController {
    private String dateStr(){
        return new SimpleDateFormat("yyyy-MM-dd hh:mm:ss").format(new Date());
    }

    /**
     * 返回字符串类型
     * @return
     */
    @GetMapping("/myfallback")
    public String helloStr() {
        return "myfallback, " + dateStr();
    }
}

• application.yml配置如下，可见是给filter增加了fallbackUri属性：

server:
  #服务端口
  port: 10012
spring:
  application:
    name: circuitbreaker-gateway
  cloud:
    gateway:
      routes:
        - id: path_route
          uri: http://localhost:9001
          predicates:
            - Path=/nacos/**
          filters:
            - name: CircuitBreakerStatePrinter
            - name: CircuitBreaker
              args:
                name: myCircuitBreaker
                fallbackUri: forward:/myfallback

• 再运行单元测试，可见返回码全部是200，原来的错误现在全部变成了刚才新增的接口的返回内容：

state : CLOSED
[2]200 - myfallback, 2024-01-19 05:36:01
state : CLOSED
[3]200 - Account2024-01-19 05:36:02
state : CLOSED
[4]200 - myfallback, 2024-01-19 05:36:03
state : CLOSED
[5]200 - Account2024-01-19 05:36:04
state : OPEN
[6]200 - myfallback, 2024-01-19 05:36:05
state : OPEN
[7]200 - myfallback, 2024-01-19 05:36:06
state : OPEN
[8]200 - myfallback, 2024-01-19 05:36:07
state : OPEN
[9]200 - myfallback, 2024-01-19 05:36:08
state : HALF_OPEN
[10]200 - myfallback, 2024-01-19 05:36:09
state : HALF_OPEN
[11]200 - Account2024-01-19 05:36:11
state : HALF_OPEN
[12]200 - myfallback, 2024-01-19 05:36:12
state : HALF_OPEN
[13]200 - Account2024-01-19 05:36:13
state : HALF_OPEN
[14]200 - myfallback, 2024-01-19 05:36:14
state : OPEN
[15]200 - myfallback, 2024-01-19 05:36:15
state : OPEN
[16]200 - myfallback, 2024-01-19 05:36:16
state : OPEN
[17]200 - myfallback, 2024-01-19 05:36:17
state : OPEN
[18]200 - myfallback, 2024-01-19 05:36:18
state : HALF_OPEN
[19]200 - Account2024-01-19 05:36:19
state : HALF_OPEN
[20]200 - myfallback, 2024-01-19 05:36:20
state : HALF_OPEN
[21]200 - Account2024-01-19 05:36:21
state : HALF_OPEN
[22]200 - myfallback, 2024-01-19 05:36:22
state : HALF_OPEN
[23]200 - Account2024-01-19 05:36:24
state : CLOSED
[24]200 - myfallback, 2024-01-19 05:36:25
state : CLOSED
[25]200 - Account2024-01-19 05:36:26
state : CLOSED
[26]200 - myfallback, 2024-01-19 05:36:27
state : CLOSED
[27]200 - Account2024-01-19 05:36:28
state : CLOSED
[28]200 - myfallback, 2024-01-19 05:36:29
state : OPEN
[29]200 - myfallback, 2024-01-19 05:36:30
state : OPEN
[30]200 - myfallback, 2024-01-19 05:36:31
state : OPEN
[31]200 - myfallback, 2024-01-19 05:36:32
state : OPEN
[32]200 - myfallback, 2024-01-19 05:36:33
state : HALF_OPEN
[33]200 - Account2024-01-19 05:36:34
state : HALF_OPEN
[34]200 - myfallback, 2024-01-19 05:36:35
state : HALF_OPEN
[35]200 - Account2024-01-19 05:36:36
state : HALF_OPEN
[36]200 - myfallback, 2024-01-19 05:36:38
state : HALF_OPEN
[37]200 - Account2024-01-19 05:36:39
state : CLOSED
[38]200 - myfallback, 2024-01-19 05:36:40
state : CLOSED
[39]200 - Account2024-01-19 05:36:41

• 至此，咱们已完成了Spring Cloud Gateway的断路器功能的开发和测试，如果聪明好学的您并不满足这寥寥几行配置和代码，想要深入了解断路器的内部，那么请您接往下看，咱们聊聊它的源码；

源码分析

• RouteDefinitionRouteLocator的构造方法（bean注入）中有如下代码，将name和实例绑定：

gatewayFilterFactories.forEach(factory -> this.gatewayFilterFactories.put(factory.name(), factory));

• 然后会在loadGatewayFilters方法中使用这个map，找到上面put的bean；
• 最终的效果：路由配置中指定了name等于CircuitBreaker，即可对应SpringCloudCircuitBreakerFilterFactory类型的bean，因为它的name方法返回了"CircuitBreaker"，如下图：

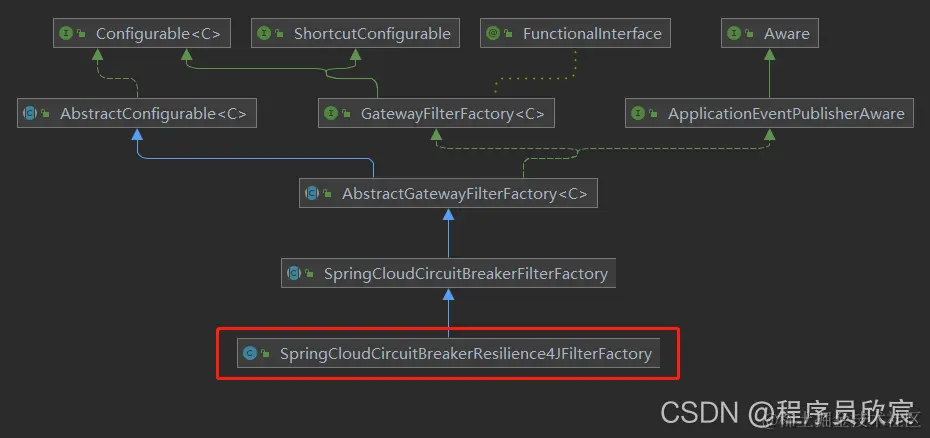

• 现在的问题：SpringCloudCircuitBreakerFilterFactory类型的bean是什么？如下图红框，SpringCloudCircuitBreakerResilience4JFilterFactory是SpringCloudCircuitBreakerFilterFactory唯一的子类：

• 从上图来看，CircuitBreaker类型的filter应该是SpringCloudCircuitBreakerResilience4JFilterFactory，不过那只是从继承关系推断出来的，还差一个关键证据：在spring中，到底存不存在SpringCloudCircuitBreakerResilience4JFilterFactory类型的bean？
• 最终发现了GatewayResilience4JCircuitBreakerAutoConfiguration中的配置，可以证明SpringCloudCircuitBreakerResilience4JFilterFactory会被实例化并注册到spring：

@Bean
@ConditionalOnBean(ReactiveResilience4JCircuitBreakerFactory.class)
@ConditionalOnEnabledFilter
public SpringCloudCircuitBreakerResilience4JFilterFactory springCloudCircuitBreakerResilience4JFilterFactory(ReactiveResilience4JCircuitBreakerFactory reactiveCircuitBreakerFactory, ObjectProvider<DispatcherHandler> dispatcherHandler) {
	return new SpringCloudCircuitBreakerResilience4JFilterFactory(reactiveCircuitBreakerFactory, dispatcherHandler);
}

• 综上所述，当您配置了CircuitBreaker过滤器时，实际上是SpringCloudCircuitBreakerResilience4JFilterFactory类在为您服务，而关键代码都集中在其父类SpringCloudCircuitBreakerFilterFactory中；
• 所以，要想深入了解Spring Cloud Gateway的断路器功能，请阅读SpringCloudCircuitBreakerFilterFactory.apply方法

一点遗憾

• 还记得刚才分析控制台输出的那段内容吗？就是下图红框中的那段，当时咱们用返回码来推测断路器处于什么状态：

• 看这段纯文字时，还是存在疑惑的，根据返回码就把断路器的状态确定了？例如504的时候到底是关闭还是半开呢？都有可能吧，所以，这种推测只能证明断路器正在工作，但是无法确定某个时刻具体的状态
• 所以，需要一种更准确的方式知道每个时刻断路器的状态，这样才算对断路器有了深刻的了解
