🛠 Open Source Instant Messaging (IM) Project OpenIM Source Code Deployment Guide

Deploying OpenIM involves multiple components and supports various methods, including source code, Docker, and Kubernetes. This requires ensuring compatibility between different deployment methods while effectively managing differences between versions. Indeed, these are complex issues involving in-depth technical details and precise system configurations. Our goal is to simplify the deployment process while maintaining the system's flexibility and stability to suit different users' needs. Currently, version 3.5 has simplified the deployment process, and this version will be maintained for a long time. We welcome everyone to use it.

1. Environment and Component Requirements

🌐 Environmental Requirements

Note	Detailed Description
OS	Linux system
Hardware	At least 4GB of RAM
Golang	v1.19 or higher
Docker	v24.0.5 or higher
Git	v2.17.1 or higher

💾 Storage Component Requirements

Storage Component	Recommended Version
MongoDB	v6.0.2 or higher
Redis	v7.0.0 or higher
Zookeeper	v3.8
Kafka	v3.5.1
MySQL	v5.7 or higher
MinIO	Latest version

---

2. Deploying OpenIM Server (IM)

2.1 📡 Setting OPENIM_IP

# If the server has an external IP
export OPENIM_IP="external IP"
# If only providing internal network services
export OPENIM_IP="internal IP"

2.2 🏗️ Deploying Components (mongodb/redis/zookeeper/kafka/MinIO, etc.)

git clone https://github.com/OpenIMSDK/open-im-server && cd open-im-server
# It's recommended to switch to release-v3.5 or later release branches
make init && docker compose up -d

2.3 🛠️ Compilation

make build

2.4 🚀 Starting/Stopping/Checking

# Start
make start
# Stop
make stop
# Check
make check

3. Deploying App Server (Chat)

3.1 🏗️ Deploying Components (mysql)

# Go back to the previous directory
cd ..
# Clone the repository, recommended to switch to release-v1.5 or later release branches
git clone https://github.com/OpenIMSDK/chat chat && cd chat
# Deploy mysql
docker run -d --name mysql2 -p 13306:3306 -p 33306:33060 -v "$(pwd)/components/mysql/data:/var/lib/mysql" -v "/etc/localtime:/etc/localtime" -e MYSQL_ROOT_PASSWORD="openIM123" --restart always mysql:5.7

3.2 🛠️ Compilation

make init
make build

3.3 🚀 Starting/Stopping/Checking

# Start
make start
# Stop
make stop
# Check
make check

4. Quick Validation

📡 Open Ports

IM Ports

TCP Port	Description	Action
TCP:10001	ws protocol, messaging port, for client SDK	Allow port
TCP:10002	API port, like user, friend, group, message interfaces	Allow port
TCP:10005	Required when choosing MinIO storage (OpenIM defaults to MinIO storage)	Allow port

Chat Ports

TCP Port	Description	Action
TCP:10008	Business system, like registration, login, etc.	Allow port
TCP:10009	Management backend, like statistics, account banning, etc.	Allow port

PC Web and Management Backend Frontend Resource Ports

TCP Port	Description	Action
TCP:11001	PC Web frontend resources	Allow port
TCP:11002	Management backend frontend resources	Allow port

Grafana Port

TCP Port	Description	Action
TCP:13000	Grafana port	Allow port

---

Verification

PC Web Verification

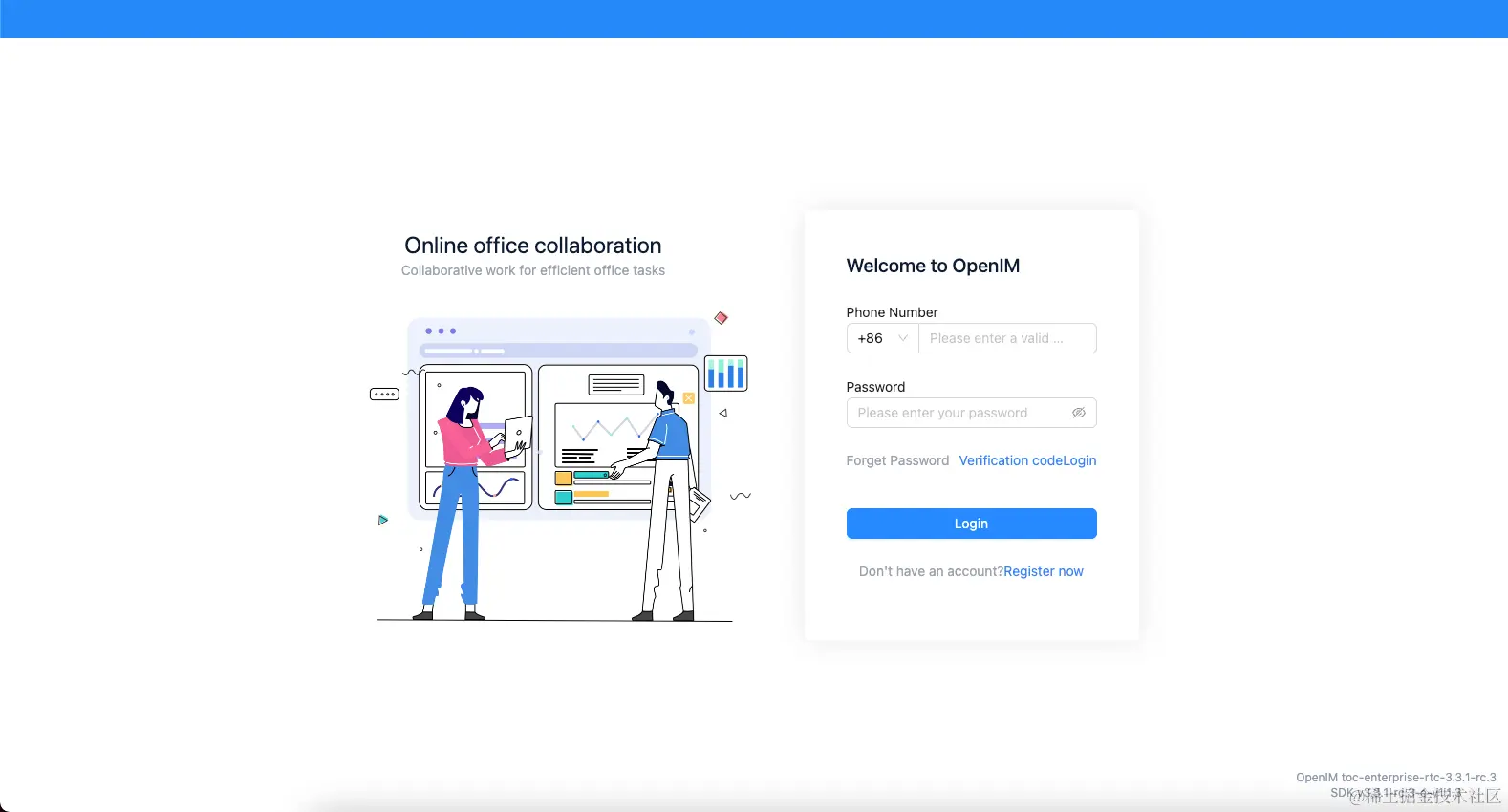

Note: Enter http://ip:11001 in your browser to access the PC Web. This IP should be the server's OPENIM_IP to ensure browser accessibility. For first-time use, please register using your mobile phone number, with the default verification code being 666666.

Image: PC Web Interface Example

App Verification

Scan the following QR code or click here to download.

Image: App Download QR Code

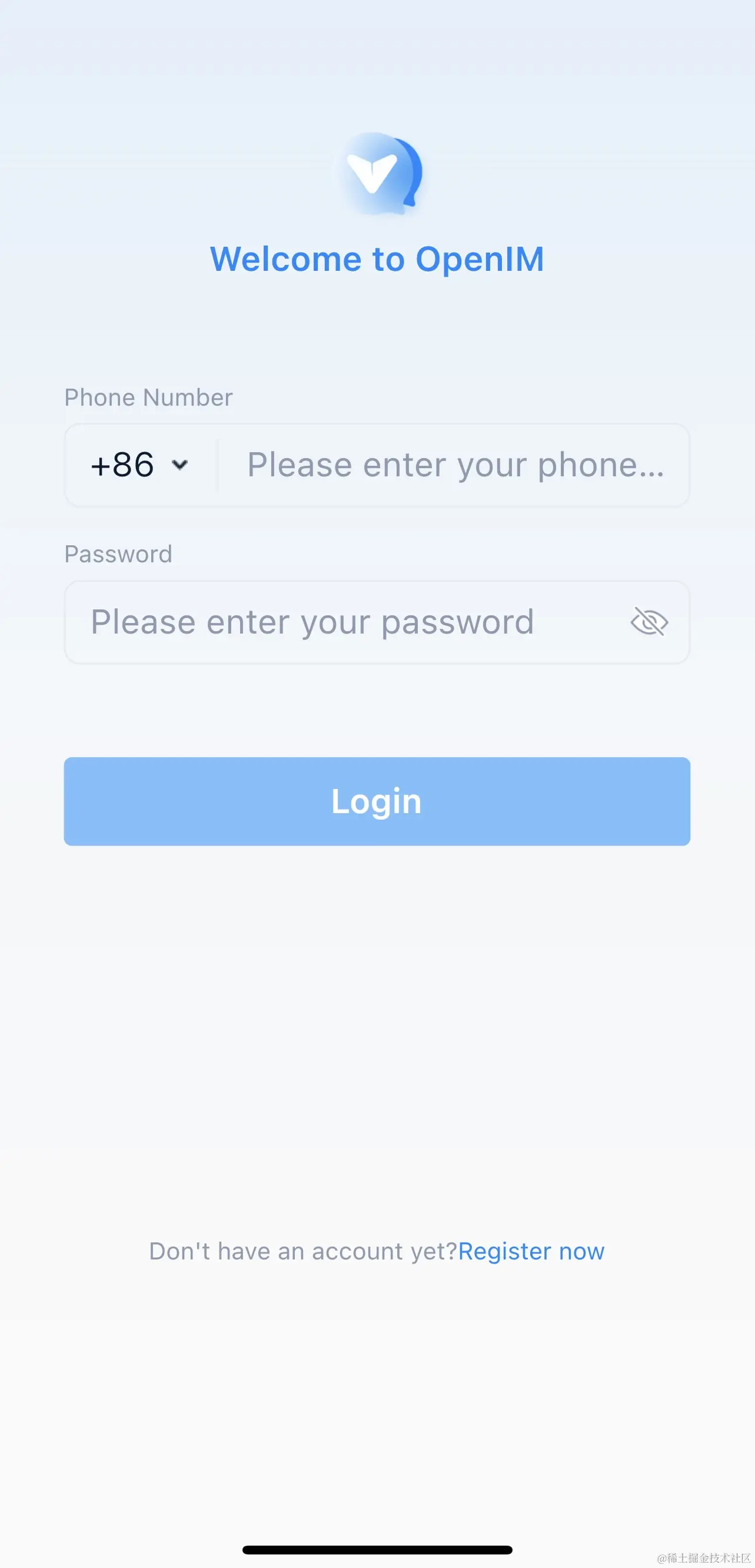

Note: Double-click on OpenIM and change the IP to the server's OPENIM_IP then restart the App. Please ensure related ports are open, and restart the App after making changes. For first-time use, please register first through your mobile phone number, with the default verification code being 666666.

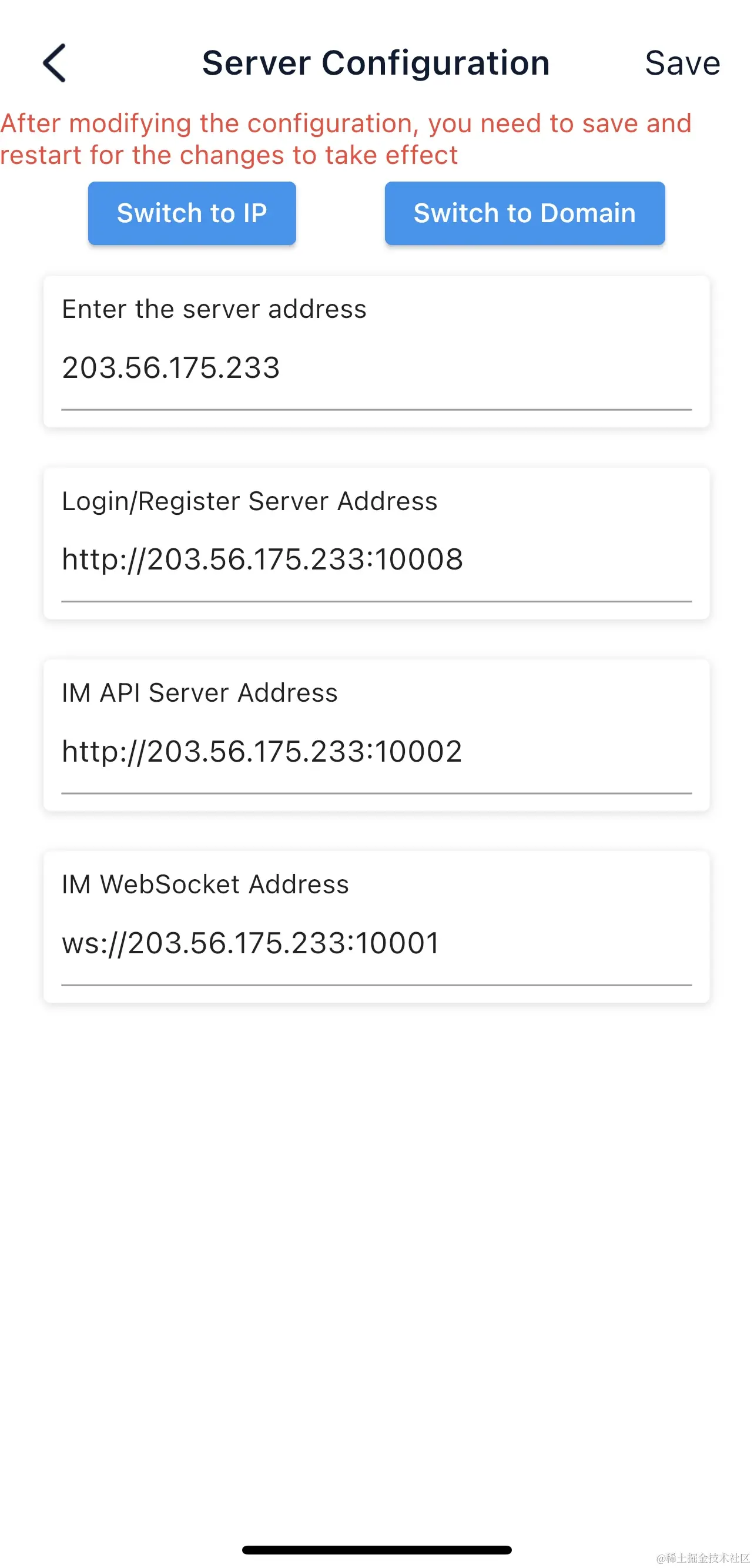

Image: Server Address Modification - Step 1

Image: Server Address Modification - Step 2

5. Modifying Configuration Items

5.1 🛠️ Modifying Shared Configuration Items

Configuration Item	Files to be Modified	Action
mongo/kafka/minio related	.env, openim-server/config/config.yaml	Restart components and IM
redis/zookeeper related	.env, openim-server/config/config.yaml, chat/config/config.yaml	Restart components, IM, and Chat
SECRET	openim-server/config/config.yaml, chat/config/config.yaml	Restart IM and Chat

5.2 🔄 Modifying Special Configuration Items

Special configuration items: API_OPENIM_PORT/MINIO_PORT/OPENIM_IP/GRAFANA_PORT

0. Modify the special configuration items in the .env file
1. Modify the configuration in openim-server/config/config.yaml according to the rules
2. Modify the configuration in chat/config/config.yaml according to the rules
3. Restart IM and Chat

5.3 🛠️ Modifying Other Configuration Items

For other configuration items in .env, chat/config/config.yaml, and openim-server/config/config.yaml, you can modify these items directly in the respective files.

5.4 Modifying Ports

Note that for any modification of IM-related ports, it's necessary to synchronize the changes in open-im-server/scripts/install/environment.sh.

---

6. Frequently Asked Questions

6.1 📜 Viewing Logs

• Runtime logs: logs/OpenIM.log.all.*
• Startup logs: _output/logs/openim_*.log

6.2 🚀 Startup Order

The startup order is as follows:

0. Components IM depends on: mongo/redis/kafka/zookeeper/minio, etc.
1. IM
2. Components Chat depends on: mysql
3. Chat

6.3 🐳 Docker Version

• The new version of Docker has integrated docker-compose.
• Older versions of Docker might not support the gateway feature. It's recommended to upgrade to a newer version, such as 23.0.1.

7. About OpenIM

Thanks to widespread developer support, OpenIM maintains a leading position in the open-source instant messaging (IM) field, with the number of stars on Github exceeding 12,000. In the current context of increasing attention to data and privacy security, the demand for IM private deployment is growing, which aligns with the rapid development trend of China's software industry. Especially in government and enterprise sectors, with the rapid development of information technology and the widespread application of innovative

industries, the demand for IM solutions has surged. Further, the continuous expansion of the collaborative office software market has made "secure and controllable" a key attribute.

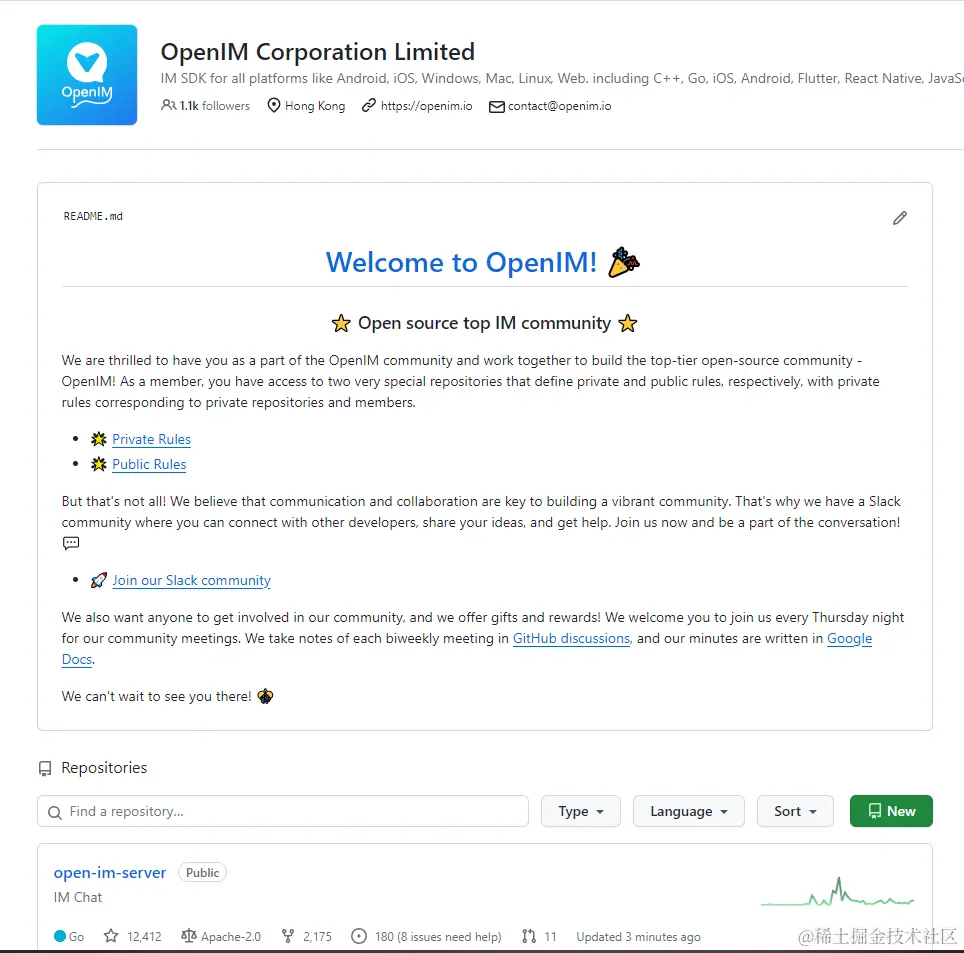

Repository address: github.com/openimsdk
