2.11.10 realStartActivityLocked()
final boolean realStartActivityLocked(ActivityRecord r, ProcessRecord app,
boolean andResume, boolean checkConfig) throws RemoteException {
if (!allPausedActivitiesComplete()) {
// While there are activities pausing we skipping starting any new activities until
// pauses are complete. NOTE: that we also do this for activities that are starting in
// the paused state because they will first be resumed then paused on the client side.
if (DEBUG_SWITCH || DEBUG_PAUSE || DEBUG_STATES) Slog.v(TAG_PAUSE,
"realStartActivityLocked: Skipping start of r=" + r
+ " some activities pausing...");
return false;
}
// 获取app stack
final TaskRecord task = r.getTask();
final ActivityStack stack = task.getStack();
beginDeferResume();
try {
......
// 创建activity启动transaction对象
// 详见2.13.1
final ClientTransaction clientTransaction = ClientTransaction.obtain(app.thread,
r.appToken);
// 添加回调。详见2.13.5
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
System.identityHashCode(r), r.info,
// TODO: Have this take the merged configuration instead of separate global
// and override configs.
mergedConfiguration.getGlobalConfiguration(),
mergedConfiguration.getOverrideConfiguration(), r.compat,
r.launchedFromPackage, task.voiceInteractor, app.repProcState, r.icicle,
r.persistentState, results, newIntents, mService.isNextTransitionForward(),
profilerInfo));
// Set desired final state.
final ActivityLifecycleItem lifecycleItem;
if (andResume) {
lifecycleItem = ResumeActivityItem.obtain(mService.isNextTransitionForward());
} else {
lifecycleItem = PauseActivityItem.obtain();
}
clientTransaction.setLifecycleStateRequest(lifecycleItem);
// 设置定时任务，详见2.14.1
mService.getLifecycleManager().scheduleTransaction(clientTransaction);
......
}
在realStartActivityLocked()中，主要做以下工作：
- 创建一个ClientTransaction对象。详见2.13.1
- 为这个对象添加回调
- 使用这个对象设置定时任务。mService是ActivityManagerService对象，
ActivityManagerService调用getLifecycleManager()方法，返回ActivityManagerService中持有的ClientLifecycleManager对象，因此实际上是ClientLifecycleManager执行了scheduleTransaction()函数。详见2.14.1
2.12 ActivityStack.java
path：frameworks/base/services/core/java/com/android/server/am/ActivityStack.java
2.12.1 resumeTopActivityUncheckedLocked()
boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
if (mStackSupervisor.inResumeTopActivity) {
// Don't even start recursing.
return false;
}
boolean result = false;
try {
// Protect against recursion.
mStackSupervisor.inResumeTopActivity = true;
// 详见2.12.2
result = resumeTopActivityInnerLocked(prev, options);
// When resuming the top activity, it may be necessary to pause the top activity (for
// example, returning to the lock screen. We suppress the normal pause logic in
// {@link #resumeTopActivityUncheckedLocked}, since the top activity is resumed at the
// end. We call the {@link ActivityStackSupervisor#checkReadyForSleepLocked} again here
// to ensure any necessary pause logic occurs. In the case where the Activity will be
// shown regardless of the lock screen, the call to
// {@link ActivityStackSupervisor#checkReadyForSleepLocked} is skipped.
final ActivityRecord next = topRunningActivityLocked(true /* focusableOnly */);
if (next == null || !next.canTurnScreenOn()) {
checkReadyForSleep();
}
} finally {
mStackSupervisor.inResumeTopActivity = false;
}
return result;
}
2.12.2 resumeTopActivityInnerLocked()
@GuardedBy("mService")
private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
if (!mService.mBooting && !mService.mBooted) {
// Not ready yet!
return false;
}
......
// Find the next top-most activity to resume in this stack that is not finishing and is
// focusable. If it is not focusable, we will fall into the case below to resume the
// top activity in the next focusable task.
final ActivityRecord next = topRunningActivityLocked(true /* focusableOnly */);
......
try {
......
// 详见2.11.9
mStackSupervisor.startSpecificActivityLocked(next, true, false);
}
}
......
return true;
}
2.13 ClientTransaction
2.13.1 obtain()
/** Obtain an instance initialized with provided params. */
public static ClientTransaction obtain(IApplicationThread client, IBinder activityToken) {
ClientTransaction instance = ObjectPool.obtain(ClientTransaction.class);
if (instance == null) {
instance = new ClientTransaction();
}
instance.mClient = client;
instance.mActivityToken = activityToken;
return instance;
}
使用单利创建一个对象，并且用传来的参数初始化这个对象。
2.13.2 schedule()
/** Target client. */
private IApplicationThread mClient;
/**
* Schedule the transaction after it was initialized. It will be send to client and all its
* individual parts will be applied in the following sequence:
* 1. The client calls { @link #preExecute(ClientTransactionHandler)}, which triggers all work
* that needs to be done before actually scheduling the transaction for callbacks and
* lifecycle state request.
* 2. The transaction message is scheduled.
* 3. The client calls { @link TransactionExecutor#execute(ClientTransaction)}, which executes
* all callbacks and necessary lifecycle transitions.
*/
public void schedule() throws RemoteException {
// 执行2.15.1.1
mClient.scheduleTransaction(this);
}
mClient已经是初始化过的IApplicationThread对象，因此最终由IApplicationThread的实现类执行scheduleTransaction()函数。
IApplicationThread的子类在ActivityThread中由ApplicationThread.java继承，是ActivityThread的子类。详见2.15
至此，运行在SystemServer的AMS相关进程，通过IApplicationThread这个AIDL进行Binder通信，实现了跨进程通信。
2.13.3 preExecute()
/**
* Do what needs to be done while the transaction is being scheduled on the client side.
* @param clientTransactionHandler Handler on the client side that will executed all operations
* requested by transaction items.
*/
public void preExecute(android.app.ClientTransactionHandler clientTransactionHandler) {
if (mActivityCallbacks != null) {
final int size = mActivityCallbacks.size();
for (int i = 0; i < size; ++i) {
mActivityCallbacks.get(i).preExecute(clientTransactionHandler, mActivityToken);
}
}
if (mLifecycleStateRequest != null) {
mLifecycleStateRequest.preExecute(clientTransactionHandler, mActivityToken);
}
}
2.13.4 getCallbacks()
/** Get the list of callbacks. */
@Nullable
List<ClientTransactionItem> getCallbacks() {
return mActivityCallbacks;
}
2.13.5 addCallback()
private List<ClientTransactionItem> mActivityCallbacks;
/**
* Add a message to the end of the sequence of callbacks.
* @param activityCallback A single message that can contain a lifecycle request/callback.
*/
public void addCallback(ClientTransactionItem activityCallback) {
if (mActivityCallbacks == null) {
mActivityCallbacks = new ArrayList<>();
}
mActivityCallbacks.add(activityCallback);
}
将回调添加到mActivityCallbacks列表中去。添加的是抽象类ClientTransactionItem。
2.14 ClientLifecycleManager.java
path：frameworks/base/services/core/java/com/android/server/am/ClientLifecycleManager.java
2.14.1 scheduleTransaction()
/**
* Schedule a transaction, which may consist of multiple callbacks and a lifecycle request.
* @param transaction A sequence of client transaction items.
* @throws RemoteException
*
* @see ClientTransaction
*/
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
// 详见2.13.2
transaction.schedule();
if (!(client instanceof Binder)) {
// If client is not an instance of Binder - it's a remote call and at this point it is
// safe to recycle the object. All objects used for local calls will be recycled after
// the transaction is executed on client in ActivityThread.
transaction.recycle();
}
}
2.15 ActivityThread.java
path：/frameworks/base/core/java/android/app/ActivityThread.java
2.15.1 ApplicationThread
2.15.1.1 scheduleTransaction()
@Override
public void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
ActivityThread.this.scheduleTransaction(transaction);
}
调用ActivityThread父类ClientTransactionHandler的scheduleTransaction()。执行2.16.1
2.15.2 H
class H extends Handler {
......
public static final int EXECUTE_TRANSACTION = 159;
......
public void handleMessage(Message msg) {
......
case EXECUTE_TRANSACTION:
final ClientTransaction transaction = (ClientTransaction) msg.obj;
// 执行2.17.1
mTransactionExecutor.execute(transaction);
if (isSystem()) {
// Client transactions inside system process are recycled on the client side
// instead of ClientLifecycleManager to avoid being cleared before this
// message is handled.
transaction.recycle();
}
// TODO(lifecycler): Recycle locally scheduled transactions.
break;
......
H类处理EXECUTE_TRANSACTION消息， TransactionExecutor执行execute方法，携带传来的transaction作为参数。详见2.17.1
2.15.3 handleLaunchActivity()
/**
* Extended implementation of activity launch. Used when server requests a launch or relaunch.
*/
@Override
public Activity handleLaunchActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions, Intent customIntent) {
// If we are getting ready to gc after going to the background, well
// we are back active so skip it.
unscheduleGcIdler();
mSomeActivitiesChanged = true;
if (r.profilerInfo != null) {
mProfiler.setProfiler(r.profilerInfo);
mProfiler.startProfiling();
}
// Make sure we are running with the most recent config.
handleConfigurationChanged(null, null);
if (localLOGV) Slog.v(
TAG, "Handling launch of " + r);
// Initialize before creating the activity
if (!ThreadedRenderer.sRendererDisabled) {
GraphicsEnvironment.earlyInitEGL();
}
WindowManagerGlobal.initialize();
// 执行启动activity，执行2.15.4
final Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
r.createdConfig = new Configuration(mConfiguration);
reportSizeConfigurations(r);
if (!r.activity.mFinished && pendingActions != null) {
pendingActions.setOldState(r.state);
pendingActions.setRestoreInstanceState(true);
pendingActions.setCallOnPostCreate(true);
}
} else {
// If there was an error, for any reason, tell the activity manager to stop us.
try {
ActivityManager.getService()
.finishActivity(r.token, Activity.RESULT_CANCELED, null,
Activity.DONT_FINISH_TASK_WITH_ACTIVITY);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
}
return a;
}
2.15.4 performLaunchActivity()
/** Core implementation of activity launch. */
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// 获取ActivityInfo对象aInfo
ActivityInfo aInfo = r.activityInfo;
if (r.packageInfo == null) {
// 获取apk文件描述类LoadApk
r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
Context.CONTEXT_INCLUDE_CODE);
}
// 获取conponentName
ComponentName component = r.intent.getComponent();
if (component == null) {
component = r.intent.resolveActivity(
mInitialApplication.getPackageManager());
r.intent.setComponent(component);
}
if (r.activityInfo.targetActivity != null) {
component = new ComponentName(r.activityInfo.packageName,
r.activityInfo.targetActivity);
}
// 创建Activity的Context
ContextImpl appContext = createBaseContextForActivity(r);
Activity activity = null;
try {
// 类加载器创建Activity实例
java.lang.ClassLoader cl = appContext.getClassLoader();
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
r.intent.prepareToEnterProcess();
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}
try {
// 创建Application对象
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
if (localLOGV) Slog.v(
TAG, r + ": app=" + app
+ ", appName=" + app.getPackageName()
+ ", pkg=" + r.packageInfo.getPackageName()
+ ", comp=" + r.intent.getComponent().toShortString()
+ ", dir=" + r.packageInfo.getAppDir());
if (activity != null) {
// 初始化Activity
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
if (r.overrideConfig != null) {
config.updateFrom(r.overrideConfig);
}
if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
+ r.activityInfo.name + " with config " + config);
Window window = null;
if (r.mPendingRemoveWindow != null && r.mPreserveWindow) {
window = r.mPendingRemoveWindow;
r.mPendingRemoveWindow = null;
r.mPendingRemoveWindowManager = null;
}
appContext.setOuterContext(activity);
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config,
r.referrer, r.voiceInteractor, window, r.configCallback);
if (customIntent != null) {
activity.mIntent = customIntent;
}
r.lastNonConfigurationInstances = null;
checkAndBlockForNetworkAccess();
activity.mStartedActivity = false;
int theme = r.activityInfo.getThemeResource();
if (theme != 0) {
activity.setTheme(theme);
}
activity.mCalled = false;
// activity的onCreate方法。详见2.2.3
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
if (!activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + r.intent.getComponent().toShortString() +
" did not call through to super.onCreate()");
}
r.activity = activity;
}
r.setState(ON_CREATE);
mActivities.put(r.token, r);
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to start activity " + component
+ ": " + e.toString(), e);
}
}
return activity;
}
activity启动的核心方法。
2.15.5 sendActivityResult()
public final void sendActivityResult(
IBinder token, String id, int requestCode,
int resultCode, Intent data) {
if (DEBUG_RESULTS) Slog.v(TAG, "sendActivityResult: id=" + id
+ " req=" + requestCode + " res=" + resultCode + " data=" + data);
ArrayList<ResultInfo> list = new ArrayList<ResultInfo>();
list.add(new ResultInfo(id, requestCode, resultCode, data));
final ClientTransaction clientTransaction = ClientTransaction.obtain(mAppThread, token);
clientTransaction.addCallback(ActivityResultItem.obtain(list));
try {
mAppThread.scheduleTransaction(clientTransaction);
} catch (RemoteException e) {
// Local scheduling
}
}
2.16 ClientTransactionHandler.java
path：frameworks/base/core/java/android/app/ClientTransactionHandler.java
抽象类，子类是：ActivityThread
public final class ActivityThread extends ClientTransactionHandler
2.16.1 scheduleTransaction()
/** Prepare and schedule transaction for execution. */
void scheduleTransaction(ClientTransaction transaction) {
transaction.preExecute(this);
sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
}
主要做两件事：
- 客户端侧的预处理。详见2.13.3
- 给ActivityThread.H类发送EXECUTE_TRANSACTION的消息。详见2.15.2
2.16.2 handleLaunchActivity()
/** Perform activity launch. */
public abstract Activity handleLaunchActivity(ActivityThread.ActivityClientRecord r,
PendingTransactionActions pendingActions, Intent customIntent);
抽象方法，详见实类中的方法。详见2.15.3
2.17 TransactionExecutor
2.17.1 execute()
/**
* Resolve transaction.
* First all callbacks will be executed in the order they appear in the list. If a callback
* requires a certain pre- or post-execution state, the client will be transitioned accordingly.
* Then the client will cycle to the final lifecycle state if provided. Otherwise, it will
* either remain in the initial state, or last state needed by a callback.
*/
public void execute(ClientTransaction transaction) {
final IBinder token = transaction.getActivityToken();
log("Start resolving transaction for client: " + mTransactionHandler + ", token: " + token);
// 2.17.2
executeCallbacks(transaction);
// 2.17.3
executeLifecycleState(transaction);
mPendingActions.clear();
log("End resolving transaction");
}
2.17.2 executeCallbacks()
/** Cycle through all states requested by callbacks and execute them at proper times. */
@VisibleForTesting
public void executeCallbacks(ClientTransaction transaction) {
final List<ClientTransactionItem> callbacks = transaction.getCallbacks();
......
final int size = callbacks.size();
for (int i = 0; i < size; ++i) {
......
final ClientTransactionItem item = callbacks.get(i);
// 执行启动activity
item.execute(mTransactionHandler, token, mPendingActions);
item.postExecute(mTransactionHandler, token, mPendingActions);
......
}
}
在executeCallbacks中，先从transaction中取出callbacks列表。这个callback是在2.11.10的ActivityStackSupervisor.java的realStartActivityLocked()函数中，开启任务之前添加进去的。
callbacks列表里面希望添加的是抽象类ClientTransactionItem，实际上在realStartActivityLocked()中添加的是LaunchActivityItem.obtain(new Intent(r.intent)，因此LaunchActivityItem.obtain()这个方法返回的应该是ClientTransactionItem的实现子类。
// 添加回调
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
System.identityHashCode(r), r.info,
// TODO: Have this take the merged configuration instead of separate global
// and override configs.
mergedConfiguration.getGlobalConfiguration(),
mergedConfiguration.getOverrideConfiguration(), r.compat,
r.launchedFromPackage, task.voiceInteractor, app.repProcState, r.icicle,
r.persistentState, results, newIntents, mService.isNextTransitionForward(),
profilerInfo));
因此这里的item是LaunchActivityItem对象，item执行的execute()和postExecute()也是LaunchActivityItem的函数。详见2.18
2.17.3 executeLifecycleState()
2.18 LaunchActivityItem.java
path：/frameworks/base/core/java/android/app/servertransaction/LaunchActivityItem.java
2.18.1 LaunchActivityItem.obtain()
/** Obtain an instance initialized with provided params. */
public static LaunchActivityItem obtain(Intent intent, int ident, ActivityInfo info,
Configuration curConfig, Configuration overrideConfig, CompatibilityInfo compatInfo,
String referrer, IVoiceInteractor voiceInteractor, int procState, Bundle state,
PersistableBundle persistentState, List<ResultInfo> pendingResults,
List<ReferrerIntent> pendingNewIntents, boolean isForward, ProfilerInfo profilerInfo) {
LaunchActivityItem instance = ObjectPool.obtain(LaunchActivityItem.class);
if (instance == null) {
instance = new LaunchActivityItem();
}
setValues(instance, intent, ident, info, curConfig, overrideConfig, compatInfo, referrer,
voiceInteractor, procState, state, persistentState, pendingResults,
pendingNewIntents, isForward, profilerInfo);
return instance;
}
单例模式创建LaunchActivityItem对象
2.18.2 execute()
@Override
public void execute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
ActivityClientRecord r = new ActivityClientRecord(token, mIntent, mIdent, mInfo,
mOverrideConfig, mCompatInfo, mReferrer, mVoiceInteractor, mState, mPersistentState,
mPendingResults, mPendingNewIntents, mIsForward,
mProfilerInfo, client);
// 2.16.2
client.handleLaunchActivity(r, pendingActions, null /* customIntent */);
Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
}
执行ClientTransactionHandler.handleLaunchActivity()函数。handleLaunchActivity()是抽象类中的抽象方法。详见2.16.2。
2.18.3 preExecute()
@Override
public void preExecute(ClientTransactionHandler client, IBinder token) {
client.updateProcessState(mProcState, false);
client.updatePendingConfiguration(mCurConfig);
}
2..18.4 postExecute()
没有这个函数？！
2.19 Process.java
path：frameworks/base/core/java/android/os/Process.java
2.19.1 start()
public static final String ZYGOTE_SOCKET = "zygote";
public static final String SECONDARY_ZYGOTE_SOCKET = "zygote_secondary";
public static final ZygoteProcess zygoteProcess =
new ZygoteProcess(ZYGOTE_SOCKET, SECONDARY_ZYGOTE_SOCKET);
public static final ProcessStartResult start(final String processClass,
final String niceName,
int uid, int gid, int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
String seInfo,
String abi,
String instructionSet,
String appDataDir,
String invokeWith,
String[] zygoteArgs) {
return zygoteProcess.start(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, zygoteArgs);
}
2.20 ZygoteProcess.java
path：frameworks/base/core/java/android/os/ZygoteProcess.java
2.20.1 start()
public final Process.ProcessStartResult start(final String processClass,
final String niceName,
int uid, int gid, int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
String seInfo,
String abi,
String instructionSet,
String appDataDir,
String invokeWith,
String[] zygoteArgs) {
try {
return startViaZygote(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, false /* startChildZygote */,
zygoteArgs);
} catch (ZygoteStartFailedEx ex) {
Log.e(LOG_TAG,
"Starting VM process through Zygote failed");
throw new RuntimeException(
"Starting VM process through Zygote failed", ex);
}
}
2.20.2 startViaZygote()
private Process.ProcessStartResult startViaZygote(final String processClass,
final String niceName,
final int uid, final int gid,
final int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
String seInfo,
String abi,
String instructionSet,
String appDataDir,
String invokeWith,
boolean startChildZygote,
String[] extraArgs)
throws ZygoteStartFailedEx {
ArrayList<String> argsForZygote = new ArrayList<String>();
// --runtime-args, --setuid=, --setgid=,
// and --setgroups= must go first
argsForZygote.add("--runtime-args");
argsForZygote.add("--setuid=" + uid);
argsForZygote.add("--setgid=" + gid);
argsForZygote.add("--runtime-flags=" + runtimeFlags);
if (mountExternal == Zygote.MOUNT_EXTERNAL_DEFAULT) {
argsForZygote.add("--mount-external-default");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_READ) {
argsForZygote.add("--mount-external-read");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_WRITE) {
argsForZygote.add("--mount-external-write");
}
argsForZygote.add("--target-sdk-version=" + targetSdkVersion);
// --setgroups is a comma-separated list
if (gids != null && gids.length > 0) {
StringBuilder sb = new StringBuilder();
sb.append("--setgroups=");
int sz = gids.length;
for (int i = 0; i < sz; i++) {
if (i != 0) {
sb.append(',');
}
sb.append(gids[i]);
}
argsForZygote.add(sb.toString());
}
if (niceName != null) {
argsForZygote.add("--nice-name=" + niceName);
}
if (seInfo != null) {
argsForZygote.add("--seinfo=" + seInfo);
}
if (instructionSet != null) {
argsForZygote.add("--instruction-set=" + instructionSet);
}
if (appDataDir != null) {
argsForZygote.add("--app-data-dir=" + appDataDir);
}
if (invokeWith != null) {
argsForZygote.add("--invoke-with");
argsForZygote.add(invokeWith);
}
if (startChildZygote) {
argsForZygote.add("--start-child-zygote");
}
argsForZygote.add(processClass);
if (extraArgs != null) {
for (String arg : extraArgs) {
argsForZygote.add(arg);
}
}
synchronized(mLock) {
return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi), argsForZygote);
}
}
2.20.3 zygoteSendArgsAndGetResult()
private static Process.ProcessStartResult zygoteSendArgsAndGetResult(
ZygoteState zygoteState, ArrayList<String> args)
throws ZygoteStartFailedEx {
try {
// Throw early if any of the arguments are malformed. This means we can
// avoid writing a partial response to the zygote.
int sz = args.size();
for (int i = 0; i < sz; i++) {
if (args.get(i).indexOf('\n') >= 0) {
throw new ZygoteStartFailedEx("embedded newlines not allowed");
}
}
/**
* See com.android.internal.os.SystemZygoteInit.readArgumentList()
* Presently the wire format to the zygote process is:
* a) a count of arguments (argc, in essence)
* b) a number of newline-separated argument strings equal to count
*
* After the zygote process reads these it will write the pid of
* the child or -1 on failure, followed by boolean to
* indicate whether a wrapper process was used.
*/
final BufferedWriter writer = zygoteState.writer;
final DataInputStream inputStream = zygoteState.inputStream;
writer.write(Integer.toString(args.size()));
writer.newLine();
for (int i = 0; i < sz; i++) {
String arg = args.get(i);
writer.write(arg);
writer.newLine();
}
writer.flush();
// Should there be a timeout on this?
Process.ProcessStartResult result = new Process.ProcessStartResult();
// Always read the entire result from the input stream to avoid leaving
// bytes in the stream for future process starts to accidentally stumble
// upon.
result.pid = inputStream.readInt();
result.usingWrapper = inputStream.readBoolean();
if (result.pid < 0) {
throw new ZygoteStartFailedEx("fork() failed");
}
return result;
} catch (IOException ex) {
zygoteState.close();
throw new ZygoteStartFailedEx(ex);
}
}
3. 核心方法流程图&流程总结
3.1 流程图
// 调用流程忽略返回的回调
3.2 简单总结
以上详细介绍了Activity的启动流程，在以上流程中：
- Application层：
- 2.1.1是在LauncherActivity.java在Application层，其中LauncherActivity使用的startActivity()方法是Application启动Activity的入口。
- LauncherActivity所在的进程作为Binder的Client端，通过这个方法，将创建和启动Activity的意图转送给system_server进程。
- Framework层：
- 从2.1.1~2.16.1再从2.16.1到2.1.7是Android Framework层启动Activity流程。
- 以上流程中从2.1.1到2.16.1运行在system_server中，是启动Activity中整个Framework中最复杂最核心的部分。
- 流程2.16.1到2.1.7，运行在目标Application进程，主要是通过Hanlder消息机制，使用这个进程内的通信机制，binder所在的线程向主线程发送H.LAUNCHER_ACTIVITY消息，最红创建Activity并且通过ApplicationThread调用Activity的onCreate()函数，并且完成对Activity的生命周期控制。
4. 原理图&总结

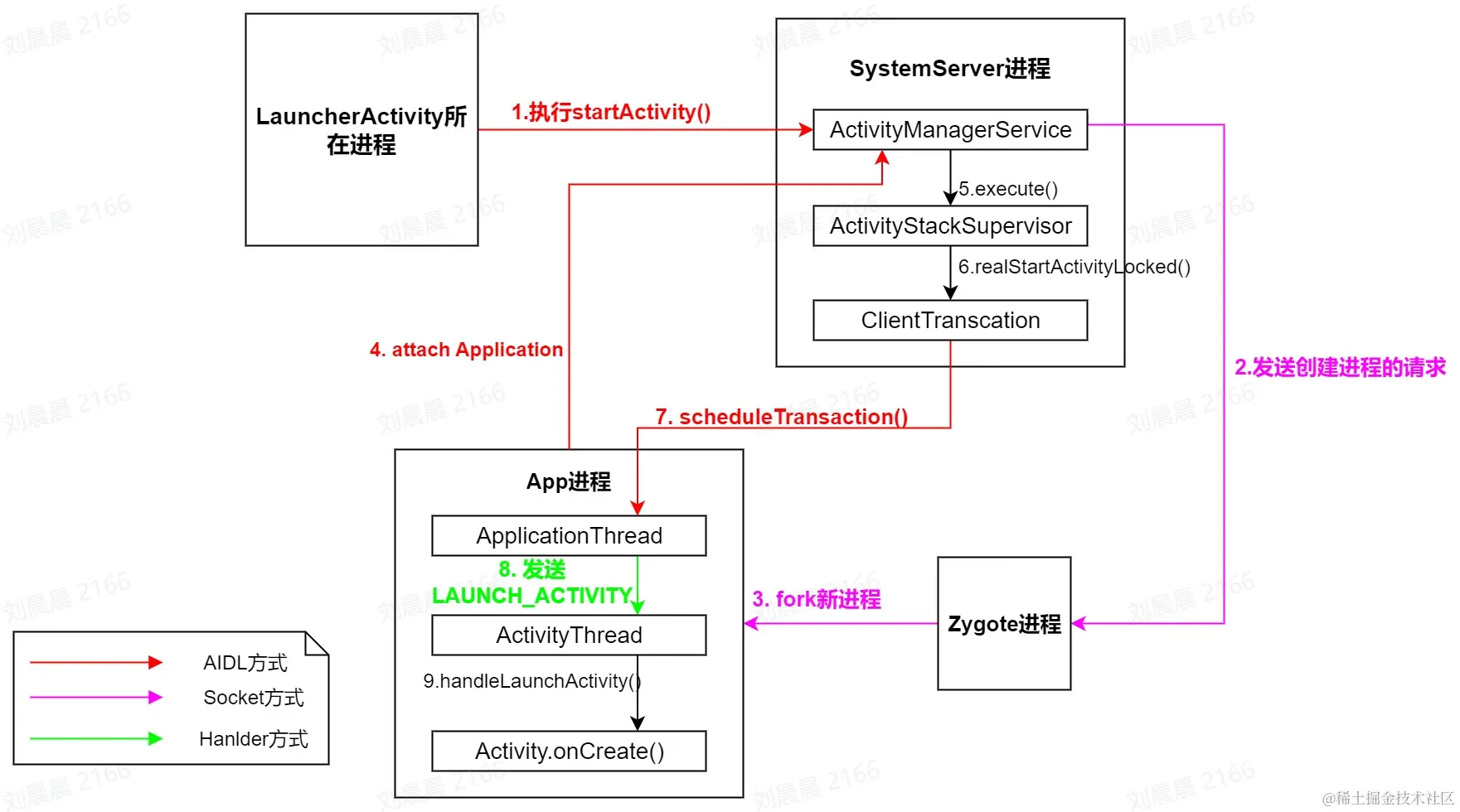

4.1 原理图：
4.2 总结
-
启动Activity的时候，LaucnehrActivity所在的进程通过startActivity()函数，使用Binder，作为Binder的Client，将创建Activity的意图发送给system_server。
-
system_server收到请求后，会判断意图中的Activity是否存在，如果不存在，通过socket就向zygote发送请求。如果存在就直接通过H.LAUNCHER_ACTIVITY启动对应的Activity
-
Zygote收到创建进程的请求后，fork出一个新的App进程
-
创建完成App进程后，通过Binder的system_server发起attachApplication请求
-
system_server进程收到请求后，通过内部函数和方法处理，即5~6。处理完成（满足条件）后，通过Binder，实现跨进程通信，告知App进程。
-
App进程的Binder进程（ApplicationThread）收到system_server发送的消息后，通过Handler向主线程发送H.LAUNCHER_ACTIVITY消息
-
App的主线程收到Message之后，创建目标Activity，并且指定Activity.onCreate()函数，管理Activity的生命周期。
6.参考：
- Activity生命周期：developer.android.com/reference/a…
