iOS 游戏sdk 制作

只会java
202 阅读5分钟

1 git 与github

要通过pod 集成，git和github是基础 。git 要和github 关联可以是https ssh，ssh 是主流方式，

查看本地ssh

cd ~/.ssh
ls

如果电脑已经有ssh key 会显示 id_rsa id_rsa.pub 一对公私秘钥

没有需要手动创建

ssh-keygen -t rsa -C "7543836065@qq.com"

输出

Generating public/private rsa key pair.
# Enter file in which to save the key (/c/Users/you/.ssh/id_rsa): [Press enter]

不输入文件名，使用默认文件名（推荐），那么就会生成 id_rsa 和 id_rsa.pub 两个秘钥文件。

Enter passphrase (empty for no passphrase):
# Enter same passphrase again:

也不要输入密码，没必要，要不每次使用ssh 提交代码都要输入密码

拷贝公钥到github中cat id_rsa.pub 获取公钥字符串

ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQCwbNBD5J4FJM5os4e0CoVab69tZAlLssyrgPy9FPpXVgpQ0HHqhrUYP4meNxmyzvjIdnAGtqab3uHJJ05ByTCToOPuPccMeKgchQv+RGTICEE7PeReHDqUkZzYQ0K5wZWrf2XoIy4IoBGv0lpm5JNjCgvaSAa36jrM4Tpul9gMk6h4g5MI1DjX1oZlLHBFz7srayg7SKUAKmeSfJV9dwbVvF9KUnqf3tx1/BPj4mIueeFJB46t/815YWdbAh/X06mf7vP3HlcaPHFL95sKUYvng3Xzx52Ig4zDEjHAWtJgkuyBYgBwWFfVJsa0vjMUkwKhIZB20hNvSGzMnv/XfsrykswPPZM/u5Hz18c5/hnZvDMVskeRs3v0rZhd2zfTMrUHD86lfqPacJ3UG+TeTEoVPdIFXVy39o5Hj1ZNP1h4XnsfqOwhYC/UzEcljiVDwAwLyB4N7rIBXioPsyzPxxuajpp2yZKuqWsy7iwK9N9nIS6xxaVPZ4oRS7SWne0NSz8= 754386065@qq.com

登录 github 设置->ssh key ->new key-> 粘贴上去 注意空格

测试ssh -T git@github.com 输出

The authenticity of host 'github.com (207.97.227.239)' can't be established.
# RSA key fingerprint is 16:27:ac:a5:76:28:2d:36:63:1b:56:4d:eb:df:a6:48.
# Are you sure you want to continue connecting (yes/no)?

再输入yes 输出一下提示说明就OK了

The authenticity of host 'github.com (207.97.227.239)' can't be established.
# RSA key fingerprint is 16:27:ac:a5:76:28:2d:36:63:1b:56:4d:eb:df:a6:48.
# Are you sure you want to continue connecting (yes/no)?

如何使用https 和ssh 使用

https
git clone https://github.com/hs300/csrp.git
ssh
git clone git@github.com:hs300/csrp.git

git 有本地仓库和远程仓库，本地仓库要和远程仓库建立联系。先在本地初始化了一个仓库或者从其他远程clone下来的，github 仓库也创建好了。
N多操作后提交代码

git add .
git commit -m 'xxx'
git tag 0.0.1  // 这一步非常重要 必须和后面pod描述文件里的内容保持一致
git push --tags
git push origin main （是mian 不是master）

git push origin master 报错

src refspec xxx does not match any / error: failed to push some refs to

改git push origin main 又报错 说你要合并。目前github 仓库啥也没有，直接强行推送 ! [rejected] master -> master (fetch first)

git push origin master --force

参考 stackoverflow.com/questions/2…

代码修改完毕后提交到git

中间还遇见了

HTTP/2 stream 1 was not closed cleanly before end of the underlying stream

配置一下就可以了

git config --global http.version HTTP/1.1

Failed to connect to github.com port 443: connection refused 把代理关了

2 Xcode 项目

3 Pod

创建（clone）模板

pod lib create PodTestLib

这个操作会在本地创建一个clone 一个模板仓库，改完后要提交到自己的仓库上

git remote add origin git@github.com:hs300/csrp.git //这里使用的就是SSH协议

按照提示输入参数。本地测试

pod lib lint #本地校验
pod spec lint #远程校验

会有提示错误，出了错google 搜索一下就有答案，改完还有警告可以忽略警告 pod trunk push XXSDK.podspec --allow-warnings 注册pod 账号

pod trunk register 9798989@qq.com 'wangermazi'会收到邮件，点一下确认连接就可以了。 推送到pod 服务器上pod trunk push XXSDK.podspec 成功后命令行窗口有提示，邮件也有推送。常规操作 pod update pod install

pod 描述文件创建完后 开始本地测试 can't get podspec validation [iOS] xcodebuild: Returned an unsuccessful exit code. 在描述文件中添加 github.com/CocoaPods/C…

s.pod_target_xcconfig = {
    'EXCLUDED_ARCHS[sdk=iphonesimulator*]' => 'arm64'
  }
  s.user_target_xcconfig = { 'EXCLUDED_ARCHS[sdk=iphonesimulator*]' => 'arm64' }

描述文件

#
# Be sure to run `pod lib lint XXSDK.podspec' to ensure this is a
# valid spec before submitting.
#
# Any lines starting with a # are optional, but their use is encouraged
# To learn more about a Podspec see https://guides.cocoapods.org/syntax/podspec.html
#

Pod::Spec.new do |s|
  s.name             = 'XXSDK'
  s.version          = '0.0.2'
  s.summary          = 'Boom game UI Pay 可以使用Xcode打开配置文件进行编辑，这里我是使用Xcode打开进行编辑的'

# This description is used to generate tags and improve search results.
#   * Think: What does it do? Why did you write it? What is the focus?
#   * Try to keep it short, snappy and to the point.
#   * Write the description between the DESC delimiters below.
#   * Finally, don't worry about the indent, CocoaPods strips it!

  s.description      = '如果需要多个人维护一个库,每个人都应该有权限push提交spec文件;第一个push的人可以被认为是管理员,可以再添加子管理员,这样子管理员就有权限push了'

  s.homepage         = 'https://github.com/hs300/XXSDK'
  # s.screenshots     = 'www.example.com/screenshots_1', 'www.example.com/screenshots_2'
  s.license          = { :type => 'MIT', :file => 'LICENSE' }
  s.author           = { 'hs300' => '52069334+hs300@users.noreply.github.com' }
  s.source           = { :git => 'https://github.com/hs300/XXSDK.git', :tag => s.version.to_s }
  # s.social_media_url = 'https://twitter.com/<TWITTER_USERNAME>'

  s.ios.deployment_target = '11.0'
  s.vendored_frameworks = 'MySDK.framework'
  s.source_files = 'XXSDK/Classes/**/*'

  s.pod_target_xcconfig = {
    'EXCLUDED_ARCHS[sdk=iphonesimulator*]' => 'arm64'
  }
  s.user_target_xcconfig = { 'EXCLUDED_ARCHS[sdk=iphonesimulator*]' => 'arm64' }
  # s.resource_bundles = {
  #   'XXSDK' => ['XXSDK/Assets/*.png']
  # }

  # s.public_header_files = 'Pod/Classes/**/*.h'
  # s.frameworks = 'UIKit', 'MapKit' 配置依赖的系统库
  # s.ios.libraries = 'sqlite'
  # s.dependency 'AFNetworking', '~> 2.3'
end

pod 一个本地库，将一个小公司的库推送到cocopods 索引实际价值不高，还会拉长工作流。放本地也能达到需求 egg

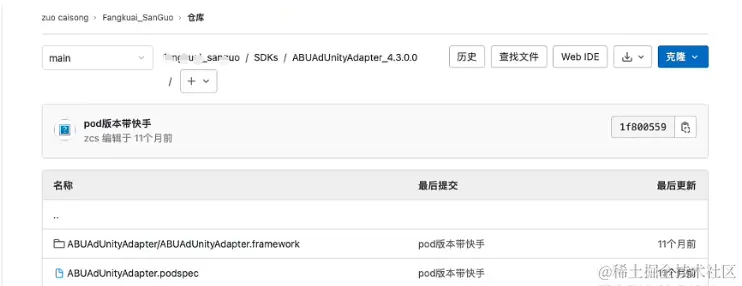

pod 'ABUAdUnityAdapter', :path=>'../SDKs/ABUAdUnityAdapter_4.3.0.0/' 项目结构如图



fangkuai
----App
--------Podfile
----SDKs
--------ABUAdAdmobAdapter_9.13.0.0
------------ABUAdAdmobAdapter.framework
------------ABUAdAdmobAdapter.podspec

ABUAdAdmobAdapter.podspec 内容

Pod::Spec.new do |spec|

  spec.name         = 'ABUAdAdmobAdapter'
  spec.version      = '9.13.0.0'
  spec.summary      = 'ABUAdAdmobAdapter is a adapter SDK from Bytedance providing media union AD service.'
  spec.homepage     = 'https://www.csjplatform.com/gromore'
  spec.description  = <<-DESC
  ABUAdAdmobAdapter is a adapter SDK from Bytedance providing media union AD service.
                       DESC

  spec.license      = { :type => 'MIT', :file => 'LICENSE' }
  spec.author       = 'makaiwen'

  spec.platform     = :ios, '9.0'

  spec.source = { :git => 'https://www.csjplatform.com/gromore' }

  spec.requires_arc = true
  # spec.user_target_xcconfig =   {'OTHER_LDFLAGS' => ['-lObjC']}
  spec.pod_target_xcconfig = { 'EXCLUDED_ARCHS[sdk=iphonesimulator*]' => 'arm64' }
  spec.user_target_xcconfig = { 'EXCLUDED_ARCHS[sdk=iphonesimulator*]' => 'arm64' }

  spec.ios.deployment_target = '9.0'

  valid_archs = ['arm64', 'armv7', 'x86_64', 'i386']

	spec.ios.vendored_frameworks = 'ABUAdAdmobAdapter/ABUAdAdmobAdapter.framework'
  spec.dependency 'Ads-Mediation-CN'
  spec.dependency "BURelyFoundation"
end

podfile 中的内容

# project 'xxxx.xcodeproj'

#use_frameworks!

install! 'cocoapods', :deterministic_uuids => false

platform :ios, '10.0'


def pod_for_gm
  # 1.GroMoreSDK核心库
  pod 'Ads-Mediation-CN', :path=>'../SDKs/Ads-Mediation-CN_3.9.0.2/'
  # 2.GroMore官方适配adapter
  pod 'ABUAdUnityAdapter', :path=>'../SDKs/ABUAdUnityAdapter_4.3.0.0/'
  pod 'ABUAdAdmobAdapter', :path=>'../SDKs/ABUAdAdmobAdapter_9.13.0.0/'
  pod 'ABUAdBaiduAdapter', :path=>'../SDKs/ABUAdBaiduAdapter_5.101.0/'
  pod 'ABUAdGdtAdapter', :path=>'../SDKs/ABUAdGdtAdapter_4.14.02.0/'
  pod 'ABUAdSigmobAdapter', :path=>'../SDKs/ABUAdSigmobAdapter_4.6.0.0/'
  pod 'ABUAdMintegralAdapter', :path=>'../SDKs/ABUAdMintegralAdapter_7.2.8.0.0/'
  pod 'ABUAdCsjAdapter', :path=>'../SDKs/ABUAdCsjAdapter_4.9.0.6.0/'
  pod 'ABUAdKlevinAdapter', :path=>'../SDKs/ABUAdKlevinAdapter_2.11.0.211.0/'
  pod 'ABUVisualDebug', :path=>'../SDKs/ABUVisualDebug_3.9.0.2/'

end
def pod_for_adn
  # 穿山甲  按实际情况使用正式或灰度；
  pod 'Ads-CN','4.9.0.6' # CSJ 正式
#  pod 'PangleAdSDK-iOS', '4.9.0.5-alpha.1', :subspecs => ['Ads-CN']
#  pod 'Ads-CN-Beta', '4.9.0.4' # CSJ 灰度
#  pod 'Ads-CN/Domestic', '4.6.0.7'
#  pod 'Ads-CN/BUAdSDK', '4.6.0.7'
  # 优量汇
  # UnityAds
  pod 'UnityAds', '4.3.0'
  # Admob/GoogleAd
  # pod 'Google-Mobile-Ads-SDK', '9.13.0'
  # 百度SDK
  pod 'BaiduMobAdSDK', '5.101'
  # 广点通/优量汇
  pod 'GDTMobSDK' ,'4.14.02'
  # SigmobAd
  pod 'SigmobAd-iOS', '4.6.0'
  # 游可赢
  # pod 'KlevinAdSDK', '2.11.0.211'
  # pod 'KlevinAdSDK'
  # MintegralAdSDK 使用时请务必使用cocoapod源
  pod 'MintegralAdSDK', '7.2.8', :subspecs => [
    'SplashAd',
    'InterstitialAd',
    'NewInterstitialAd',
    'InterstitialVideoAd',
    'RewardVideoAd',
    'NativeAd',
    'NativeAdvancedAd',
    'BannerAd',
    'BidNativeAd',
    'BidNewInterstitialAd',
    'BidInterstitialVideoAd',
    'BidRewardVideoAd'
  ]
end

#快手
def pod_for_kusaiShou

pod 'KSAdSDK', '3.3.29'

end

target 'UnityFramework' do
  pod_for_gm
  pod_for_adn
  pod_for_kusaiShou
end


#post_install do |installer|
#  installer.pods_project.targets.each do |target|
#    target.build_configurations.each do |config|
#      config.build_settings["EXCLUDED_ARCHS[sdk=iphonesimulator*]"] = "arm64"
#    end
#  end
#end

本地pod 使用demo github.com/hs300/local… 不能直接打开编译，删了很多东西

参考
www.jianshu.com/p/208f5d217…
devfutao.com/archives/17…
blog.csdn.net/weixin_3413…

4 关键业务 登录、支付、打点、广告

5 Jenkins 配合 Python 自动化打包
