A complex system that works is invariably found to have evolved from a simple system that works. The inverse proposition also appears to be true: A complex system designed from scratch never works and cannot be made to work.

CHAPTER 11 Stream Processing

The problem with daily batch processes is that changes in the input are only reflected in the output a day later, which is too slow for many impatient users. To reduce the delay, we can run the processing more frequently—say, processing a second’s worth of data at the end of every second—or even continuously, abandoning the fixed time slices entirely and simply processing every event as it happens. That is the idea behind stream processing. In general, a “stream” refers to data that is incrementally made available over time.

Transmitting Event Streams

In a stream processing context, a record is more commonly known as an event, but it is essentially the same thing: a small, self- contained, immutable object containing the details of something that happened at some point in time.

an event is generated once by a producer (also known as a publisher or sender), and then potentially processed by multiple cosumers (subscribers or recipients). it is better for consumers to be notified when new events appear. specialized tools have been developed for the purpose of delivering event notifications.

Direct messaging from producers to consumers

A number of messaging systems use direct network communication between produc‐ ers and consumers without going via intermediary nodes

If the consumer exposes a service on the network, producers can make a direct HTTP or RPC request to push messages to the consumer. This is the idea behind webhooks, a pattern in which a callback URL of one service is registered with another service, and it makes a request to that URL whenever an event occurs.

Although these direct messaging systems work well in the situations for which they are designed, they generally require the application code to be aware of the possibility of message loss. The faults they can tolerate are quite limited

Message brokers

A widely used alternative is to send messages via a message broker (also known as a message queue), which is essentially a kind of database that is optimized for handling message streams. It runs as a server, with producers and consumers connecting to it as clients. Producers write messages to the broker, and consumers receive them by reading them from the broker.

By centralizing the data in the broker, these systems can more easily tolerate clients that come and go (connect, disconnect, and crash), and the question of durability is moved to the broker instead.

When multiple consumers read messages in the same topic, two main patterns of messaging are used

In order to ensure that the message is not lost, message brokers use acknowledgments: a client must explicitly tell the broker when it has finished process‐ ing a message so that the broker can remove it from the queue.

Using logs for message storage

A log is simply an append-only sequence of records on disk. The same structure can be used to implement a message broker: a producer sends a message by appending it to the end of the log, and a consumer receives messages by reading the log sequentially. If a consumer reaches the end of the log, it waits for a notification that a new message has been appended.

The log-based approach trivially supports fan-out messaging, because several con‐ sumers can independently read the log without affecting each other—reading a mes‐ sage does not delete it from the log. To achieve load balancing across a group of consumers, instead of assigning individual messages to consumer clients, the broker can assign entire partitions to nodes in the consumer group.

Consuming a partition sequentially makes it easy to tell which messages have been processed: all messages with an offset less than a consumer’s current offset have already been processed, and all messages with a greater offset have not yet been seen. Thus, the broker does not need to track acknowledgments for every single message— it only needs to periodically record the consumer offsets. The reduced bookkeeping overhead and the opportunities for batching and pipelining in this approach help increase the throughput of log-based systems.

When consumers cannot keep up with producers

what to do if a consumer cannot keep up with the rate at which producers are send‐ ing messages: dropping messages, buffering, or applying backpressure. In this taxon‐ omy, the log-based approach is a form of buffering with a large but fixed-size buffer

the broker effectively drops old messages that go back further than the size of the buffer can accommodate. You can monitor how far a consumer is behind the head of the log, and raise an alert if it falls behind significantly.

As the buffer is large, there is enough time for a human operator to fix the slow consumer and allow it to catch up before it starts missing messages.

Even if a consumer does fall too far behind and starts missing messages, only that consumer is affected; it does not disrupt the service for other consumers. When a consumer is shut down or crashes, it stops consuming resources—the only thing that remains is its consumer offset.

Change Data Capture

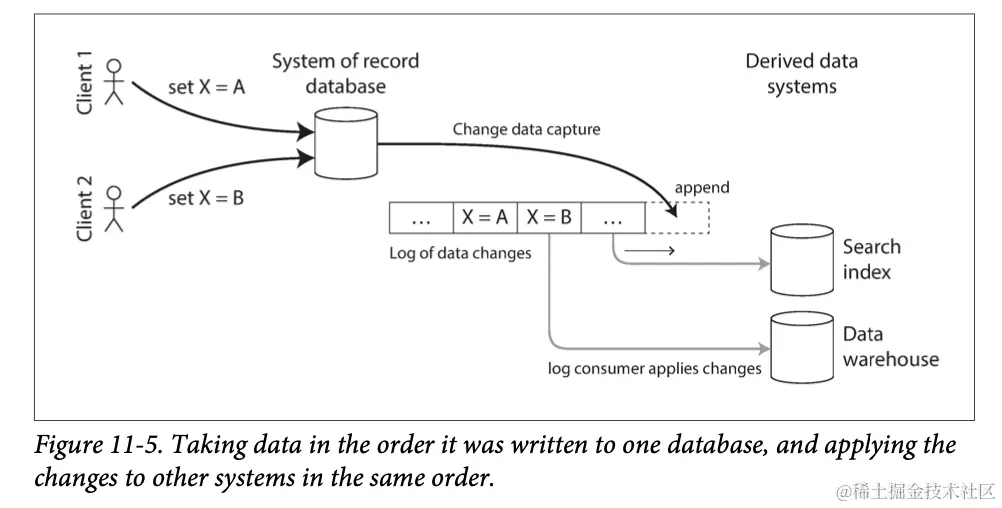

More recently, there has been growing interest in change data capture (CDC), which is the process of observing all data changes written to a database and extracting them in a form in which they can be replicated to other systems. CDC is especially interest‐ ing if changes are made available as a stream, immediately as they are written.

Event Sourcing

There are some parallels between the ideas we’ve discussed here and event sourcing, a technique that was developed in the domain-driven design (DDD) community. We will discuss event sourcing briefly, because it incorporates some useful and relevant ideas for streaming systems.

Similarly to change data capture, event sourcing involves storing all changes to the application state as a log of change events. The biggest difference is that event sourcing applies the idea at a different level of abstraction:

In change data capture, the application uses the database in a mutable way, updating and deleting records at will. The log of changes is extracted from the database at a low level (e.g., by parsing the replication log), which ensures that the order of writes extracted from the database matches the order in which they were actually written, avoiding the race condition. The application writing to the database does not need to be aware that CDC is occurring.

In event sourcing, the application logic is explicitly built on the basis of immutable events that are written to an event log. In this case, the event store is append- only, and updates or deletes are discouraged or prohibited. Events are designed to reflect things that happened at the application level, rather than low-level state changes.

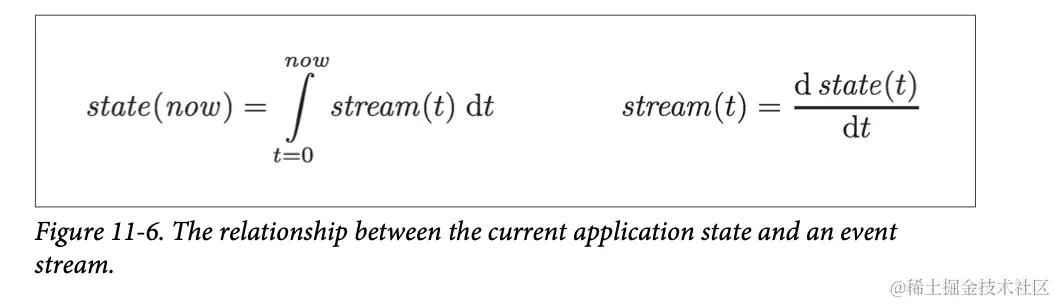

Event sourcing is a powerful technique for data modeling: from an application point of view it is more meaningful to record the user’s actions as immutable events, rather than recording the effect of those actions on a mutable database. Event sourcing makes it easier to evolve applications over time, helps with debugging by making it easier to understand after the fact why something happened, and guards against application bugs

Applications that use event sourcing typically have some mechanism for storing snapshots of the current state that is derived from the log of events, so they don’t need to repeatedly reprocess the full log.

batch processing benefits from the immutability of its input files, so you can run experimental processing jobs on existing input files without fear of damaging them. This principle of immutability is also what makes event sourcing and change data capture so powerful.

Processing Streams

1. You can take the data in the events and write it to a database, cache, search index, or similar storage system, from where it can then be queried by other clients.
2. You can push the events to users in some way, for example by sending email alerts or push notifications, or by streaming the events to a real-time dashboard where they are visualized. In this case, a human is the ultimate consumer of the stream.
3. You can process one or more input streams to produce one or more output streams. Streams may go through a pipeline consisting of several such processing stages before they eventually end up at an output. A piece of code that processes streams like this is known as an operator or a job. It is closely related to the Unix processes and MapReduce jobs we discussed

Stream processing has long been used for monitoring purposes, where an organiza‐ tion wants to be alerted if certain things happen. Another area in which stream processing is used is for analytics on streams.

Summary

two types of message brokers:

AMQP/JMS-style message broker

The broker assigns individual messages to consumers, and consumers acknowl‐ edge individual messages when they have been successfully processed. Messages are deleted from the broker once they have been acknowledged.

Log-based message broker

The broker assigns all messages in a partition to the same consumer node, and always delivers messages in the same order. Parallelism is achieved through par‐ titioning, and consumers track their progress by checkpointing the offset of the last message they have processed. The broker retains messages on disk, so it is possible to jump back and reread old messages if necessary.

three types of joins that may appear in stream processes

Stream-stream joins

Both input streams consist of activity events, and the join operator searches for related events that occur within some window of time. For example, it may match two actions taken by the same user within 30 minutes of each other. The two join inputs may in fact be the same stream (a self-join) if you want to find related events within that one stream.

Stream-table joins

One input stream consists of activity events, while the other is a database change‐ log. The changelog keeps a local copy of the database up to date. For each activity event, the join operator queries the database and outputs an enriched activity event.

Table-table joins

Both input streams are database changelogs. In this case, every change on one side is joined with the latest state of the other side. The result is a stream of changes to the materialized view of the join between the two tables.
