Partitioning of Key-Value Data
Our goal with partitioning is to spread the data and the query load evenly across nodes. If every node takes a fair share, then—in theory—10 nodes should be able to handle 10 times as much data and 10 times the read and write throughput of a single node (ignoring replication for now).
If the partitioning is unfair, so that some partitions have more data or queries than others, we call it skewed. The presence of skew makes partitioning much less effective. In an extreme case, all the load could end up on one partition, so 9 out of 10 nodes are idle and your bottleneck is the single busy node. A partition with disproportionately high load is called a hot spot.
hashing a key to determine its partition can help reduce hot spots. However, it can’t avoid them entirely: in the extreme case where all reads and writes are for the same key, you still end up with all requests being routed to the same partition.
for example, on a social media site, a celebrity user with millions of followers may cause a storm of activity when they do something. Hashing the key doesn’t help, as the hash of two identical IDs is still the same.
if one key is known to be very hot, a simple technique is to add a random number to the beginning or end of the key. Just a two-digit decimal random number would split the writes to the key evenly across 100 different keys, allowing those keys to be distributed to different partitions.
Rebalancing Partitions
The process of moving load from one node in the cluster to another is called reba‐ lancing.
Fixed number of partitions
Fortunately, there is a fairly simple solution: create many more partitions than there are nodes, and assign several partitions to each node. For example, a database run‐ ning on a cluster of 10 nodes may be split into 1,000 partitions from the outset so that approximately 100 partitions are assigned to each node.
Now, if a node is added to the cluster, the new node can steal a few partitions from every existing node until partitions are fairly distributed once again.
Dynamic partitioning
For databases that use key range partitioning, a fixed number of partitions with fixed boundaries would be very inconvenient
For that reason, key range–partitioned databases such as HBase and RethinkDB cre‐ ate partitions dynamically. When a partition grows to exceed a configured size (on HBase, the default is 10 GB), it is split into two partitions so that approximately half of the data ends up on each side of the split. Conversely, if lots of data is deleted and a partition shrinks below some threshold, it can be merged with an adjacent par‐ tition. This process is similar to what happens at the top level of a B-tree
Request Routing

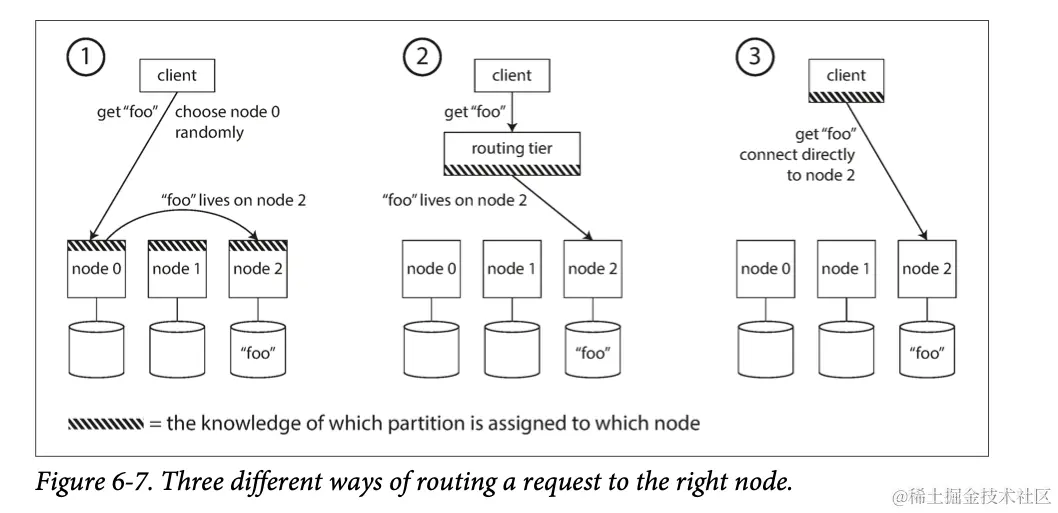

- Allow clients to contact any node (e.g., via a round-robin load balancer). If that node coincidentally owns the partition to which the request applies, it can handle the request directly; otherwise, it forwards the request to the appropriate node, receives the reply, and passes the reply along to the client.
- Send all requests from clients to a routing tier first, which determines the node that should handle each request and forwards it accordingly. This routing tier does not itself handle any requests; it only acts as a partition-aware load balancer.
- Require that clients be aware of the partitioning and the assignment of partitions to nodes. In this case, a client can connect directly to the appropriate node, without any intermediary.
the key problem is: how does the component making the routing decision (which may be one of the nodes, or the routing tier, or the client) learn about changes in the assignment of partitions to nodes?
Many distributed data systems rely on a separate coordination service such as ZooKeeper to keep track of this cluster metadata. Each node registers itself in ZooKeeper, and ZooKeeper maintains the authoritative mapping of partitions to nodes. Other actors, such as the routing tier or the partitioning-aware client, can subscribe to this information in ZooKeeper. Whenever a partition changes ownership, or a node is added or removed, ZooKeeper notifies the routing tier so that it can keep its routing information up to date.
HBase, SolrCloud, and Kafka also use ZooKeeper to track partition assignment. MongoDB has a similar architecture, but it relies on its own config server implemen‐ tation and mongos daemons as the routing tier.
