树 多选 组件

这是我的备忘录
109 阅读3分钟

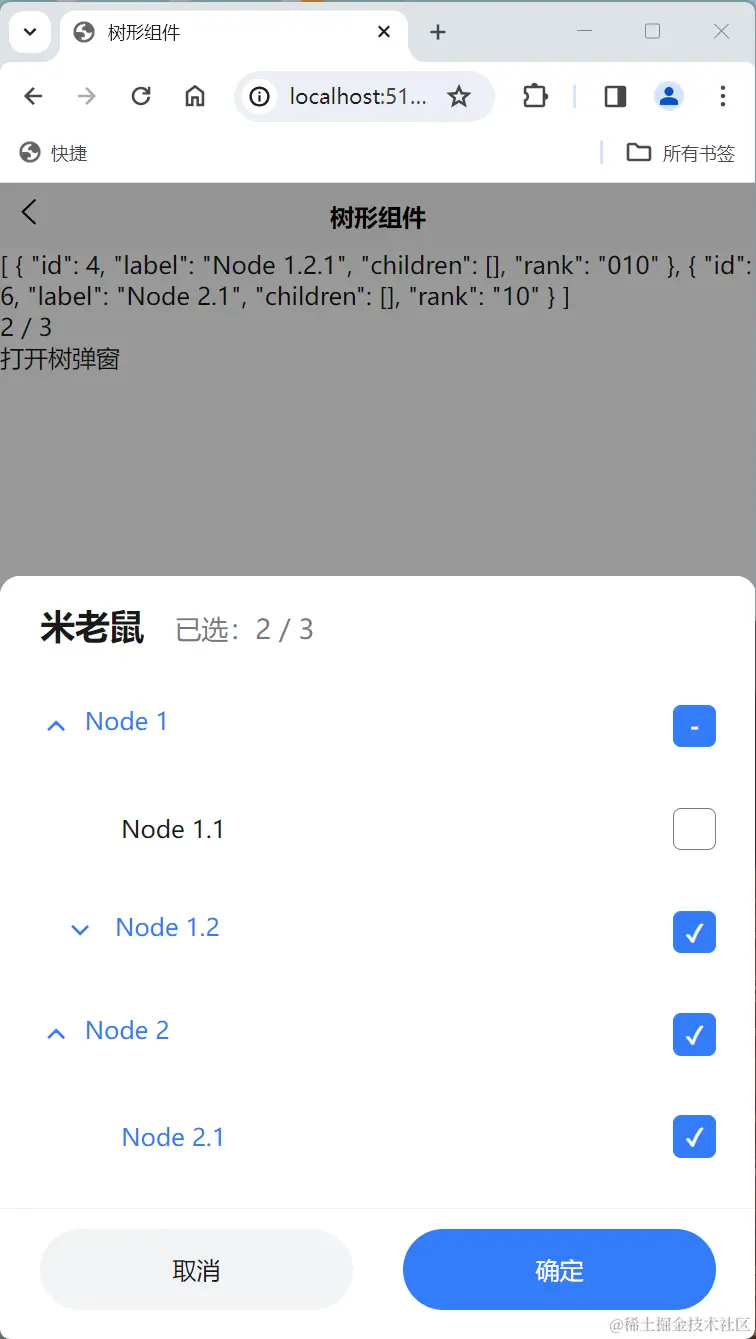

效果如下，H5没问题，app样式有问题，app要用时自己调一下样式


源码如下

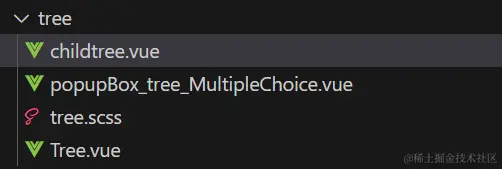

结构


Tree.vue 树主要逻辑

<template>
  <view v-for="node in treeOBJ" :class="{ line: !isLeaf(node) }">
    <view @click="toggleExpanded(node)" class="item">
      <view :class="['label', node[props.isChooseKey] ? 'blue' : '']">
        <view :class="['icon', node.expanded ? 'up' : 'down']">
          <uni-icons type="forward" v-if="!isLeaf(node)"></uni-icons>
          <view v-else style="width: 30rpx"></view>
        </view>
        <view>{{ node[props.labelKey] }}</view>
      </view>
      <view
        class="check ischeck"
        v-if="node[props.isChooseKey] == true"
        @click.stop="choose(node, false)"
      >
        ✓
      </view>
      <view
        class="check ischeck"
        v-else-if="node[props.isChooseKey] == '-'"
        @click.stop="choose(node, true)"
      >
        -
      </view>
      <view class="check uncheck" v-else @click.stop="choose(node, true)">
      </view>
    </view>
    <view v-if="!isLeaf(node) && node.expanded" style="padding-left: 30rpx">
      <childtree
        :treeData="node.children"
        :labelKey="props.labelKey"
        :isChooseKey="props.isChooseKey"
        @toggleExpanded="toggleExpanded"
        @choose="choose"
      ></childtree>
    </view>
  </view>
</template>

<script setup>
import { ref, computed } from "vue";
import { onLoad } from "@dcloudio/uni-app";
import childtree from "./childtree.vue";
const props = defineProps({
  treeData: {
    type: Array,
    required: true,
  },
  rankKey: {
    type: String,
    default: "rank",
  },
  labelKey: {
    type: String,
    default: "label",
  },
  isChooseKey: {
    type: String,
    default: "isChoose",
  },
});
//给树加层次
const newtreeData = computed(() => {
  function Tagging(treeData, level = "") {
    let littleLevels = 0;
    if (!treeData.length) {
      return [];
    }
    for (let i = 0; i < treeData.length; i++) {
      const node = treeData[i];
      if (node.children) {
        node[props.rankKey] = level + "" + littleLevels;
        Tagging(node.children, node[props.rankKey]);
      }
      littleLevels += 1;
    }
  }
  let arr = JSON.parse(JSON.stringify(props.treeData));
  Tagging(arr);
  return arr;
});
//给树判断是否展开 或 选中
const treeOBJ = computed(() => {
  function Tagging(treeData, level = "") {
    let littleLevels = 0;
    if (!treeData.length) {
      return [];
    }
    for (let i = 0; i < treeData.length; i++) {
      const node = treeData[i];
      if (node.children) {
        node[props.rankKey] = level + "" + littleLevels;
        //是否展开
        if (expandedArr.value.includes(node[props.rankKey])) {
          node.expanded = true;
        }
        //是否选中
        if (lastChooseArr.value.includes(node[props.rankKey])) {
          node[props.isChooseKey] = true;
        }
        if (childOBJ.value[node[props.rankKey]] !== undefined) {
          if (
            childOBJ.value[node[props.rankKey]].every((item) =>
              lastChooseArr.value.includes(item)
            )
          ) {
            node[props.isChooseKey] = true;
          } else if (
            childOBJ.value[node[props.rankKey]].some((element) =>
              lastChooseArr.value.includes(element)
            )
          ) {
            node[props.isChooseKey] = "-";
          }
        }

        Tagging(node.children, node[props.rankKey]);
      }
      littleLevels += 1;
    }
  }
  let arr = JSON.parse(JSON.stringify(newtreeData.value));
  Tagging(arr);
  return arr;
});
//返回 [每个父项：[最终子项]]
const childOBJ = computed(() => {
  function generateMapping(tree) {
    const mapping = {};
    function traverse(node) {
      if (node.children.length === 0) {
        return [node[props.rankKey]];
      }
      const childrenMapping = node.children.flatMap(traverse);
      mapping[node[props.rankKey]] = childrenMapping;
      return childrenMapping;
    }
    tree.forEach((node) => {
      traverse(node);
    });
    return mapping;
  }
  let arr = JSON.parse(JSON.stringify(newtreeData.value));
  const mapping = generateMapping(arr);
  return mapping;
});
//全部最终的子项
const allchildArr = computed(() => {
  function mergeArrays(mapping) {
    const merged = [];
    for (const ids of Object.values(mapping)) {
      for (const id of ids) {
        if (!merged.includes(id)) {
          merged.push(id);
        }
      }
    }
    return merged;
  }
  return mergeArrays(childOBJ.value)
});

//是否最后一个
const isLeaf = (node) => {
  return !node.children || node.children.length === 0;
};
//是否展开
let expandedArr = ref([]);
const toggleExpanded = (node) => {
  const rank = node[props.rankKey];
  if (expandedArr.value.includes(rank)) {
    var index = expandedArr.value.indexOf(rank);
    expandedArr.value.splice(index, 1);
  } else {
    expandedArr.value.push(rank);
  }
};
// 选择
// 被选中的最后子项
const lastChooseArr = ref([]);//这里面是rank 层次
const lastChooseArr2 = ref([]);//这里面是子项对象
function choose(node, isChoose) {
  const rank = node[props.rankKey];
  if (isLeaf(node)) {
    if (lastChooseArr.value.includes(rank)) {
      if (!isChoose) {
        var index = lastChooseArr.value.indexOf(rank);
        lastChooseArr.value.splice(index, 1);
        lastChooseArr2.value.splice(index, 1);
      }
    } else {
      lastChooseArr.value.push(rank);
      lastChooseArr2.value.push(node);
    }
  }
  if (!isLeaf(node)) {
    for (let i = 0; i < node.children.length; i++) {
      choose(node.children[i], isChoose);
    }
  }
}
defineExpose({
  allchildArrlength:allchildArr.value.length,
  lastChooseArr2,
  lastChooseArr
})
</script>

<style scoped>
@import url("./tree.scss");
</style>

childtree.vue 子树

<template>
  <view v-for="node in treeOBJ" :class="{ line: !isLeaf(node) }">
    <view @click="toggleExpanded(node)" class="item">
      <view :class="['label', node[props.isChooseKey] ? 'blue' : '']">
        <view :class="['icon', node.expanded ? 'up' : 'down']">
          <uni-icons type="forward" v-if="!isLeaf(node)"></uni-icons>
          <view v-else style="width: 30rpx"></view>
        </view>
        <view>{{ node[props.labelKey] }}</view>
      </view>
      <view
        class="check ischeck"
        v-if="node[props.isChooseKey] == true"
        @click.stop="choose(node, false)"
      >
        ✓
      </view>
      <view
        class="check ischeck"
        v-else-if="node[props.isChooseKey] == '-'"
        @click.stop="choose(node, true)"
      >
        -
      </view>
      <view class="check uncheck" v-else @click.stop="choose(node, true)">
      </view>
    </view>
    <view v-if="!isLeaf(node) && node.expanded" style="padding-left: 30rpx">
      <childtree
        :treeData="node.children"
        :labelKey="props.labelKey"
        :isChooseKey="props.isChooseKey"
        @toggleExpanded="toggleExpanded"
        @choose="choose"
      ></childtree>
    </view>
  </view>
</template>

<script setup>
import childtree from "./childtree.vue";
import { ref, computed } from "vue";
import { onLoad } from "@dcloudio/uni-app";
const emits = defineEmits(["toggleExpanded", "choose"]);
const props = defineProps({
  treeData: {
    type: Array,
    required: true,
  },
  labelKey: {
    type: String,
    default: "label",
  },
  isChooseKey: {
    type: String,
    default: "isChoose",
  },
});

const treeOBJ = computed(() => {
  return props.treeData;
});

//是否最后一个
const isLeaf = (node) => {
  return !node.children || node.children.length === 0;
};
//是否展开
const toggleExpanded = (node) => {
  emits("toggleExpanded", node);
};
// 选择
// 被选中的最后一项
function choose(node, isChoose) {
  emits("choose", node, isChoose);
}
</script>

<style scoped>
@import url("./tree.scss");
</style>

tree.scss 样式

.item {
    display: flex;
    justify-content: space-between;
    align-items: center;
    padding: 30rpx 0;

    .label {
      display: flex;

      &.blue {
        color: rgba(51, 124, 250, 1);

        :deep() {
          .uni-icons {
            color: rgba(51, 124, 250, 1) !important;
          }
        }
      }

      .icon {
        font-size: 30.53rpx;
        font-weight: 600;
        transform: rotate(90deg);
        margin-right: 20rpx;

        &.down {
          transform: rotate(90deg);
        }

        &.up {
          transform: rotate(-90deg);
        }
      }
    }

    .check {
      width: 40rpx;
      height: 40rpx;
      border-radius: 8rpx;
      display: flex;
      align-items: center;
      justify-content: center;
      color: #fff;
      font-weight: 600;

      &.ischeck {
        background: rgba(51, 124, 250, 1);
        border: 1rpx solid rgba(51, 124, 250, 1);
      }

      &.uncheck {
        border: 1rpx solid rgba(122, 122, 122, 1);
      }
    }
  }

使用弹窗容器包裹，完成最后组件逻辑

<template>
  <popupBox ref="SubmitSureRef" @sure="SubmitSureRef.close()">
    <template #title>
      <view class="top">
        <view class="left">
          <text class="title">{{props.title}}</text>
          <text class="remark"
            >已选：{{ tree_ref?.lastChooseArr2.length }} /
            {{ tree_ref?.allchildArrlength }}
          </text>
        </view>
      </view></template
    >
    <template #content>
      <tree
        :treeData="props.treeData"
        :rankKey="props.rankKey"
        :isChooseKey="props.isChooseKey"
        :labelKey="props.labelKey"
        ref="tree_ref"
      ></tree>
    </template>
  </popupBox>
</template>
<script setup>
import { ref, computed, watch, onMounted, defineEmits, defineProps } from "vue";
import tree from "./tree.vue";
import popupBox from "../popupBox.vue";
import { onLoad } from "@dcloudio/uni-app";
const props = defineProps({
  treeData: {
    type: Array,
    default: [],
  },
  rankKey: {
    type: String,
    default: "rank",
  },
  labelKey: {
    type: String,
    default: "label",
  },
  isChooseKey: {
    type: String,
    default: "isChoose",
  },
  title: {
    type: String,
    default: "树多选",
  },
});

const SubmitSureRef = ref(null);
const tree_ref = ref(null);
function open(params) {
  SubmitSureRef.value.open({
    cancelText: "取消",
    confirmText: "确定",
    onOpen: function () {
      if (params.chooseArr) {
        tree_ref.value.lastChooseArr2 = JSON.parse(
          JSON.stringify(params.chooseArr)
        );
        tree_ref.value.lastChooseArr = tree_ref.value.lastChooseArr2.map(
          (item) => item[props.rankKey]
        );
      }
    },
    onConfirm: function () {
      if (params.onConfirm) {
        params.onConfirm(tree_ref.value?.lastChooseArr2,`${tree_ref.value.lastChooseArr2.length} / ${tree_ref.value.allchildArrlength}`);
      }
      SubmitSureRef.value.close();
    },
    onClose: function () {},
  });
}
onLoad(() => {});
defineExpose({
  open,
});
</script>
<style scoped lang="scss">
.top {
  // display: flex;
  // justify-content: space-between;
  width: 100%;

  .left {
    .title {
      font-size: 34.35rpx;
      font-weight: 600;
    }

    .remark {
      margin-left: 30rpx;
      color: rgba(122, 122, 122, 1);
      font-size: 26.71rpx;
    }
  }

  .right {
  }
}
</style>

使用

<template>
  {{ chooseArr }}<br />
  {{ title }}
  <view @click="open">打开树弹窗</view>
  <!--treeData 树结构 -->
  <!--rankKey 层次key 可以随便填，不要跟树结构里的key冲突就行 -->
  <!--isChooseKey 选中标识 可以随便填，不要跟树结构里的key冲突就行 -->
  <!--labelKey显示文字的key -->
  <popupBox_tree_MultipleChoice
    ref="popupBox_tree_MultipleChoice_Ref"
    :treeData="treeData"
    :rankKey="'rank'"
    :labelKey="'label'"
    :isChooseKey="'choose'"
    title="米老鼠"
  ></popupBox_tree_MultipleChoice>
</template>

<script setup>
import { ref, onMounted, computed, watch, defineProps } from "vue";
import popupBox_tree_MultipleChoice from "./components/tree/popupBox_tree_MultipleChoice.vue";
const treeData = ref([
  {
    id: 1,
    label: "Node 1",
    children: [
      {
        id: 2,
        label: "Node 1.1",
        children: [],
      },
      {
        id: 3,
        label: "Node 1.2",
        children: [
          {
            id: 4,
            label: "Node 1.2.1",
            children: [],
          },
        ],
      },
    ],
  },
  {
    id: 5,
    label: "Node 2",
    children: [
      {
        id: 6,
        label: "Node 2.1",
        children: [],
      },
    ],
  },
]);
const popupBox_tree_MultipleChoice_Ref = ref(null);
const chooseArr = ref([]);
const title = ref("");
function open() {
  popupBox_tree_MultipleChoice_Ref.value.open({
    chooseArr: chooseArr.value,
    onConfirm: (choose, remark) => {
      chooseArr.value = choose;//choose返回的是树选中部分最后的子项组成的数组
      title.value = remark;
    },
  });
}
</script>
<style scoped></style>
