CHAPTER 3 Storage and Retrieval

On the most fundamental level, a database needs to do two things: when you give it some data, it should store the data, and when you ask it again later, it should give the data back to you.

Data Structures That Power Your Database

Consider the world’s simplest database, implemented as two Bash functions. These two functions implement a key-value store. You can call db_set key value, which will store key and value in the database. The key and value can be (almost) anything you like—for example, the value could be a JSON document. You can then call db_get key, which looks up the most recent value associated with that particular key and returns it.

#!/bin/bash

db_set () {
    echo "$1,$2" >> database
}


db_get () {
    grep "^$1," database | sed -e "s/^$1,//" | tail -n 1
}

Similarly to what db_set does, many databases internally use a log, which is an append-only data file. Real databases have more issues to deal with (such as concurrency control, reclaim‐ ing disk space so that the log doesn’t grow forever, and handling errors and partially written records), but the basic principle is the same. Logs are incredibly useful, and we will encounter them several times in the rest of this book.

An index is an additional structure that is derived from the primary data. Many data‐ bases allow you to add and remove indexes, and this doesn’t affect the contents of the database; it only affects the performance of queries. Maintaining additional structures incurs overhead, especially on writes. For writes, it’s hard to beat the performance of simply appending to a file, because that’s the simplest possible write operation. Any kind of index usually slows down writes, because the index also needs to be updated every time data is written.

This is an important trade-off in storage systems: well-chosen indexes speed up read queries, but every index slows down writes.

Hash Indexes

keep an in-memory hash map where every key is mapped to a byte offset in the data file—the location at which the value can be found

SSTables and LSM-Trees

sparser index in memory

require that the sequence of key-value pairs is sorted by key. We call this format Sorted String Table, or SSTable for short. We also require that each key only appears once within each merged segment file (the compaction process already ensures that).

In order to find a particular key in the file, you no longer need to keep an index of all the keys in memory. You still need an in-memory index to tell you the offsets for some of the keys, but it can be sparse: one key for every few kilobytes of segment file is sufficient, because a few kilobytes can be scanned very quickly.

Constructing and maintaining SSTables

Maintaining a sorted structure on disk is possible, but maintaining it in memory is much easier. There are plenty of well-known tree data structures that you can use, such as red-black trees or AVL trees. With these data structures, you can insert keys in any order and read them back in sorted order.

1. When a write comes in, add it to an in-memory balanced tree data structure (for example, a red-black tree). This in-memory tree is sometimes called a memtable.
2. When the memtable gets bigger than some threshold—typically a few megabytes —write it out to disk as an SSTable file. This can be done efficiently because the tree already maintains the key-value pairs sorted by key. The new SSTable file becomes the most recent segment of the database. While the SSTable is being written out to disk, writes can continue to a new memtable instance.
3. In order to serve a read request, first try to find the key in the memtable, then in the most recent on-disk segment, then in the next-older segment, etc.
4. From time to time, run a merging and compaction process in the background to combine segment files and to discard overwritten or deleted values.

Originally this indexing structure was described by Patrick O’Neil et al. under the name Log-Structured Merge-Tree (or LSM-Tree) . Storage engines that are based on this principle of merging and compacting sorted files are often called LSM storage engines.

A full-text index is much more complex than a key-value index but is based on a similar idea: given a word in a search query, find all the documents (web pages, product descriptions, etc.) that mention the word. This is implemented with a key-value structure where the key is a word (a term) and the value is the list of IDs of all the documents that contain the word (the postings list). In Lucene, this mapping from term to postings list is kept in SSTable-like sorted files, which are merged in the background as needed

Even though there are many subtleties, the basic idea of LSM-trees—keeping a cas‐ cade of SSTables that are merged in the background—is simple and effective.

B-Tree

Like SSTables, B-trees keep key-value pairs sorted by key, which allows efficient key- value lookups and range queries.

The log-structured indexes we saw earlier break the database down into variable-size segments, typically several megabytes or more in size, and always write a segment sequentially. By contrast, B-trees break the database down into fixed-size blocks or pages, traditionally 4 KB in size (sometimes bigger), and read or write one page at a time. This design corresponds more closely to the underlying hardware, as disks are also arranged in fixed-size blocks.

The basic underlying write operation of a B-tree is to overwrite a page on disk with new data. It is assumed that the overwrite does not change the location of the page; i.e., all references to that page remain intact when the page is overwritten. This is in stark contrast to log-structured indexes such as LSM-trees, which only append to files (and eventually delete obsolete files) but never modify files in place.

In order to make the database resilient to crashes, it is common for B-tree implemen‐ tations to include an additional data structure on disk: a write-ahead log (WAL, also known as a redo log).

OLTP vs OLAP

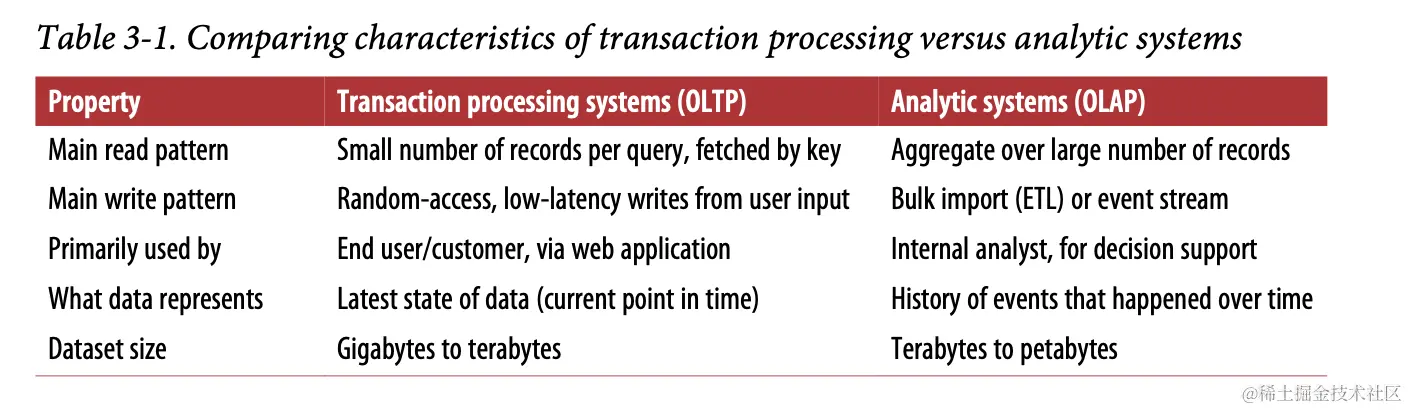

At first, the same databases were used for both transaction processing and analytic queries. SQL turned out to be quite flexible in this regard: it works well for OLTP- type queries as well as OLAP-type queries. Nevertheless, in the late 1980s and early 1990s, there was a trend for companies to stop using their OLTP systems for analytics purposes, and to run the analytics on a separate database instead. This separate database was called a data warehouse.

OLTP systems are usually expected to be highly available and to process trans‐ actions with low latency, since they are often critical to the operation of the business. Database administrators therefore closely guard their OLTP databases. They are usu‐ ally reluctant to let business analysts run ad hoc analytic queries on an OLTP data‐ base, since those queries are often expensive, scanning large parts of the dataset, which can harm the performance of concurrently executing transactions.

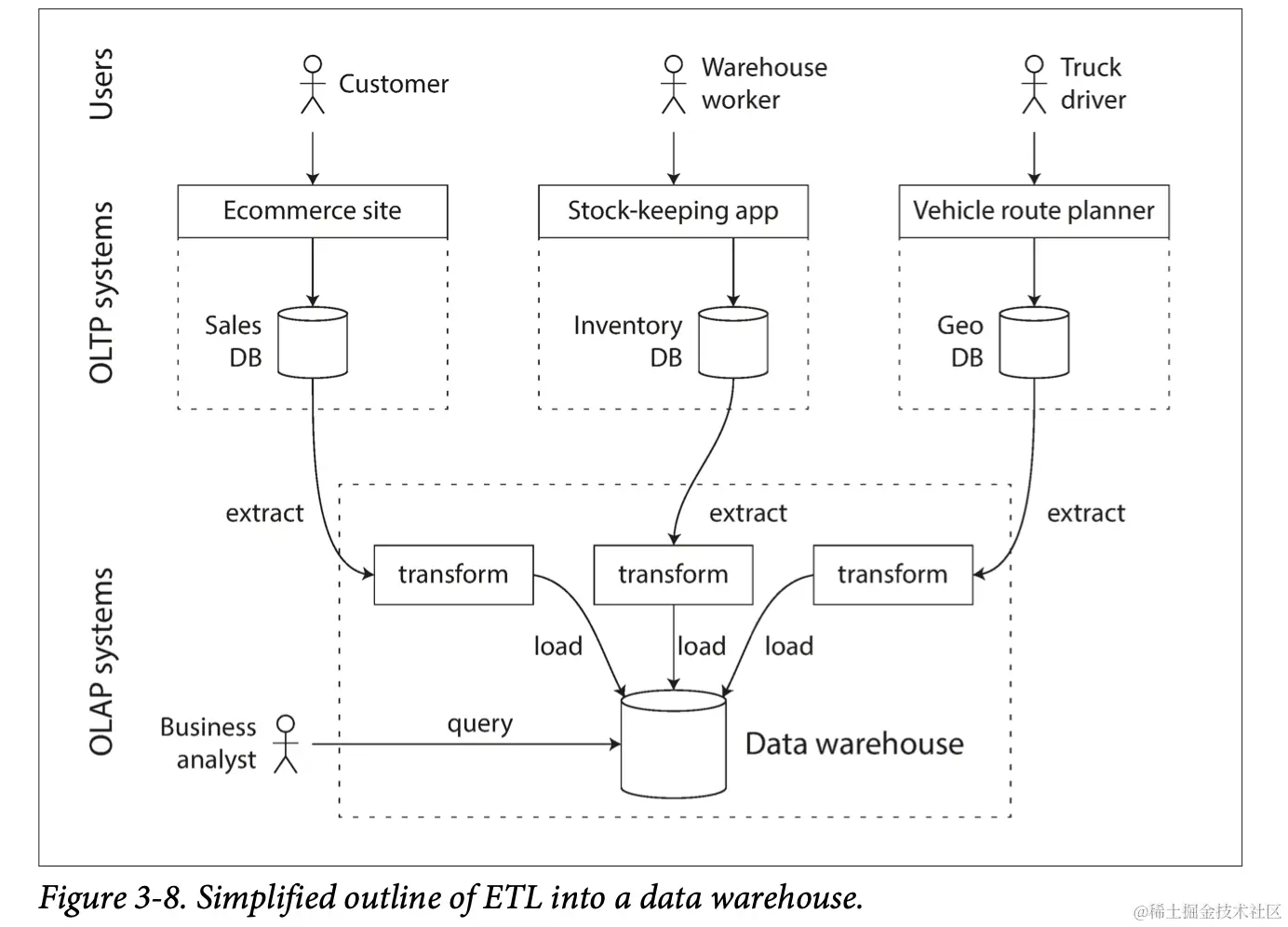

A data warehouse, by contrast, is a separate database that analysts can query to their hearts’ content, without affecting OLTP operations. The data warehouse con‐ tains a read-only copy of the data in all the various OLTP systems in the company. Data is extracted from OLTP databases (using either a periodic data dump or a con‐ tinuous stream of updates), transformed into an analysis-friendly schema, cleaned up, and then loaded into the data warehouse. This process of getting data into the warehouse is known as Extract–Transform–Load (ETL). Data warehouses now exist in almost all large enterprises

On the other hand, in analytics, there is much less diversity of data models. Many data warehouses are used in a fairly formulaic style, known as a star schema (also known as dimen‐ sional modeling).

The name “star schema” comes from the fact that when the table relationships are visualized, the fact table is in the middle, surrounded by its dimension tables; the connections to these tables are like the rays of a star. A variation of this template is known as the snowflake schema, where dimensions are further broken down into subdimensions.

Column-Oriented Storage

Although fact tables are often over 100 columns wide, a typical data warehouse query only accesses 4 or 5 of them at one time ("SELECT *" queries are rarely needed for analytics).

The idea behind column-oriented storage is simple: don’t store all the values from one row together, but store all the values from each column together instead. If each col‐ umn is stored in a separate file, a query only needs to read and parse those columns that are used in that query, which can save a lot of work.

Besides only loading those columns from disk that are required for a query, we can further reduce the demands on disk throughput by compressing data. Depending on the data in the column, different compression techniques can be used. One technique that is particu‐ larly effective in data warehouses is bitmap encoding

Writing to Column-Oriented Storage

An update-in-place approach, like B-trees use, is not possible with compressed col‐ umns. If you wanted to insert a row in the middle of a sorted table, you would most likely have to rewrite all the column files. As rows are identified by their position within a column, the insertion has to update all columns consistently.

Fortunately, we have already seen a good solution earlier in this chapter: LSM-trees. All writes first go to an in-memory store, where they are added to a sorted structure and prepared for writing to disk. It doesn’t matter whether the in-memory store is row-oriented or column-oriented. When enough writes have accumulated, they are merged with the column files on disk and written to new files in bulk.

Queries need to examine both the column data on disk and the recent writes in mem‐ ory, and combine the two. However, the query optimizer hides this distinction from the user.

Aggregation: Data Cubes and Materialized Views

If the same aggregates are used by many different queries, it can be wasteful to crunch through the raw data every time. Why not cache some of the counts or sums that queries use most often?

One way of creating such a cache is a materialized view. In a relational data model, it is often defined like a standard (virtual) view: a table-like object whose contents are the results of some query. The difference is that a materialized view is an actual copy of the query results, written to disk, whereas a virtual view is just a shortcut for writ‐ ing queries.

When the underlying data changes, a materialized view needs to be updated, because it is a denormalized copy of the data. The database can do that automatically, but such updates make writes more expensive, which is why materialized views are not often used in OLTP databases.

A common special case of a materialized view is known as a data cube or OLAP cube . It is a grid of aggregates grouped by different dimensions. The advantage of a materialized data cube is that certain queries become very fast because they have effectively been precomputed. The disadvantage is that a data cube doesn’t have the same flexibility as querying the raw data.

Summary

On a high level, we saw that storage engines fall into two broad categories: those optimized for transaction processing (OLTP), and those optimized for analytics (OLAP). There are big differences between the access patterns in those use cases:

OLTP systems are typically user-facing, which means that they may see a huge volume of requests. In order to handle the load, applications usually only touch a small number of records in each query. The application requests records using some kind of key, and the storage engine uses an index to find the data for the requested key. Disk seek time is often the bottleneck here.

Data warehouses and similar analytic systems are less well known, because they are primarily used by business analysts, not by end users. They handle a much lower volume of queries than OLTP systems, but each query is typically very demanding, requiring many millions of records to be scanned in a short time. Disk bandwidth (not seek time) is often the bottleneck here, and column- oriented storage is an increasingly popular solution for this kind of workload.

On the OLTP side, we saw storage engines from two main schools of thought:

The log-structured school, which only permits appending to files and deleting obsolete files, but never updates a file that has been written. Bitcask, SSTables, LSM-trees, LevelDB, Cassandra, HBase, Lucene, and others belong to this group.

The update-in-place school, which treats the disk as a set of fixed-size pages that can be overwritten. B-trees are the biggest example of this philosophy, being used in all major relational databases and also many nonrelational ones.

Log-structured storage engines are a comparatively recent development. Their key idea is that they systematically turn random-access writes into sequential writes on disk, which enables higher write throughput due to the performance characteristics of hard drives and SSDs.
