WriteToUpsertKafka组件

组件说明

以upsert方式往Kafka topic中写数据。

计算引擎

flink

有界性

Streaming Upsert Mode

组件分组

kafka

端口

Inport：默认端口

outport：默认端口

组件属性

名称	展示名称	默认值	允许值	是否必填	描述	例子
kafka_host	KAFKA_HOST	""	无	是	逗号分隔的Kafka broker列表。	127.0.0.1:9092
topic	TOPIC	""	无	是	用于写入Kafka topic名称。	topic-1
tableDefinition	TableDefinition	""	无	是	Flink table定义。
key_format	keyFormat	""	Set("json", "csv", "avro")	是	用于对Kafka消息中key部分序列化的格式。key字段由PRIMARY KEY语法指定。	json
value_format	ValueFormat	""	Set("json", "csv", "avro")	是	用于对Kafka消息中value部分序列化的格式	json
value_fields_include	ValueFieldsInclude	ALL	Set("ALL", "EXCEPT_KEY")	是	控制哪些字段应该出现在 value 中。可取值："ALL：消息的 value 部分将包含 schema 中所有的字段包括定义为主键的字段。"EXCEPT_KEY：记录的 value 部分包含 schema 的所有字段，定义为主键的字段除外。	ALL
key_fields_prefix	KeyFieldsPrefix	""	无	否	为所有消息键（Key）格式字段指定自定义前缀，以避免与消息体（Value）格式字段重名。默认情况下前缀为空。如果定义了前缀，表结构和配置项 'key.fields' 都需要使用带前缀的名称。当构建消息键格式字段时，前缀会被移除，消息键格式将会使用无前缀的名称。请注意该配置项要求必须将 'value.fields-include' 配置为 'EXCEPT_KEY'。
sink_parallelism	SinkParallelism	""	无	否	定义upsert-kafka sink算子的并行度。默认情况下，由框架确定并行度，与上游链接算子的并行度保持一致。
sink_buffer_flush_max_rows	SinkBufferFlushMaxRows	""	无	否	缓存刷新前，最多能缓存多少条记录。当sink收到很多同key上的更新时，缓存将保留同key的最后一条记录，因此sink缓存能帮助减少发往Kafka topic的数据量，以及避免发送潜在的tombstone消息。可以通过设置为 '0' 来禁用它默认，该选项是未开启的。注意，如果要开启sink缓存，需要同时设置 'sink.buffer-flush.max-rows' 和 'sink.buffer-flush.interval两个选项为大于零的值。
sink_buffer_flush_interval	SinkBufferFlushInterval	""	无	否	缓存刷新的间隔时间，超过该时间后异步线程将刷新缓存数据。当 sink 收到很多同 key 上的更新时，缓存将保留同 key 的最后一条记录，因此 sink 缓存能帮助减少发往 Kafka topic 的数据量，以及避免发送潜在的 tombstone 消息。可以通过设置为 '0' 来禁用它。默认，该选项是未开启的。注意，如果要开启 sink 缓存，需要同时设置 'sink.buffer-flush.max-rows' 和 'sink.buffer-flush.interval' 两个选项为大于零的值。
properties	PROPERTIES	""	无	否	该选项可以传递任意的 Kafka 参数。选项的后缀名必须匹配定义在 Kafka 参数文档中的参数名。 Flink 会自动移除选项名中的 "properties." 前缀，并将转换后的键名以及值传入 KafkaClient。例如，你可以通过 'properties.allow.auto.create.topics' = 'false' 来禁止自动创建 topic。但是，某些选项，例如'key.deserializer' 和 'value.deserializer' 是不允许通过该方式传递参数，因为 Flink 会重写这些参数的值。

WriteToUpsertKafka示例配置

演示实时统计网页pv和uv的总量。

{

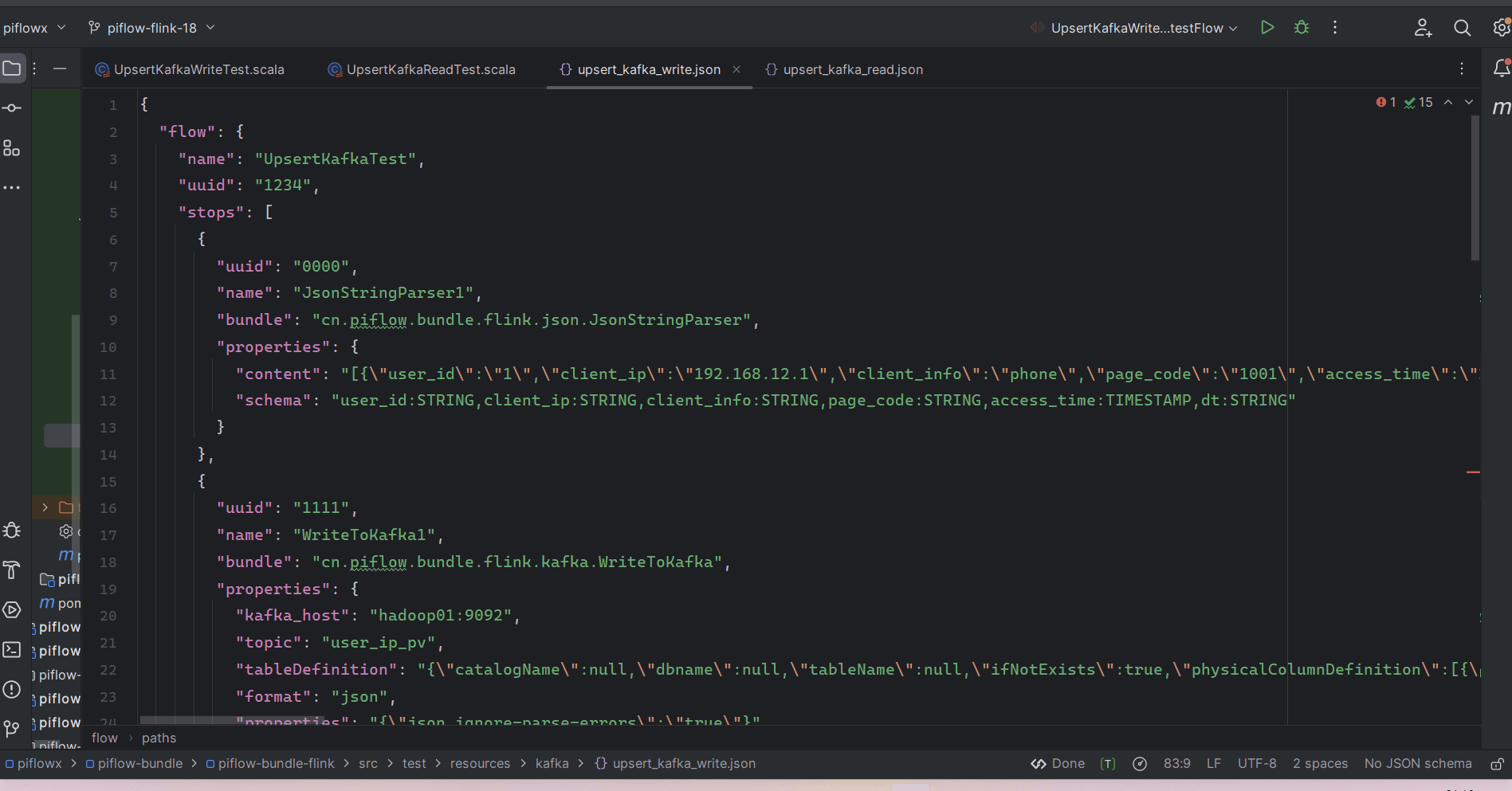

  "flow": {
    "name": "UpsertKafkaTest",
    "uuid": "1234",
    "stops": [
      {
        "uuid": "0000",
        "name": "JsonStringParser1",
        "bundle": "cn.piflow.bundle.flink.json.JsonStringParser",
        "properties": {
          "content": "[{"user_id":"1","client_ip":"192.168.12.1","client_info":"phone","page_code":"1001","access_time":"2021-01-08 11:32:24","dt":"2021-01-08"},{"user_id":"1","client_ip":"192.168.12.1","client_info":"phone","page_code":"1201","access_time":"2021-01-08 11:32:55","dt":"2021-01-08"},{"user_id":"2","client_ip":"192.165.12.1","client_info":"pc","page_code":"1031","access_time":"2021-01-08 11:32:59","dt":"2021-01-08"},{"user_id":"1","client_ip":"192.168.12.1","client_info":"phone","page_code":"1101","access_time":"2021-01-08 11:33:24","dt":"2021-01-08"},{"user_id":"3","client_ip":"192.168.10.3","client_info":"pc","page_code":"1001","access_time":"2021-01-08 11:33:30","dt":"2021-01-08"},{"user_id":"1","client_ip":"192.168.12.1","client_info":"phone","page_code":"1001","access_time":"2021-01-08 11:34:24","dt":"2021-01-08"}]",
          "schema": "user_id:STRING,client_ip:STRING,client_info:STRING,page_code:STRING,access_time:TIMESTAMP,dt:STRING"
        }
      },
      {
        "uuid": "1111",
        "name": "WriteToKafka1",
        "bundle": "cn.piflow.bundle.flink.kafka.WriteToKafka",
        "properties": {
          "kafka_host": "hadoop01:9092",
          "topic": "user_ip_pv",
          "tableDefinition": "{"catalogName":null,"dbname":null,"tableName":null,"ifNotExists":true,"physicalColumnDefinition":[{"columnName":"user_id","columnType":"STRING","comment":"用户ID"},{"columnName":"client_ip","columnType":"STRING","comment":"客户端IP"},{"columnName":"client_info","columnType":"STRING","comment":"设备机型信息"},{"columnName":"page_code","columnType":"STRING","comment":"页面代码"},{"columnName":"access_time","columnType":"TIMESTAMP","comment":"请求时间"},{"columnName":"dt","columnType":"STRING","comment":"时间分区天"}],"metadataColumnDefinition":null,"computedColumnDefinition":null,"watermarkDefinition":null}",
          "format": "json",
          "properties": "{"json.ignore-parse-errors":"true"}"
        }
      },
      {
        "uuid": "2222",
        "name": "ReadFromKafka1",
        "bundle": "cn.piflow.bundle.flink.kafka.ReadFromKafka",
        "properties": {
          "kafka_host": "hadoop01:9092",
          "topic": "user_ip_pv",
          "group": "test",
          "startup_mode": "earliest-offset",
          "tableDefinition": "{"catalogName":null,"dbname":null,"tableName":"source_ods_fact_user_ip_pv","ifNotExists":true,"physicalColumnDefinition":[{"columnName":"user_id","columnType":"STRING","comment":"用户ID"},{"columnName":"client_ip","columnType":"STRING","comment":"客户端IP"},{"columnName":"client_info","columnType":"STRING","comment":"设备机型信息"},{"columnName":"page_code","columnType":"STRING","comment":"页面代码"},{"columnName":"access_time","columnType":"TIMESTAMP","comment":"请求时间"},{"columnName":"dt","columnType":"STRING","comment":"时间分区天"}],"metadataColumnDefinition":null,"computedColumnDefinition":null,"watermarkDefinition":null}",
          "format": "json",
          "properties": "{}"
        }
      },
      {
        "uuid": "3333",
        "name": "SQLExecute1",
        "bundle": "cn.piflow.bundle.flink.common.SQLExecute",
        "properties": {
          "sql": "CREATE VIEW view_total_pv_uv_min AS SELECT dt AS do_date, count(client_ip) AS pv, count(DISTINCT client_ip) AS uv,max(access_time) AS access_time FROM source_ods_fact_user_ip_pv GROUP BY dt;"
        }
      },
      {
        "uuid": "4444",
        "name": "WriteToUpsertKafka1",
        "bundle": "cn.piflow.bundle.flink.kafka.WriteToUpsertKafka",
        "properties": {
          "kafka_host": "hadoop01:9092",
          "topic": "result_total_pv_uv_min",
          "key_format": "json",
          "value_format": "json",
          "value_fields_include": "ALL",
          "tableDefinition": "{"catalogName":null,"dbname":null,"tableName":"result_total_pv_uv_min","ifNotExists":true,"physicalColumnDefinition":[{"columnName":"do_date","columnType":"STRING","nullable":false,"primaryKey":true,"partitionKey":false,"comment":"统计日期"},{"columnName":"do_min","columnType":"STRING","nullable":false,"primaryKey":true,"partitionKey":false,"comment":"统计分钟"},{"columnName":"pv","columnType":"BIGINT","nullable":false,"primaryKey":false,"partitionKey":false,"comment":"点击量"},{"columnName":"uv","columnType":"BIGINT","nullable":false,"primaryKey":false,"partitionKey":false,"comment":"一天内同个访客多次访问仅计算一个UV"},{"columnName":"currenttime","columnType":"TIMESTAMP","nullable":false,"primaryKey":false,"partitionKey":false,"comment":"当前时间"}],"metadataColumnDefinition":null,"computedColumnDefinition":null,"watermarkDefinition":null,"asSelectStatement":"SELECT  do_date,cast(DATE_FORMAT(access_time,'HH:mm') AS STRING) AS do_min,pv,uv,NOW() AS currenttime from view_total_pv_uv_min"}",
          "properties": "{"value.json.fail-on-missing-field": false}"
        }
      }
    ],
    "paths": [
      {
        "from": "JsonStringParser1",
        "outport": "",
        "inport": "",
        "to": "WriteToKafka1"
      },
      {
        "from": "WriteToKafka1",
        "outport": "",
        "inport": "",
        "to": "ReadFromKafka1"
      },
      {
        "from": "ReadFromKafka1",
        "outport": "",
        "inport": "",
        "to": "SQLExecute1"
      },
      {
        "from": "SQLExecute1",
        "outport": "",
        "inport": "",
        "to": "WriteToUpsertKafka1"
      }
    ]
  }
}

示例说明

通过JsonStringParser将给定的json字符串解析，并输出到下游，通过WriteToKafka组件将数据写入到kafka的user_ip_pv topic中；
通过ReadFromKafka组件从user_ip_pv topic中读取数据；
使用SQLExecute组件执行创建视图view_total_pv_uv_min的语句；
使用WriteToUpsertKafka定义upsert kafka table,并使用tableDefinition属性中定义的asSelectStatement执行语句，将结果写入kafka。

tableDefinition属性结构

{
  "catalogName": null,
  "dbname": null,
  "tableName": "result_total_pv_uv_min",
  "ifNotExists": true,
  "physicalColumnDefinition": [
    {
      "columnName": "do_date",
      "columnType": "STRING",
      "nullable": false,
      "primaryKey": true,
      "partitionKey": false,
      "comment": "统计日期"
    },
    {
      "columnName": "do_min",
      "columnType": "STRING",
      "nullable": false,
      "primaryKey": true,
      "partitionKey": false,
      "comment": "统计分钟"
    },
    {
      "columnName": "pv",
      "columnType": "BIGINT",
      "nullable": false,
      "primaryKey": false,
      "partitionKey": false,
      "comment": "点击量"
    },
    {
      "columnName": "uv",
      "columnType": "BIGINT",
      "nullable": false,
      "primaryKey": false,
      "partitionKey": false,
      "comment": "一天内同个访客多次访问仅计算一个UV"
    },
    {
      "columnName": "currenttime",
      "columnType": "TIMESTAMP",
      "nullable": false,
      "primaryKey": false,
      "partitionKey": false,
      "comment": "当前时间"
    }
  ],
  "metadataColumnDefinition": null,
  "computedColumnDefinition": null,
  "watermarkDefinition": null,
  "asSelectStatement": "SELECT  do_date,cast(DATE_FORMAT(access_time,'HH:mm') AS STRING) AS do_min,pv,uv,NOW() AS currenttime from view_total_pv_uv_min"
}
