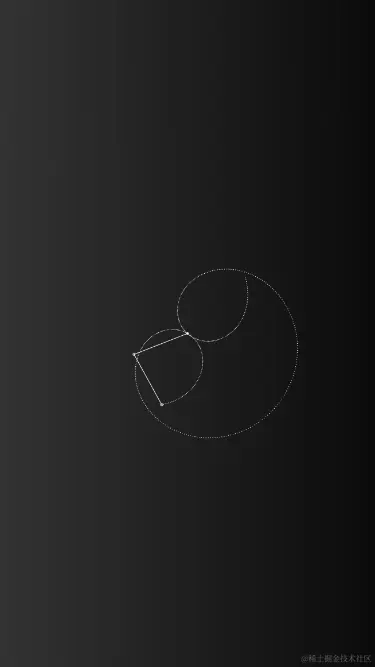

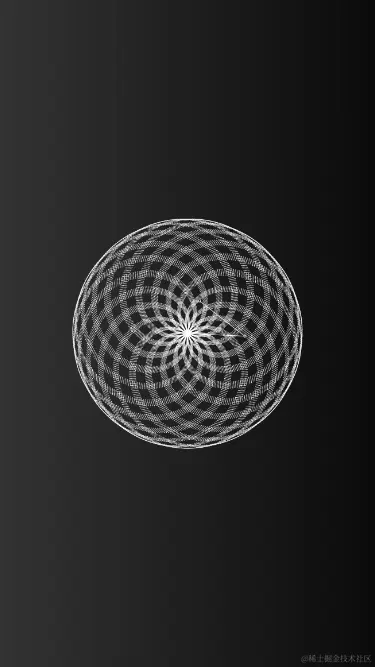

过年了，没什么东西好送给大家，最近看到了一个π可视化的短视频但是没有相关源码； 撸一个给大家，没什么内容就直接上图，上源码了
<html>
<head>
<style>
*{
margin: 0;
padding: 0;
}
canvas {
transform: scale(1.5);
}
body{
background-image: linear-gradient(to right, #333, #0b0b0b);
}
.box{
width: 100vw;
height: 100vh;
display: flex;
align-items: center;
justify-content: center;
}
</style>
</head>
<body>
<div class="box">
<canvas id="canvas"></canvas>
</div>
<script>
let doublex = 1
const bufferCanvas = document.createElement('canvas');
const bufferCtx = bufferCanvas.getContext('2d');
const canvas = document.getElementById('canvas');
const ctx = canvas.getContext('2d');
let targetarr = []
const width = canvas.width = 500;
const height = canvas.height = 500;
bufferCanvas.width = width;
bufferCanvas.height = height;
let angle = 0;
let lastTime = 0;
function draw() {
ctx.clearRect(0, 0, width, height);
ctx.drawImage(bufferCanvas, 0, 0);
// 计算旋转角度
angle += (0.01*doublex)
const rotatedEndpoint = rotateEndpoint(angle); // 逆时针旋转 45 度，即 π/4 弧度
// 保存环境
ctx.save();
bufferCtx.save()
// 画实心点
ctx.beginPath();
ctx.fillStyle = '#fff';
ctx.arc(250, 250, 2, 0, 2 * Math.PI);
ctx.fill();
// 画空心点
ctx.beginPath();
ctx.strokeStyle = '#fff';
ctx.translate(0, 0);
ctx.arc(rotatedEndpoint.x, rotatedEndpoint.y, 2, 0, 2 * Math.PI);
ctx.stroke();
// 画连线
ctx.beginPath();
ctx.moveTo(250, 250);
ctx.lineTo(rotatedEndpoint.x, rotatedEndpoint.y);
ctx.strokeStyle = '#fff';
ctx.stroke();
const endpoint = calculateEndpoint(rotatedEndpoint.x, rotatedEndpoint.y, 100, angle * Math.PI);
targetarr.push(endpoint.x, endpoint.y)
// 画实心点
ctx.beginPath();
ctx.strokeStyle = '#fff';
ctx.arc(endpoint.x, endpoint.y, 2, 0, 2 * Math.PI);
ctx.stroke();
bufferCtx.beginPath();
bufferCtx.fillStyle = '#fff';
bufferCtx.arc(endpoint.x, endpoint.y, 0.5, 0, 2 * Math.PI);
bufferCtx.fill();
// 画连线
ctx.beginPath();
ctx.moveTo(rotatedEndpoint.x, rotatedEndpoint.y);
ctx.lineTo(endpoint.x, endpoint.y);
ctx.strokeStyle = '#fff';
ctx.stroke();
// 恢复环境
ctx.restore();
bufferCtx.restore();
requestAnimationFrame(draw);
// setTimeout(()=>{
// draw()
// },10)
}
function rotateEndpoint(radians) {
const startX = 250; // 起始点 x 坐标
const startY = 250; // 起始点 y 坐标
const endX = 250; // 终点 x 坐标
const endY = 150; // 终点 y 坐标
// 计算线段长度和角度
const length = Math.sqrt(Math.pow(endX - startX, 2) + Math.pow(endY - startY, 2));
const angle = Math.atan2(endY - startY, endX - startX);
// 应用旋转弧度
const rotatedAngle = angle + radians;
// 计算旋转后的终点坐标
const rotatedEndX = startX + length * Math.cos(rotatedAngle);
const rotatedEndY = startY + length * Math.sin(rotatedAngle);
return {
x: rotatedEndX,
y: rotatedEndY
};
}
function calculateEndpoint(startX, startY, length, radians) {
const endX = startX + length * Math.cos(radians);
const endY = startY + length * Math.sin(radians);
return {
x: endX,
y: endY
};
}
draw();
</script>
</body>
</html>
预览地址：pi.hanyue325.cloud/
