例1：仅验证服务端证书
配置要点在于服务端，也就是要配置接收请求的服务，针对服务做pa、dr配置
注：花了1天时间，翻遍了官方文档中关于单向tls内容，文参考档中是这么配置，但实际环境中并不会生效，不知道是不是bug
1）运行demoapp
kubectl apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
labels:
app: demoapp
name: demoapp
spec:
ports:
- name: http-80-80
port: 80
protocol: TCP
targetPort: 80
selector:
app: demoapp
type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: demoapp
version: v1.0
name: demoapp-10
spec:
replicas: 2
selector:
matchLabels:
app: demoapp
version: v1.0
template:
metadata:
labels:
app: demoapp
version: v1.0
spec:
containers:
- image: ikubernetes/demoapp:v1.0
name: demoapp
ports:
- containerPort: 80
name: web
protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: demoapp
version: v1.1
name: demoapp-11
spec:
replicas: 2
selector:
matchLabels:
app: demoapp
version: v1.1
template:
metadata:
labels:
app: demoapp
version: v1.1
spec:
containers:
- image: ikubernetes/demoapp:v1.1
name: demoapp
ports:
- containerPort: 80
name: web
protocol: TCP
---
apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
name: demoapp-dr
spec:
host: demoapp
subsets:
- name: v10
labels:
version: v1.0
- name: v11
labels:
version: v1.1
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: demoapp-vs
spec:
hosts:
- demoapp
http:
- name: canary
match:
- uri:
prefix: /canary
rewrite:
uri: /
route:
- destination:
host: demoapp
subset: v11
- name: default
route:
- destination:
host: demoapp
subset: v10
EOF
2）配置策略
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
name: demoapp
namespace: default
spec:
selector:
matchLabels:
app: demoapp
mtls:
mode: PERMISSIVE
---
apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
name: demoapp-dr
spec:
host: demoapp
trafficPolicy:
tls:
mode: SIMPLE
insecureSkipVerify: true
subsets:
- name: v10
labels:
version: v1.0
- name: v11
labels:
version: v1.1
EOF
例2：实现全链路tls（tls+mtls）
入口网关实现tls，网格内使用mtls双向认证
1）部署bookinfo
清理之前的bookinfo：sh samples/bookinfo/platform/kube/cleanup.sh
kubectl create ns bookinfo
kubectl label ns bookinfo istio-injection=enabled
kubectl apply -n bookinfo -f samples/bookinfo/platform/kube/bookinfo.yaml
kubectl apply -n bookinfo -f samples/bookinfo/networking/bookinfo-gateway.yaml
kubectl apply -n bookinfo -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
name: bookinfo-gateway
spec:
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- bookinfo.hj.com
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: bookinfo
spec:
hosts:
- bookinfo.hj.com
gateways:
- bookinfo-gateway
http:
- match:
- uri:
exact: /productpage
- uri:
prefix: /static
- uri:
exact: /login
- uri:
exact: /logout
- uri:
prefix: /api/v1/products
route:
- destination:
host: productpage
port:
number: 9080
EOF
#强制bookinfo命名空间使用mtls
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
name: bookinfo
namespace: bookinfo
spec:
mtls:
mode: STRICT
EOF
2）运行客户端pod
kubectl run admin --image alpine -- tail -f /dev/null
kubectl exec -it admin -- sed -i 's/dl-cdn.alpinelinux.org/mirrors.ustc.edu.cn/g' /etc/apk/repositories
3）测试
2）productpage上抓包
用于验证ingress-gw与productpage之间通信是否使用tls
kubectl get po -n bookinfo -o wide |awk '/productpage/{print $6,$7}'
#在对应物理机上抓包
ifc=`route -n |awk '/10.20.135.41/{print $NF}'`
tcpdump -X -nn port 9080 -i $ifc
3）admin上抓包
用于验证admin与ingress-gw之间通信是否使用tls
kubectl get po -o wide |awk '/admin/{print $6,$7}'
ifc=`route -n |awk '/10.20.135.19/{print $NF}'`
tcpdump -X -nn port 80 -i $ifc
3）发起测试请求
kubectl get po -n istio-system -o wide |awk '/ingress/{print $6}'
#进入测试用的客户端pod发起请求
kubectl exec -it admin -- sh
curl -LIH 'host: bookinfo.hj.com' 2.2.2.17/productpage

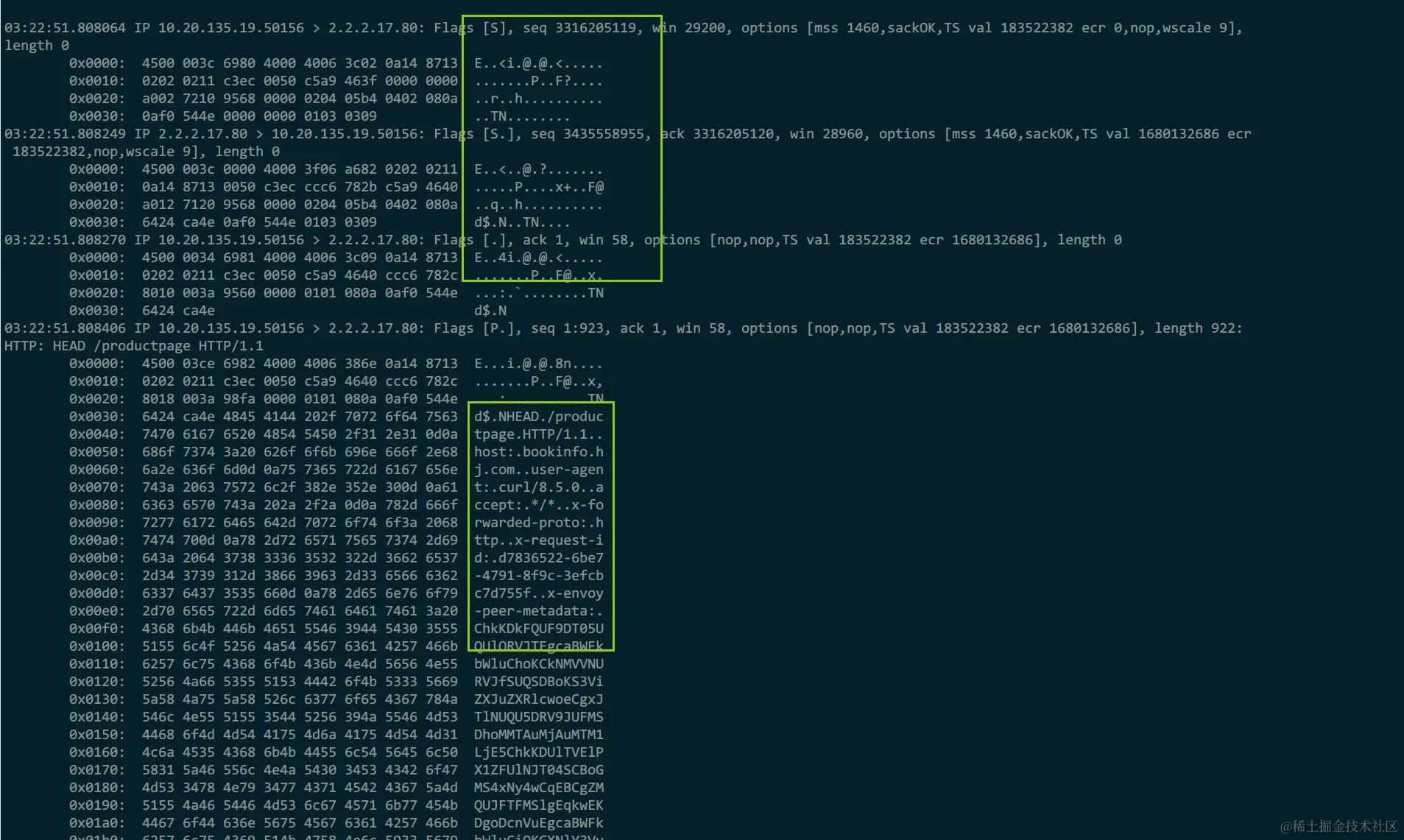

4）结果如图
ingress-gw的集群ip是：10.20.135.24，productpage的ip是：10.20.135.41 ingress-gw与productpage之间对http做了加密，由于前面做了测试，所以没有3次握手而是直接显示了发数据
admin-pod的ip是：10.20.135.19，ingress-gw的集群ip是：10.20.135.24 admin与ingress-gw之间使用http明文通信，可以看见http标头

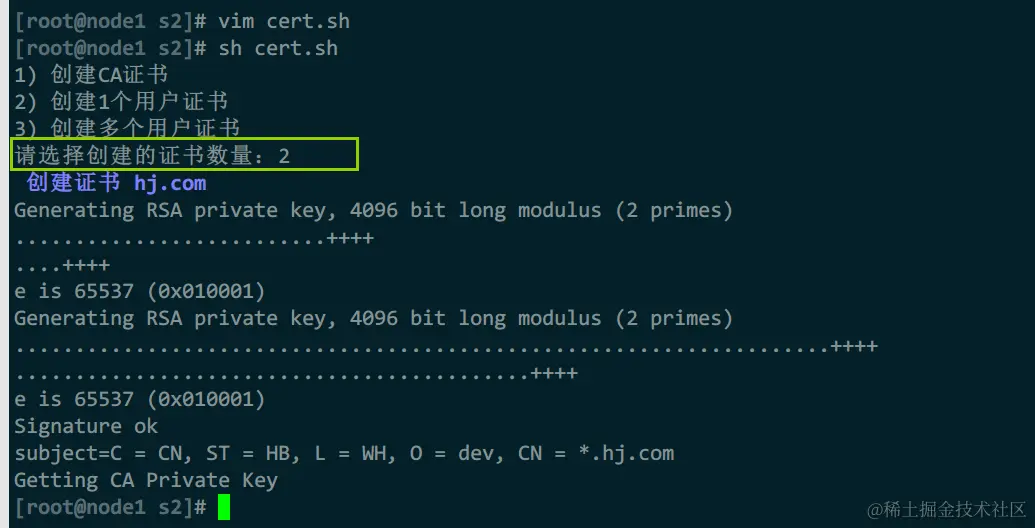

4）生成自签证书
wget 'https://files-cdn.cnblogs.com/files/blogs/731344/cert.sh?t=1703330209&download=true' -O cert.sh

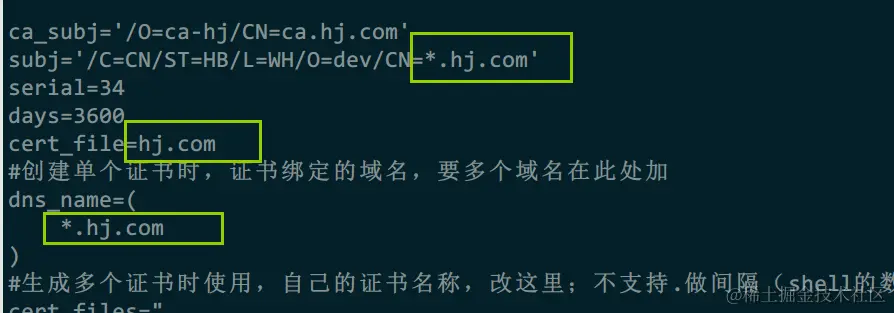

#配置自定义名称后，执行脚本
vim cert.sh
sh cert.sh
#把证书配置为secret，必须创建在根命名空间(istio-system)，否则会找不到证书
kubectl create secret tls hj.com.crt --key=hj.com.key --cert=hj.com.crt -n istio-system
kubectl create secret tls hj.com.crt --key=hj.com.key --cert=hj.com.crt -n bookinfo
5）配置ingress-gw，配置tls
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
name: bookinfo-gateway
namespace: istio-system
spec:
selector:
app: istio-ingressgateway
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "bookinfo.hj.com"
tls:
httpsRedirect: true
- port:
number: 443
name: https
protocol: HTTPS
tls:
mode: SIMPLE
credentialName: hj.com.crt
hosts:
- "bookinfo.hj.com"
EOF
6）测试
#查看pod地址和物理机地址
kubectl get po -o wide |awk '/admin/{print $6,$7}'
#在对应物理机抓包
ifc=`route -n |awk '/10.20.135.43/{print $NF}'`
tcpdump -X -nn port 80 -i $ifc
#发起测试请求
kubectl exec -it admin -- curl -k -LIH 'host: bookinfo.hj.com' 2.2.2.17/productpage

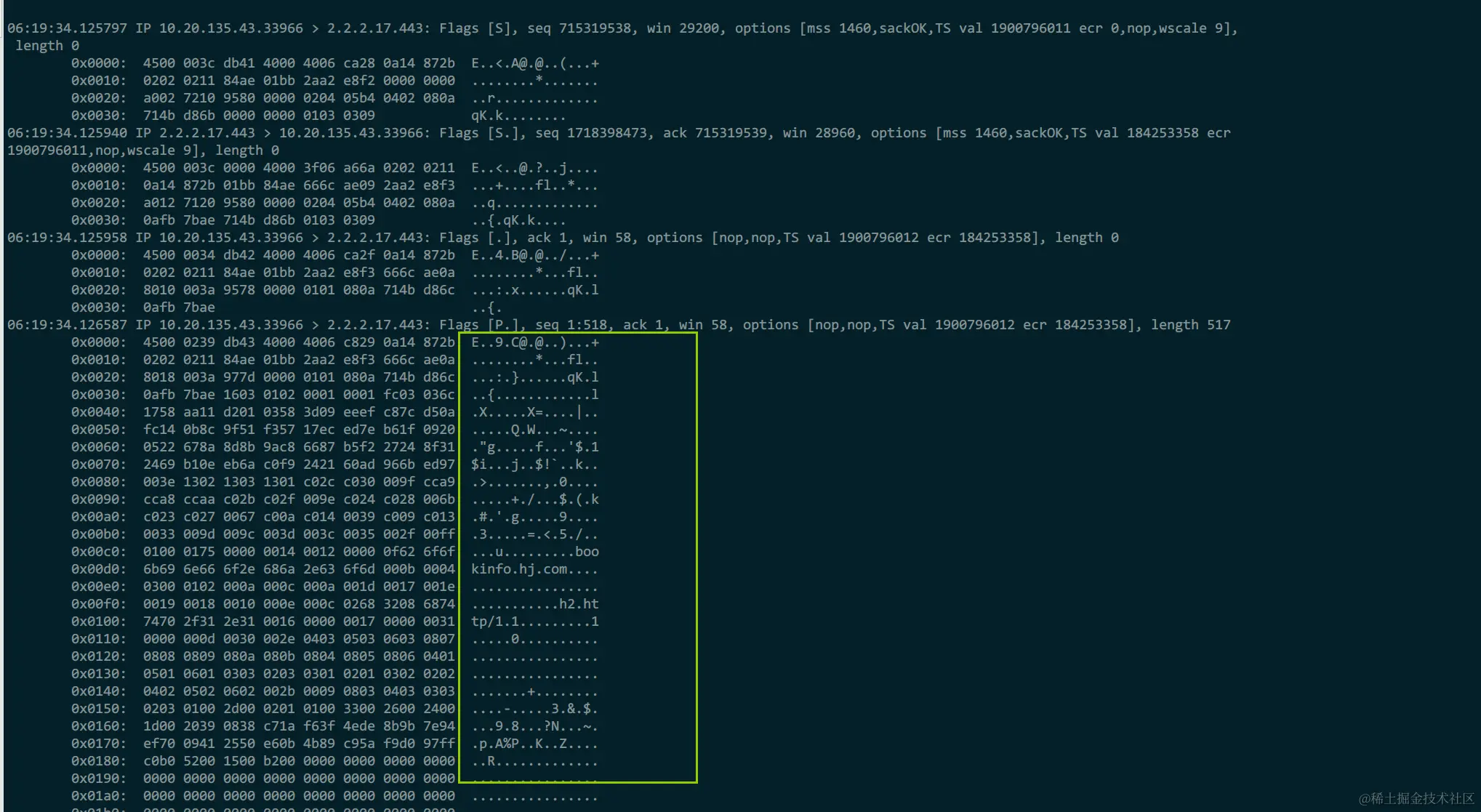

admin的ip：10.20.135.43，ingress-gw的外部暴露ip：2.2.2.17 此时，admin上发起请求后，http使用tls加密
例3：配置productpage与details之间明文通信
1）添加pa策略
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
name: details-pa
namespace: bookinfo
spec:
selector:
matchLabels:
app: details
mtls:
mode: PERMISSIVE
EOF
2）配置dr
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: details
namespace: bookinfo
spec:
hosts:
- details
- mesh
http:
- route:
- destination:
host: details
subset: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: details
namespace: bookinfo
spec:
host: details
trafficPolicy:
tls:
mode: DISABLE
subsets:
- name: v1
labels:
app: details
version: v1
- name: v2
labels:
app: details
version: v2
workloadSelector:
matchLabels:
app: productpage
EOF
3）测试
#查看pod地址和物理机地址
kubectl get po -n bookinfo -o wide |awk '/details/{print $6,$7}'
#在对应物理机抓包
ifc=`route -n |awk '/10.20.135.38/{print $NF}'`
tcpdump -X -nn port 9080 -i $ifc
#查看details的访问记录
kubectl logs -f -n bookinfo details-v1-65fbc6fbcf-m9582 istio-proxy
#发起访问
curl -k -LIH 'host: bookinfo.hj.com' 2.2.2.17/productpage

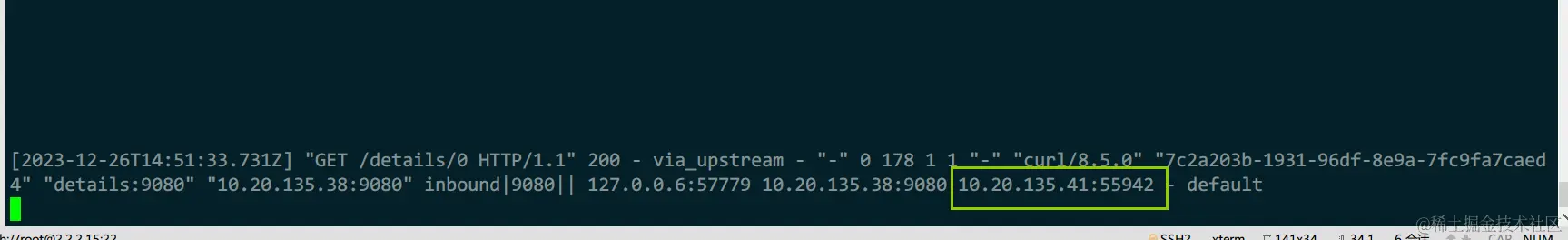

在details的访问日志中，可以看到，请求ip中是productpage发起的

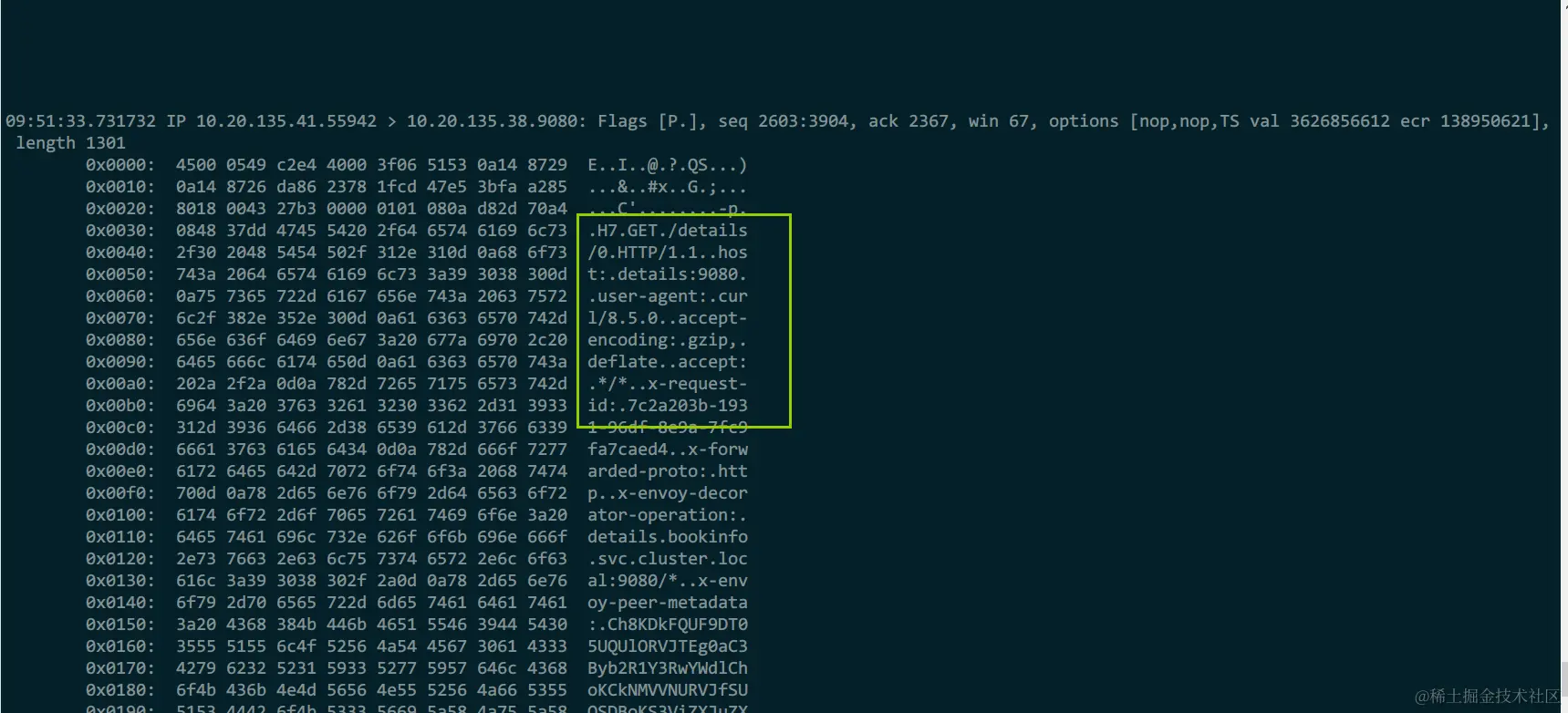

抓包details的网卡，显示请求使用明文
例4：实现网格中服务单点登录
以bookinfo的productpage、kiali、普罗米修斯配置认证登录，默认情况下，访问这些页面是不需要输入密码的。配置单点登录有，一个账号，就可以登录访问这些页面
1）为各测试服务生成tls证书
参考例1的第三步，或者继续使用第三步的证书，此处选择继续使用
wget 'https://files-cdn.cnblogs.com/files/blogs/731344/cert.sh?t=1703330209&download=true' -O cert.sh
wget -O ssl.sh 'https://files.cnblogs.com/files/blogs/731344/ssl.sh?t=1703664168&download=true' && sh ssl.sh
sh cert.sh
ssl2 hj.com.crt ca.crt
kubectl create secret tls hj.com.crt --key=hj.com.key --cert=hj.com.crt -n istio-system
2）部署bookinfo、kiali、普罗米修斯
bookinfo
kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml
kubectl apply -f samples/bookinfo/networking/bookinfo-gateway.yaml
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
name: bookinfo-gateway
spec:
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- bookinfo.hj.com
tls:
httpsRedirect: true
- port:
number: 443
name: https
protocol: HTTPS
tls:
mode: SIMPLE
credentialName: hj.com.crt
hosts:
- "bookinfo.hj.com"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: bookinfo
spec:
hosts:
- bookinfo.hj.com
gateways:
- bookinfo-gateway
http:
- match:
- uri:
exact: /productpage
- uri:
prefix: /static
- uri:
exact: /login
- uri:
exact: /logout
- uri:
prefix: /api/v1/products
route:
- destination:
host: productpage
port:
number: 9080
EOF
kiali与普罗米修斯
cd /opt/istio-1.17.0/
kubectl apply -f samples/addons/
kubectl apply -f <<EOF
apiVersion: v1
kind: ConfigMap
metadata:
name: kiali
namespace: istio-system
labels:
helm.sh/chart: kiali-server-1.63.1
app: kiali
app.kubernetes.io/name: kiali
app.kubernetes.io/instance: kiali
version: "v1.63.1"
app.kubernetes.io/version: "v1.63.1"
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/part-of: "kiali"
data:
config.yaml: |
auth:
openid: {}
openshift:
client_id_prefix: kiali
strategy: anonymous
deployment:
accessible_namespaces:
- '**'
additional_service_yaml: {}
affinity:
node: {}
pod: {}
pod_anti: {}
configmap_annotations: {}
custom_secrets: []
host_aliases: []
hpa:
api_version: autoscaling/v2beta2
spec: {}
image_digest: ""
image_name: quay.io/kiali/kiali
image_pull_policy: Always
image_pull_secrets: []
image_version: v1.63
ingress:
additional_labels: {}
class_name: nginx
override_yaml:
metadata: {}
ingress_enabled: false
instance_name: kiali
logger:
log_format: text
log_level: info
sampler_rate: "1"
time_field_format: 2006-01-02T15:04:05Z07:00
namespace: istio-system
node_selector: {}
pod_annotations: {}
pod_labels:
sidecar.istio.io/inject: "false"
priority_class_name: ""
replicas: 1
resources:
limits:
memory: 1Gi
requests:
cpu: 10m
memory: 64Mi
secret_name: kiali
security_context: {}
service_annotations: {}
service_type: ""
tolerations: []
version_label: v1.63.1
view_only_mode: false
external_services:
custom_dashboards:
enabled: true
istio:
root_namespace: istio-system
grafana:
in_cluster_url: http://grafana.istio-system:3000/
health_check_url: "http://grafana.istio-system:3000/api/health"
enabled: true
prometheus:
in_cluster_url: "http://prometheus.istio-system:9090"
health_check_url: "http://prometheus.istio-system:9090/-/healthy"
tracing:
use_grpc: false
in_cluster_url: "http://tracing.istio-system:80/jaeger"
identity:
cert_file: ""
private_key_file: ""
istio_namespace: istio-system
kiali_feature_flags:
certificates_information_indicators:
enabled: true
secrets:
- cacerts
- istio-ca-secret
clustering:
autodetect_secrets:
enabled: true
label: istio/multiCluster=true
clusters: []
disabled_features: []
validations:
ignore:
- KIA1201
login_token:
signing_key: CHANGEME00000000
server:
metrics_enabled: true
metrics_port: 9090
port: 20001
web_root: /kiali
EOF
测试服务运行
kubectl exec -it admin -- sh
curl -IL productpage:9080
curl -IL kiali.istio-system:20001
curl -ILXGET prometheus.istio-system:9090
3）部署三方认证系统keycloak
注意事项：
- 部署完成后，应该创建独立域

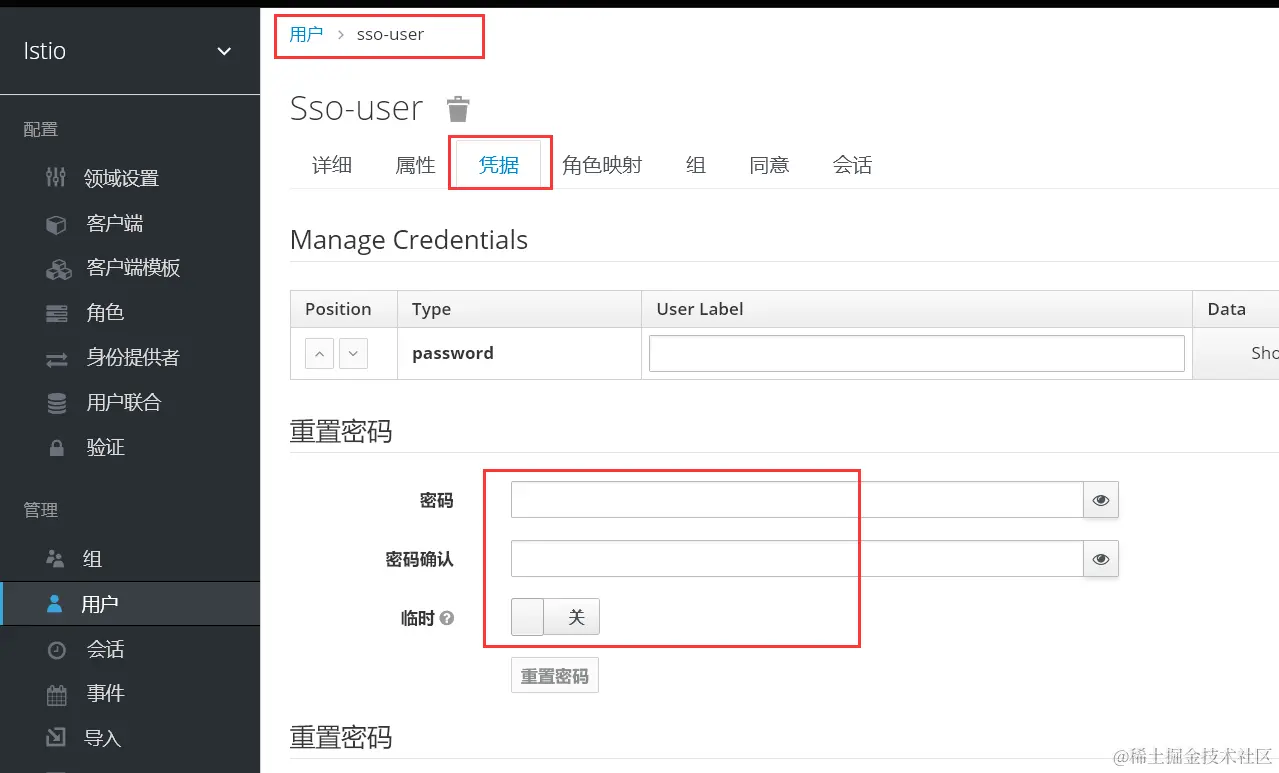

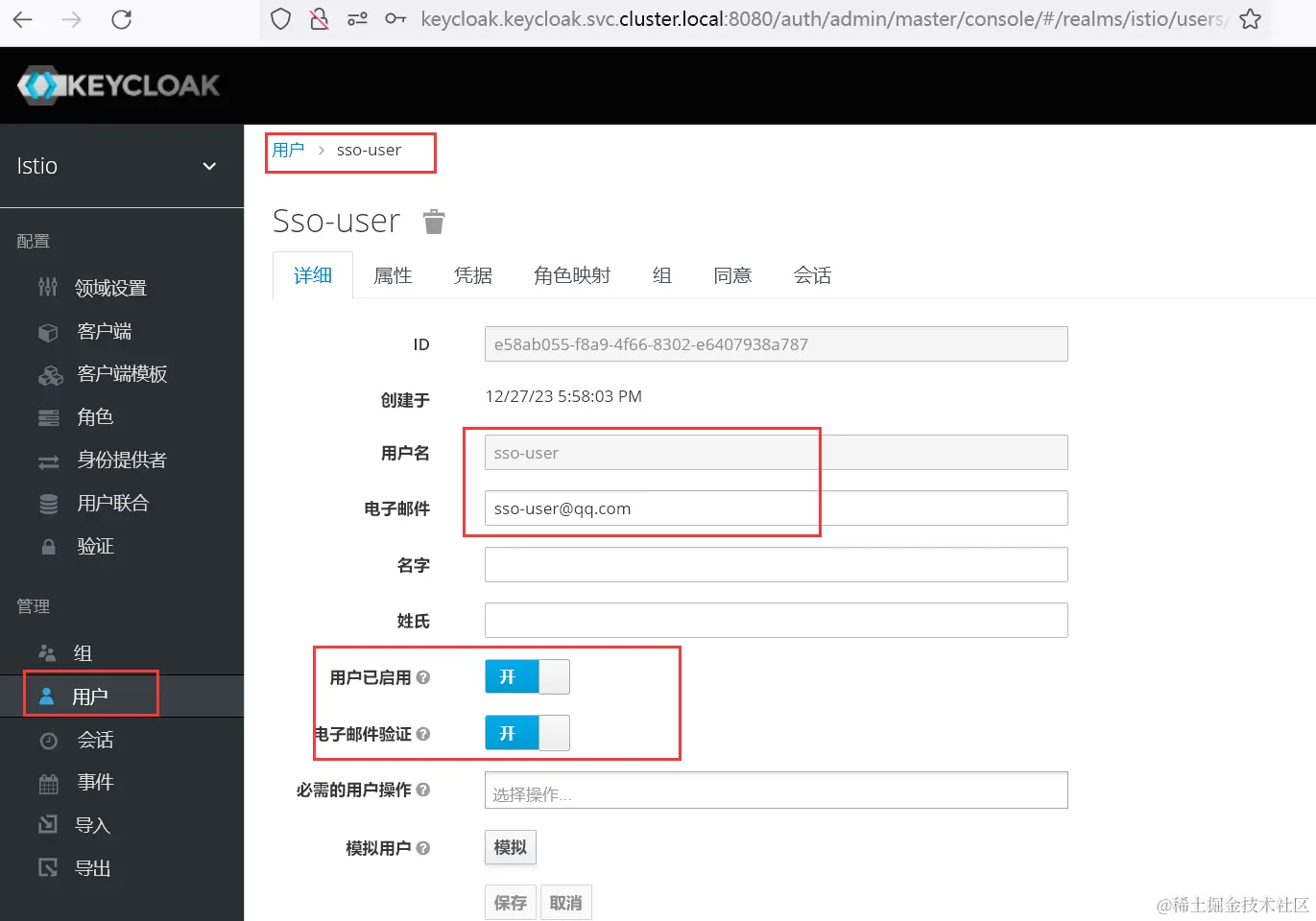

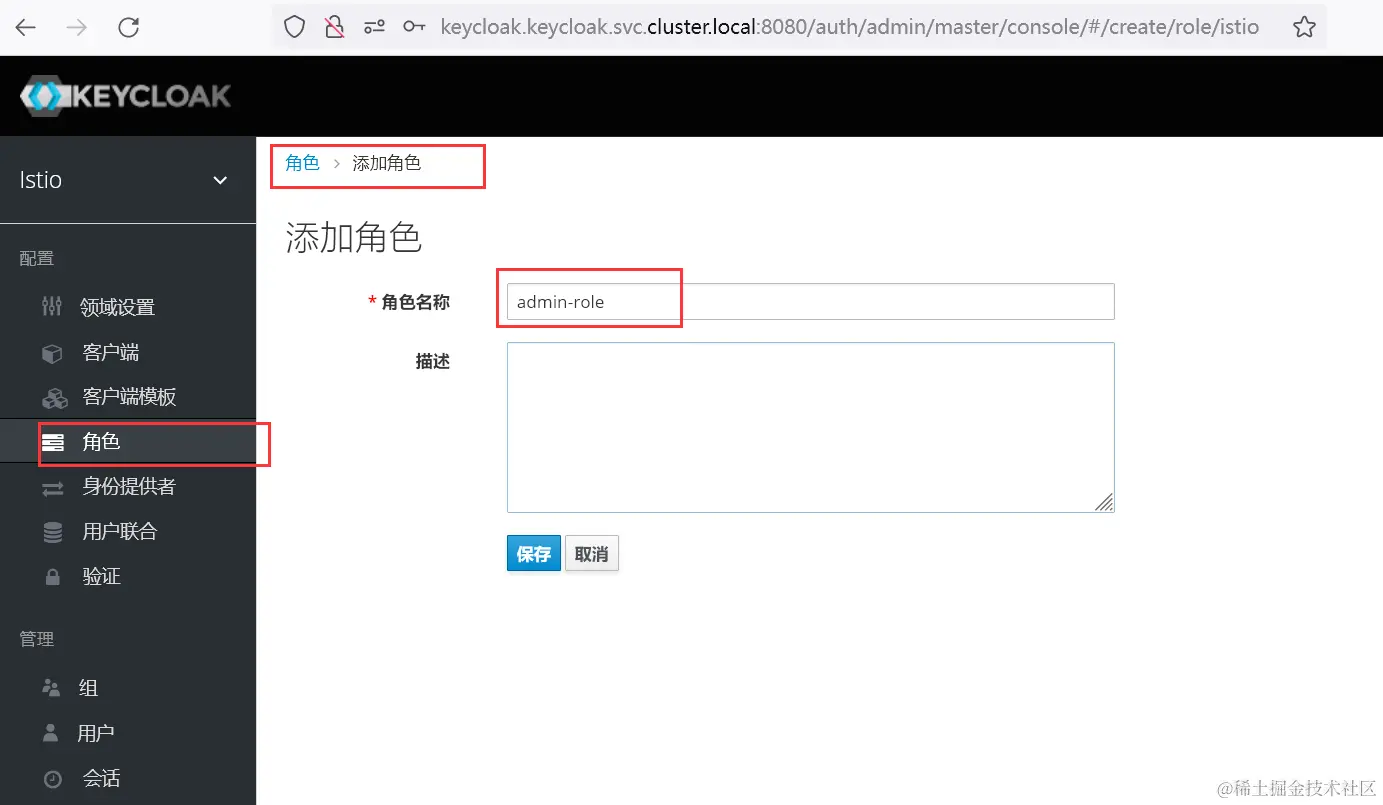

- 独立域中创建请求客户端、用户登录账号(配置密码)等
- 配置的https继续使用前面生成的证书
部署
kubectl apply -f - <<EOF
apiVersion: v1
kind: Namespace
metadata:
name: keycloak
labels:
istio-injection: enabled
---
apiVersion: v1
kind: Service
metadata:
name: keycloak
namespace: keycloak
labels:
app: keycloak
spec:
ports:
- name: http
port: 8080
targetPort: 8080
selector:
app: keycloak
type: LoadBalancer
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: keycloak
namespace: keycloak
labels:
app: keycloak
spec:
replicas: 1
selector:
matchLabels:
app: keycloak
template:
metadata:
labels:
app: keycloak
spec:
containers:
- name: keycloak
image: quay.io/keycloak/keycloak:16.1.1
env:
- name: KEYCLOAK_USER
value: "admin"
- name: KEYCLOAK_PASSWORD
value: "admin"
- name: PROXY_ADDRESS_FORWARDING
value: "true"
ports:
- name: http
containerPort: 8080
- name: https
containerPort: 8443
readinessProbe:
httpGet:
path: /auth/realms/master
port: 8080
---
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
name: keycloak-gw
namespace: istio-system
spec:
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "keycloak.hj.com"
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: keycloak-vs
namespace: keycloak
spec:
hosts:
- "keycloak.hj.com"
gateways:
- istio-system/keycloak-gw
http:
- route:
- destination:
host: keycloak
port:
number: 8080
EOF
测试服务运行
kubectl patch svc -n keycloak keycloak -p '{"spec":{"externalIPs":["2.2.2.67"]}}'
echo 2.2.2.67 keycloak.keycloak.svc.cluster.local keycloak.hj.com bookinfo.hj.com kiali.hj.com prome.hj.com >> /etc/hosts
curl -I keycloak.keycloak.svc.cluster.local:8080
curl -IH 'host: keycloak.hj.com' 2.2.2.66

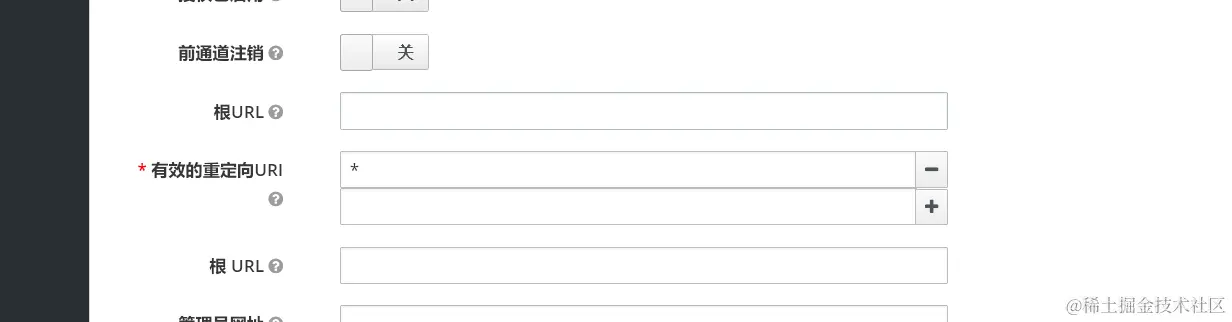

web界面配置
4）部署oauth2-proxy
部署
kubectl apply -f - <<EOF
apiVersion: v1
kind: Namespace
metadata:
name: oauth2-proxy
labels:
istio-injection: enabled
---
apiVersion: v1
kind: Secret
metadata:
name: oauth2-proxy
namespace: oauth2-proxy
stringData:
#keycloak中建的客户端id
OAUTH2_PROXY_CLIENT_ID: ingress-gw
#前面保存的ingress-gw客户端的secret
OAUTH2_PROXY_CLIENT_SECRET: HAwWlzhMkqnWrUDsRzV92kik4soiWR8I
#自定义cookie secret，生成命令: openssl rand -base64 32 | tr -- '+/' '-_'
OAUTH2_PROXY_COOKIE_SECRET: vEBMxbw7NXfaUIJR4klhdvB678GUPxWTd7tR9hq2m8w=
---
apiVersion: v1
kind: Service
metadata:
name: oauth2-proxy
namespace: oauth2-proxy
spec:
selector:
app: oauth2-proxy
ports:
- name: http
port: 4180
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: oauth2-proxy
namespace: oauth2-proxy
spec:
selector:
matchLabels:
app: oauth2-proxy
template:
metadata:
labels:
app: oauth2-proxy
spec:
containers:
- name: oauth2-proxy
image: quay.io/oauth2-proxy/oauth2-proxy:v7.2.1
args:
- --provider=oidc
- --oidc-issuer-url=http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio
- --profile-url=http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio/protocol/openid-connect/userinfo
- --validate-url=http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio/protocol/openid-connect/userinfo
- --set-authorization-header=true
- --http-address=0.0.0.0:4180
- --pass-host-header=true
- --reverse-proxy=true
- --auth-logging=true
- --cookie-httponly=true
- --cookie-refresh=4m
- --cookie-secure=false
- --email-domain="*"
- --pass-access-token=true
- --pass-authorization-header=true
- --request-logging=true
- --set-xauthrequest=true
- --silence-ping-logging=true
- --skip-provider-button=true
- --skip-auth-strip-headers=false
- --ssl-insecure-skip-verify=true
- --standard-logging=true
- --upstream="static://200"
- --whitelist-domain=".hj.com,.cluster.local"
env:
- name: OAUTH2_PROXY_CLIENT_ID
valueFrom:
secretKeyRef:
name: oauth2-proxy
key: OAUTH2_PROXY_CLIENT_ID
- name: OAUTH2_PROXY_CLIENT_SECRET
valueFrom:
secretKeyRef:
name: oauth2-proxy
key: OAUTH2_PROXY_CLIENT_SECRET
- name: OAUTH2_PROXY_COOKIE_SECRET
valueFrom:
secretKeyRef:
name: oauth2-proxy
key: OAUTH2_PROXY_COOKIE_SECRET
resources:
requests:
cpu: 10m
memory: 100Mi
ports:
- containerPort: 4180
protocol: TCP
readinessProbe:
periodSeconds: 3
httpGet:
path: /ping
port: 4180
EOF
测试服务运行
kubectl exec -it admin -- curl -IL oauth2-proxy.oauth2-proxy.svc.cluster.local:4180
istio全局provider新增oauth2-proxy
istioctl apply -y -f - <<EOF
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
meshConfig:
extensionProviders:
- name: oauth2-proxy
envoyExtAuthzHttp:
service: oauth2-proxy.oauth2-proxy.svc.cluster.local
port: 4180
timeout: 1.5s
includeHeadersInCheck: #要检查的标头，用于确认用户是否完成身份认证
- "authorization"
- "cookie"
headersToUpstreamOnAllow: #身份认证检测成功时，向上游转发或添加的标头
- "x-forwarded-access-token"
- "authorization"
- "path"
- "x-auth-request-user"
- "x-auth-request-email"
- "x-auth-request-access-token"
headersToDownstreamOnDeny: #身份认证检测失败时，向下游转发或添加的标头
- "content-type"
- "set-cookie"
EOF
5）入口网关配置jwt认证
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: RequestAuthentication
metadata:
name: istio-ingress-gw
namespace: istio-system
spec:
selector:
matchLabels:
istio: ingressgateway
jwtRules:
#集群内访问keycloak的路径
- issuer: "http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio"
jwksUri: "http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio/protocol/openid-connect/certs"
#audiences: ["ingress-gw","istio-ingress-gw"]
forwardOriginalToken: true
#集群外访问keycloak的路径
# - issuer: http://keycloak.hj.com:8080/auth/realms/istio
# jwksUri: http://keycloak.hj.com:8080/auth/realms/istio/protocol/openid-connect/certs
---
apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
name: ext-authz-oauth2-proxy
namespace: istio-system
spec:
selector:
matchLabels:
istio: ingressgateway
action: CUSTOM
provider:
name: oauth2-proxy
rules:
- to:
- operation:
hosts:
- "kiali.hj.com"
- "prome.hj.com"
- "bookinfo.hj.com"
notPaths: ["/auth/*"]
#- to:
# - operation:
# hosts: ["*.hj.com"]
# notPaths: ["/auth/*"]
EOF
6）各服务配置https与三方认证转发
bookinfo
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
name: bookinfo-gateway
spec:
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- bookinfo.hj.com
tls:
httpsRedirect: true
- port:
number: 443
name: https
protocol: HTTPS
tls:
mode: SIMPLE
credentialName: hj.com.crt
hosts:
- "bookinfo.hj.com"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: bookinfo
spec:
hosts:
- bookinfo.hj.com
gateways:
- bookinfo-gateway
http:
- match:
- uri:
exact: /
rewrite:
uri: /productpage
route:
- destination:
host: productpage
port:
number: 9080
- match:
- uri:
exact: /productpage
- uri:
prefix: /static
- uri:
exact: /login
- uri:
exact: /logout
- uri:
prefix: /api/v1/products
route:
- destination:
host: productpage
port:
number: 9080
- match:
- uri:
prefix: /auth
route:
- destination:
host: keycloak.keycloak.svc.cluster.local
port:
number: 8080
- match:
- uri:
prefix: /oauth2
route:
- destination:
host: oauth2-proxy.oauth2-proxy.svc.cluster.local
port:
number: 4180
EOF
kiali
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
name: kiali-gw
namespace: istio-system
spec:
selector:
istio: ingressgateway
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "kiali.hj.com"
tls:
httpsRedirect: true
- port:
number: 443
name: https
protocol: HTTPS
tls:
mode: SIMPLE
credentialName: hj.com.crt
hosts:
- "kiali.hj.com"
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: kiali-vs
namespace: istio-system
spec:
hosts:
- "kiali.hj.com"
gateways:
- kiali-gw
http:
- match:
- uri:
prefix: /auth
route:
- destination:
host: keycloak.keycloak.svc.cluster.local
port:
number: 8080
- match:
- uri:
prefix: /oauth2
route:
- destination:
host: oauth2-proxy.oauth2-proxy.svc.cluster.local
port:
number: 4180
- route:
- destination:
host: kiali
port:
number: 20001
EOF
普罗米修斯
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
name: prome-gw
namespace: istio-system
spec:
selector:
istio: ingressgateway
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "prome.hj.com"
tls:
httpsRedirect: true
- port:
number: 443
name: https
protocol: HTTPS
tls:
mode: SIMPLE
credentialName: hj.com.crt
hosts:
- "prome.hj.com"
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: prome-vs
namespace: istio-system
spec:
hosts:
- "prome.hj.com"
gateways:
- prome-gw
http:
- match:
- uri:
prefix: /auth
route:
- destination:
host: keycloak.keycloak.svc.cluster.local
port:
number: 8080
- match:
- uri:
prefix: /oauth2
route:
- destination:
host: oauth2-proxy.oauth2-proxy.svc.cluster.local
port:
number: 4180
- route:
- destination:
host: prometheus
port:
number: 9090
EOF
7）验证登录
#账号请求正常，可以获取token
curl -s -d "username=sso-user&\
password=123456&\
grant_type=password&\
client_id=ingress-gw&\
client_secret=HAwWlzhMkqnWrUDsRzV92kik4soiWR8I" \
http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio/protocol/openid-connect/token |jq
kiali

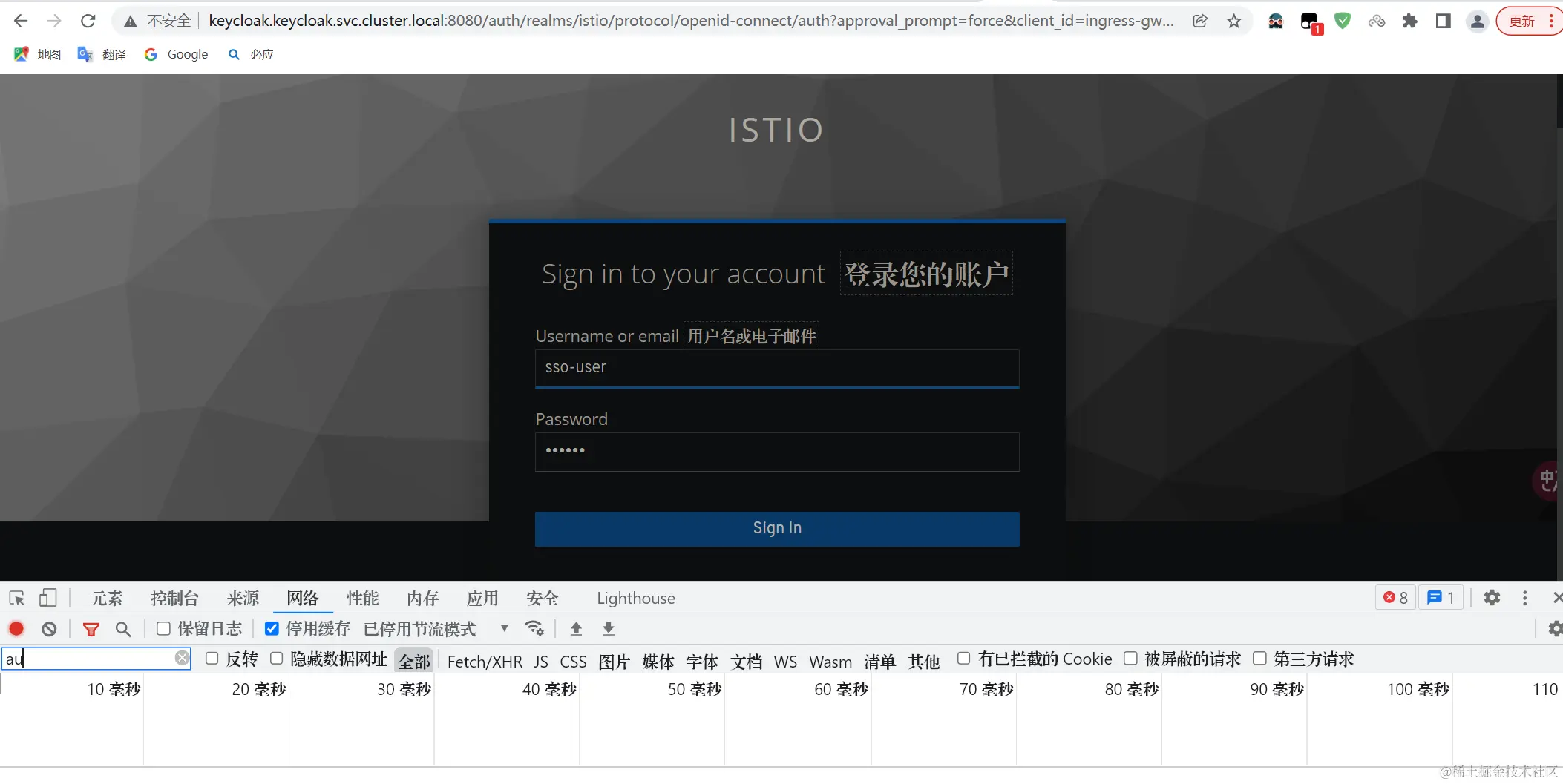

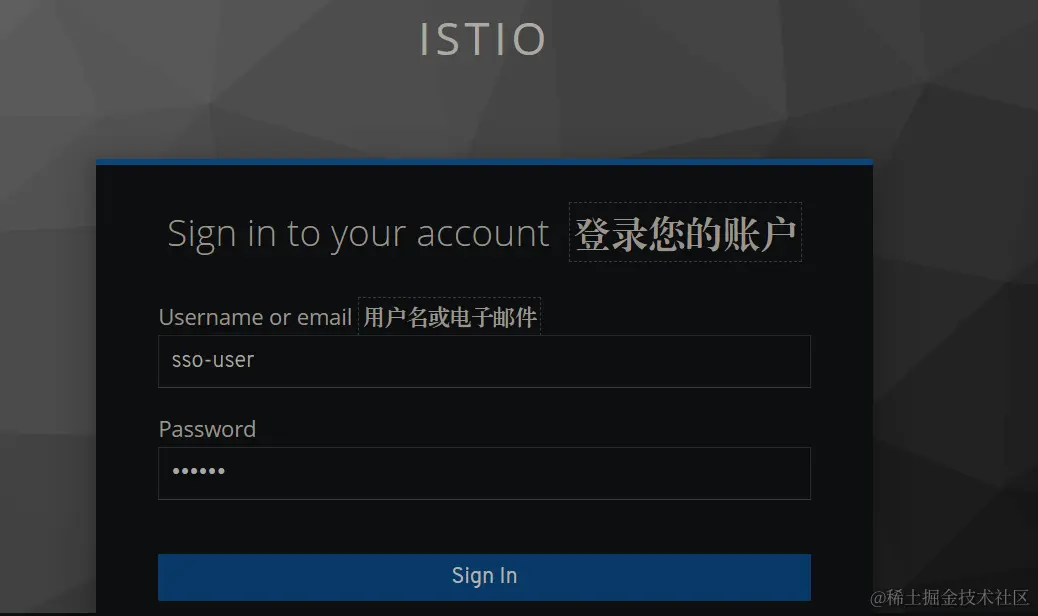

浏览器访问：kiali.hj.com，会自动跳转到keycloak登录界面

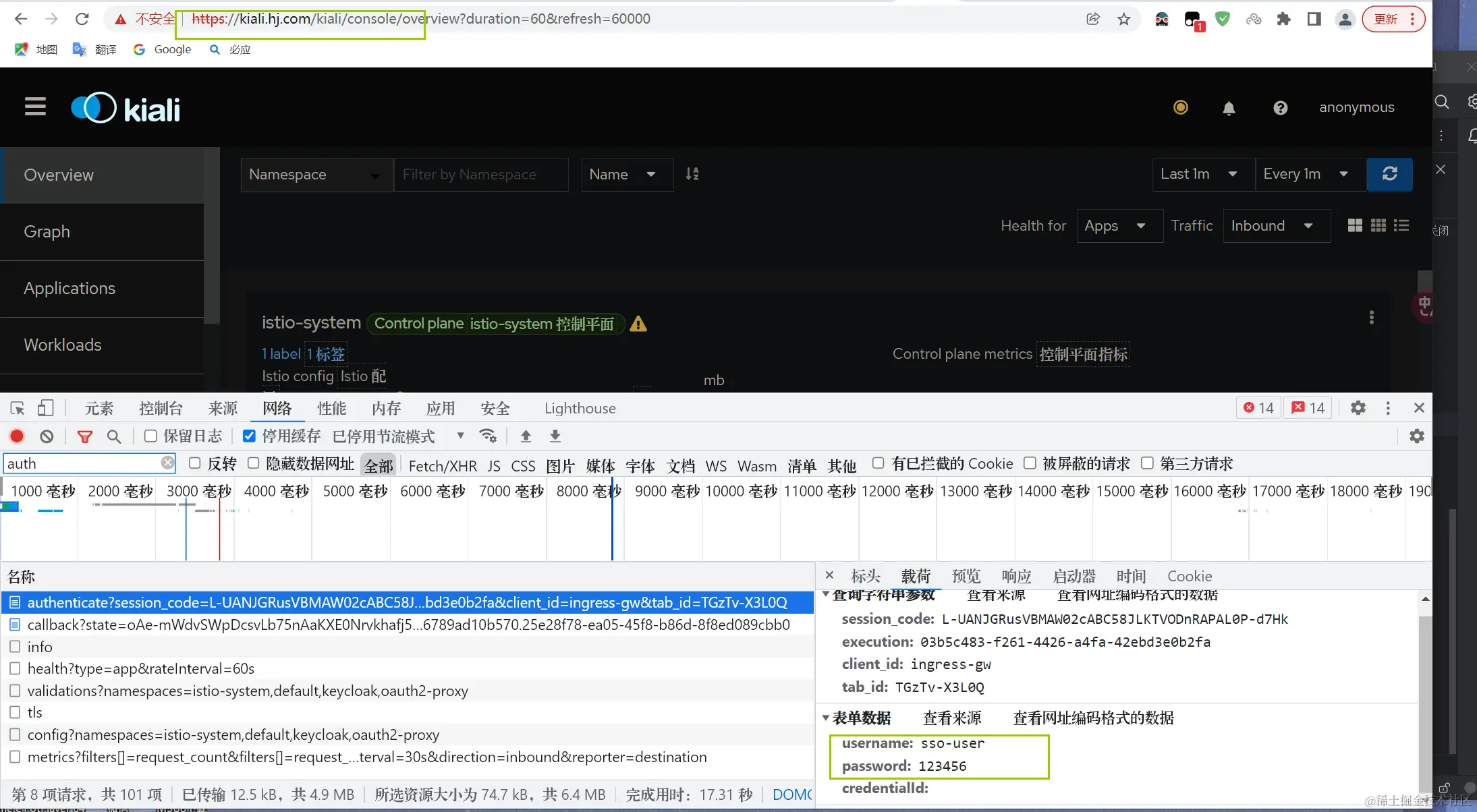

在keycloak登录成功后，进入kiali，同时可以在请求报文中看到登录的账号信息
bookinfo

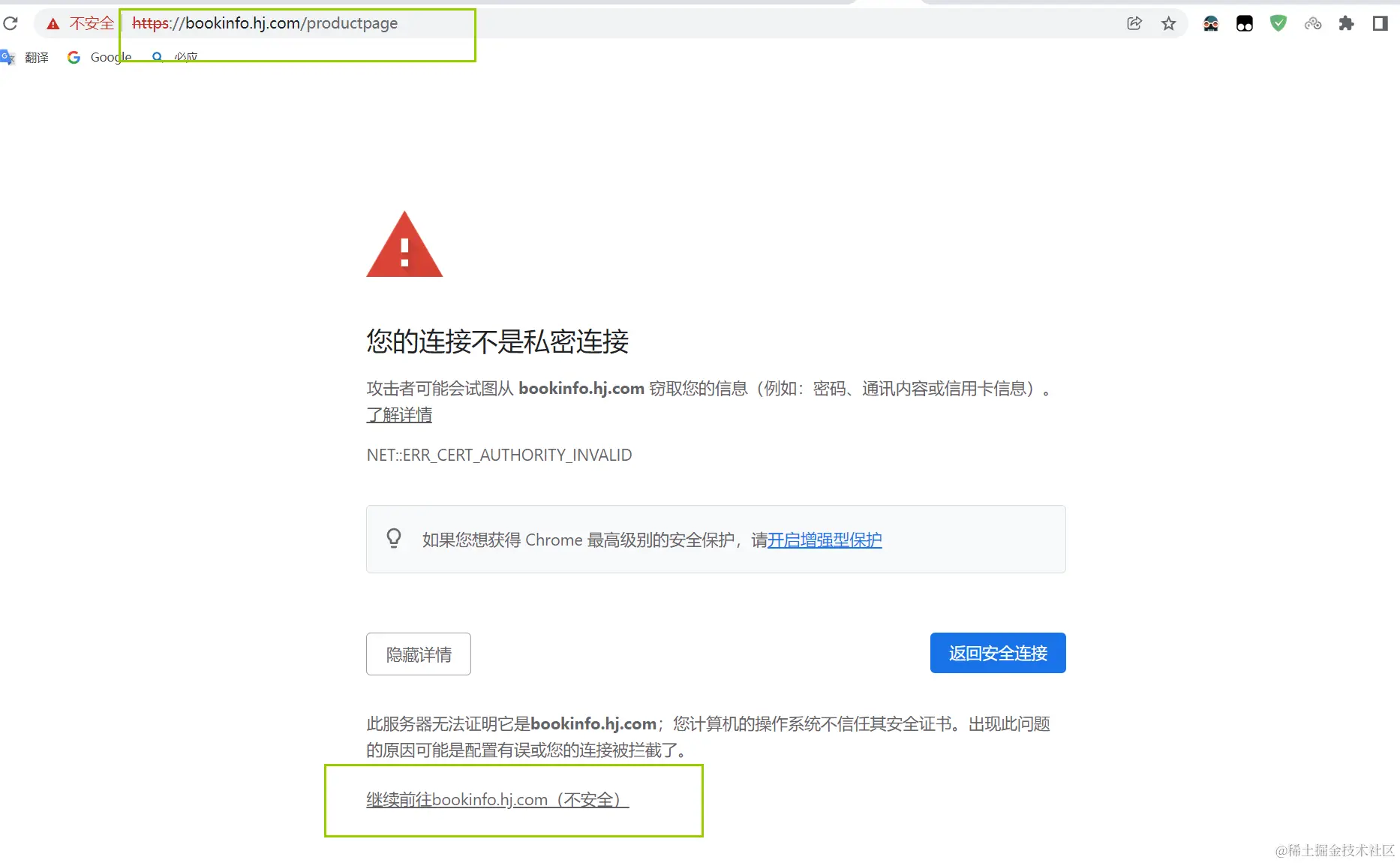

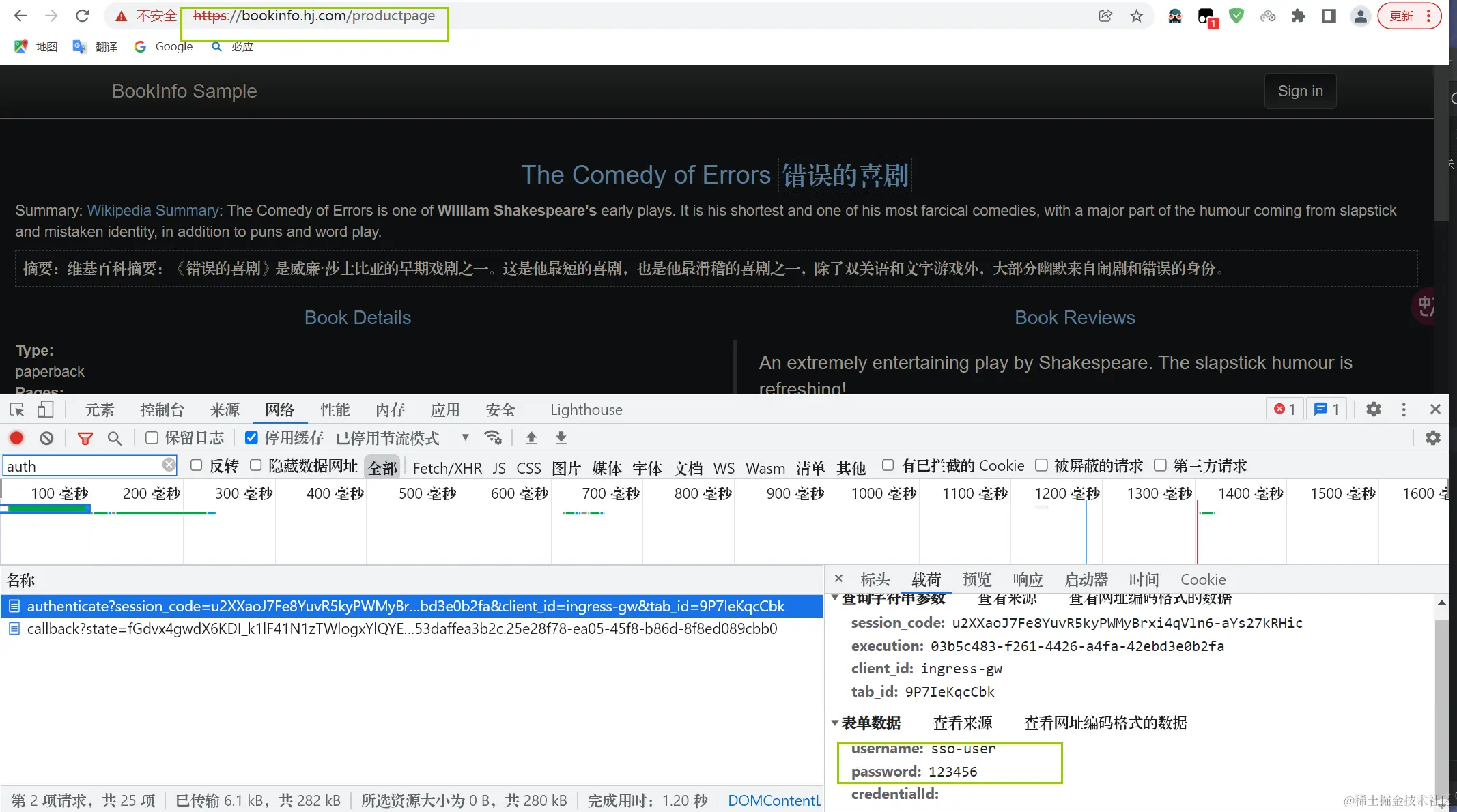

访问：kiali.hj.com/productpage，自签证书，不识别是正常现象
使用同一个账号，sso-user登录成功

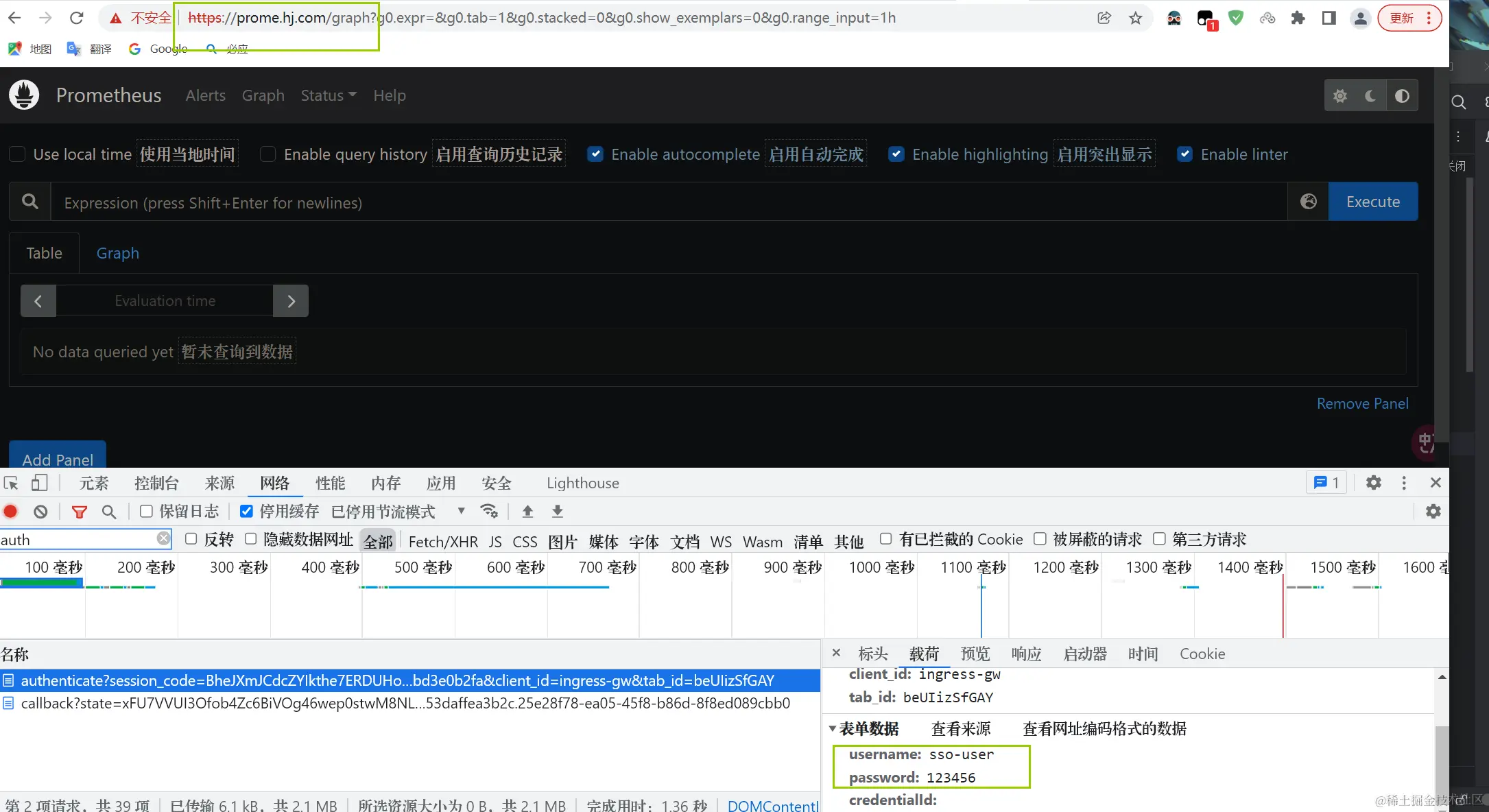

普罗米修斯
例5：jwt配合角色与组访问控制
1）keycloak配置

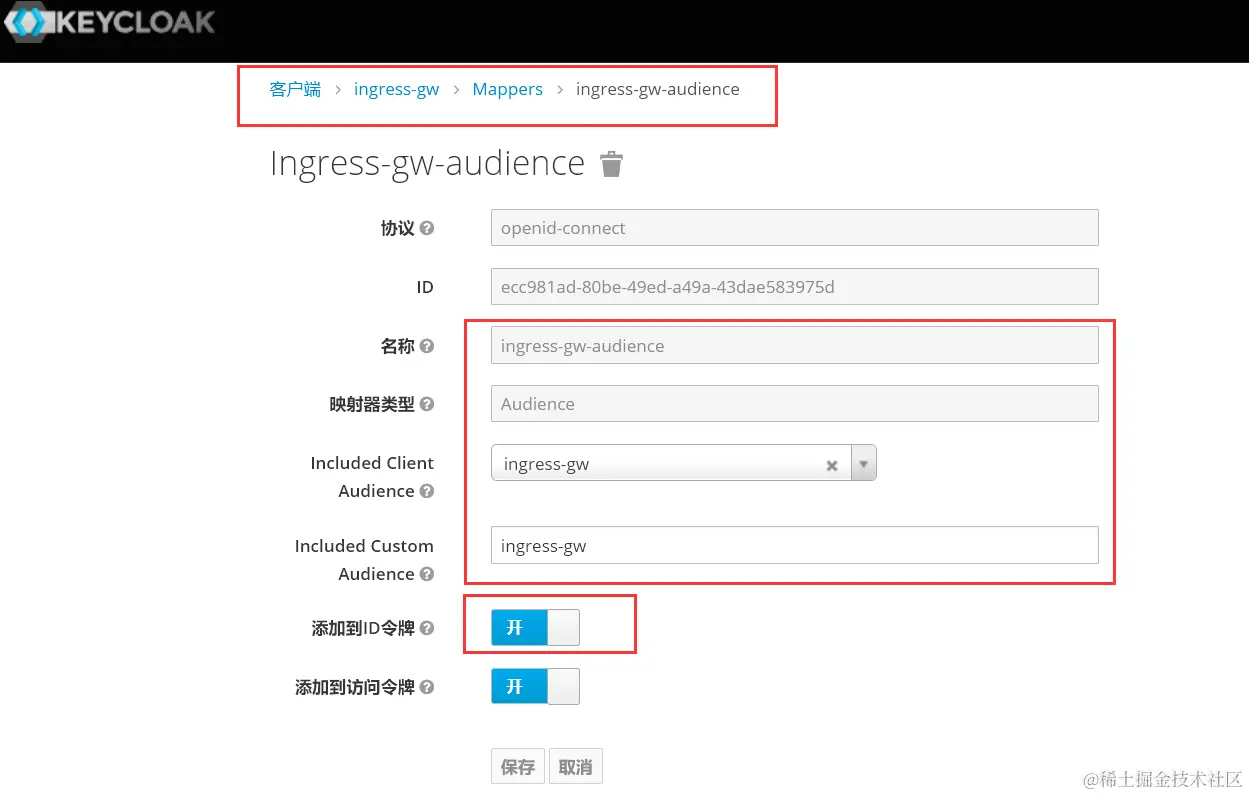

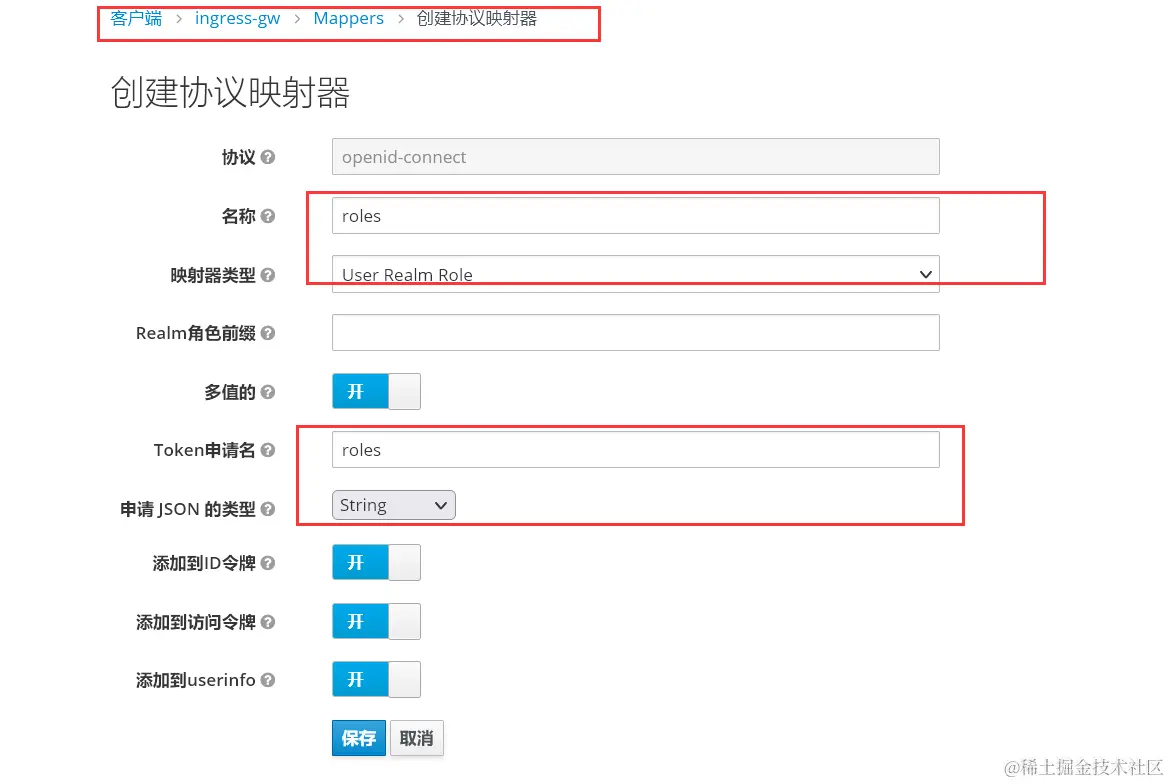

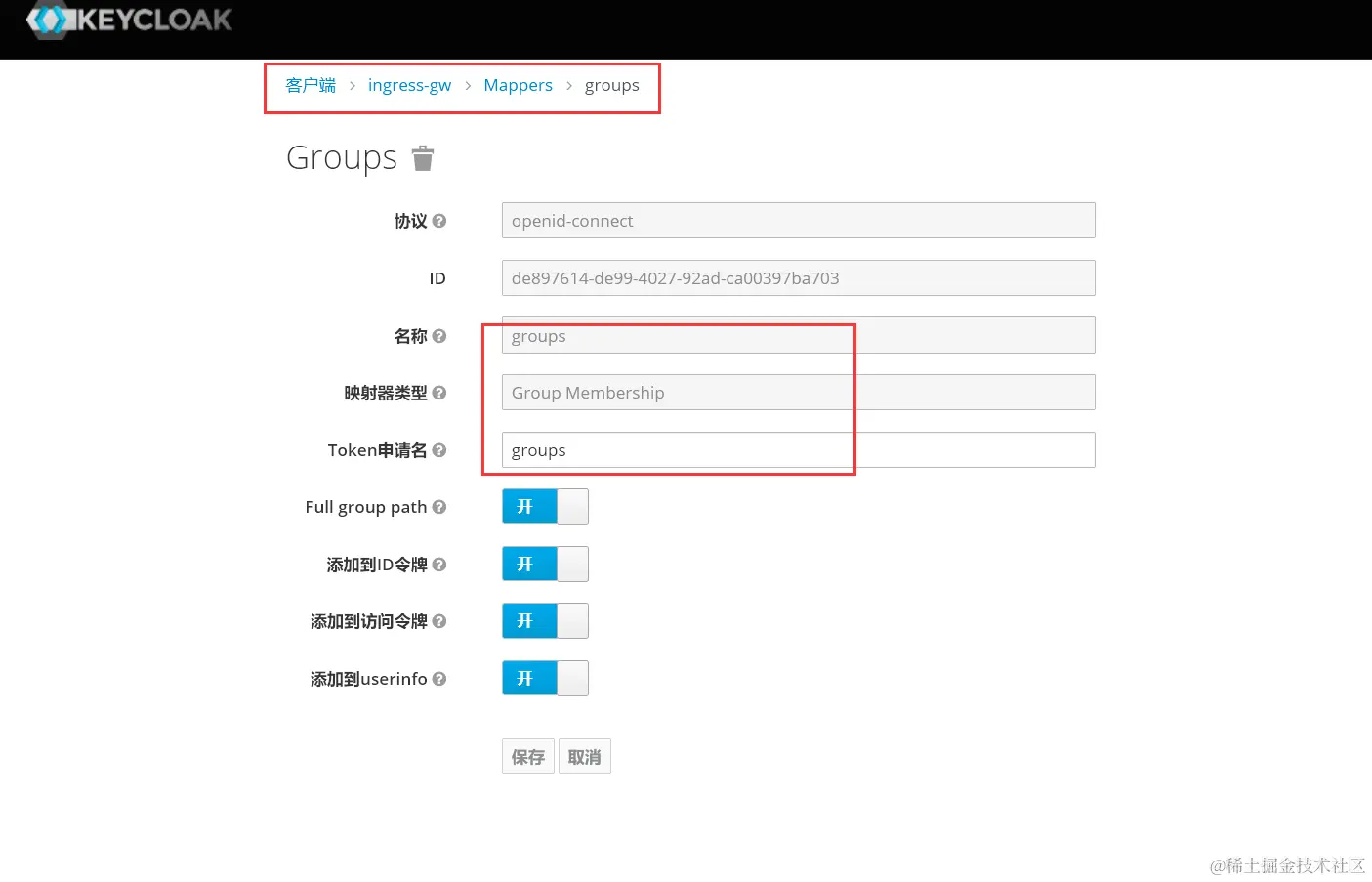

新建2个映射器

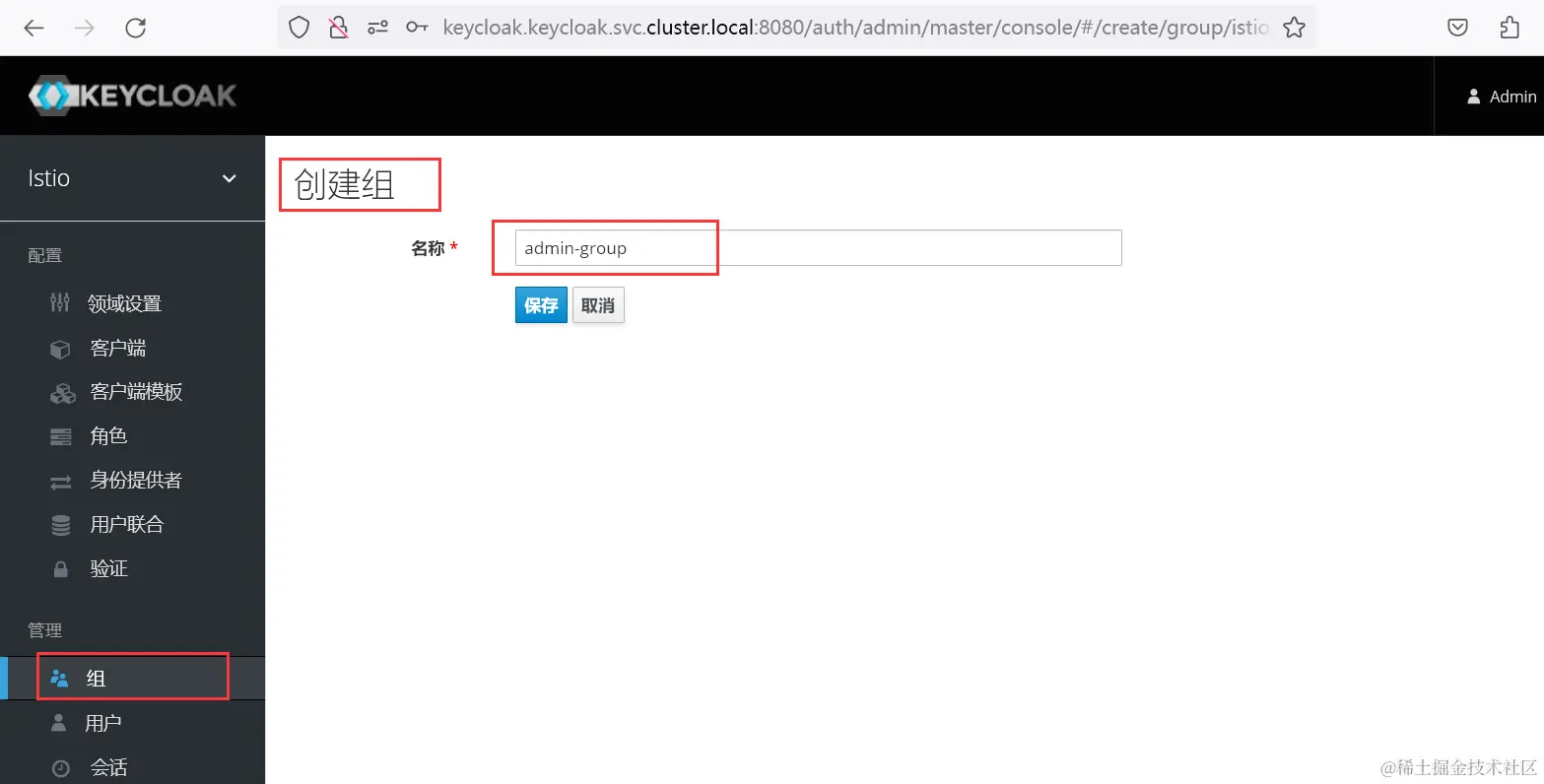

新建角色与组
用户关联刚创建的角色和组
创建sso-user-test账号，但不加入到刚刚的角色与组
2）校验token是否映射了相关角色和组信息
curl -s -d "username=sso-user&\
password=123456&\
grant_type=password&\
client_id=ingress-gw&\
client_secret=HAwWlzhMkqnWrUDsRzV92kik4soiWR8I" \
http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio/protocol/openid-connect/token |jq .access_token

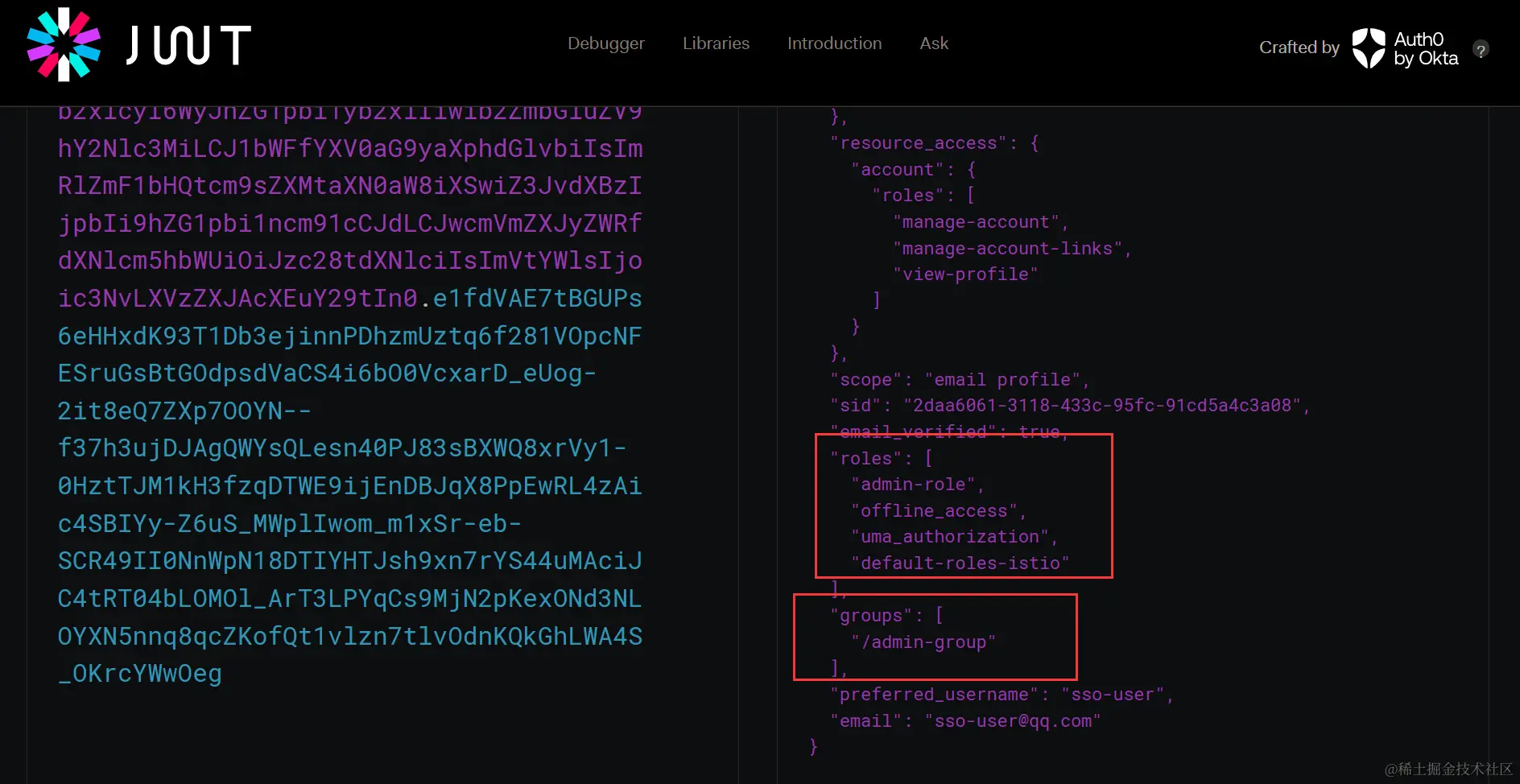

复制token到jwt.io中校验，有标记的2个内容才算有效，否则不能继续下去
3）配置授权策略
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
name: bookinfo-role-group-auth
namespace: istio-system
spec:
selector:
matchLabels:
app: istio-ingressgateway
action: ALLOW
rules:
- to:
- operation:
hosts:
- bookinfo.hj.com
paths:
- "/*"
when:
- key: request.auth.claims[iss]
values:
- "http://keycloak.keycloak.svc.cluster.local:8080/auth/realms/istio"
- "http://keycloak.magedu.com:8080/auth/realms/istio"
- key: request.auth.claims[roles]
values:
- "admin-role"
- key: request.auth.claims[groups]
values:
- "/admin-group"
EOF
4）测试访问

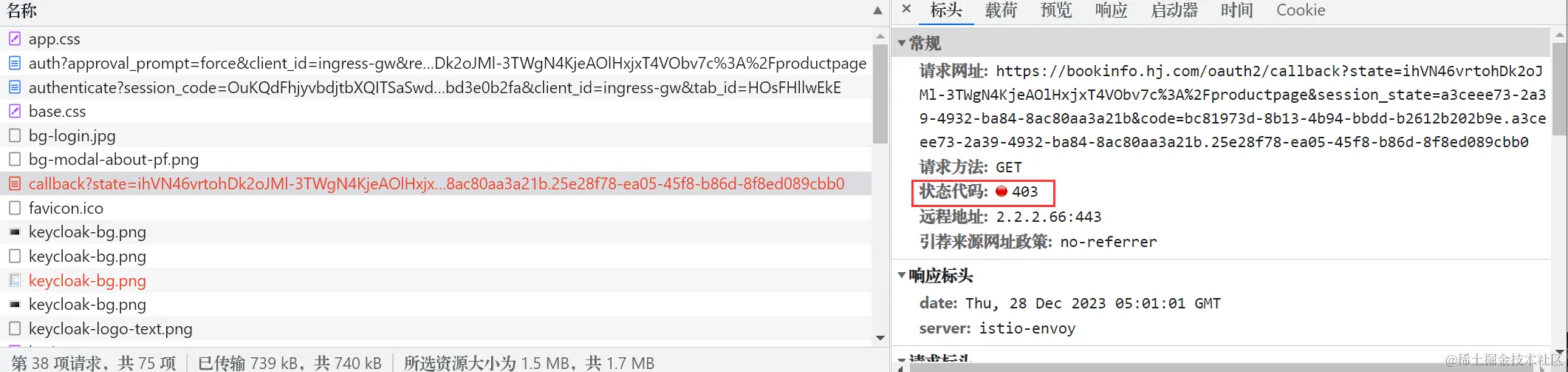

sso-user-test用户登录被拒绝，oauth2-proxy的回调403权限拒绝

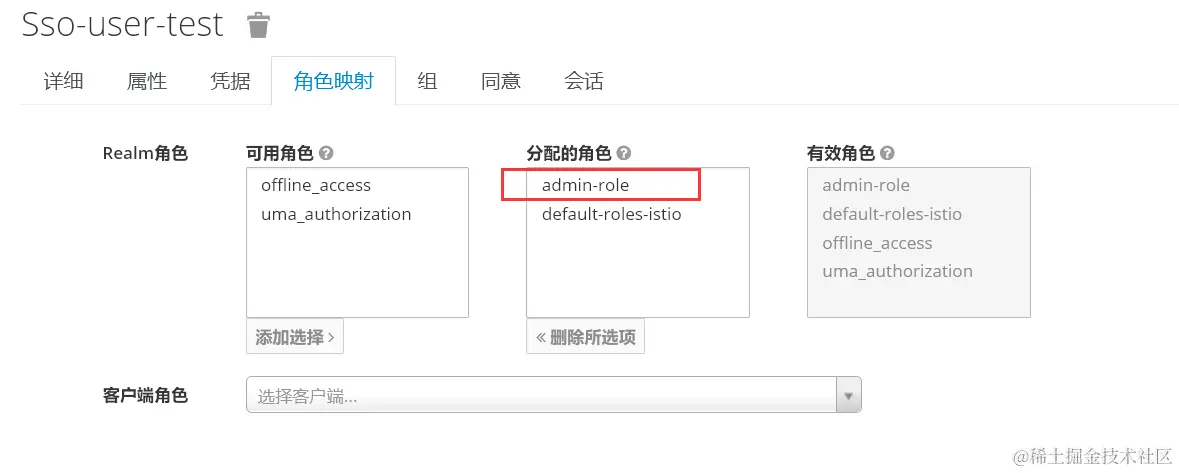

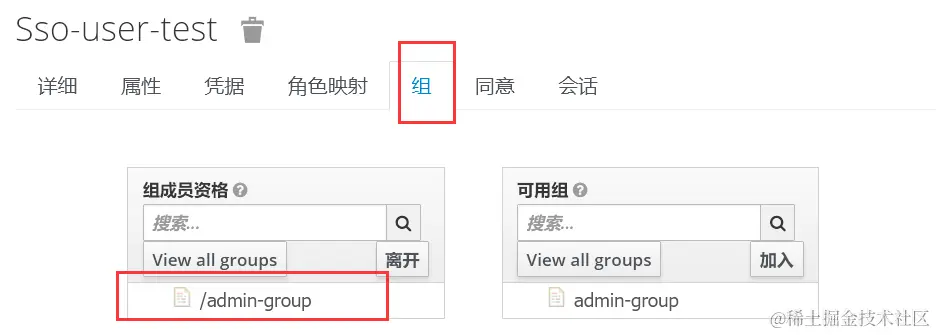

将sso-user-test，加入到角色和组后，再访问就可以正常打开了
