方案一：TSM命令行方式
1.登录tableau， 命令：tabcmd login -s localhost -u userName -p passWord

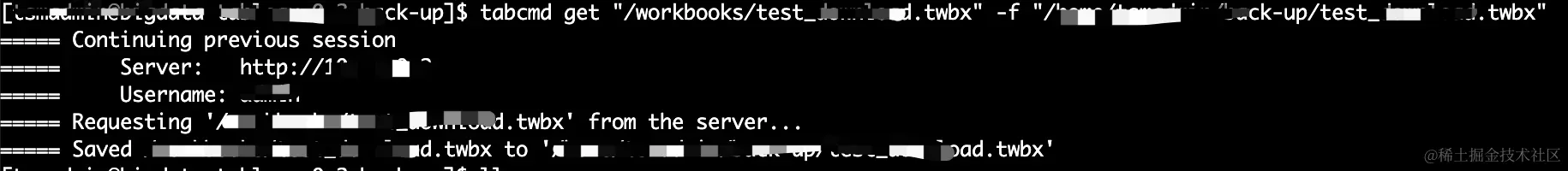

2.下载twbx文件，命令：
tabcmd get "/workbooks/test_01.twbx" -f "/usr/local/back-up/test_01_down.twbx"
注意：“test_01.twbx”，为工作簿名称，且不能含有中文
方案二：REST API方式
1.登录tableau sever，获取token，site_id，user_id
{server_address}/api/{api_version}/auth/signin
server_address: tableau服务器地址

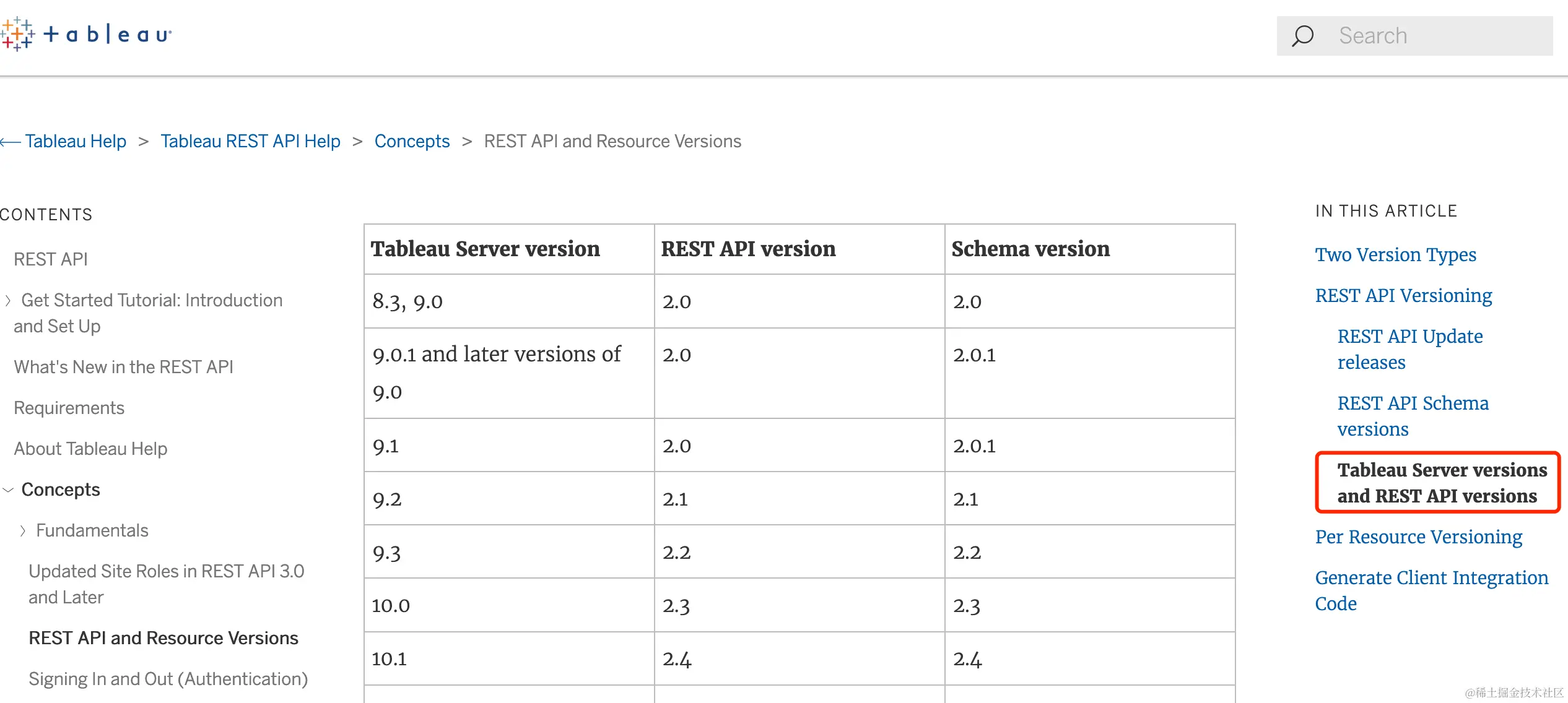

api_version：api版本号，需要和tableau server版本对应，具体对应关系：help.tableau.com/current/api…
例子：

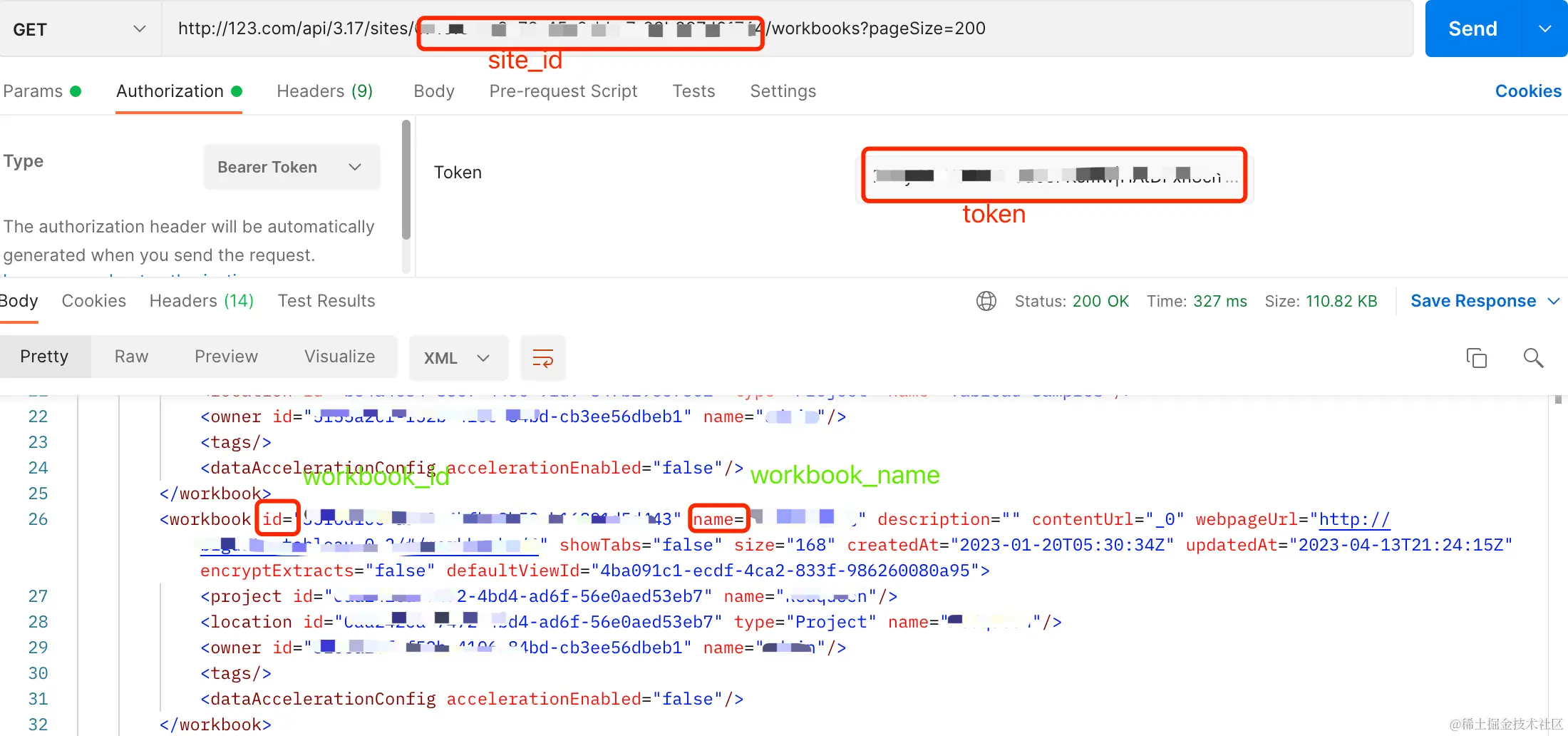

2.获取工作簿列表 123.com/api/3.17/si…
3.下载twbx文件,命令：
curl "{server_address}/api/3.17/sites/{site_id}/workbooks/{workbook_id}/content" -X GET -H "X-Tableau-Auth:{token}" > /use/local/back_up/test(这里可以写中文).twbx
参考资料：
python脚本实现
#!/usr/bin/env python
# -*- coding: utf-8 -*-
# REST API 方式，下载工作簿，保存为.twbx文件，参考文档
# https://help.tableau.com/current/api/rest_api/en-us/REST/rest_api_concepts_auth.htm
# https://help.tableau.com/current/api/rest_api/en-us/REST/rest_api_ref_workbooks_and_views.htm#download_workbook
import requests, json
import datetime
import os,shutil
import sys
import time
# tableau server 地址
server_name = "http://abcd.com"
# API 版本，需要和tableau server 版本对应。具体版本对应关系： https://help.tableau.com/current/api/rest_api/en-us/REST/rest_api_concepts_versions.htm
version = "3.17"
user_name = "admin"
password = "1234"
# 全局变量
token = ""
site_id = ""
# 保存备份文件的目录
file_path = "/usr/local/tableau_bakup/"
now = datetime.datetime.now().date()
# 打印日志，每4kb刷新一次文件
class Logger(object):
def __init__(self, stream=sys.stdout):
output_dir = "{file_path}{now}".format(file_path=file_path, now=now) # folder
if not os.path.exists(output_dir):
os.makedirs(output_dir)
#log_name = '{}.txt'.format(time.strftime('%Y-%m-%d-%H-%M',time.localtime(time.time())))
log_name_time = time.strftime('%Y-%m-%d-%H-%M-%S',time.localtime(time.time()))
log_name = log_name_time + ".txt"
filename = os.path.join(output_dir, log_name)
self.terminal = stream
self.log = open(filename, 'a+')
def write(self, message):
self.terminal.write(message)
self.log.write(message)
def flush(self):
pass
#登录，获取token和site_id
def signin():
signin_url = "{server}/api/{version}/auth/signin".format(server=server_name, version=version)
payload = { "credentials": { "name": user_name, "password": password, "site": {"contentUrl": "" }}}
headers = {
'accept': 'application/json',
'content-type': 'application/json'
}
# Send the request to the server
req = requests.post(signin_url, json=payload, headers=headers, verify=False)
req.raise_for_status()
# Get the response
response = json.loads(req.content)
# Get the authentication token from the credentials element
global token
token = response["credentials"]["token"]
# Get the site ID from the <site> element
global site_id
site_id = response["credentials"]["site"]["id"]
print('---------------登录成功！-----------------')
return
# 退出
def signout():
signout_url = "{server}/api/{version}/auth/signout".format(server=server_name, version=version)
headers = {
'accept': 'application/json',
'content-type': 'application/json',
'X-Tableau-Auth': token
}
req = requests.post(signout_url, data=b'', headers=headers, verify=False)
req.raise_for_status()
print('---------------退出成功！------------------')
return
# 目录不存在，创建
def create_dir():
path = "{file_path}{now}".format(file_path=file_path, now=now)
#path = path.strip()
path = path.rstrip("\\")
isExists = os.path.exists(path)
if not isExists:
os.makedirs(path)
print path+'目录创建成功'
return True
else:
print path+'目录已存在'
return False
# 下载.twbx文件
def download_file(workbook_id,workbook_name):
workbook_name = workbook_name.encode('utf-8')
print('\t开始备份: {workbook_name},{current_time}'.format(workbook_name=workbook_name,current_time=datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')))
url = "{server}/api/{version}/sites/{site_id}/workbooks/{workbook_id}/content".format(server=server_name, version=version,site_id=site_id,workbook_id=workbook_id)
headers = {
"X-Tableau-Auth": token
}
response = requests.get(url, headers = headers)
with open('{file_path}{now}/{workbook_name}.twbx'.format(file_path=file_path,now=now,workbook_name=workbook_name), 'wb') as f:
f.write(response.content)
print('\t报表备份完成----------------: {workbook_name}'.format(workbook_name=workbook_name))
return
# 获取工作簿列表
def download_all_workbooks():
# http://127.0.0.1/api/3.17/sites/671944ca-3e72-45c2-bba7-23b837d61744/workbooks?pageSize=500
download_all_workbooks_url = "{server}/api/{version}/sites/{site_id}/workbooks?pageSize=500".format(server=server_name, version=version,site_id=site_id)
headers = {
'accept': 'application/json',
'content-type': 'application/json',
'X-Tableau-Auth': token
}
req = requests.get(download_all_workbooks_url,headers=headers)
req.raise_for_status()
# Get the response
response = json.loads(req.content)
create_dir()
for key in range(len(response['workbooks']['workbook'])):
workbook_id = response['workbooks']['workbook'][key]['id']
workbook_name = response['workbooks']['workbook'][key]['name']
download_file(workbook_id,workbook_name)
return
#计算两个日期相差天数，自定义函数名，和两个日期的变量名。
def caltime(date1,date2):
#%Y-%m-%d为日期格式，其中的-可以用其他代替或者不写，但是要统一，同理后面的时分秒也一样；可以只计算日期，不计算时间。
#date1=time.strptime(date1,"%Y-%m-%d %H:%M:%S")
date1=time.strptime(date1,"%Y-%m-%d")
date2=time.strptime(date2,"%Y-%m-%d")
#根据上面需要计算日期还是日期时间，来确定需要几个数组段。下标0表示年，小标1表示月，依次类推...
#date1=datetime.datetime(date1[0],date1[1],date1[2],date1[3],date1[4],date1[5])
date1=datetime.datetime(date1[0],date1[1],date1[2])
date2=datetime.datetime(date2[0],date2[1],date2[2])
#返回两个变量相差的值，就是相差天数
return date2-date1
def delete_dir():
sys.stdout = Logger(sys.stdout) # 将输出记录到log
sys.stderr = Logger(sys.stderr) # 将错误信息记录到log
nowStr = now.strftime("%Y-%m-%d")
print '当前日期:'+nowStr
for files in os.listdir(file_path):
day = caltime(files,nowStr)
if day.days > 60:
path = os.path.join(file_path, files)
print '删除超过60天的数据:'+path
try:
shutil.rmtree(path)
print('---------------------delete successful!-----------------------------')
except OSError:
os.remove(path)
return
#删除历史数据
delete_dir()
# 登录
signin()
# 下载
download_all_workbooks()
# 退出
signout()
