【重学css】flex弹性布局(父容器特性)

85 阅读3分钟

flex容器的特性


flex适合单行单列的布局;

flex-direction

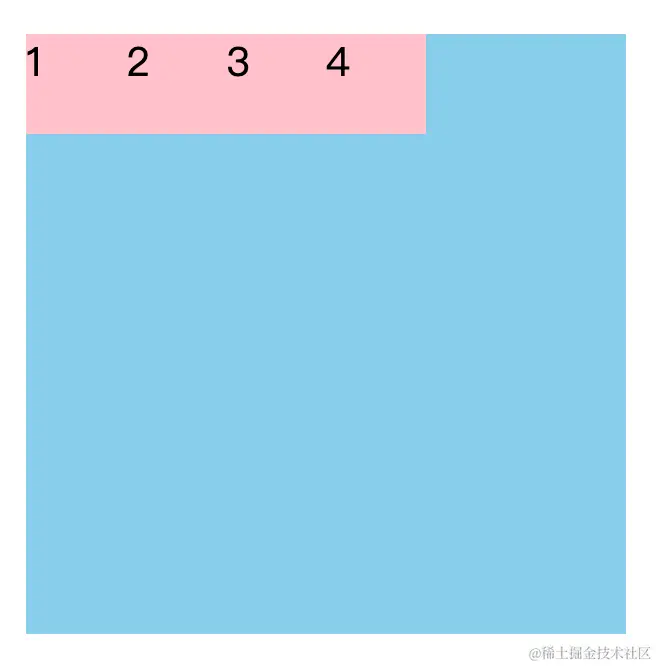

1.没设置flex-direction,默认row;

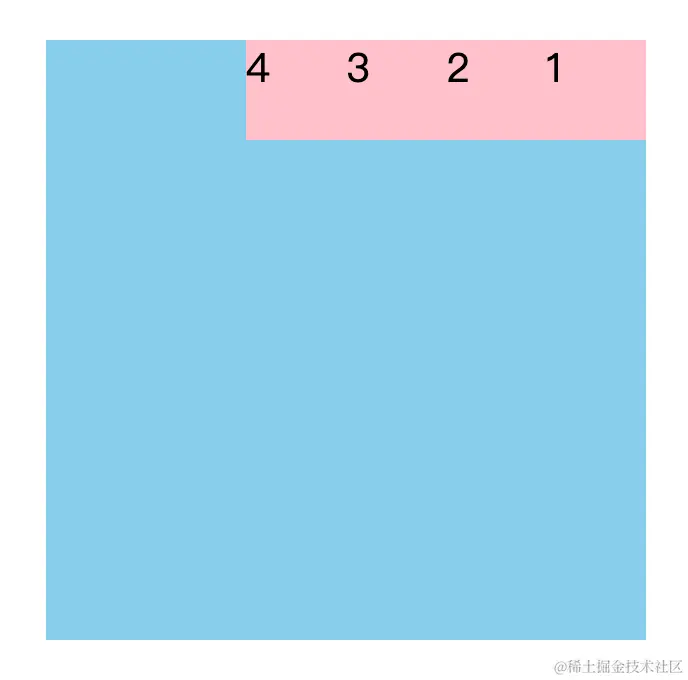

2.flex-direction: row-reverse;

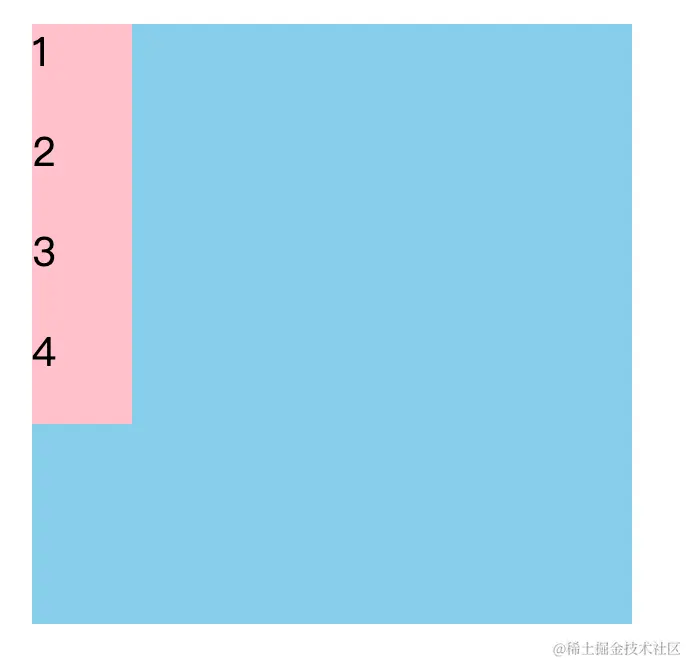

3.flex-direction: column;

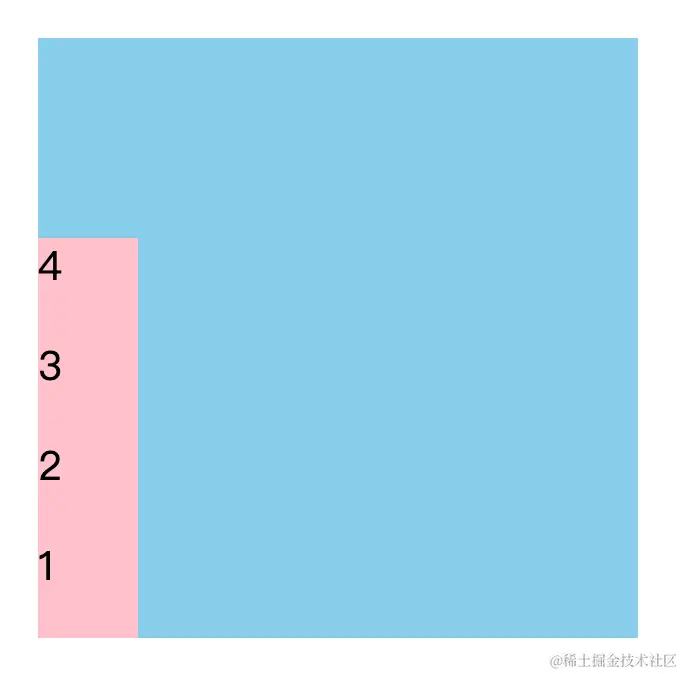

4.flex-direction: column-reverse;


换行与缩写flex-wrap

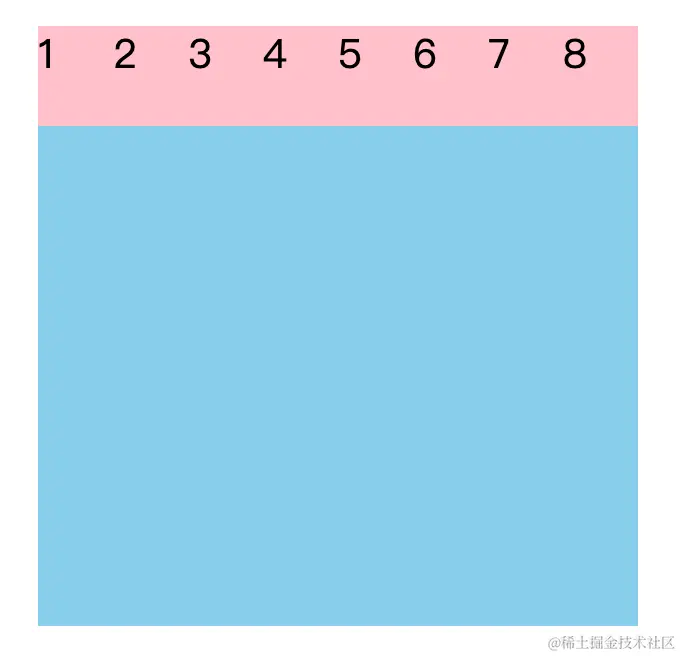

1.没设置flex-wrap,没换行也没溢出;当每个子元素达到最小宽度时才会溢出;

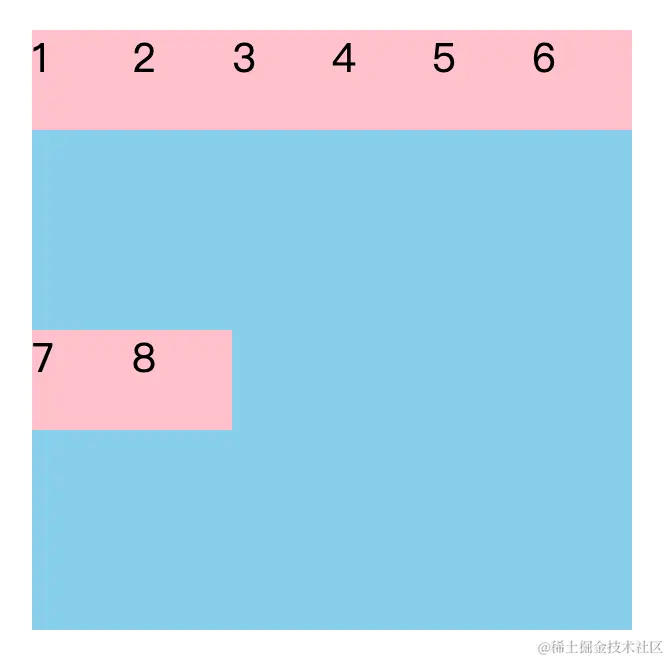

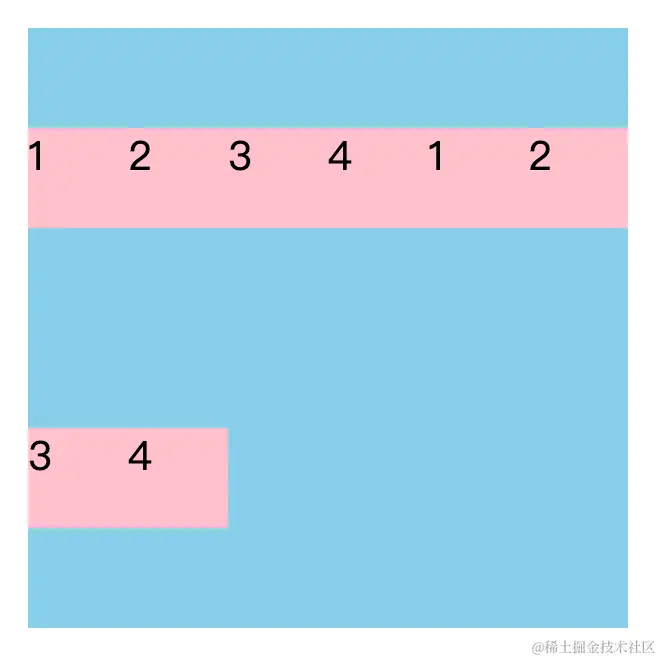

2.flex-wrap: wrap;

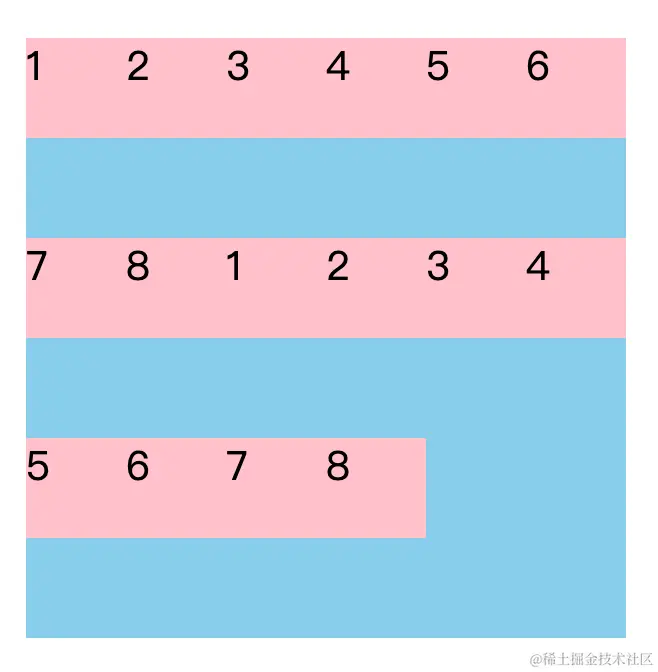

3行的情况:


如果父元素没有设置height;


3.flex-wrap: wrap-reverse;


flex-flow

flex-flow就是flex-direction和flex-wrap的缩写;

主轴对齐justify-content

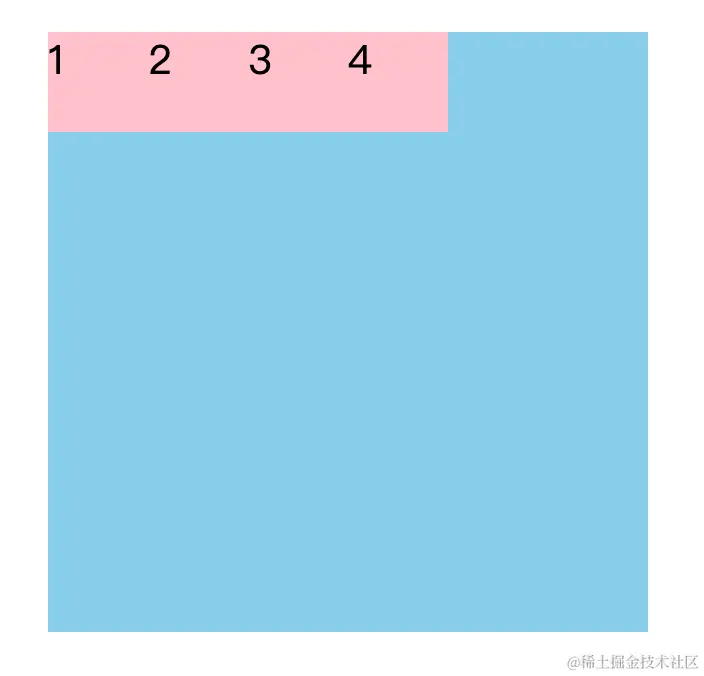

1.justify-content: flex-start;

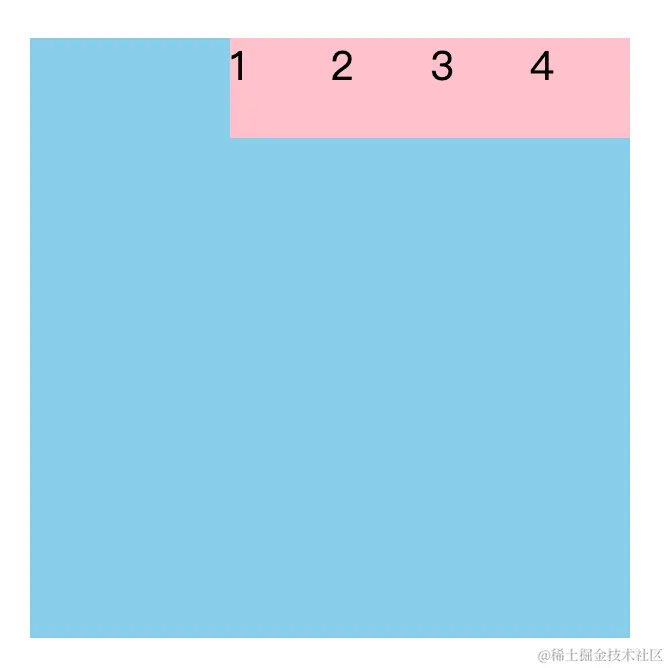

2.justify-content: flex-end;

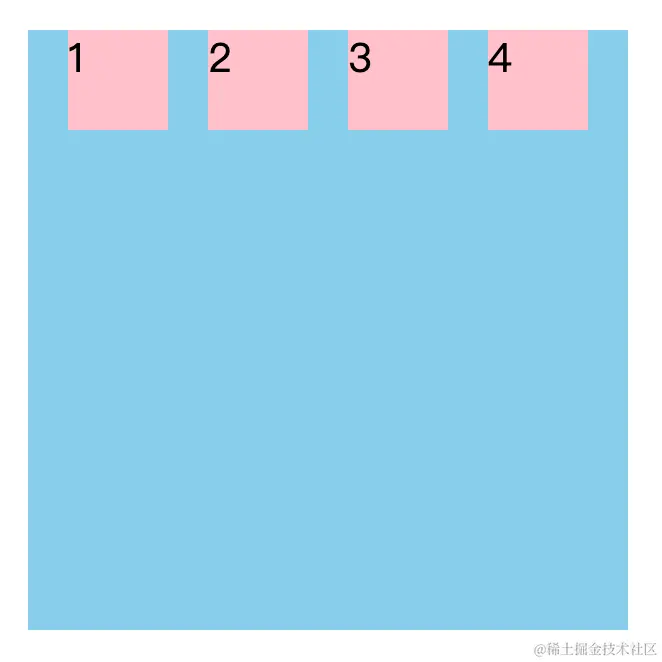

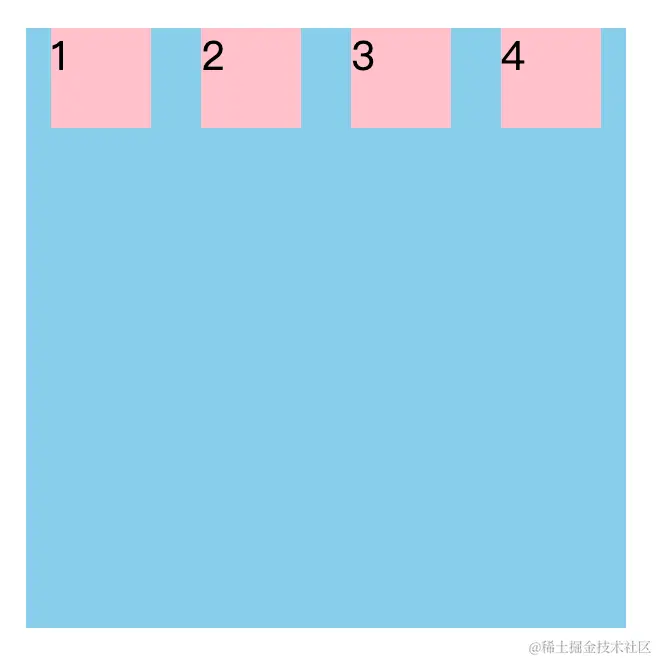

3.justify-content: space-around; 它非常适合做自适应的布局,它能自己调节间距,比float好用!

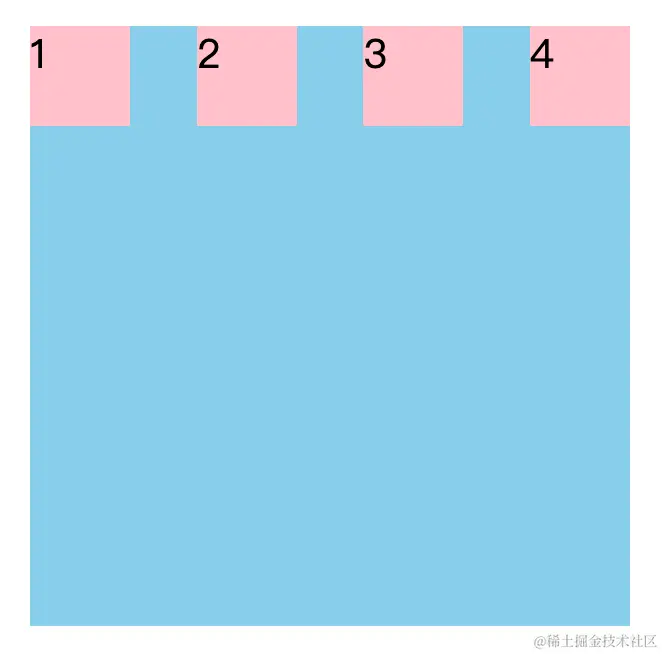

4.justify-content: space-between;


5.justify-content: space-evenly;

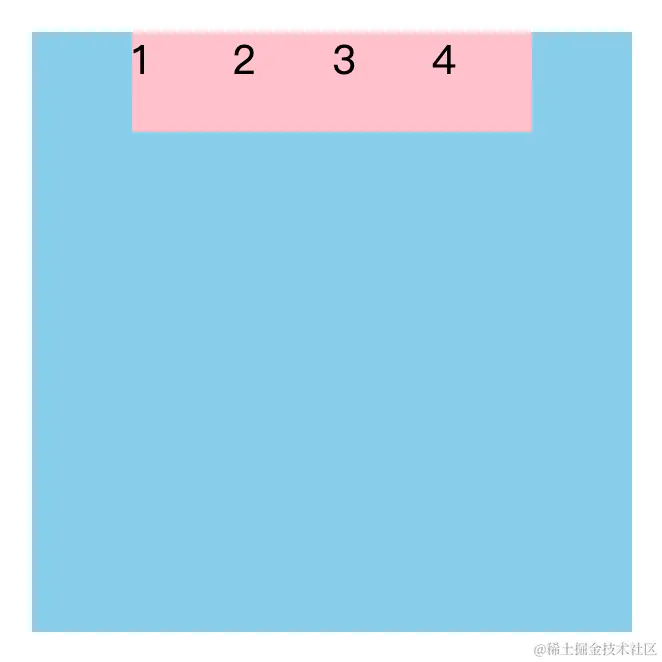

6.justify-content: center;


交叉轴对齐align-content和align-items

align-content(一行没效果,多行+flex-wrap: wrap;才有效果):

1.一行不加高度,默认值是stretch;

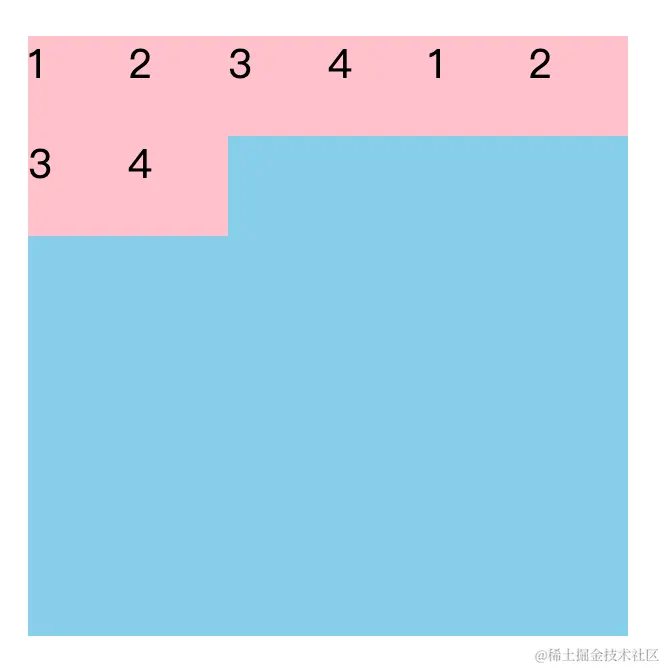

2.align-content: flex-start;

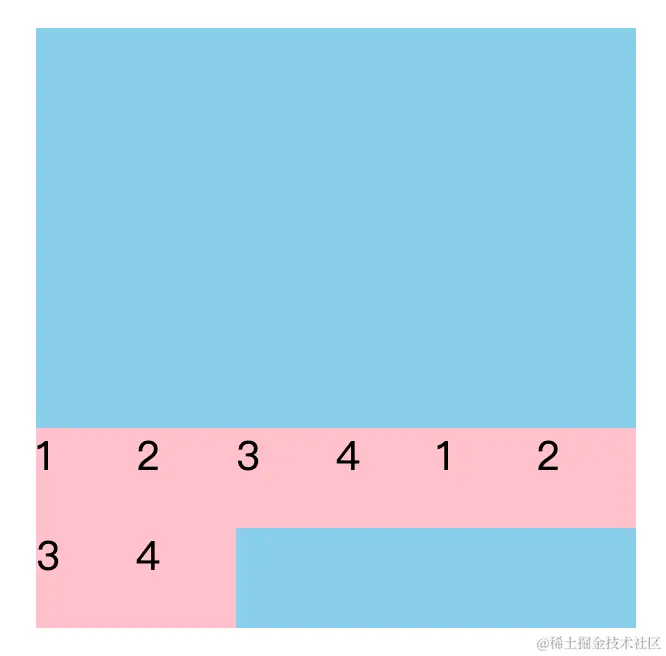

3.align-content: flex-end;

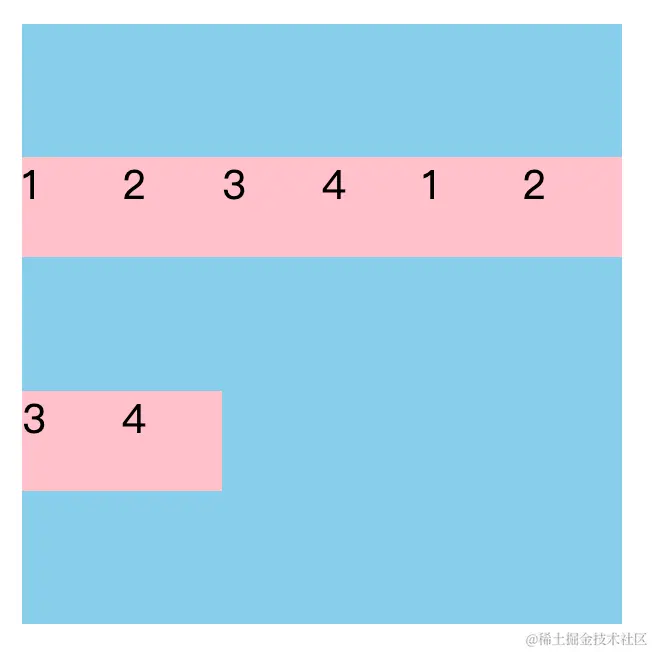

4.align-content: space-around;

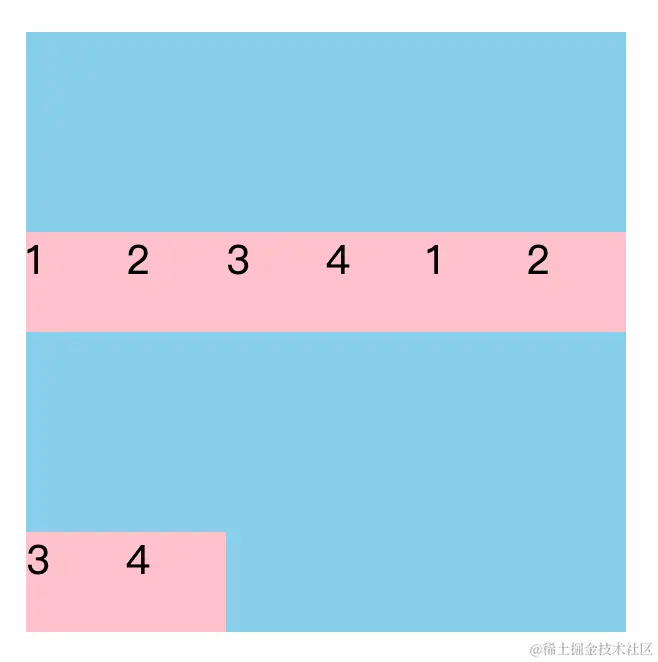

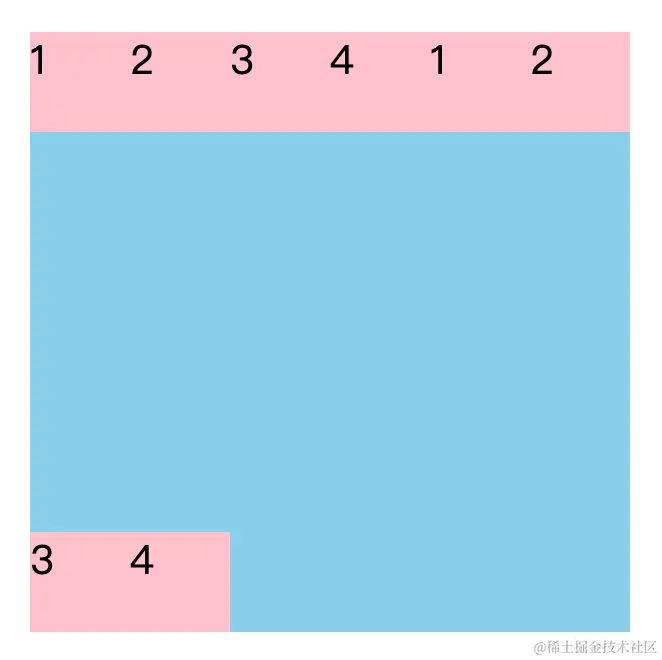

5.align-content: space-between;


6.align-content: space-evenly;

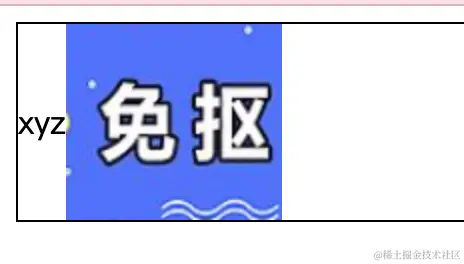

align-items:针对每一行 1.align-items: flex-start;


2.align-items: flex-end;


3.align-items: center;

 <style>
    .main {
      height: 98px;
      border: 1px solid black;
      display: flex;
      align-items: center;
    }
  </style>
  <body>
    <div class="main">
      xyz
      <img src="./1.jpg" />
    </div>
  </body>


父容器特性应用的常见布局

垂直水平居中

1.水平垂直居中之内联元素; 单行文字

<style>
    /*line-height实现*/
    .main2 {
      width: 300px;
      height: 200px;
      line-height: 200px;
      text-align: center;
      background-color: pink;
    }
  </style>
  <body>
    <div class="main2">内联元素</div>
  </body>

多行文字,line-height就不行了;多行文字如果不用flex,可用display:table-cell;vertical-align: middle;

2.水平垂直居中之块级元素;

// margin做偏移
.box {
  width: 200px;
  height: 100px;
  background-color: pink;
  position: absolute;
  left: 50%;
  top: 50%;
  margin-top: -50px;
  margin-left: -100px;
  // transform更能适配
  transform: translate(-50%, - 50%)
}

// 方法2
.box{
    position: absolut;
    left: 0;
    right: 0;
    top: 0;
    bottom: 0;
}

不定项居中

1.flex

    .main {
      width: 300px;
      height: 150px;
      background-color: skyblue;
      display: flex;
      justify-content: center;
      align-items: flex-end;
    }
    .main div {
      width: 30px;
      height: 30px;
      background-color: pink;
      border-radius: 50%;
      margin: 10px;
    }

2.传统方式

   .main {
      width: 300px;
      height: 150px;
      background-color: skyblue;
      text-align: center;
      position: relative;
    }
    .inner {
      text-align: center;
      width: 100%;
      position: absolute;
      bottom: 0px;
      /*去除内联元素默认间距*/
      font-size: 0;
      background-color: aqua;
    }
    .inner div {
      width: 30px;
      height: 30px;
      background-color: pink;
      border-radius: 50%;
      display: inline-block;
      /*子元素得把字体大小改回来*/
      font-size: 16px;
    }

均分列布局

1.flex

   .main {
      width: 300px;
      height: 150px;
      background-color: salmon;
      display: flex;
      align-items: flex-end;
      justify-content: space-between;
      padding: 0 20px;
    }
    .main div {
      width: 30px;
      height: 30px;
      border-radius: 50%;
      background-color: pink;
      display: inline-block;
      margin-bottom: 5px;
    }

2.传统float(真是太麻烦了啊啊啊)

子项分组布局

1.嵌套div

  <style>
    .main {
      height: 200px;
      display: flex;
      justify-content: space-between;
      background-color: salmon;
      align-items: center;
    }
    .left {
      width: 100px;
      height: 100px;
      background-color: pink;
    }
    .right {
      width: 200px;
      height: 100px;
      background-color: pink;
      display: flex;
    }
    .right div {
      width: 50px;
      background-color: seagreen;
    }
  </style>
  <body>
    <div class="main">
      <div class="left"></div>
      <div class="right">
        <div>1</div>
        <div>2</div>
      </div>
    </div>
  </body>

2.不嵌套平铺

  <style>
    .main {
      height: 200px;
      background-color: skyblue;
      display: flex;
      align-items: center;
    }
    .main div {
      width: 50px;
      height: 100px;
      background-color: pink;
    }
    /*第一个div加margin: auto;*/
    .main div:nth-of-type(1) {
      margin-right: auto;
    }
  </style>
  <body>
    <div class="main">
      <div>1</div>
      <div>2</div>
      <div>3</div>
    </div>
  </body>

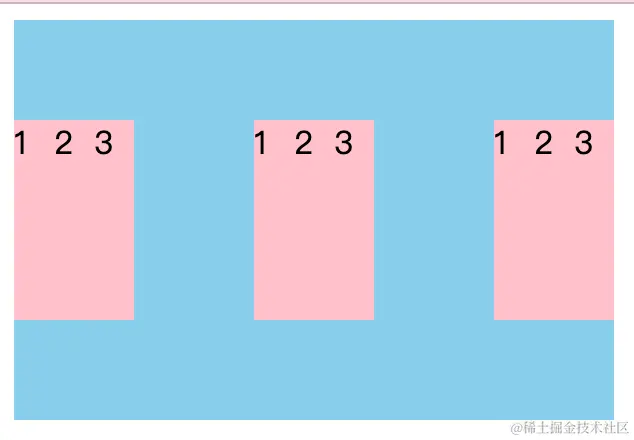

这种方法好啊,还可以分多个组;

   <style>
    .main {
      width: 300px;
      height: 200px;
      background-color: skyblue;
      display: flex;
      align-items: center;
    }
    .main div {
      width: 20px;
      height: 100px;
      background-color: pink;
    }
    /*第一个div加margin: auto;*/
    .main div:nth-of-type(3) {
      margin-right: auto;
    }
    .main div:nth-of-type(6) {
      margin-right: auto;
    }
  </style>
  <body>
    <div class="main">
      <div>1</div>
      <div>2</div>
      <div>3</div>
      <div>1</div>
      <div>2</div>
      <div>3</div>
      <div>1</div>
      <div>2</div>
      <div>3</div>
    </div>
  </body>
