Python + Matplotlib生成图表

前言：原来准备拿excel生成，奈何30w数据一开excel就崩，所以就去简单学习了一下python。感觉还挺好用，就顺手记录一下。

起因

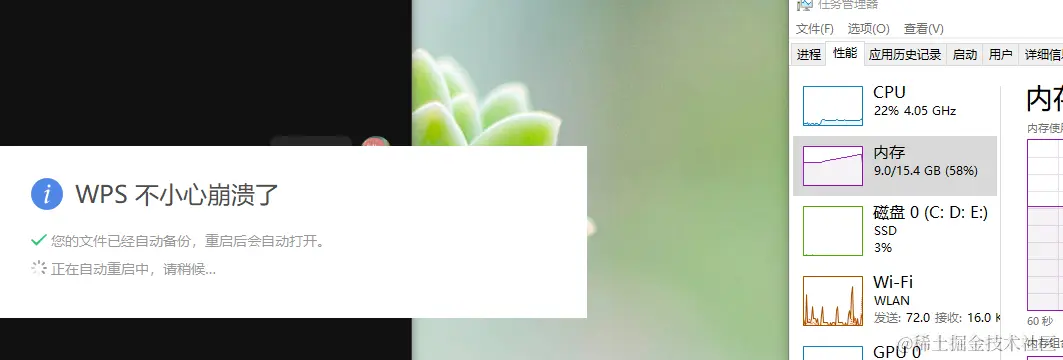

excel崩溃图

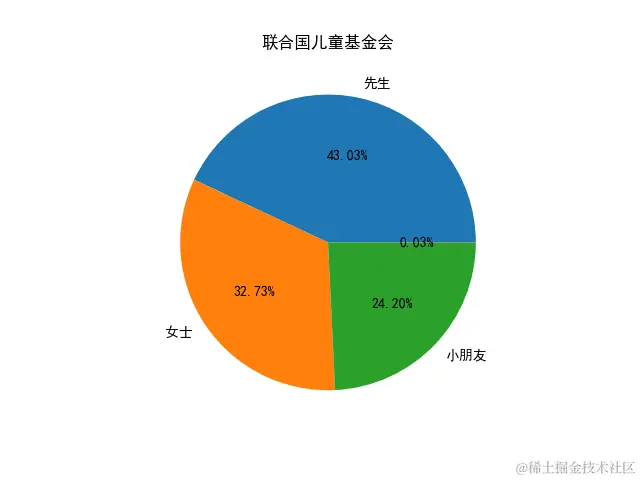

Python连接数据库查询数据转饼图

import pandas as pd
import matplotlib.pyplot as plt
import pymysql

# 联合国儿童基金会

plt.rcParams['font.sans-serif']=['Simhei']

# 连接数据库
conn = pymysql.connect(host='localhost', port=3306, user='root', password='123456', database='mydb')
cur = conn.cursor()

# 查询数据
sql = 'SELECT title, count(*) FROM dpo_import GROUP BY title'
cur.execute(sql)
data = cur.fetchall()

# 转换数据
df = pd.DataFrame(data, columns=['title', 'count'])

# 饼图的标签 可以自定义，这里没用到直接用数据库查询的标签
labels = ['先生', '女士', '小朋友', '未知']
# 绘制饼图
plt.pie(df['count'], labels=df['title'], autopct='%1.2f%%')
plt.title('人群比例')
plt.show()

# 关闭数据库连接
conn.close()

捐款人数TOP10

import pandas as pd
import matplotlib.pyplot as plt
import pymysql

# 联合国儿童基金会

plt.rcParams['font.sans-serif']=['Simhei']

# 连接数据库
conn = pymysql.connect(host='localhost', port=3306, user='root', password='123456', database='mydb')
cur = conn.cursor()

# 查询数据
sql = 'SELECT city, count(*) as counts FROM dpo_import  GROUP BY city  ORDER BY counts DESC LIMIT 0, 10'
cur.execute(sql)
data = cur.fetchall()

# 转换数据
df = pd.DataFrame(data, columns=['city', 'count'])

# 绘制饼图
plt.bar(df['city'], df['count'])
plt.title('捐款地区TOP10')
plt.show()

# 关闭数据库连接
conn.close()

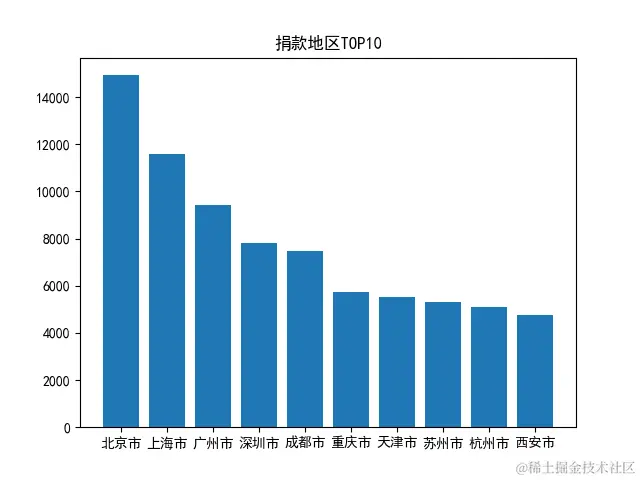

TOP10
