今天是2023-12-22，项目第三天
参考文章
-
Flutter 封装网络请求库 Dio zhuanlan.zhihu.com/p/352527964
-
flutter-设置圆角和边框 juejin.cn/post/708464…
-
Flutter-JSON转Model的四种便捷方案 juejin.cn/post/704701…
正文
开始造综合页的轮播图和下面的文章列表；
抓包到banner接口为
网络请求封装
先行实现项目网络请求的封装，参考以下文章： Flutter 封装网络请求库 Dio
pubspec.yaml 导入三方库，并执行 pub get；
dio: ^5.4.0
flutter_easyloading: ^3.0.5
common_utils: ^2.1.0
注意⚠️：EasyLoading 需要在 MaterialApp 初始化，否则会报错，如下；
.........
return MaterialApp(
theme: ThemeData(
primaryColor: themeColor,
//去除TabBar下划线 plan1
useMaterial3: false,
//去除TabBar下划线 plan2
// tabBarTheme: const TabBarTheme(dividerColor: Colors.transparent)
),
builder: EasyLoading.init(),
home: Scaffold(
.........
Request和Api的实现：
request.dart
import 'dart:convert';
import 'package:common_utils/common_utils.dart';
import 'package:dio/dio.dart';
import 'package:flutter_easyloading/flutter_easyloading.dart';
class Request {
// 配置 Dio 实例
static final BaseOptions _options = BaseOptions(
baseUrl: "https://www.oschina.net/",
connectTimeout: const Duration(milliseconds: 5000),
receiveTimeout: const Duration(milliseconds: 3000),
);
// 创建 Dio 实例
static final Dio _dio = Dio(_options);
// _request 是核心函数，所有的请求都会走这里
static Future<T> _request<T>(String path,
{String method = 'GET', Map? params,data}) async {
// restful 请求处理
if (params != null) {
params.forEach((key, value) {
if (path.contains(key)) {
path = path.replaceAll(":$key", value.toString());
}
});
}
LogUtil.v(data, tag: 'send data is:');
try {
Response response = await _dio.request(
path, data: data, options: Options(method: method));
if (response.statusCode == 200 || response.statusCode == 201) {
try {
if (response.data['code'] != 1) {
LogUtil.v(
response.data['code'], tag: 'server error, status code is:');
EasyLoading.showInfo(
"服务器错误，状态码为：${response.data['code']}");
return Future.error(response.data['message']);
} else {
LogUtil.v(response.data, tag: 'response data:');
if (response.data is Map) {
return response.data;
} else {
return json.decode(response.data.toString());
}
}
} catch (e) {
LogUtil.v(e, tag: 'decode response data error');
return Future.error('decode response data error');
}
} else {
LogUtil.v(response.statusCode, tag: 'HTTP error, status code:');
EasyLoading.showInfo('HTTP错误，状态码为：${response.statusCode!}');
_handleHttpError(response.statusCode!);
return Future.error('HTTP Error');
}
} on DioException catch (e, s) {
LogUtil.v(_dioError(e), tag: 'request error');
EasyLoading.showInfo(_dioError(e));
return Future.error(_dioError(e));
} catch (e, s) {
LogUtil.v(e, tag: 'unknown error');
return Future.error('unknown error');
}
}
// 处理 Dio 异常
static String _dioError(DioException error) {
switch (error.type) {
case DioExceptionType.connectionTimeout:
return "网络连接超时，请检查网络设置";
//不会执行，可以移除的代码,实际需要加break;
// Dead code. (Documentation)
// Try removing the code, or fixing the code before it so that it can be reached.
break;
case DioExceptionType.receiveTimeout:
return "服务器异常，请稍后重试！";
case DioExceptionType.sendTimeout:
return "网络连接超时，请检查网络设置";
case DioExceptionType.badResponse:
return "服务器异常，请稍后重试！";
case DioExceptionType.cancel:
return "请求已被取消，请重新请求";
case DioExceptionType.unknown:
return "网络异常，请稍后重试！";
default:
return "Dio异常";
}
}
// 处理 Http 错误码
static void _handleHttpError(int errorCode) {
String message;
switch (errorCode) {
case 400:
message = '请求语法错误';
break;
case 401:
message = '未授权，请登录';
break;
case 403:
message = '拒绝访问';
break;
case 404:
message = '请求出错';
break;
case 408:
message = '请求超时';
break;
case 500:
message = '服务器异常';
break;
case 501:
message = '服务未实现';
break;
case 502:
message = '网关错误';
break;
case 503:
message = '服务不可用';
break;
case 504:
message = '网关超时';
break;
case 505:
message = 'HTTP版本不受支持';
break;
default:
message = '请求失败，错误码：$errorCode';
}
EasyLoading.showError(message);
}
static Future<T> get<T>(String path,{Map? params}) {
return _request(path,params: params);
}
static Future<T> post<T>(String path, { Map? params,data}) {
return _request(path, method: 'post', params: params, data: data);
}
}
api.dart
import 'request.dart';
class Api {
//banner
static summaryNewBanner(){
return Request.get('/action/apiv2/banner?catalog=1');
}
static login(data){
return Request.post('/login', data: data);
}
}
Json转模型的方式
通过参考以下文章，选择了安装Android Studio 的插件 FlutterJsonBeanFactory 实现，自动生成Model；
并自动生成了Banner的模型类，点击去往 Gitee 查看 summary_new_banner_entity.dart 类；
轮播图的实现
导入三方类，来实现轮播效果，但是左下角需要添加标题，后续再看怎么实现；
flutter_swiper_plus: ^2.0.4
具体代码为
@override
Widget build(BuildContext context) {
return Scaffold(
body: SizedBox(
height: 150.0,
child: Padding(
padding: const EdgeInsets.all(12.0),
child: ClipRRect(
borderRadius: BorderRadius.circular(8),
child: Swiper(
itemBuilder: (BuildContext context,int index){
return Image.network(_bannerList[index].img!,fit: BoxFit.cover,);
},
onTap: (index){
},
autoplay: true,
itemCount: _bannerList.length,
pagination: const SwiperPagination(
alignment: Alignment.bottomRight,
),
),
),
),
),
);

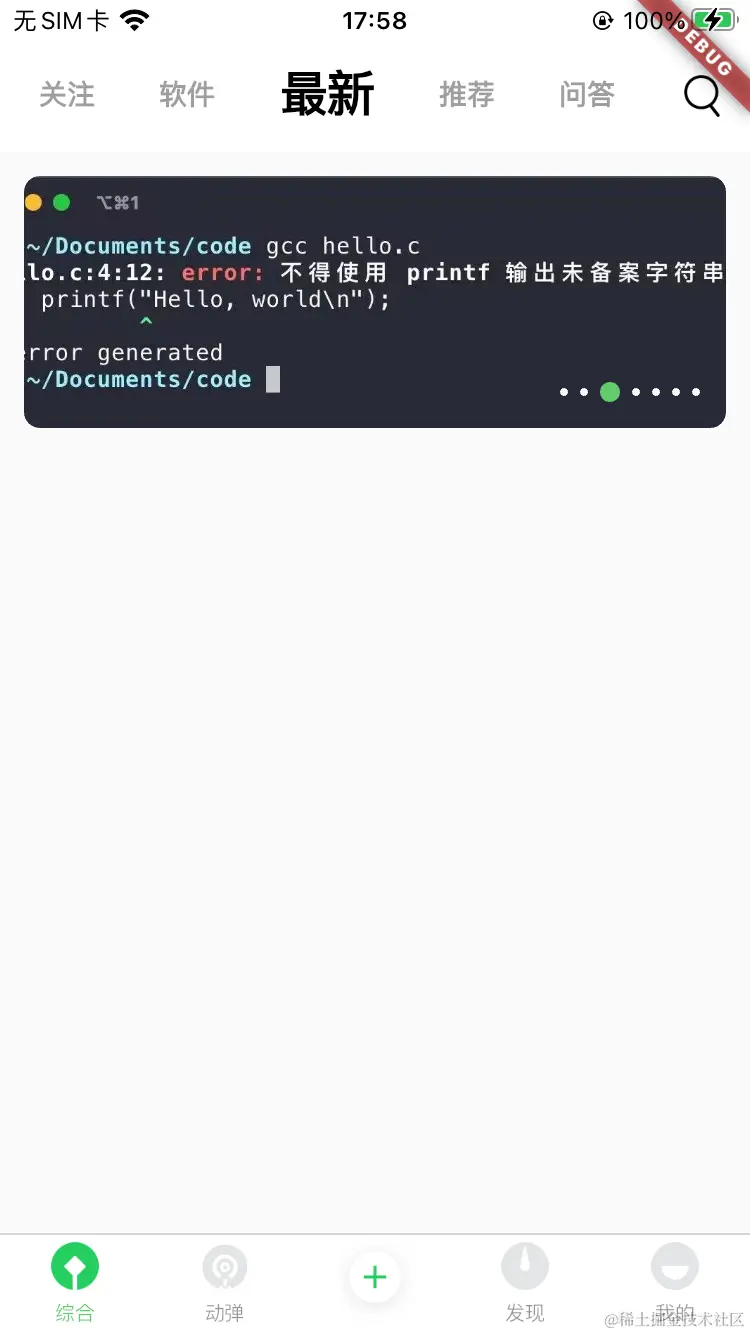

效果图：
整体代码实现
import "package:flutter/material.dart";
import 'package:flutter_swiper_plus/flutter_swiper_plus.dart';
import 'package:hello_oschina/http/api.dart';
import 'package:hello_oschina/models/summary_new_banner_entity.dart';
class SummaryNewPage extends StatefulWidget {
const SummaryNewPage({super.key});
@override
State<SummaryNewPage> createState() => _SummaryNewPageState();
}
class _SummaryNewPageState extends State<SummaryNewPage> {
List<SummaryNewBannerResultItems> _bannerList = [];
@override
void initState() {
// TODO: implement initState
super.initState();
getBannerData();
}
void getBannerData() async {
var data = await Api.summaryNewBanner();
SummaryNewBannerEntity entity = SummaryNewBannerEntity.fromJson(data);
print(entity.result?.items);
if (entity.result!.items!.isNotEmpty){
setState(() {
_bannerList = entity.result!.items!;
});
}
}
@override
Widget build(BuildContext context) {
return Scaffold(
body: SizedBox(
height: 150.0,
child: Padding(
padding: const EdgeInsets.all(12.0),
child: ClipRRect(
borderRadius: BorderRadius.circular(8),
child: Swiper(
itemBuilder: (BuildContext context,int index){
return Image.network(_bannerList[index].img!,fit: BoxFit.cover,);
},
onTap: (index){
},
autoplay: true,
itemCount: _bannerList.length,
pagination: const SwiperPagination(
alignment: Alignment.bottomRight,
),
),
),
),
),
);
}
}
以上；
