SpringBoot整合Swagger

1.添加依赖

    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-boot-starter</artifactId>
        <version>${springfox-swagger.version}</version>
    </dependency>

注意：SpringBoot3暂时无法使用，应该是兼容性问题导致的。

2.添加配置

spring:
  mvc:
    pathmatch:
      matching-strategy: ant_path_matcher

这里需要配置匹配策略，SpringMvc默认的策略是： PATH_PATTERN_PARSER，而使用Swagger的需要ANT_PATH_MATCHER。

简单地从源码中就可以找到：

    public static class Pathmatch {
        private MatchingStrategy matchingStrategy;

        public Pathmatch() {
            this.matchingStrategy = WebMvcProperties.MatchingStrategy.PATH_PATTERN_PARSER;
            this.useSuffixPattern = false;
            this.useRegisteredSuffixPattern = false;
        }
    }

public static enum MatchingStrategy {
    ANT_PATH_MATCHER,
    PATH_PATTERN_PARSER;

    private MatchingStrategy() {
    }
}

在yml文件中继续添加swagger相关的配置：

springfox:
  documentation:
    # 是否启用Swagger扫描代码生成文档
    enabled: true
    open-api:
      # 是否启用Swagger的open-api
      enabled: false
    swagger-ui:
      # 是否启用Swagger的Web UI
      enabled: true
      # 配置文档基础路径，此时路径为：/doc/swagger-ui/index.html
      #base-url: /doc

3.添加自动配置

package com.zxyy.swagger.config;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.util.ReflectionUtils;
import org.springframework.web.servlet.mvc.method.RequestMappingInfoHandlerMapping;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.spring.web.plugins.WebFluxRequestHandlerProvider;
import springfox.documentation.spring.web.plugins.WebMvcRequestHandlerProvider;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.lang.reflect.Field;
import java.util.List;

/**
 * @Author lucky
 * @Date 2023/12/21
 * @Description Swagger配置类
 **/
@Configuration
public class SwaggerConfig {

    /**
     * 文档
     */
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.zxyy.swagger.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    /**
     * api相关的信息
     */
    public ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("tiny-swagger")
                .description("测试")
                .contact(new Contact("lucky", null, null))
                .version("1.0")
                .build();
    }

    /**
     * SpringBoot2.6.x以上的版本，需要添加这个Bean
     */
    @Bean
    public static BeanPostProcessor springfoxHandlerProviderBeanPostProcessor() {
        return new BeanPostProcessor() {
            @Override
            public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
                if (bean instanceof WebMvcRequestHandlerProvider | bean instanceof WebFluxRequestHandlerProvider) {
                    customizeSpringfoxHandlerMappings(getHandlerMappings(bean));
                }
                return bean;
            }

            private <T extends RequestMappingInfoHandlerMapping> void customizeSpringfoxHandlerMappings(List<T> mappings) {
                List<T> copy = mappings.stream()
                        .filter(mapping -> mapping.getPatternParser() == null).toList();
                mappings.clear();
                mappings.addAll(copy);
            }

            @SuppressWarnings("unchecked")
            public List<RequestMappingInfoHandlerMapping> getHandlerMappings(Object bean) {
                try {
                    Field field = ReflectionUtils.findField(bean.getClass(), "handlerMappings");
                    field.setAccessible(true);
                    return (List<RequestMappingInfoHandlerMapping>) field.get(bean);
                } catch (IllegalArgumentException | IllegalAccessException e) {
                    throw new IllegalStateException(e);
                }
            }
        };
    }

}

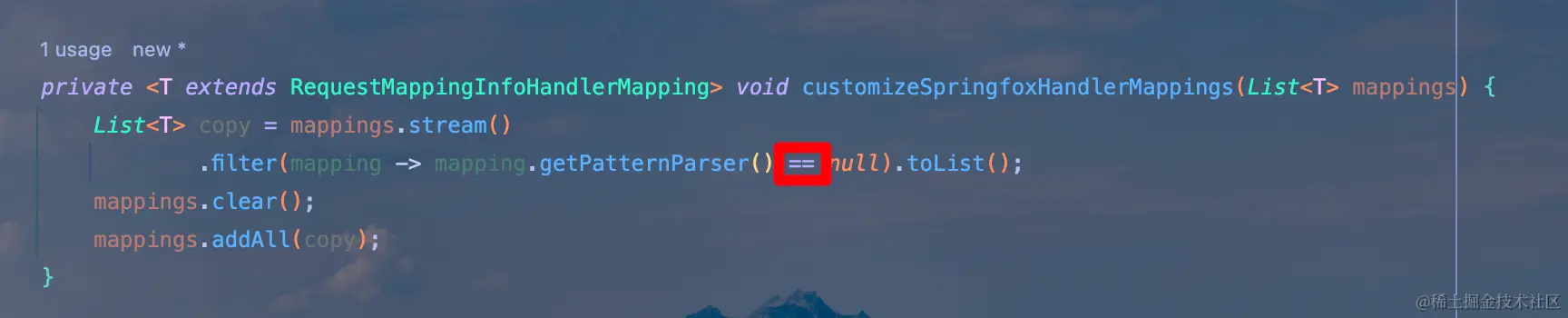

其实在这里遇到过一个问题，就是配置后一直无法显示接口，原因是我将图中的“==”写成了“!=”,导致我还以为是配置中的controller路径写错了，检查路径没问题后，debug才发现是这里的问题。还是需要更详细的了解SpringMVC的流程就更好了！

4.添加测试接口

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.v3.oas.annotations.tags.Tag;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

/**
 * @Author zhangxiang
 * @Date 2023/12/21
 * @Description
 **/
@RestController
@Api(tags = "SwaggerController")
@Tag(name = "SwaggerController", description = "swagger测试")
@RequestMapping("/swagger/test")
public class SwaggerController {

    @ApiOperation("查询所有的数据")
    @GetMapping("/list")
    public List<String> list() {
        return new ArrayList<>(Arrays.asList("foo", "bar", "baz"));
    }
}

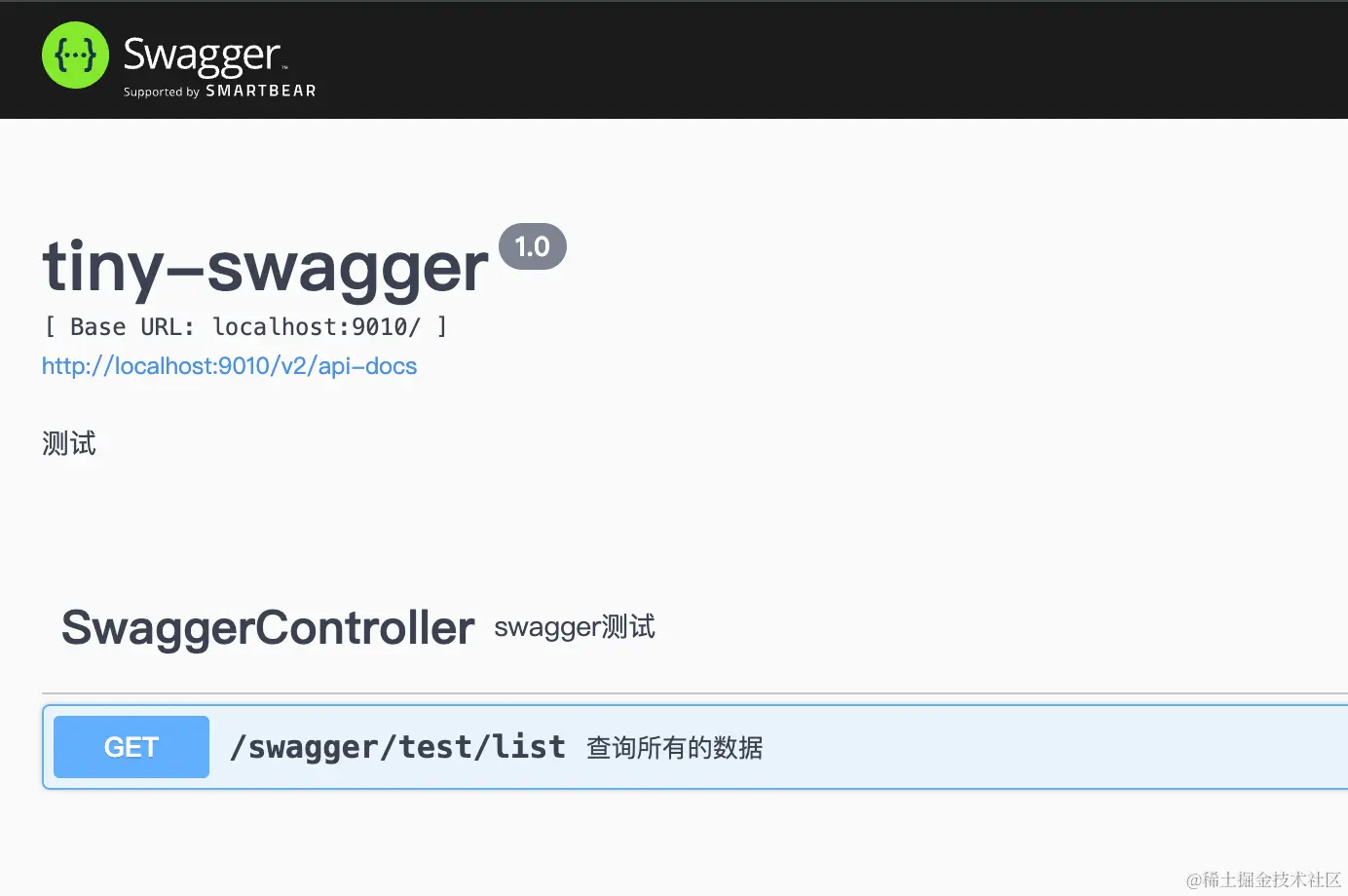

这里做个简单的测试，下节将整合SpringSecurity,在存在安全验证的情况下，如何配置和使用Swagger。
