从实现TaBar开始；
- 导入对应的图标并在
pubspec.yaml中对资源文件进行声明；
# To add assets to your application, add an assets section, like this:
assets:
- assets/images/tabBar/ic_home_add.png
- assets/images/tabBar/ic_home_discover_night_normal.png
- assets/images/tabBar/ic_home_discover_normal.png
- assets/images/tabBar/ic_home_discover_select.png
- assets/images/tabBar/ic_home_synthesize_night_normal.png
- assets/images/tabBar/ic_home_synthesize_normal.png
- assets/images/tabBar/ic_home_synthesize_select.png
- assets/images/tabBar/ic_home_tweet_night_normal.png
- assets/images/tabBar/ic_home_tweet_normal.png
- assets/images/tabBar/ic_home_tweet_select.png
- assets/images/tabBar/ic_home_user_night_normal.png
- assets/images/tabBar/ic_home_user_normal.png
- assets/images/tabBar/ic_home_user_select.png
-
在pages文件夹下，创建5个对应的主页面；
-
在
main.dart进行tabBar的编写；
import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';
import 'package:hello_oschina/common/ThemeUtils.dart';
import 'package:hello_oschina/pages/FindPage.dart';
import 'package:hello_oschina/pages/MyPage.dart';
import 'package:hello_oschina/pages/PostTopicPage.dart';
import 'package:hello_oschina/pages/SummaryPage.dart';
import 'package:hello_oschina/pages/TweetsPage.dart';
void main() {
runApp(const MyClient());
}
class MyClient extends StatefulWidget {
const MyClient({super.key});
@override
State<MyClient> createState() => _MyClientState();
}
class _MyClientState extends State<MyClient> {
final Color selectedTabTextColor = const Color(0xff63ca6c);
final Color normalTabTextColor = const Color(0xff969696);
Color themeColor = ThemeUtils.defaultColor;
//当前tab坐标
int _tabIndex = 0;
//tabBar 图标集合
late List<List<Image>> tabImages;
//app主体
late IndexedStack _body;
//设置tabBar上的所有页面
final List<Widget> pages = [
SummaryPage(),
TweetsPage(),
PostTopicPage(),
FindPage(),
MyPage()
];
//获取tabIcon并设置尺寸大小
Image getTabIcon(path) {
return Image.asset(path, width: 24.0, height: 24.0);
}
//设置tab icon
Image getNowTabIcon(int nowIndex) {
return nowIndex == _tabIndex
? tabImages[nowIndex][1]
: tabImages[nowIndex][0];
}
@override
void initState() {
// TODO: implement initState
super.initState();
tabImages = [
[
getTabIcon('assets/images/tabBar/ic_home_synthesize_normal.png'),
getTabIcon('assets/images/tabBar/ic_home_synthesize_select.png'),
getTabIcon('assets/images/tabBar/ic_home_synthesize_night_normal.png')
],
[
getTabIcon('assets/images/tabBar/ic_home_tweet_normal.png'),
getTabIcon('assets/images/tabBar/ic_home_tweet_select.png'),
getTabIcon('assets/images/tabBar/ic_home_tweet_night_normal.png')
],
[
Image.asset('assets/images/tabBar/ic_home_add.png',
width: 44.0, height: 44.0),
Image.asset('assets/images/tabBar/ic_home_add.png',
width: 44.0, height: 44.0),
],
[
getTabIcon('assets/images/tabBar/ic_home_discover_normal.png'),
getTabIcon('assets/images/tabBar/ic_home_discover_select.png'),
getTabIcon('assets/images/tabBar/ic_home_discover_night_normal.png')
],
[
getTabIcon('assets/images/tabBar/ic_home_user_normal.png'),
getTabIcon('assets/images/tabBar/ic_home_user_select.png'),
getTabIcon('assets/images/tabBar/ic_home_user_night_normal.png')
]
];
}
@override
Widget build(BuildContext context) {
_body = IndexedStack(
index: _tabIndex,
children: pages,
);
return MaterialApp(
theme: ThemeData(primaryColor: themeColor),
home: Scaffold(
body: _body,
bottomNavigationBar:
//第二种，创建后中间的加号label不能省略
//showSelectedLabels和showUnselectedLabels只能全局设置，不能控制单个的BottomNavigationBarItem
//感觉如果需要实现，就只能去考虑自定义一个底部的TabBar了
//The argument [icon] should not be null and the argument [label] should not be null when used in a Material Design's [BottomNavigationBar].
BottomNavigationBar(
items: <BottomNavigationBarItem>[
BottomNavigationBarItem(icon: getNowTabIcon(0), label: '综合'),
BottomNavigationBarItem(icon: getNowTabIcon(1), label: '动弹'),
BottomNavigationBarItem(icon: getNowTabIcon(2), label: ""),
BottomNavigationBarItem(icon: getNowTabIcon(3), label: '发现'),
BottomNavigationBarItem(icon: getNowTabIcon(4), label: '我的'),
],
type: BottomNavigationBarType.fixed,
selectedItemColor: selectedTabTextColor,
unselectedItemColor: normalTabTextColor,
selectedLabelStyle: const TextStyle(
fontWeight: FontWeight.bold,
),
unselectedLabelStyle: const TextStyle(
fontWeight: FontWeight.bold,
),
currentIndex: _tabIndex,
//showSelectedLabels: false,
//showUnselectedLabels: false,
backgroundColor: Colors.white,
onTap: (index) {
setState(() {
_tabIndex = index;
});
},
),
//第一种，创建无法改变tabBar的label字体
// CupertinoTabBar(
// items: <BottomNavigationBarItem>[
// BottomNavigationBarItem(
// icon: getNowTabIcon(0),label: '综合'),
// BottomNavigationBarItem(
// icon: getNowTabIcon(1),label: '动弹'),
// BottomNavigationBarItem(
// icon: getNowTabIcon(2)),
// BottomNavigationBarItem(
// icon: getNowTabIcon(3),label: '发现'),
// BottomNavigationBarItem(
// icon: getNowTabIcon(4),label: '我的'),
// ],
// activeColor: selectedTabTextColor,
// inactiveColor: normalTabTextColor,
// currentIndex: _tabIndex,
// backgroundColor: Colors.white,
// onTap: (index){
// setState(() {
// _tabIndex = index;
// });
// },
// ),
),
);
}
}

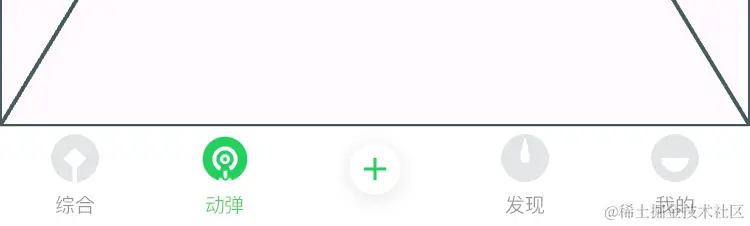

代码第一种 CupertinoTabBar 效果：

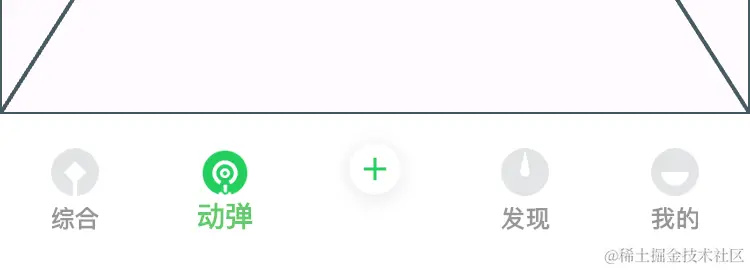

代码第二种 BottomNavigationBar效果：
-
设置tabBarItem的时候出现的问题，在网上查了很多，没有解决的办法，
BottomNavigationBar部分的代码，去实现原App的tabBar效果；貌似只能去自定义才能实现； -
现行先采用
CupertinoTabBar的方式, 如有能实现的方法，烦请不吝赐教；
Flutter在新版对BottomNavigationBarItem进行了破坏性的改动，改动前的title属性，传一个 new Container()就可以实现，现在改为label属性只能传String类型了。
flutter.cn/docs/releas…
