上面对IoC容器的初始化过程进行了详细的分析，这个初始化过程完成的主要工作是在IoC容器中建立BeanDefinition数据映射。在此过程中并没有看到IoC容器对Bean依赖关系进行注入，接下来分析一下IoC容器是怎样对Bean的依赖关系进行注入的。 假设当前IoC容器已经载入了用户定义的Bean信息，开始分析依赖注入的原理。首先，注意到依赖注入的过程是用户第一次向IoC容器索要Bean时触发的，当然也有例外，也就是我们可以在BeanDefinition信息中通过控制lazy-init属性来让容器完成对Bean的预实例化。这个预实例化实际上也是一个完成依赖注入的过程，但它是在初始化的过程中完成的，梢后我们会详细分析这个预实例化的处理。当用户向IoC容器索要Bean时，如果读者还有印象，那么一定还记得在基本 的IoC容器接口BeanFactory中，有一个getBean的接口定义，这个接口的实现就是触发依赖注入发生的地方。为了进一步了解这个依赖注入过程的实现，下面从DefaultListableBeanFactory的基类AbstractBeanFactory入手去看看getBean的实现，代码如下。
org.springframework.beans.factory.support.AbstractBeanFactory的getBean实现如下：
// 这里是对BeanFactory接口的实现，比如getBean接口方法，这些getBean接口方法最终是通过调用doGetBean来实现的
@Override
public Object getBean(String name) throws BeansException {
return doGetBean(name, null, null, false);
}
@Override
public <T> T getBean(String name, Class<T> requiredType) throws BeansException {
return doGetBean(name, requiredType, null, false);
}
@Override
public Object getBean(String name, Object... args) throws BeansException {
return doGetBean(name, null, args, false);
}
public <T> T getBean(String name, @Nullable Class<T> requiredType, @Nullable Object... args)
throws BeansException {
return doGetBean(name, requiredType, args, false);
}
// 这里是实际取得Bean的地方，也是触发依赖注入发生的地方
@SuppressWarnings("unchecked")
protected <T> T doGetBean(
String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
throws BeansException {
// 先从缓存中取得Bean，处理那些已经被创建过的事件模式的Bean，这这种Bean的请求不需要重复的创建
String beanName = transformedBeanName(name);
Object beanInstance;
// Eagerly check singleton cache for manually registered singletons.
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isTraceEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
}
}
// 这里的getObjectForBeanInstance完成的是FactoryBean的相关处理，以取得FactoryBean的生产结果，BeanFactory和FactoryBean的区别已经在前面讲过
beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// 这里对IOC容器中的BeanDefinition是否存在进行检查，检查是否能在当前的BeanFactory中取得需要的Bean，如果找不到，则到双亲BeanFactory中去取，按照双亲链一直向上查找
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
String nameToLookup = originalBeanName(name);
if (parentBeanFactory instanceof AbstractBeanFactory) {
return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
nameToLookup, requiredType, args, typeCheckOnly);
}
else if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else if (requiredType != null) {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
else {
return (T) parentBeanFactory.getBean(nameToLookup);
}
}
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
StartupStep beanCreation = this.applicationStartup.start("spring.beans.instantiate")
.tag("beanName", name);
try {
if (requiredType != null) {
beanCreation.tag("beanType", requiredType::toString);
}
RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
// 获取当前Bean的所有依赖Bean，这样会触发getBean的递归调用，直到取到一个没有任何依赖的Bean为止
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
registerDependentBean(dep, beanName);
try {
getBean(dep);
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
}
}
}
// Create bean instance.
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, () -> {
try {
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
});
beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
// 这里创建prototype bean的地方，prototype是每次请求都会新建一个Bean的意思
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
beanInstance = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
else {
String scopeName = mbd.getScope();
if (!StringUtils.hasLength(scopeName)) {
throw new IllegalStateException("No scope name defined for bean '" + beanName + "'");
}
Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, () -> {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
});
beanInstance = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new ScopeNotActiveException(beanName, scopeName, ex);
}
}
}
catch (BeansException ex) {
beanCreation.tag("exception", ex.getClass().toString());
beanCreation.tag("message", String.valueOf(ex.getMessage()));
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
finally {
beanCreation.end();
}
}
// 对Bean进行类型检查
return adaptBeanInstance(name, beanInstance, requiredType);
}
这个就是依赖注入的入口，在这单触发了依赖注入，而依赖注入的发生是在容器中的BeanDefinition数据已经建立好的前提下进行的。
重点来说，getBean是依赖注入的起点，之后会调用createBean，下面通过createBean代码来了解这个实现过程。在这个过程中，Bean对象会依据BeanDefinition定义的要求生成。在AbstractAutowireCapableBeanFactory中实现了这个createBean，createBean不但生成了需要的Bean，还对Bean初始化进行了处理，比如实现了在BeanDefinition中的init-method属性定义，Bean后置处理器等。

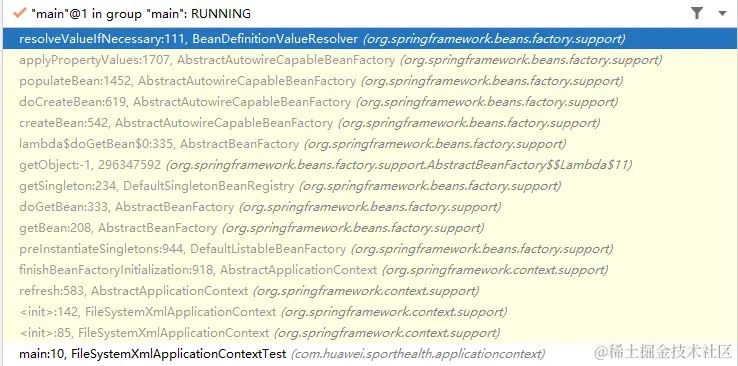

依赖注入的调用过程如下： (1)AbstractBeanFactory.getBean (2)AbstractBeanFactory.doGetBean (3)AbstractAutowireCapableBeanFactory.createBean (4)AbstractAutowireCapableBeanFactory.doCreateBean(使用SimpleInstantiationStrategy进行bean的创建) (5)AbstractAutowireCapableBeanFactory.populateBean (6)AbstractAutowireCapableBeanFactory.applyPropertyValues (7)BeanDefinitionValueResolver.resolveValueIfNecessary (8)BeanDefinitionValueResolver.resolveReference
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBean(java.lang.String, org.springframework.beans.factory.support.RootBeanDefinition, java.lang.Object[])的实现如下：
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException {
if (logger.isTraceEnabled()) {
logger.trace("Creating instance of bean '" + beanName + "'");
}
// 这里判断需要创建的Bean是否可以实例化，这个类是否可以通过类装载器来载入
RootBeanDefinition mbdToUse = mbd;
// Make sure bean class is actually resolved at this point, and
// clone the bean definition in case of a dynamically resolved Class
// which cannot be stored in the shared merged bean definition.
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
// Prepare method overrides.
try {
mbdToUse.prepareMethodOverrides();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
beanName, "Validation of method overrides failed", ex);
}
try {
// 如果Bean配置了PostProcessor，那么这里返回的是一个proxy，执行InstantiationAwareBeanPostProcessor
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
}
}
catch (Throwable ex) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
"BeanPostProcessor before instantiation of bean failed", ex);
}
try {
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isTraceEnabled()) {
logger.trace("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}
catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
// A previously detected exception with proper bean creation context already,
// or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
throw ex;
}
catch (Throwable ex) {
throw new BeanCreationException(
mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
}
}
// 接着到doCreateBean中去看看Bean是怎样生成的
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException {
// 这个BeanWrapper是用来持有创建出来的Bean对象的
BeanWrapper instanceWrapper = null;
// 如果是Singleton，先把缓存中的同名Bean清楚
if (mbd.isSingleton()) {
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
// 这里是创建Bean的地方，由createBeanInstance来完成
if (instanceWrapper == null) {
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
Object bean = instanceWrapper.getWrappedInstance();
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
// Allow post-processors to modify the merged bean definition.
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Post-processing of merged bean definition failed", ex);
}
mbd.postProcessed = true;
}
}
// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isTraceEnabled()) {
logger.trace("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
}
// 这里是对Bean的初始化，依赖注入往往在这里发生，这个exposedObject在初始化处理完以后会返回作为依赖注入完成后的Bean
Object exposedObject = bean;
try {
populateBean(beanName, mbd, instanceWrapper);
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
catch (Throwable ex) {
if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
throw (BeanCreationException) ex;
}
else {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
}
}
if (earlySingletonExposure) {
Object earlySingletonReference = getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
}
else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
String[] dependentBeans = getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
for (String dependentBean : dependentBeans) {
if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName,
"Bean with name '" + beanName + "' has been injected into other beans [" +
StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
"] in its raw version as part of a circular reference, but has eventually been " +
"wrapped. This means that said other beans do not use the final version of the " +
"bean. This is often the result of over-eager type matching - consider using " +
"'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
}
}
}
}
// Register bean as disposable.
try {
registerDisposableBeanIfNecessary(beanName, bean, mbd);
}
catch (BeanDefinitionValidationException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
}
return exposedObject;
}
resolveBeforeInstantiation解析的InstantiationAwareBeanPostProcessor的实现如下：
public interface InstantiationAwareBeanPostProcessor extends BeanPostProcessor {
@Nullable
default Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
return null;
}
default boolean postProcessAfterInstantiation(Object bean, String beanName) throws BeansException {
return true;
}
@Nullable
default PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName)
throws BeansException {
return null;
}
@Deprecated
@Nullable
default PropertyValues postProcessPropertyValues(
PropertyValues pvs, PropertyDescriptor[] pds, Object bean, String beanName) throws BeansException {
return pvs;
}
}
在这里我们看到，与依赖注入关系特别密切的方法有createBeanlnstance和populateBean，下面分别介绍这两个方法，在createBeanInstance中生成了Bean所包含的Java对象，这个对象的生成有很多种不同的方式，可以通过工厂方法生成，也可以通过容器的autowire特性生成，这些生成方式都是由相关的BeanDefinition来指定的。
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
// Make sure bean class is actually resolved at this point.
Class<?> beanClass = resolveBeanClass(mbd, beanName);
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
}
Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
if (instanceSupplier != null) {
return obtainFromSupplier(instanceSupplier, beanName);
}
// 使用工厂方法对Bean进行实例化
if (mbd.getFactoryMethodName() != null) {
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
// Shortcut when re-creating the same bean...
boolean resolved = false;
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
return autowireConstructor(beanName, mbd, null, null);
}
else {
return instantiateBean(beanName, mbd);
}
}
// 使用构造函数进行实例化
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args);
}
// Preferred constructors for default construction?
ctors = mbd.getPreferredConstructors();
if (ctors != null) {
return autowireConstructor(beanName, mbd, ctors, null);
}
// No special handling: simply use no-arg constructor.
return instantiateBean(beanName, mbd);
}
protected BeanWrapper instantiateBean(String beanName, RootBeanDefinition mbd) {
//使用默认的实例化策略对Bean进行实例化，默认的实例化策略是
//CglibSubclassingInstantiationStrategy，也就是使用cGLIB来对Bean进行实例化
//接着再看CglibSubclassingInstantiationStrategy的实现
try {
Object beanInstance;
if (System.getSecurityManager() != null) {
beanInstance = AccessController.doPrivileged(
(PrivilegedAction<Object>) () -> getInstantiationStrategy().instantiate(mbd, beanName, this),
getAccessControlContext());
}
else {
beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, this);
}
BeanWrapper bw = new BeanWrapperImpl(beanInstance);
initBeanWrapper(bw);
return bw;
}
catch (Throwable ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
}
}
determineConstructorsFromBeanPostProcessors执行SmartInstantiationAwareBeanPostProcessor，实现如下，该BeanPostProcessor可以修改对应的构造方法：
public interface SmartInstantiationAwareBeanPostProcessor extends InstantiationAwareBeanPostProcessor {
@Nullable
default Class<?> predictBeanType(Class<?> beanClass, String beanName) throws BeansException {
return null;
}
@Nullable
default Constructor<?>[] determineCandidateConstructors(Class<?> beanClass, String beanName)
throws BeansException {
return null;
}
default Object getEarlyBeanReference(Object bean, String beanName) throws BeansException {
return bean;
}
}
这单用CGLIB对Bean进行实例化。CGLIB是一个常用的字节码生成器的类库，提供了一系列的API来提供生成和转换Java的字节码的功能。在SpringAOP中也使用CGLIB对Java的字节码进行增强。在IoC容器中，要了解怎样使用CGLIB来生成Bean对象，需要看一下SimplelnstantiationStrategy类。这个Strategy是Spring用来生成Bean对象的默认类，它提供了两种实例化Java对象的方法，一种是通过BeanUtils，它使用了JVM的反射功能，一种是通过前面提到的CGLIB来生成，代码如下。
public class SimpleInstantiationStrategy implements InstantiationStrategy {
private static final ThreadLocal<Method> currentlyInvokedFactoryMethod = new ThreadLocal<>();
@Nullable
public static Method getCurrentlyInvokedFactoryMethod() {
return currentlyInvokedFactoryMethod.get();
}
@Override
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
// Don't override the class with CGLIB if no overrides.
if (!bd.hasMethodOverrides()) {
// 这里取得指定的构造器或者生成对象的工厂方法来对Bean进行实例化
Constructor<?> constructorToUse;
synchronized (bd.constructorArgumentLock) {
constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
if (constructorToUse == null) {
final Class<?> clazz = bd.getBeanClass();
if (clazz.isInterface()) {
throw new BeanInstantiationException(clazz, "Specified class is an interface");
}
try {
if (System.getSecurityManager() != null) {
constructorToUse = AccessController.doPrivileged(
(PrivilegedExceptionAction<Constructor<?>>) clazz::getDeclaredConstructor);
}
else {
constructorToUse = clazz.getDeclaredConstructor();
}
bd.resolvedConstructorOrFactoryMethod = constructorToUse;
}
catch (Throwable ex) {
throw new BeanInstantiationException(clazz, "No default constructor found", ex);
}
}
}
// 通过BeanUtils进行实例化，调用ctor.newInstance
return BeanUtils.instantiateClass(constructorToUse);
}
else {
// 使用CGLIB来实例化对象
return instantiateWithMethodInjection(bd, beanName, owner);
}
}
protected Object instantiateWithMethodInjection(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
throw new UnsupportedOperationException("Method Injection not supported in SimpleInstantiationStrategy");
}
@Override
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner,
final Constructor<?> ctor, Object... args) {
if (!bd.hasMethodOverrides()) {
if (System.getSecurityManager() != null) {
// use own privileged to change accessibility (when security is on)
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(ctor);
return null;
});
}
return BeanUtils.instantiateClass(ctor, args);
}
else {
return instantiateWithMethodInjection(bd, beanName, owner, ctor, args);
}
}
protected Object instantiateWithMethodInjection(RootBeanDefinition bd, @Nullable String beanName,
BeanFactory owner, @Nullable Constructor<?> ctor, Object... args) {
throw new UnsupportedOperationException("Method Injection not supported in SimpleInstantiationStrategy");
}
@Override
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner,
@Nullable Object factoryBean, final Method factoryMethod, Object... args) {
try {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(factoryMethod);
return null;
});
}
else {
ReflectionUtils.makeAccessible(factoryMethod);
}
Method priorInvokedFactoryMethod = currentlyInvokedFactoryMethod.get();
try {
currentlyInvokedFactoryMethod.set(factoryMethod);
Object result = factoryMethod.invoke(factoryBean, args);
if (result == null) {
result = new NullBean();
}
return result;
}
finally {
if (priorInvokedFactoryMethod != null) {
currentlyInvokedFactoryMethod.set(priorInvokedFactoryMethod);
}
else {
currentlyInvokedFactoryMethod.remove();
}
}
}
catch (IllegalArgumentException ex) {
throw new BeanInstantiationException(factoryMethod,
"Illegal arguments to factory method '" + factoryMethod.getName() + "'; " +
"args: " + StringUtils.arrayToCommaDelimitedString(args), ex);
}
catch (IllegalAccessException ex) {
throw new BeanInstantiationException(factoryMethod,
"Cannot access factory method '" + factoryMethod.getName() + "'; is it public?", ex);
}
catch (InvocationTargetException ex) {
String msg = "Factory method '" + factoryMethod.getName() + "' threw exception";
if (bd.getFactoryBeanName() != null && owner instanceof ConfigurableBeanFactory &&
((ConfigurableBeanFactory) owner).isCurrentlyInCreation(bd.getFactoryBeanName())) {
msg = "Circular reference involving containing bean '" + bd.getFactoryBeanName() + "' - consider " +
"declaring the factory method as static for independence from its containing instance. " + msg;
}
throw new BeanInstantiationException(factoryMethod, msg, ex.getTargetException());
}
}
}
到这里已经分析了实例化Bean对象的整个过程。在实例化Bean对象生成的基础上，再介绍一下Spring是怎样对这些对象进行处理的，也就是Bean对象生成以后，怎样把这些Bean对 象的依赖关系设置好，完成整个依赖注入过程。这个过程涉及对各种Bean对象的属性的处理过程（即依赖关系处理的过程），这些依赖关系处理的依据就是已经解析得到的BeanDefinition。要详细了解这个过程，需要回到前面的populateBean方法，这个方法在 AbstractAutowireCapableBeanFactory中的实现如代码如下所示。
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#populateBean的实现如下：
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
if (bw == null) {
if (mbd.hasPropertyValues()) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
else {
// Skip property population phase for null instance.
return;
}
}
// Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
// state of the bean before properties are set. This can be used, for example,
// to support styles of field injection.
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
if (!bp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
return;
}
}
}
// 这里取得在BeanDefinition中设置的property值，这些property来自对BeanDefinition的解析，具体的解析过程可以参看对载入和解析BeanDefinition的分析
PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);
int resolvedAutowireMode = mbd.getResolvedAutowireMode();
// 开始进行依赖注入过程，先处理autowire的注入
if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
// 这里是对autowire注入的处理，可以根据Bean的名字或者类型，来完成Bean的autowire
if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
autowireByName(beanName, mbd, bw, newPvs);
}
// Add property values based on autowire by type if applicable.
if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);
PropertyDescriptor[] filteredPds = null;
if (hasInstAwareBpps) {
if (pvs == null) {
pvs = mbd.getPropertyValues();
}
for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
PropertyValues pvsToUse = bp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
if (pvsToUse == null) {
if (filteredPds == null) {
filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
}
pvsToUse = bp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvsToUse == null) {
return;
}
}
pvs = pvsToUse;
}
}
if (needsDepCheck) {
if (filteredPds == null) {
filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
}
checkDependencies(beanName, mbd, filteredPds, pvs);
}
if (pvs != null) {
// 对属性进行注入
applyPropertyValues(beanName, mbd, bw, pvs);
}
}
protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
if (pvs.isEmpty()) {
return;
}
if (System.getSecurityManager() != null && bw instanceof BeanWrapperImpl) {
((BeanWrapperImpl) bw).setSecurityContext(getAccessControlContext());
}
MutablePropertyValues mpvs = null;
List<PropertyValue> original;
if (pvs instanceof MutablePropertyValues) {
mpvs = (MutablePropertyValues) pvs;
if (mpvs.isConverted()) {
// Shortcut: use the pre-converted values as-is.
try {
bw.setPropertyValues(mpvs);
return;
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
original = mpvs.getPropertyValueList();
}
else {
original = Arrays.asList(pvs.getPropertyValues());
}
TypeConverter converter = getCustomTypeConverter();
if (converter == null) {
converter = bw;
}
// 注意这个BeanDefinitionValueResolver对BeanDefinition的解析是在这个valueResolver中完成的
BeanDefinitionValueResolver valueResolver = new BeanDefinitionValueResolver(this, beanName, mbd, converter);
// Create a deep copy, resolving any references for values.
List<PropertyValue> deepCopy = new ArrayList<>(original.size());
boolean resolveNecessary = false;
for (PropertyValue pv : original) {
if (pv.isConverted()) {
deepCopy.add(pv);
}
else {
String propertyName = pv.getName();
Object originalValue = pv.getValue();
if (originalValue == AutowiredPropertyMarker.INSTANCE) {
Method writeMethod = bw.getPropertyDescriptor(propertyName).getWriteMethod();
if (writeMethod == null) {
throw new IllegalArgumentException("Autowire marker for property without write method: " + pv);
}
originalValue = new DependencyDescriptor(new MethodParameter(writeMethod, 0), true);
}
Object resolvedValue = valueResolver.resolveValueIfNecessary(pv, originalValue);
Object convertedValue = resolvedValue;
boolean convertible = bw.isWritableProperty(propertyName) &&
!PropertyAccessorUtils.isNestedOrIndexedProperty(propertyName);
if (convertible) {
convertedValue = convertForProperty(resolvedValue, propertyName, bw, converter);
}
// Possibly store converted value in merged bean definition,
// in order to avoid re-conversion for every created bean instance.
if (resolvedValue == originalValue) {
if (convertible) {
pv.setConvertedValue(convertedValue);
}
deepCopy.add(pv);
}
else if (convertible && originalValue instanceof TypedStringValue &&
!((TypedStringValue) originalValue).isDynamic() &&
!(convertedValue instanceof Collection || ObjectUtils.isArray(convertedValue))) {
pv.setConvertedValue(convertedValue);
deepCopy.add(pv);
}
else {
resolveNecessary = true;
deepCopy.add(new PropertyValue(pv, convertedValue));
}
}
}
if (mpvs != null && !resolveNecessary) {
mpvs.setConverted();
}
// Set our (possibly massaged) deep copy. 依赖注入发生的地方，会在BeanWrapperImpl中完成
try {
bw.setPropertyValues(new MutablePropertyValues(deepCopy));
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
这里通过使用BeanDefinitionResolver来对BeanDefinition进行解析，然后注入到property中。下面到BeanDefinitionValueResolver中去看一下解析过程的实现，以对Beanreference进行解析为例，如下图所示，可以看到整个Resolve的过程。具体的对Beanreference进行解析的过程如下代码所示。
org.springframework.beans.factory.support.BeanDefinitionValueResolver#resolveValueIfNecessary中调用的org.springframework.beans.factory.support.BeanDefinitionValueResolver#resolveReference的实现如下：
@Nullable
private Object resolveReference(Object argName, RuntimeBeanReference ref) {
try {
// 从RuntimeBeanReference取得reference的名字，这个RuntimeBeanReference是在载入BeanDefinition时根据配置生成的
Object bean;
Class<?> beanType = ref.getBeanType();
// 如果ref是在双亲IOC容器中，那就到双亲IOC容器中去获取
if (ref.isToParent()) {
BeanFactory parent = this.beanFactory.getParentBeanFactory();
if (parent == null) {
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Cannot resolve reference to bean " + ref +
" in parent factory: no parent factory available");
}
if (beanType != null) {
bean = parent.getBean(beanType);
}
else {
bean = parent.getBean(String.valueOf(doEvaluate(ref.getBeanName())));
}
}
// 在当前IOC容器中去获取Bean，这里会触发一个getBean的过程，如果依赖注入没有发生，这里会触发相应的依赖注入的发生
else {
String resolvedName;
if (beanType != null) {
NamedBeanHolder<?> namedBean = this.beanFactory.resolveNamedBean(beanType);
bean = namedBean.getBeanInstance();
resolvedName = namedBean.getBeanName();
}
else {
resolvedName = String.valueOf(doEvaluate(ref.getBeanName()));
bean = this.beanFactory.getBean(resolvedName);
}
this.beanFactory.registerDependentBean(resolvedName, this.beanName);
}
if (bean instanceof NullBean) {
bean = null;
}
return bean;
}
catch (BeansException ex) {
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Cannot resolve reference to bean '" + ref.getBeanName() + "' while setting " + argName, ex);
}
}
private Object resolveManagedArray(Object argName, List<?> ml, Class<?> elementType) {
Object resolved = Array.newInstance(elementType, ml.size());
for (int i = 0; i < ml.size(); i++) {
Array.set(resolved, i, resolveValueIfNecessary(new KeyedArgName(argName, i), ml.get(i)));
}
return resolved;
}
private List<?> resolveManagedList(Object argName, List<?> ml) {
List<Object> resolved = new ArrayList<>(ml.size());
for (int i = 0; i < ml.size(); i++) {
resolved.add(resolveValueIfNecessary(new KeyedArgName(argName, i), ml.get(i)));
}
return resolved;
}
这两种属性的注入都调用了resolveValueIfNecessary，这个方法包含了所有对注入类型的处理。下面看一下resolveValueIfNecessary的实现，如下代码所示。
public Object resolveValueIfNecessary(Object argName, @Nullable Object value) {
// We must check each value to see whether it requires a runtime reference
// to another bean to be resolved.
if (value instanceof RuntimeBeanReference) {
RuntimeBeanReference ref = (RuntimeBeanReference) value;
return resolveReference(argName, ref);
}
else if (value instanceof RuntimeBeanNameReference) {
String refName = ((RuntimeBeanNameReference) value).getBeanName();
refName = String.valueOf(doEvaluate(refName));
if (!this.beanFactory.containsBean(refName)) {
throw new BeanDefinitionStoreException(
"Invalid bean name '" + refName + "' in bean reference for " + argName);
}
return refName;
}
else if (value instanceof BeanDefinitionHolder) {
// Resolve BeanDefinitionHolder: contains BeanDefinition with name and aliases.
BeanDefinitionHolder bdHolder = (BeanDefinitionHolder) value;
return resolveInnerBean(argName, bdHolder.getBeanName(), bdHolder.getBeanDefinition());
}
else if (value instanceof BeanDefinition) {
// Resolve plain BeanDefinition, without contained name: use dummy name.
BeanDefinition bd = (BeanDefinition) value;
String innerBeanName = "(inner bean)" + BeanFactoryUtils.GENERATED_BEAN_NAME_SEPARATOR +
ObjectUtils.getIdentityHexString(bd);
return resolveInnerBean(argName, innerBeanName, bd);
}
else if (value instanceof DependencyDescriptor) {
Set<String> autowiredBeanNames = new LinkedHashSet<>(2);
Object result = this.beanFactory.resolveDependency(
(DependencyDescriptor) value, this.beanName, autowiredBeanNames, this.typeConverter);
for (String autowiredBeanName : autowiredBeanNames) {
if (this.beanFactory.containsBean(autowiredBeanName)) {
this.beanFactory.registerDependentBean(autowiredBeanName, this.beanName);
}
}
return result;
}
else if (value instanceof ManagedArray) {
// May need to resolve contained runtime references.
ManagedArray array = (ManagedArray) value;
Class<?> elementType = array.resolvedElementType;
if (elementType == null) {
String elementTypeName = array.getElementTypeName();
if (StringUtils.hasText(elementTypeName)) {
try {
elementType = ClassUtils.forName(elementTypeName, this.beanFactory.getBeanClassLoader());
array.resolvedElementType = elementType;
}
catch (Throwable ex) {
// Improve the message by showing the context.
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Error resolving array type for " + argName, ex);
}
}
else {
elementType = Object.class;
}
}
return resolveManagedArray(argName, (List<?>) value, elementType);
}
else if (value instanceof ManagedList) {
// May need to resolve contained runtime references.
return resolveManagedList(argName, (List<?>) value);
}
else if (value instanceof ManagedSet) {
// May need to resolve contained runtime references.
return resolveManagedSet(argName, (Set<?>) value);
}
else if (value instanceof ManagedMap) {
// May need to resolve contained runtime references.
return resolveManagedMap(argName, (Map<?, ?>) value);
}
else if (value instanceof ManagedProperties) {
Properties original = (Properties) value;
Properties copy = new Properties();
original.forEach((propKey, propValue) -> {
if (propKey instanceof TypedStringValue) {
propKey = evaluate((TypedStringValue) propKey);
}
if (propValue instanceof TypedStringValue) {
propValue = evaluate((TypedStringValue) propValue);
}
if (propKey == null || propValue == null) {
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Error converting Properties key/value pair for " + argName + ": resolved to null");
}
copy.put(propKey, propValue);
});
return copy;
}
else if (value instanceof TypedStringValue) {
// Convert value to target type here.
TypedStringValue typedStringValue = (TypedStringValue) value;
Object valueObject = evaluate(typedStringValue);
try {
Class<?> resolvedTargetType = resolveTargetType(typedStringValue);
if (resolvedTargetType != null) {
return this.typeConverter.convertIfNecessary(valueObject, resolvedTargetType);
}
else {
return valueObject;
}
}
catch (Throwable ex) {
// Improve the message by showing the context.
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Error converting typed String value for " + argName, ex);
}
}
else if (value instanceof NullBean) {
return null;
}
else {
return evaluate(value);
}
}
在完成这个解析过程后，已经为依赖注入准备好了条件，这是真正把Bean对象设置到它所依赖的另一个Bean的属性中去的地方，其中处理的属性是各种各样的。依赖注入的发生是 在BeanWrapper的setPropertyValues中实现的，具体的完成却是在BeanWrapper的子类 BeanWrapperlmpl中实现的，如下所示。此处从applyPropertyValues中进入。
org.springframework.beans.AbstractNestablePropertyAccessor#setPropertyValue(org.springframework.beans.AbstractNestablePropertyAccessor.PropertyTokenHolder, org.springframework.beans.PropertyValue)实现如下：
protected void setPropertyValue(PropertyTokenHolder tokens, PropertyValue pv) throws BeansException {
if (tokens.keys != null) {
processKeyedProperty(tokens, pv);
}
else {
processLocalProperty(tokens, pv);
}
}
@SuppressWarnings("unchecked")
private void processKeyedProperty(PropertyTokenHolder tokens, PropertyValue pv) {
Object propValue = getPropertyHoldingValue(tokens);
PropertyHandler ph = getLocalPropertyHandler(tokens.actualName);
if (ph == null) {
throw new InvalidPropertyException(
getRootClass(), this.nestedPath + tokens.actualName, "No property handler found");
}
Assert.state(tokens.keys != null, "No token keys");
String lastKey = tokens.keys[tokens.keys.length - 1];
if (propValue.getClass().isArray()) {
Class<?> requiredType = propValue.getClass().getComponentType();
int arrayIndex = Integer.parseInt(lastKey);
Object oldValue = null;
try {
if (isExtractOldValueForEditor() && arrayIndex < Array.getLength(propValue)) {
oldValue = Array.get(propValue, arrayIndex);
}
Object convertedValue = convertIfNecessary(tokens.canonicalName, oldValue, pv.getValue(),
requiredType, ph.nested(tokens.keys.length));
int length = Array.getLength(propValue);
if (arrayIndex >= length && arrayIndex < this.autoGrowCollectionLimit) {
Class<?> componentType = propValue.getClass().getComponentType();
Object newArray = Array.newInstance(componentType, arrayIndex + 1);
System.arraycopy(propValue, 0, newArray, 0, length);
int lastKeyIndex = tokens.canonicalName.lastIndexOf('[');
String propName = tokens.canonicalName.substring(0, lastKeyIndex);
setPropertyValue(propName, newArray);
propValue = getPropertyValue(propName);
}
Array.set(propValue, arrayIndex, convertedValue);
}
catch (IndexOutOfBoundsException ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + tokens.canonicalName,
"Invalid array index in property path '" + tokens.canonicalName + "'", ex);
}
}
else if (propValue instanceof List) {
Class<?> requiredType = ph.getCollectionType(tokens.keys.length);
List<Object> list = (List<Object>) propValue;
int index = Integer.parseInt(lastKey);
Object oldValue = null;
if (isExtractOldValueForEditor() && index < list.size()) {
oldValue = list.get(index);
}
Object convertedValue = convertIfNecessary(tokens.canonicalName, oldValue, pv.getValue(),
requiredType, ph.nested(tokens.keys.length));
int size = list.size();
if (index >= size && index < this.autoGrowCollectionLimit) {
for (int i = size; i < index; i++) {
try {
list.add(null);
}
catch (NullPointerException ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + tokens.canonicalName,
"Cannot set element with index " + index + " in List of size " +
size + ", accessed using property path '" + tokens.canonicalName +
"': List does not support filling up gaps with null elements");
}
}
list.add(convertedValue);
}
else {
try {
list.set(index, convertedValue);
}
catch (IndexOutOfBoundsException ex) {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + tokens.canonicalName,
"Invalid list index in property path '" + tokens.canonicalName + "'", ex);
}
}
}
else if (propValue instanceof Map) {
Class<?> mapKeyType = ph.getMapKeyType(tokens.keys.length);
Class<?> mapValueType = ph.getMapValueType(tokens.keys.length);
Map<Object, Object> map = (Map<Object, Object>) propValue;
// IMPORTANT: Do not pass full property name in here - property editors
// must not kick in for map keys but rather only for map values.
TypeDescriptor typeDescriptor = TypeDescriptor.valueOf(mapKeyType);
Object convertedMapKey = convertIfNecessary(null, null, lastKey, mapKeyType, typeDescriptor);
Object oldValue = null;
if (isExtractOldValueForEditor()) {
oldValue = map.get(convertedMapKey);
}
// Pass full property name and old value in here, since we want full
// conversion ability for map values.
Object convertedMapValue = convertIfNecessary(tokens.canonicalName, oldValue, pv.getValue(),
mapValueType, ph.nested(tokens.keys.length));
map.put(convertedMapKey, convertedMapValue);
}
else {
throw new InvalidPropertyException(getRootClass(), this.nestedPath + tokens.canonicalName,
"Property referenced in indexed property path '" + tokens.canonicalName +
"' is neither an array nor a List nor a Map; returned value was [" + propValue + "]");
}
}
private Object getPropertyHoldingValue(PropertyTokenHolder tokens) {
// Apply indexes and map keys: fetch value for all keys but the last one.
Assert.state(tokens.keys != null, "No token keys");
PropertyTokenHolder getterTokens = new PropertyTokenHolder(tokens.actualName);
getterTokens.canonicalName = tokens.canonicalName;
getterTokens.keys = new String[tokens.keys.length - 1];
System.arraycopy(tokens.keys, 0, getterTokens.keys, 0, tokens.keys.length - 1);
Object propValue;
try {
propValue = getPropertyValue(getterTokens);
}
catch (NotReadablePropertyException ex) {
throw new NotWritablePropertyException(getRootClass(), this.nestedPath + tokens.canonicalName,
"Cannot access indexed value in property referenced " +
"in indexed property path '" + tokens.canonicalName + "'", ex);
}
if (propValue == null) {
// null map value case
if (isAutoGrowNestedPaths()) {
int lastKeyIndex = tokens.canonicalName.lastIndexOf('[');
getterTokens.canonicalName = tokens.canonicalName.substring(0, lastKeyIndex);
propValue = setDefaultValue(getterTokens);
}
else {
throw new NullValueInNestedPathException(getRootClass(), this.nestedPath + tokens.canonicalName,
"Cannot access indexed value in property referenced " +
"in indexed property path '" + tokens.canonicalName + "': returned null");
}
}
return propValue;
}
private void processLocalProperty(PropertyTokenHolder tokens, PropertyValue pv) {
PropertyHandler ph = getLocalPropertyHandler(tokens.actualName);
if (ph == null || !ph.isWritable()) {
if (pv.isOptional()) {
if (logger.isDebugEnabled()) {
logger.debug("Ignoring optional value for property '" + tokens.actualName +
"' - property not found on bean class [" + getRootClass().getName() + "]");
}
return;
}
if (this.suppressNotWritablePropertyException) {
// Optimization for common ignoreUnknown=true scenario since the
// exception would be caught and swallowed higher up anyway...
return;
}
throw createNotWritablePropertyException(tokens.canonicalName);
}
Object oldValue = null;
try {
Object originalValue = pv.getValue();
Object valueToApply = originalValue;
if (!Boolean.FALSE.equals(pv.conversionNecessary)) {
if (pv.isConverted()) {
valueToApply = pv.getConvertedValue();
}
else {
if (isExtractOldValueForEditor() && ph.isReadable()) {
try {
oldValue = ph.getValue();
}
catch (Exception ex) {
if (ex instanceof PrivilegedActionException) {
ex = ((PrivilegedActionException) ex).getException();
}
if (logger.isDebugEnabled()) {
logger.debug("Could not read previous value of property '" +
this.nestedPath + tokens.canonicalName + "'", ex);
}
}
}
valueToApply = convertForProperty(
tokens.canonicalName, oldValue, originalValue, ph.toTypeDescriptor());
}
pv.getOriginalPropertyValue().conversionNecessary = (valueToApply != originalValue);
}
ph.setValue(valueToApply);
}
catch (TypeMismatchException ex) {
throw ex;
}
catch (InvocationTargetException ex) {
PropertyChangeEvent propertyChangeEvent = new PropertyChangeEvent(
getRootInstance(), this.nestedPath + tokens.canonicalName, oldValue, pv.getValue());
if (ex.getTargetException() instanceof ClassCastException) {
throw new TypeMismatchException(propertyChangeEvent, ph.getPropertyType(), ex.getTargetException());
}
else {
Throwable cause = ex.getTargetException();
if (cause instanceof UndeclaredThrowableException) {
// May happen e.g. with Groovy-generated methods
cause = cause.getCause();
}
throw new MethodInvocationException(propertyChangeEvent, cause);
}
}
catch (Exception ex) {
PropertyChangeEvent pce = new PropertyChangeEvent(
getRootInstance(), this.nestedPath + tokens.canonicalName, oldValue, pv.getValue());
throw new MethodInvocationException(pce, ex);
}
}
在Bean的创建和对象依赖注入的过程中，需要依据BeanDefinition中的信息来递归地完成依赖注入。从上面的几个递归过程中可以看到，这些递归都是以getBean为入口的。一个递归是在上下文体系中查找需要的Bean和创建Bean的递归调用；另一个递归是在依赖注入时，通过递归调用容器的getBean方法，得到当前Bean的依赖Bean，同时也触发对依赖Bean的创建和注入。在对Bean的属性进行依赖注入时，解析的过程也是一个递归的过程。这样，根据依赖关系，一层一层地完成Bean的创建和注入，直到最后完成当前Bean的创建。有了这个顶层Bean的创建和对它的属性依赖注人的完成，意味着和当前Bean相关的整个依赖链的注入也完成了。 在Bean创建和依赖注入完成以后，在IoC容器中建立起一系列依靠依赖关系联系起来的Bean，这个Bean已经不是简单的Java对象了。该Bean系列以及Bean之间的依赖关系建立完成以后，通过IoC容器的相关接口方法，就可以非常方便地供上层应用使用了。
