前言
经常在掘金博客上看到使用前端技术实现的手电筒照亮效果，但是搜了一下android相关的，发现少得很，实际上这种效果在Android上实现会更简单，当然，条条大路通罗马，有很多技术手段去实现这种效果，今天我们选择一种相对比较好的方法来实现。
实现方法梳理
- 第一种方法就是利用Path路径进行 Clip Outline，然后绘制不同的渐变效果即可，这种方法其实很适合蒙版切图，不过也能用于实现这种特效。
- 第二种方法是利用Xfermode 进行中间图层镂空。
- 第三种方法就是Shader，效率高且无锯齿。

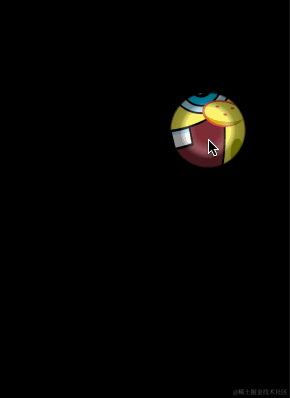

效果
实现原理
其实本篇的核心就是Shader了，这次我们也用RadialGradient来实现，本篇几乎没有任何难度，关键技术难点就是Shader 的移动，其实最经典的效果是Facebook实现的光影文案，本质上时Matrix + Shader.setLocalMatrix 实现。
Matrix涉及一些数学问题，Matrix初始化本身就是单位矩阵，几乎每个操作都是乘以另一个矩阵，属于线性代数的基本知识，难度其实并不高。
matrix.setTranslation(1,2) 可以看作，矩阵的乘法无非是行乘列，繁琐事繁琐，但是很容易理解
1,0,0, 1,0,1,
0,1,0, X 0,1,2,
0,0,1 0,0,1
我们来看看经典的facebook 出品代码
public class GradientShaderTextView extends View {
private final String TAG = "GradientShaderTextView";
private RadialGradient mGradient;
private final Matrix mGradientMatrix = new Matrix();
private Paint mPaint;
private TextPaint mTextPaint;
private int mTranslate = 0;
private boolean mAnimating = true;
private int delta = 5;
private final Paint.FontMetrics fontMetrics = new Paint.FontMetrics();
private final Rect textBound = new Rect();
private int horizontalTextPadding = 0;
private int verticalTextPadding = 0;
public GradientShaderTextView(Context context) {
super(context);
}
public GradientShaderTextView(Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
}
public GradientShaderTextView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
}
private CharSequence text;
{
this.text = "你是我内心的一首歌";
horizontalTextPadding = NumberUtils.dip2px(getContext(),20);
verticalTextPadding = NumberUtils.dip2px(getContext(),40);
mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mPaint.setColor(0x88ffffff);
mTextPaint = new TextPaint(Paint.ANTI_ALIAS_FLAG);
mTextPaint.setTextSize(NumberUtils.dip2px(getContext(), 30));
mTextPaint.setColor(Color.WHITE);
}
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
String text = getText().toString();
mTextPaint.getTextBounds(text,0,text.length(),textBound);
if (widthMode != MeasureSpec.EXACTLY) {
widthSize = textBound.width() + horizontalTextPadding;
}
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
if (heightMode != MeasureSpec.EXACTLY) {
heightSize = textBound.height() + verticalTextPadding;
}
setMeasuredDimension(widthSize, heightSize);
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
if (w <= 0) {
return;
}
this.mGradient = null;
}
public CharSequence getText() {
if(this.text == null){
this.text = "";
}
return this.text;
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
String text = getText().toString();
mTextPaint.getTextBounds(text,0,text.length(),textBound);
int width = getWidth();
int height = getHeight();
float x = (width - textBound.width())/ 2f;
float y = (height)/ 2f;
float textPaintBaseline = getTextPaintBaseline(mTextPaint);
canvas.drawText(text,x,y + textPaintBaseline,mTextPaint);
float radius = textBound.height();
if(mGradient == null) {
mGradient = new RadialGradient(0f, 0f, radius, new int[]{0x66ffffff,0x01ffffff}, new float[]{0, 0.95f}, Shader.TileMode.CLAMP); //边缘融合
mPaint.setShader(mGradient);
}
if (mAnimating && mGradientMatrix != null) {
if(mTranslate < radius){
mTranslate = (int) radius;
delta = Math.abs(delta);
}else if (mTranslate > (width - radius + 1)) {
delta = -Math.abs(delta);
}
mGradientMatrix.reset();
mGradientMatrix.setTranslate(mTranslate, y); //自动平移矩阵
mGradient.setLocalMatrix(mGradientMatrix);
canvas.drawCircle(mTranslate,y,radius,mPaint);
postInvalidateDelayed(20);
mTranslate += delta;
}
}
float getTextPaintBaseline(TextPaint paint) {
paint.getFontMetrics(fontMetrics);
return (fontMetrics.descent - fontMetrics.ascent) / 2 - fontMetrics.descent;
}
public void hide() {
MLog.d(TAG, "call hide");
setVisibility(GONE);
mAnimating = false;
}
public void show() {
MLog.d(TAG, "call show");
setVisibility(VISIBLE);
mAnimating = true;
postInvalidate();
}
}
本文案例
本文要实现的效果其实也是一样的方法，只不过不是自动移动，而是添加了触摸事件，同时加了放大缩小效果。
坑点

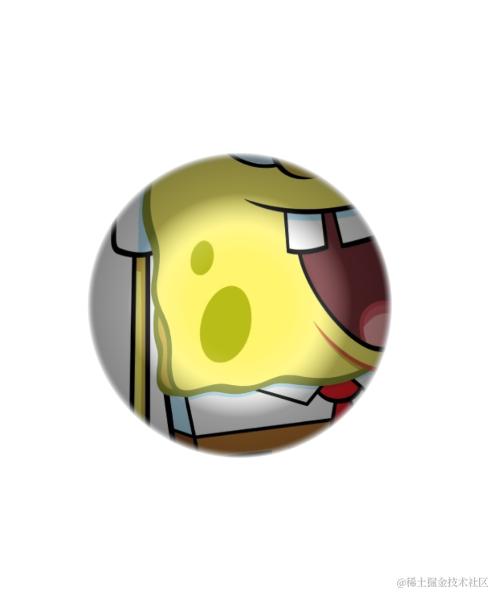

Shader 不支持矩阵Scale，本身打算利用Scale缩放光圈，但事与愿违，不仅不支持，连动都动不了了，因此，本文采用了两种Shader，按压时使用较大半径的Shader，手放开时使用默认的Shader。
知识点
canvas.drawPaint(mCommonPaint);
这个绘制并不是告诉你可以这么绘制，而是想说，设置了Shader之后，这样调用，Shader半径之外的颜色时Shader最后一个颜色值，我们最后一个颜色值时黑色，那就是黑色，我们改成白色当然也是白色，下图是改成白色之后的效果，周围都是白色。
关键代码段
super.onDraw(canvas);
int width = getWidth();
int height = getHeight();
if (width < 1 || height < 1) {
return;
}
//大光圈shader
if (radialGradientLarge == null) {
radialGradientLarge = new RadialGradient(0, 0,
dp2px(100),
new int[]{Color.TRANSPARENT, 0x01ffffff, 0x33ffffff, 0x66000000, 0x77000000, 0xff000000},
new float[]{0.1f, 0.3f, 0.5f, 0.7f, 0.9f, 0.95f},
Shader.TileMode.CLAMP);
}
//默认光圈shader
if (radialGradientNormal == null) {
radialGradientNormal = new RadialGradient(0, 0,
dp2px(50),
new int[]{Color.TRANSPARENT, 0x01ffffff, 0x33ffffff, 0x66000000, 0x77000000, 0xff000000},
new float[]{0.1f, 0.3f, 0.5f, 0.7f, 0.9f, 0.95f},
Shader.TileMode.CLAMP);
}
//绘制地图
canvas.drawBitmap(mBitmap, 0, 0, null);
//移动shader中心点
matrix.setTranslate(x, y);
//设置到矩阵
radialGradientLarge.setLocalMatrix(matrix);
radialGradientNormal.setLocalMatrix(matrix);
if(isPressed()) {
//按压时
mCommonPaint.setShader(radialGradientLarge);
}else{
//松开时
mCommonPaint.setShader(radialGradientNormal);
}
//直接用画笔绘制，那么周围的颜色是Shader 最后的颜色
canvas.drawPaint(mCommonPaint);
好了，我们的效果基本实现了。
总结
本篇到这里就截止了，我们今天掌握的知识点是Shader相关的：
- Shader 矩阵不能Scale
- 设置完Shader 的画笔外围填充色为Ridial Shader最后的颜色
- Canvas 可以直接drawPaint
- Shader.setLocalMatrix是移动Shader中心点的方法
代码
按照惯例，给出全部代码
public class LightsView extends View {
private final DisplayMetrics mDM;
private TextPaint mCommonPaint;
private Bitmap mBitmap;
private RadialGradient radialGradientLarge = null;
private RadialGradient radialGradientNormal = null;
private float x;
private float y;
private boolean isPress = false;
private Matrix matrix = new Matrix();
public LightsView(Context context) {
this(context, null);
}
public LightsView(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public LightsView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
mDM = getResources().getDisplayMetrics();
initPaint();
setClickable(true); //触发hotspot
}
private void initPaint() {
//否则提供给外部纹理绘制
mCommonPaint = new TextPaint(Paint.ANTI_ALIAS_FLAG | Paint.FILTER_BITMAP_FLAG);
mCommonPaint.setAntiAlias(true);
mCommonPaint.setStyle(Paint.Style.FILL_AND_STROKE);
mCommonPaint.setStrokeCap(Paint.Cap.ROUND);
mCommonPaint.setFilterBitmap(true);
mCommonPaint.setDither(true);
mBitmap = decodeBitmap(R.mipmap.mm_06);
}
private Bitmap decodeBitmap(int resId) {
BitmapFactory.Options options = new BitmapFactory.Options();
options.inMutable = true;
return BitmapFactory.decodeResource(getResources(), resId, options);
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
if (widthMode != MeasureSpec.EXACTLY) {
widthSize = mDM.widthPixels / 2;
}
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
if (heightMode != MeasureSpec.EXACTLY) {
heightSize = widthSize / 2;
}
setMeasuredDimension(widthSize, heightSize);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
int width = getWidth();
int height = getHeight();
if (width < 1 || height < 1) {
return;
}
if (radialGradientLarge == null) {
radialGradientLarge = new RadialGradient(0, 0,
dp2px(100),
new int[]{Color.TRANSPARENT, 0x01ffffff, 0x33ffffff, 0x66000000, 0x77000000, 0xff000000},
new float[]{0.1f, 0.3f, 0.5f, 0.7f, 0.9f, 0.95f},
Shader.TileMode.CLAMP);
}
if (radialGradientNormal == null) {
radialGradientNormal = new RadialGradient(0, 0,
dp2px(50),
new int[]{Color.TRANSPARENT, 0x01ffffff, 0x33ffffff, 0x66000000, 0x77000000, 0xff000000},
new float[]{0.1f, 0.3f, 0.5f, 0.7f, 0.9f, 0.95f},
Shader.TileMode.CLAMP);
}
canvas.drawBitmap(mBitmap, 0, 0, null);
matrix.setTranslate(x, y);
radialGradientLarge.setLocalMatrix(matrix);
radialGradientNormal.setLocalMatrix(matrix);
if(isPressed()) {
mCommonPaint.setShader(radialGradientLarge);
}else{
mCommonPaint.setShader(radialGradientNormal);
}
canvas.drawPaint(mCommonPaint);
}
@Override
public void dispatchDrawableHotspotChanged(float x, float y) {
super.dispatchDrawableHotspotChanged(x, y);
this.x = x;
this.y = y;
postInvalidate();
}
@Override
protected void dispatchSetPressed(boolean pressed) {
super.dispatchSetPressed(pressed);
postInvalidate();
}
public float dp2px(float dp) {
return TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, dp, mDM);
}
}
