「Swift」类淘宝商品瀑布流展示

前言：需要做一个类似于淘宝商品页面的瀑布流展示

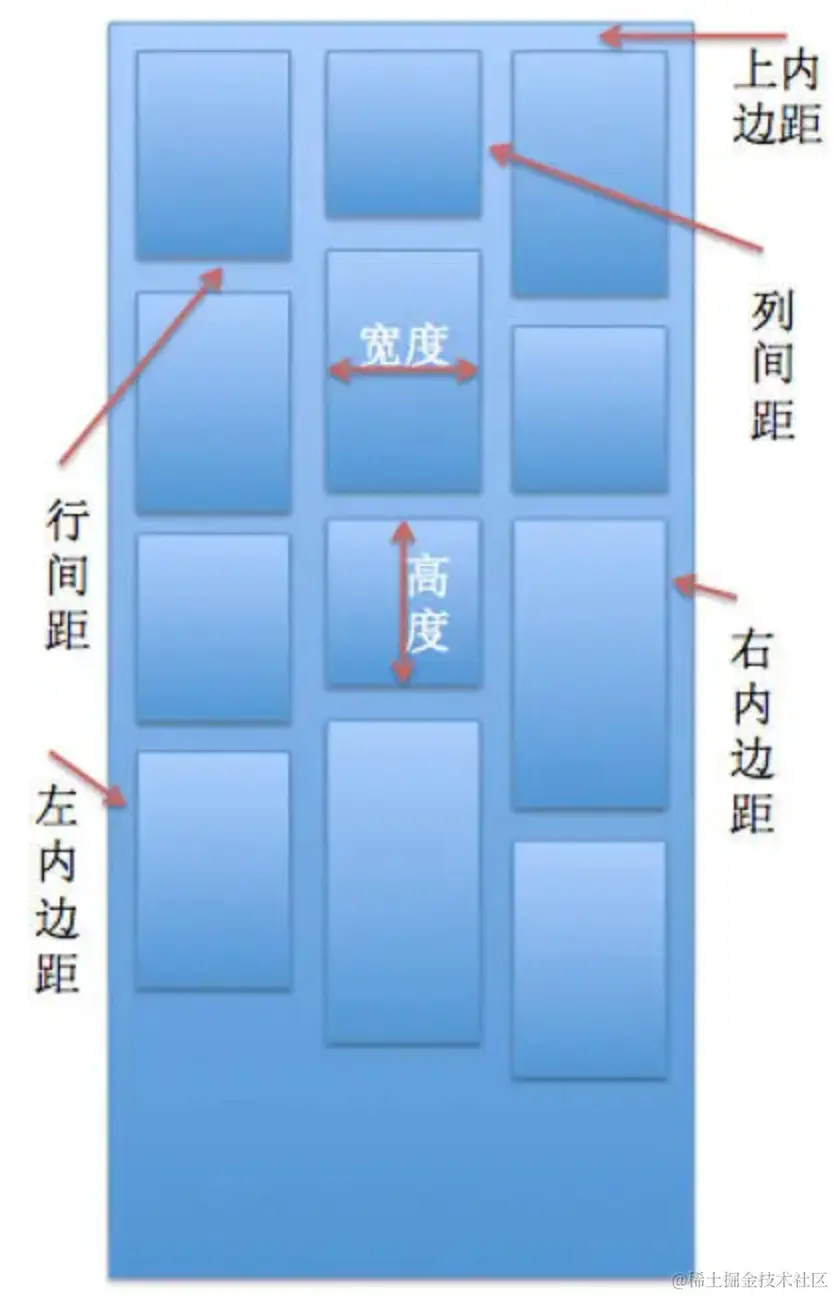

结构分析：

ps：图片来源

思路分析：

该瀑布流主要还是基于UICollectionView进行展示，只是在cell展示的UICollectionViewFlowLayout需要进行相应调整和自定义，所以需要自己创建一个FlowLayout，该FlowLayout是基于UICollectionViewFlowLayout实现的，所以该FlowLayout的初始化调用流程于系统没有区别，只需遵循WaterfallMutiSectionDelegate代理。

1.初始化：

let layout = ZUPowerShopProductLayout()
layout.delegate = self
myCollectionView = UICollectionView(frame: .zero, collectionViewLayout: layout)

2.Cell代理：

1.必须实现的代理方法

/// collectionItem高度
func heightForRowAtIndexPath(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, indexPath: IndexPath, itemWidth: CGFloat) -> CGFloat

2.可选择的代理方法

/// 每个section 列数（默认2列）
@objc optional func columnNumber(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, section: Int) -> Int

/// header高度（默认为0）
@objc optional func referenceSizeForHeader(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, section: Int) -> CGSize

/// footer高度（默认为0）
@objc optional func referenceSizeForFooter(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, section: Int) -> CGSize

/// 每个section 边距（默认为0）
@objc optional func insetForSection(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, section: Int) -> UIEdgeInsets

/// 每个section item上下间距（默认为0）
@objc optional func lineSpacing(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, section: Int) -> CGFloat

/// 每个section item左右间距（默认为0）
@objc optional func interitemSpacing(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, section: Int) -> CGFloat

/// section头部header与上个section尾部footer间距（默认为0）
@objc optional func spacingWithLastSection(collectionView collection: UICollectionView, layout: ZUPowerShopProductLayout, section: Int) -> CGFloat

3.自定义的FlowLayout文件

import UIKit

@objc protocol WaterfallMutiSectionDelegate: NSObjectProtocol {
  // 必选delegate实现
  /// collectionItem高度
  func heightForRowAtIndexPath(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, indexPath: IndexPath, itemWidth: CGFloat) -> CGFloat

  // 可选delegate实现
  /// 每个section 列数（默认2列）
  @objc optional func columnNumber(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, section: Int) -> Int

  /// header高度（默认为0）
  @objc optional func referenceSizeForHeader(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, section: Int) -> CGSize

  /// footer高度（默认为0）
  @objc optional func referenceSizeForFooter(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, section: Int) -> CGSize

  /// 每个section 边距（默认为0）
  @objc optional func insetForSection(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, section: Int) -> UIEdgeInsets

  /// 每个section item上下间距（默认为0）
  @objc optional func lineSpacing(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, section: Int) -> CGFloat

  /// 每个section item左右间距（默认为0）
  @objc optional func interitemSpacing(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, section: Int) -> CGFloat

  /// section头部header与上个section尾部footer间距（默认为0）
  @objc optional func spacingWithLastSection(collectionView collection: UICollectionView, layout: WaterfallMutiSectionFlowLayout, section: Int) -> CGFloat
}

class WaterfallMutiSectionFlowLayout: UICollectionViewFlowLayout {
  weak var delegate: WaterfallMutiSectionDelegate?

  private var sectionInsets: UIEdgeInsets = .zero
  private var columnCount: Int = 2
  private var lineSpacing: CGFloat = 0
  private var interitemSpacing: CGFloat = 0
  private var headerSize: CGSize = .zero
  private var footerSize: CGSize = .zero

  //存放attribute的数组
  private var attrsArray: [UICollectionViewLayoutAttributes] = []
  //存放每个section中各个列的最后一个高度
  private var columnHeights: [CGFloat] = []
  //collectionView的Content的高度
  private var contentHeight: CGFloat = 0
  //记录上个section高度最高一列的高度
  private var lastContentHeight: CGFloat = 0
  //每个section的header与上个section的footer距离
  private var spacingWithLastSection: CGFloat = 0


  override func prepare() {
    super.prepare()
    self.contentHeight = 0
    self.lastContentHeight = 0
    self.spacingWithLastSection = 0
    self.lineSpacing = 0
    self.sectionInsets = .zero
    self.headerSize = .zero
    self.footerSize = .zero
    self.columnHeights.removeAll()
    self.attrsArray.removeAll()

    let sectionCount = self.collectionView!.numberOfSections
    // 遍历section
    for idx in 0..<sectionCount {
      let indexPath = IndexPath(item: 0, section: idx)
      if let columnCount = self.delegate?.columnNumber?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
        self.columnCount = columnCount
      }
      if let inset = self.delegate?.insetForSection?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
        self.sectionInsets = inset
      }
      if let spacingLastSection = self.delegate?.spacingWithLastSection?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
        self.spacingWithLastSection = spacingLastSection
      }
      // 生成header
      let itemCount = self.collectionView!.numberOfItems(inSection: idx)
      let headerAttri = self.layoutAttributesForSupplementaryView(ofKind: UICollectionView.elementKindSectionHeader, at: indexPath)
      if let header = headerAttri {
        self.attrsArray.append(header)
        self.columnHeights.removeAll()
      }
      self.lastContentHeight = self.contentHeight
      // 初始化区 y值
      for _ in 0..<self.columnCount {
        self.columnHeights.append(self.contentHeight)
      }
      // 多少个item
      for item in 0..<itemCount {
        let indexPat = IndexPath(item: item, section: idx)
        let attri = self.layoutAttributesForItem(at: indexPat)
        if let attri = attri {
          self.attrsArray.append(attri)
        }
      }

      // 初始化footer
      let footerAttri = self.layoutAttributesForSupplementaryView(ofKind: UICollectionView.elementKindSectionFooter, at: indexPath)
      if let footer = footerAttri {
        self.attrsArray.append(footer)
      }
    }
  }

  override func layoutAttributesForElements(in rect: CGRect) -> [UICollectionViewLayoutAttributes]? {
    return self.attrsArray
  }

  override func layoutAttributesForItem(at indexPath: IndexPath) -> UICollectionViewLayoutAttributes? {
    if let column = self.delegate?.columnNumber?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
      self.columnCount = column
    }
    if let lineSpacing = self.delegate?.lineSpacing?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
      self.lineSpacing = lineSpacing
    }
    if let interitem = self.delegate?.interitemSpacing?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
      self.interitemSpacing = interitem
    }

    let attri = UICollectionViewLayoutAttributes(forCellWith: indexPath)
    let weight = self.collectionView!.frame.size.width
    let itemSpacing = CGFloat(self.columnCount - 1) * self.interitemSpacing
    let allWeight = weight - self.sectionInsets.left - self.sectionInsets.right - itemSpacing
    let cellWeight = allWeight / CGFloat(self.columnCount)
    let cellHeight: CGFloat = (self.delegate?.heightForRowAtIndexPath(collectionView: self.collectionView!, layout: self, indexPath: indexPath, itemWidth: cellWeight))!

    var tmpMinColumn = 0
    var minColumnHeight = self.columnHeights[0]
    for i in 0..<self.columnCount {
      let columnH = self.columnHeights[i]
      if minColumnHeight > columnH {
        minColumnHeight = columnH
        tmpMinColumn = i
      }
    }
    let cellX = self.sectionInsets.left + CGFloat(tmpMinColumn) * (cellWeight + self.interitemSpacing)
    var cellY: CGFloat = 0
    cellY = minColumnHeight
    if cellY != self.lastContentHeight {
      cellY += self.lineSpacing
    }

    if self.contentHeight < minColumnHeight {
      self.contentHeight = minColumnHeight
    }

    attri.frame = CGRect(x: cellX, y: cellY, width: cellWeight, height: cellHeight)
    self.columnHeights[tmpMinColumn] = attri.frame.maxY
    //取最大的
    for i in 0..<self.columnHeights.count {
      if self.contentHeight < self.columnHeights[i] {
        self.contentHeight = self.columnHeights[i]
      }
    }

    return attri
  }
  override func layoutAttributesForSupplementaryView(ofKind elementKind: String, at indexPath: IndexPath) -> UICollectionViewLayoutAttributes? {
    let attri = UICollectionViewLayoutAttributes(forSupplementaryViewOfKind: elementKind, with: indexPath)
    if elementKind == UICollectionView.elementKindSectionHeader {
      if let headerSize = self.delegate?.referenceSizeForHeader?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
        self.headerSize = headerSize
      }
      self.contentHeight += self.spacingWithLastSection
      attri.frame = CGRect(x: 0, y: self.contentHeight, width: self.headerSize.width, height: self.headerSize.height)
      self.contentHeight += self.headerSize.height
      self.contentHeight += self.sectionInsets.top
    } else if elementKind == UICollectionView.elementKindSectionFooter {
      if let footerSize = self.delegate?.referenceSizeForFooter?(collectionView: self.collectionView!, layout: self, section: indexPath.section) {
        self.footerSize = footerSize
      }
      self.contentHeight += self.sectionInsets.bottom
      attri.frame = CGRect(x: 0, y: self.contentHeight, width: self.footerSize.width, height: self.footerSize.height)
      self.contentHeight += self.footerSize.height
    }
    return attri
  }

  override var collectionViewContentSize: CGSize {
    return CGSize(width: self.collectionView!.frame.size.width, height: self.contentHeight)
  }
}

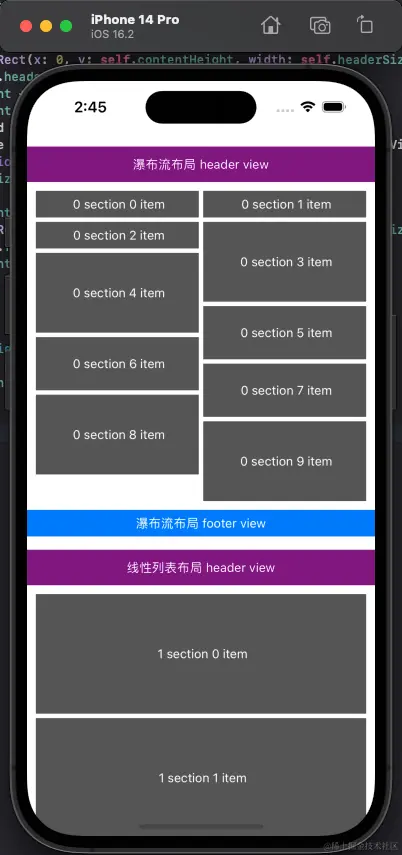

实现效果图

该文章参考借鉴了iOS 多section瀑布流实现（swift）文章，由此篇文章内容受益匪浅！

借鉴文章作者的github demo：github.com/RoganZheng/… ，如果该demo对你有帮助的话，记得帮这位作者star一下
