一、升级背景

今年换工作，到新的公司，公司所用为微服务框架，springboot+springcloud+nacos，这个对于我来说挺陌生的，因为原来都是公司自研，不用去考虑这种事情，没办法，从头开始学起……正好公司要迁云原生，但是当时系统cve扫描一堆问题，安全部门不让申请新端口，所以让我先去解决cve问题，解决过程中，发现好多都是tomcat容器的安全漏洞，没办法，跟ld说明情况，领导说，那你就把框架升级上去吧。我想，正好借这个机会好好的学习下

二、版本选择

1.正在使用版本

springboot:2.0.7.RELEASE

springcloud:Finchley.SR2

spring-cloud-starter-alibaba-nacos-config:2.0.4.RELEASE

spring-cloud-starter-alibaba-nacos-discovery:2.0.4.RELEASE

2.升级之路

2.1 jdk的选择

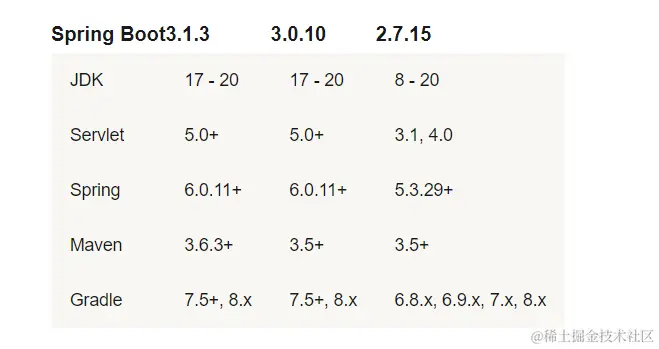

springboot与jdk版本映射

综上，选择jdk17，因为jdk17是长期维护版本

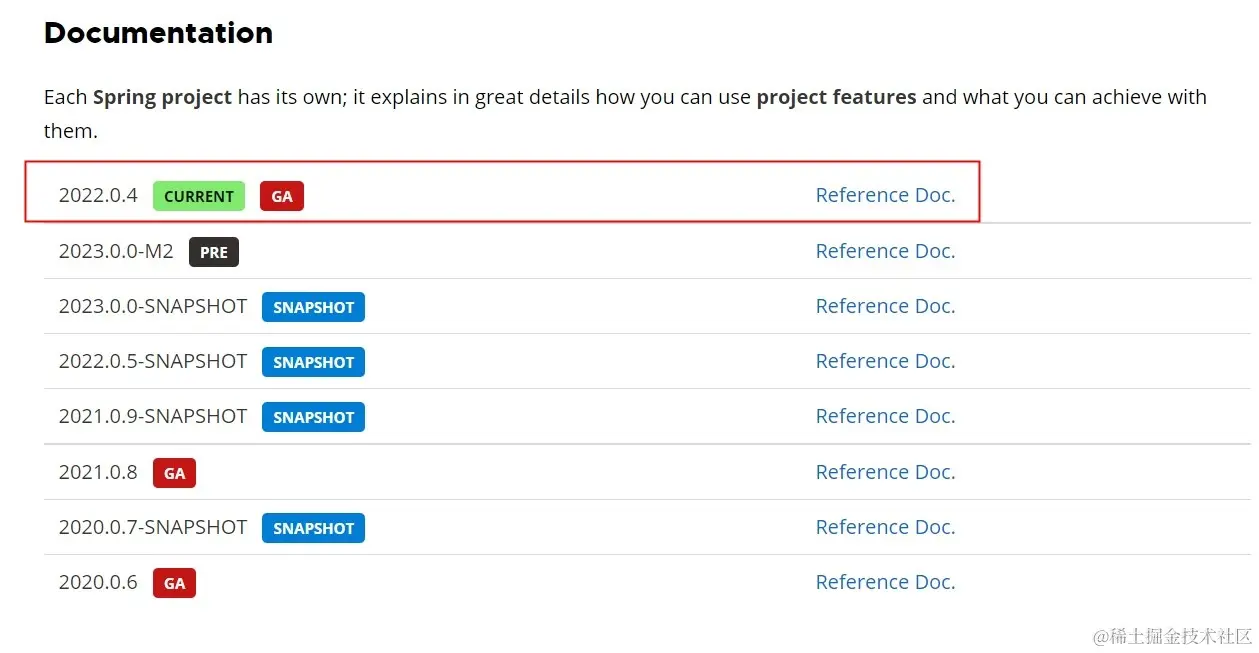

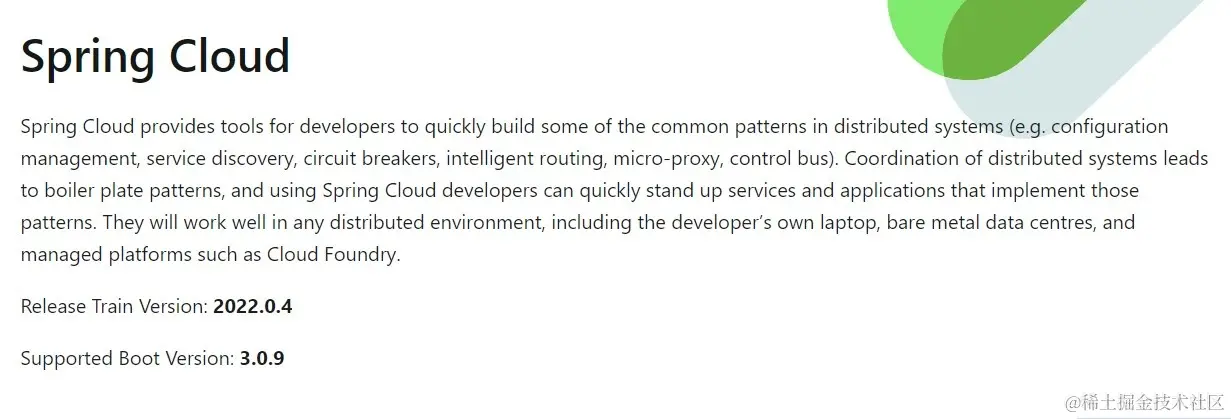

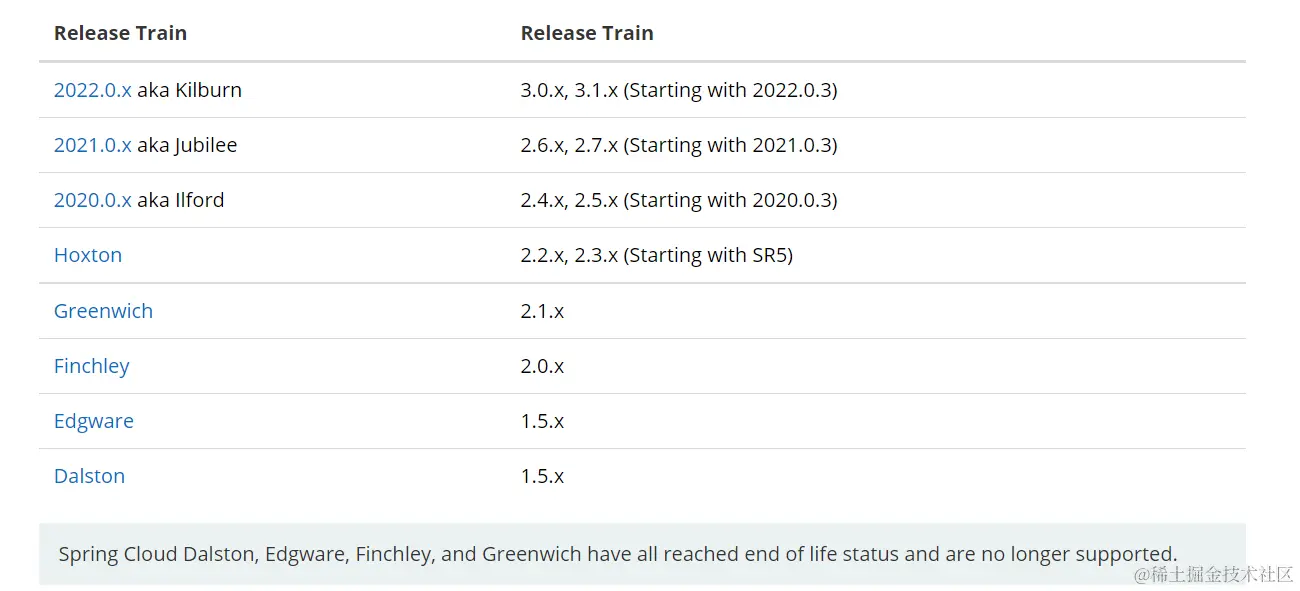

2.2 springboot与springcloud映射

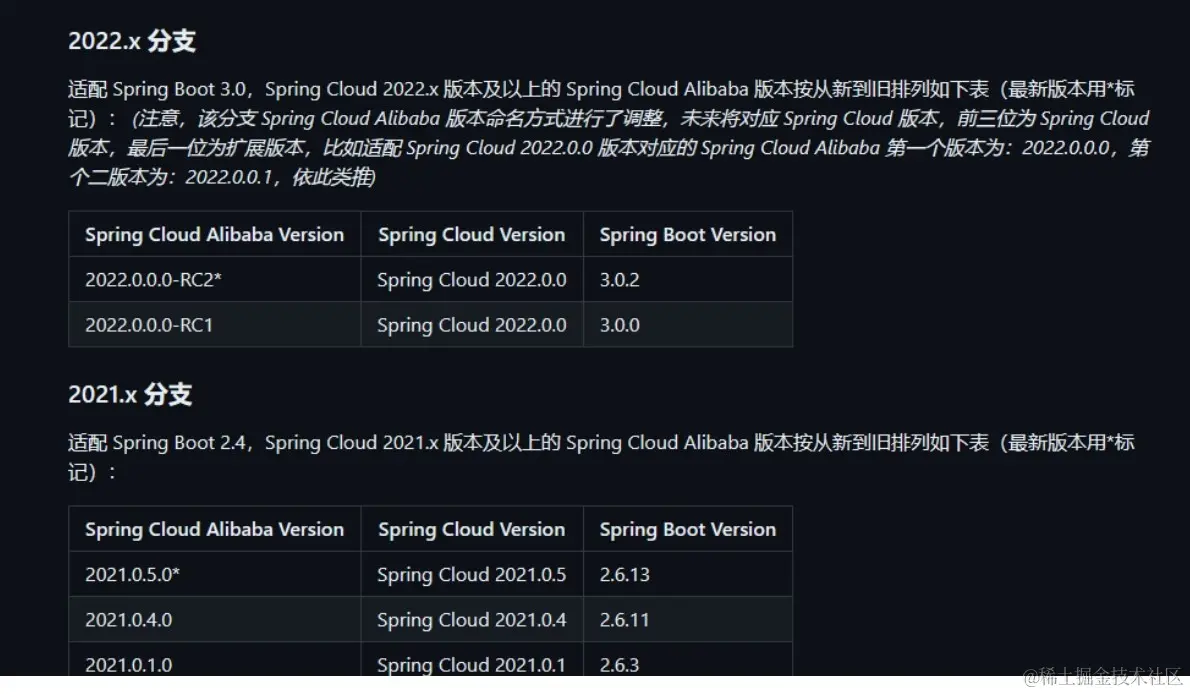

2.3springcloud与springcloudalibaba版本映射

2.4 最终使用版本

名称	版本
jdk	17
springboot	3.0.9
springcloud	2022.0.4
maven	3.6+

2.5 引入pom

1.springcloud

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-dependencies</artifactId>
    <version>2022.0.4</version>
    <type>pom</type>
    <scope>import</scope>
</dependency>

2.springboot

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>3.0.9</version>
</parent>

3.springcloud-alibaba

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
    <version>2022.0.0.0-RC2</version>
    <exclusions>
        <exclusion>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-client</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    <version>2022.0.0.0-RC2</version>
    <exclusions>
        <exclusion>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-client</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>com.alibaba.nacos</groupId>
    <artifactId>nacos-client</artifactId>
    <version>2.2.4</version>
    <exclusions>
        <exclusion>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
        </exclusion>
        <exclusion>
            <groupId>org.yaml</groupId>
            <artifactId>snakeyaml</artifactId>
        </exclusion>
        <exclusion>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
        </exclusion>
    </exclusions>
</dependency>

排除的是因为冲突，所以自己视情况而决定

三、升级所遇问题

1.前辈的经验

zhuanlan.zhihu.com/p/591283166…

2.自己所遇问题整理

1.程序包javax.transaction不存在

原因：从Jdk9开始，JavaEE从Jdk中分离，jdk就移除掉了javax.annotation.jar包的默认集成，从而导致版本不兼容。所以一旦spring项目从JDK8升到高版本，都会出现javax.annotation.Resource无法引用报红。 解决：引入新的引用

<dependency>
    <groupId>jakarta.annotation</groupId>
    <artifactId>jakarta.annotation-api</artifactId>
    <version>1.3.5</version>
</dependency>

同时重新引入

import jakarta.annotation.Resource;

import jakarta.servlet.http.HttpServletRequest;

2.程序包javax.transaction不存在

解决：重新引入

<dependency>
    <groupId>javax.transaction</groupId>
    <artifactId>javax.transaction-api</artifactId>
    <version>1.3</version>
</dependency>

3.程序包javax.validation不存在

解决：

<dependency>
    <groupId>javax.validation</groupId>
    <artifactId>validation-api</artifactId>
    <version>2.0.1.Final</version>
</dependency>

4.无法访问org.apache.hc.client5.http.classic.HttpClient

原因：因为jar包升级，httpclient包的路径修改，需要重新定义，所以涉及到HttpClient定义修改

public HttpClient httpClient() {
    RequestConfig requestConfig = RequestConfig.custom()
            .setConnectTimeout(Timeout.ofMilliseconds(5000L))
            .setConnectionRequestTimeout(Timeout.ofMilliseconds(5000L))
            .build();

    PoolingHttpClientConnectionManager cm = new PoolingHttpClientConnectionManager();
    cm.setDefaultMaxPerRoute(MAXIMUM_CONNECTION_PER_ROUTE);
    cm.setMaxTotal(MAXIMUM_TOTAL_CONNECTION);


    HttpClientBuilder clientBuilder = HttpClientBuilder.create()
            .setConnectionManager(cm)
            .evictIdleConnections(TimeValue.ofSeconds(30L))
            .setDefaultRequestConfig(requestConfig);

    if (HTTP_CLIENT_RETRY_COUNT > 0) {
        //失败重试次数大于0时设置重试
        clientBuilder.setRetryStrategy(DefaultHttpRequestRetryStrategy.INSTANCE);
    } else {
        //禁用失败重试
        clientBuilder.disableAutomaticRetries();
    }

    return clientBuilder.build();
}

5.Cannot resolve symbol 'URLEncodedUtils'

原因：升级httpclient5导致路径修改

import org.apache.hc.core5.http.NameValuePair;

import org.apache.hc.core5.http.message.BasicNameValuePair;

import org.apache.hc.core5.net.URLEncodedUtils;

6.程序包org.apache.http.client不存在

(1)httpclient 4的这个方法

HttpClients.custom().addInterceptorFirst

升级后对应：

HttpClients.custom().addRequestInterceptorFirst

(2)创建证书验证链接，新的版本不能直接设置

setSSLSocketFactory

需要：

 connMgrBuilder = PoolingHttpClientConnectionManagerBuilder.create();
 connMgrBuilder.setMaxConnTotal(100);
 connMgrBuilder.setMaxConnPerRoute(100);
 //因为要设置证书验证，所以需要通过这种方式来创建httpclient的池子connMgrBuilder.setSSLSocketFactory(createSSLConnSocketFactory());
 // 设置连接池
 connMgr = connMgrBuilder.build();

这种方式创建连接池

7.org.springframework.cloud.commons.ConfigDataMissingEnvironmentPostProcessor$ImportException: No spring.config.import set

原因：原因：Spring Cloud 新版本默认将 Bootstrap 禁用，需要将 spring-cloud-starter-bootstrap 依赖引入到工程中

<dependency>
<groupId>org.springframework.cloud<`groupId>
<artifactId>spring-cloud-starter-bootstrap</artifactId>
</dependency>

8.java.lang.NoClassDefFoundError: com/fasterxml/jackson/core/exc/StreamConstraintsException

原因：升级

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-core</artifactId>
    <version>2.15.2</version>
</dependency>

9.错误详情

org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'parkingCallBackController': Unsatisfied dependency expressed through field 'agentFeign': Error creating bean with name 'com.telematics.cloud.parking.service.feign.TspAgentFeign': FactoryBean threw exception on object creation
at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:716)
at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:696)
at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:145)
at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:483)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1416)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:597)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:520)
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:326)
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:324)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:973)
at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:942)
at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:608)
at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:146)
at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:732)
at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:434)
at org.springframework.boot.SpringApplication.run(SpringApplication.java:310)
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1304)
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1293)
at com.telematics.cloud.ParkingServiceApplication.main(ParkingServiceApplication.java:35)
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'com.telematics.cloud.parking.service.feign.TspAgentFeign': FactoryBean threw exception on object creation
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:154)
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.getObjectFromFactoryBean(FactoryBeanRegistrySupport.java:90)
at org.springframework.beans.factory.support.AbstractBeanFactory.getObjectForBeanInstance(AbstractBeanFactory.java:1823)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.getObjectForBeanInstance(AbstractAutowireCapableBeanFactory.java:1273)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:259)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)
at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:254)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.addCandidateEntry(DefaultListableBeanFactory.java:1640)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.findAutowireCandidates(DefaultListableBeanFactory.java:1597)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1380)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1337)
at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.resolveFieldValue(AutowiredAnnotationBeanPostProcessor.java:713)
        ... 20 common frames omitted
Caused by: java.lang.IllegalStateException: No Feign Client for loadBalancing defined. Did you forget to include spring-cloud-starter-loadbalancer?
at org.springframework.cloud.openfeign.FeignClientFactoryBean.loadBalance(FeignClientFactoryBean.java:401)
at org.springframework.cloud.openfeign.FeignClientFactoryBean.getTarget(FeignClientFactoryBean.java:446)
at org.springframework.cloud.openfeign.FeignClientFactoryBean.getObject(FeignClientFactoryBean.java:421)
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:148)
        ... 31 common frames omitted

解决：引入

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-loadbalancer</artifactId>

</dependency>

10.错误详情

Error starting ApplicationContext. To display the condition evaluation report re-run your application with 'debug' enabled.
2023-10-09 14:38:37.735 | parking-service | ERROR | main | org.springframework.boot.SpringApplication | 822: Application run failed
    org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'healthContributorRegistry' defined in class path resource [org/springframework/boot/actuate/autoconfigure/health/HealthEndpointConfiguration.class]: Unsatisfied dependency expressed through method 'healthContributorRegistry' parameter 2: Error creating bean with name 'mongoHealthContributor' defined in class path resource [org/springframework/boot/actuate/autoconfigure/data/mongo/MongoHealthContributorAutoConfiguration.class]: Unsatisfied dependency expressed through method 'mongoHealthContributor' parameter 0: Error creating bean with name 'mongoTemplate' defined in class path resource [org/springframework/boot/autoconfigure/data/mongo/MongoDatabaseFactoryDependentConfiguration.class]: Post-processing of merged bean definition failed
    at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:800)
    at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:550)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1332)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1162)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:560)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:520)
    at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:326)
    at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
    at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:324)
    at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:973)
    at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:942)
    at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:608)
    at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:146)
    at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:732)
    at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:434)
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:310)
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:1304)
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:1293)
    at com.telematics.cloud.ParkingServiceApplication.main(ParkingServiceApplication.java:35)
    Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'mongoHealthContributor' defined in class path resource [org/springframework/boot/actuate/autoconfigure/data/mongo/MongoHealthContributorAutoConfiguration.class]: Unsatisfied dependency expressed through method 'mongoHealthContributor' parameter 0: Error creating bean with name 'mongoTemplate' defined in class path resource [org/springframework/boot/autoconfigure/data/mongo/MongoDatabaseFactoryDependentConfiguration.class]: Post-processing of merged bean definition failed
    at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:800)
    at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:550)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1332)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1162)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:560)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:520)
    at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:326)
    at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
    at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:324)
    at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)
    at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:254)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.addCandidateEntry(DefaultListableBeanFactory.java:1633)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.findAutowireCandidates(DefaultListableBeanFactory.java:1597)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveMultipleBeans(DefaultListableBeanFactory.java:1516)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1375)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1337)
    at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:888)
    at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:791)
            ... 19 common frames omitted
    Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'mongoTemplate' defined in class path resource [org/springframework/boot/autoconfigure/data/mongo/MongoDatabaseFactoryDependentConfiguration.class]: Post-processing of merged bean definition failed
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:575)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:520)
    at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:326)
    at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
    at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:324)
    at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)
    at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:254)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.addCandidateEntry(DefaultListableBeanFactory.java:1633)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.findAutowireCandidates(DefaultListableBeanFactory.java:1597)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveMultipleBeans(DefaultListableBeanFactory.java:1516)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1375)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1337)
    at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:888)
    at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:791)
            ... 36 common frames omitted
    Caused by: java.lang.IllegalStateException: Failed to introspect Class [org.springframework.data.mongodb.core.MongoTemplate] from ClassLoader [jdk.internal.loader.ClassLoaders$AppClassLoader@63947c6b]
    at org.springframework.util.ReflectionUtils.getDeclaredMethods(ReflectionUtils.java:483)
    at org.springframework.util.ReflectionUtils.doWithLocalMethods(ReflectionUtils.java:320)
    at org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor.buildPersistenceMetadata(PersistenceAnnotationBeanPostProcessor.java:446)
    at org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor.findPersistenceMetadata(PersistenceAnnotationBeanPostProcessor.java:417)
    at org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor.findInjectionMetadata(PersistenceAnnotationBeanPostProcessor.java:371)
    at org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor.postProcessMergedBeanDefinition(PersistenceAnnotationBeanPostProcessor.java:353)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.applyMergedBeanDefinitionPostProcessors(AbstractAutowireCapableBeanFactory.java:1083)
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:572)
            ... 49 common frames omitted
    Caused by: java.lang.NoClassDefFoundError: org/springframework/data/domain/Window
    at java.base/java.lang.Class.getDeclaredMethods0(Native Method)
    at java.base/java.lang.Class.privateGetDeclaredMethods(Class.java:3402)
    at java.base/java.lang.Class.getDeclaredMethods(Class.java:2504)
    at org.springframework.util.ReflectionUtils.getDeclaredMethods(ReflectionUtils.java:465)
            ... 56 common frames omitted
    Caused by: java.lang.ClassNotFoundException: org.springframework.data.domain.Window
    at java.base/jdk.internal.loader.BuiltinClassLoader.loadClass(BuiltinClassLoader.java:641)
    at java.base/jdk.internal.loader.ClassLoaders$AppClassLoader.loadClass(ClassLoaders.java:188)
    at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:520)
            ... 60 common frames omitted

原因：mongoDB包冲突 解决：去掉spring-data-mongodb

4.感言

通过这次升级，对自己也是一种挑战，以上是自己升级过程中遇到的问题以及升级过程，随笔写下，有不对的地方，希望指正。
