UITableViewCell左滑删除调用系统删除样式，并实现Cell圆角样式
前言：通常UI设计为了美观会将列表中子模块设为圆角，并且有些列表需要实现左滑删除功能，但在使用系统UITableView删除功能时经常会出现Cell会自动变成直角，无任何圆角，影响美观
实现思路
通过Lookin查看，在Cell的delete模式下会比正常展示情况下多出一个父视图"_UITableViewCellSwipeContainerView"，在父视图下包含着正常展示的Cell和删除视图"UISwipeActionPullView"，所以使用layoutSubviews()方法来监控是否出现了"_UITableViewCellSwipeContainerView"父视图，当父视图出现，则进行修改Cell样式

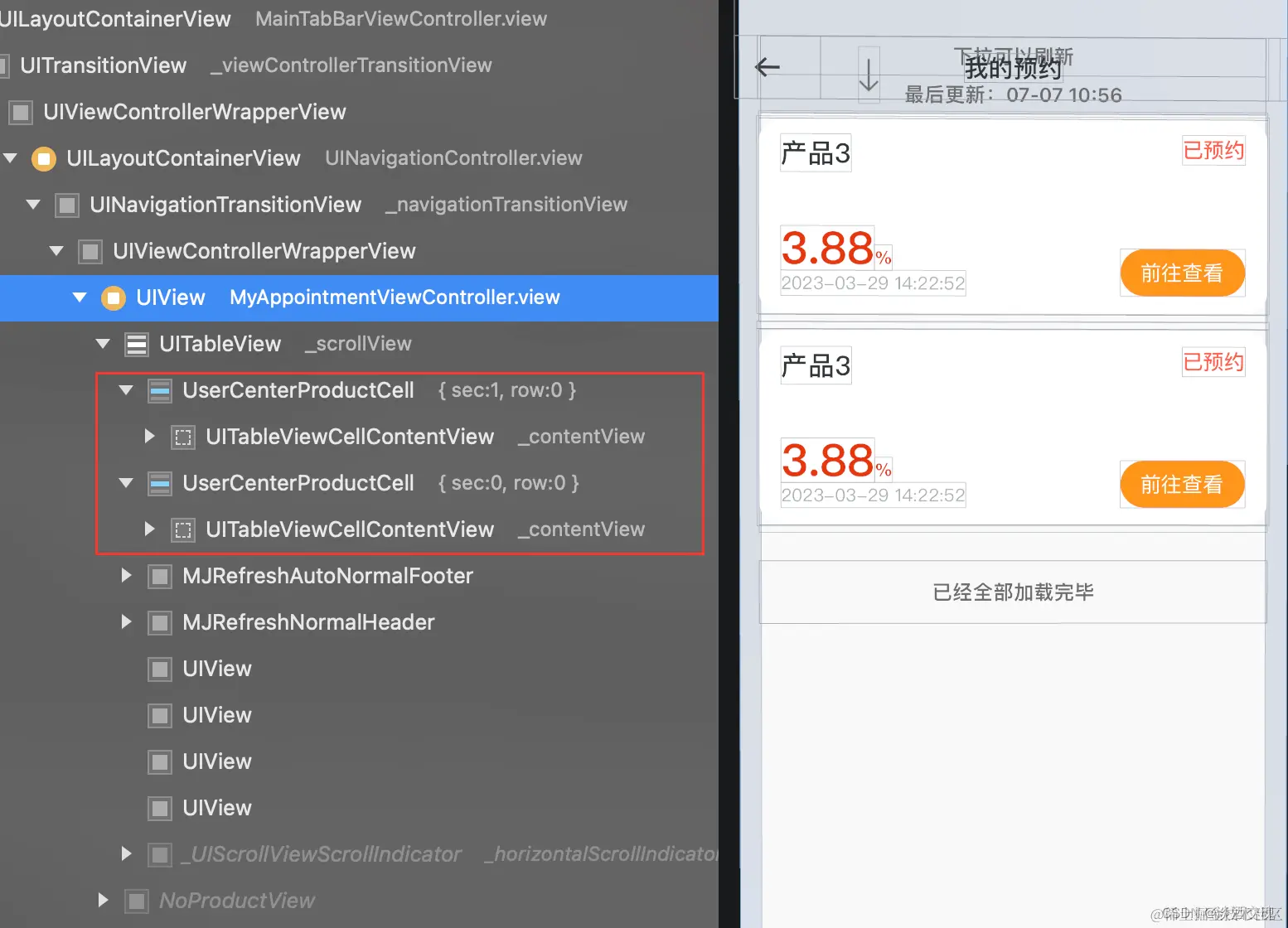

正常展示页面结构：

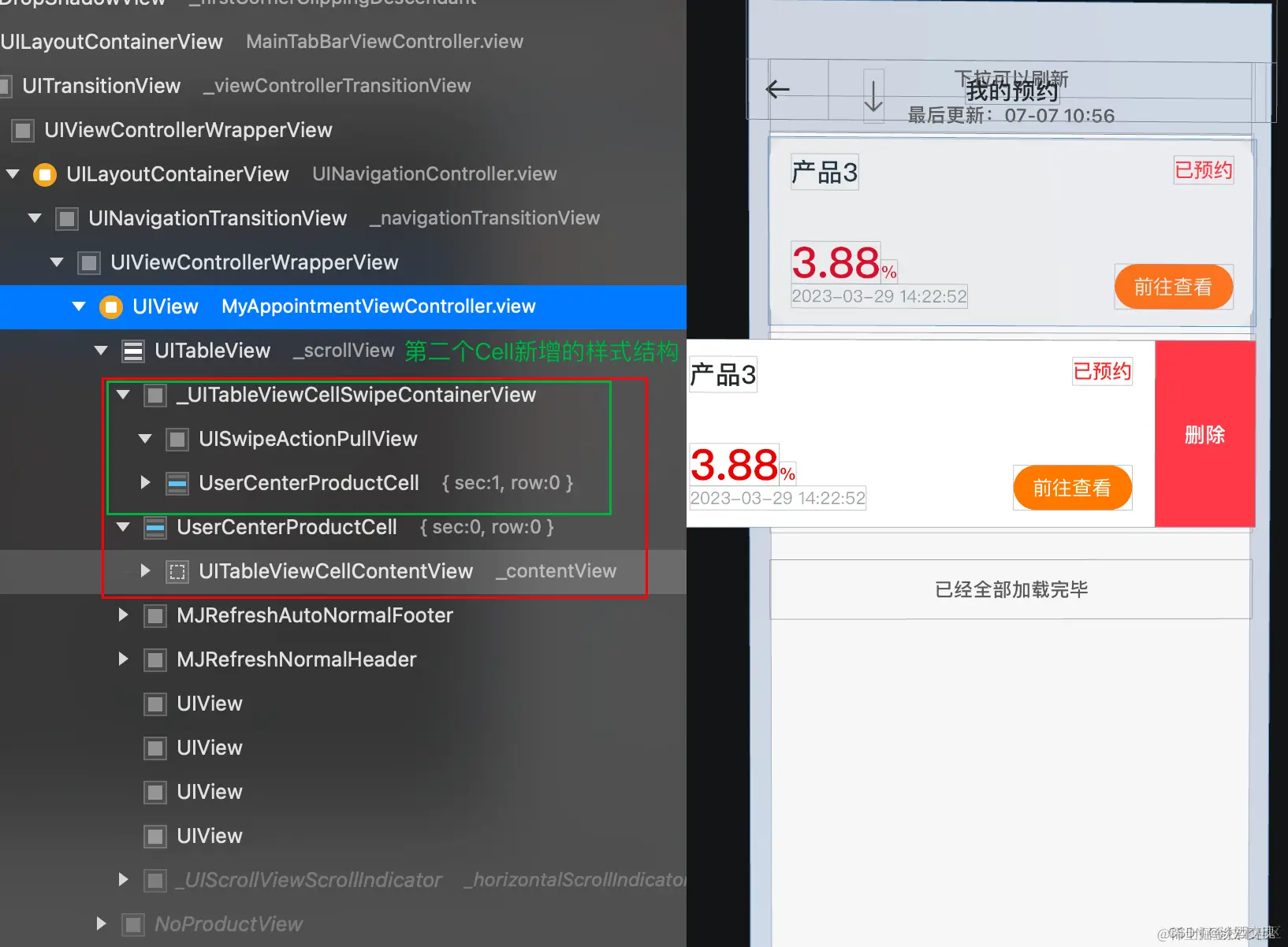

右滑删除时页面结构：
代码部分
UITableView部分
myTableView = UITableView(frame: .zero, style: .grouped)
myTableView.backgroundColor = UIColor.design(.design_F7F7F7)
myTableView.showsVerticalScrollIndicator = false
myTableView.separatorStyle = .none
myTableView.delegate = self
myTableView.dataSource = self
myTableView.register(UserCenterProductCell.self, forCellReuseIdentifier: NSStringFromClass(UserCenterProductCell.self))
extension ViewController: UITableViewDelegate,
UITableViewDataSource {
func numberOfSections(in tableView: UITableView) -> Int {
return orderList.count
}
func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
return 1
}
func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: NSStringFromClass(UserCenterProductCell.self), for: indexPath) as! UserCenterProductCell
cell.updateCellWithModel(model: orderList[indexPath.row])
cell.clickLearnMoreBtnAction = { [self] in
let vc = HomeProductDetailViewController(model: orderList[indexPath.row])
vc.hidesBottomBarWhenPushed = true
self.navigationController?.pushViewController(vc, animated: true)
}
cell.selectionStyle = .none
return cell
}
func tableView(_ tableView: UITableView, heightForRowAt indexPath: IndexPath) -> CGFloat {
if indexPath.row == orderList.count - 1 {
return 120.fit()
} else {
return 132.fit()
}
}
func tableView(_ tableView: UITableView, commit editingStyle: UITableViewCell.EditingStyle, forRowAt indexPath: IndexPath) {
/// 点击删除按钮后续操作
if editingStyle == .delete {
print("实现删除Cell操作")
}
}
func tableView(_ tableView: UITableView, titleForDeleteConfirmationButtonForRowAt indexPath: IndexPath) -> String? {
return "删除"
}
/// 重点： 如果这个方法不加圆角在左滑的时候没有任何问题，但delete模式消失时容易出现Cell直角样式
func tableView(_ tableView: UITableView, didEndEditingRowAt indexPath: IndexPath?) {
if let indexPath = indexPath, let cell = tableView.cellForRow(at: indexPath) {
cell.layer.cornerRadius = 16.fit()
cell.layer.masksToBounds = true
}
}
func tableView(_ tableView: UITableView, viewForHeaderInSection section: Int) -> UIView? {
return UIView()
}
func tableView(_ tableView: UITableView, heightForHeaderInSection section: Int) -> CGFloat {
return 5.fit()
}
func tableView(_ tableView: UITableView, viewForFooterInSection section: Int) -> UIView? {
return UIView()
}
func tableView(_ tableView: UITableView, heightForFooterInSection section: Int) -> CGFloat {
return 5.fit()
}
}
UITableViewCell部分
class UserCenterProductCell: UITableViewCell {
private var titleLabel: UILabel!
private var dateLabel: UILabel!
private var rateLabel: UILabel!
private var rateUnitLabel: UILabel!
private var stateLabel: UILabel!
private var LearnMoreButton: UIButton!
/// 外部可调用
var clickLearnMoreBtnAction: (() -> Void)?
override init(style: UITableViewCell.CellStyle, reuseIdentifier: String?) {
super.init(style: style, reuseIdentifier: reuseIdentifier)
initView()
setupLayout()
}
required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}
/// 核心代码！
override func layoutSubviews() {
super.layoutSubviews()
/// 查找承载侧滑的父视图
if let superView = self.superview, NSStringFromClass(superView.classForCoder) == "_UITableViewCellSwipeContainerView" {
/// 修改Cell圆角样式
let maskPath = UIBezierPath(roundedRect: superView.bounds, cornerRadius: 16.fit())
let maskLayer = CAShapeLayer()
maskLayer.frame = superView.bounds
maskLayer.path = maskPath.cgPath
superView.layer.mask = maskLayer
/// 查找侧滑删除摁钮视图
if let subView = superView.subviews.first, NSStringFromClass(subView.classForCoder) == "UISwipeActionPullView" {
/// 修改侧滑视图背景色和摁钮背景色
subView.backgroundColor = UIColor.design(.design_FF5050)
let btn = subView.subviews.last
btn?.backgroundColor = UIColor.design(.design_FF5050)
}
}
}
private func initView() {
self.backgroundColor = UIColor.design(.design_FFFFFF)
self.layer.cornerRadius = 16.fit()
self.clipsToBounds = true
titleLabel = UILabel.label("", textColor: UIColor.design(.design_24292B), font: UIFont.font(of: 18.fit(), weight: .medium))
dateLabel = UILabel.label("", textColor: UIColor.design(.design_9DA2A5), font: UIFont.font(of: 12.fit(), weight: .regular))
rateLabel = UILabel.label("", textColor: UIColor.design(.design_D81E06), font: UIFont.font(of: 30.fit(), weight: .bold))
rateUnitLabel = UILabel.label("%", textColor: UIColor.design(.design_D81E06), font: UIFont.font(of: 12.fit(), weight: .medium))
stateLabel = UILabel.label("", textColor: UIColor.design(.design_FF453A), font: UIFont.font(of: 14.fit(), weight: .medium))
LearnMoreButton = UIButton(type: .custom)
LearnMoreButton.setTitle("", for: .normal)
LearnMoreButton.setTitle("", for: .highlighted)
LearnMoreButton.setTitleColor(UIColor.design(.design_FFFFFF), for: .normal)
LearnMoreButton.titleLabel?.font = UIFont.font(of: 14.fit(), weight: .regular)
LearnMoreButton.layer.cornerRadius = 16.fit()
LearnMoreButton.layer.masksToBounds = true
LearnMoreButton.backgroundColor = UIColor.design(.design_FF8000)
LearnMoreButton.addTarget(self, action: #selector(clickLearnMoreButton), for: .touchUpInside)
self.contentView.addSubview(titleLabel)
self.contentView.addSubview(dateLabel)
self.contentView.addSubview(rateLabel)
self.contentView.addSubview(rateUnitLabel)
self.contentView.addSubview(stateLabel)
self.contentView.addSubview(LearnMoreButton)
}
private func setupLayout() {
titleLabel.snp.makeConstraints { make in
make.top.equalTo(12.fit())
make.left.equalTo(16.fit())
}
dateLabel.snp.makeConstraints { make in
make.bottom.equalTo(-12.fit())
make.left.equalTo(titleLabel)
}
rateLabel.snp.makeConstraints { make in
make.bottom.equalTo(dateLabel.snp.top)
make.left.equalTo(titleLabel)
make.height.equalTo(30.fit())
}
rateUnitLabel.snp.makeConstraints { make in
make.left.equalTo(rateLabel.snp.right)
make.bottom.equalTo(rateLabel.snp.bottom)
make.width.equalTo(12.fit())
}
stateLabel.snp.makeConstraints { make in
make.top.equalTo(12.fit())
make.right.equalTo(-16.fit())
}
LearnMoreButton.snp.makeConstraints { make in
make.bottom.equalTo(-12.fit())
make.right.equalTo(-16.fit())
make.size.equalTo(CGSize(width: 84.fit(), height: 32.fit()))
}
}
@objc
private func clickLearnMoreButton() {
/// Cell摁钮点击回调方法
self.clickLearnMoreBtnAction?()
}
func updateCellWithModel(model: productModel) {
/// 更新Cell数据
}
func updateCellState(state: ZUArticleListFromType) {
/// Cell功能代码
}
}

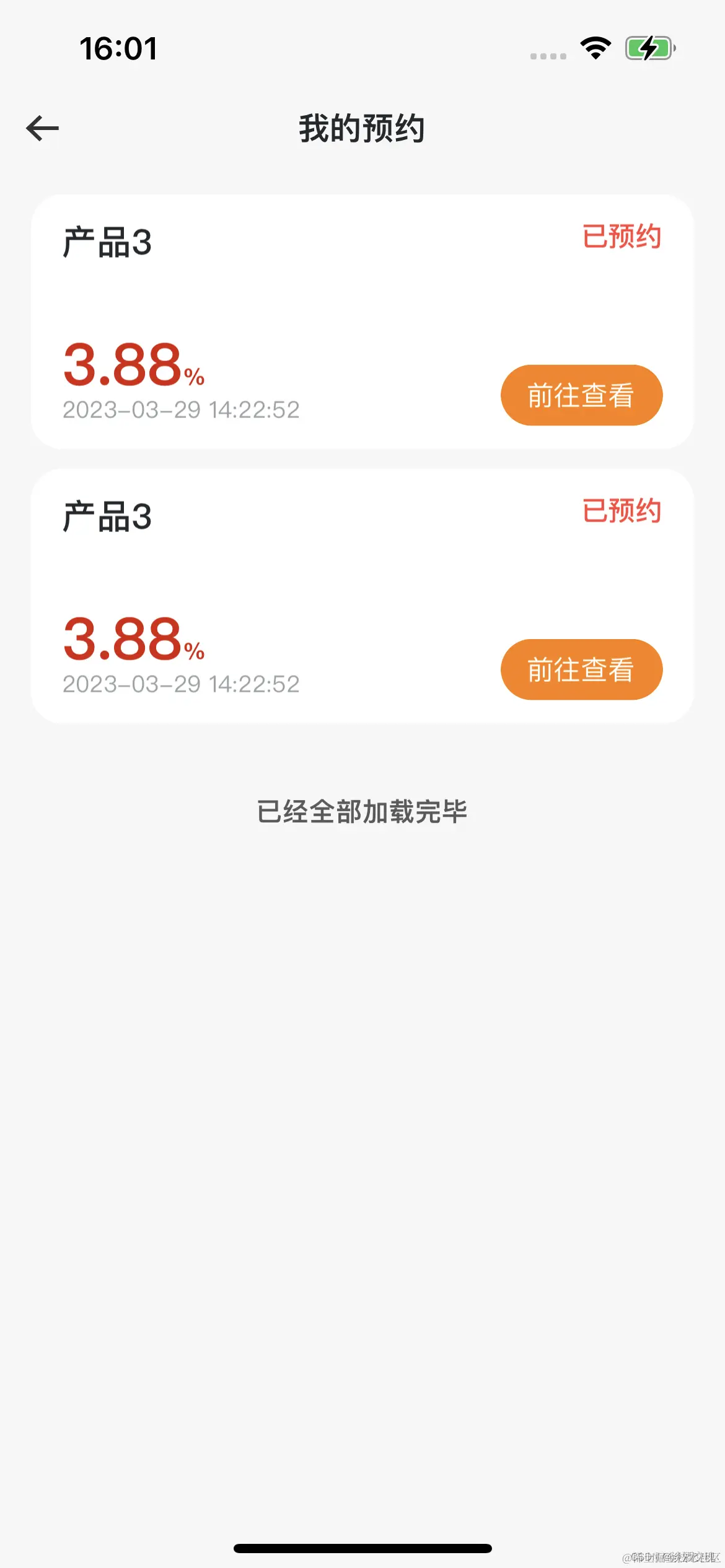

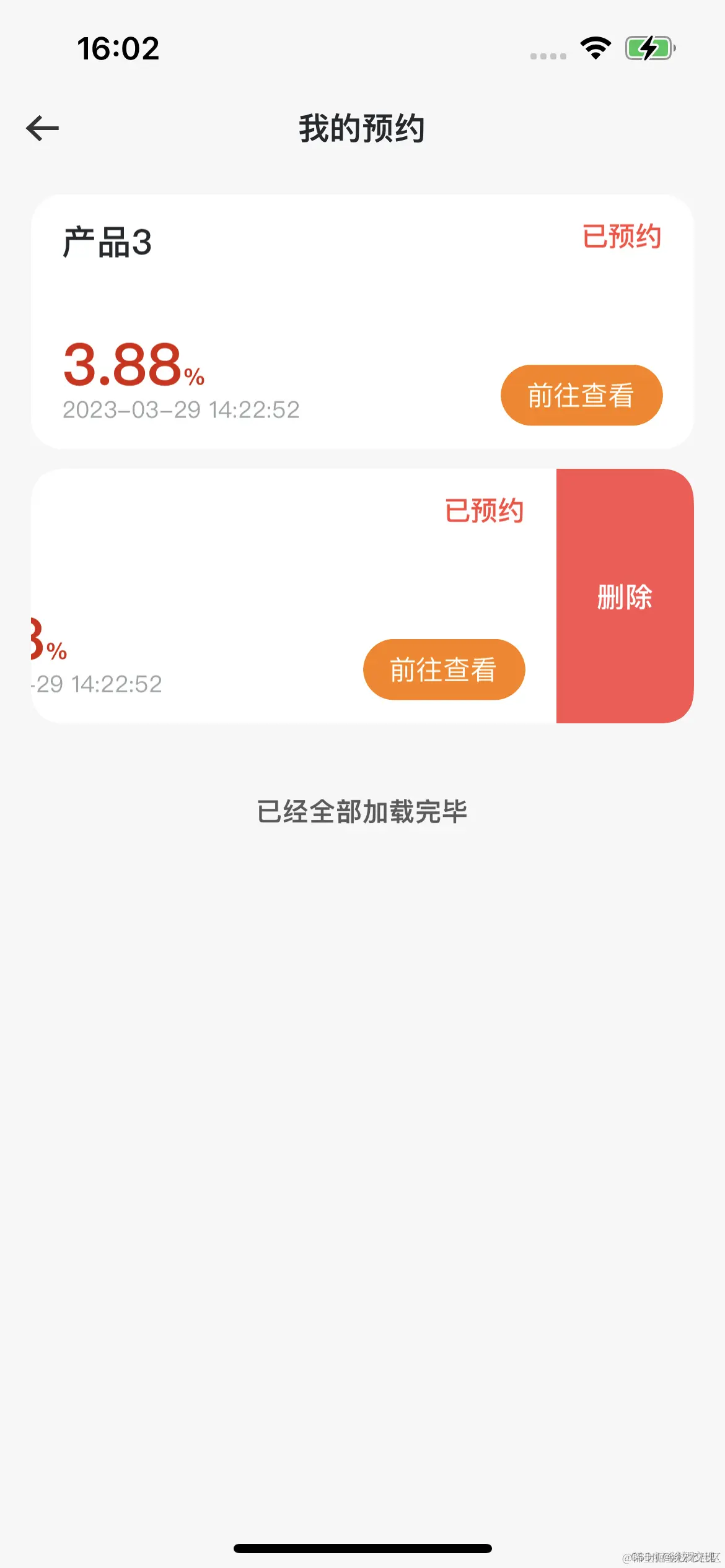

页面展示效果
