SAAS-04权限分配与jwt概述

第4章 权限管理与jwt鉴权

学习目标： 理解权限管理的需求以及设计思路 实现角色分配和权限分配 理解常见的认证机制 能够使用JWT完成微服务Token签发与验证

1 权限管理

1.1 需求分析 完成权限（菜单，按钮（权限点），API接口）的基本操作

权限与菜单，菜单与按钮，菜单与API接口都是一对一关系。为了方便操作，在SAAS-HRM系统的表设计中，采用 基于共享主键的形式实现一对一关系维护，并且数据库约束，一切的关系维护需要程序员在代码中实现。 1.2 后端实现 1.2.1 实体类 在系统微服务中创建权限，菜单，按钮（权限点），API对象的实体类

角色对应得Controller接口

@RestController
@RequestMapping("/sys")
public class RoleController extends BaseController{

    @Autowired
    private RoleService roleService;

    /**
     * 分配权限
     */
    @RequestMapping(value = "/role/assignPrem", method = RequestMethod.PUT)
    public Result assignPrem(@RequestBody Map<String,Object> map) {
        //1.获取被分配的角色的id
        String roleId = (String) map.get("id");
        //2.获取到权限的id列表
        List<String> permIds = (List<String>) map.get("permIds");
        //3.调用service完成权限分配
        roleService.assignPerms(roleId,permIds);
        return new Result(ResultCode.SUCCESS);
    }


    //添加角色
    @RequestMapping(value = "/role", method = RequestMethod.POST)
    public Result add(@RequestBody Role role) throws Exception {
        role.setCompanyId(companyId);
        roleService.save(role);
        return Result.SUCCESS();
    }

    //更新角色
    @RequestMapping(value = "/role/{id}", method = RequestMethod.PUT)
    public Result update(@PathVariable(name = "id") String id, @RequestBody Role role) throws Exception {
        roleService.update(role);
        return Result.SUCCESS();
    }

    //删除角色
    @RequestMapping(value = "/role/{id}", method = RequestMethod.DELETE)
    public Result delete(@PathVariable(name = "id") String id) throws Exception {
        roleService.delete(id);
        return Result.SUCCESS();
    }

    /**
     * 根据ID获取角色信息
     */
    @RequestMapping(value = "/role/{id}", method = RequestMethod.GET)
    public Result findById(@PathVariable(name = "id") String id) throws Exception {
        Role role = roleService.findById(id);
        RoleResult roleResult = new RoleResult(role);
        return new Result(ResultCode.SUCCESS,roleResult);
    }

    /**
     * 分页查询角色
     */
    @RequestMapping(value = "/role", method = RequestMethod.GET)
    public Result findByPage(int page,int pagesize,Role role) throws Exception {
        Page<Role> searchPage = roleService.findByPage(companyId, page, pagesize);
        PageResult<Role> pr = new PageResult(searchPage.getTotalElements(),searchPage.getContent());
        return new Result(ResultCode.SUCCESS,pr);
    }

    @RequestMapping(value="/role/list" ,method=RequestMethod.GET)
    public Result findAll() throws Exception {
        List<Role> roleList = roleService.findAll(companyId);
        return new Result(ResultCode.SUCCESS,roleList);
    }
}

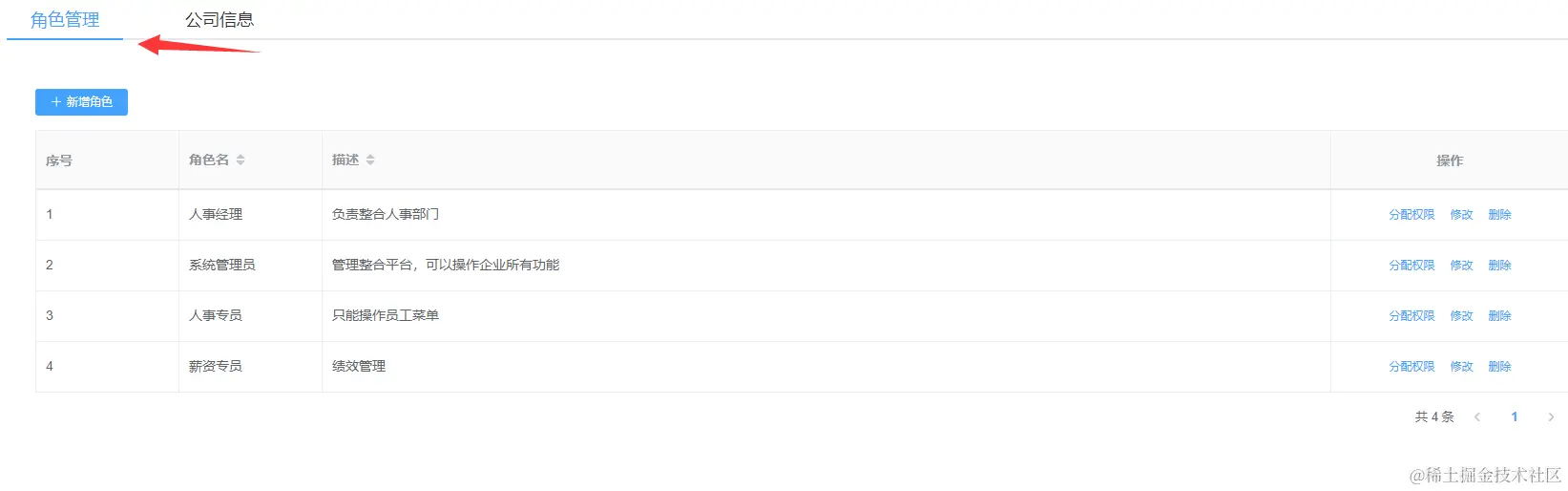

角色管理测试

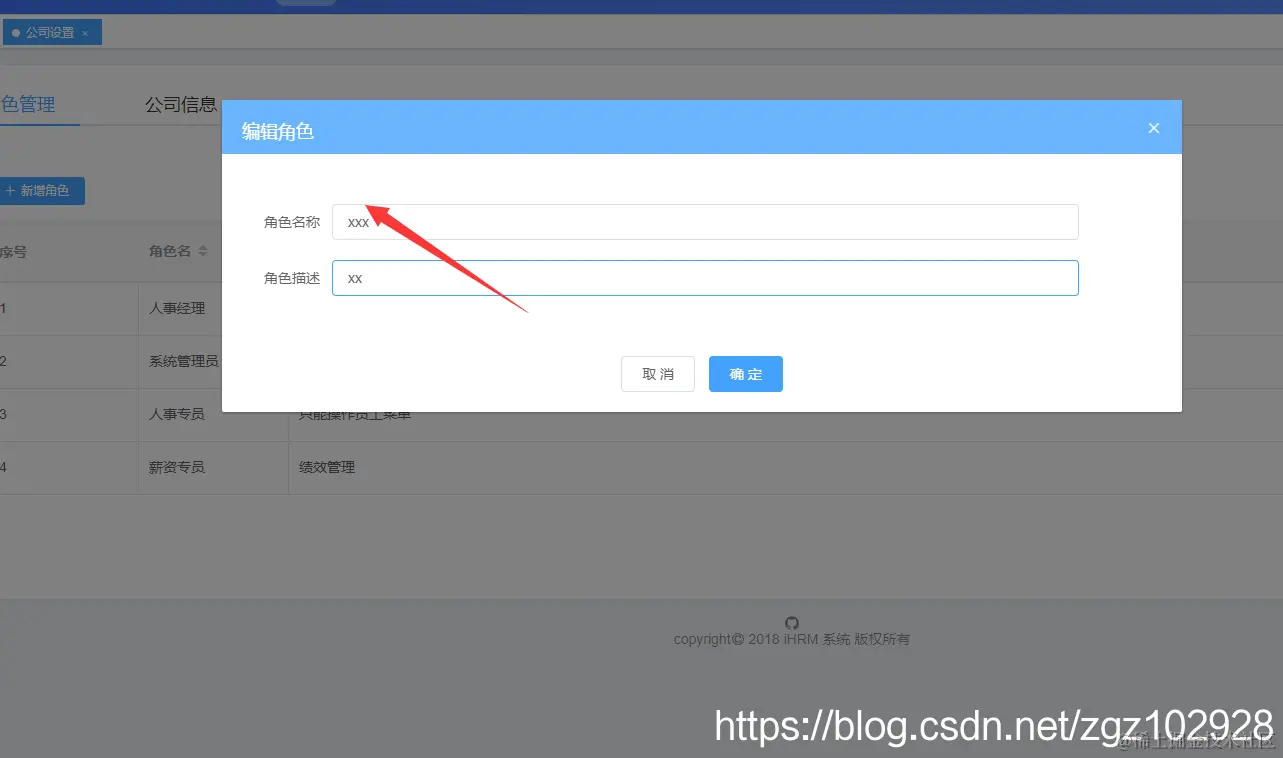

新增角色：

权限分配接口

@RequestMapping(value="/sys")
public class PermissionController {
    @Autowired
    private PermissionService permissionService;
    /**
     * 保存
     */
    @RequestMapping(value = "/permission", method = RequestMethod.POST)
    public Result save(@RequestBody Map<String,Object> map) throws Exception {
        permissionService.save(map);
        return new Result(ResultCode.SUCCESS);
    }

    /**
     * 修改
     */
    @RequestMapping(value = "/permission/{id}", method = RequestMethod.PUT)
    public Result update(@PathVariable(value = "id") String id, @RequestBody Map<String,Object> map) throws Exception {
        //构造id
        map.put("id",id);
        permissionService.update(map);
        return new Result(ResultCode.SUCCESS);
    }

    /**
     * 查询列表
     */
    @RequestMapping(value = "/permission", method = RequestMethod.GET)
    public Result findAll(@RequestParam Map map) {
        List<Permission> list =  permissionService.findAll(map);
        return new Result(ResultCode.SUCCESS,list);
    }

    /**
     * 根据ID查询
     */
    @RequestMapping(value = "/permission/{id}", method = RequestMethod.GET)
    public Result findById(@PathVariable(value = "id") String id) throws Exception {
        Map map = permissionService.findById(id);
        return new Result(ResultCode.SUCCESS,map);
    }

分配权限测试：

权限增删改查

DAO接口：

public interface PermissionDao extends JpaRepository<Permission, String>, JpaSpecificationExecutor<Permission> {
    List<Permission> findByTypeAndPid(int type,String pid);
}
/**
  * 企业数据访问接口
  */
public interface PermissionMenuDao extends JpaRepository<PermissionMenu, String>, JpaSpecificationExecutor<PermissionMenu> {

}
/**
  * 企业数据访问接口
  */
public interface PermissionPointDao extends JpaRepository<PermissionPoint, String>, JpaSpecificationExecutor<PermissionPoint> {

}



Service接口：



 /**
     * 1.保存权限
     */
    public void save(Map<String,Object> map) throws Exception {
        //设置主键的值
        String id = idWorker.nextId()+"";
        //1.通过map构造permission对象
        Permission perm = BeanMapUtils.mapToBean(map,Permission.class);
        perm.setId(id);
        //2.根据类型构造不同的资源对象（菜单，按钮，api）
        int type = perm.getType();
        switch (type) {
            case PermissionConstants.PERMISSION_MENU:
                PermissionMenu menu = BeanMapUtils.mapToBean(map,PermissionMenu.class);
                menu.setId(id);
                permissionMenuDao.save(menu);
                break;
            case PermissionConstants.PERMISSION_POINT:
                PermissionPoint point = BeanMapUtils.mapToBean(map,PermissionPoint.class);
                point.setId(id);
                permissionPointDao.save(point);
                break;
            case PermissionConstants.PERMISSION_API:
                PermissionApi api = BeanMapUtils.mapToBean(map,PermissionApi.class);
                api.setId(id);
                permissionApiDao.save(api);
                break;
            default:
                throw new CommonException(ResultCode.FAIL);
        }
        //3.保存
        permissionDao.save(perm);
    }

    /**
     * 2.更新权限
     */
    public void update(Map<String,Object> map) throws Exception {
        Permission perm = BeanMapUtils.mapToBean(map,Permission.class);
        //1.通过传递的权限id查询权限
        Permission permission = permissionDao.findById(perm.getId()).get();
        permission.setName(perm.getName());
        permission.setCode(perm.getCode());
        permission.setDescription(perm.getDescription());
        permission.setEnVisible(perm.getEnVisible());
        //2.根据类型构造不同的资源
        int type = perm.getType();
        switch (type) {
            case PermissionConstants.PERMISSION_MENU:
                PermissionMenu menu = BeanMapUtils.mapToBean(map,PermissionMenu.class);
                menu.setId(perm.getId());
                permissionMenuDao.save(menu);
                break;
            case PermissionConstants.PERMISSION_POINT:
                PermissionPoint point = BeanMapUtils.mapToBean(map,PermissionPoint.class);
                point.setId(perm.getId());
                permissionPointDao.save(point);
                break;
            case PermissionConstants.PERMISSION_API:
                PermissionApi api = BeanMapUtils.mapToBean(map,PermissionApi.class);
                api.setId(perm.getId());
                permissionApiDao.save(api);
                break;
            default:
                throw new CommonException(ResultCode.FAIL);
        }
        //3.保存
        permissionDao.save(permission);
    }

    /**
     * 3.根据id查询
     *      //1.查询权限
     *      //2.根据权限的类型查询资源
     *      //3.构造map集合
     */
    public Map<String, Object> findById(String id) throws Exception {
        Permission perm = permissionDao.findById(id).get();
        int type = perm.getType();

        Object object = null;

        if(type == PermissionConstants.PERMISSION_MENU) {
            object = permissionMenuDao.findById(id).get();
        }else if (type == PermissionConstants.PERMISSION_POINT) {
            object = permissionPointDao.findById(id).get();
        }else if (type == PermissionConstants.PERMISSION_API) {
            object = permissionApiDao.findById(id).get();
        }else {
            throw new CommonException(ResultCode.FAIL);
        }

        Map<String, Object> map = BeanMapUtils.beanToMap(object);

        map.put("name",perm.getName());
        map.put("type",perm.getType());
        map.put("code",perm.getCode());
        map.put("description",perm.getDescription());
        map.put("pid",perm.getPid());
        map.put("enVisible",perm.getEnVisible());


        return map;
    }

    /**
     * 4.查询全部
     * type      : 查询全部权限列表type：0：菜单 + 按钮（权限点） 1：菜单2：按钮（权限点）3：API接口
     * enVisible : 0：查询所有saas平台的最高权限，1：查询企业的权限
     * pid ：父id
     */
    public List<Permission> findAll(Map<String, Object> map) {
        //1.需要查询条件
        Specification<Permission> spec = new Specification<Permission>() {
            /**
             * 动态拼接查询条件
             * @return
             */
            public Predicate toPredicate(Root<Permission> root, CriteriaQuery<?> criteriaQuery, CriteriaBuilder criteriaBuilder) {
                List<Predicate> list = new ArrayList<>();
                //根据父id查询
                if(!StringUtils.isEmpty(map.get("pid"))) {
                    list.add(criteriaBuilder.equal(root.get("pid").as(String.class),(String)map.get("pid")));
                }
                //根据enVisible查询
                if(!StringUtils.isEmpty(map.get("enVisible"))) {
                    list.add(criteriaBuilder.equal(root.get("enVisible").as(String.class),(String)map.get("enVisible")));
                }
                //根据类型 type
                if(!StringUtils.isEmpty(map.get("type"))) {
                    String ty = (String) map.get("type");
                    CriteriaBuilder.In<Object> in = criteriaBuilder.in(root.get("type"));
                    if("0".equals(ty)) {
                        in.value(1).value(2);
                    }else{
                        in.value(Integer.parseInt(ty));
                    }
                    list.add(in);
                }
                return criteriaBuilder.and(list.toArray(new Predicate[list.size()]));
            }
        };
        return permissionDao.findAll(spec);
    }

    /**
     * 5.根据id删除
     *  //1.删除权限
     *  //2.删除权限对应的资源
     *
     */
    public void deleteById(String id) throws Exception {
        //1.通过传递的权限id查询权限
        Permission permission = permissionDao.findById(id).get();
        permissionDao.delete(permission);
        //2.根据类型构造不同的资源
        int type = permission.getType();
        switch (type) {
            case PermissionConstants.PERMISSION_MENU:
                permissionMenuDao.deleteById(id);
                break;
            case PermissionConstants.PERMISSION_POINT:
                permissionPointDao.deleteById(id);
                break;
            case PermissionConstants.PERMISSION_API:
                permissionApiDao.deleteById(id);
                break;
            default:
                throw new CommonException(ResultCode.FAIL);
        }
    }

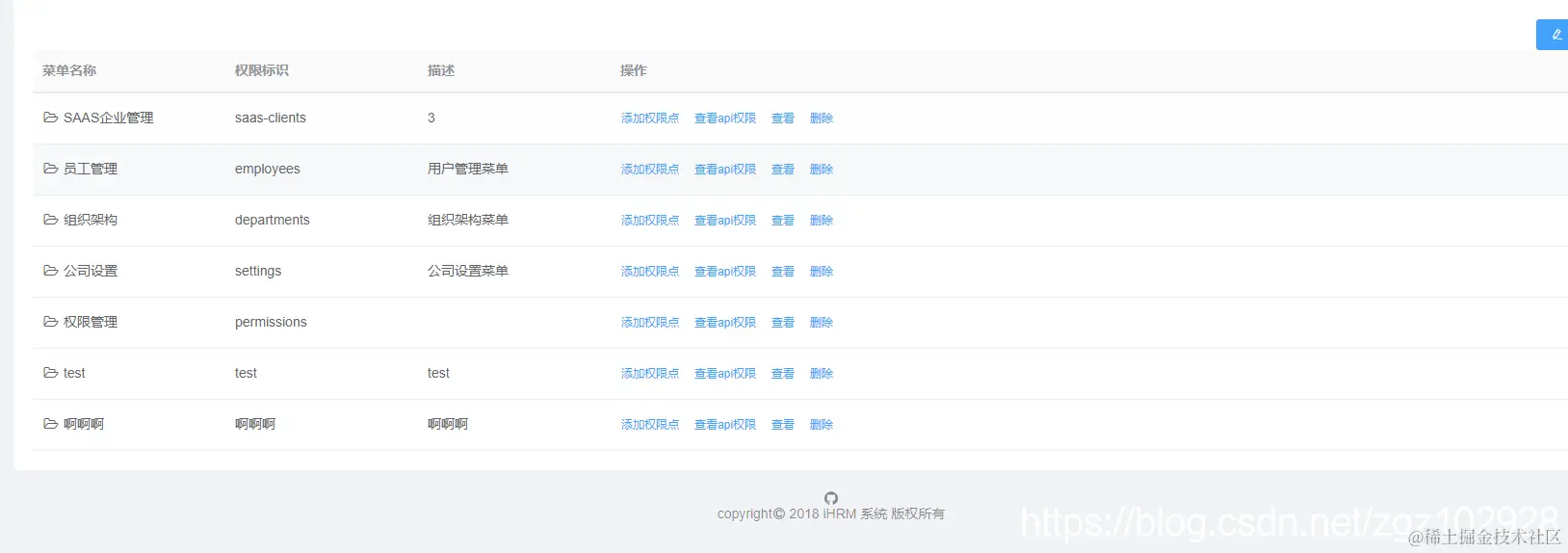

新增权限测试界面

角色分配后面的权限控制：

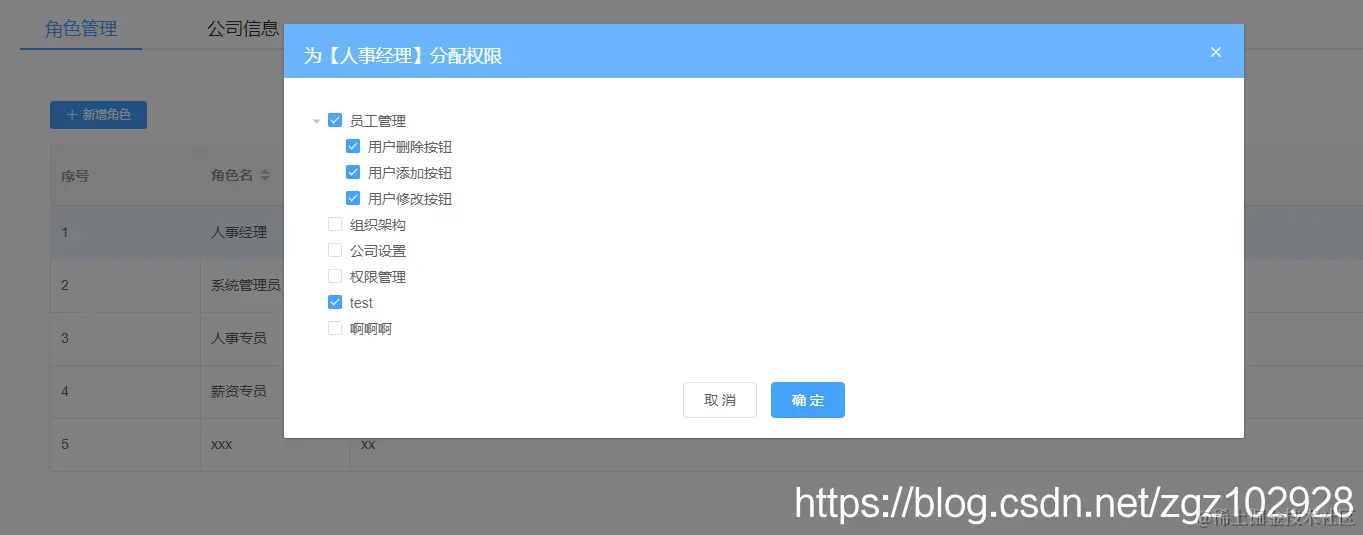

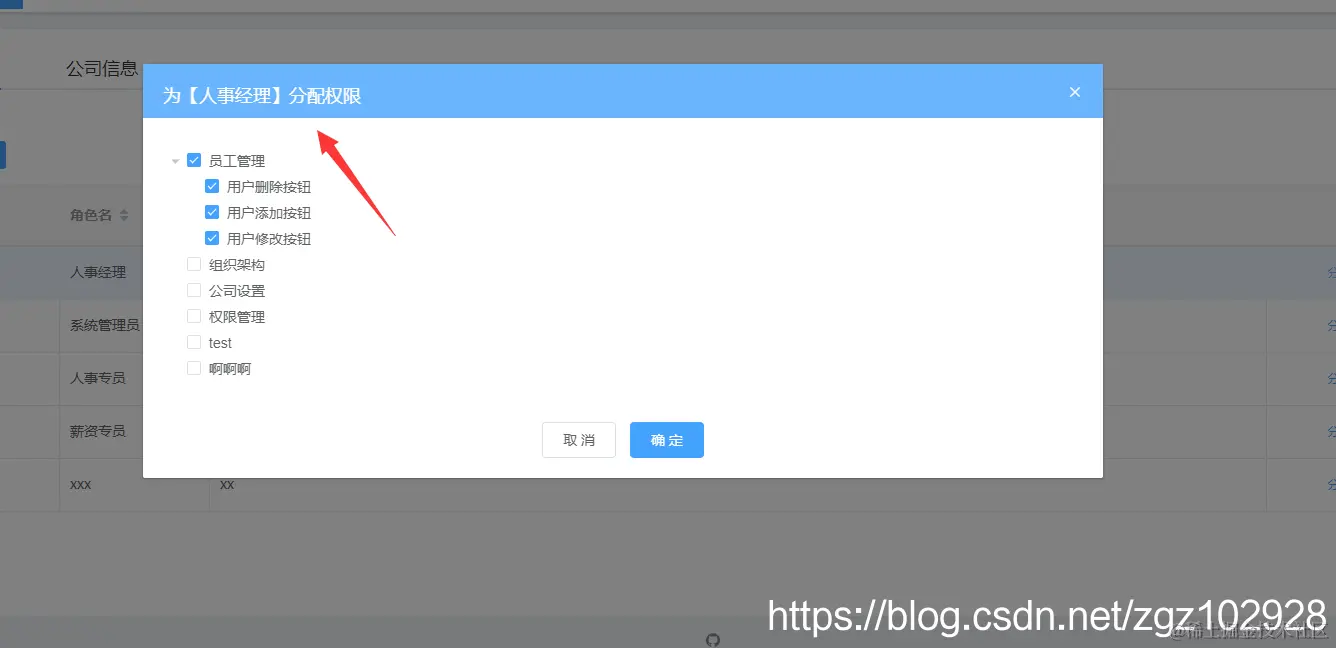

分配权限:

常见的认证机制:JWT

  /**
     * 通过jjwt创建token
     */
    public static void main(String[] args) {
        JwtBuilder jwtBuilder = Jwts.builder().setId("88").setSubject("小白")
                .setIssuedAt(new Date())
                .signWith(SignatureAlgorithm.HS256, "ihrm")
                .claim("companyId","123456")
                .claim("companyName","江苏传智播客教育股份有限公司")
                ;
        String token = jwtBuilder.compact();
        System.out.println(token);
    }

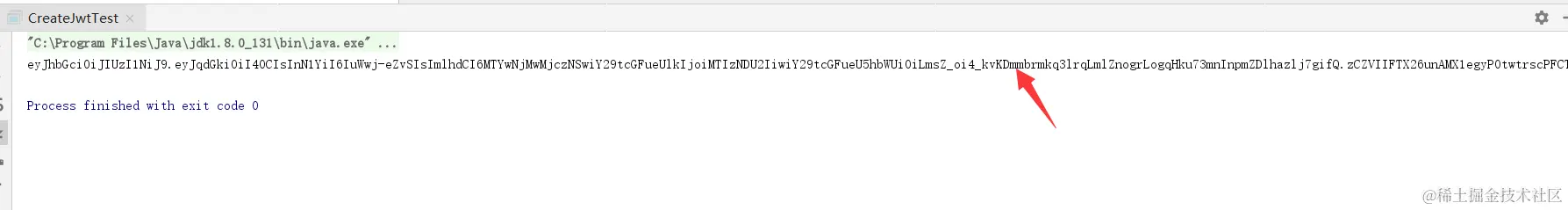

测试：

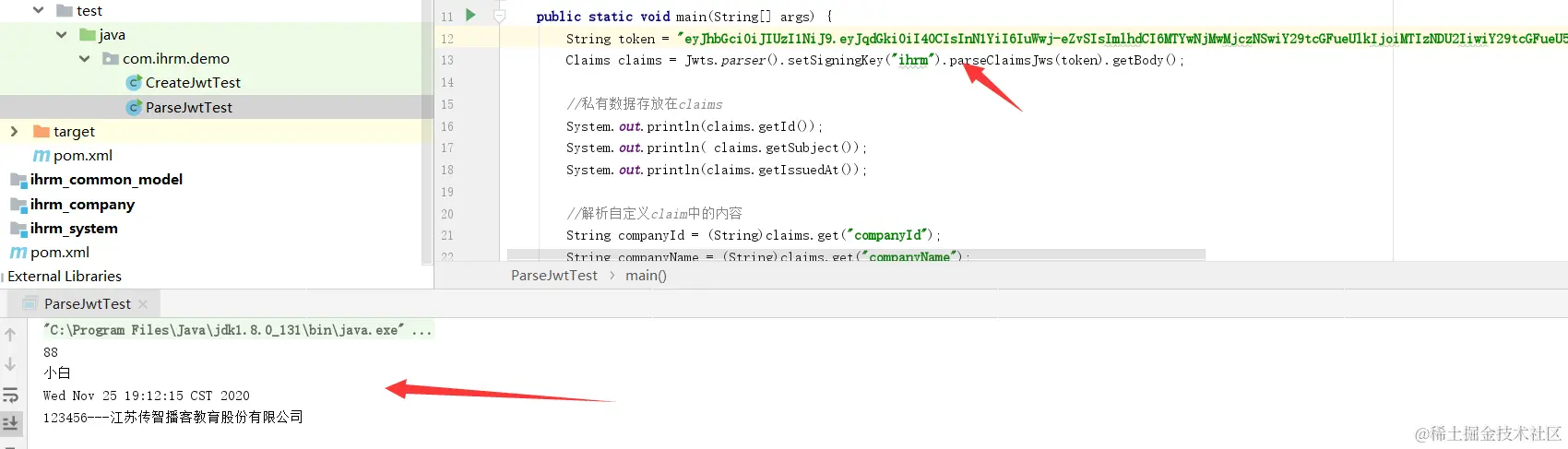

解析JWT token:

  /**
     * 解析jwtToken字符串
     */
    public static void main(String[] args) {
        String token = "eyJhbGciOiJIUzI1NiJ9.eyJqdGkiOiI4OCIsInN1YiI6IuWwj-eZvSIsImlhdCI6MTYwNjMwMjczNSwiY29tcGFueUlkIjoiMTIzNDU2IiwiY29tcGFueU5hbWUiOiLmsZ_oi4_kvKDmmbrmkq3lrqLmlZnogrLogqHku73mnInpmZDlhazlj7gifQ.zCZVIIFTX26unAMX1egyPOtwtrscPFCTtYWhKN7DUwo";
        Claims claims = Jwts.parser().setSigningKey("ihrm").parseClaimsJws(token).getBody();

        //私有数据存放在claims
        System.out.println(claims.getId());
        System.out.println( claims.getSubject());
        System.out.println(claims.getIssuedAt());

        //解析自定义claim中的内容
        String companyId = (String)claims.get("companyId");
        String companyName = (String)claims.get("companyName");

        System.out.println(companyId + "---" + companyName);
    }

JWT集成hrm系统

  public String createJwt(String id, String name, Map<String,Object> map) {
        //1.设置失效时间
        long now = System.currentTimeMillis();//当前毫秒
        long exp = now + ttl;
        //2.创建jwtBuilder
        JwtBuilder jwtBuilder = Jwts.builder().setId(id).setSubject(name)
                .setIssuedAt(new Date())
                .signWith(SignatureAlgorithm.HS256, key);
        //3.根据map设置claims
        for(Map.Entry<String,Object> entry : map.entrySet()) {
            jwtBuilder.claim(entry.getKey(),entry.getValue());
        }
        jwtBuilder.setExpiration(new Date(exp));
        //4.创建token
        String token = jwtBuilder.compact();
        return token;
    }


    /**
     * 解析token字符串获取clamis
     */
    public Claims parseJwt(String token) {
        Claims claims = Jwts.parser().setSigningKey(key).parseClaimsJws(token).getBody();
        return claims;
    }

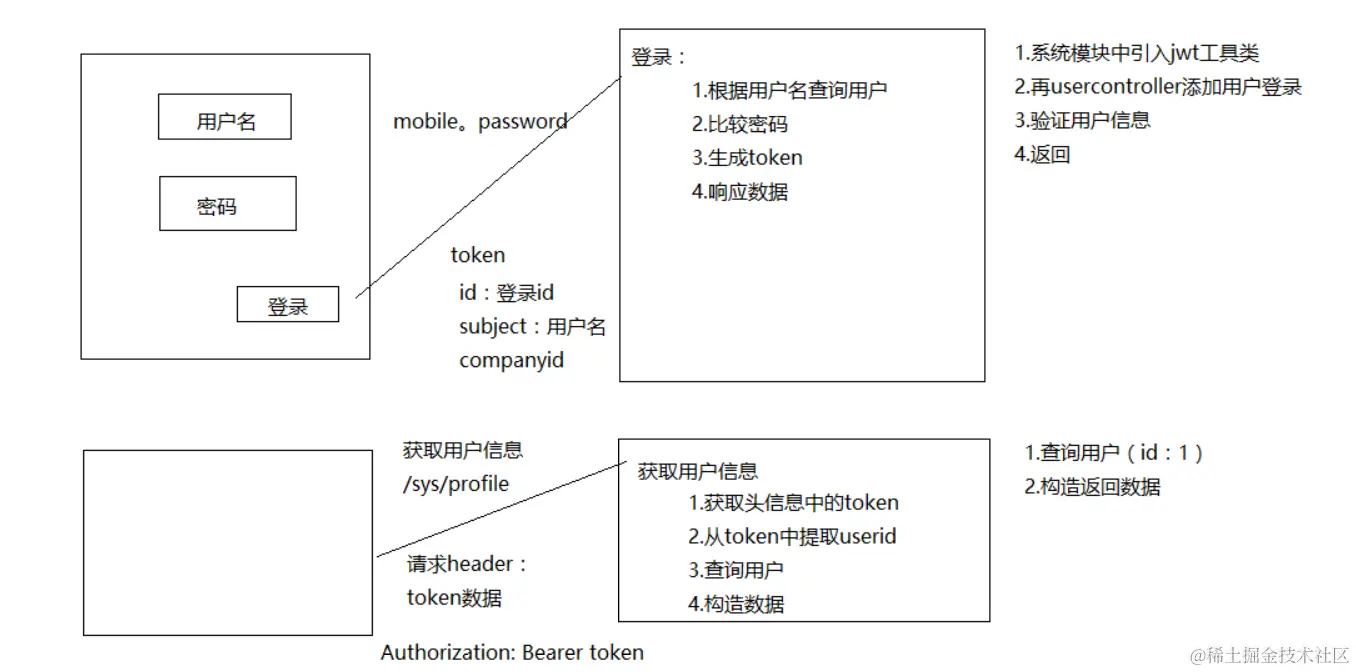

用户登录接口信息

/**
     * 用户登录
     *  1.通过service根据mobile查询用户
     *  2.比较password
     *  3.生成jwt信息
     *
     */
    @RequestMapping(value="/login",method = RequestMethod.POST)
    public Result login(@RequestBody Map<String,String> loginMap) {
        String mobile = loginMap.get("mobile");
        String password = loginMap.get("password");
        User user = userService.findByMobile(mobile);
        //登录失败
        if(user == null || !user.getPassword().equals(password)) {
            return new Result(ResultCode.MOBILEORPASSWORDERROR);
        }else {
        //登录成功
            Map<String,Object> map = new HashMap<>();
            map.put("companyId",user.getCompanyId());
            map.put("companyName",user.getCompanyName());
            String token = jwtUtils.createJwt(user.getId(), user.getUsername(), map);
            return new Result(ResultCode.SUCCESS,token);
        }
    }

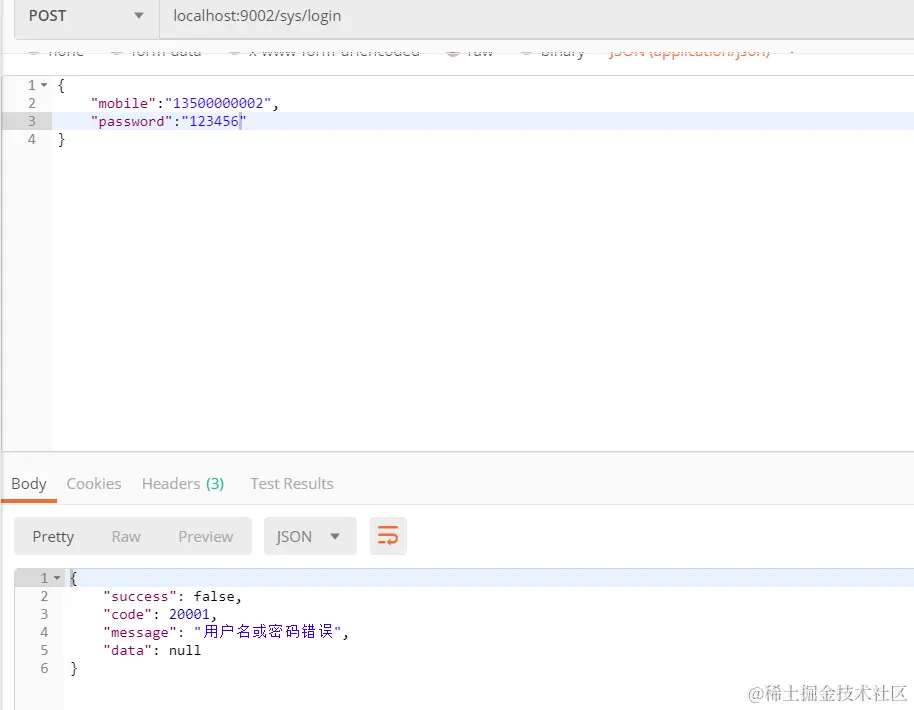

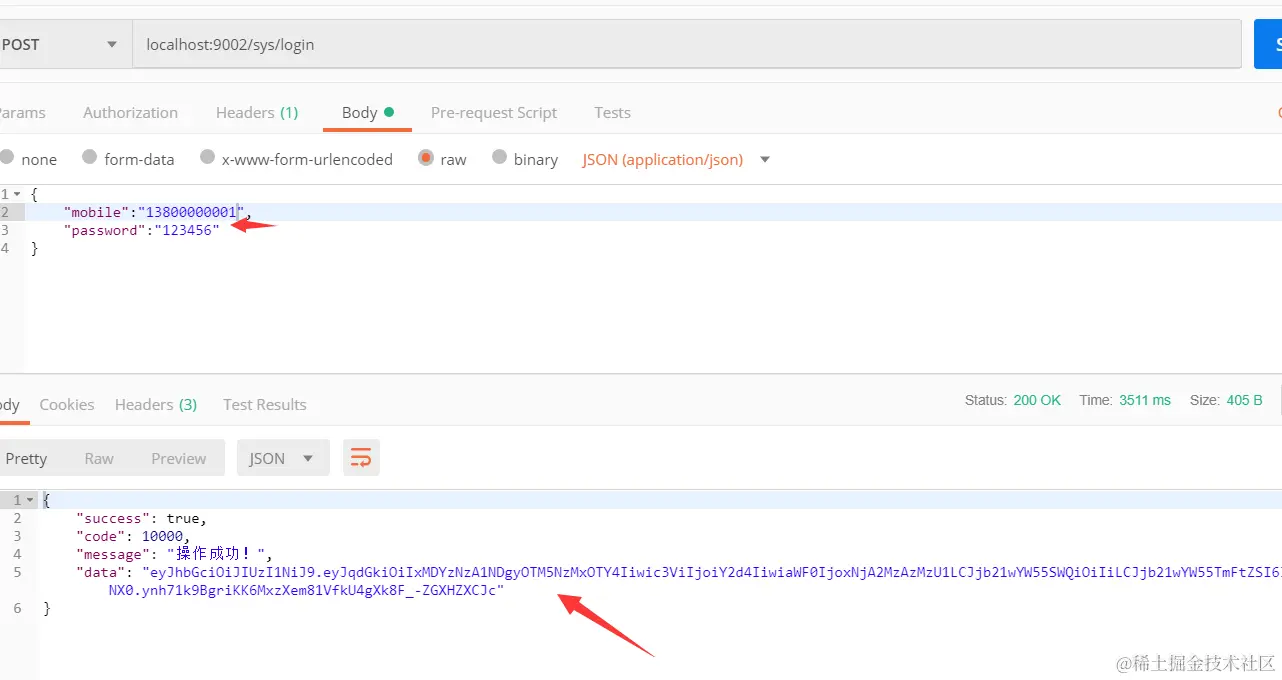

POSTMan测试:

密码正确的测试：

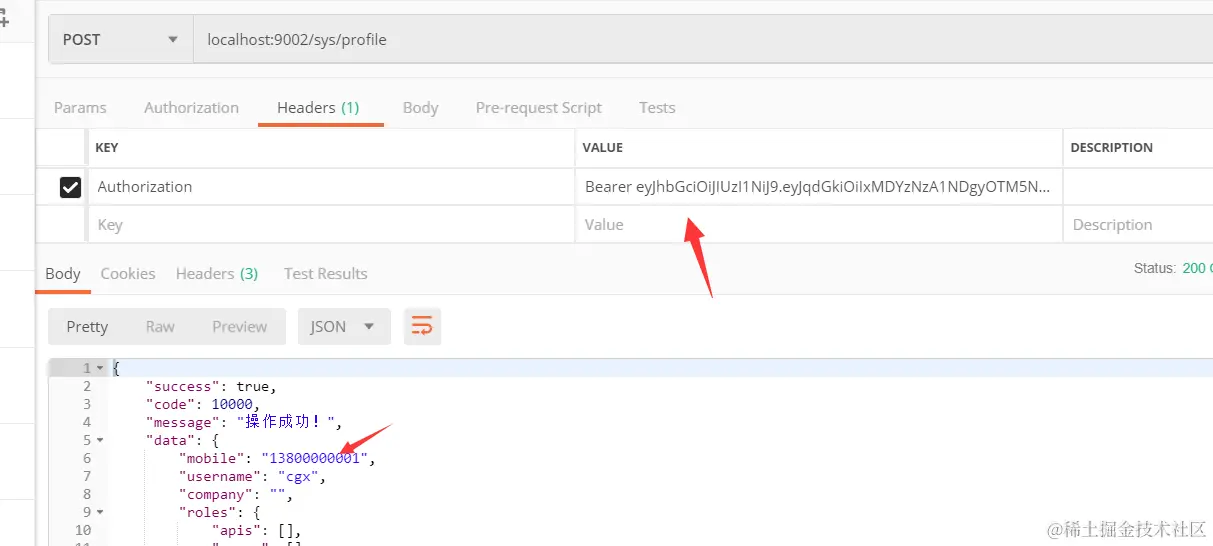

解析Token:
