IDEA远程调试服务

1.远程调试Jar包

1.1 创建SpringBoot父项目

1.pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>springboot_parent</artifactId>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>springboot_demo_linux</module>
    </modules>
    <packaging>pom</packaging>

    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring-boot.version>2.3.12.RELEASE</spring-boot.version>
        <mybatis-spring-boot-starter.version>2.2.2</mybatis-spring-boot-starter.version>
        <mysql.version>5.1.43</mysql.version>
        <slf4j-api.version>1.7.36</slf4j-api.version>
        <junit-jupiter.version>5.8.2</junit-jupiter.version>
        <junit.version>4.12</junit.version>
        <lombok.version>1.18.16</lombok.version>
        <log4j.version>1.2.17</log4j.version>
        <logback-core.version>1.2.3</logback-core.version>
        <mysql-connector-java.version>8.0.21</mysql-connector-java.version>
        <druid.version>1.1.23</druid.version>
        <mybatis-spring-boot-starter.version>2.1.4</mybatis-spring-boot-starter.version>
        <spring-boot-dependencies.version>2.3.2.RELEASE</spring-boot-dependencies.version>
        <spring-cloud-dependencies.version>Hoxton.SR9</spring-cloud-dependencies.version>
        <spring-cloud-alibaba.version>2.2.6.RELEASE</spring-cloud-alibaba.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud-dependencies.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring-cloud-alibaba-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--springboot-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot-dependencies.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>3.4.2</version>
            </dependency>

            <!-- 引入Druid依赖，阿里巴巴所提供的数据源 -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>

            <!-- 提供mysql驱动 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql-connector-java.version}</version>
            </dependency>

            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-lang3</artifactId>
                <version>3.7</version>
            </dependency>

        </dependencies>
    </dependencyManagement>

</project>

1.2 创建子模块

1.pom.xml

    <parent>
        <artifactId>springboot_parent</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>springboot_demo_linux</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.3.2.RELEASE</version>
                <configuration>
                    <!-- 指定该Main Class为全局的唯一入口 -->
                    <mainClass>com.zy.AppDemo</mainClass>
                    <layout>JAR</layout>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal><!--可以把依赖的包都打包到生成的Jar包中-->
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
        <finalName>testCmd</finalName>
    </build>

2.配置application.yml

server:
  port: 9901

3.演示代码

@RestController
@RequestMapping("/linux")
public class TestLinuxCmdController {

    @GetMapping("/cmd")
    public String testCmd(){
        Map<String, String> allSn = SerialNumberUtil.getAllSn();
        return JsonUtil.obj2String(allSn);
    }

}

主启动类：

@SpringBootApplication
public class AppDemo {

    public static void main(String[] args) {
        SpringApplication.run(AppDemo.class,args);
    }

}

1.3 整体框架

2.调试配置

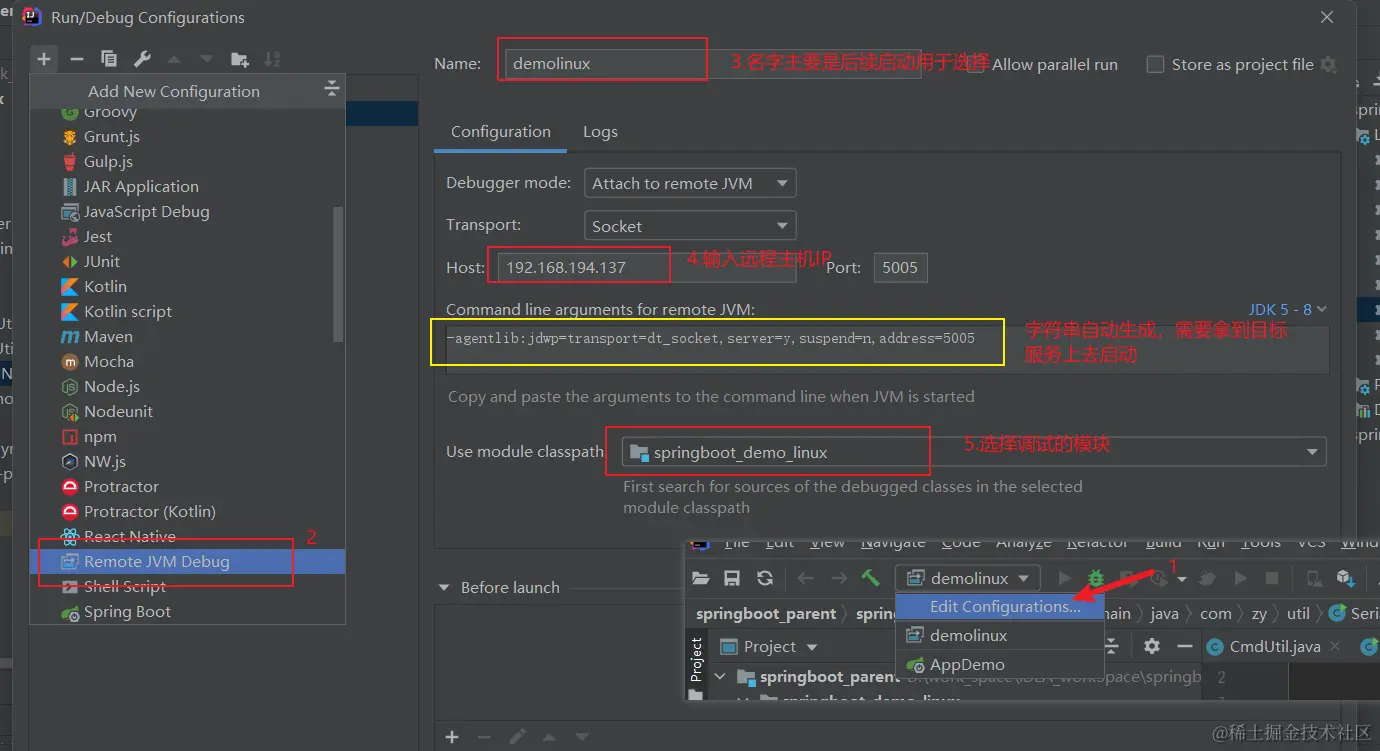

2.1 IDEA配置远程调试

配置步骤如下：

2.2 远程服务启动

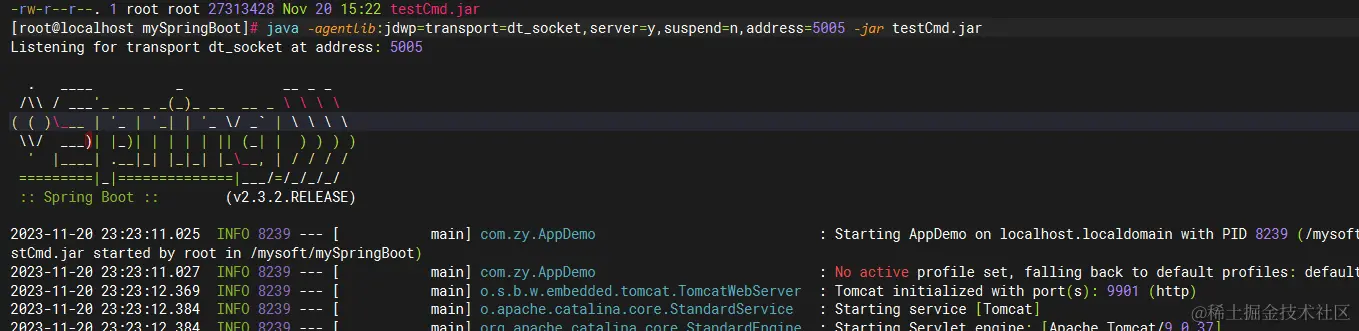

1.上传jar包到指定目录，然后执行如下命令：

java -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=5005 -jar testCmd.jar

2.3 调试

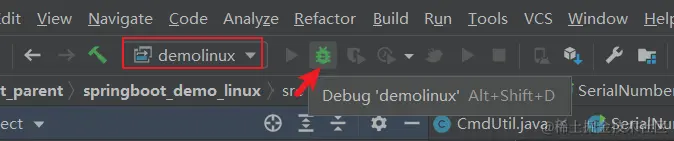

1.启动本地IDEA

2.在某处打上断点，然后访问http://192.168.194.137:9901/linux/cmd，就可以触发执行了
