In the digital age, the continuous evolution of wireless communication technology is one of the key driving forces for global networking and digital transformation. Wi-Fi technology has been experiencing rapid development in recent years, and the arrival of Wi-Fi 7 marks a new chapter in wireless communications.
Background
Wi-Fi 7, also known as 802.11be or Very High Throughput (VHT), is the next generation wireless communication standard developed by the Wi-Fi Alliance. Now officially released, the specifications and features of Wi-Fi 7 are expected to bring a series of exciting changes, providing users with faster, more stable, and smarter wireless connections. At the same time, it brings users a new wireless communication experience.
Main advantages
-
Higher speed: Wi-Fi 7 will drive new records in wireless communication speeds. By adopting higher data transfer rates, users will be able to access the internet, stream media and download content faster than ever before. This will be important for supporting bandwidth-intensive applications such as high-definition video, virtual reality, and augmented reality.
-
Lower latency: Low latency is another highlight of Wi-Fi 7. This feature will enable real-time applications, such as online gaming and video conferencing, to achieve a smoother user experience. By reducing communication latency, Wi-Fi 7 creates a more dynamic environment for various interactive applications and services.
-
Improvements in multi-user performance: Wi-Fi 7 will further improve performance in multi-user environments. In today's homes and workplaces, the number of devices continues to increase, and so do the demands on the network. The innovative performance of Wi-Fi 7 will allow more devices to connect simultaneously without affecting overall network speed and stability.
-
Improved coverage: By introducing new technologies and optimizing network protocols, Wi-Fi 7 can improve coverage. This means users can maintain high-quality connections over a wider area, whether at home, in the office or in public spaces.
-
Smarter energy management: Wi-Fi 7 uses smarter energy management technology to enable connected devices to use power more efficiently and extend battery life when using wireless networks. This will bring substantial benefits to mobile devices and Internet of Things (IoT) devices.
The launch of Wi-Fi 7 marks a new era in wireless communications. With higher speeds, lower latency and better multi-user performance, Wi-Fi 7 will provide users with a stronger and more reliable wireless connection. The continuous evolution of this technology will not only change the networking experience in our daily lives, but also open up a broader development space for emerging digital applications and services. The official release of Wi-Fi 7 allows users to better explore and experience this compelling wireless technology innovation.
WIFI 7 PORDUCT

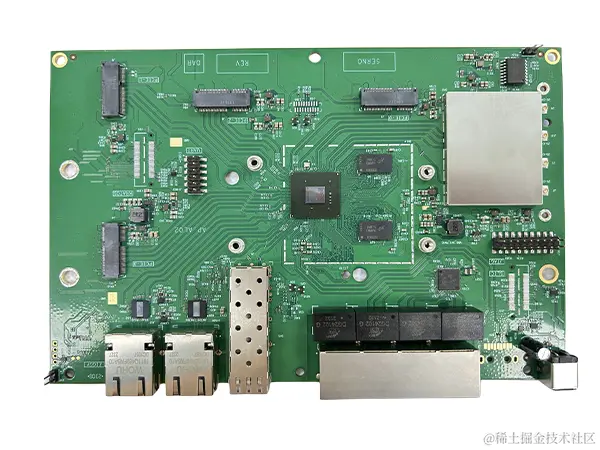

DR9574 Qualcomm IPQ9574 Quad-Core ARM-A73 @ 2.2GHz processor ‘Alder’ Series
www.wallystech.com/Routerboard…
Parameter Rating Unit
Operating Temperature Range-20 ~ 70ºC
Storage Temperature Range-40 ~ 90ºC
Operating Humidity Range5 ~ 95 (non-condensing)%
Storage Humidity Range0 ~ 90 (non-condensing)%
Symbol Parameter
Chipset Qualcomm IPQ9574 Quad-Core ARM-A73 @ 2.2GHz processor ‘Alder’ Series
WLAN Host Interface PCI Express 3.0 Interface
System Memory 2GB (2x1GB), DDR4 32-bit (2x16-bit) interface
Standard Operating Voltage 12V
Operating Systems QSDK
Host Interface 4 x M.2 E Key interface with PCIe 3.0
Antenna Cable / Port 4x U.FL Connectors
Frequency Range 2.4GHz: 2.412~2.472GHz
Data Rates for WLAN 2.4GHz 802.11b/g/n/ax/be, max 24dBm per chain
Channel Spectrum Widths for WLAN Supports 20/40MHz at 2.4GHz
Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM,1024QAM, 4096QAM
Temperature Range Operating: -20 °C to 70 °C, Storage: -40 °C to 90?°C
Humidity Operating: 5% to 95%, Storage: Max. 90%
Certification REACH & RoHS Compliance
Power Consumption 13W (Board only) 23W (with onboard WiFi, IPQ9574)
Dimensions (WxHxD) 203mm x 139mm x 20mm
Our Company
Wallys Communications (SuZhou) Co.,Ltd was established in 2010. The company is a techno-innovation enterprise specializing in the independent R&D, production and sales of wireless network products and offering wireless, which is a professional supplier specializing in product design, manufacturing. As a specialized manufacturer and exporter for these products in China,We sincerely hope to establish business relations with your esteemed corporation. We mainly develop high power wireless products based on Quacomm chip such as IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/IPQ8072/IPQ8074/QCN9074 and so on
The company utilizes its own professional knowledge and the top research and development team unceasingly breaks through, we have the hardware, the software, the RF, the antenna, the enclosure and so on design ability.
To provide customers with customized services, products from Design - Test -Certification - Production of one-stop convenient services.
Wallys independent research and development and production of standard and proprietary protocol of wireless bridge, wireless AP, and frequency conversion equipment related products, comprehensive application in security, transportation, ports, oil fields, mines, logistics, electric power, tourism, forest fire prevention, safe city and other industries, won the general customers the consistent high praise, has the good public praise and reputation in the industry.
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:sales4@wallystech.com
