第一部分

概述

传统jdbc执行步骤

使用JDBC编程需要连接数据库，注册驱动和数据库信息。
操作Connection，打开Statement对象。
通过Statement执行SQL,返回结果到ResultSet对象。
使用ResultSet读取数据，然后通过代码转化为具体的POJO对象。
关闭数据库连接资源

传统JDBC的弊端

工作量相对较大

打开连接，关闭连接，手动封装结果集
异常捕获

hibernate的缺点

全表映射带来的不便，比如更新时需要发送所有的字段
无法根据不同的条件组装不同的SQL
对多表关联和复杂SQL查询支持较差，需要自己写SQL，返回后需要自己将数据组装为POJO.
不能有效支持存储过程
虽然有HQL,但是性能较差。

使用

mybatis入门实例

新建mybatis demo项目

新建maven项目

编辑pom.xml

引入mybatis包和mysql连接包

    <groupId>com.itcv.mybatis.demo</groupId>
    <artifactId>mybatisDemo</artifactId>
    <version>1.0-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.7</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>6.0.5</version>
        </dependency>
    </dependencies>

新建mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.jdbc.Driver"/>
                <property name="url" value="jdbc:mysql://192.168.0.125:3306/empi?characterEncoding=utf8"/>
                <property name="username" value="root"/>
                <property name="password" value="123456"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <mapper resource="mapper/MatchRulesMapper.xml"/>
    </mappers>
</configuration>

新建MatchRuleMapper.xml

<select id="maxSortNum" resultType="java.lang.Integer">
  select max(sort_num) from match_rules where yn =0
</select>

新建MatchRuleMapper.java

public interface MatchRulesMapper {
    int deleteByPrimaryKey(Integer id);

    int insert(MatchRules record);

    Integer maxSortNum();
}

新建MatchRule.java

public class MatchRules {
    /**
     *
     */
    private Integer id;

    /**
     * 规则名称
     */

    private String ruleName;

    /**
     * 规则类型
     */

    private Integer ruleType;

    /**
     * 序列号
     */

    private Integer sortNum;

    /**
     * 逻辑删除标志 0.正常 1.已删除
     */
    private Byte yn;

    /**
     * 创建时间
     */
    private Date createTime;

    /**
     * 更新时间
     */
    private Date updateTime;

    /**
     * 匹配规则中文描述
     */
    private String ruleTypeStr;

    /**
     * 规则字段
     */
    private String ruleField;

    /**
     * 规则状态0.启用 1.禁用
     */
    private Byte ruleState;
}

新建测试入口

public class Demo {

    public static void main(String[] args) {
        try {
            String resource = "mybatis-config.xml";
            InputStream inputStream = Resources.getResourceAsStream(resource);
            SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
            SqlSession sqlSession = sqlSessionFactory.openSession();
            MatchRulesMapper mapper = sqlSession.getMapper(MatchRulesMapper.class);
            Integer maxNum = mapper.maxSortNum();
            System.out.println(maxNum);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

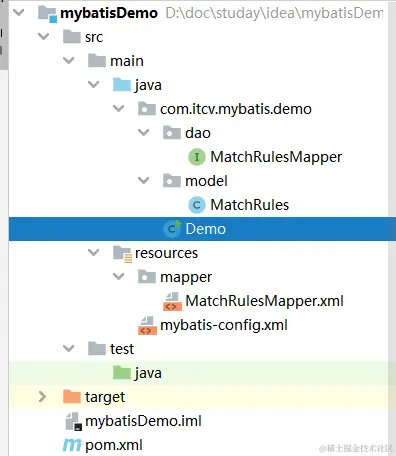

整体项目目录


                   String resource = "mybatis-config.xml";
                    //读取配置文件的数据库连接，相应的xml
                    InputStream inputStream = Resources.getResourceAsStream(resource);
                    //生成SqlSessionFactory
                    SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
                    //打开SqlSession
                    SqlSession sqlSession = sqlSessionFactory.openSession();
                   //获取接口
                    MatchRulesMapper mapper = sqlSession.getMapper(MatchRulesMapper.class);
                   //执行
                    Integer maxNum = mapper.maxSortNum();

总结

短短6行代码就能执行sql并返回结果了，吃惊
执行SQL步骤
1. 读取配置文件
2. 创建SqlSessionFactory
3. 创建SqlSession
4. 获取接口
5. 执行方法返回结果

疑问

没有定义接口的实现方法怎么就返回结果了呢？

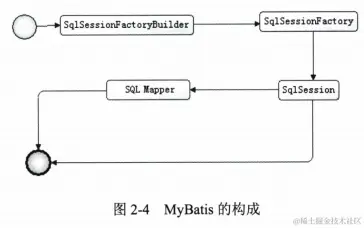

mybatis组件

SqlSessionFactoryBuilder(构造器)

它会根据配置信息或者代码来生成SqlSessionFactory.

SqlSessionFactory

依靠工厂来生成SqlSession(会话)

SqlSession

是一个既可以发送SQL去执行并返回结果，也可以获取Mapper的接口

Sql Mapper

它是Mybatis新设计的组件，它是由一个Java接口和XML文件（或注解）构成的，需要给出对应的SQL和映射规则。它负责发送SQL去执行，并返回结果。

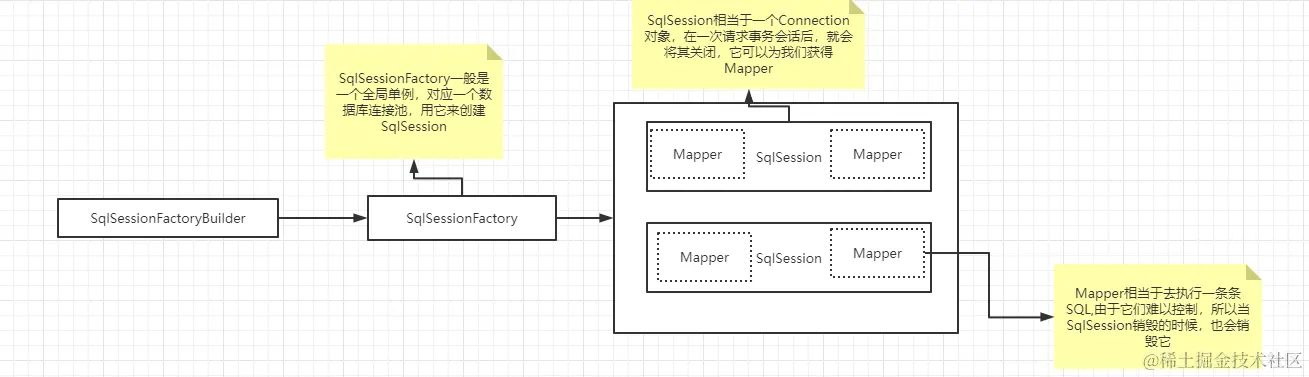

生命周期

SqlSessionFactoryBuilder

SqlSessionFactoryBuilder是利用XML或者Java编码获得资源来构建SqlSessionFactory的，通过它可以构建多个SessionFactory.它的作用就是一个构建器，一旦我们构建了SqlSessionFactory,它的作用就已经完结，失去了存在的意义。

SqlSessionFactory

SqlSessionFactory的作用是创建SqlSession,而SqlSession就是一个会话，相当于JDBC中的Connection对象。每次应用程序访问数据库都需要通过SqlSessionFactory创建SqlSession,所以SqlSessionFactory应该存在Mybatis应用的整个生命周期中。而如果我们多次创建同一个数据库的SqlSessionFactory,则每次创建SqlSessionFactory会打开更多的数据库连接资源，那么连接资源就很快被耗尽。

SqlSession

SqlSession是一个会话，相当于JDBC的一个Connection对象，它的生命周期是在请求数据库处理事务的过程中。它是一个线程不安全的对象，在涉及多线程的时候我们要特别的当心，操作数据库需要注意隔离级别，数据库锁等高级特性。

Mapper

Mapper是一个接口，没有任何实现类，它的作用是发送SQL，然后返回我们需要的结果，因此它应该在一个SqlSession事务方法之内，是一个方法级别的东西。


Mybatis配置

environments配置环境

配置环境可以注册多个数据源，每一个数据源分为两大部分，一个是数据源的配置，另外一个是数据库事务的配置。

<environments default="development">  <!-- 默认数据源-->
    <environment id="development">
        <transactionManager type="JDBC">  <!--数据库事务-->
            <property name="autoCommit" value="false"/> <!--数据源不自动提交-->
        </transactionManager>
        <dataSource type="POOLED"> <!--数据库连接方式-->
            <property name="driver" value="com.mysql.jdbc.Driver"/>
            <property name="url" value="jdbc:mysql://192.168.0.125:3306/empi?serverTimezone=UTC"/>
            <property name="username" value="root"/>
            <property name="password" value="123456"/>
        </dataSource>
    </environment>
</environments>

数据库事务

transactionManager配置的是数据库事务，其中type有三种配置方式。

JDBC,采用JDBC方式管理事务，在独立编码中常常使用。
MANAGED,采用容器方式管理事务，在JNDI数据源中常用。
自定义，由使用者自定义数据库事务管理办法，适用于特殊应用。

数据源连接信息

Mybatis提供了4种配置方式：

UNPOOLED,非连接池，使用UnpooledDataSource实现
POOLED,连接池，使用PooledDataSource实现
JNDI,JNDI数据源,使用JndiDataSourceFactory来获取数据源
自定义数据源

引入映射器的方法

用文件路径引入映射器

<mappers>
    <mapper resource="mapper/MatchRulesMapper.xml"/>
</mappers>

用包名引入映射器

<mappers>
    <package name="com.itcv.mybatis.demo.dao"/>
</mappers>

用类注册引入映射器

<mappers>
    <mapper class="com.itcv.mybatis.demo.dao.MatchRulesMapper"/>
</mappers>

用userMapper.xml映入映射器

<mappers>
    <mapper url="file:////D:\doc\studay\gitee\mybatis-3.5.7\mybatisDemo\src\main\resources\mapper"/>
</mappers>

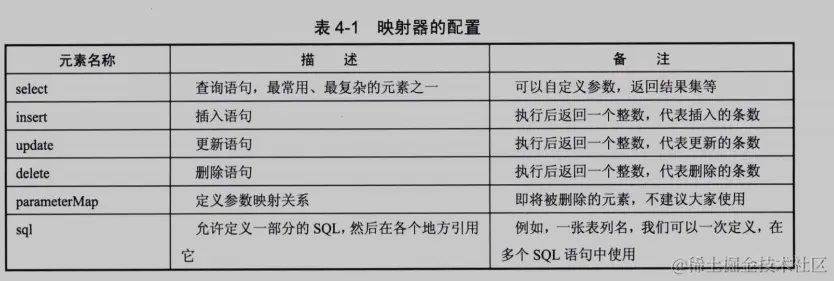

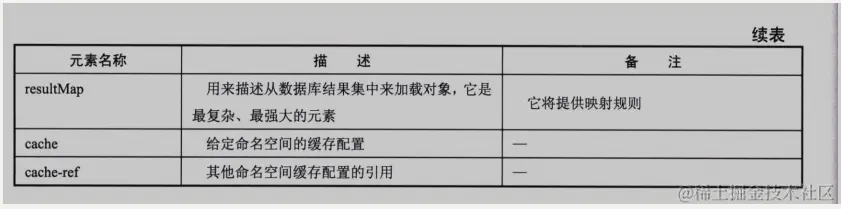

映射器

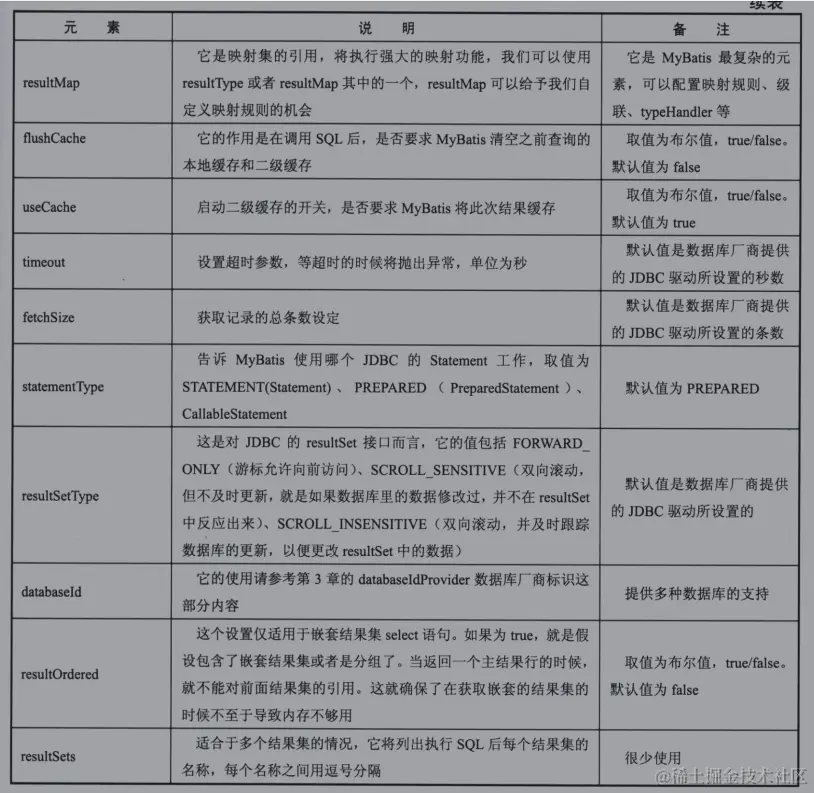

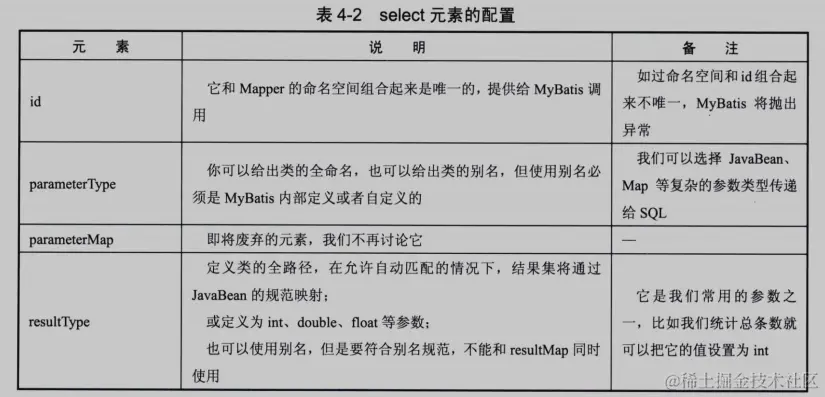

select元素

自动映射

只要返回的SQL列名和JavaBean的属性一致，MyBatis就会自动回填这些字段无需任何配置。

autoMappingBehavior 参数默认值PARTIAL

NONE,取消自动映射。
PARTIAL,只会自动映射，没有定义嵌套结果集映射的结果集。默认值
FULL,会自动映射任意复杂的结果集

传递多个参数

使用Map传递参数

<select id ="findRoleByMap" parameterType="map" resultMap ="roleMap">
   select id,role_name,note from t_role
    where role_name like concat('%',#{roleName},'%')
    and note like concat('%',#{note},'%')
</select>

List<Role> findRoleByMap(Map<String,String> params);

Map<String,String> paramsMap = new HashMap<String,String>();
paramsMap.put("roleName","me");
paramsMap.put("note","no");
roleMapper.findRoleByMap(paramsMap);

这个方法虽然简单，但是可读性差

使用注解方式传递参数

List<Role> findRoleByAnnotation(@Param("roleName") String rolename, @Param("note") String note);

<select id="findRoleByAnnotation" resultMap="roleMap">
   select id, role_name, note from t_role
    where role_name like concat ('%',#{roleName},'%')
    and note like concat('%',#{note},'%')
</select>

使用JavaBean传递参数

public class RoleParam {
    private String roleName;
    private String note;
    get/set ....省略
}

<select id ="findRoleByParms" parameterType="com.itcv.demo.RoleParam" resultMap="roleMap">
select id, role_name, note from t_role
    where role_name like concat ('%',#{roleName},'%')
    and note like concat('%',#{note},'%')
</select>

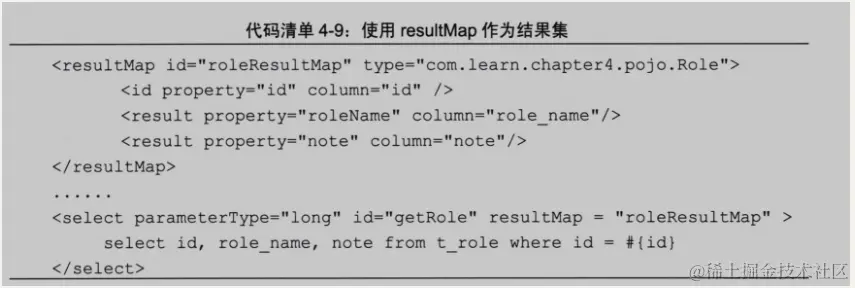

使用resultMap映射结果集

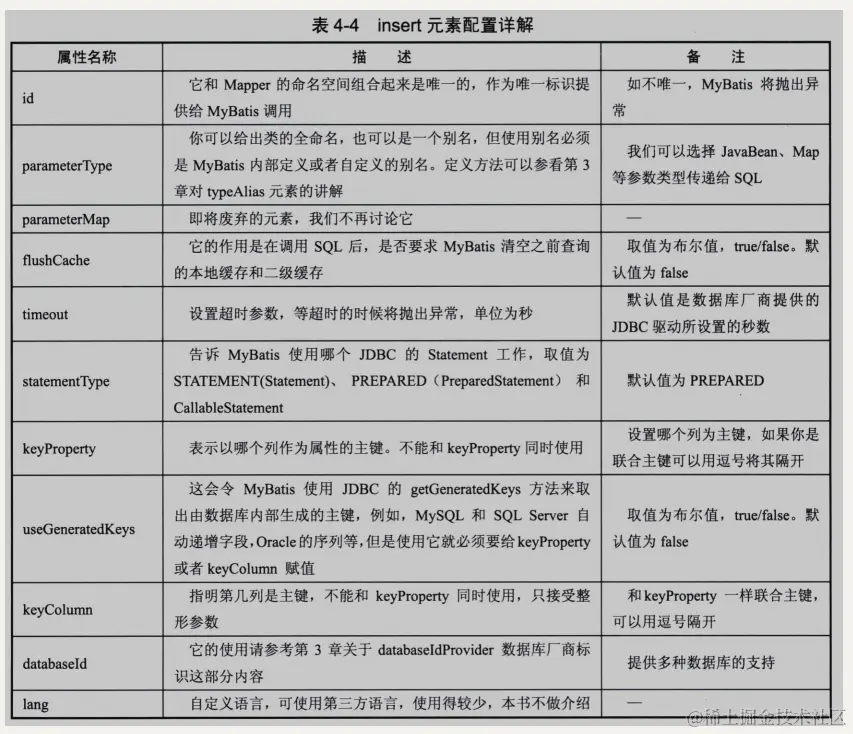

inset元素

主键回填和自定义

自增主键回填xml配置

<insert id="insertRole" parameterType="role" useGeneratedKeys="true" keyProperty="id">
  insert into t_role(role_name,note) values(#{roleName},#{note})
</insert>

自定义主键生成规则

最大id+2

<insert id="insert" parameterType="com.itcv.mybatis.demo.model.MatchRules" useGeneratedKeys="true" keyProperty="id" >
 <selectKey keyProperty="id" resultType="int" order="BEFORE">
   select if(max(id) is null,1, max(id)+2) as newId from match_rules
 </selectKey>
  insert into match_rules (id, rule_name, rule_type,
    rule_state, sort_num, rule_field,
    yn, create_time, update_time
    )
  values (#{id}, #{ruleName,jdbcType=VARCHAR}, #{ruleType,jdbcType=INTEGER},
    #{ruleState,jdbcType=TINYINT}, #{sortNum,jdbcType=INTEGER}, #{ruleField,jdbcType=VARCHAR},
    #{yn,jdbcType=TINYINT}, #{createTime,jdbcType=TIMESTAMP}, #{updateTime,jdbcType=TIMESTAMP}
    )
</insert>

resultMap结果映射集

定义构造方法

当实体类中不存在没有参数的构造方法时，只存在 public MatchRules(Integer id,String ruleName) 时就需要配置这个结果集如

<resultMap id="test" type="com.itcv.mybatis.demo.model.MatchRules">
  <constructor>
    <idArg column="id" javaType="int"></idArg>
    <arg column="rule_name" javaType="string"></arg>
  </constructor>
</resultMap>

使用map存储结果集

<select id="findMapByParam" parameterType="string" resultMap="map">
  select
  <include refid="Base_Column_List" />
  from match_rules where rule_name like concat('%',#{ruleName},'%')
</select>

使用POJO存储结果集

<resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.MatchRules" >
  <id column="id" property="id" jdbcType="INTEGER" />
  <result column="rule_name" property="ruleName" jdbcType="VARCHAR" />
  <result column="rule_type" property="ruleType" jdbcType="INTEGER" />
  <result column="rule_state" property="ruleState" jdbcType="TINYINT" />
  <result column="sort_num" property="sortNum" jdbcType="INTEGER" />
  <result column="rule_field" property="ruleField" jdbcType="VARCHAR" />
  <result column="yn" property="yn" jdbcType="TINYINT" />
  <result column="create_time" property="createTime" jdbcType="TIMESTAMP" />
  <result column="update_time" property="updateTime" jdbcType="TIMESTAMP" />
</resultMap>

级联

association，代表一对一关系
collection，代表一对多关系
discriminator，是鉴别器，可以根据特定的条件去关联不同结果集。

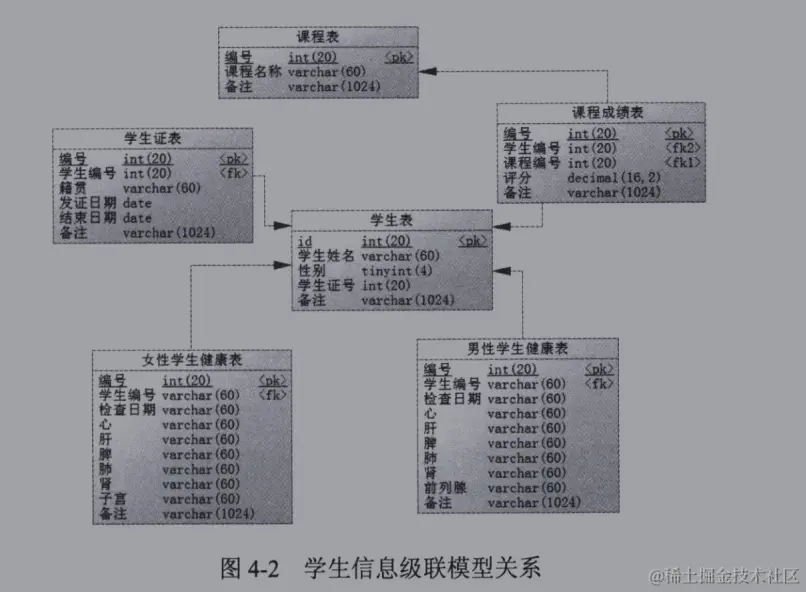

示例说明


学生表与学生证表是一对一的关系，学生表与课程成绩表是一对多的关系，学生有男有女，而健康项目也有所不一，所以男女的健康表也会有所不同，这些是根据学生的性别来决定的，而鉴别学生性别的就是鉴别器。

association 一对一级联

StudentSelfcardMapper.xml

<mapper namespace="com.itcv.mybatis.demo.dao.StudentSelfcardMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.StudentSelfcard" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="student_id" property="studentId" jdbcType="INTEGER" />
    <result column="native_address" property="nativeAddress" jdbcType="VARCHAR" />
    <result column="issue_date" property="issueDate" jdbcType="TIMESTAMP" />
    <result column="selfcard_no" property="selfcardNo" jdbcType="VARCHAR" />
  </resultMap>
      <sql id="Base_Column_List" >
    id, student_id, native_address, issue_date, selfcard_no
  </sql>
    <select id="selectByStudentId" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from student_selfcard
    where student_id = #{studentId,jdbcType=INTEGER}
  </select>
</mapper>

StudentMapper.xml

<mapper namespace="com.itcv.mybatis.demo.dao.StudentMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.Student" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="stu_name" property="stuName" jdbcType="VARCHAR" />
    <result column="selfcard_no" property="selfcardNo" jdbcType="INTEGER" />
    <result column="sex" property="sex" jdbcType="TINYINT" />
    <result column="note" property="note" jdbcType="VARCHAR" />
    <association property="studentSelfcard" column="id" select="com.itcv.mybatis.demo.dao.StudentSelfcardMapper.selectByStudentId"></association>
  </resultMap>
  <sql id="Base_Column_List" >
    id, stu_name, selfcard_no, sex, note
  </sql>
     <select id="getStudent" parameterType="int" resultMap="BaseResultMap">
      select <include refid="Base_Column_List"></include>
      from student where id =#{id}
  </select>
</mapper>

测试代码

public static void main(String[] args) {
    SqlSession sqlSession = null;
    try {
        sqlSession = SqlSessionFactoryUtil.openSqlSession();
        StudentMapper studentMapper = sqlSession.getMapper(StudentMapper.class);
        Student stu = studentMapper.getStudent(1);
        System.out.println(stu.getStudentSelfcard().getNativeAddress());
    }catch (Exception e){
        e.printStackTrace();
    }finally {
        sqlSession.close();
    }
}

这样获取学生信息的时候，就可以获取学生证的信息了。

重点代码

<association property="studentSelfcard" column="id" select="com.itcv.mybatis.demo.dao.StudentSelfcardMapper.selectByStudentId"></association>

在getStudent返回结果集里边配置这个就可以进行关联了，现在只有一个id参数，多个参数用逗号分割。

collection 一对多级联

一个学生有多门课程，没门课程都有自己的成绩。学生与课程的级联是一对多，课程与成绩是一对一级联。

StudentLectureMapper.xml 学生课程成绩表

<mapper namespace="com.itcv.mybatis.demo.dao.StudentLectureMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.StudentLecture" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="student_id" property="studentId" jdbcType="INTEGER" />
    <result column="lecture_id" property="lectureId" jdbcType="INTEGER" />
    <result column="score" property="score" jdbcType="DECIMAL" />
    <association property="lecture" column="id" select="com.itcv.mybatis.demo.dao.LectureMapper.selectByPrimaryKey"></association>
  </resultMap>
  <sql id="Base_Column_List" >
    id, student_id, lecture_id, score
  </sql>
  <select id="selectStudentLectureByStuId"  resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from student_lecture
    where student_id = #{id}
  </select>
</mapper>

LectureMapper.xml 课程表

<mapper namespace="com.itcv.mybatis.demo.dao.LectureMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.Lecture" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="lecture_name" property="lectureName" jdbcType="VARCHAR" />
    <result column="note" property="note" jdbcType="VARCHAR" />
  </resultMap>
  <sql id="Base_Column_List" >
    id, lecture_name, note
  </sql>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from lecture
    where id = #{id,jdbcType=INTEGER}
  </select>
</mapper>

StudentMapper.xml 学生表

<mapper namespace="com.itcv.mybatis.demo.dao.StudentMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.Student" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="stu_name" property="stuName" jdbcType="VARCHAR" />
    <result column="selfcard_no" property="selfcardNo" jdbcType="INTEGER" />
    <result column="sex" property="sex" jdbcType="TINYINT" />
    <result column="note" property="note" jdbcType="VARCHAR" />
    <association property="studentSelfcard" column="id" select="com.itcv.mybatis.demo.dao.StudentSelfcardMapper.selectByStudentId"></association>
    <collection property="studentLectureList" column="id" select="com.itcv.mybatis.demo.dao.StudentLectureMapper.selectStudentLectureByStuId"></collection>
  </resultMap>
  <sql id="Base_Column_List" >
    id, stu_name, selfcard_no, sex, note
  </sql>
  <select id="getStudent" parameterType="int" resultMap="BaseResultMap">
      select <include refid="Base_Column_List"></include>
      from student where id =#{id}
  </select>
</mapper>

测试代码

public static void main(String[] args) {
    SqlSession sqlSession = null;
    try {
        sqlSession = SqlSessionFactoryUtil.openSqlSession();
        StudentMapper studentMapper = sqlSession.getMapper(StudentMapper.class);
        Student stu = studentMapper.getStudent(1);
        System.out.println(stu.getStudentSelfcard().getNativeAddress());
        List<StudentLecture> studentLectureList = stu.getStudentLectureList();
        System.out.println(studentLectureList.size());
    }catch (Exception e){
        e.printStackTrace();
    }finally {
        sqlSession.close();
    }
}

总结

配置一对多级联步骤

在resultMap中配置

<collection property="studentLectureList" column="id" select="com.itcv.mybatis.demo.dao.StudentLectureMapper.selectStudentLectureByStuId"></collection>
  </resultMap>

在student类中添加 List studentLectureList 属性
在StudentLectureMapper接口中添加根据id查询课程成绩的接口

discriminator 鉴别器级联

根据不同的条件，关联不同的数据，比如根据性别去关联健康指标

StudentHealthFemaleMapper.xml

<mapper namespace="com.itcv.mybatis.demo.dao.StudentHealthFemaleMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.StudentHealthFemale" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="student_id" property="studentId" jdbcType="VARCHAR" />
    <result column="check_date" property="checkDate" jdbcType="TIMESTAMP" />
    <result column="heart" property="heart" jdbcType="VARCHAR" />
    <result column="liver" property="liver" jdbcType="VARCHAR" />
    <result column="kidney" property="kidney" jdbcType="VARCHAR" />
    <result column="uterus" property="uterus" jdbcType="VARCHAR" />
  </resultMap>
  <sql id="Base_Column_List" >
    id, student_id, check_date, heart, liver, kidney, uterus
  </sql>
  <select id="findStudentHealthFemaleByStuId" resultMap="BaseResultMap" parameterType="java.lang.Integer">
    select <include refid="Base_Column_List"/>
    from student_health_female
    where student_id = #{studentId}
  </select>
</mapper>

StudentMapper.xml

<mapper namespace="com.itcv.mybatis.demo.dao.StudentMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.Student" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="stu_name" property="stuName" jdbcType="VARCHAR" />
    <result column="selfcard_no" property="selfcardNo" jdbcType="INTEGER" />
    <result column="sex" property="sex" jdbcType="TINYINT" />
    <result column="note" property="note" jdbcType="VARCHAR" />
    <association property="studentSelfcard" column="id" select="com.itcv.mybatis.demo.dao.StudentSelfcardMapper.selectByStudentId"></association>
    <collection property="studentLectureList" column="id" select="com.itcv.mybatis.demo.dao.StudentLectureMapper.selectStudentLectureByStuId"></collection>
    <discriminator javaType="int" column="sex">
      <case value="1" resultMap="femaleStudent"></case>
      <case value="2" resultMap="maleStudent"></case>
    </discriminator>
  </resultMap>
  <resultMap id="maleStudent" type="com.itcv.mybatis.demo.model.MaleStudent" extends="BaseResultMap">
    <collection property="studentHealthMaleList" column="id" select="com.itcv.mybatis.demo.dao.StudentHealthMaleMapper.findStudentHealthMaleByStuId"></collection>
  </resultMap>
  <resultMap id="femaleStudent" type="com.itcv.mybatis.demo.model.FemaleStudent" extends="BaseResultMap">
    <collection property="studentHealthFemaleList" column="id" select="com.itcv.mybatis.demo.dao.StudentHealthFemaleMapper.findStudentHealthFemaleByStuId"></collection>
  </resultMap>
<select id="getStudent" parameterType="int" resultMap="BaseResultMap">
      select <include refid="Base_Column_List"></include>
      from student where id =#{id}
  </select>
</mapper>

FemaleStudent

public class FemaleStudent extends Student {

    private List<StudentHealthFemale>  studentHealthFemaleList;

    public List<StudentHealthFemale> getStudentHealthFemaleList() {
        return studentHealthFemaleList;
    }

    public void setStudentHealthFemaleList(List<StudentHealthFemale> studentHealthFemaleList) {
        this.studentHealthFemaleList = studentHealthFemaleList;
    }

}

测试代码

public class DiscriminatorTest {
    public static void main(String[] args) {
        SqlSession sqlSession = null;
        try {
            sqlSession = SqlSessionFactoryUtil.openSqlSession();
            StudentMapper studentMapper = sqlSession.getMapper(StudentMapper.class);
            Student stu =  studentMapper.getStudent(1);
            String str =  stu.getSex().toString().equals("1")?"男":"女";
            System.out.println("姓名："+stu.getStuName()+" 学号： "+stu.getSelfcardNo()+"性别： "+str);
            System.out.println("籍贯："+stu.getStudentSelfcard().getNativeAddress());
            System.out.println("课程 ：              成绩：           ");
            for(StudentLecture studentLecture :stu.getStudentLectureList()){
                System.out.println(studentLecture.getLecture().getLectureName()+"              "+studentLecture.getScore());
            }
            System.out.println("健康信息");
            if(stu.getSex().toString().equals("1")){
                FemaleStudent femaleStudent = (FemaleStudent) stu;
                List<StudentHealthFemale> studentHealthFemaleList = femaleStudent.getStudentHealthFemaleList();
                for (StudentHealthFemale female: studentHealthFemaleList) {
                    System.out.println(female.getUterus());
                }
            }
        }catch (Exception e){
            e.printStackTrace();
        }finally {
            sqlSession.close();
        }
    }
}

总结

mybatis配置鉴别器级联步骤

添加xml配置

<discriminator javaType="int" column="sex">
      <case value="1" resultMap="femaleStudent"></case>
      <case value="2" resultMap="maleStudent"></case>
</discriminator>
<resultMap id="femaleStudent" type="com.itcv.mybatis.demo.model.FemaleStudent" extends="BaseResultMap">
    <collection property="studentHealthFemaleList" column="id" select="com.itcv.mybatis.demo.dao.StudentHealthFemaleMapper.findStudentHealthFemaleByStuId"></collection>
  </resultMap>

新建java类 FemaleStudent extends Student
在StudentHealthFemaleMapper中添加查询方法

性能分析

级联的优势是能方便的获取数据，它的缺点是会取出我们不需要的数据，比如查询成绩时，会把健康信息带出来，有一个关联就需要多执行一次sql,这样就会造成sql执行过多，导致性能下降。

延迟加载

为了处理多执行sql的问题，MyBatis引入了延迟加载的功能。

全局配置延迟加载

mybatis-config.xml配置

<settings>
    <setting name="lazyLoadingEnabled" value="true"/>  <!--开启延迟加载  单独配置这个是不生效的-->
    <setting name="aggressiveLazyLoading" value="false"/> <!--默认true 按层级加载  否则按需加载 -->
    <!--解释一下按层级加载  通俗的说就是有直接关系  举例： 学生与成绩是有直接关系的，会加载，课程跟学生是没有直接关系的，所以不会加载-->
</settings>

局部延迟加载

局部延迟加载的出现是因为全局配置不够灵活，比如有些属性需要延迟，有些不需要延迟，即时加载性能会提高。

mybatis-config.xml配置

<settings>
    <setting name="lazyLoadingEnabled" value="true"/>
   <!-- <setting name="aggressiveLazyLoading" value="false"/>-->
</settings>

StudentMapper.xml 需要设置即使加载的添加 fetchType="eager" 默认值延迟加载的设置为lazy

<mapper namespace="com.itcv.mybatis.demo.dao.StudentMapper" >
  <resultMap id="BaseResultMap" type="com.itcv.mybatis.demo.model.Student" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="stu_name" property="stuName" jdbcType="VARCHAR" />
    <result column="selfcard_no" property="selfcardNo" jdbcType="INTEGER" />
    <result column="sex" property="sex" jdbcType="TINYINT" />
    <result column="note" property="note" jdbcType="VARCHAR" />
    <association property="studentSelfcard" fetchType="lazy" column="id" select="com.itcv.mybatis.demo.dao.StudentSelfcardMapper.selectByStudentId"></association>
    <collection property="studentLectureList" fetchType="eager" column="id" select="com.itcv.mybatis.demo.dao.StudentLectureMapper.selectStudentLectureByStuId"></collection>
    <discriminator javaType="int" column="sex">
      <case value="1" resultMap="femaleStudent"></case>
      <case value="2" resultMap="maleStudent"></case>
    </discriminator>
  </resultMap>

缓存 cache

MyBatis默认情况下只开启一级缓存（一级缓存只对相对于同一个SqlSession而言）

一级缓存

所有参数和SQL完全一样的情况下，我们使用同一个SqlSession调用同一个Mapper的方法，往往只执行一次SQL,因为使用SqlSession第一次查询后，MyBatis会将其放在缓存中，如果没有声明要刷新，且缓存没超时的情况下，SqlSession都只会取出当前缓存的数据。

二级缓存

二级缓存在SqlSessionFactory层面上能够提供给各个SqlSession对象共享，实现二级缓存的时候，MyBatis要求返回的POJO必须是可序列化的。

配置二级缓存

只需要在映射XML文件配置就可以开启缓存了，默认配置

<!--开启二级缓存-->
<cache/>

如果是这样配置的话，那么意味着：

映射语句文件中的所有select 语句将会被缓存。
映射语句文件中的所有insert、update和delete语句会刷新缓存。
缓存会使用默认的Least Recently Used(LRU,最近很少使用)算法来收回。
根据时间表，比如No Flush Interval,(CNFI,没有刷新间隔),缓存不会以任何时间顺序来刷新。
缓存会存储列表集合或对象（无论查询返回什么）的1024个引用。
缓存会被视为是read/write(可读/可写)的缓存，意味着检索对象不是共享的，而且可以安全地被调用者修改，不干扰其他调用者或线程所做的潜在修改。

修改默认配置

<!--开启二级缓存-->
<cache eviction="LRU" flushInterval="100000" size="1024" readOnly="true"/>

eviction:代表缓存回收策略，目前Mybatis提供以下策略。
1. LRU,最近最少使用的，移除最长时间不用的对象
2. FIFO,先进先出，按对象进入缓存的顺序来移除它们。
3. SOFT,软引用，移除基于垃圾回收器状态和软引用规则的对象。
4. WEAK,弱引用，更积极地移除基于垃圾收集器状态和弱引用规则的对象。
flushInterval: 刷新间隔时间，单位为毫秒，这里配置的是100秒刷新，如果不配置的话，当SQL被执行的时候才会刷新缓存。
size: 引用数目，一个正整数，代表缓存最多可以存储多少个对象，不宜设置过大
readOnly: 只读，意味着缓存数据只能读取不能修改。默认值为false，不允许我们修改

自定义缓存

系统缓存是Mybatis应用机器上的本地缓存，但是在大型服务器上，会使用各类不同的缓存服务器，这个时候我们可以定制缓存。

动态sql

bind元素

<select id="getStudent" parameterType="int" resultMap="BaseResultMap">
   <bind name="pattern" value="'%'+ id+'%'"/>
    select <include refid="Base_Column_List"></include>
    from student where id like #{pattern}
</select>

// ****** ****** ****** ****** ****** ****** 第二部分源码分析 ****** ****** ****** ****** ****** ****** ****** ****** ****** ***/

源码分析

MyBatis的运行分为两大部分，第一部分是读取配置文件缓存到Configuration对象，用以创建SqlSessionFactory,第二部分是SqlSession的执行过程。

设计的技术难点简介

动态代理

JDK反射机制提供的代理

JDK提供的代理必须要提供接口

CGLIB代理

CGLIB不需要提供接口

start

public static void main(String[] args) {
    try {
        String resource = "mybatis-config.xml";
        InputStream inputStream = Resources.getResourceAsStream(resource);
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
        SqlSession sqlSession = sqlSessionFactory.openSession();
        MatchRulesMapper mapper = sqlSession.getMapper(MatchRulesMapper.class);
     //   ProxyUtils.generateClassFile(mapper.getClass(),"MatchRulesProxy");
        Integer maxNum = mapper.maxSortNum();
        System.out.println(maxNum);
    } catch (IOException e) {
        e.printStackTrace();
    }
}

读取mybatis-config.xml配置文件，生成输入流

InputStream inputStream = Resources.getResourceAsStream(resource);

SqlSessionFactoryBuilder通过输入流构建SqlSessionFactory

西红柿炒鸡蛋需要的材料准备好了

SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
public class SqlSessionFactoryBuilder {
    public SqlSessionFactoryBuilder(){}//没有属性
}

SqlSessionFactoryBuilder.build(inputStream)

public class SqlSessionFactoryBuilder {
public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
    XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, null, null);
    return build(parser.parse());
}
}

实例化XMLConfigBuilder

public class XMLConfigBuilder extends BaseBuilder {

  private boolean parsed;
  private final XPathParser parser;
  private String environment;
  private final ReflectorFactory localReflectorFactory = new DefaultReflectorFactory();
    private XMLConfigBuilder(XPathParser parser, String environment = null, Properties props = null) {
        //初始化configuration
        super(new Configuration());
        ErrorContext.instance().resource("SQL Mapper Configuration");//这个代码先忽略
        this.configuration.setVariables(props);
        this.parsed = false;
        this.environment = environment;
        this.parser = parser;
    }
}
public class DefaultReflectorFactory implements ReflectorFactory {
  private boolean classCacheEnabled = true;
  private final ConcurrentMap<Class<?>, Reflector> reflectorMap = new ConcurrentHashMap<>();
}

实例化Configuration()

public class Configuration {
    //属性太多了，这里没有全部列举
    protected final TypeAliasRegistry typeAliasRegistry = new TypeAliasRegistry();
    protected final LanguageDriverRegistry languageRegistry = new LanguageDriverRegistry();

    public Configuration() { //初始化Configuration
        typeAliasRegistry.registerAlias("JDBC", JdbcTransactionFactory.class);
        typeAliasRegistry.registerAlias("MANAGED", ManagedTransactionFactory.class);

        typeAliasRegistry.registerAlias("JNDI", JndiDataSourceFactory.class);
        typeAliasRegistry.registerAlias("POOLED", PooledDataSourceFactory.class);
        typeAliasRegistry.registerAlias("UNPOOLED", UnpooledDataSourceFactory.class);

        typeAliasRegistry.registerAlias("PERPETUAL", PerpetualCache.class);
        typeAliasRegistry.registerAlias("FIFO", FifoCache.class);
        typeAliasRegistry.registerAlias("LRU", LruCache.class);
        typeAliasRegistry.registerAlias("SOFT", SoftCache.class);
        typeAliasRegistry.registerAlias("WEAK", WeakCache.class);
        typeAliasRegistry.registerAlias("DB_VENDOR", VendorDatabaseIdProvider.class);
        typeAliasRegistry.registerAlias("XML", XMLLanguageDriver.class);
        typeAliasRegistry.registerAlias("RAW", RawLanguageDriver.class);
        typeAliasRegistry.registerAlias("SLF4J", Slf4jImpl.class);
        typeAliasRegistry.registerAlias("COMMONS_LOGGING", JakartaCommonsLoggingImpl.class);
        typeAliasRegistry.registerAlias("LOG4J", Log4jImpl.class);
        typeAliasRegistry.registerAlias("LOG4J2", Log4j2Impl.class);
        typeAliasRegistry.registerAlias("JDK_LOGGING", Jdk14LoggingImpl.class);
        typeAliasRegistry.registerAlias("STDOUT_LOGGING", StdOutImpl.class);
        typeAliasRegistry.registerAlias("NO_LOGGING", NoLoggingImpl.class);

        typeAliasRegistry.registerAlias("CGLIB", CglibProxyFactory.class);
        typeAliasRegistry.registerAlias("JAVASSIST", JavassistProxyFactory.class);

        languageRegistry.setDefaultDriverClass(XMLLanguageDriver.class);
        languageRegistry.register(RawLanguageDriver.class);
      }
    }
}

添加到map中

public class TypeAliasRegistry {
  private final Map<String, Class<?>> typeAliases = new HashMap<>();
  public void registerAlias(String alias, Class<?> value) {
        // issue #748
      String key = alias.toLowerCase(Locale.ENGLISH);
      if (typeAliases.containsKey(key) && typeAliases.get(key) != null && !typeAliases.get(key).equals(value)) {
         throw new TypeException("The alias '" + alias + "' is already mapped to the value '" + typeAliases.get(key).getName() + "'.");
      }
        typeAliases.put(key, value);
    }
}

XMLLanguageDriver,RawLanguageDriver实例化之后放到map里边

public class LanguageDriverRegistry{
    private final Map<Class<? extends LanguageDriver>, LanguageDriver> LANGUAGE_DRIVER_MAP = new HashMap<>();
    private Class<? extends LanguageDriver> defaultDriverClass;
     public void register(Class<? extends LanguageDriver> cls) {
         //判断类是否存放在map中，不存在则实例化然后放进去
    MapUtil.computeIfAbsent(LANGUAGE_DRIVER_MAP, cls, k -> {
        return k.getDeclaredConstructor().newInstance();
    });
  }
}

XMLLanguageDriver 是一个空对象 implements LanguageDriver；

RawLanguageDriver extends XMLLanguageDriver，RawLanguageDriver也是一个空对象；

给XMLConfigBuilder赋值

public abstract class BaseBuilder {
  protected final Configuration configuration;
  protected final TypeAliasRegistry typeAliasRegistry;
  protected final TypeHandlerRegistry typeHandlerRegistry;

  public BaseBuilder(Configuration configuration) {
    this.configuration = configuration;
      //别名记录  "_boolean" --> Boolean.class
    this.typeAliasRegistry = this.configuration.getTypeAliasRegistry();
      //别名记录
    this.typeHandlerRegistry = this.configuration.getTypeHandlerRegistry();
  }

XMLConfigBuilder.parse()

解析mybatis-config.xml,*Mapper.xml 文件

public Configuration parse() {
  parsed = true;
  parseConfiguration(parser.evalNode("/configuration"));
  return configuration;
}
//解析配置文件并放到configuration中
 private void parseConfiguration(XNode root) {
     //解析 全局参数properties配置
      propertiesElement(root.evalNode("properties"));
     //获取settings配置属性
      Properties settings = settingsAsProperties(root.evalNode("settings"));
     //vfs
      loadCustomVfs(settings);
     //日志设置
      loadCustomLogImpl(settings);
     //typeAliases别名配置
      typeAliasesElement(root.evalNode("typeAliases"));
     //插件解析
      pluginElement(root.evalNode("plugins"));
      objectFactoryElement(root.evalNode("objectFactory"));
      objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
      reflectorFactoryElement(root.evalNode("reflectorFactory"));
      settingsElement(settings);
     //environments配置解析
      environmentsElement(root.evalNode("environments"));
      databaseIdProviderElement(root.evalNode("databaseIdProvider"));
      typeHandlerElement(root.evalNode("typeHandlers"));
       //解析mapper巴拉巴拉
      mapperElement(root.evalNode("mappers"));
  }

解析全局参数properties配置

把解析出来的properties放到 configuration.setVariables属性中，resource 和 url 同时配置会报错

<properties resource="jdbc.properties"></properties>
private void propertiesElement(XNode context) throws Exception {
  if (context != null) {
    Properties defaults = context.getChildrenAsProperties();
    String resource = context.getStringAttribute("resource");
    String url = context.getStringAttribute("url");
       // resource 和 url 同时配置会报错
    if (resource != null) {
      defaults.putAll(Resources.getResourceAsProperties(resource));
    } else if (url != null) {
      defaults.putAll(Resources.getUrlAsProperties(url));
    }
    Properties vars = configuration.getVariables();
    if (vars != null) {
      defaults.putAll(vars);
    }
    parser.setVariables(defaults);
    configuration.setVariables(defaults);
  }
}

解析environments配置 environmentsElement（）

配置如下：

<environments default="development">
    <environment id="development">
        <transactionManager type="JDBC">
            <property name="autoCommit" value="false"/>
        </transactionManager>
        <dataSource type="POOLED">
            <property name="driver" value="com.mysql.jdbc.Driver"/>
            <property name="url" value="jdbc:mysql://192.168.0.131:3306/mybatis?serverTimezone=UTC"/>
            <property name="username" value="root"/>
            <property name="password" value="root"/>
        </dataSource>
    </environment>
</environments>

为configuration设置数据库环境

private void environmentsElement(XNode context) throws Exception {
  if (context != null) {
    if (environment == null) {
      environment = context.getStringAttribute("default");//"development" 默认环境
    }
    for (XNode child : context.getChildren()) { // <environment>
      String id = child.getStringAttribute("id"); // development
      if (isSpecifiedEnvironment(id)) { //判断参数enviroment 是否跟id一致
        TransactionFactory txFactory = transactionManagerElement(child.evalNode("transactionManager"));//事务配置 返回一个事务工厂
        DataSourceFactory dsFactory = dataSourceElement(child.evalNode("dataSource"));//数据源配置
        DataSource dataSource = dsFactory.getDataSource();
        Environment.Builder environmentBuilder = new Environment.Builder(id)
            .transactionFactory(txFactory)
            .dataSource(dataSource);
          // configuration设置environment
        configuration.setEnvironment(environmentBuilder.build());
        break;
      }
    }
  }
}
//实例化JdbcTransactionFactory并返回
  private TransactionFactory transactionManagerElement(XNode context) throws Exception {
    if (context != null) {
      String type = context.getStringAttribute("type"); // type ="JDBC"
      Properties props = context.getChildrenAsProperties();
        //从configuration.typeAliasRegistry中获取JdbcTransactionFactory并进行实例化
      TransactionFactory factory = (TransactionFactory) resolveClass(type).getDeclaredConstructor().newInstance();
      factory.setProperties(props);
      return factory;
    }
    throw new BuilderException("Environment declaration requires a TransactionFactory.");
  }
// 实例化一个DataSourceFactory并返回
  private DataSourceFactory dataSourceElement(XNode context) throws Exception {
    if (context != null) {
      String type = context.getStringAttribute("type"); // type ="POOLED"
      Properties props = context.getChildrenAsProperties();
        // 实例化PooledDataSourceFactory
      DataSourceFactory factory = (DataSourceFactory) resolveClass(type).getDeclaredConstructor().newInstance();
      factory.setProperties(props);
      return factory;
    }
    throw new BuilderException("Environment declaration requires a DataSourceFactory.");
  }


}

public class PooledDataSourceFactory extends UnpooledDataSourceFactory {
  public PooledDataSourceFactory() {
    this.dataSource = new PooledDataSource();
  }
}

public class PooledDataSource implements DataSource {

  private static final Log log = LogFactory.getLog(PooledDataSource.class);

  private final PoolState state = new PoolState(this);

  private final UnpooledDataSource dataSource;

  // OPTIONAL CONFIGURATION FIELDS
  protected int poolMaximumActiveConnections = 10;
  protected int poolMaximumIdleConnections = 5;
  protected int poolMaximumCheckoutTime = 20000;
  protected int poolTimeToWait = 20000;
  protected int poolMaximumLocalBadConnectionTolerance = 3;
  protected String poolPingQuery = "NO PING QUERY SET";
  protected boolean poolPingEnabled;
  protected int poolPingConnectionsNotUsedFor;

  private int expectedConnectionTypeCode;

  public PooledDataSource() {
    dataSource = new UnpooledDataSource();
  }
}

public class UnpooledDataSource implements DataSource {

  private ClassLoader driverClassLoader;
  private Properties driverProperties;
  private static Map<String, Driver> registeredDrivers = new ConcurrentHashMap<>();

  private String driver;
  private String url;
  private String username;
  private String password;

  private Boolean autoCommit;
  private Integer defaultTransactionIsolationLevel;
  private Integer defaultNetworkTimeout;

  static {
    Enumeration<Driver> drivers = DriverManager.getDrivers();
    while (drivers.hasMoreElements()) {
      Driver driver = drivers.nextElement();
      registeredDrivers.put(driver.getClass().getName(), driver);
    }
  }

  public UnpooledDataSource() {
  }
    // 设置数据库连接
    public void setProperties(Properties properties) {
    Properties driverProperties = new Properties();
    MetaObject metaDataSource = SystemMetaObject.forObject(dataSource);
    for (Object key : properties.keySet()) {
      String propertyName = (String) key;
      if (propertyName.startsWith(DRIVER_PROPERTY_PREFIX)) {
        String value = properties.getProperty(propertyName);
        driverProperties.setProperty(propertyName.substring(DRIVER_PROPERTY_PREFIX_LENGTH), value);
      } else if (metaDataSource.hasSetter(propertyName)) {
        String value = (String) properties.get(propertyName);
        Object convertedValue = convertValue(metaDataSource, propertyName, value);
        metaDataSource.setValue(propertyName, convertedValue);
      } else {
        throw new DataSourceException("Unknown DataSource property: " + propertyName);
      }
    }
    if (driverProperties.size() > 0) {
      metaDataSource.setValue("driverProperties", driverProperties);
    }
  }
}

解析mappers配置 mapperElement（）

<mappers>
    <mapper resource="mapper/MatchRulesMapper.xml"/>
    <mapper resource="mapper/StudentMapper.xml"/>
</mappers>

//读取MatchRulesMapper.xml文件放到configuration中

private void mapperElement(XNode parent) throws Exception {
  if (parent != null) {
    for (XNode child : parent.getChildren()) {//遍历<mapper>
      if ("package".equals(child.getName())) {
        String mapperPackage = child.getStringAttribute("name");
        configuration.addMappers(mapperPackage);
      } else {
        String resource = child.getStringAttribute("resource");
        String url = child.getStringAttribute("url");
        String mapperClass = child.getStringAttribute("class");
        if (resource != null && url == null && mapperClass == null) { //走到这里了
          ErrorContext.instance().resource(resource);
          try(InputStream inputStream = Resources.getResourceAsStream(resource)) { //读取文件
            XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
            mapperParser.parse();
          }
        } else if (resource == null && url != null && mapperClass == null) {
          ErrorContext.instance().resource(url);
          try(InputStream inputStream = Resources.getUrlAsStream(url)){
            XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
            mapperParser.parse();
          }
        } else if (resource == null && url == null && mapperClass != null) {
          Class<?> mapperInterface = Resources.classForName(mapperClass);
          configuration.addMapper(mapperInterface);
        } else {
          throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
        }
      }
    }
  }
}

构建XMLMapperBuilder

public class XMLMapperBuilder extends BaseBuilder {

  private final XPathParser parser;
  private final MapperBuilderAssistant builderAssistant;
  private final Map<String, XNode> sqlFragments;
  private final String resource;

  public XMLMapperBuilder(InputStream inputStream, Configuration configuration, String resource, Map<String, XNode> sqlFragments) {
      //读取输入流生成docment
    this(new XPathParser(inputStream, true, configuration.getVariables(), new XMLMapperEntityResolver()),
        configuration, resource, sqlFragments);
  }
   private XMLMapperBuilder(XPathParser parser, Configuration configuration, String resource, Map<String, XNode> sqlFragments) {
    super(configuration);// 同 2.1.1.2 赋值configuration
    this.builderAssistant = new MapperBuilderAssistant(configuration, resource);
    this.parser = parser;
    this.sqlFragments = sqlFragments;
    this.resource = resource;
  }
}

public class MapperBuilderAssistant extends BaseBuilder {

  private String currentNamespace;
  private final String resource;
  private Cache currentCache;
  private boolean unresolvedCacheRef; // issue #676

  public MapperBuilderAssistant(Configuration configuration, String resource) {
    super(configuration);
    ErrorContext.instance().resource(resource);
    this.resource = resource;
  }
}

XMLMapperBuilder.parse()

public void parse() {
  if (!configuration.isResourceLoaded(resource)) { //判断resource是否已经加载过了
    configurationElement(parser.evalNode("/mapper")); //获取节点mapper的所有数据解析
    configuration.addLoadedResource(resource); //将resource 添加到configuration中Set<String> LoadedResource 中
    bindMapperForNamespace();//将namespace 添加到loadedResource
  }
  parsePendingResultMaps();
  parsePendingCacheRefs();
  parsePendingStatements();
}

获取mapper标签进行解析 configurationElement(parser.evalNode("/mapper"));

//解析mapper节点中的数据
  private void configurationElement(XNode context) {
    try {
      String namespace = context.getStringAttribute("namespace");// "com.itcv.mybatis.demo.dao.MatchRulesMapper"
      if (namespace == null || namespace.isEmpty()) {
        throw new BuilderException("Mapper's namespace cannot be empty");
      }
      builderAssistant.setCurrentNamespace(namespace);
      cacheRefElement(context.evalNode("cache-ref"));
      cacheElement(context.evalNode("cache")); //是否启用二级缓存 构建了一个Cache类并放到configuration中
      parameterMapElement(context.evalNodes("/mapper/parameterMap")); //查询参数 构建ParameterMap 放到configuration中
      resultMapElements(context.evalNodes("/mapper/resultMap")); //结果集 解析resultMap放到configuration中
      sqlElement(context.evalNodes("/mapper/sql"));// 解析sql 放到sqlFragments属性中
      buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
    } catch (Exception e) {
      throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
    }
  }

1.1 解析cache标签

//cache解析
private void cacheElement(XNode context) {
    if (context != null) {
      String type = context.getStringAttribute("type", "PERPETUAL"); //是否自定义缓存 默认PERPETUAL
      Class<? extends Cache> typeClass = typeAliasRegistry.resolveAlias(type); //PerpetualCache
      String eviction = context.getStringAttribute("eviction", "LRU");//回收内存策略 默认LRU
      Class<? extends Cache> evictionClass = typeAliasRegistry.resolveAlias(eviction);
      Long flushInterval = context.getLongAttribute("flushInterval"); //刷新间隔 单位ms
      Integer size = context.getIntAttribute("size");
      boolean readWrite = !context.getBooleanAttribute("readOnly", false);
      boolean blocking = context.getBooleanAttribute("blocking", false);
      Properties props = context.getChildrenAsProperties();
        //构建了一个Cache类并放到configuration中
      builderAssistant.useNewCache(typeClass, evictionClass, flushInterval, size, readWrite, blocking, props);
    }
  }

1.2 解析"select|insert|update|delete"标签

//"select|insert|update|delete" 解析这些标签 构建了 MappedStatement statement = statementBuilder.build();
//并且把statement 放到了configuration中    configuration.addMappedStatement(statement);
 private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
    for (XNode context : list) {
        //实例化并赋值
      final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
      try {
        statementParser.parseStatementNode();
      } catch (IncompleteElementException e) {
        configuration.addIncompleteStatement(statementParser);
      }
    }
  }

1.2.1 "select|insert|update|delete" 解析这些标签并生成statement

public class MapperBuilderAssistant extends BaseBuilder {
MappedStatement.Builder statementBuilder = new MappedStatement.Builder(configuration, id, sqlSource, sqlCommandType)
      .resource(resource)
      .fetchSize(fetchSize)
      .timeout(timeout)
      .statementType(statementType)
      .keyGenerator(keyGenerator)
      .keyProperty(keyProperty)
      .keyColumn(keyColumn)
      .databaseId(databaseId)
      .lang(lang)
      .resultOrdered(resultOrdered)
      .resultSets(resultSets)
      .resultMaps(getStatementResultMaps(resultMap, resultType, id))
      .resultSetType(resultSetType)
      .flushCacheRequired(valueOrDefault(flushCache, !isSelect))
      .useCache(valueOrDefault(useCache, isSelect))
      .cache(currentCache);

  ParameterMap statementParameterMap = getStatementParameterMap(parameterMap, parameterType, id);
  if (statementParameterMap != null) {
    statementBuilder.parameterMap(statementParameterMap);
  }

  MappedStatement statement = statementBuilder.build();
  configuration.addMappedStatement(statement);
  return statement;
}
}

XMLConfigBuilder.bindMapperForNamespace()

private void bindMapperForNamespace() {
  String namespace = builderAssistant.getCurrentNamespace();
  if (namespace != null) {
    Class<?> boundType = null;
    try {
      boundType = Resources.classForName(namespace);
    } catch (ClassNotFoundException e) {
      // ignore, bound type is not required
    }
    if (boundType != null && !configuration.hasMapper(boundType)) {
      // Spring may not know the real resource name so we set a flag
      // to prevent loading again this resource from the mapper interface
      // look at MapperAnnotationBuilder#loadXmlResource
      configuration.addLoadedResource("namespace:" + namespace);
      configuration.addMapper(boundType);
    }
  }
}

2.1 configuration.addMapper

protected final MapperRegistry mapperRegistry = new MapperRegistry(this);
public <T> void addMapper(Class<T> type) {
  mapperRegistry.addMapper(type);
}

public class MapperRegistry {

  private final Configuration config;
  private final Map<Class<?>, MapperProxyFactory<?>> knownMappers = new HashMap<>();

  public MapperRegistry(Configuration config) {
    this.config = config;
  }
    public <T> void addMapper(Class<T> type) {
    if (type.isInterface()) {
      if (hasMapper(type)) {
        throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
      }
      boolean loadCompleted = false;
      try {
        knownMappers.put(type, new MapperProxyFactory<>(type)); //放入一个工厂代理类
        // It's important that the type is added before the parser is run
        // otherwise the binding may automatically be attempted by the
        // mapper parser. If the type is already known, it won't try.
        MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);//注解方式解析 这里我们没有用注解，先跳过
        parser.parse();
        loadCompleted = true;
      } finally {
        if (!loadCompleted) {
          knownMappers.remove(type);
        }
      }
    }
  }

public class MapperProxyFactory<T> {

  private final Class<T> mapperInterface;
  private final Map<Method, MapperMethodInvoker> methodCache = new ConcurrentHashMap<>();

  public MapperProxyFactory(Class<T> mapperInterface) {
    this.mapperInterface = mapperInterface;
  }
}

SqlSessionFactoryBuilder.build(configuration)

public SqlSessionFactory build(Configuration config) {
  return new DefaultSqlSessionFactory(config);
}
public class DefaultSqlSessionFactory implements SqlSessionFactory {

  private final Configuration configuration;

  public DefaultSqlSessionFactory(Configuration configuration) {
    this.configuration = configuration;
  }

开启会话

public class DefaultSqlSessionFactory implements SqlSessionFactory {

  private final Configuration configuration;
    public SqlSession openSession() {
      return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
    }
   private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
      final Environment environment = configuration.getEnvironment();
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
        //初始化一个事务
      tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
       //创建一个执行器
      final Executor executor = configuration.newExecutor(tx, execType);
       //返回默认会话DefaultSqlSession
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      closeTransaction(tx); // may have fetched a connection so lets call close()
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }
}

初始化事务

public Transaction newTransaction(DataSource ds, TransactionIsolationLevel level, boolean autoCommit) {
  return new JdbcTransaction(ds, level, autoCommit);
}

public class JdbcTransaction implements Transaction {

  private static final Log log = LogFactory.getLog(JdbcTransaction.class);

  protected Connection connection;
  protected DataSource dataSource;
  protected TransactionIsolationLevel level;
  protected boolean autoCommit;

  public JdbcTransaction(DataSource ds, TransactionIsolationLevel desiredLevel, boolean desiredAutoCommit) {
    dataSource = ds;
    level = desiredLevel;
    autoCommit = desiredAutoCommit;
  }
}

创建执行器

public Executor newExecutor(Transaction transaction) {
  return newExecutor(transaction, defaultExecutorType);
}
public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    executorType = executorType == null ? defaultExecutorType : executorType;
    executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
    Executor executor;
    if (ExecutorType.BATCH == executorType) {
      executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
      executor = new ReuseExecutor(this, transaction);
    } else {
      executor = new SimpleExecutor(this, transaction);//走的这个
    }
    if (cacheEnabled) {
      executor = new CachingExecutor(executor);
    }
    executor = (Executor) interceptorChain.pluginAll(executor);
    return executor;
  }

public class SimpleExecutor extends BaseExecutor {

  public SimpleExecutor(Configuration configuration, Transaction transaction) {
    super(configuration, transaction);
  }
}

public abstract class BaseExecutor implements Executor {

  private static final Log log = LogFactory.getLog(BaseExecutor.class);

  protected Transaction transaction;
  protected Executor wrapper;

  protected ConcurrentLinkedQueue<DeferredLoad> deferredLoads;
  protected PerpetualCache localCache;
  protected PerpetualCache localOutputParameterCache;
  protected Configuration configuration;

  protected int queryStack;
  private boolean closed;

  protected BaseExecutor(Configuration configuration, Transaction transaction) {
    this.transaction = transaction;
    this.deferredLoads = new ConcurrentLinkedQueue<>();
    this.localCache = new PerpetualCache("LocalCache");
    this.localOutputParameterCache = new PerpetualCache("LocalOutputParameterCache");
    this.closed = false;
    this.configuration = configuration;
    this.wrapper = this;
  }
}

返回默认会话

public class DefaultSqlSession implements SqlSession {

  private final Configuration configuration;
  private final Executor executor;

  private final boolean autoCommit;
  private boolean dirty;
  private List<Cursor<?>> cursorList;

  public DefaultSqlSession(Configuration configuration, Executor executor, boolean autoCommit) {
    this.configuration = configuration;
    this.executor = executor;
    this.dirty = false;
    this.autoCommit = autoCommit;
  }
}

从会话中获取Mapper接口

MatchRulesMapper mapper = sqlSession.getMapper(MatchRulesMapper.class);

通过动态代理生成被代理对象，返回代理对象

public class DefaultSqlSession implements SqlSession {
    public <T> T getMapper(Class<T> type) {
      return configuration.getMapper(type, this);
    }
}

public class Configuration {
    protected final MapperRegistry mapperRegistry = new MapperRegistry(this);
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
      return mapperRegistry.getMapper(type, sqlSession);
    }
}

public class MapperRegistry {
      private final Configuration config;
      private final Map<Class<?>, MapperProxyFactory<?>> knownMappers = new HashMap<>();

    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        //从map中拿出代理工厂
      final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
      if (mapperProxyFactory == null) {
        throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
      }
      try {
        return mapperProxyFactory.newInstance(sqlSession);
      } catch (Exception e) {
        throw new BindingException("Error getting mapper instance. Cause: " + e, e);
      }
    }
}

代理对象工厂初始化动态代理类

public class MapperProxyFactory<T> {

  private final Class<T> mapperInterface;
  private final Map<Method, MapperMethodInvoker> methodCache = new ConcurrentHashMap<>();
  public T newInstance(SqlSession sqlSession) {
    final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
    return newInstance(mapperProxy);
  }
  protected T newInstance(MapperProxy<T> mapperProxy) {
    return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
  }

//这是一个动态代理类

public class MapperProxy<T> implements InvocationHandler, Serializable {
    public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethodInvoker> methodCache) {
      this.sqlSession = sqlSession;
      this.mapperInterface = mapperInterface;
      this.methodCache = methodCache;
    }
}

执行方法

Integer maxNum = mapper.maxSortNum();

public class MapperProxy<T> implements InvocationHandler, Serializable {
    //实际执行的方法
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
      try {
          //判断方法的类对象是不是Object
        if (Object.class.equals(method.getDeclaringClass())) {
          return method.invoke(this, args);
        } else {
          return cachedInvoker(method).invoke(proxy, method, args, sqlSession);
        }
      } catch (Throwable t) {
        throw ExceptionUtil.unwrapThrowable(t);
      }
    }
}

返回一个MapperMethodInvoker

private MapperMethodInvoker cachedInvoker(Method method) throws Throwable {
  try {
      //判断method是否存在methodCache中，不存在则执行 m->{}块中的方法 m指 method
    return MapUtil.computeIfAbsent(methodCache, method, m -> {
      if (m.isDefault()) {
        try {
          if (privateLookupInMethod == null) {
            return new DefaultMethodInvoker(getMethodHandleJava8(method));
          } else {
            return new DefaultMethodInvoker(getMethodHandleJava9(method));
          }
        } catch (IllegalAccessException | InstantiationException | InvocationTargetException
            | NoSuchMethodException e) {
          throw new RuntimeException(e);
        }
      } else {
          //首先实例化一个MapperMethod
        return new PlainMethodInvoker(new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()));
      }
    });
  } catch (RuntimeException re) {
    Throwable cause = re.getCause();
    throw cause == null ? re : cause;
  }
}

判断key是否存在map中，存在则返回value，不存在则添加function返回的结果

public static <K, V> V computeIfAbsent(Map<K, V> map, K key, Function<K, V> mappingFunction) {
  V value = map.get(key);
  if (value != null) {
    return value;
  }
  return map.computeIfAbsent(key, mappingFunction::apply);
}

实例化一个MapperMethod

public class MapperMethod {

  private final SqlCommand command;
  private final MethodSignature method;

  public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
      //拿到sql的类型是查询还是update...
    this.command = new SqlCommand(config, mapperInterface, method);
      //
    this.method = new MethodSignature(config, mapperInterface, method);
  }

}

实例化一个SqlCommand确定sql的类型

SqlCommandType是一个枚举类

public enum SqlCommandType {
  UNKNOWN, INSERT, UPDATE, DELETE, SELECT, FLUSH
}

  //SqlCommand是MapperMethod的一个内部类
   public static class SqlCommand {

    private final String name;
    private final SqlCommandType type;

    public SqlCommand(Configuration configuration, Class<?> mapperInterface, Method method) {
      final String methodName = method.getName();
      final Class<?> declaringClass = method.getDeclaringClass();
        //从configuration的一个map中获取mappedStatement
      MappedStatement ms = resolveMappedStatement(mapperInterface, methodName, declaringClass,
          configuration);
      if (ms == null) {
        if (method.getAnnotation(Flush.class) != null) {
          name = null;
          type = SqlCommandType.FLUSH;
        } else {
          throw new BindingException("Invalid bound statement (not found): "
              + mapperInterface.getName() + "." + methodName);
        }
      } else {
        name = ms.getId();
        type = ms.getSqlCommandType();
        if (type == SqlCommandType.UNKNOWN) {
          throw new BindingException("Unknown execution method for: " + name);
        }
      }
    }

从configuration的一个map中获取mappedStatement

mappedStatements

private MappedStatement resolveMappedStatement(Class<?> mapperInterface, String methodName,
      Class<?> declaringClass, Configuration configuration) {
    String statementId = mapperInterface.getName() + "." + methodName;
    if (configuration.hasStatement(statementId)) {
      return configuration.getMappedStatement(statementId);
    } else if (mapperInterface.equals(declaringClass)) {
      return null;
    }
    for (Class<?> superInterface : mapperInterface.getInterfaces()) {
      if (declaringClass.isAssignableFrom(superInterface)) {
        MappedStatement ms = resolveMappedStatement(superInterface, methodName,
            declaringClass, configuration);
        if (ms != null) {
          return ms;
        }
      }
    }
    return null;
  }
}

实例化MethodSignature

确定返回类型

//也是MapperMethod的一个内部类
public static class MethodSignature {
  private final boolean returnsMany;
  private final boolean returnsMap;
  private final boolean returnsVoid;
  private final boolean returnsCursor;
  private final boolean returnsOptional;
  private final Class<?> returnType;
  private final String mapKey;
  private final Integer resultHandlerIndex;
  private final Integer rowBoundsIndex;
  private final ParamNameResolver paramNameResolver;

  public MethodSignature(Configuration configuration, Class<?> mapperInterface, Method method) {
     //确认返回类型
    Type resolvedReturnType = TypeParameterResolver.resolveReturnType(method, mapperInterface);
    if (resolvedReturnType instanceof Class<?>) {
      this.returnType = (Class<?>) resolvedReturnType;
    } else if (resolvedReturnType instanceof ParameterizedType) {
      this.returnType = (Class<?>) ((ParameterizedType) resolvedReturnType).getRawType();
    } else {
      this.returnType = method.getReturnType();
    }
      //是否返回void
    this.returnsVoid = void.class.equals(this.returnType);
      //是否返回集合
    this.returnsMany = configuration.getObjectFactory().isCollection(this.returnType) || this.returnType.isArray();
    this.returnsCursor = Cursor.class.equals(this.returnType);
    this.returnsOptional = Optional.class.equals(this.returnType);
    this.mapKey = getMapKey(method);
    this.returnsMap = this.mapKey != null;
    this.rowBoundsIndex = getUniqueParamIndex(method, RowBounds.class);
    this.resultHandlerIndex = getUniqueParamIndex(method, ResultHandler.class);
    this.paramNameResolver = new ParamNameResolver(configuration, method);
  }

实例化 PlainMethodInvoker

//MapperProxy的一个内部接口
interface MapperMethodInvoker {
  Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable;
}

private static class PlainMethodInvoker implements MapperMethodInvoker {
  private final MapperMethod mapperMethod;
//进行了一个简单的赋值
  public PlainMethodInvoker(MapperMethod mapperMethod) {
    super();
    this.mapperMethod = mapperMethod;
  }


}

执行invoke

private static class PlainMethodInvoker implements MapperMethodInvoker {
      @Override
      public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
        return mapperMethod.execute(sqlSession, args);
      }
}

public Object execute(SqlSession sqlSession, Object[] args) {
  Object result;
  switch (command.getType()) {
    case INSERT: {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.insert(command.getName(), param));
      break;
    }
    case UPDATE: {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.update(command.getName(), param));
      break;
    }
    case DELETE: {
      Object param = method.convertArgsToSqlCommandParam(args);
      result = rowCountResult(sqlSession.delete(command.getName(), param));
      break;
    }
    case SELECT:
      if (method.returnsVoid() && method.hasResultHandler()) {
        executeWithResultHandler(sqlSession, args);
        result = null;
      } else if (method.returnsMany()) {
        result = executeForMany(sqlSession, args);
      } else if (method.returnsMap()) {
        result = executeForMap(sqlSession, args);
      } else if (method.returnsCursor()) {
        result = executeForCursor(sqlSession, args);
      } else {
          //解析参数放到一个map里边
        Object param = method.convertArgsToSqlCommandParam(args);
        result = sqlSession.selectOne(command.getName(), param);
        if (method.returnsOptional()
            && (result == null || !method.getReturnType().equals(result.getClass()))) {
          result = Optional.ofNullable(result);
        }
      }
      break;
    case FLUSH:
      result = sqlSession.flushStatements();
      break;
    default:
      throw new BindingException("Unknown execution method for: " + command.getName());
  }
  if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
    throw new BindingException("Mapper method '" + command.getName()
        + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
  }
  return result;
}

解析参数

public Object getNamedParams(Object[] args) {
  final int paramCount = names.size();
  if (args == null || paramCount == 0) {
    return null;
  } else if (!hasParamAnnotation && paramCount == 1) {
    Object value = args[names.firstKey()];
    return wrapToMapIfCollection(value, useActualParamName ? names.get(0) : null);
  } else {
    final Map<String, Object> param = new ParamMap<>();
    int i = 0;
    for (Map.Entry<Integer, String> entry : names.entrySet()) {
      param.put(entry.getValue(), args[entry.getKey()]);
      // add generic param names (param1, param2, ...)
      final String genericParamName = GENERIC_NAME_PREFIX + (i + 1);
      // ensure not to overwrite parameter named with @Param
      if (!names.containsValue(genericParamName)) {
        param.put(genericParamName, args[entry.getKey()]);
      }
      i++;
    }
    return param;
  }
}

执行查询指令 sqlSession.selectOne

public <T> T selectOne(String statement, Object parameter) {
  // Popular vote was to return null on 0 results and throw exception on too many.
  List<T> list = this.selectList(statement, parameter);
  if (list.size() == 1) {
    return list.get(0);
  } else if (list.size() > 1) {
    throw new TooManyResultsException("Expected one result (or null) to be returned by selectOne(), but found: " + list.size());
  } else {
    return null;
  }
}
 public <E> List<E> selectList(String statement, Object parameter) {
    return this.selectList(statement, parameter, RowBounds.DEFAULT);
  }
 private <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds, ResultHandler handler = null) {
    try {
        //从configuration的map中 获取mappedStatement
      MappedStatement ms = configuration.getMappedStatement(statement);
      return executor.query(ms, wrapCollection(parameter), rowBounds, handler);
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error querying database.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

从configuration的map中获取mappedStatement

执行查询

public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
 //拿到sql,参数
    BoundSql boundSql = ms.getBoundSql(parameter);
  CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);
  return query(ms, parameter, rowBounds, resultHandler, key, boundSql);
}

绑定sql，参数

public BoundSql getBoundSql(Object parameterObject) {
  BoundSql boundSql = sqlSource.getBoundSql(parameterObject);
  List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
  if (parameterMappings == null || parameterMappings.isEmpty()) {
    boundSql = new BoundSql(configuration, boundSql.getSql(), parameterMap.getParameterMappings(), parameterObject);
  }

  // check for nested result maps in parameter mappings (issue #30)
  for (ParameterMapping pm : boundSql.getParameterMappings()) {
    String rmId = pm.getResultMapId();
    if (rmId != null) {
      ResultMap rm = configuration.getResultMap(rmId);
      if (rm != null) {
        hasNestedResultMaps |= rm.hasNestedResultMaps();
      }
    }
  }

  return boundSql;
}

public class BoundSql {
  private final String sql;
  private final List<ParameterMapping> parameterMappings;
  private final Object parameterObject;
  private final Map<String, Object> additionalParameters;
  private final MetaObject metaParameters;

  public BoundSql(Configuration configuration, String sql, List<ParameterMapping> parameterMappings, Object parameterObject) {
    this.sql = sql;
    this.parameterMappings = parameterMappings;
    this.parameterObject = parameterObject;
    this.additionalParameters = new HashMap<>();
    this.metaParameters = configuration.newMetaObject(additionalParameters);
  }

通过算法生成一个缓存key

public CacheKey createCacheKey(MappedStatement ms, Object parameterObject, RowBounds rowBounds, BoundSql boundSql) {
  if (closed) {
    throw new ExecutorException("Executor was closed.");
  }
  CacheKey cacheKey = new CacheKey();
  cacheKey.update(ms.getId());
  cacheKey.update(rowBounds.getOffset());
  cacheKey.update(rowBounds.getLimit());
  cacheKey.update(boundSql.getSql());
  List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
  TypeHandlerRegistry typeHandlerRegistry = ms.getConfiguration().getTypeHandlerRegistry();
  // mimic DefaultParameterHandler logic
  for (ParameterMapping parameterMapping : parameterMappings) {
    if (parameterMapping.getMode() != ParameterMode.OUT) {
      Object value;
      String propertyName = parameterMapping.getProperty();
      if (boundSql.hasAdditionalParameter(propertyName)) {
        value = boundSql.getAdditionalParameter(propertyName);
      } else if (parameterObject == null) {
        value = null;
      } else if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
        value = parameterObject;
      } else {
        MetaObject metaObject = configuration.newMetaObject(parameterObject);
        value = metaObject.getValue(propertyName);
      }
      cacheKey.update(value);
    }
  }
  if (configuration.getEnvironment() != null) {
    // issue #176
    cacheKey.update(configuration.getEnvironment().getId());
  }
  return cacheKey;
}

public class CacheKey implements Cloneable, Serializable {
  private static final int DEFAULT_MULTIPLIER = 37;
  private static final int DEFAULT_HASHCODE = 17;

  private final int multiplier;
  private int hashcode;
  private long checksum;
  private int count;
  // 8/21/2017 - Sonarlint flags this as needing to be marked transient. While true if content is not serializable, this
  // is not always true and thus should not be marked transient.
  private List<Object> updateList;

  public CacheKey() {
    this.hashcode = DEFAULT_HASHCODE;
    this.multiplier = DEFAULT_MULTIPLIER;
    this.count = 0;
    this.updateList = new ArrayList<>();
  }
public void update(Object object) {
  int baseHashCode = object == null ? 1 : ArrayUtil.hashCode(object);

  count++;
  checksum += baseHashCode;
  baseHashCode *= count;

  hashcode = multiplier * hashcode + baseHashCode;

  updateList.add(object);
}
}

查询

public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
  ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
  if (closed) {
    throw new ExecutorException("Executor was closed.");
  }
  if (queryStack == 0 && ms.isFlushCacheRequired()) {
    clearLocalCache();
  }
  List<E> list;
  try {
    queryStack++;
      //从缓存中判断是否存在缓存key
    list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
    if (list != null) {
        //从缓存中读取数据
      handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
    } else {
        //从数据库读取数据
      list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
    }
  } finally {
    queryStack--;
  }
  if (queryStack == 0) {
    for (DeferredLoad deferredLoad : deferredLoads) {
      deferredLoad.load();
    }
    // issue #601
    deferredLoads.clear();
    if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
      // issue #482
      clearLocalCache();
    }
  }
  return list;
}

从缓存中读取数据

private void handleLocallyCachedOutputParameters(MappedStatement ms, CacheKey key, Object parameter, BoundSql boundSql) {
  if (ms.getStatementType() == StatementType.CALLABLE) {
    final Object cachedParameter = localOutputParameterCache.getObject(key);
    if (cachedParameter != null && parameter != null) {
      final MetaObject metaCachedParameter = configuration.newMetaObject(cachedParameter);
      final MetaObject metaParameter = configuration.newMetaObject(parameter);
      for (ParameterMapping parameterMapping : boundSql.getParameterMappings()) {
        if (parameterMapping.getMode() != ParameterMode.IN) {
          final String parameterName = parameterMapping.getProperty();
          final Object cachedValue = metaCachedParameter.getValue(parameterName);
          metaParameter.setValue(parameterName, cachedValue);
        }
      }
    }
  }
}

从数据库中读取数据

private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
  List<E> list;
  localCache.putObject(key, EXECUTION_PLACEHOLDER);
  try {
      //查询
    list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
  } finally {
    localCache.removeObject(key);
  }
  localCache.putObject(key, list);
  if (ms.getStatementType() == StatementType.CALLABLE) {
    localOutputParameterCache.putObject(key, parameter);
  }
  return list;
}

public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
  Statement stmt = null;
  try {
    Configuration configuration = ms.getConfiguration();
      //获取一个StatementHandler
    StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
    stmt = prepareStatement(handler, ms.getStatementLog());
    return handler.query(stmt, resultHandler);
  } finally {
    closeStatement(stmt);
  }
}

2.1返回一个BaseStatementHandler

protected BaseStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
  this.configuration = mappedStatement.getConfiguration();
  this.executor = executor; //执行器
  this.mappedStatement = mappedStatement;
  this.rowBounds = rowBounds;

  this.typeHandlerRegistry = configuration.getTypeHandlerRegistry();
  this.objectFactory = configuration.getObjectFactory();

  if (boundSql == null) { // issue #435, get the key before calculating the statement
    generateKeys(parameterObject);
    boundSql = mappedStatement.getBoundSql(parameterObject);
  }

  this.boundSql = boundSql;

  this.parameterHandler = configuration.newParameterHandler(mappedStatement, parameterObject, boundSql);
  this.resultSetHandler = configuration.newResultSetHandler(executor, mappedStatement, rowBounds, parameterHandler, resultHandler, boundSql);
}

2.2 构建Statement

private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
  Statement stmt;
  //获取数据库连接
  Connection connection = getConnection(statementLog);
  stmt = handler.prepare(connection, transaction.getTimeout());
  handler.parameterize(stmt);
  return stmt;
}

public abstract class BaseStatementHandler implements StatementHandler {
    public Statement prepare(Connection connection, Integer transactionTimeout) throws SQLException {
      ErrorContext.instance().sql(boundSql.getSql());
      Statement statement = null;
      try {
        statement = instantiateStatement(connection);
        setStatementTimeout(statement, transactionTimeout);
        setFetchSize(statement);
        return statement;
      } catch (SQLException e) {
        closeStatement(statement);
        throw e;
      } catch (Exception e) {
        closeStatement(statement);
        throw new ExecutorException("Error preparing statement.  Cause: " + e, e);
      }
    }
}

instantiateStatement

public class PreparedStatementHandler extends BaseStatementHandler {
    protected Statement instantiateStatement(Connection connection) throws SQLException {
        //获取sql
      String sql = boundSql.getSql();
      if (mappedStatement.getKeyGenerator() instanceof Jdbc3KeyGenerator) {
        String[] keyColumnNames = mappedStatement.getKeyColumns();
        if (keyColumnNames == null) {
          return connection.prepareStatement(sql, PreparedStatement.RETURN_GENERATED_KEYS);
        } else {
          return connection.prepareStatement(sql, keyColumnNames);
        }
      } else if (mappedStatement.getResultSetType() == ResultSetType.DEFAULT) {
        return connection.prepareStatement(sql);
      } else {
        return connection.prepareStatement(sql, mappedStatement.getResultSetType().getValue(), ResultSet.CONCUR_READ_ONLY);
      }
    }
}

connection.prepareStatement(sql);

public Object invoke(Object proxy, Method method, Object[] params)
    throws Throwable {
  try {
    if (Object.class.equals(method.getDeclaringClass())) {
      return method.invoke(this, params);
    }
    if ("prepareStatement".equals(method.getName()) || "prepareCall".equals(method.getName())) {
      if (isDebugEnabled()) {
        debug(" Preparing: " + removeExtraWhitespace((String) params[0]), true);
      }
      PreparedStatement stmt = (PreparedStatement) method.invoke(connection, params);
      stmt = PreparedStatementLogger.newInstance(stmt, statementLog, queryStack);
      return stmt;
    } else if ("createStatement".equals(method.getName())) {
      Statement stmt = (Statement) method.invoke(connection, params);
      stmt = StatementLogger.newInstance(stmt, statementLog, queryStack);
      return stmt;
    } else {
      return method.invoke(connection, params);
    }
  } catch (Throwable t) {
    throw ExceptionUtil.unwrapThrowable(t);
  }
}

2.3 执行sql,返回结果

public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
  PreparedStatement ps = (PreparedStatement) statement;
  ps.execute();
  return resultSetHandler.handleResultSets(ps);
}

MyBatis框架学习

第一部分

概述

传统jdbc执行步骤

传统JDBC的弊端

hibernate的缺点

使用

mybatis入门实例

新建maven项目

编辑pom.xml

新建mybatis-config.xml

新建MatchRuleMapper.xml

新建MatchRuleMapper.java

新建MatchRule.java

新建测试入口

整体项目目录

总结

疑问

mybatis组件

SqlSessionFactoryBuilder(构造器)

SqlSessionFactory

SqlSession

Sql Mapper

生命周期

SqlSessionFactoryBuilder

SqlSessionFactory

SqlSession

Mapper

Mybatis配置

environments配置环境

数据库事务

数据源连接信息

引入映射器的方法

映射器

select元素

自动映射

传递多个参数

使用Map传递参数

使用注解方式传递参数

使用JavaBean传递参数

使用resultMap映射结果集

inset元素

主键回填和自定义

自增主键回填xml配置

自定义主键生成规则

resultMap结果映射集

定义构造方法

使用map存储结果集

使用POJO存储结果集

级联

示例说明

association 一对一级联

collection 一对多级联

discriminator 鉴别器级联

性能分析

延迟加载

缓存 cache

一级缓存

二级缓存

配置二级缓存

自定义缓存

动态sql

bind元素

源码分析

设计的技术难点简介

动态代理

JDK反射机制提供的代理

CGLIB代理

start

读取mybatis-config.xml配置文件，生成输入流

SqlSessionFactoryBuilder通过输入流构建SqlSessionFactory

SqlSessionFactoryBuilder.build(inputStream)

实例化XMLConfigBuilder

实例化Configuration()

添加到map中

XMLLanguageDriver,RawLanguageDriver实例化之后放到map里边

给XMLConfigBuilder赋值

XMLConfigBuilder.parse()

解析全局参数properties配置

解析environments配置 environmentsElement（）

从configuration的map中获取mappedStatement
