下载
命令
start nginx // 启动(双击exe也能启动)
nginx -s reload // 重启
nginx -s stop // 停止
nginx -t // 检测配置文件格式是否正确
配置文件
- 路径:
nginx\conf\nginx.conf
- 重写路径
http {
server {
listen 80;
server_name localhost;
#charset koi8-r;
#access_log logs/host.access.log main;
location /api/ {
rewrite ^/api/(.*) /$1 break; # 路径替换 /api 替换为 ''(空)
# rewrite ^/api/(.*) /node/$1 break; # 路径替换 /api/ 替换为 /node/
proxy_pass http://172.16.16.24:8080; # 反向代理后端服务器的域名
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /api/ {
proxy_pass http://172.16.16.24:8080; # 带/api/
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /api/ {
proxy_pass http://172.16.16.24:8080/; # 不带/api/
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location / {
root /html/dist;
index index.html index.htm;
}
}
}
完整配置
#user nobody;
worker_processes 1;
#error_log logs/error.log;
#error_log logs/error.log notice;
#error_log logs/error.log info;
#pid logs/nginx.pid;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
#log_format main '$remote_addr - $remote_user [$time_local] "$request" '
# '$status $body_bytes_sent "$http_referer" '
# '"$http_user_agent" "$http_x_forwarded_for"';
#access_log logs/access.log main;
sendfile on;
#tcp_nopush on;
#keepalive_timeout 0;
keepalive_timeout 65;
#gzip on;
server {
listen 8666;
server_name localhost;
#charset koi8-r;
#access_log logs/host.access.log main;
location /api {
rewrite ^/api/(.*) /$1 break;
proxy_pass http://172.16.16.24:8080; # 反向代理后端服务器的域名
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location / {
root /html/dist;
index index.html index.htm;
}
# spa单页面,history路由配置
error_page 404 /index.html;
location = /index.html {
root html/dist;
}
# redirect server error pages to the static page /50x.html
#
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
# proxy the PHP scripts to Apache listening on 127.0.0.1:80
#
#location ~ \.php$ {
# proxy_pass http://127.0.0.1;
#}
# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
#
#location ~ \.php$ {
# root html;
# fastcgi_pass 127.0.0.1:9000;
# fastcgi_index index.php;
# fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;
# include fastcgi_params;
#}
# deny access to .htaccess files, if Apache's document root
# concurs with nginx's one
#
#location ~ /\.ht {
# deny all;
#}
}
# another virtual host using mix of IP-, name-, and port-based configuration
#
#server {
# listen 8000;
# listen somename:8080;
# server_name somename alias another.alias;
# location / {
# root html;
# index index.html index.htm;
# }
#}
# HTTPS server
#
#server {
# listen 443 ssl;
# server_name localhost;
# ssl_certificate cert.pem;
# ssl_certificate_key cert.key;
# ssl_session_cache shared:SSL:1m;
# ssl_session_timeout 5m;
# ssl_ciphers HIGH:!aNULL:!MD5;
# ssl_prefer_server_ciphers on;
# location / {
# root html;
# index index.html index.htm;
# }
#}
}
开启rewrite 日志(反向代理不生效,排查)
- 设置nginx.conf配置文件中的错误日志级别为
notice（nginx中最低级别的错误）并开启rewrite重写代理地址日志
error_log logs/error.log notice; # 开启低级别log
rewrite_log on; # 开启重写代理地址日志
demo
# user nobody;
# error_log logs/error.log;
error_log logs/error.log notice; # 开启低级别log
# error_log logs/error.log info;
http {
rewrite_log on; # 开启重写代理地址日志
# ... 其他配置 ...
}

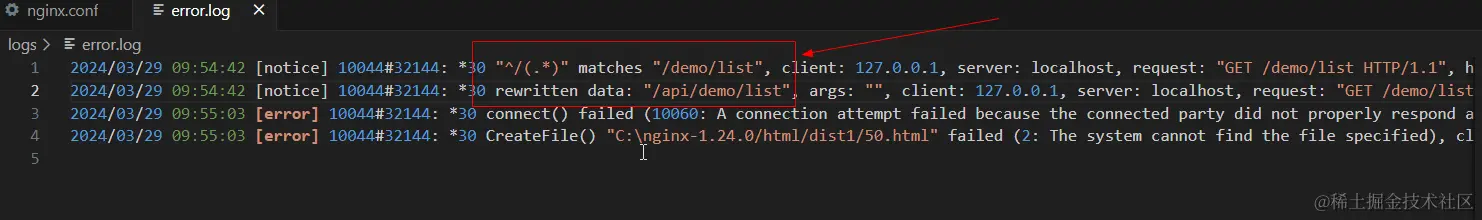

log demo
完整log文本
2024/03/29 09:54:42 [notice] 10044#32144: *30 "^/(.*)" matches "/demo/list", client: 127.0.0.1, server: localhost, request: "GET /demo/list HTTP/1.1", host: "localhost:6081", referrer: "http://localhost:6081/project/list"
2024/03/29 09:54:42 [notice] 10044#32144: *30 rewritten data: "/api/demo/list", args: "", client: 127.0.0.1, server: localhost, request: "GET /demo/list HTTP/1.1", host: "localhost:6081", referrer: "http://localhost:6081/project/list"
2024/03/29 09:55:03 [error] 10044#32144: *30 connect() failed (10060: A connection attempt failed because the connected party did not properly respond after a period of time, or established connection failed because connected host has failed to respond) while connecting to upstream, client: 127.0.0.1, server: localhost, request: "GET /demo/list HTTP/1.1", upstream: "http://172.16.97.128:8098/api/demo/list", host: "localhost:6081", referrer: "http://localhost:6081/project/list"
2024/03/29 09:55:03 [error] 10044#32144: *30 CreateFile() "C:\nginx-1.24.0/html/dist1/50.html" failed (2: The system cannot find the file specified), client: 127.0.0.1, server: localhost, request: "GET /demo/list HTTP/1.1", upstream: "http://172.16.97.128:8098/api/demo/list", host: "localhost:6081", referrer: "http://localhost:6081/project/list"
