一什么是poi-tl

poi-tl（poi template language）是Word模板引擎，使用Word模板和数据创建很棒的Word文档*。

上手入门这里我就不写了兄弟们有兴趣可以自己对照官方文档去敲几行。直接进入正文

导入依赖

<dependency>
    <groupId>org.apache.poi</groupId>
    <artifactId>poi</artifactId>
    <version>5.2.2</version>
</dependency>
<dependency>
    <groupId>org.apache.poi</groupId>
    <artifactId>poi-ooxml</artifactId>
    <version>5.2.2</version>
</dependency>
<dependency>
    <groupId>com.deepoove</groupId>
    <artifactId>poi-tl</artifactId>
    <version>1.12.0</version>
</dependency>

我这里导入的是5.2.2版本的poi，springboot版本是3.0这里是可以兼容的，但是springboot2.2.0或者其他低版本的springboot这里log4j依赖不兼容。可以像下面一样排除引入的log依赖*

<dependency>
    <groupId>org.apache.poi</groupId>
    <artifactId>poi</artifactId>
    <version>${poi.version}</version>
    <exclusions>
        <exclusion>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
        </exclusion>
        <exclusion>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
        </exclusion>
    </exclusions>
</dependency>

<dependency>
    <groupId>org.apache.poi</groupId>
    <artifactId>poi-ooxml</artifactId>
    <version>${poi-ooxml.version}</version>
    <exclusions>
            <exclusion>
                <groupId>org.apache.logging.log4j</groupId>
                <artifactId>log4j-api</artifactId>
            </exclusion>
            <exclusion>
                <groupId>org.apache.logging.log4j</groupId>
                <artifactId>log4j-core</artifactId>
            </exclusion>
    </exclusions>
</dependency>

<dependency>
    <groupId>com.deepoove</groupId>
    <artifactId>poi-tl</artifactId>
    <version>${poi-tl.version}</version>
</dependency>

<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-api</artifactId>
    <version>${log4j-api.version}</version>
</dependency>

编写controller

package com.example.wordpoitldemo.controller;

import com.deepoove.poi.XWPFTemplate;
import com.example.wordpoitldemo.WordService;
import io.swagger.annotations.ApiOperation;
import org.apache.poi.ss.usermodel.DateUtil;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletResponse;
import java.io.OutputStream;
import java.net.URLEncoder;


/**
 * @author: xh
 * @date: 2023/11/15 9:48
 */
@Controller
@RequestMapping("/word")
public class WordController {

    @Resource
    private WordService wordService;

    @ApiOperation("Download Word")
    @GetMapping("download")
    public void wordDownload( HttpServletResponse response) {
        try {
            XWPFTemplate document =wordService.generateWordXWPFTemplate();
            String fileName="word文档导出.docx";
            response.reset();
            response.setContentType("text/html:charset=utf-8");
            String encodedFileName = URLEncoder.encode(fileName, "UTF-8");
            response.setHeader("Content-Disposition", "attachment; filename="" + encodedFileName + """);
            OutputStream os = response.getOutputStream();
            document.write(os);
            os.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

编写service

package com.example.wordpoitldemo;

import cn.hutool.core.collection.CollectionUtil;
import com.deepoove.poi.XWPFTemplate;
import com.deepoove.poi.data.*;
import com.example.wordpoitldemo.domain.WordModel;
import org.springframework.stereotype.Service;

import java.io.InputStream;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author: xh
 * @date: 2023/11/15 10:14
 */
@Service
public class WordServiceImpl implements WordService{
    /**
     * 导出word模板
     * @return
     */
    @Override
    public XWPFTemplate generateWordXWPFTemplate() {

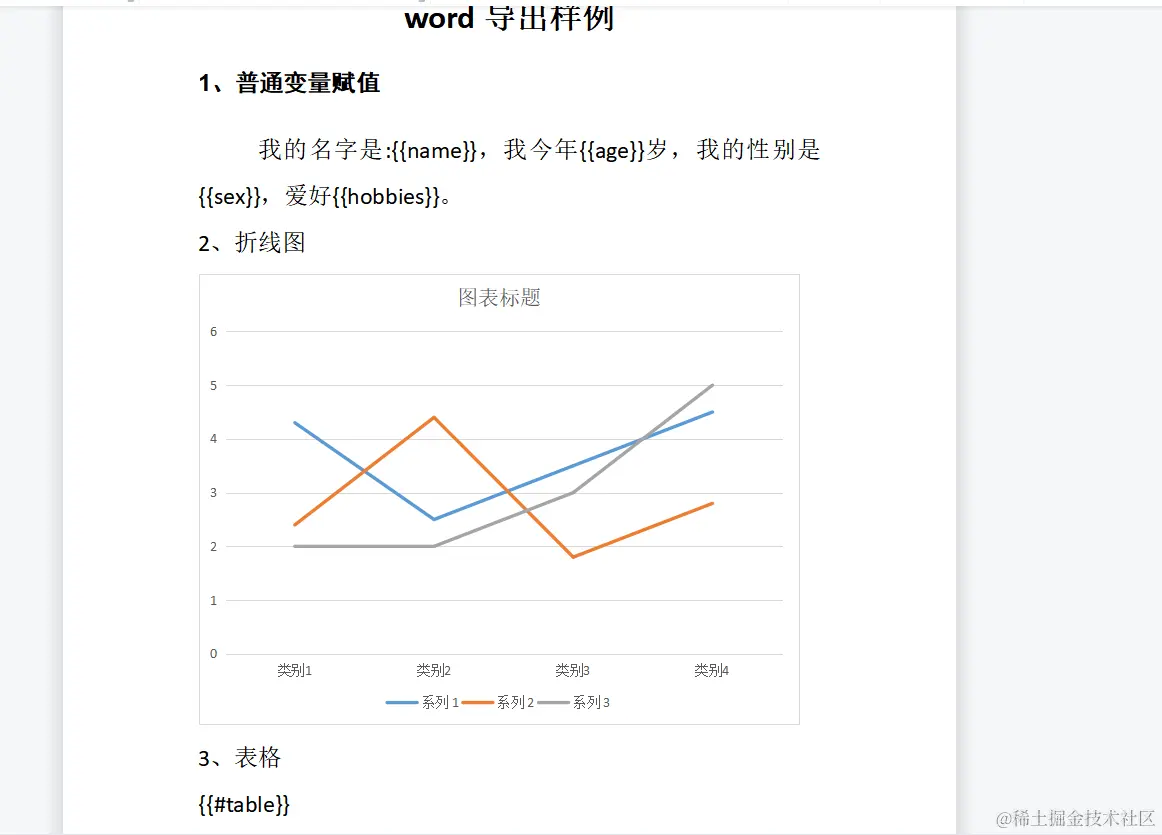

        //获取resources目录下的模板文件
        InputStream inputStream = this.getClass().getClassLoader().getResourceAsStream("word/template.docx");
        // 在这里使用file进行操作，例如读取文件内容
        XWPFTemplate template = XWPFTemplate.compile(inputStream);
        WordModel wordModel=new WordModel();
        wordModel.setName("张三");
        wordModel.setAge("18");
        wordModel.setSex("男");
        wordModel.setHobbies("唱歌和打篮球");

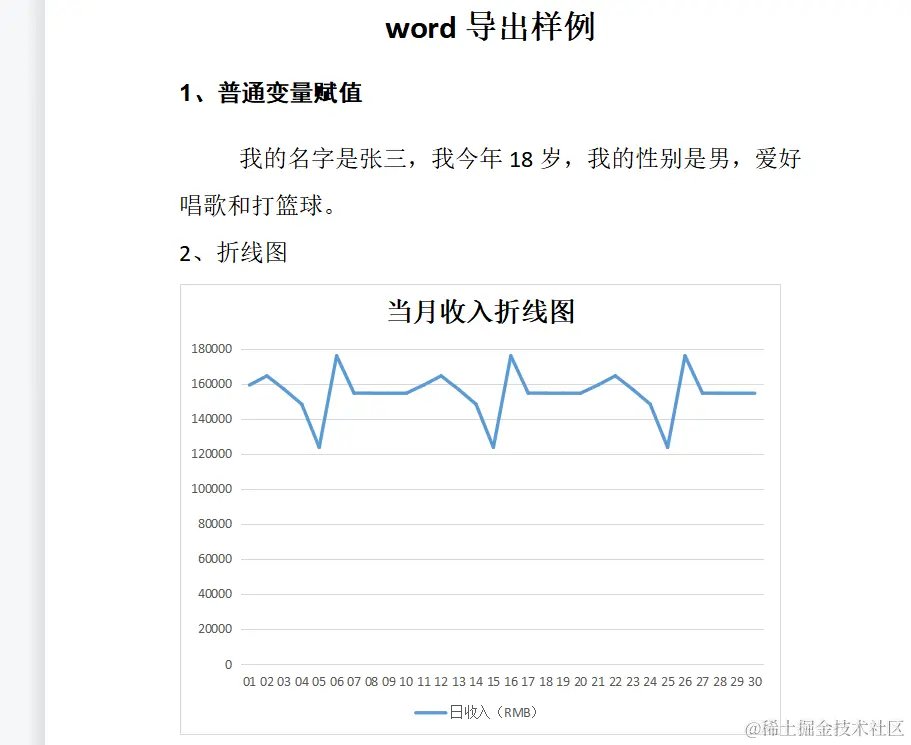

        //趋势图
        String[] abscissaData={"01", "02","03","04","05","06","07","08","09","10",
                "11","12","13","14","15","16","17","18","19","20",
                "21","22","23","24","25","26","27","28","29","30"};
        Double[] chargingCasesOrdinateData={
                159309.69, 164566.38,156819.87,148378.92,123710.59,176014.0,154682.63,154635.78,154635.78,154635.78,
                159309.69, 164566.38,156819.87,148378.92,123710.59,176014.0,154682.63,154635.78,154635.78,154635.78,
                159309.69, 164566.38,156819.87,148378.92,123710.59,176014.0,154682.63,154635.78,154635.78,154635.78,
        };
        wordModel.setTrendChart(creatLineChart("当月收入折线图","日收入（RMB）",abscissaData,chargingCasesOrdinateData));

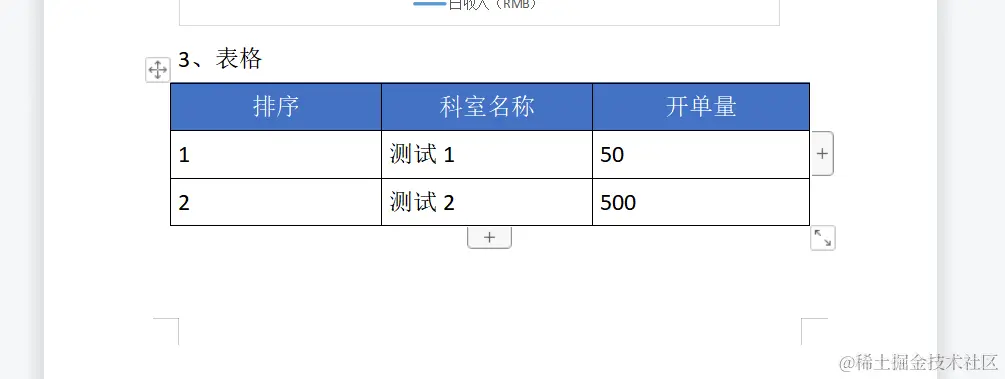

        //表格
        //科室开单排名（前十科室）
        RowRenderData tenDepartmentsTableHead= Rows.of("排序", "科室名称","开单量").textColor("FFFFFF")
                .bgColor("4472C4").center().create();
        //创建表格list
        List<RowRenderData> tenDepartmentsRowList=new ArrayList<>();
        int order=1;
        List<Map<String, Object>> tenDepartmentsTableDate = getTenDepartmentsTableDate();
        if (CollectionUtil.isNotEmpty(tenDepartmentsTableDate)){
            for (Map<String, Object> tenDepartments : tenDepartmentsTableDate) {
                tenDepartmentsRowList.add(Rows.create(order+"",tenDepartments.get("departmentName")+"",tenDepartments.get("boldQuantity")+""));
                order++;
            }
        }
        wordModel.setTable(createTable(tenDepartmentsTableHead,tenDepartmentsRowList));
        return template.render(wordModel);
    }

    /**
     * 生成折线图
     *
     * @param title        图表标题
     * @param name         当前系列名称
     * @param abscissaData 横坐标数据
     * @param ordinateData 纵坐标数据
     * @return
     */
    private ChartMultiSeriesRenderData creatLineChart(String title, String name, String[] abscissaData, Double[] ordinateData) {
        ChartMultiSeriesRenderData chart = Charts
                .ofLine3D(title, abscissaData)
                .addSeries(name, ordinateData)
                .create();
        return chart;
    }

    /**
     * 获取科室开单排名前十的数据
     * @return
     */
    private List<Map<String,Object>> getTenDepartmentsTableDate() {
        List<Map<String,Object>> tenDepartmentsTableDate=new ArrayList<>();
        Map<String,Object> map=new HashMap<>();
        map.put("departmentName","测试1");
        map.put("boldQuantity","50");
        tenDepartmentsTableDate.add(map);

        Map<String,Object> map1=new HashMap<>();
        map1.put("departmentName","测试2");
        map1.put("boldQuantity","500");
        tenDepartmentsTableDate.add(map1);
        return tenDepartmentsTableDate;
    }

    /**
     *
     * @param headRow 表头
     * @param tableData  表格数据
     * @return
     */
    private TableRenderData createTable(RowRenderData headRow, List<RowRenderData> tableData) {
        // 构造表格渲染数据  科室开单排名（前十科室）
        TableRenderData table = Tables.of(headRow).center().create();
        // 准备表格数据
        if (CollectionUtil.isNotEmpty(tableData)){
            for (RowRenderData  renderData : tableData) {
                table.addRow(renderData);
            }
        }
        return table;
    }
}

model类

package com.example.wordpoitldemo.domain;

import com.deepoove.poi.data.ChartMultiSeriesRenderData;
import com.deepoove.poi.data.TableRenderData;
import lombok.Data;

/**
 * @author: xh
 * @date: 2023/11/15 10:20
 * word变量属性
 */
@Data
public class WordModel {
    /**
     * 单变量属性
     */
    private String name;
    private String age;
    private String sex;
    private String Hobbies;

    /**

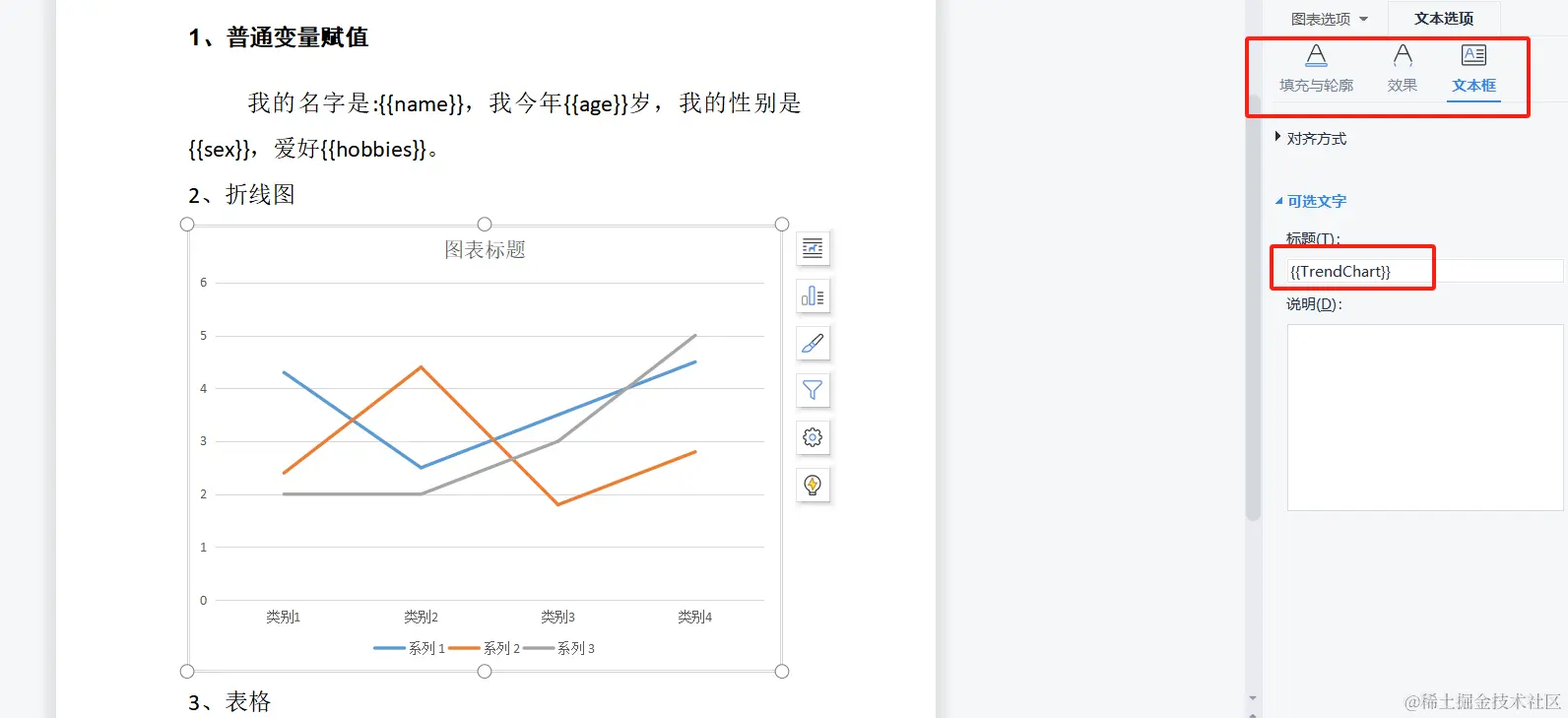

     * 折线图
     */
    private ChartMultiSeriesRenderData TrendChart;

    /**
     * 表格
     */
    private TableRenderData table;

}
