一.kong安装
- github地址: github.com/Kong/kong
- 官方文档: docs.konghq.com/gateway/
1.创建名称空间
kubectl create ns kong
2.安装postgresql
2.1 postgresql yaml
---
apiVersion: v1
kind: Secret
metadata:
name: postgresql
labels:
app.kubernetes.io/name: postgresql
app.kubernetes.io/instance: postgresql
namespace: kong
type: Opaque
data:
postgresql-password: "WjJDZzN1RjFRNg=="
---
apiVersion: v1
kind: Service
metadata:
name: postgresql
labels:
app.kubernetes.io/name: postgresql
app.kubernetes.io/instance: postgresql
annotations:
namespace: kong
spec:
type: ClusterIP
ports:
- name: tcp-postgresql
port: 5432
targetPort: tcp-postgresql
selector:
app.kubernetes.io/name: postgresql
app.kubernetes.io/instance: postgresql
role: primary
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: postgresql
labels:
app.kubernetes.io/name: postgresql
app.kubernetes.io/instance: postgresql
app.kubernetes.io/component: primary
annotations:
namespace: kong
spec:
serviceName: postgresql
replicas: 1
updateStrategy:
type: RollingUpdate
selector:
matchLabels:
app.kubernetes.io/name: postgresql
app.kubernetes.io/instance: postgresql
role: primary
template:
metadata:
name: postgresql
labels:
app.kubernetes.io/name: postgresql
app.kubernetes.io/instance: postgresql
role: primary
app.kubernetes.io/component: primary
spec:
affinity:
podAffinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- podAffinityTerm:
labelSelector:
matchLabels:
app.kubernetes.io/name: postgresql
app.kubernetes.io/instance: postgresql
app.kubernetes.io/component: primary
namespaces:
- "kong"
topologyKey: kubernetes.io/hostname
weight: 1
nodeAffinity:
securityContext:
fsGroup: 1001
containers:
- name: postgresql
image: docker.io/bitnami/postgresql:11.12.0-debian-10-r20
imagePullPolicy: "IfNotPresent"
resources:
requests:
cpu: 250m
memory: 256Mi
limits:
cpu: 1000m
memory: 512Mi
securityContext:
runAsUser: 1001
env:
- name: BITNAMI_DEBUG
value: "false"
- name: POSTGRESQL_PORT_NUMBER
value: "5432"
- name: POSTGRESQL_VOLUME_DIR
value: "/bitnami/postgresql"
- name: PGDATA
value: "/bitnami/postgresql/data"
- name: POSTGRES_USER
value: "postgres"
- name: POSTGRES_PASSWORD
value: ""
valueFrom:
secretKeyRef:
name: postgresql
key: postgresql-password
- name: POSTGRESQL_ENABLE_LDAP
value: "no"
- name: POSTGRESQL_ENABLE_TLS
value: "no"
- name: POSTGRESQL_LOG_HOSTNAME
value: "false"
- name: POSTGRESQL_LOG_CONNECTIONS
value: "false"
- name: POSTGRESQL_LOG_DISCONNECTIONS
value: "false"
- name: POSTGRESQL_PGAUDIT_LOG_CATALOG
value: "off"
- name: POSTGRESQL_CLIENT_MIN_MESSAGES
value: "error"
- name: POSTGRESQL_SHARED_PRELOAD_LIBRARIES
value: "pgaudit"
ports:
- name: tcp-postgresql
containerPort: 5432
livenessProbe:
exec:
command:
- /bin/sh
- -c
- exec pg_isready -U "postgres" -h 127.0.0.1 -p 5432
initialDelaySeconds: 30
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 6
readinessProbe:
exec:
command:
- /bin/sh
- -c
- -e
- |
exec pg_isready -U "postgres" -h 127.0.0.1 -p 5432
[ -f /opt/bitnami/postgresql/tmp/.initialized ] || [ -f /bitnami/postgresql/.initialized ]
initialDelaySeconds: 5
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 6
volumeMounts:
- name: dshm
mountPath: /dev/shm
- name: data
mountPath: /bitnami/postgresql
subPath:
- mountPath: /etc/localtime
name: host-time
readOnly: true
volumes:
- name: dshm
emptyDir:
medium: Memory
- hostPath:
path: /etc/localtime
name: host-time
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes:
- "ReadWriteOnce"
resources:
requests:
storage: "10Gi"
2.2 导入
kubectl apply -f postgresql-sts.yaml
2.3 查看
[root@master ~]# kubectl get pod -n kong
NAME READY STATUS RESTARTS AGE
postgresql-0 1/1 Running 0 43s
2.4 进入postgresql容器中创建kong和konga数据库
###数据库密码:Z2Cg3uF1Q6
[root@master ~]# kubectl exec -it -n kong postgresql-0 bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
I have no name!@postgresql-0:/$ psql -h 127.0.0.1 -U postgres
Password for user postgres:
psql (11.12)
Type "help" for help.
postgres=# create database kong ;
CREATE DATABASE
postgres=# create database konga ;
CREATE DATABASE
postgres=#
3.helm安装kong
3.1 helm安装kong
helm repo add kong https://charts.konghq.com
helm repo update
helm search repo kong/kong
helm pull kong/kong
tar -zxvf kong-*.tgz
cd kong
#修改配置
vim values.yaml
# 打开http-admin端口
admin: enable: false 修改为 admin：enable: true
http: enable: false 修改为 http: enable: true
#使用外部postgresql
[root@master kong]# grep -B24 'pg_ssl_verify: false' values.yaml
env:
database: "off"
# the chart uses the traditional router (for Kong 3.x+) because the ingress
# controller generates traditional routes. if you do not use the controller,
# you may set this to "traditional_compatible" or "expressions" to use the new
# DSL-based router
router_flavor: "traditional"
nginx_worker_processes: "2"
proxy_access_log: /dev/stdout
admin_access_log: /dev/stdout
admin_gui_access_log: /dev/stdout
portal_api_access_log: /dev/stdout
proxy_error_log: /dev/stderr
admin_error_log: /dev/stderr
admin_gui_error_log: /dev/stderr
portal_api_error_log: /dev/stderr
prefix: /kong_prefix/
database: "postgres" #使用postgresql数据库
pg_host: "postgresql.kong.svc.cluster.local"
pg_port: "5432"
pg_user: "postgres"
pg_password: "Z2Cg3uF1Q6"
pg_database: kong
pg_ssl: false
pg_ssl_verify: false
#安装
helm install kong -f values.yaml . -n kong
#查看
[root@master kong]# kubectl get pod -n kong
NAME READY STATUS RESTARTS AGE
kong-kong-57989d4bf-bqftb 2/2 Running 0 12m
kong-kong-init-migrations-9zv9z 0/1 Completed 0 12m
postgresql-0 1/1 Running 0 42m
3.2 持久化配置文件(方便后期更改配置)
1.复制出配置文件(nginx-kong-conf文件)
kubectl cp -c proxy kong/`kubectl get pod -n kong |grep kong-|grep -v init|awk '{print $1}'`:/kong_prefix/nginx-kong.conf ./nginx-kong.conf
2.创建configmap
kubectl create configmap nginx-kong-conf -n kong --from-file=./nginx-kong.conf
3.修改kong的deploy,挂载配置文件(挂载到proxy容器下)
[root@master ~]# kubectl get deploy -n kong |grep kong
kong-kong 1/1 1 1 7h11m
konga 1/1 1 1 7h4m
[root@master ~]# kubectl edit deploy -n kong kong-kong
[root@master ~]# kubectl get deploy -n kong kong-kong -o yaml |grep -C2 "nginx-kong"
- mountPath: /tmp
name: kong-kong-tmp
- mountPath: /kong_prefix/nginx-kong.conf
name: nginx-kong-conf
subPath: nginx-kong.conf
dnsPolicy: ClusterFirst
initContainers:
--
- configMap:
defaultMode: 420
name: nginx-kong-conf
name: nginx-kong-conf
4.安装konga
4.1 初始化konga数据库
PG_HOST=`kubectl get svc -n kong postgresql|awk -F' '+ 'NR==2{print $3}'`
docker run --rm pantsel/konga:latest -c prepare -a postgres -u postgresql://postgres:Z2Cg3uF1Q6@${PG_HOST}:5432/konga
4.2 konga yaml文件
apiVersion: apps/v1
kind: Deployment
metadata:
name: konga
namespace: kong
spec:
replicas: 1
selector:
matchLabels:
app: konga
template:
metadata:
labels:
app: konga
spec:
containers:
- name: konga
image: pantsel/konga:latest
imagePullPolicy: IfNotPresent
env:
- name: DB_ADAPTER
value: "postgres"
- name: DB_DATABASE
value: "konga"
- name: DB_HOST
value: "postgresql.kong.svc.cluster.local"
- name: DB_PASSWORD
value: "Z2Cg3uF1Q6"
- name: DB_PORT
value: "5432"
- name: DB_USER
value: "postgres"
- name: KONGA_LOG_LEVEL
value: "info"
- name: NODE_ENV
value: "production"
ports:
- containerPort: 1337
protocol: TCP
name: konga
volumeMounts:
- mountPath: /etc/localtime
name: host-time
readOnly: true
volumes:
- hostPath:
path: /etc/localtime
name: host-time
---
apiVersion: v1
kind: Service
metadata:
name: konga
namespace: kong
labels:
app: konga
spec:
ports:
- name: konga-port
port: 1337
nodePort: 31337
protocol: TCP
type: NodePort
selector:
app: konga
4.2 导入
kubectl apply -f konga-deploy.yaml
4.3 查看
[root@master ~]# kubectl get pod,svc -n kong|grep konga
pod/konga-6fc9774cd4-8nt5d 1/1 Running 0 6m40s
service/konga NodePort 10.110.155.32 <none> 1337:31337/TCP 6m40s
4.4浏览器访问测试
http://NODE_IP:31337
4.5 将kong-proxy修改为nodePort(方便访问测试,默认情况无法使用loadBalancer)
查看
[root@master ~]# kubectl get svc -n kong|grep kong-proxy
kong-kong-proxy LoadBalancer 10.103.173.13 <pending> 80:31993/TCP,443:32435/TCP 7m5s
修改
kubectl patch svc kong-kong-proxy -n kong -p '{"spec":{"type":"NodePort","ports":[{"name":"kong-proxy","port":80,"protocol":"TCP","targetPort":8000,"nodePort":31993},{"name":"kong-proxy-tls","port":443,"protocol":"TCP","targetPort":8443,"nodePort":32435}]}}'
查看
[root@master ~]# kubectl get svc -n kong|grep kong-proxy
kong-kong-proxy NodePort 10.103.173.13 <none> 80:31993/TCP,443:32435/TCP 13m

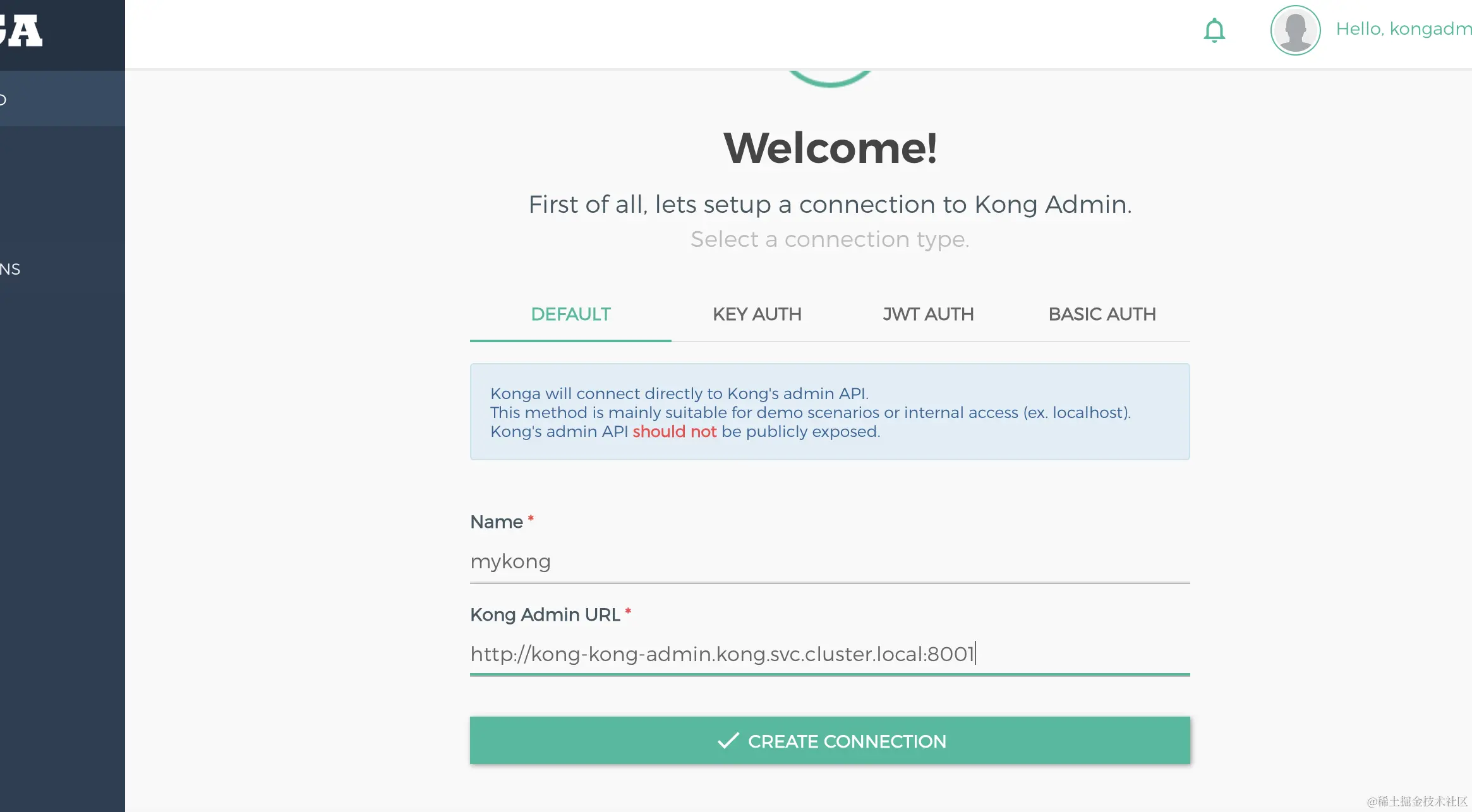

4.6 配置kong admin访问地址
1.查看svc地址
[root@master ~]# kubectl get svc -n kong |grep admin
kong-kong-admin NodePort 10.100.244.82 <none> 8001:32276/TCP,8444:31398/TCP 16m
2.配置地址
5.使用
5.1 创建测试项目
kind: Service
apiVersion: v1
metadata:
name: example-app
labels:
app: example-app
spec:
selector:
app: example-app
ports:
- name: web
port: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: example-app
spec:
replicas: 1
selector:
matchLabels:
app: example-app
template:
metadata:
labels:
app: example-app
spec:
containers:
- name: example-app
image: nginx:alpine
ports:
- name: web
containerPort: 80
2.导入及测试
[root@master ~]# kubectl apply -f test-nginx.yaml
service/example-app created
deployment.apps/example-app created
[root@master ~]# kubectl get pod |grep example-app
example-app-56c9b6d95b-9p292 1/1 Running 0 15s
[root@master ~]# kubectl get svc example-app
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
example-app ClusterIP 10.99.139.214 <none> 80/TCP 62s
c
[root@master ~]# curl 10.99.139.214
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>

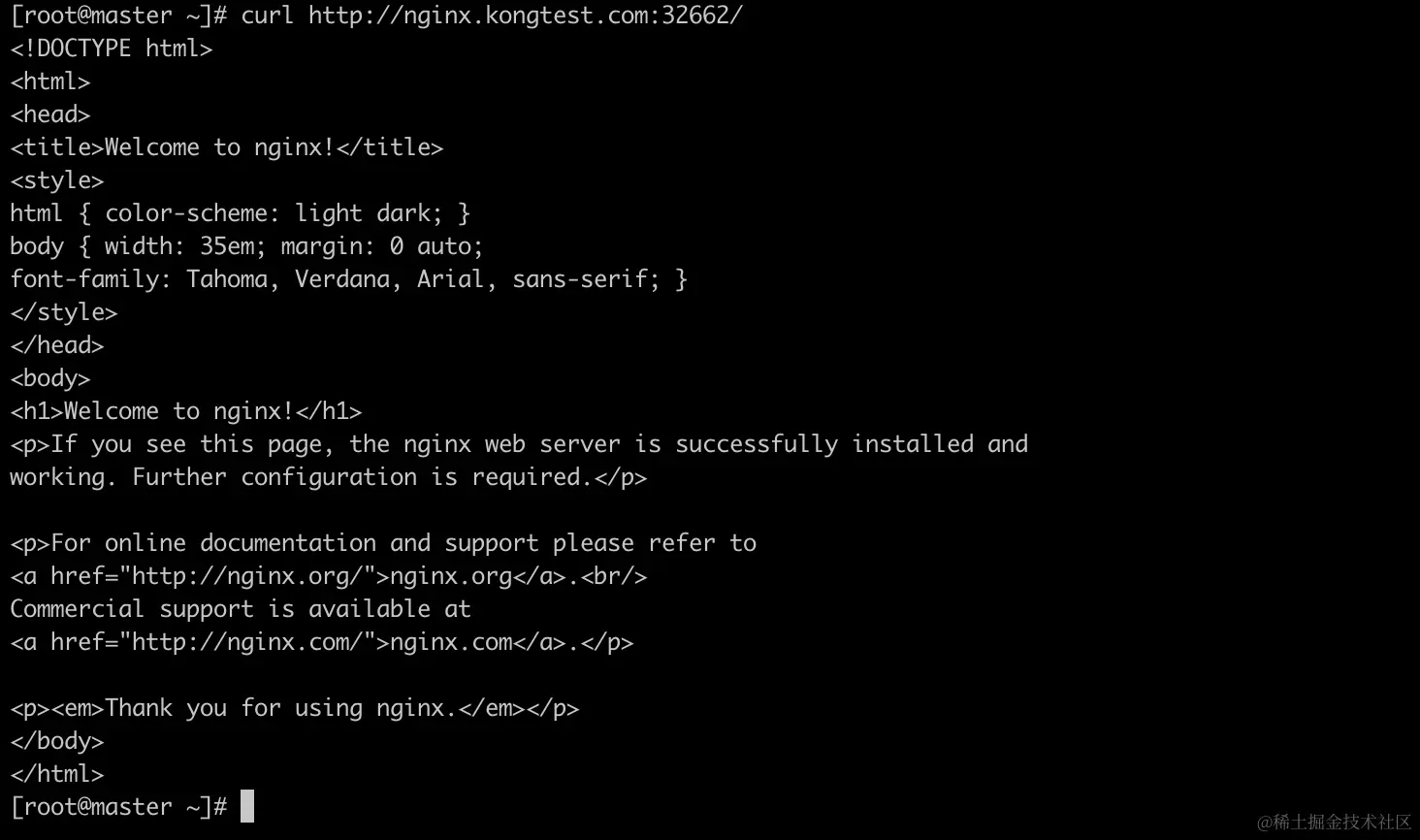

3.创建测试域名访问
- 使用nginx.kongtest.com域名测试

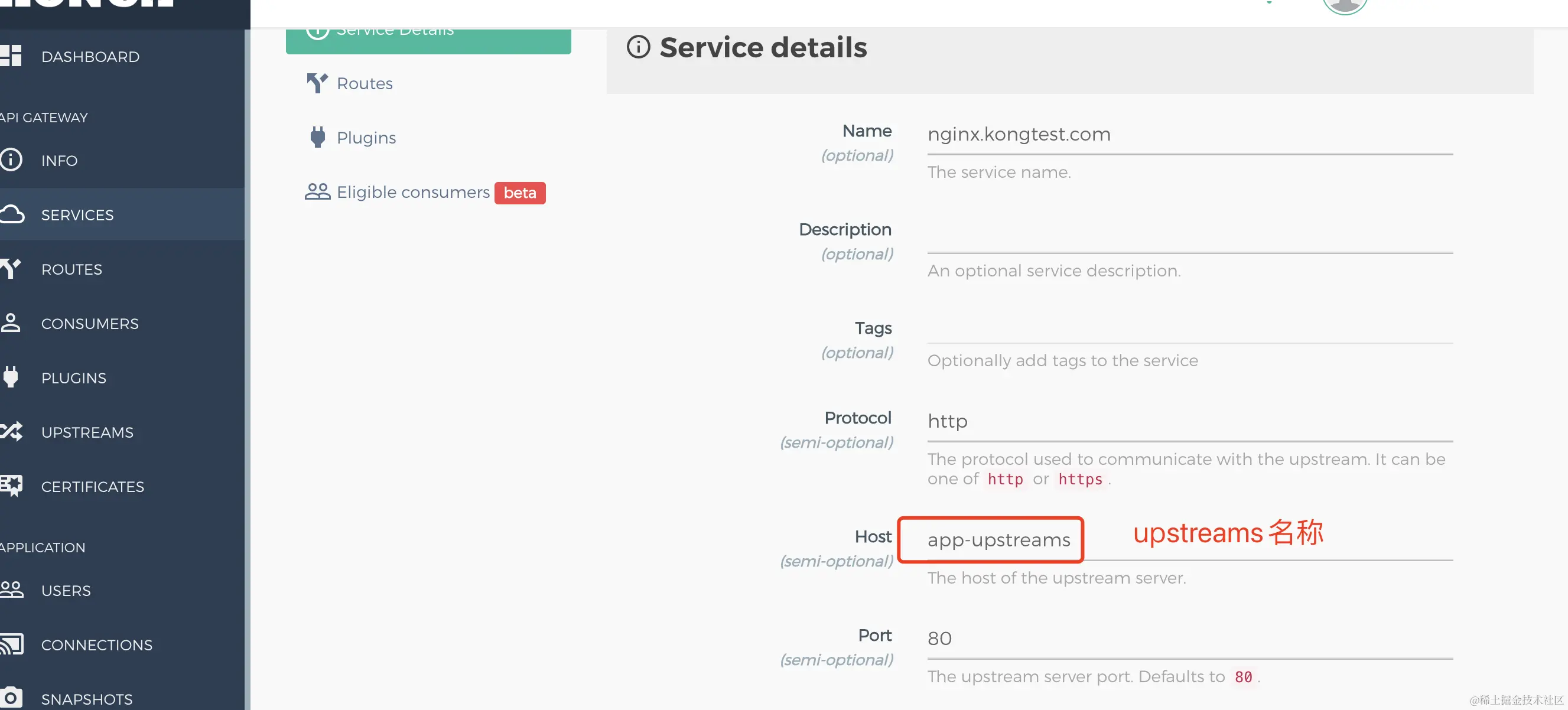

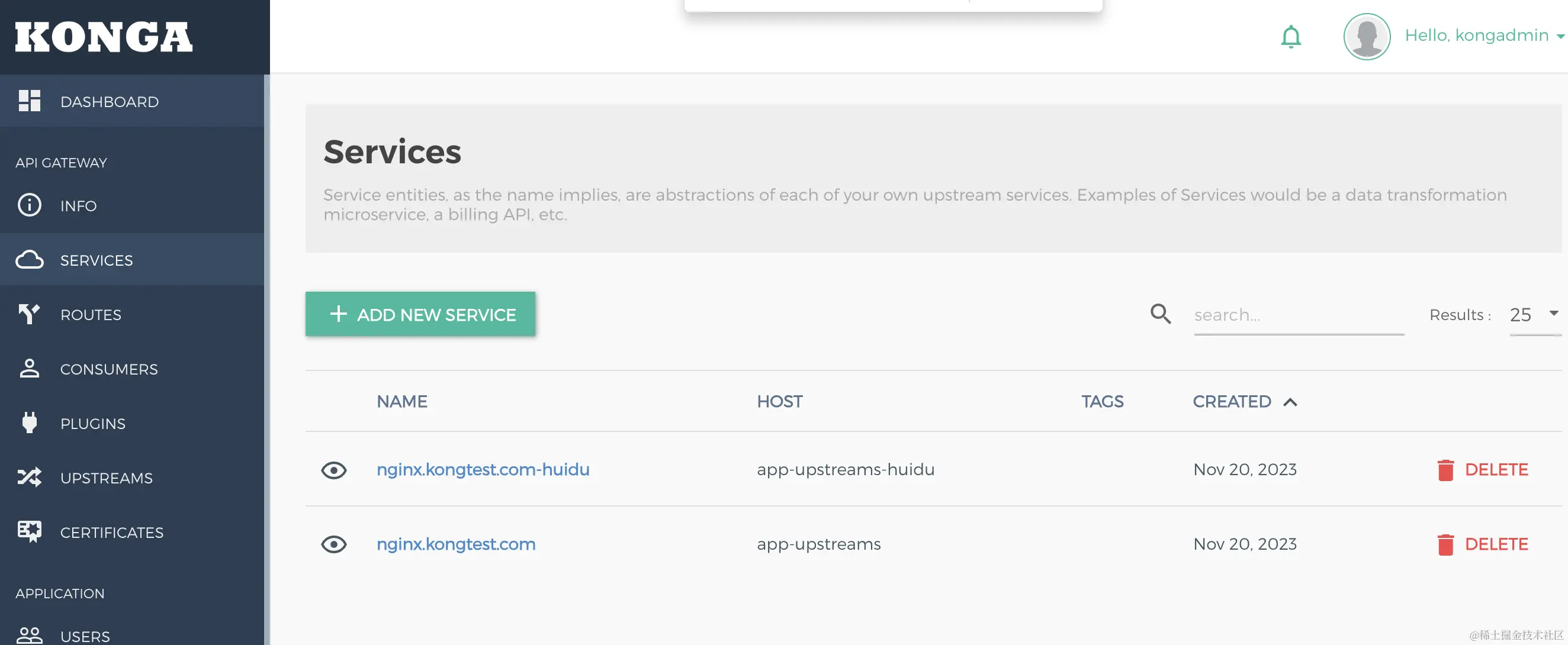

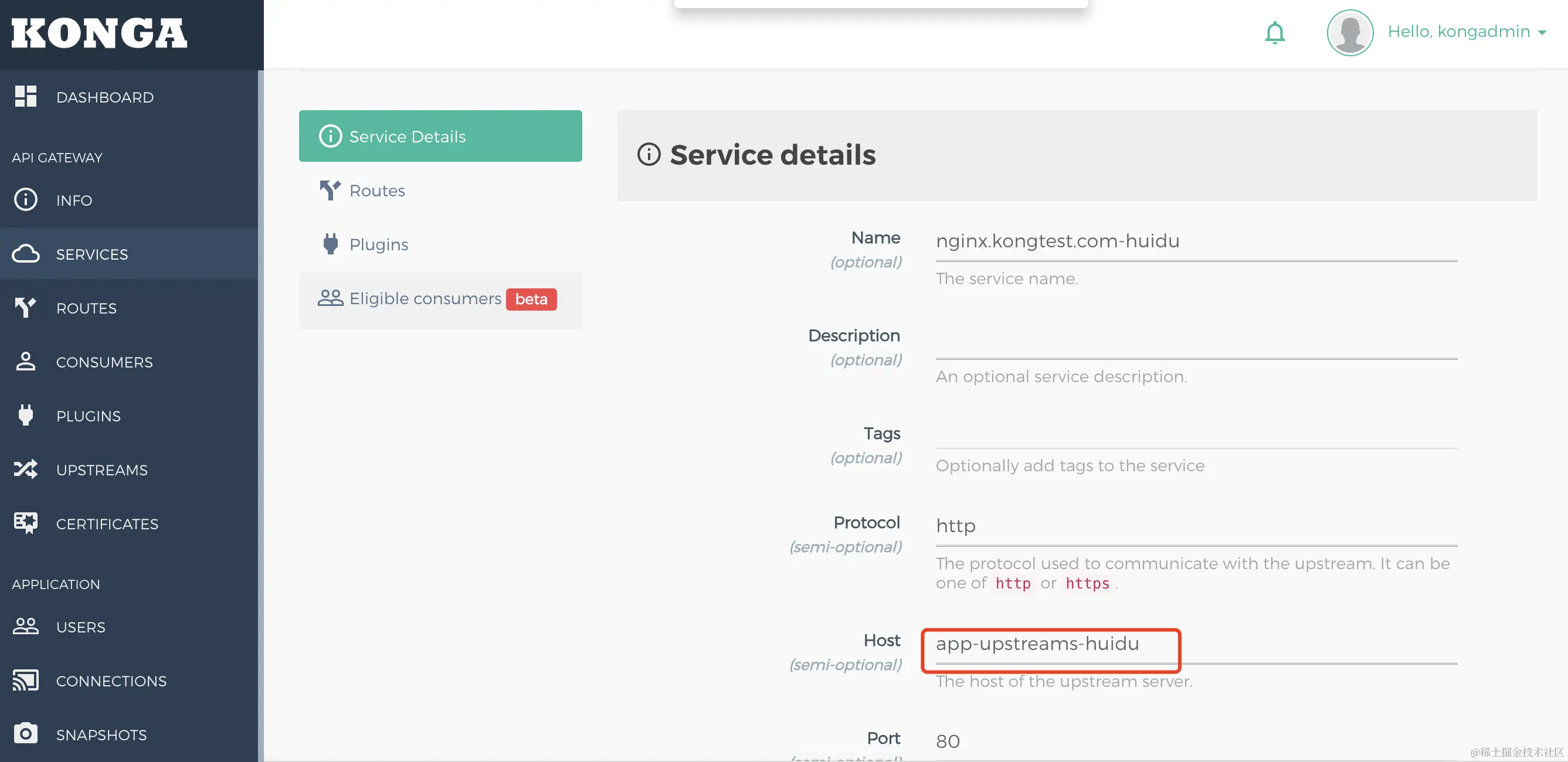

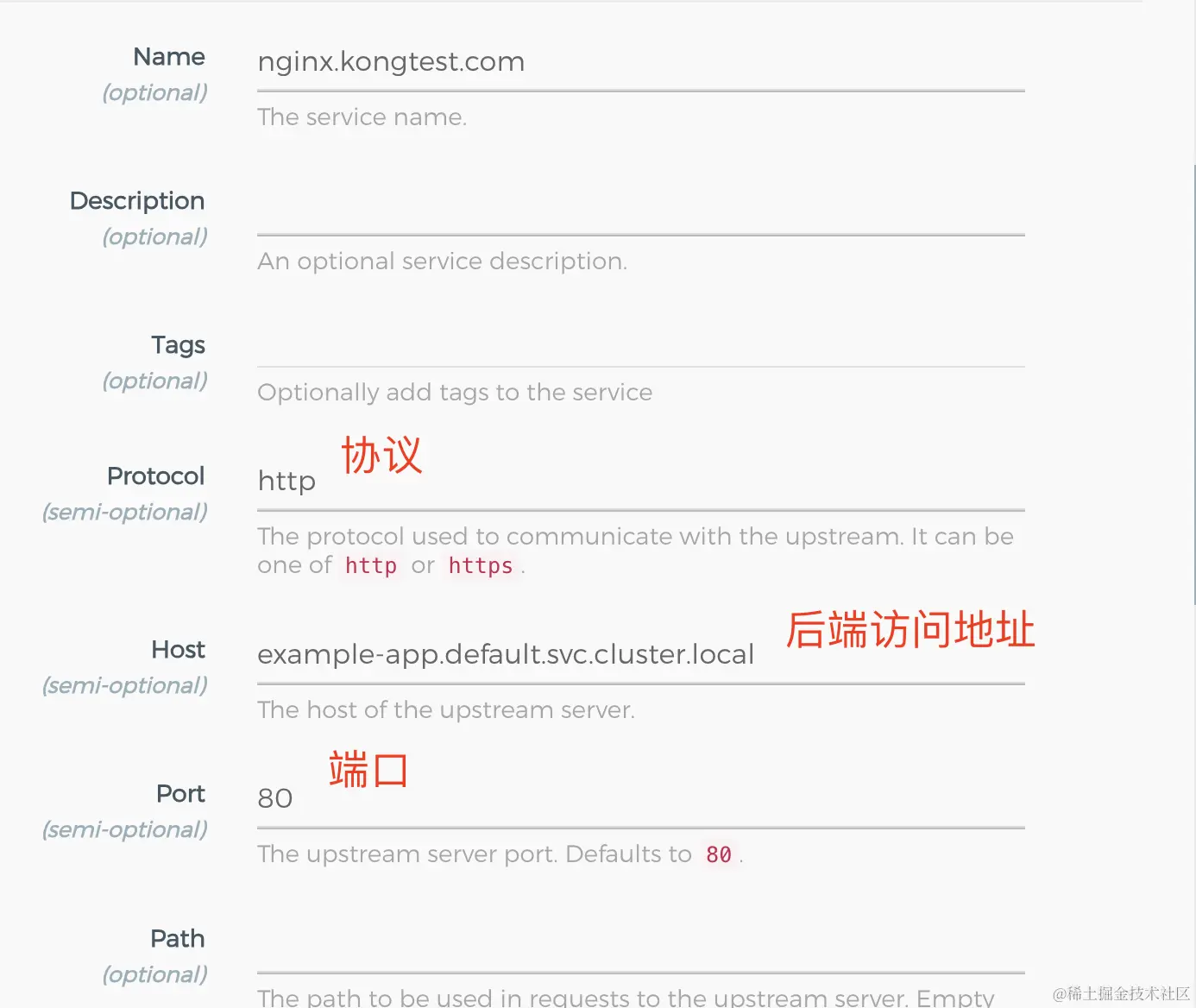

创建services

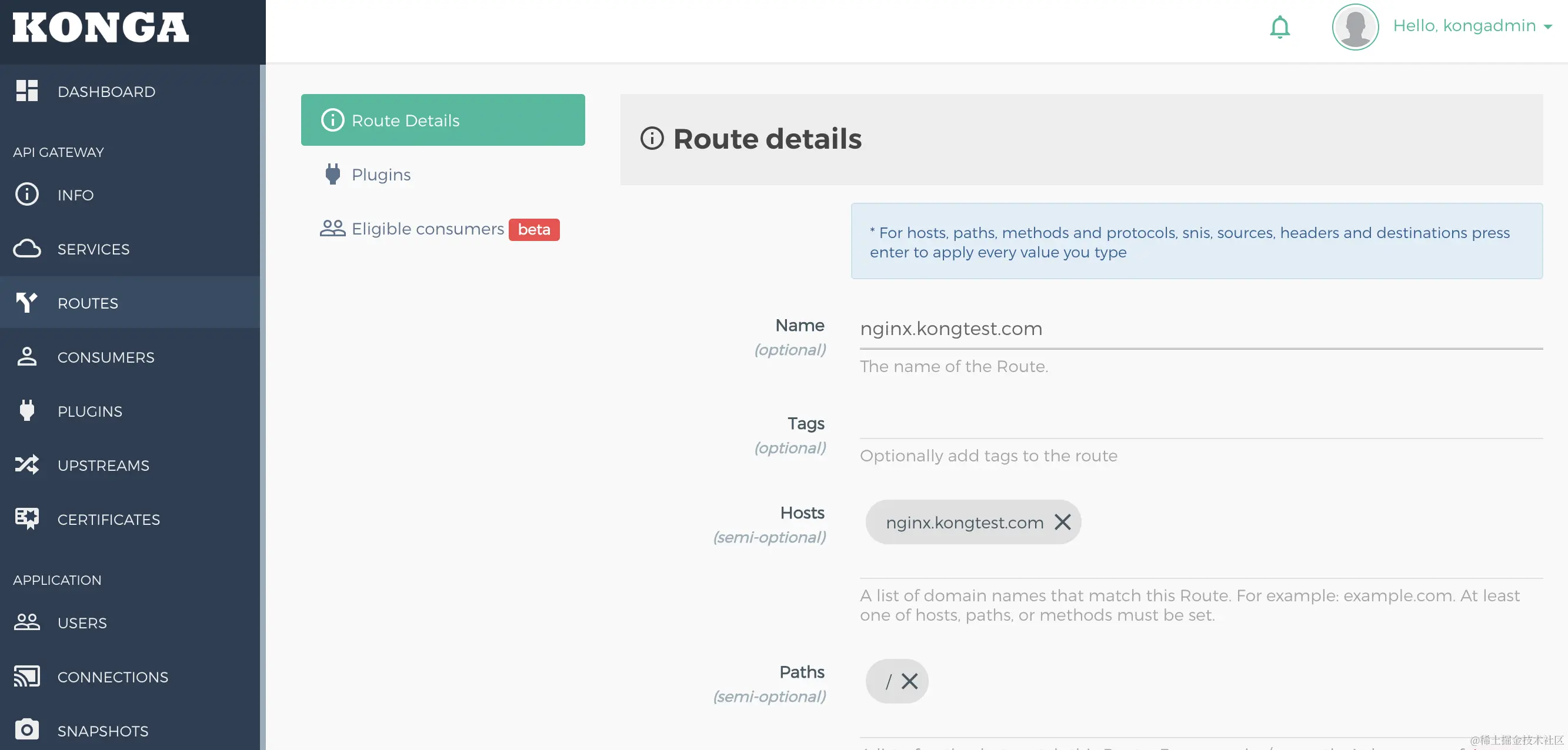

添加route

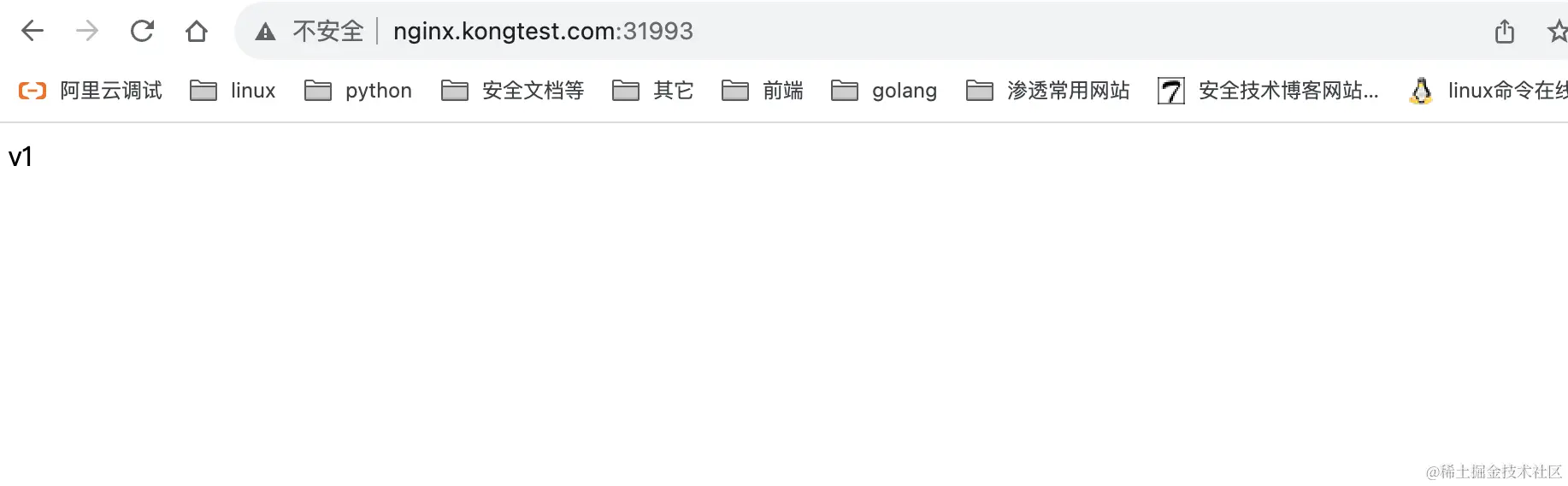

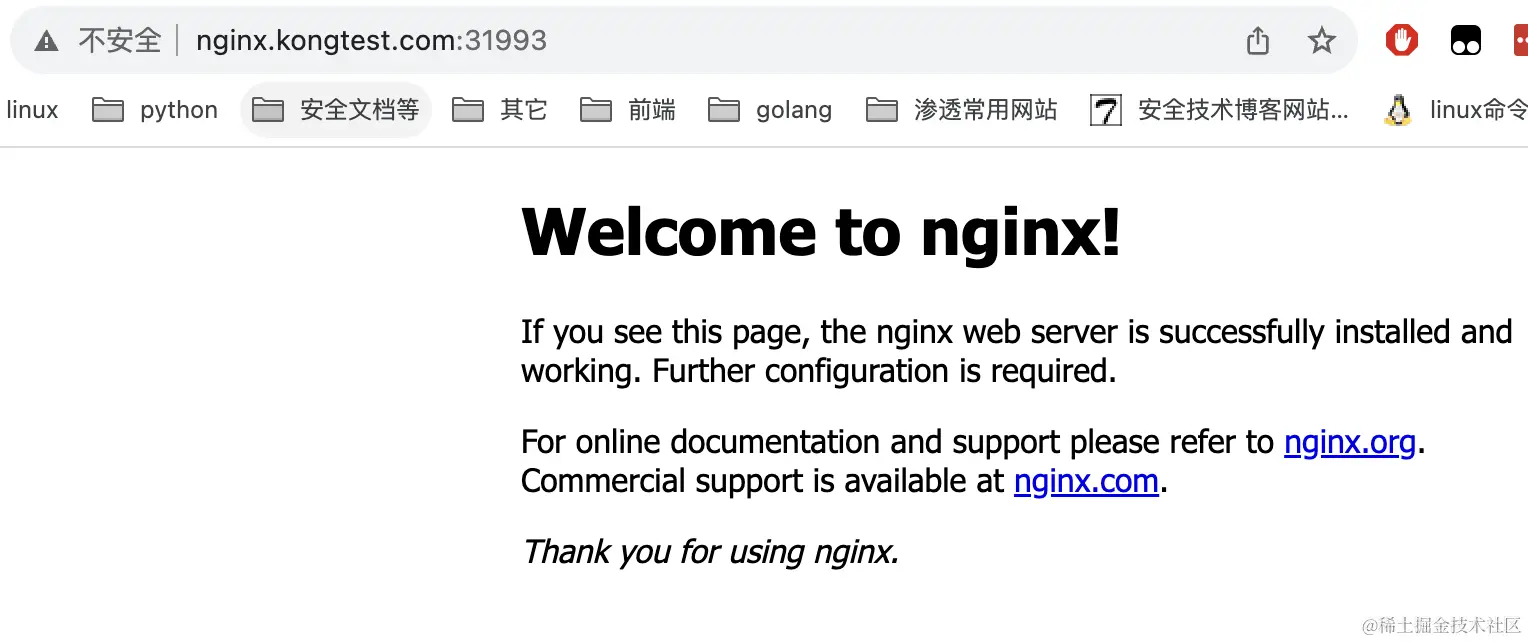

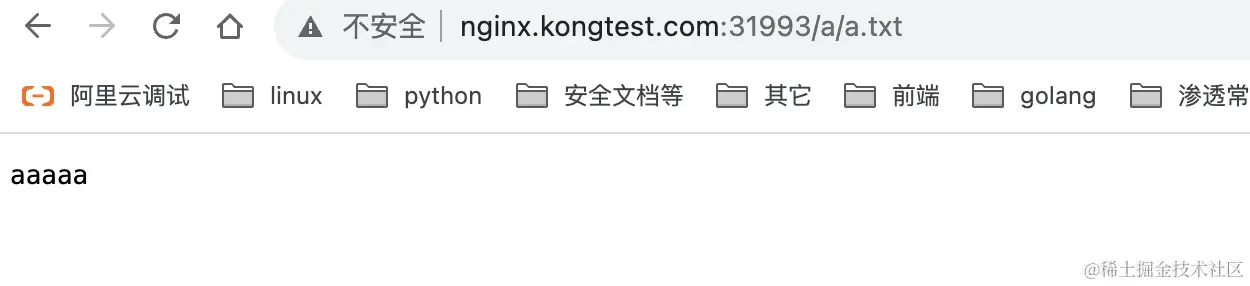

在本地的hosts文件中添加nginx.kongtest.com域名的hosts解析,访问浏览器测试
4.https配置
1.手动创建证书
openssl req -x509 -nodes -days 3650 -newkey rsa:2048 -keyout nginx.kongtest.com-key.key -out nginx.kongtest.com.pem -subj "/CN=ssl.kongtest.com"
2.查看证书文件
[root@master ~]# ll nginx.kongtest.com*
-rw-r--r-- 1 root root 1704 11月 14 09:54 nginx.kongtest.com-key.key
-rw-r--r-- 1 root root 1115 11月 14 09:54 nginx.kongtest.com.pem

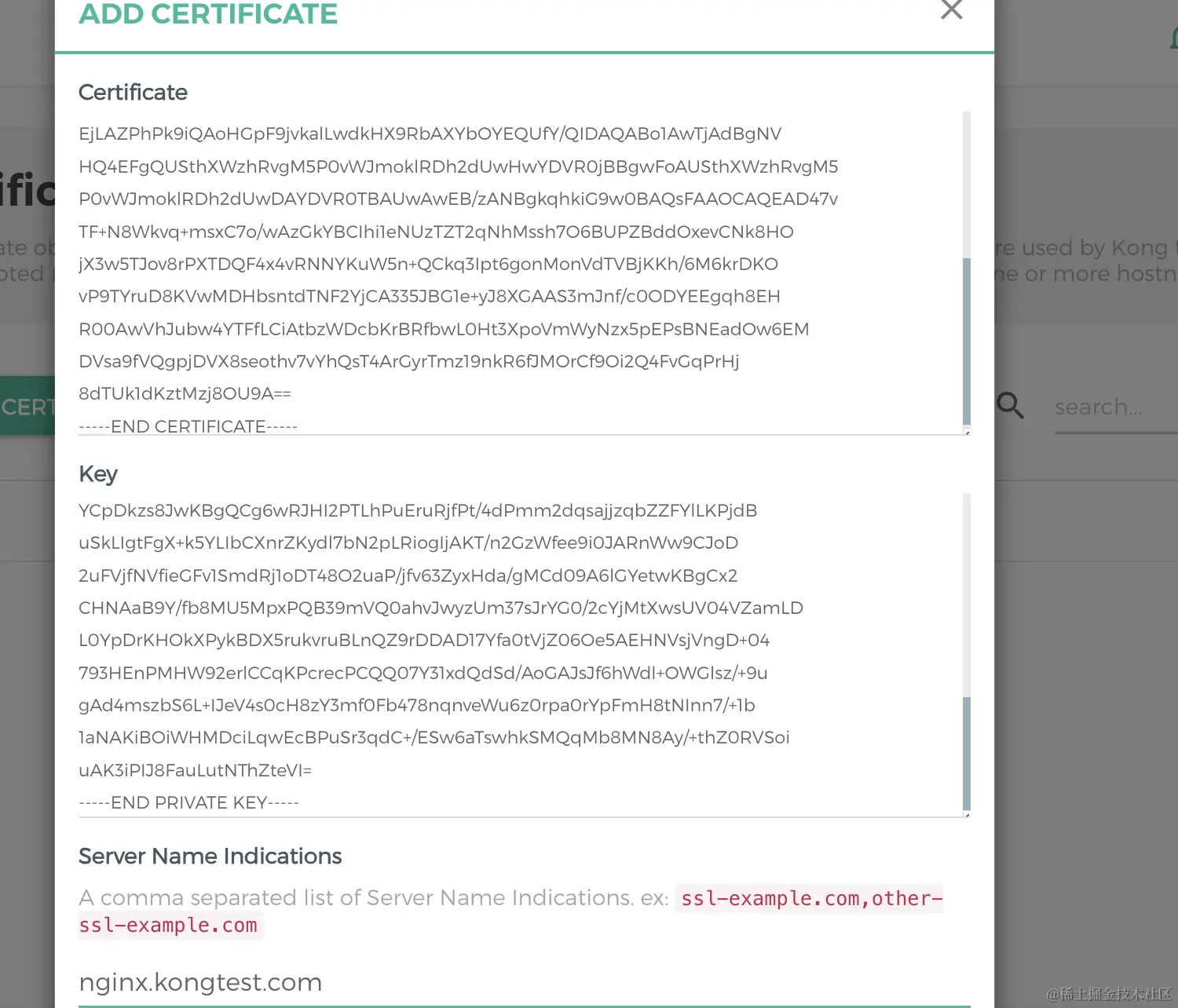

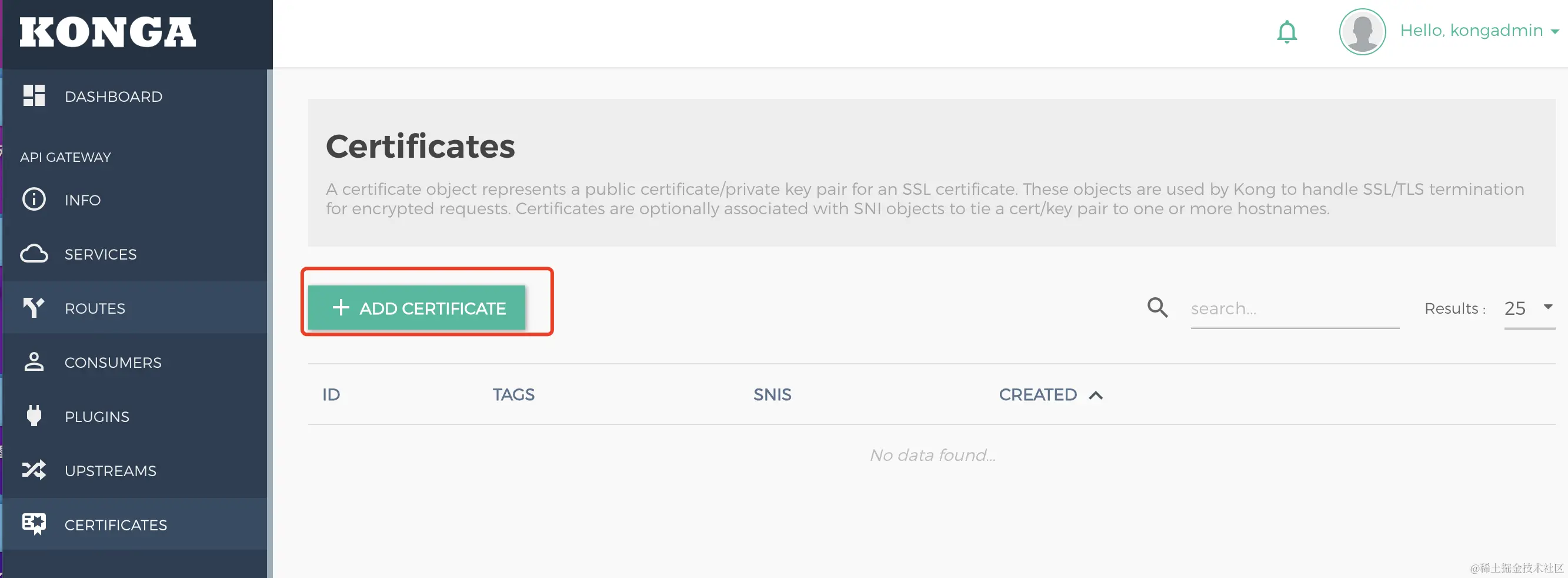

3.在konga中添加证书

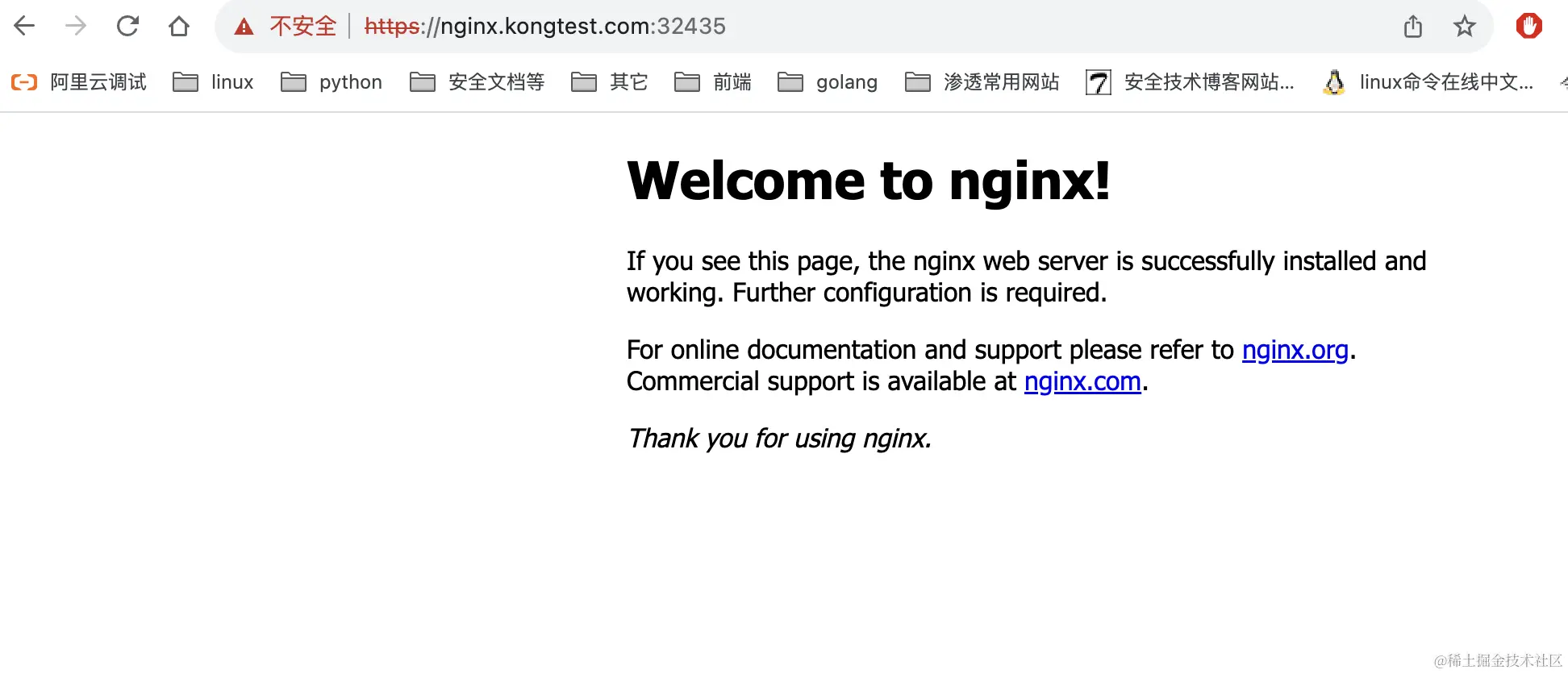

4.访问测试

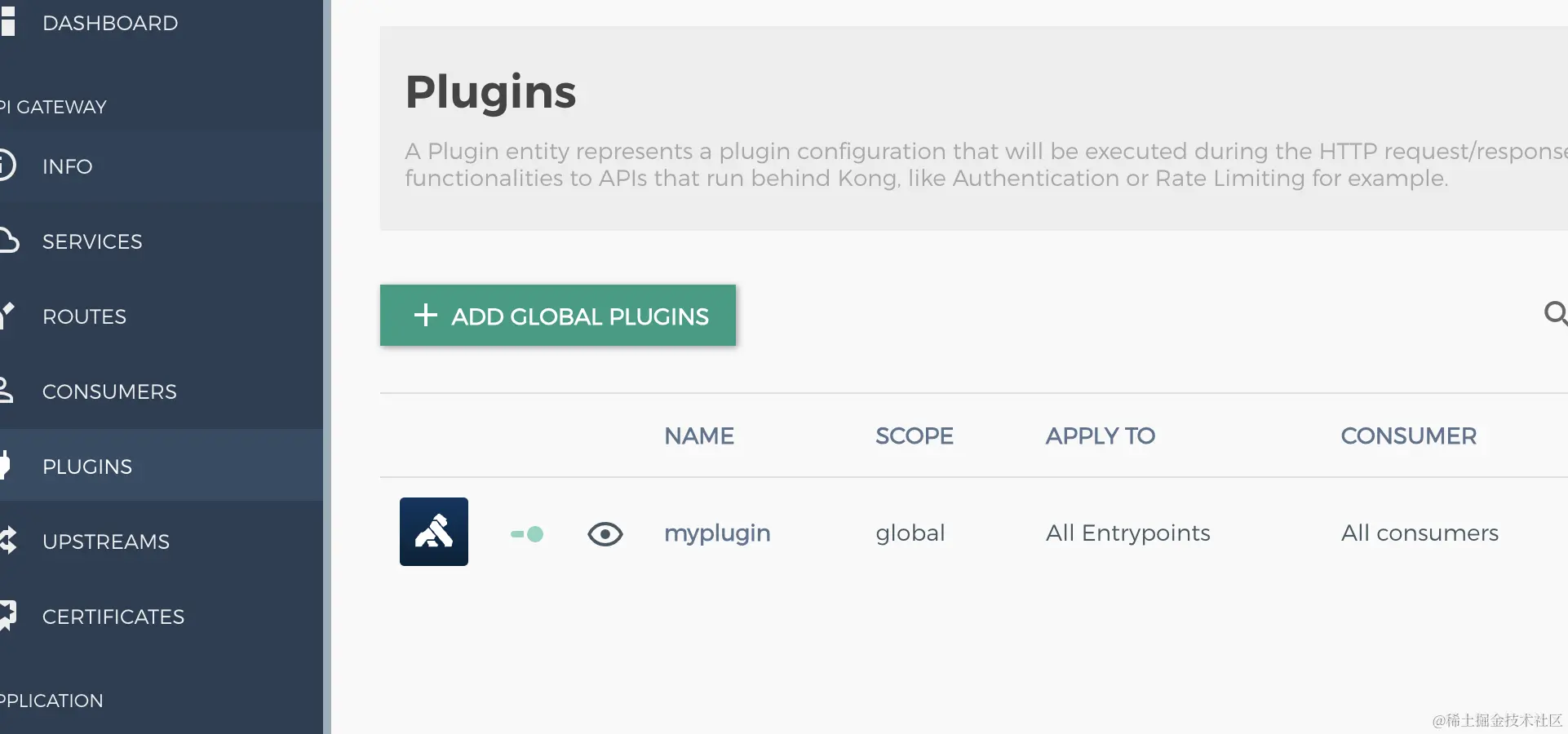

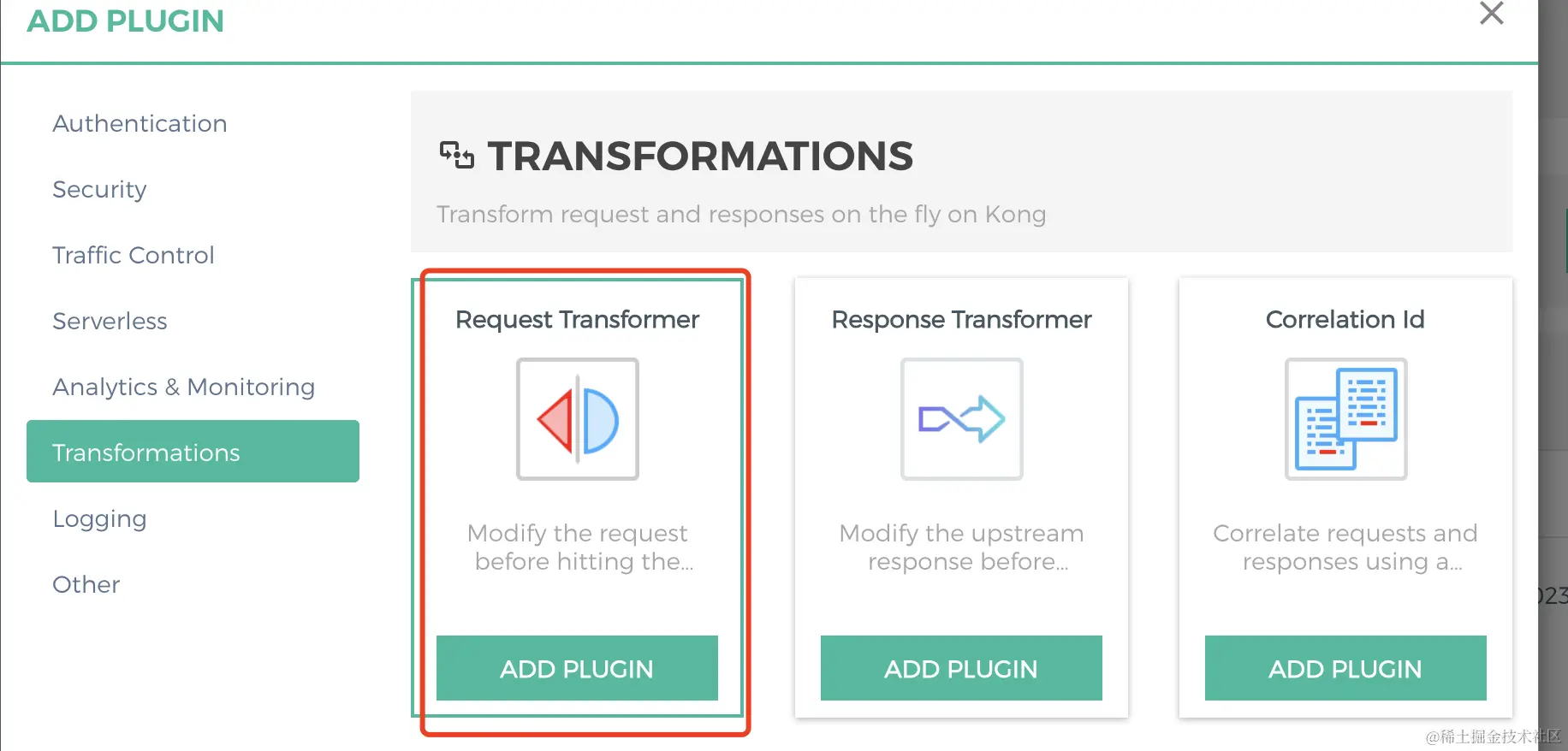

6.插件使用
- kong插件:docs.konghq.com/hub/
6.1 Basic Auth

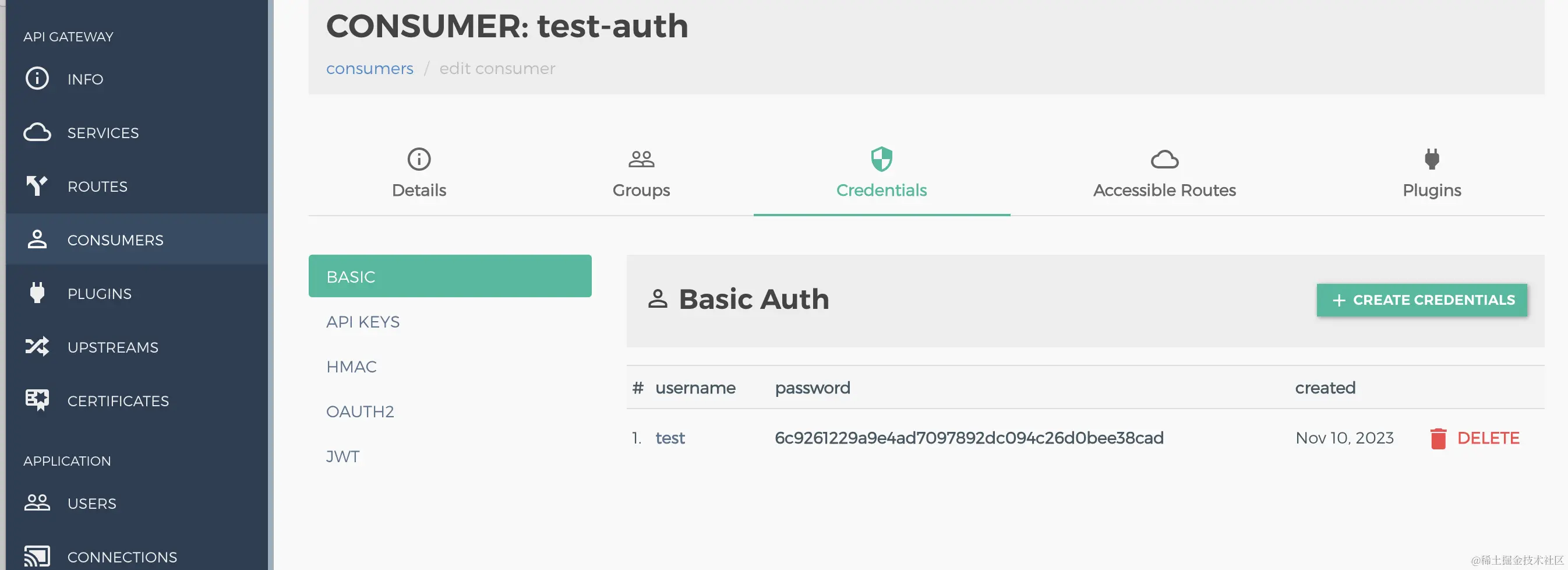

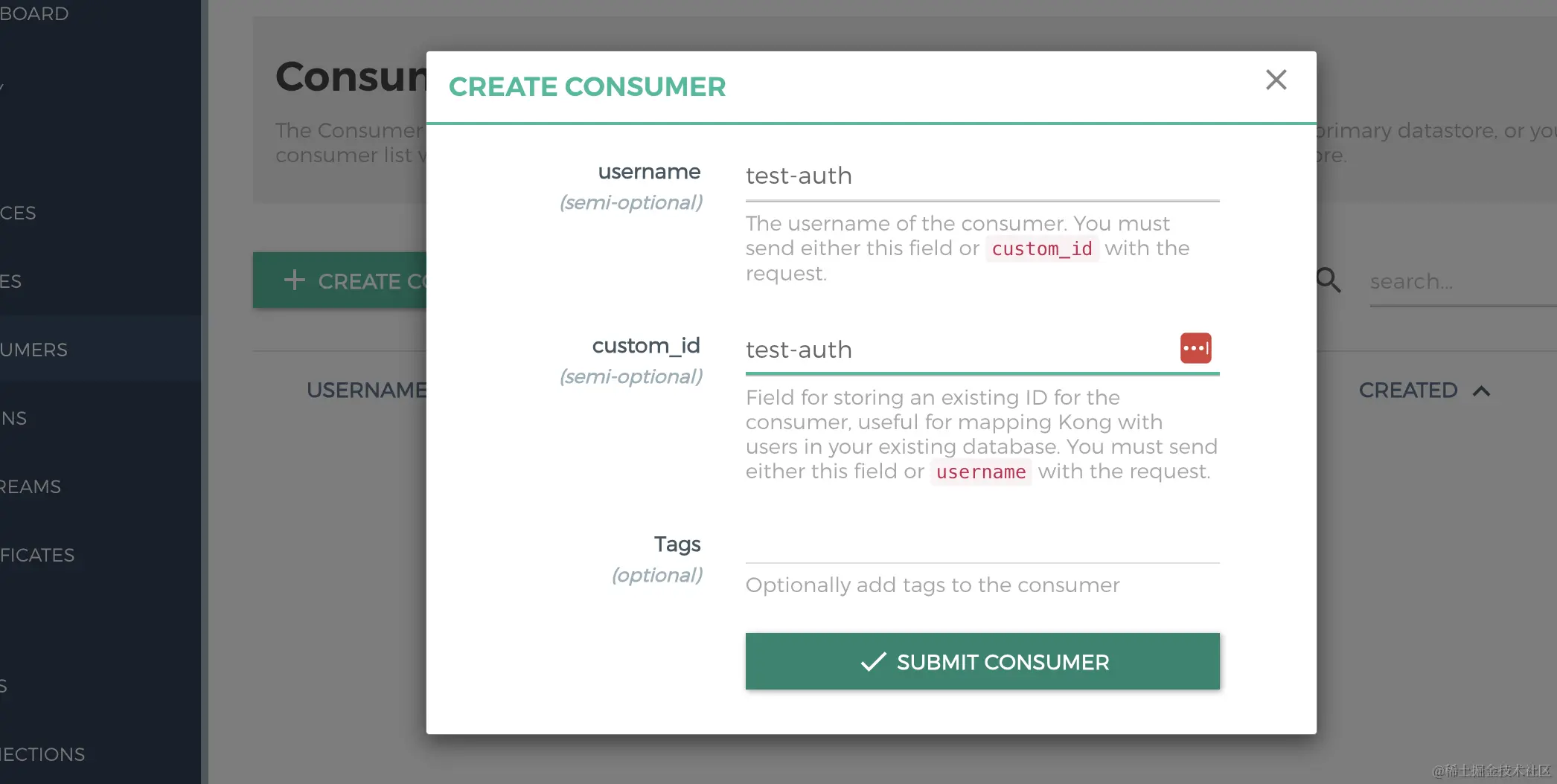

1.创建 Consumers

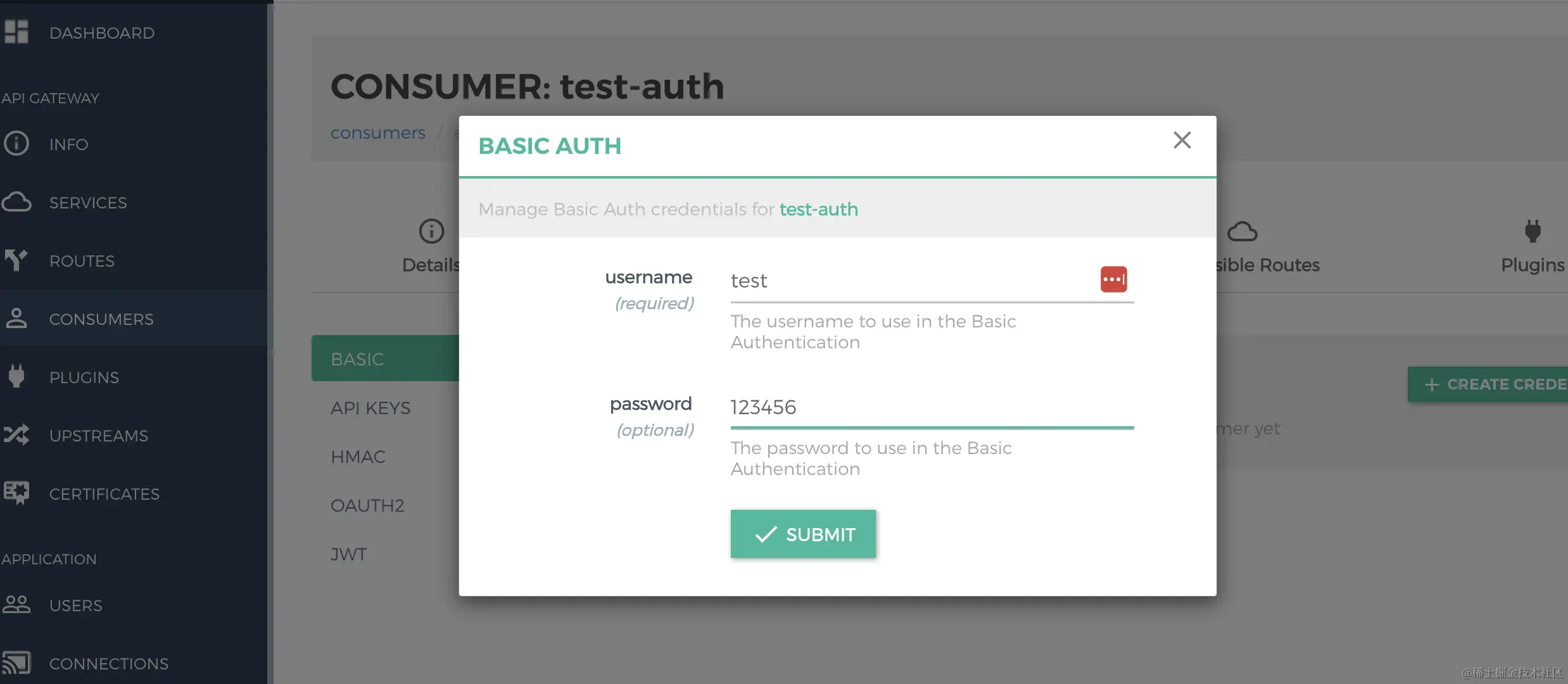

2.创建账号密码

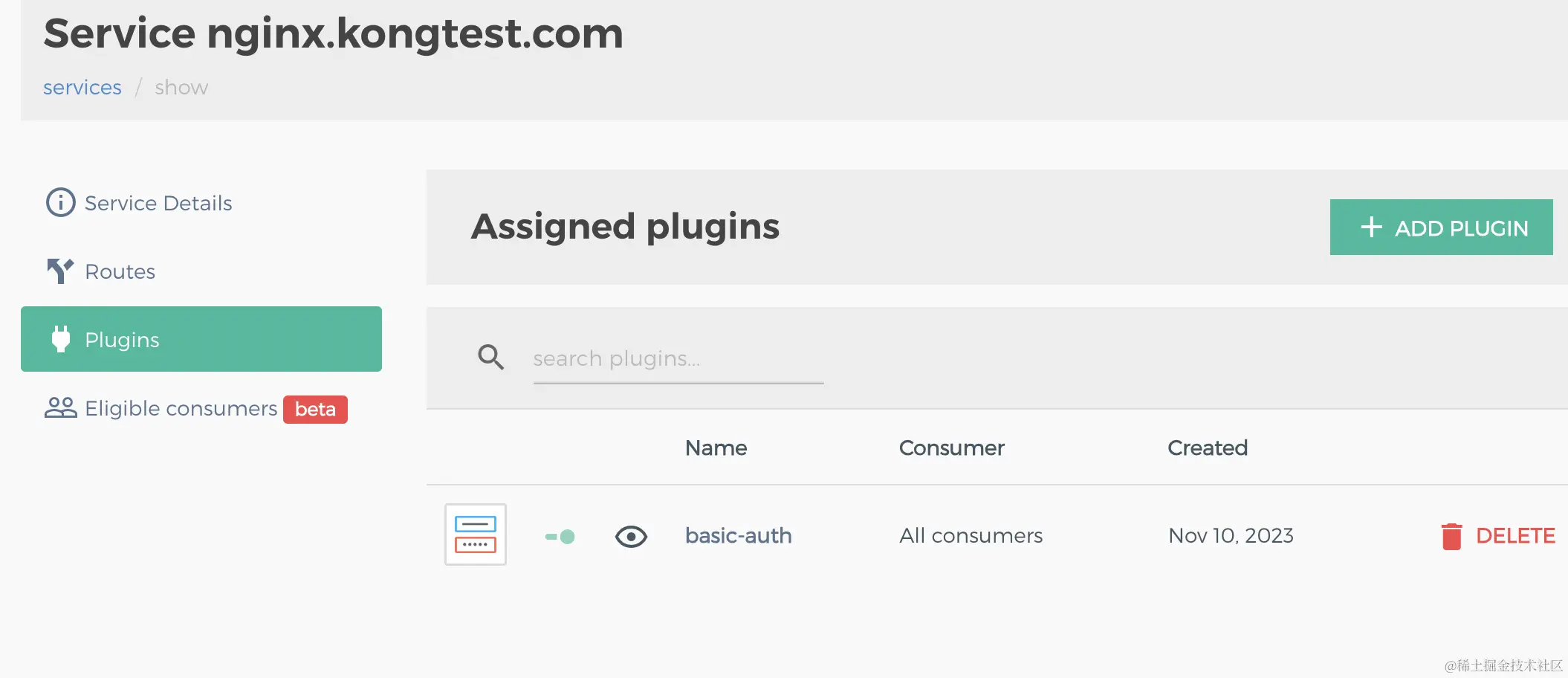

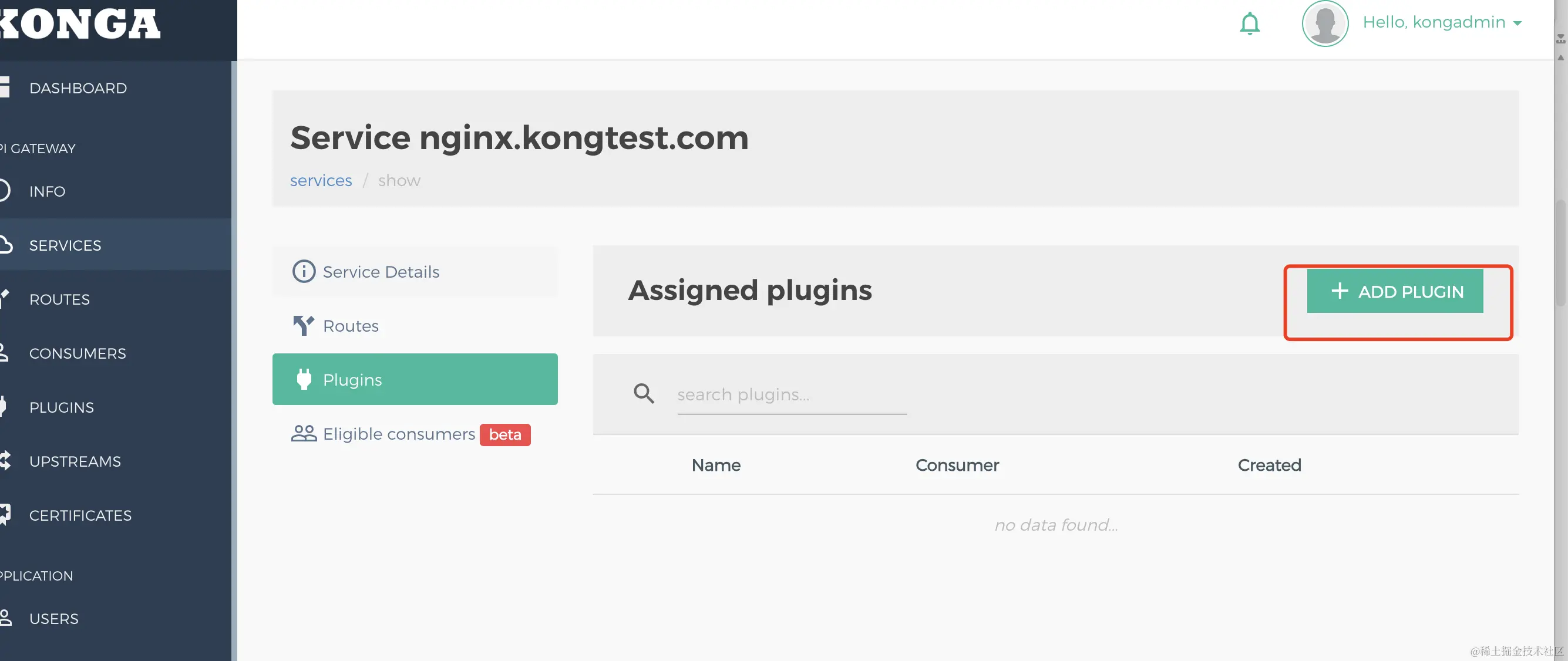

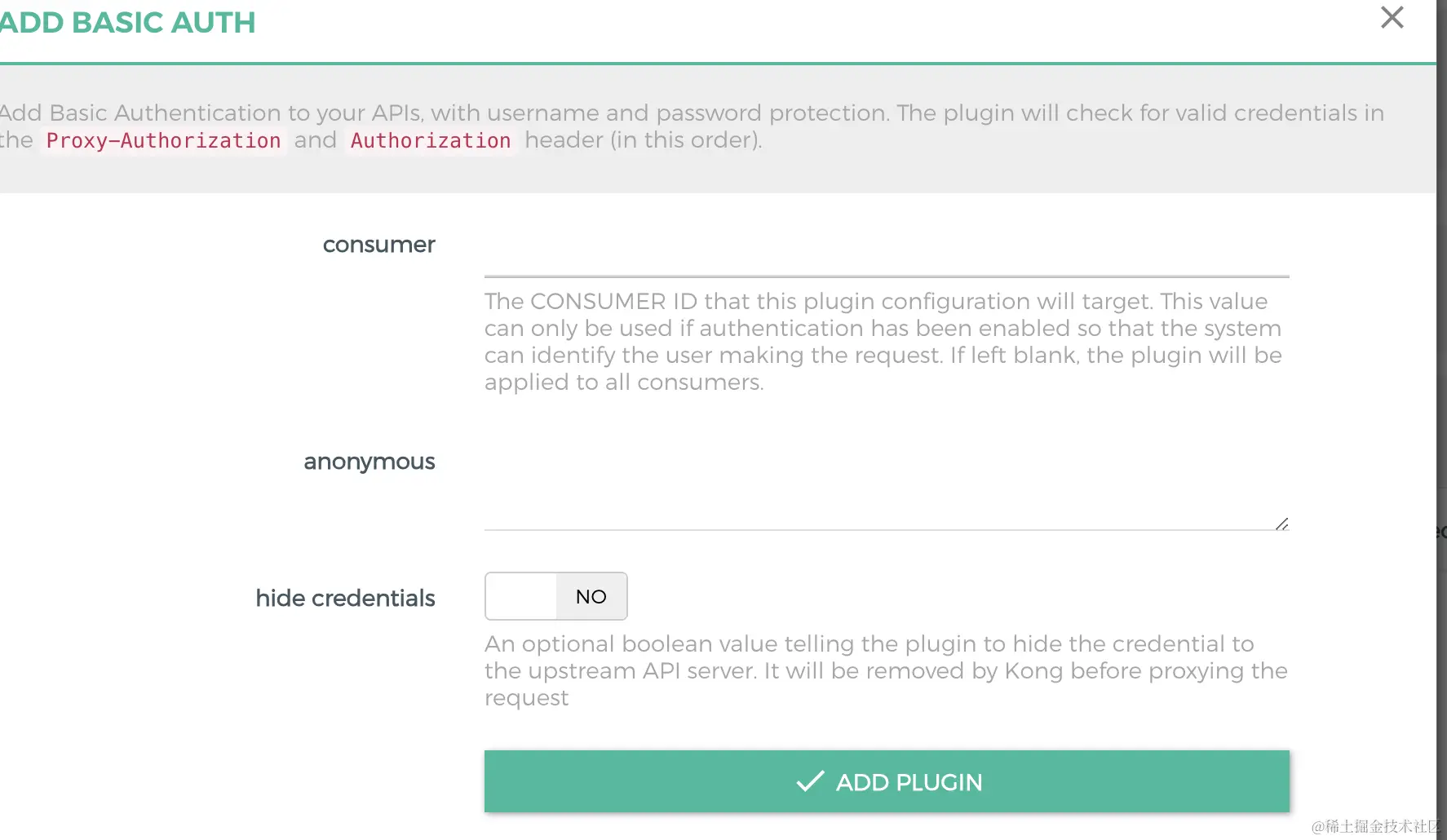

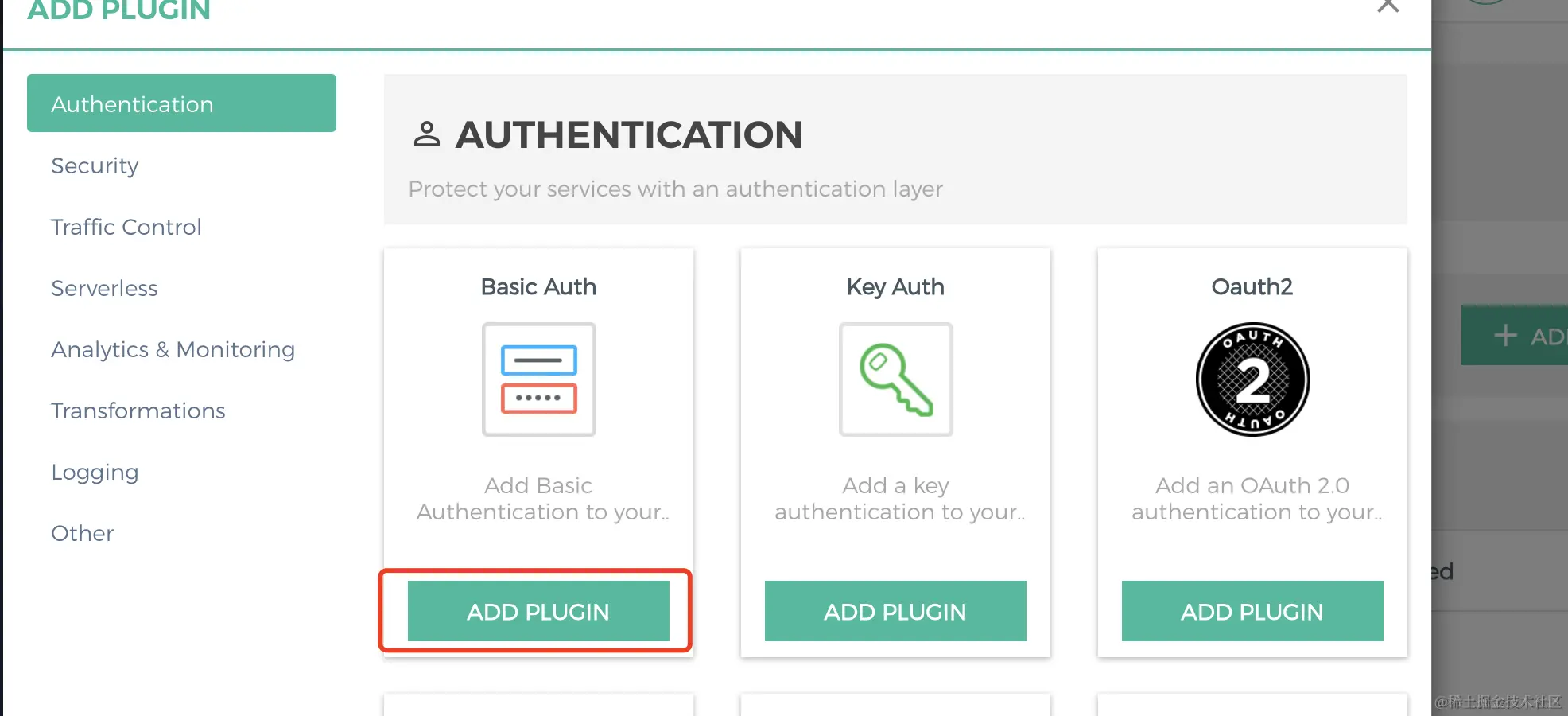

3.使用Basic Auth插件
- 全部为空即可

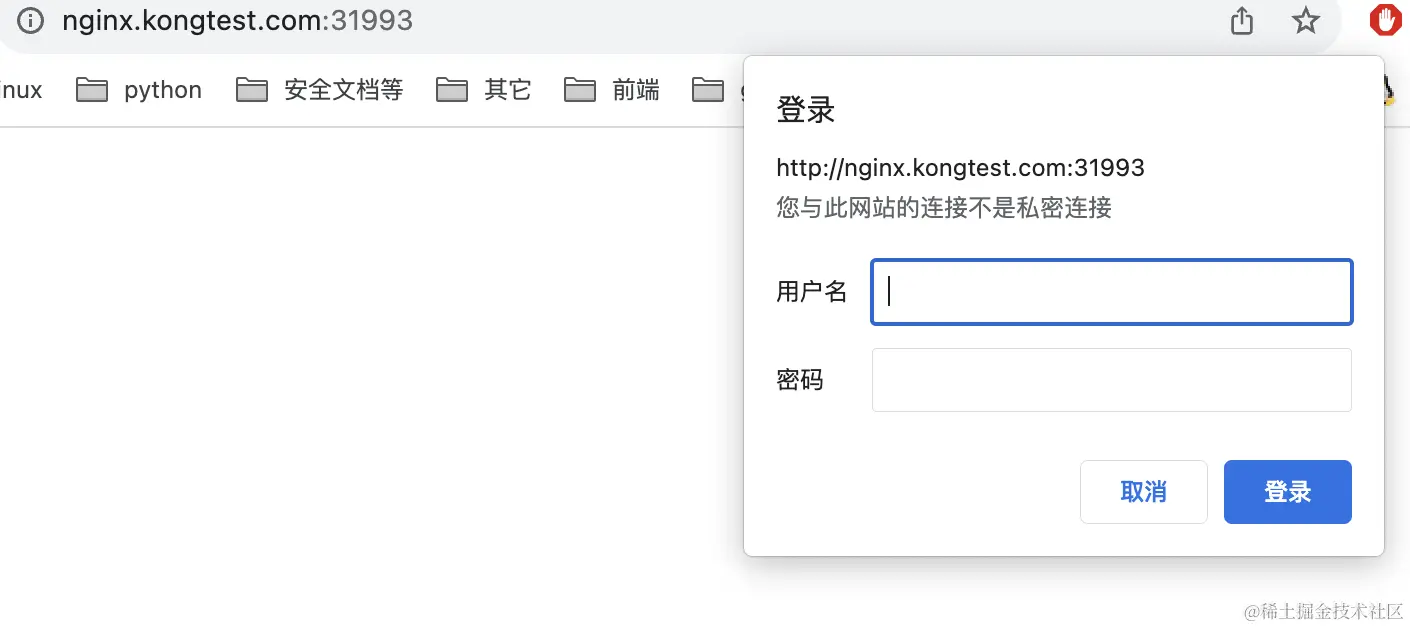

4.访问测试

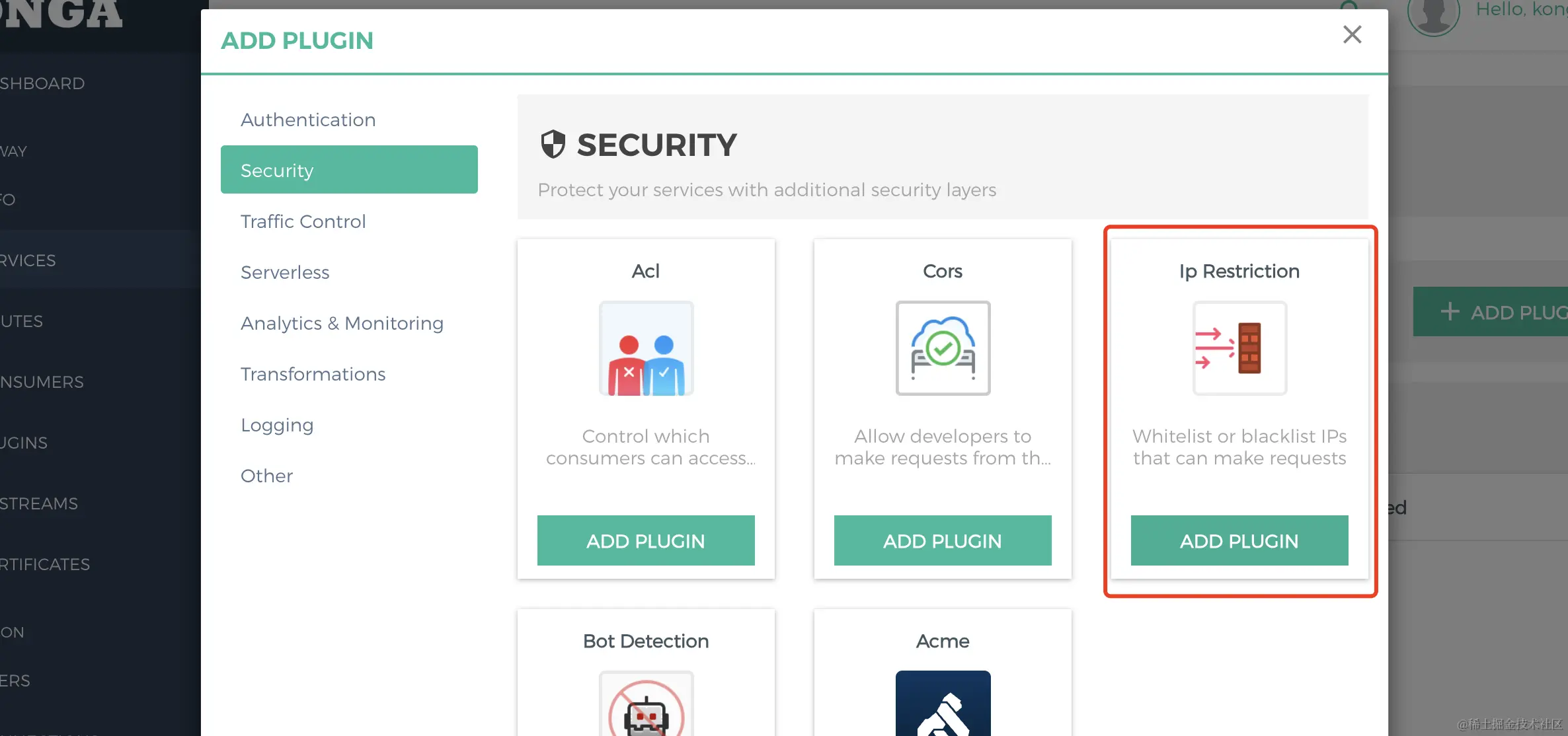

6.2 ip-restriction(ip黑白名单访问限制)
- 注意:deny的优先级高于allow

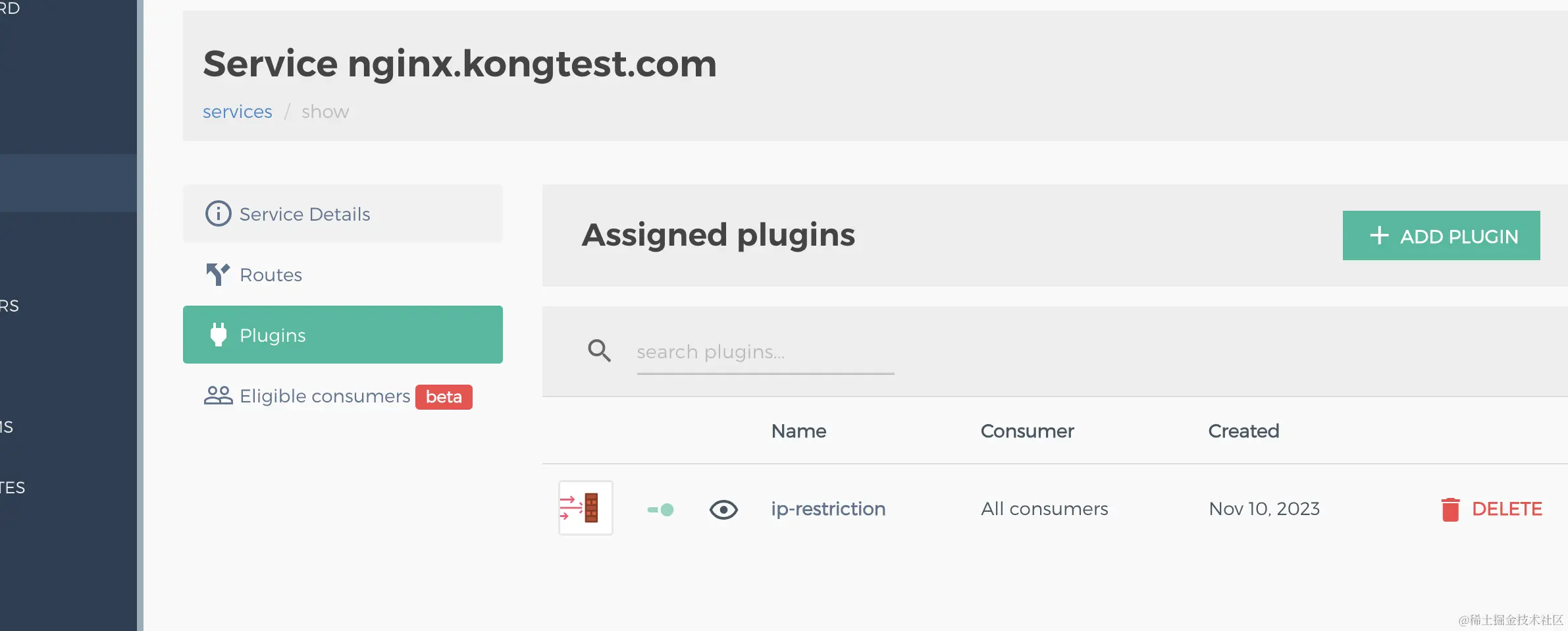

1.创建

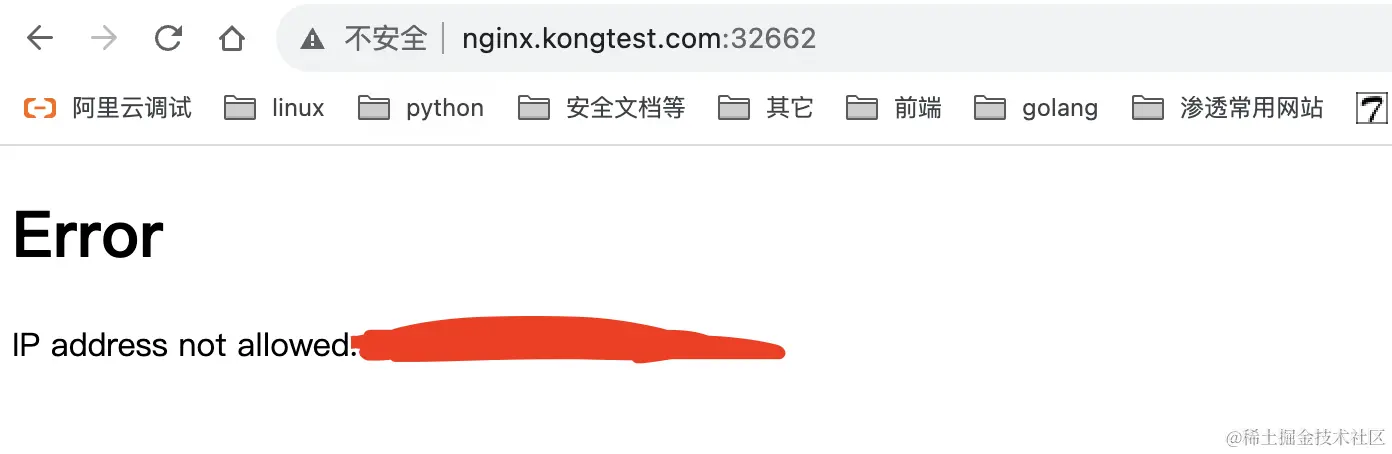

2.测试(将本地电脑的ip设置为黑名单测试)
- 因为使用的nodeport,所以kong无法记录客户端真实ip,所以这里将externalTrafficPolicy设置为local
kubectl patch svc kong-kong-proxy -n kong -p '{"spec":{"externalTrafficPolicy":"Local"}}'
- 本地测试(无法访问)
- 未设置黑名单ip访问(可以访问)
6.3 Rate Limiting (限流)

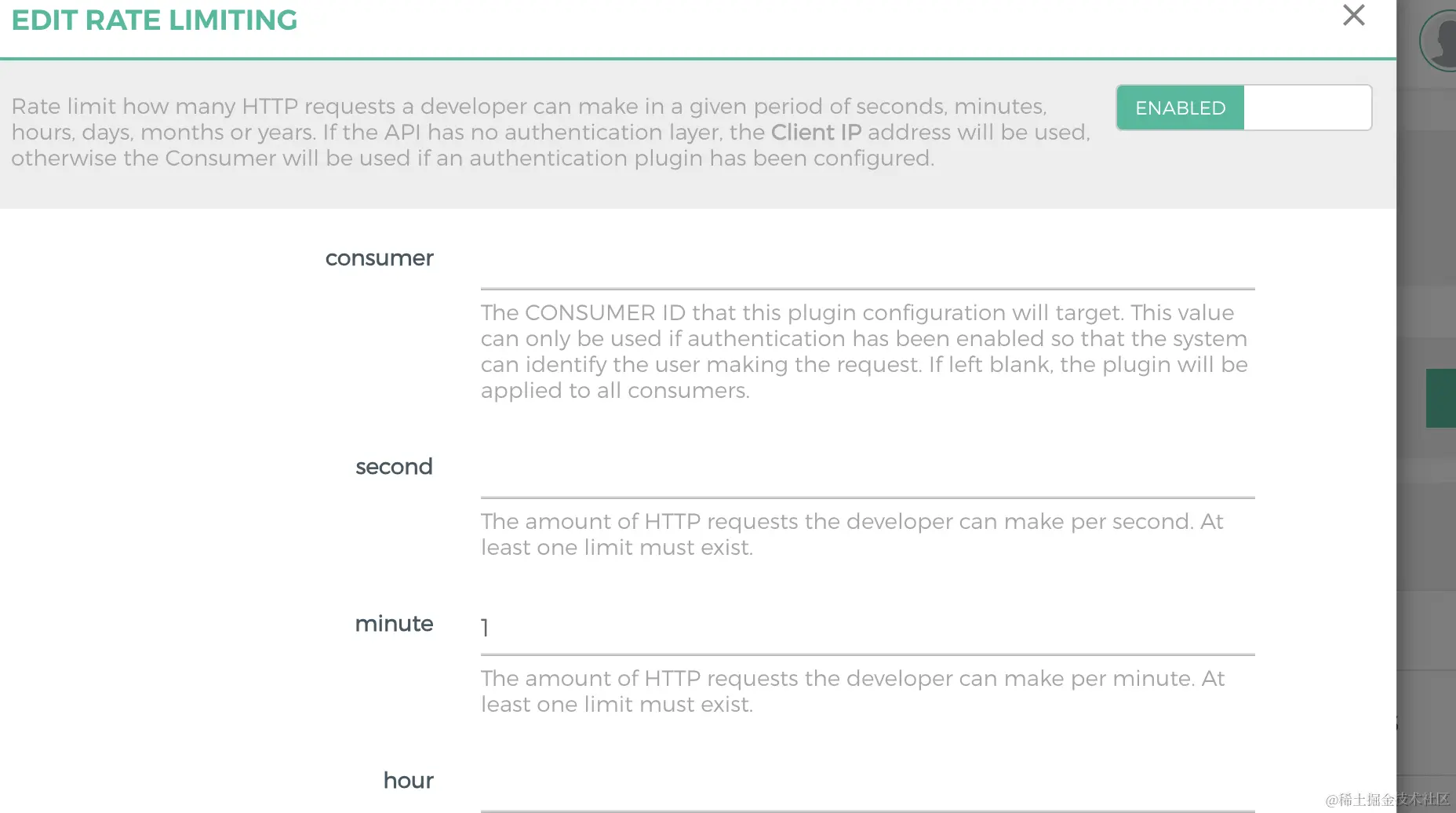

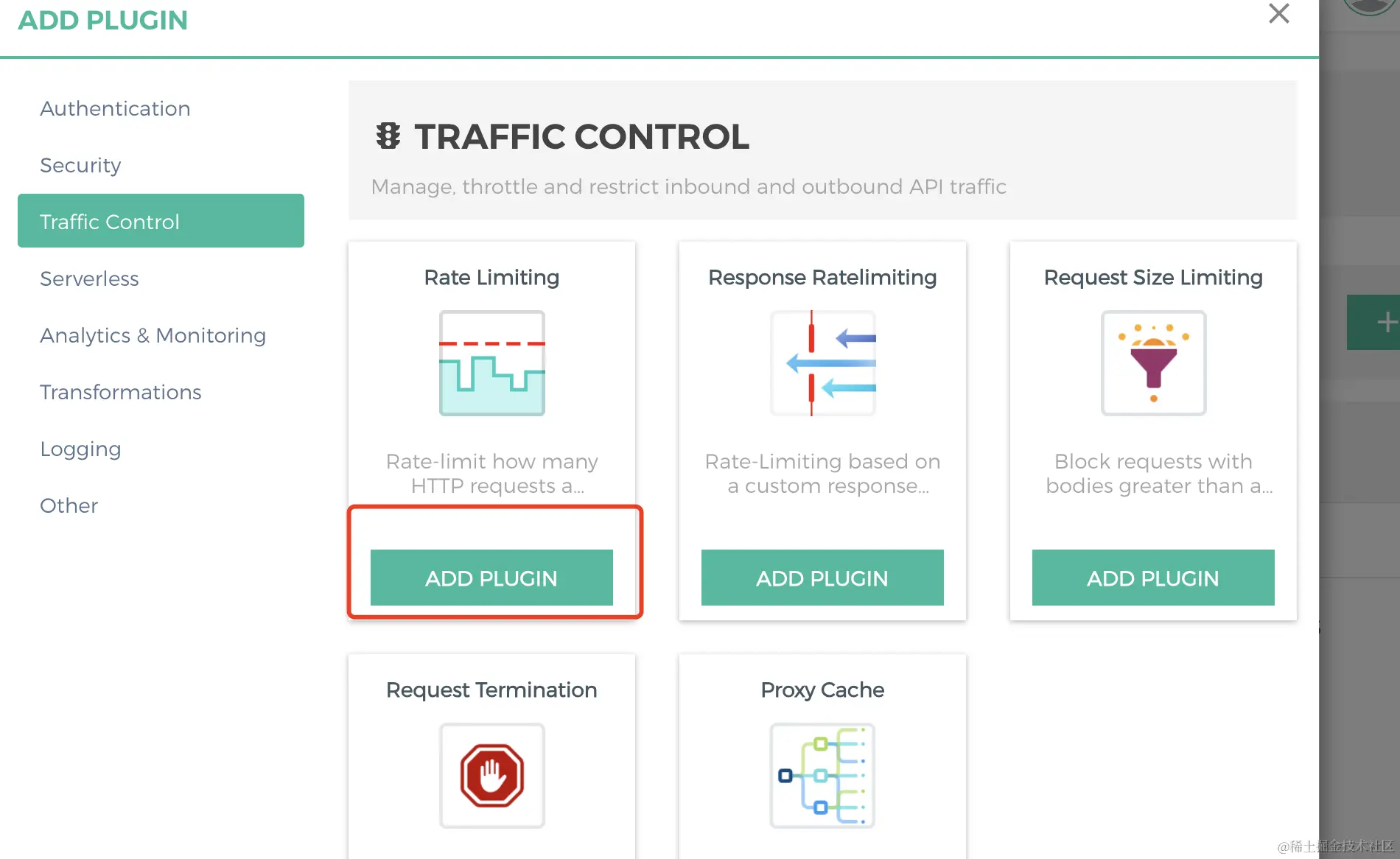

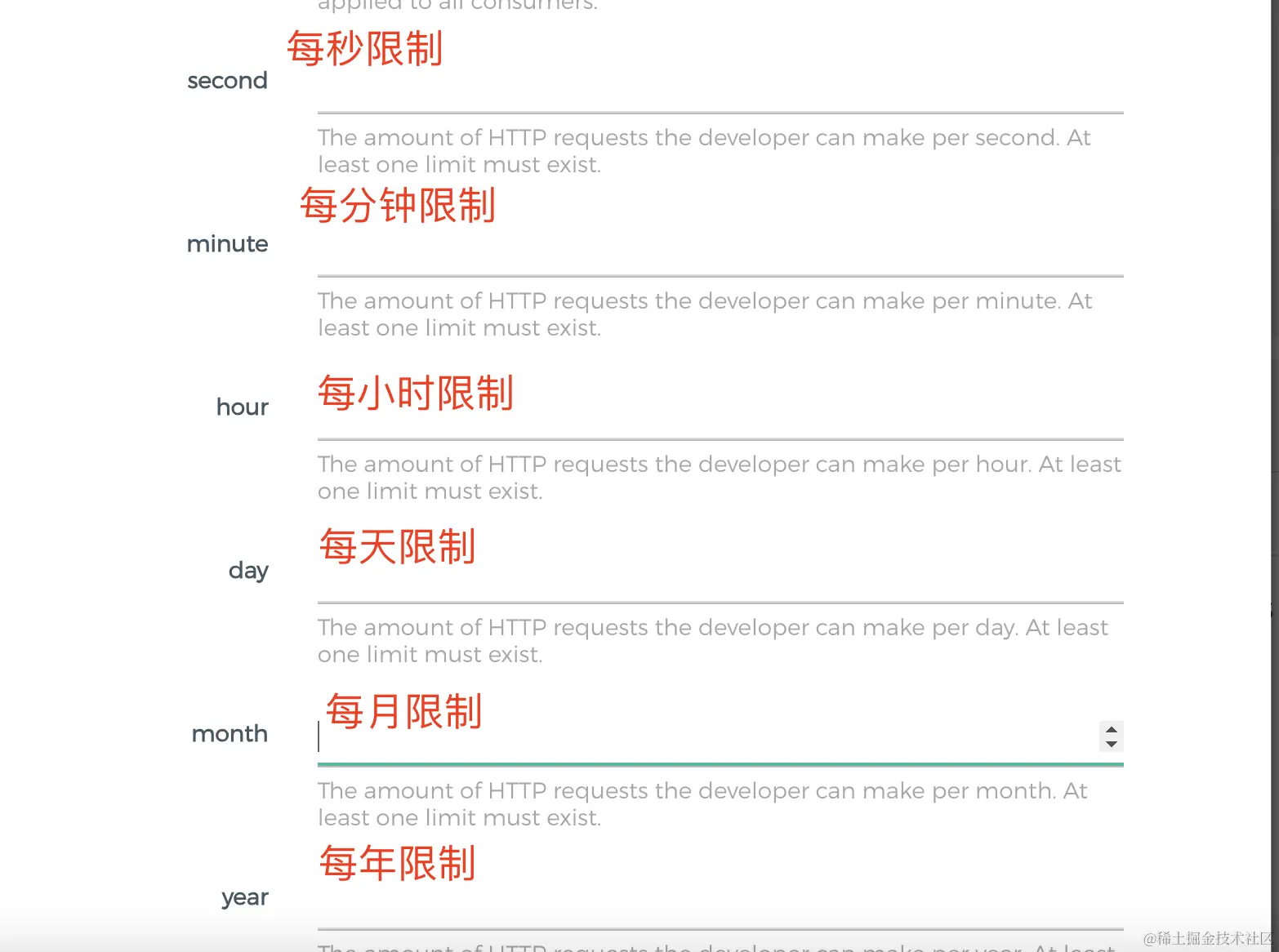

1.创建
- 所有限制中,至少要填一个限制才行

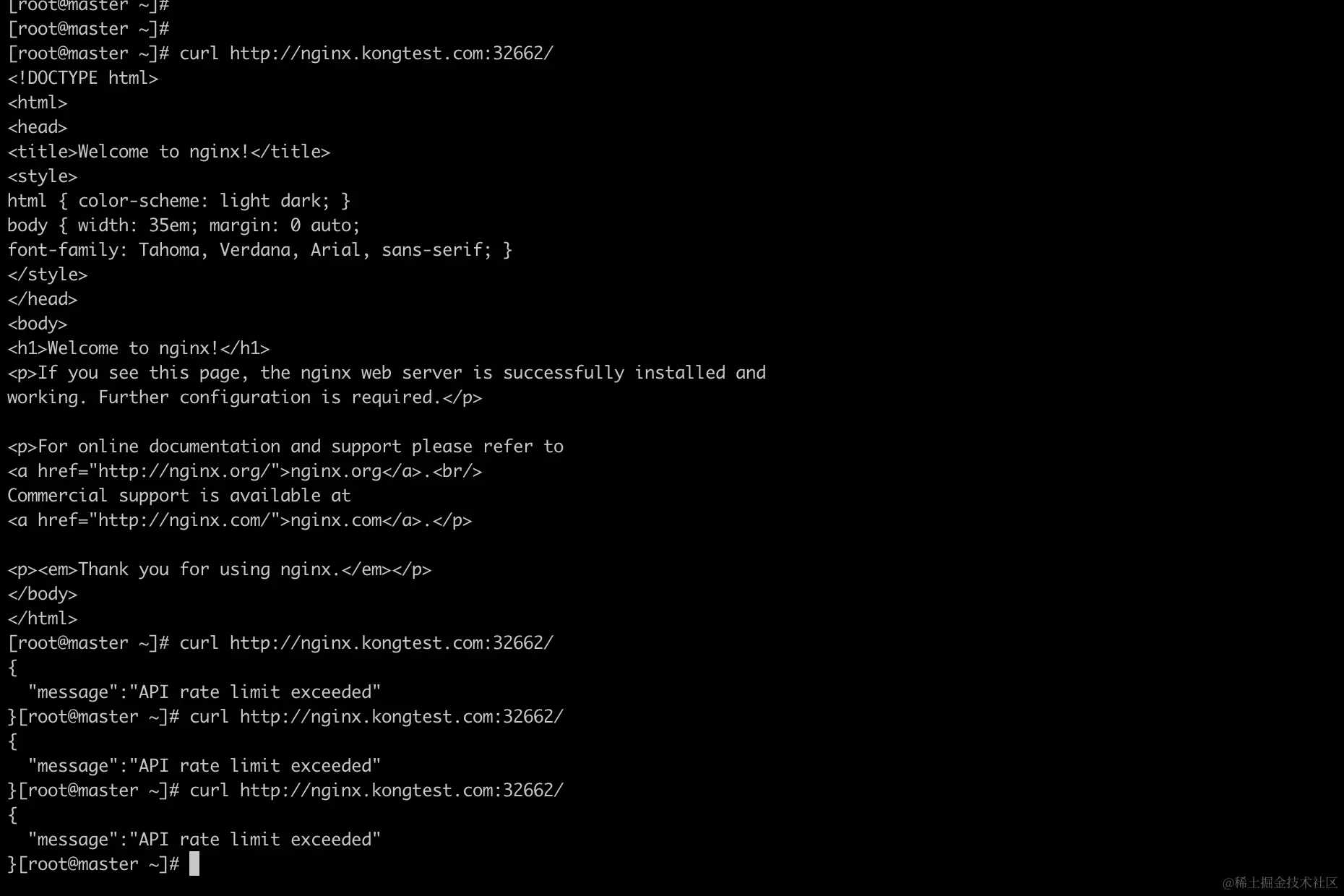

2.测试(每分钟1次)
6.4 Request Transformer(路由重写)
1.在nginx容器中新建目录和文件
[root@master ~]# kubectl exec -it example-app-56c9b6d95b-bclbv sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/ # mkdir /usr/share/nginx/html/a -p
/ # echo aaaaa >/usr/share/nginx/html/a/a.txt
/ # cat /usr/share/nginx/html/a/a.txt
aaaaa
2.访问测试

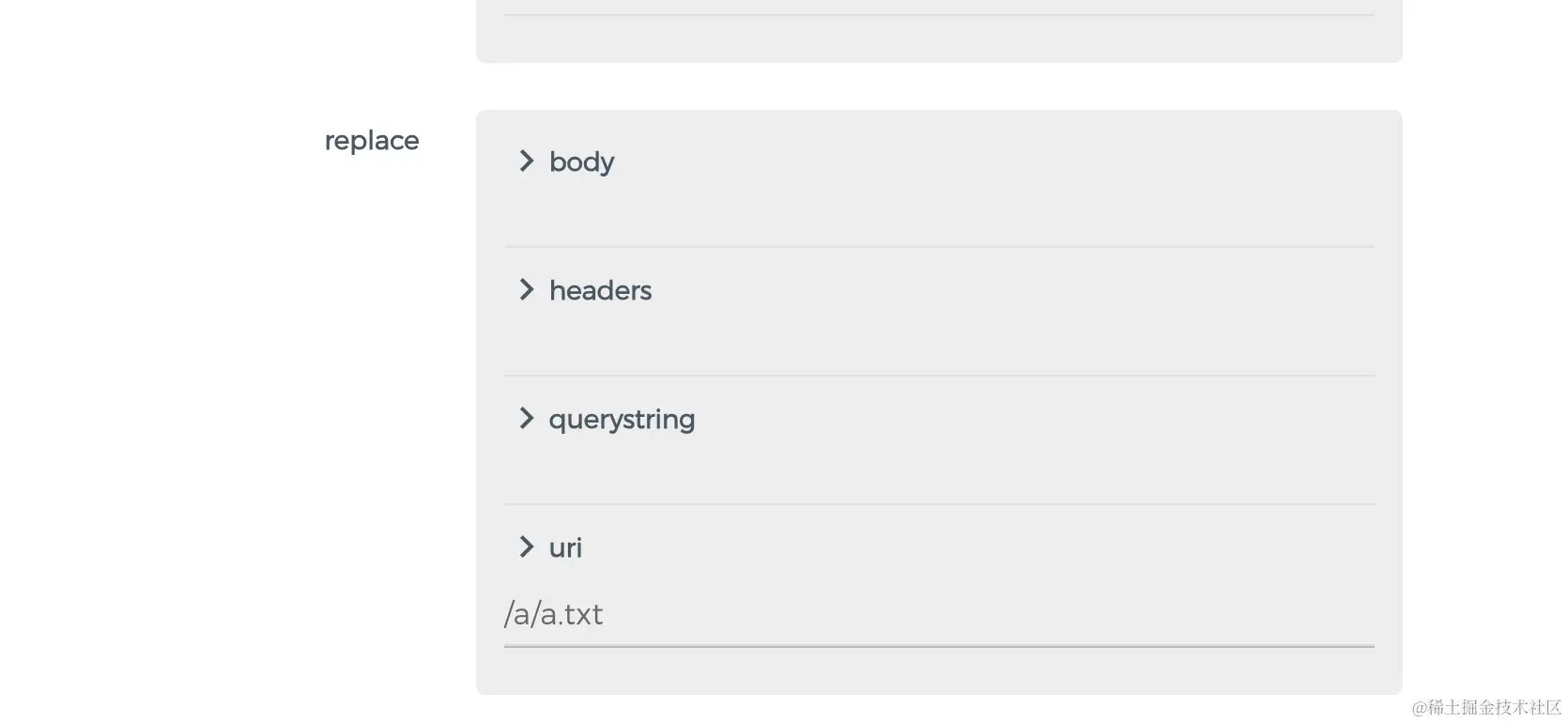

3.添加Request Transformer插件,将访问请求转发到/a/a.txt
4.测试
7.安装外部插件
1.外部插件安装条件
-
kong创建插件文档参考:www.cnblogs.com/huxianglin/…
-
kong创建插件必须包含2个文件
-
handler.lua (主要负责业务逻辑功能编写)
-
schema.lua (主要负责插件参数定制)
2.创建handler.lua和schema.lua文件
- handler.lua
local plugin = {
PRIORITY = 1000, -- set the plugin priority, which determines plugin execution order
VERSION = "0.1", -- version in X.Y.Z format. Check hybrid-mode compatibility requirements.
}
function plugin:init_worker()
-- your custom code here
kong.log.debug("saying hi from the 'init_worker' handler")
end
function plugin:certificate(plugin_conf)
-- your custom code here
kong.log.debug("saying hi from the 'certificate' handler")
end
function plugin:rewrite(plugin_conf)
-- your custom code here
kong.log.debug("saying hi from the 'rewrite' handler")
end
function plugin:access(plugin_conf)
-- your custom code here
kong.log.inspect(plugin_conf) -- check the logs for a pretty-printed config!
kong.service.request.set_header(plugin_conf.request_header, "this is on a request")
end
function plugin:header_filter(plugin_conf)
-- your custom code here, for example;
kong.response.set_header(plugin_conf.response_header, "this is on the response")
end
function plugin:body_filter(plugin_conf)
-- your custom code here
kong.log.debug("saying hi from the 'body_filter' handler")
end
function plugin:log(plugin_conf)
-- your custom code here
kong.log.debug("saying hi from the 'log' handler")
end
-- return our plugin object
return plugin
- schema.lua
local typedefs = require "kong.db.schema.typedefs"
local PLUGIN_NAME = "myplugin"
local schema = {
name = PLUGIN_NAME,
fields = {
-- the 'fields' array is the top-level entry with fields defined by Kong
{ consumer = typedefs.no_consumer }, -- this plugin cannot be configured on a consumer (typical for auth plugins)
{ protocols = typedefs.protocols_http },
{ config = {
-- The 'config' record is the custom part of the plugin schema
type = "record",
fields = {
-- a standard defined field (typedef), with some customizations
{ request_header = typedefs.header_name {
required = true,
default = "Hello-World" } },
{ response_header = typedefs.header_name {
required = true,
default = "Bye-World" } },
{ ttl = { -- self defined field
type = "integer",
default = 600,
required = true,
gt = 0, }}, -- adding a constraint for the value
},
entity_checks = {
-- add some validation rules across fields
-- the following is silly because it is always true, since they are both required
{ at_least_one_of = { "request_header", "response_header" }, },
-- We specify that both header-names cannot be the same
{ distinct = { "request_header", "response_header"} },
},
},
},
},
}
return schema
3.持久化kong插件目录
#查看kong插件目录(使用的/opt目录)
[root@master demo]# kubectl get deploy -nkong kong-kong -o yaml|grep -A1 KONG_LUA_PACKAGE_PATH
- name: KONG_LUA_PACKAGE_PATH
value: /opt/?.lua;/opt/?/init.lua;;
--
- name: KONG_LUA_PACKAGE_PATH
value: /opt/?.lua;/opt/?/init.lua;;
--
- name: KONG_LUA_PACKAGE_PATH
value: /opt/?.lua;/opt/?/init.lua;;
#创建pvc,让/opt目录持久化(我这设置了默认动态存储,所以创建pvc会自动绑定pv)
[root@master ~]# cat test-pvc.yaml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: kong-pvc
namespace: kong
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 2Gi
[root@master ~]# kubectl apply -f test-pvc.yaml
persistentvolumeclaim/kong-pvc created
[root@master ~]# kubectl get pvc -n kong
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
kong-pvc Bound pvc-38824676-1e65-4c53-8157-f1a6885e27f2 2Gi RWX managed-nfs-storage 4s
#修改kong deploy配置,挂载pvc
[root@master ~]# kubectl edit deploy kong-kong -n kong
[root@master myplugin]# kubectl get deploy kong-kong -n kong -o yaml|grep -C 3 kong-opt
name: kong-kong-token
readOnly: true
- mountPath: /opt
name: kong-opt
- env:
- name: KONG_ADMIN_ACCESS_LOG
value: /dev/stdout
--
- mountPath: /tmp
name: kong-kong-tmp
- mountPath: /opt
name: kong-opt
dnsPolicy: ClusterFirst
initContainers:
- command:
--
- mountPath: /tmp
name: kong-kong-tmp
- mountPath: /opt
name: kong-opt
- args:
- /bin/bash
- -c
--
- mountPath: /tmp
name: kong-kong-tmp
- mountPath: /opt
name: kong-opt
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
--
secret:
defaultMode: 420
secretName: kong-kong-validation-webhook-keypair
- name: kong-opt
persistentVolumeClaim:
claimName: kong-pvc
status:
4.在容器中的/opt目录下创建kong/plugins目录,并在目录下创建myplugin插件目录
[root@master demo]# kubectl get pod -n kong kong-kong-6c4576d5f7-th7bz
NAME READY STATUS RESTARTS AGE
kong-kong-6c4576d5f7-th7bz 2/2 Running 0 4m33s
#创建/opt/kong/plugins/myplugin目录
[root@master demo]# kubectl exec -it -n kong kong-kong-6c4576d5f7-th7bz -c proxy bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
kong@kong-kong-6c4576d5f7-th7bz:/$ mkdir -p /opt/kong/plugins/myplugin
5.将handler.lua和schema.lua文件复制到容器中的myplugin目录中
kubectl cp ./handler.lua -c proxy kong/kong-kong-6c4576d5f7-th7bz:/opt/kong/plugins/myplugin
kubectl cp ./schema.lua -c proxy kong/kong-kong-6c4576d5f7-th7bz:/opt/kong/plugins/myplugin
6.修改deploy中的KONG_PLUGINS变量的值,将myplugin插件添加到配置中
[root@master kong]# kubectl edit deploy kong-kong -n kong
[root@master kong]# kubectl get deploy kong-kong -n kong -o yaml|grep -A1 KONG_PLUGINS
- name: KONG_PLUGINS
value: bundled,myplugin
--
- name: KONG_PLUGINS
value: bundled,myplugin
--
- name: KONG_PLUGINS
value: bundled,myplugin

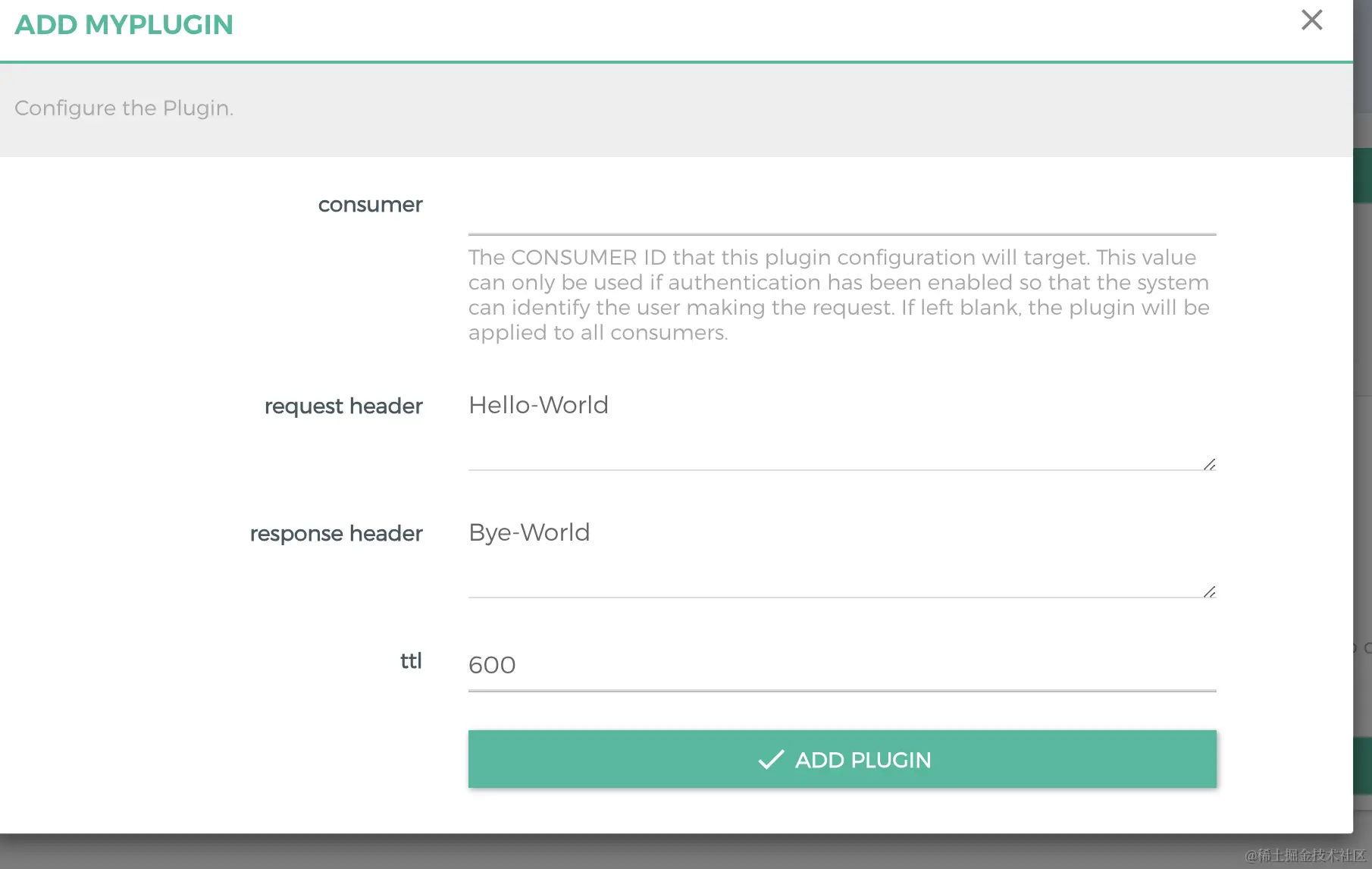

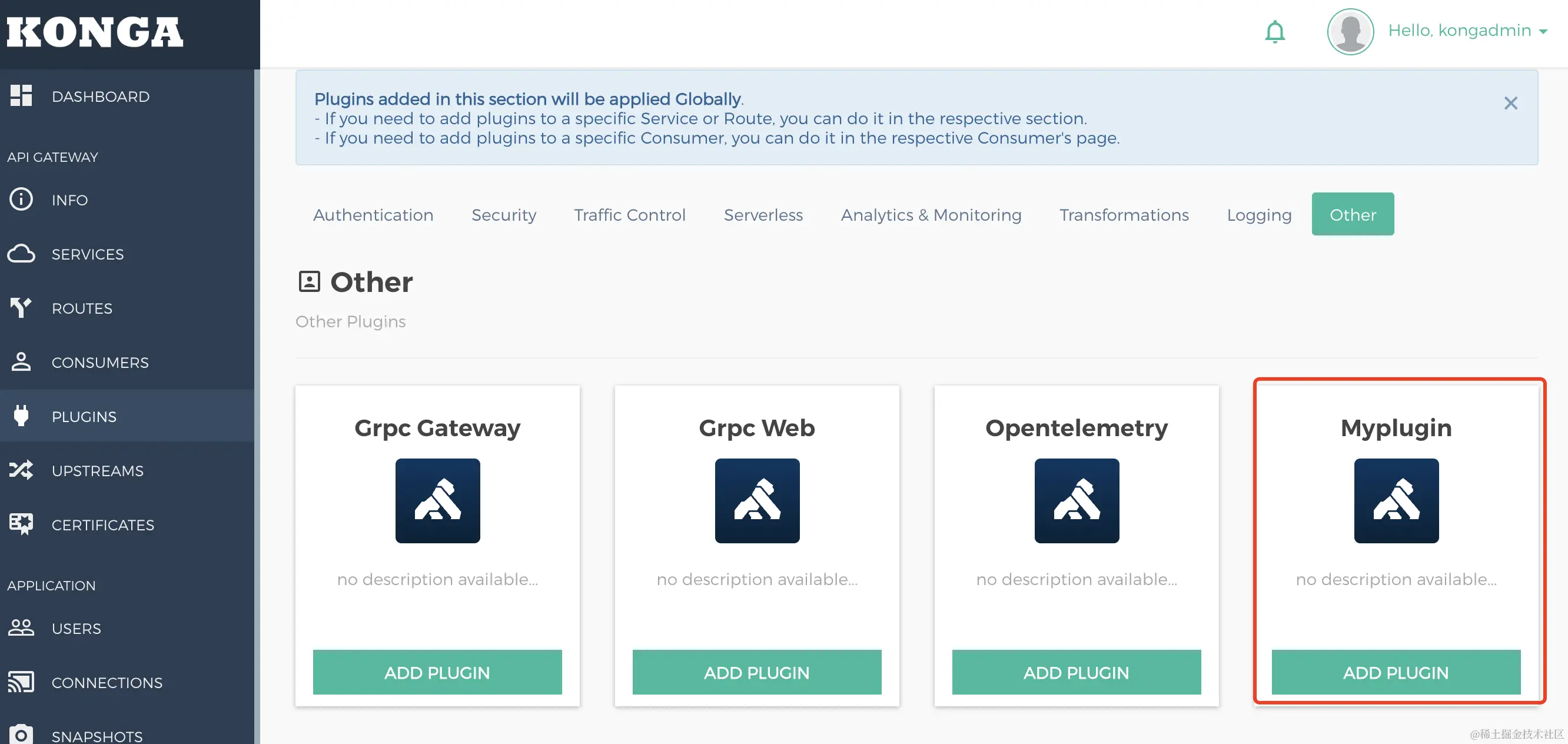

7.在konga中查看安装的myplugin插件
8.灰度发布
1.创建v1与v2版本的服务
- v1 yaml配置内容
kind: Service
apiVersion: v1
metadata:
name: app-v1
labels:
app: app-v1
spec:
selector:
app: app-v1
ports:
- name: web
port: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: app-v1
spec:
replicas: 1
selector:
matchLabels:
app: app-v1
template:
metadata:
labels:
app: app-v1
spec:
containers:
- name: app-v1
image: nginx:alpine
command:
- /bin/sh
- -c
- echo v1 > /usr/share/nginx/html/index.html && nginx -g "daemon off;"
ports:
- name: web
containerPort: 80
- v2 yaml配置内容
kind: Service
apiVersion: v1
metadata:
name: app-v2
labels:
app: app-v2
spec:
selector:
app: app-v2
ports:
- name: web
port: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: app-v2
spec:
replicas: 1
selector:
matchLabels:
app: app-v2
template:
metadata:
labels:
app: app-v2
spec:
containers:
- name: app-v2
image: nginx:alpine
command:
- /bin/sh
- -c
- echo v2 > /usr/share/nginx/html/index.html && nginx -g "daemon off;"
ports:
- name: web
containerPort: 80
2.导入及访问测试
root@master ~]# kubectl apply -f app-v1.yaml
service/app-v1 unchanged
deployment.apps/app-v1 unchanged
[root@master ~]# kubectl apply -f app-v2.yaml
service/app-v2 created
deployment.apps/app-v2 created
[root@master ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
app-v1-799cf87d69-82hqn 1/1 Running 0 2m43s 10.244.166.141 node1 <none> <none>
app-v2-5fd4c96dcd-xb7ch 1/1 Running 0 10s 10.244.166.142 node1 <none> <none>
[root@master ~]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
app-v1 ClusterIP 10.108.190.176 <none> 80/TCP 8m49s
app-v2 ClusterIP 10.98.98.95 <none> 80/TCP 24s
[root@master ~]# curl 10.108.190.176
v1
[root@master ~]# curl 10.98.98.95
v2
3.konga配置访问v1版本服务

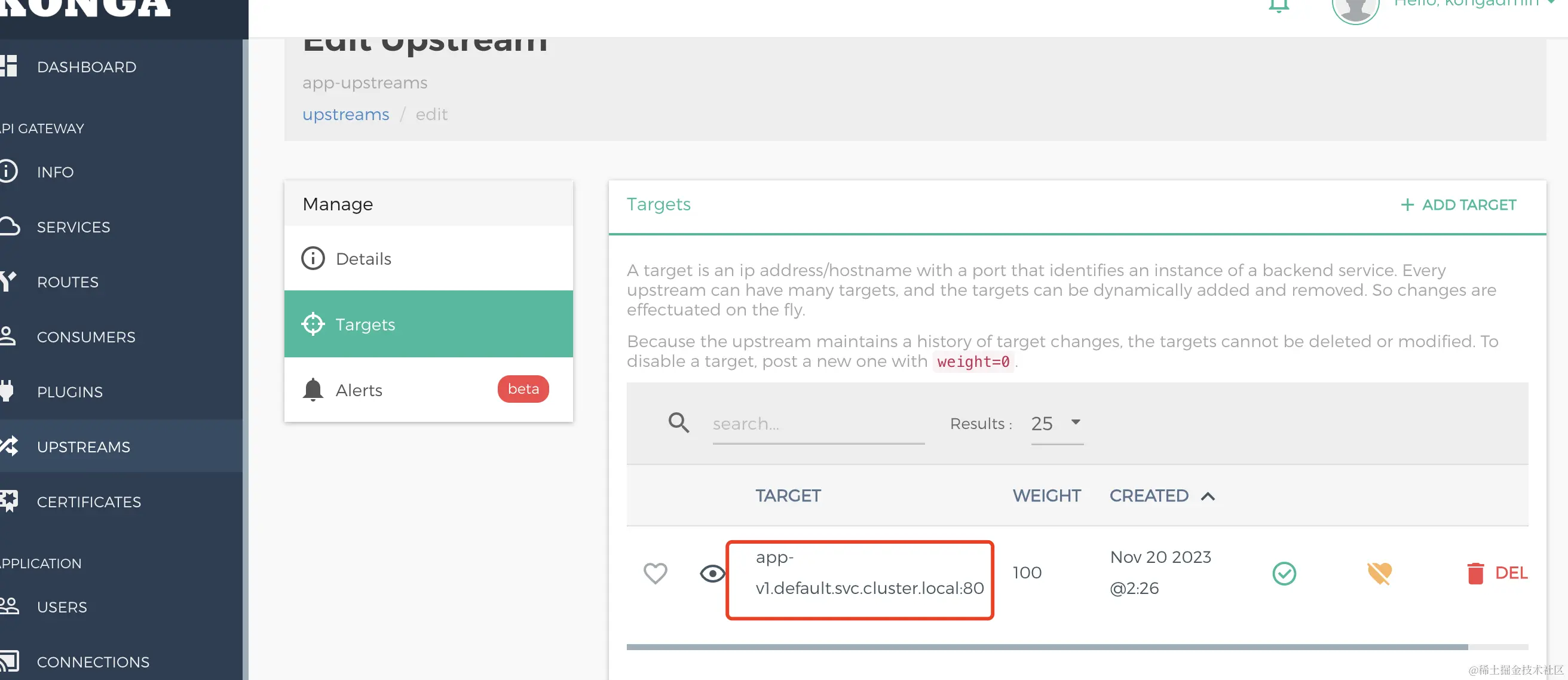

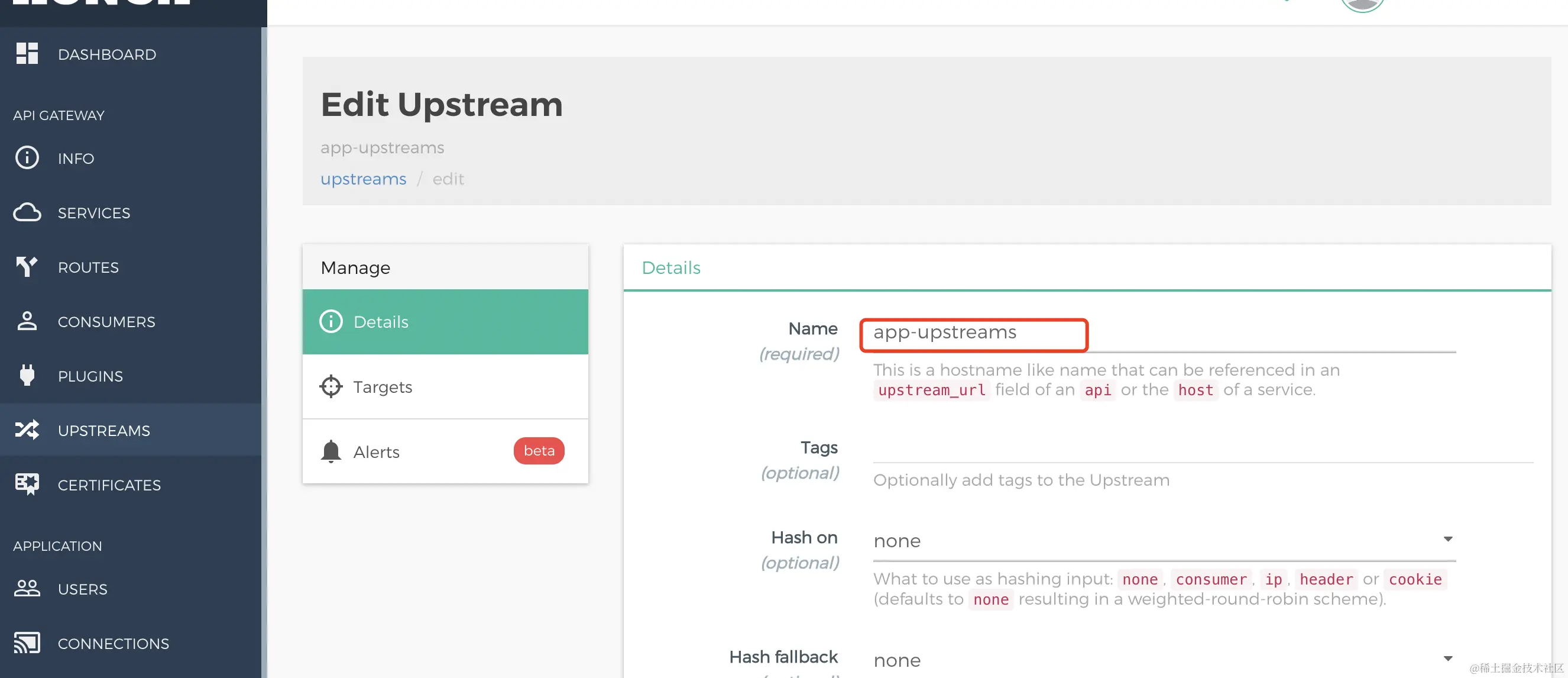

- 新建Upstreams配置
- 创建Services
- 创建Routes配置
- 访问测试
4.新建灰度的Services、Upstreams、Routes配置

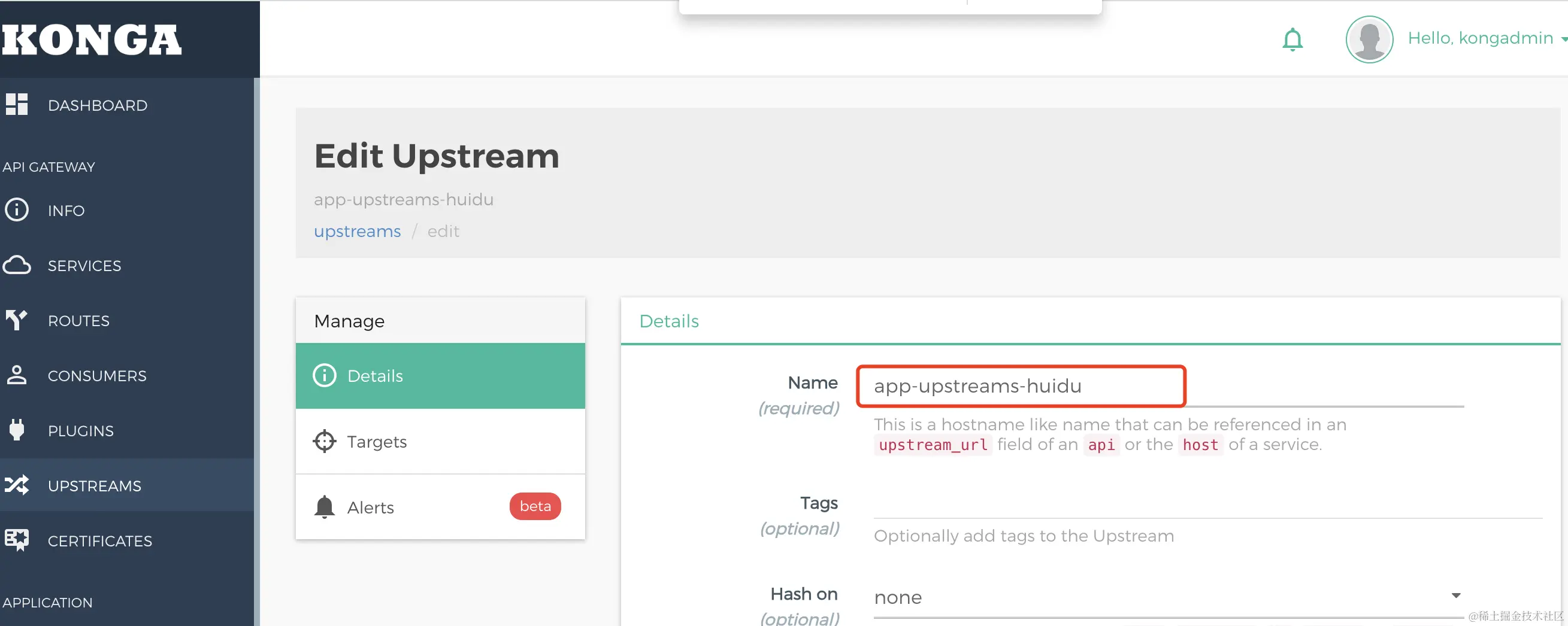

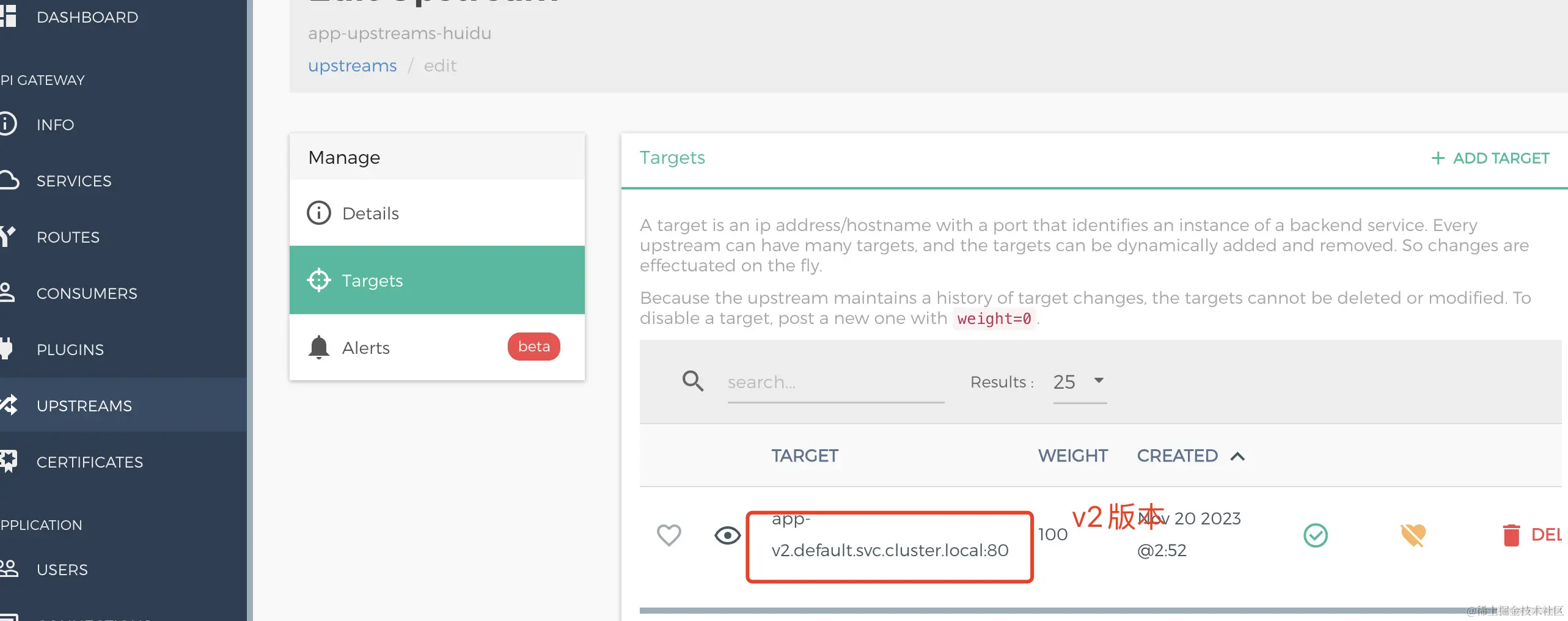

- 灰度Upstreams配置
- 灰度Services

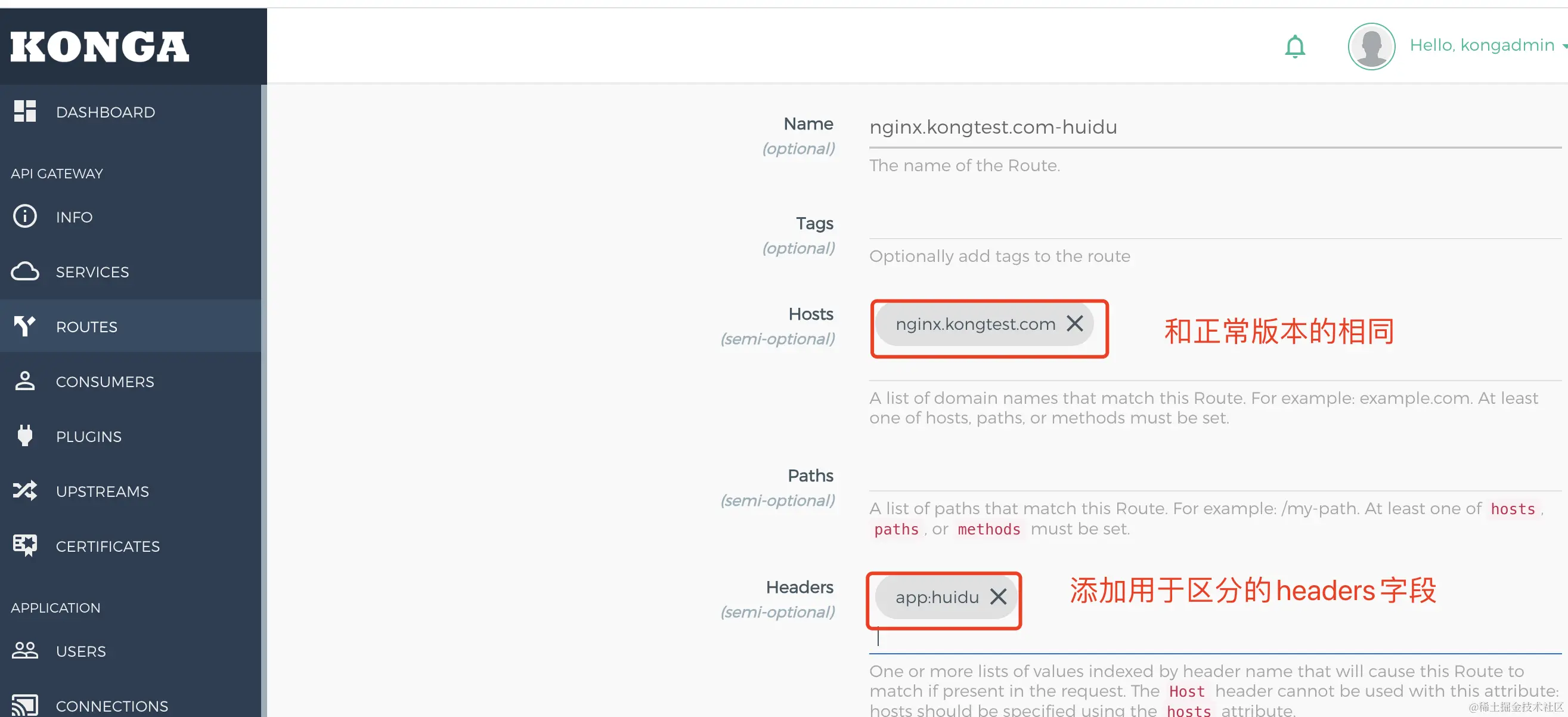

- 灰度Routes配置(这里添加一个app:huidu的Headers字段来区分)

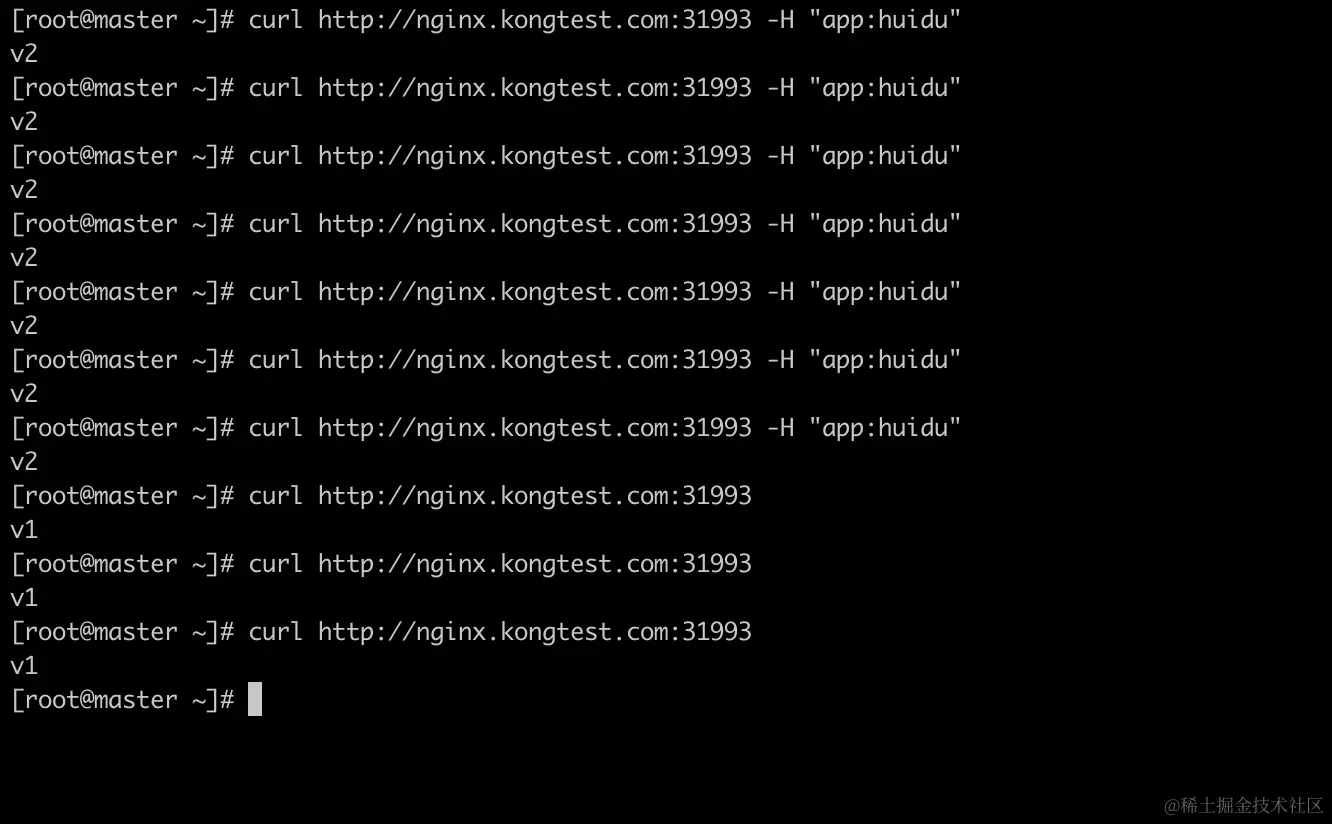

5.访问测试
- 正常访问是请求v1版本
- 添加app:huidu的Headers字段访问v2版本
9.流量控制

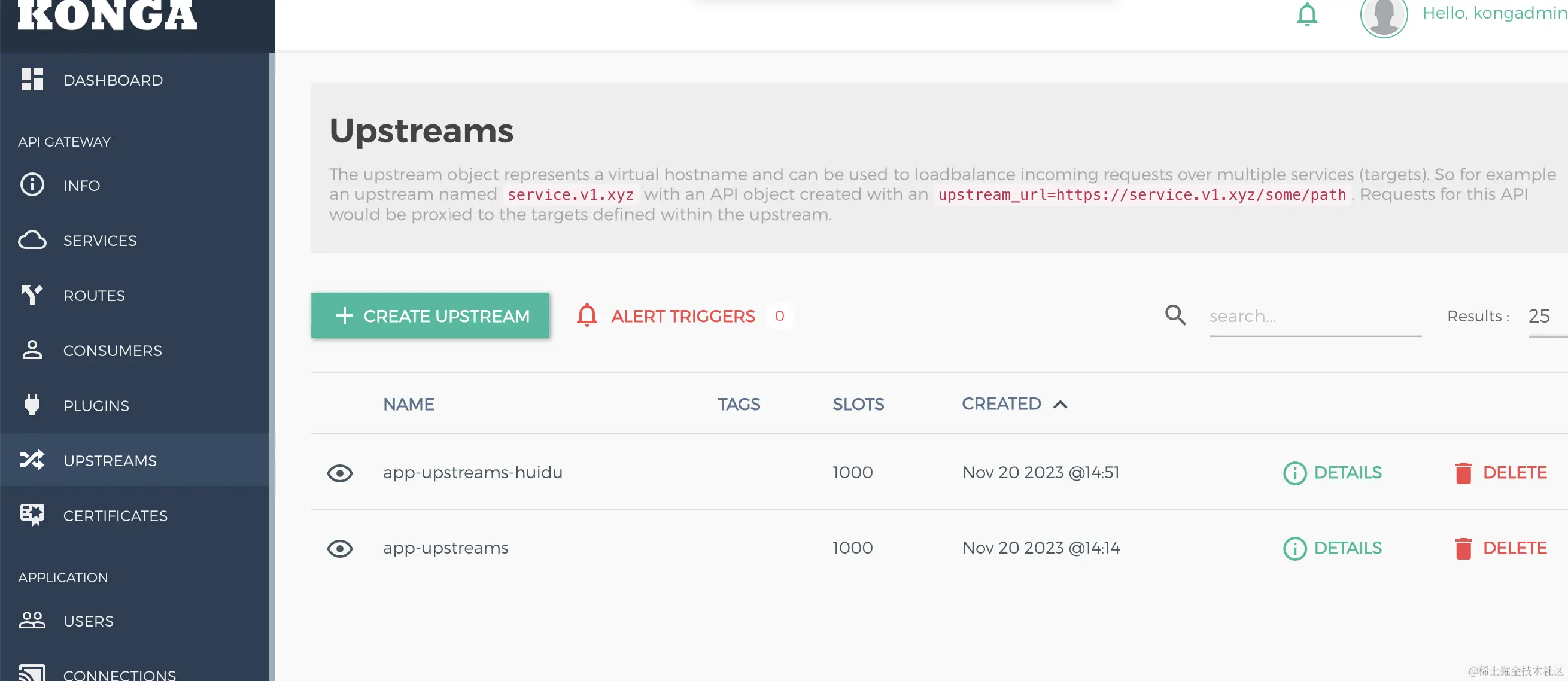

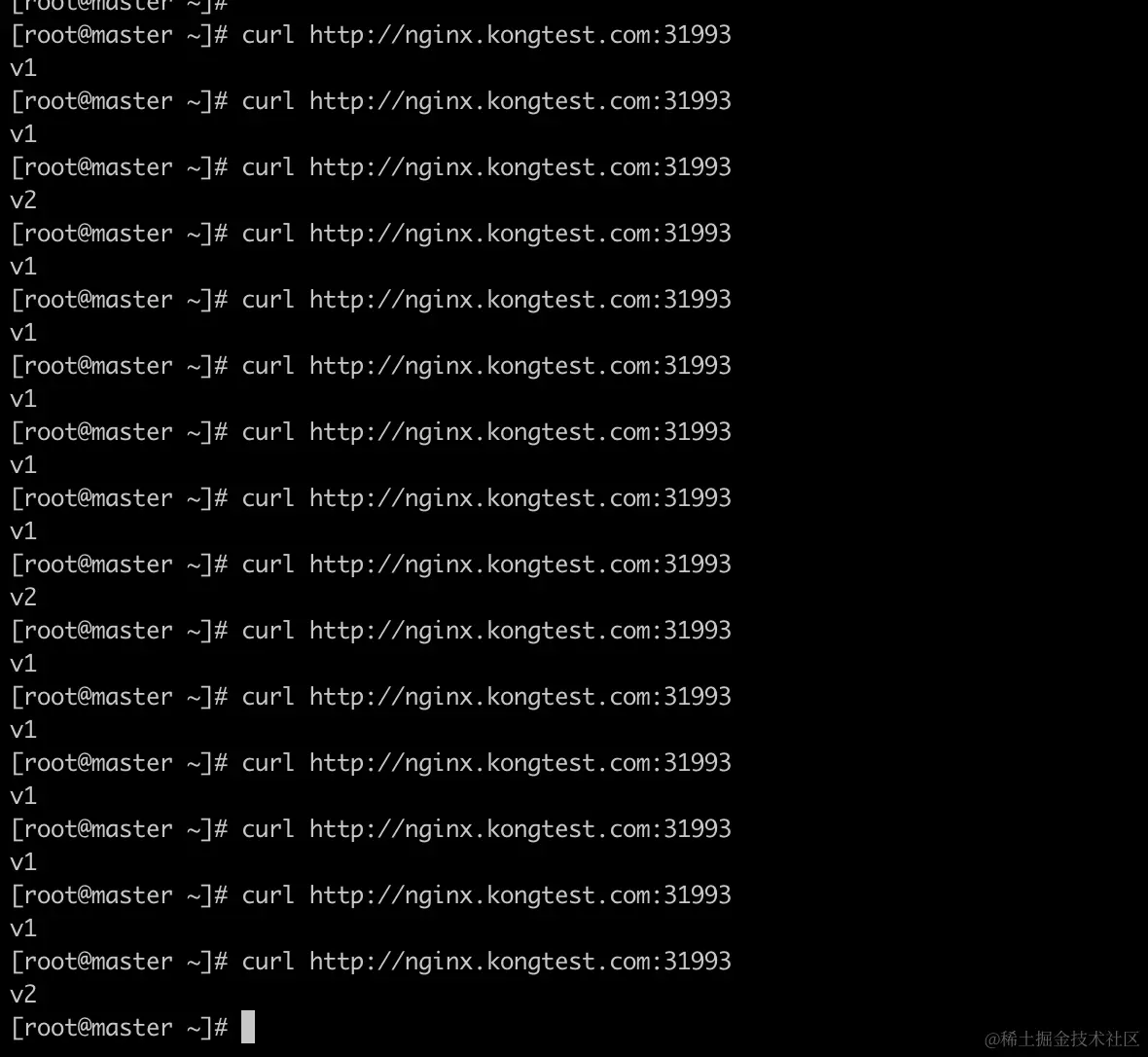

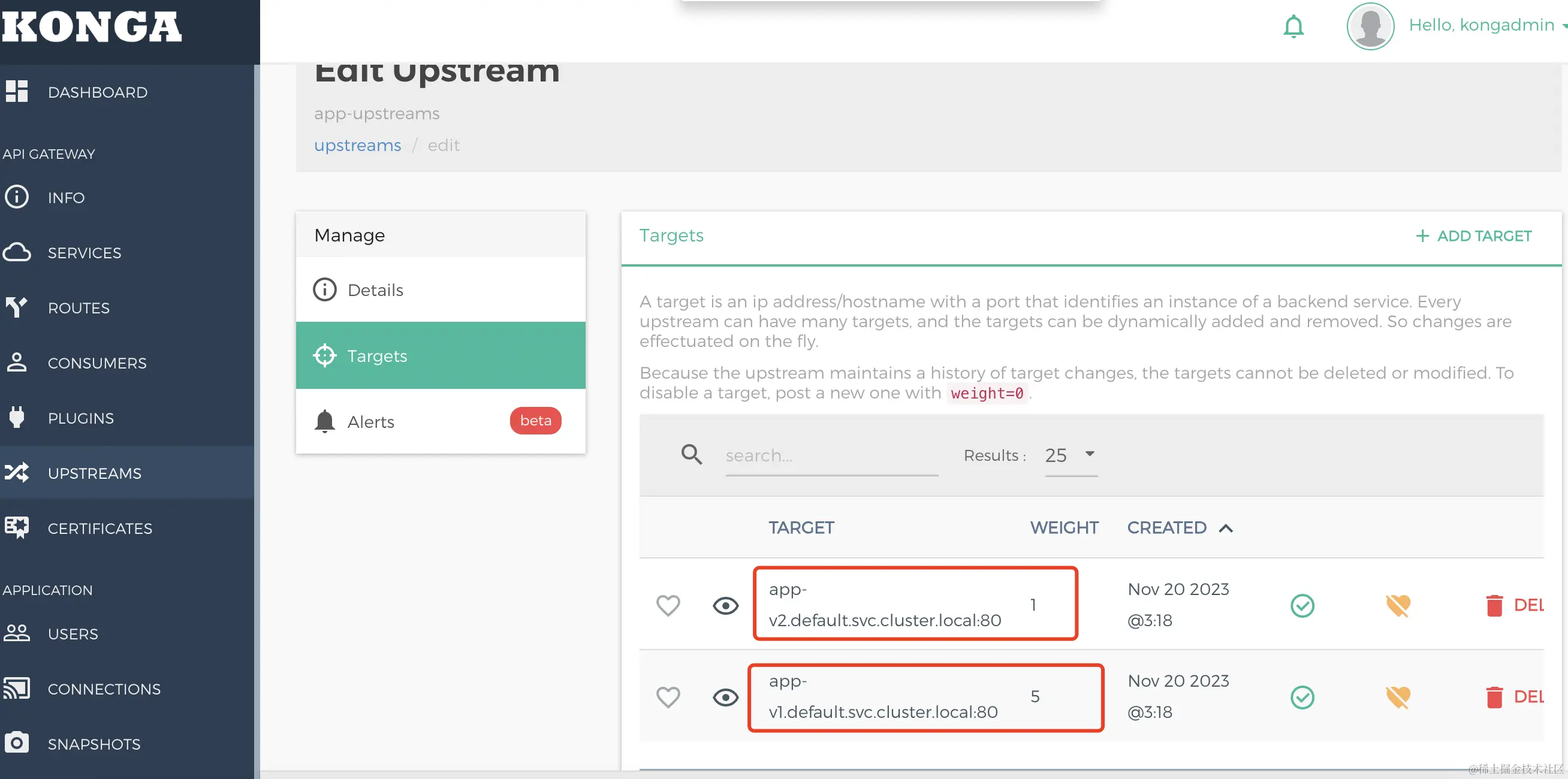

- 通过Upstreams的权重来控制流量比例
