sha1 key 长度问题
- opc.foundation opcua 问题：
Certificate doesn't meet minimum key length requirement
解决方法参考：
SHA1 signed certificates are not trusted · Issue #306 · OPCFoundation/UA-.NETStandard · GitHub
代码配置如下：
//新增用于兼容sha1
private static ApplicationConfiguration CreateClientConfigurationSha1()
{
ApplicationConfiguration configuration = new ApplicationConfiguration();
configuration.ApplicationName = "Sinumerik Opc Ua Client";
configuration.ApplicationType = ApplicationType.Client;
configuration.ApplicationUri = "urn:MyClient"; //Kepp this syntax
configuration.ProductUri = "SiemensAG.IndustryOnlineSupport";
configuration.SecurityConfiguration = new SecurityConfiguration();
configuration.SecurityConfiguration.ApplicationCertificate = new CertificateIdentifier();
configuration.SecurityConfiguration.ApplicationCertificate.StoreType = CertificateStoreType.X509Store;
configuration.SecurityConfiguration.ApplicationCertificate.StorePath = "CurrentUser\\My";
configuration.SecurityConfiguration.ApplicationCertificate.SubjectName = configuration.ApplicationName;
configuration.SecurityConfiguration.TrustedIssuerCertificates.StoreType = CertificateStoreType.Directory;
configuration.SecurityConfiguration.TrustedIssuerCertificates.StorePath = "OPC Foundation/CertificateStores/UA Applications";
configuration.SecurityConfiguration.TrustedPeerCertificates.StoreType = CertificateStoreType.Directory;
configuration.SecurityConfiguration.TrustedPeerCertificates.StorePath = "OPC Foundation/CertificateStores/UA Certificate Authorities";
configuration.SecurityConfiguration.RejectedCertificateStore = new CertificateStoreIdentifier();
configuration.SecurityConfiguration.RejectedCertificateStore.StoreType = CertificateStoreType.Directory;
configuration.SecurityConfiguration.RejectedCertificateStore.StorePath = "OPC Foundation/CertificateStores/RejectedCertificates";
configuration.SecurityConfiguration.NonceLength = 32;
configuration.SecurityConfiguration.AutoAcceptUntrustedCertificates = false;
configuration.SecurityConfiguration.RejectSHA1SignedCertificates = false;
configuration.SecurityConfiguration.MinimumCertificateKeySize = 1024;
X509Certificate2 clientCertificate = configuration.SecurityConfiguration.ApplicationCertificate.Find(true).Result;
if (clientCertificate == null)
{
List<string> localIps = GetLocalIpAddressAndDns();
UInt16 keySize = 2048; //must be multiples of 1024
UInt16 lifeTime = 24; //in month
UInt16 algorithm = 1; //0 = SHA1; 1 = SHA256
clientCertificate = CertificateFactory.CreateCertificate(
configuration.SecurityConfiguration.ApplicationCertificate.StoreType,
configuration.SecurityConfiguration.ApplicationCertificate.StorePath,
string.Empty, //key
configuration.ApplicationUri,
configuration.ApplicationName,
string.Empty, //sub name
localIps,
keySize,
DateTime.Now, //start time
lifeTime,
algorithm);
}
configuration.TransportQuotas = new TransportQuotas();
configuration.TransportQuotas.OperationTimeout = 360000;
configuration.TransportQuotas.MaxStringLength = 67108864;
configuration.TransportQuotas.MaxByteStringLength = 16777216; //Needed, i.e. for large TypeDictionarys
configuration.ClientConfiguration = new ClientConfiguration();
configuration.ClientConfiguration.DefaultSessionTimeout = 360000;
configuration.Validate(ApplicationType.Client);
return configuration;
}
- siemens opcua
后续问题：

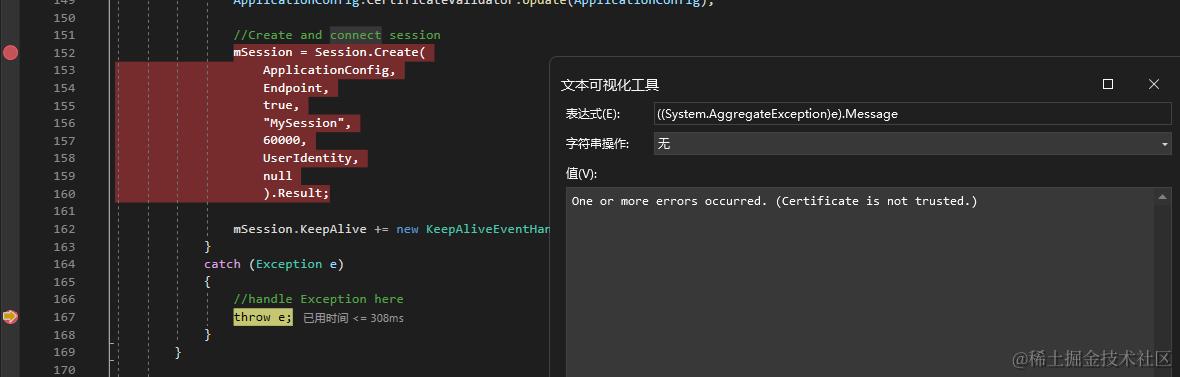

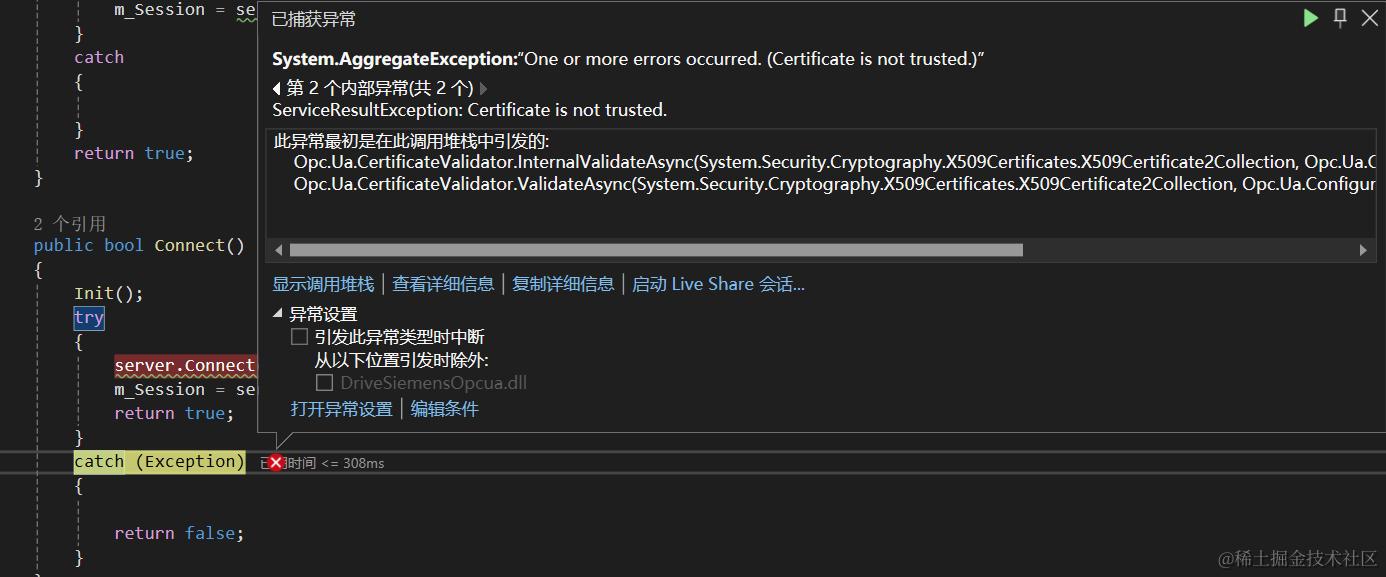

One or more errors occurred. (Certificate is not trusted.)
参考：
OPC UA Client BadCertificateUntrusted - 176164 - Industry Support Siemens
修改：opcuaHlperApi 中的方法
部分代码：
#if DEBUG //此处添加
configuration.SecurityConfiguration.NonceLength = 32;
configuration.SecurityConfiguration.AutoAcceptUntrustedCertificates = false;
configuration.SecurityConfiguration.RejectSHA1SignedCertificates = false;
configuration.SecurityConfiguration.MinimumCertificateKeySize = 1024;
#endif
全部代码：
private static ApplicationConfiguration CreateClientConfiguration()
{
// The application configuration can be loaded from any file.
// ApplicationConfiguration.Load() method loads configuration by looking up a file path in the App.config.
// This approach allows applications to share configuration files and to update them.
// This example creates a minimum ApplicationConfiguration using its default constructor.
ApplicationConfiguration configuration = new ApplicationConfiguration();
// Step 1 - Specify the client identity.
//configuration.ApplicationName = "UA Client 1500";
configuration.ApplicationName = "Sinumerik Opc Ua Client";
configuration.ApplicationType = ApplicationType.Client;
configuration.ApplicationUri = "urn:MyClient"; //Kepp this syntax
configuration.ProductUri = "SiemensAG.IndustryOnlineSupport";
// Step 2 - Specify the client's application instance certificate.
// Application instance certificates must be placed in a windows certficate store because that is
// the best way to protect the private key. Certificates in a store are identified with 4 parameters:
// StoreLocation, StoreName, SubjectName and Thumbprint.
// When using StoreType = Directory you need to have the opc.ua.certificategenerator.exe installed on your machine
configuration.SecurityConfiguration = new SecurityConfiguration();
configuration.SecurityConfiguration.ApplicationCertificate = new CertificateIdentifier();
configuration.SecurityConfiguration.ApplicationCertificate.StoreType = CertificateStoreType.X509Store;
configuration.SecurityConfiguration.ApplicationCertificate.StorePath = "CurrentUser\\My";
configuration.SecurityConfiguration.ApplicationCertificate.SubjectName = configuration.ApplicationName;
configuration.SecurityConfiguration.AutoAcceptUntrustedCertificates = true;
configuration.SecurityConfiguration.RejectSHA1SignedCertificates = false;
// Define trusted root store for server certificate checks
configuration.SecurityConfiguration.TrustedIssuerCertificates.StoreType = CertificateStoreType.X509Store;
configuration.SecurityConfiguration.TrustedIssuerCertificates.StorePath = "CurrentUser\\Root";
configuration.SecurityConfiguration.TrustedPeerCertificates.StoreType = CertificateStoreType.X509Store;
configuration.SecurityConfiguration.TrustedPeerCertificates.StorePath = "CurrentUser\\Root";
#if DEBUG //此处添加
configuration.SecurityConfiguration.NonceLength = 32;
configuration.SecurityConfiguration.AutoAcceptUntrustedCertificates = false;
configuration.SecurityConfiguration.RejectSHA1SignedCertificates = false;
configuration.SecurityConfiguration.MinimumCertificateKeySize = 1024;
#endif
// find the client certificate in the store.
Task<X509Certificate2> clientCertificate = configuration.SecurityConfiguration.ApplicationCertificate.Find(true);
// create a new self signed certificate if not found.
if (clientCertificate.Result == null)
{
CreateCertificateAndAddToStore(configuration.ApplicationUri, configuration.ApplicationName, configuration.SecurityConfiguration.ApplicationCertificate.StoreType, configuration.SecurityConfiguration.ApplicationCertificate.StorePath);
}
// Step 3 - Specify the supported transport quotas.
// The transport quotas are used to set limits on the contents of messages and are
// used to protect against DOS attacks and rogue clients. They should be set to
// reasonable values.
configuration.TransportQuotas = new TransportQuotas();
configuration.TransportQuotas.OperationTimeout = 360000;
configuration.TransportQuotas.SecurityTokenLifetime = 86400000;
configuration.TransportQuotas.MaxStringLength = 67108864;
configuration.TransportQuotas.MaxByteStringLength = 16777216; //Needed, i.e. for large TypeDictionarys
// Step 4 - Specify the client specific configuration.
configuration.ClientConfiguration = new ClientConfiguration();
configuration.ClientConfiguration.DefaultSessionTimeout = 360000;
// Step 5 - Validate the configuration.
// This step checks if the configuration is consistent and assigns a few internal variables
// that are used by the SDK. This is called automatically if the configuration is loaded from
// a file using the ApplicationConfiguration.Load() method.
_ = configuration.Validate(ApplicationType.Client);
return configuration;
}

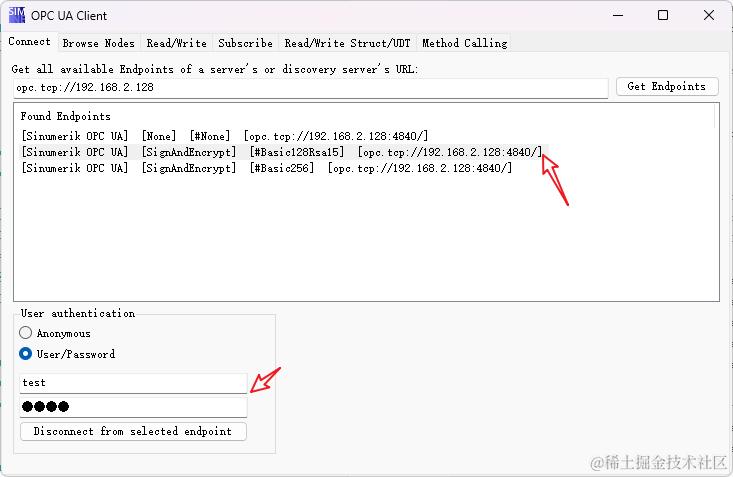

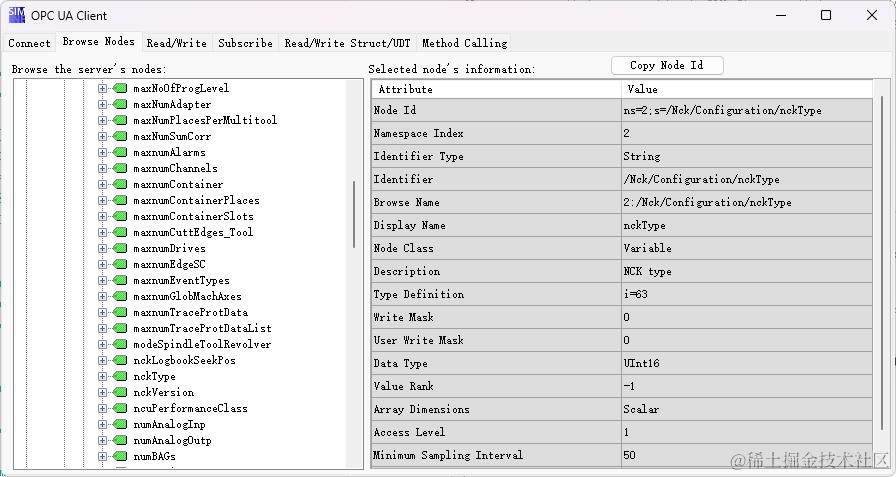

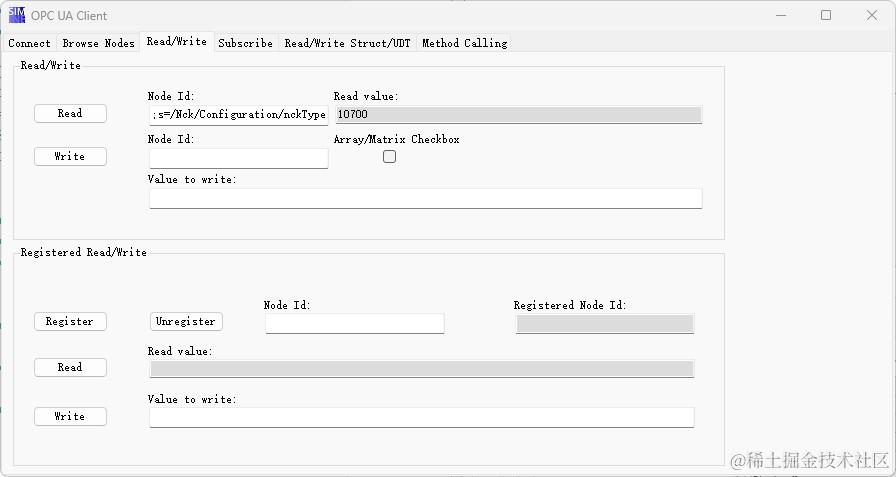

连接结果：
- opcua 做成windows服务，证书被拒绝
异常原因：
- bat制作的windows服务，默认已system用户登录，但opcua client中的证书设置路径为 "CurrentUser\Root"
private static ApplicationConfiguration CreateClientConfiguration(bool sha1 = false)
{
// The application configuration can be loaded from any file.
// ApplicationConfiguration.Load() method loads configuration by looking up a file path in the App.config.
// This approach allows applications to share configuration files and to update them.
// This example creates a minimum ApplicationConfiguration using its default constructor.
ApplicationConfiguration configuration = new ApplicationConfiguration();
// Step 1 - Specify the client identity.
//configuration.ApplicationName = "UA Client 1500";
configuration.ApplicationName = "Sinumerik Opc Ua Client";
configuration.ApplicationType = ApplicationType.Client;
configuration.ApplicationUri = "urn:MyClient"; //Kepp this syntax
configuration.ProductUri = "SiemensAG.IndustryOnlineSupport";
// Step 2 - Specify the client's application instance certificate.
// Application instance certificates must be placed in a windows certficate store because that is
// the best way to protect the private key. Certificates in a store are identified with 4 parameters:
// StoreLocation, StoreName, SubjectName and Thumbprint.
// When using StoreType = Directory you need to have the opc.ua.certificategenerator.exe installed on your machine
configuration.SecurityConfiguration = new SecurityConfiguration();
configuration.SecurityConfiguration.ApplicationCertificate = new CertificateIdentifier();
configuration.SecurityConfiguration.ApplicationCertificate.StoreType = CertificateStoreType.X509Store;
configuration.SecurityConfiguration.ApplicationCertificate.StorePath = "CurrentUser\\My";
configuration.SecurityConfiguration.ApplicationCertificate.SubjectName = configuration.ApplicationName;
configuration.SecurityConfiguration.AutoAcceptUntrustedCertificates = true;
configuration.SecurityConfiguration.RejectSHA1SignedCertificates = false;
// Define trusted root store for server certificate checks
configuration.SecurityConfiguration.TrustedIssuerCertificates.StoreType = CertificateStoreType.X509Store;
configuration.SecurityConfiguration.TrustedIssuerCertificates.StorePath = "CurrentUser\\Root";
configuration.SecurityConfiguration.TrustedPeerCertificates.StoreType = CertificateStoreType.X509Store;
configuration.SecurityConfiguration.TrustedPeerCertificates.StorePath = "CurrentUser\\Root";
//此处 开启 sha1 证书
if (sha1)
{
configuration.SecurityConfiguration.NonceLength = 32;
configuration.SecurityConfiguration.AutoAcceptUntrustedCertificates = false;
configuration.SecurityConfiguration.RejectSHA1SignedCertificates = false;
configuration.SecurityConfiguration.MinimumCertificateKeySize = 1024;
}
// find the client certificate in the store.
Task<X509Certificate2> clientCertificate = configuration.SecurityConfiguration.ApplicationCertificate.Find(true);
// create a new self signed certificate if not found.
if (clientCertificate.Result == null)
{
CreateCertificateAndAddToStore(configuration.ApplicationUri, configuration.ApplicationName, configuration.SecurityConfiguration.ApplicationCertificate.StoreType, configuration.SecurityConfiguration.ApplicationCertificate.StorePath);
}
// Step 3 - Specify the supported transport quotas.
// The transport quotas are used to set limits on the contents of messages and are
// used to protect against DOS attacks and rogue clients. They should be set to
// reasonable values.
configuration.TransportQuotas = new TransportQuotas();
configuration.TransportQuotas.OperationTimeout = 360000;
configuration.TransportQuotas.SecurityTokenLifetime = 86400000;
configuration.TransportQuotas.MaxStringLength = 67108864;
configuration.TransportQuotas.MaxByteStringLength = 16777216; //Needed, i.e. for large TypeDictionarys
// Step 4 - Specify the client specific configuration.
configuration.ClientConfiguration = new ClientConfiguration();
configuration.ClientConfiguration.DefaultSessionTimeout = 360000;
// Step 5 - Validate the configuration.
// This step checks if the configuration is consistent and assigns a few internal variables
// that are used by the SDK. This is called automatically if the configuration is loaded from
// a file using the ApplicationConfiguration.Load() method.
_ = configuration.Validate(ApplicationType.Client);
return configuration;
}
- 找不到证书，故报错
解决方法：

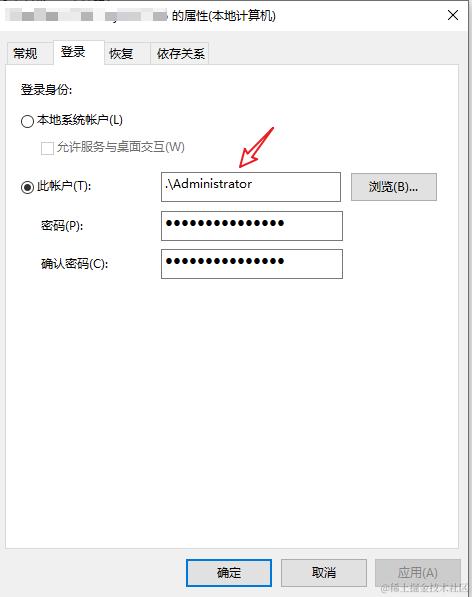

- 手动设置将服务的system账户切换为本机账户
- 停止服务
- 转到服务，切换登录用户至当前用户
- bat处理的方式，设置用户
sc create %serviceName% BinPath= %serviceFilePath% start= auto obj=用户名 password=密码
opcua 证书问题参考：
将 OPC UA 服务器实现为 Windows 后台服务 ·期刊 #1007 ·OPCFoundation/UA-。NETS标准 ·GitHub的
bat windows 服务参考：
sc.exe create | Microsoft Learn
证书

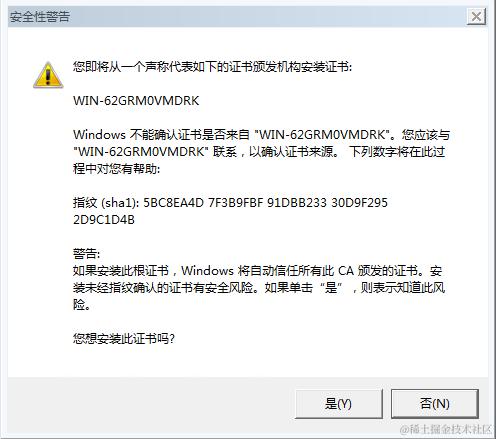

- 第一次运行程序：提示安装证书
证书问题

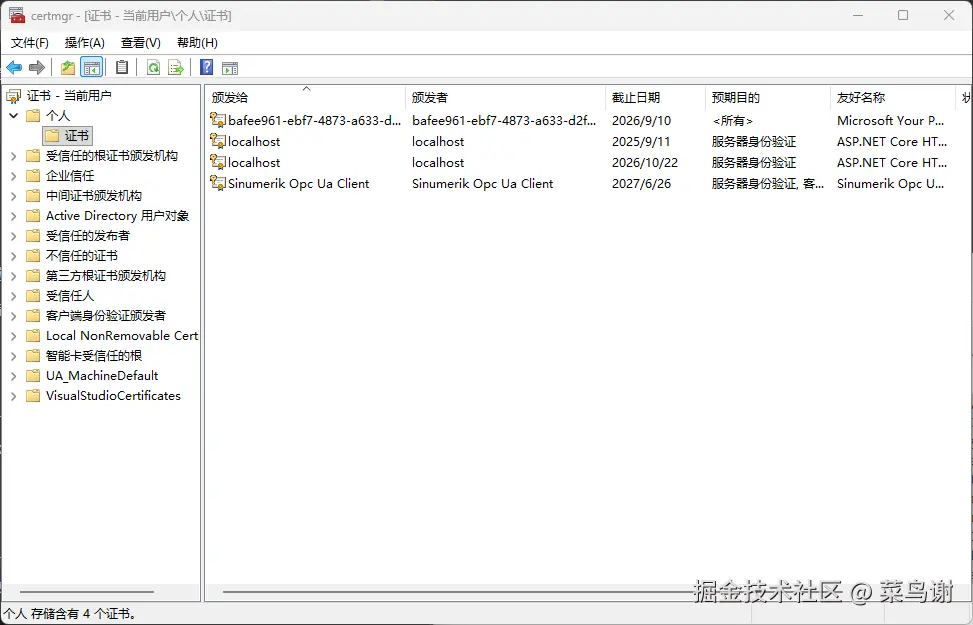

- windows 上查看证书
c# 代码，赋值证书， UAClientHelperAPI.cs
private static ApplicationConfiguration CreateClientConfiguration()
{
ApplicationConfiguration applicationConfiguration = new ApplicationConfiguration();
applicationConfiguration.ApplicationName = "Sinumerik Opc Ua Client";
applicationConfiguration.ApplicationType = ApplicationType.Client;
applicationConfiguration.ApplicationUri = "urn:MyClient";
applicationConfiguration.ProductUri = "SiemensAG.IndustryOnlineSupport";
applicationConfiguration.SecurityConfiguration = new SecurityConfiguration();
applicationConfiguration.SecurityConfiguration.ApplicationCertificate = new CertificateIdentifier();
applicationConfiguration.SecurityConfiguration.ApplicationCertificate.StoreType = "Windows";
applicationConfiguration.SecurityConfiguration.ApplicationCertificate.StorePath = "CurrentUser\\My";
applicationConfiguration.SecurityConfiguration.ApplicationCertificate.SubjectName = applicationConfiguration.ApplicationName;
applicationConfiguration.SecurityConfiguration.TrustedIssuerCertificates.StoreType = "Windows";
applicationConfiguration.SecurityConfiguration.TrustedIssuerCertificates.StorePath = "CurrentUser\\Root";
applicationConfiguration.SecurityConfiguration.TrustedPeerCertificates.StoreType = "Windows";
applicationConfiguration.SecurityConfiguration.TrustedPeerCertificates.StorePath = "CurrentUser\\Root";
X509Certificate2 x509Certificate = applicationConfiguration.SecurityConfiguration.ApplicationCertificate.Find(true);
bool flag = x509Certificate == null;
if (flag)
{
List<string> localIpAddressAndDns = UAClientHelperAPI.GetLocalIpAddressAndDns();
ushort keySize = 2048;
ushort lifetimeInMonths = 24;
ushort algorithm = 1;
x509Certificate = CertificateFactory.CreateCertificate(applicationConfiguration.SecurityConfiguration.ApplicationCertificate.StoreType, applicationConfiguration.SecurityConfiguration.ApplicationCertificate.StorePath, applicationConfiguration.ApplicationUri, applicationConfiguration.ApplicationName, null, localIpAddressAndDns, keySize, lifetimeInMonths, algorithm);
}
applicationConfiguration.TransportQuotas = new TransportQuotas();
applicationConfiguration.TransportQuotas.OperationTimeout = 360000;
applicationConfiguration.TransportQuotas.MaxStringLength = 67108864;
applicationConfiguration.TransportQuotas.MaxByteStringLength = 16777216;
applicationConfiguration.ClientConfiguration = new ClientConfiguration();
applicationConfiguration.ClientConfiguration.DefaultSessionTimeout = 360000;
applicationConfiguration.Validate(ApplicationType.Client);
return applicationConfiguration;
}
certmgr.msc
