minikube 外网可访问的服务

一、NodePort
采用云服务器：
准备三个yaml文件（参照 博主Java4ye juejin.cn/post/717537… 学习）：

• ns.yarm(创建命名空间）

apiVersion: v1
kind: Namespace
metadata:
  name: test-ns

• deployment.yaml(创建deployment)

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: my-dep
  name: my-dep
  namespace: test-ns
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-dep
  template:
    metadata:
      labels:
        app: my-dep
      spec:
        containers:
        - image: nginx
          name: nginx

• svc.yaml(创建service)

apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
  namespace: test-ns
spec:
  selector:
    app: my-dep
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80
  type: NodePort

按顺序执行文件

[root@VM-12-5-centos ~]# kubectl apply -f ns.yaml
namespace/test-ns created
[root@VM-12-5-centos ~]# kubectl apply -f deployment.yaml
deployment.apps/my-dep created
[root@VM-12-5-centos ~]# kubectl apply -f svc.yaml
service/my-dep created

查看pods，service(svc)情况

[root@VM-12-5-centos ~]# kubectl get pods -n test-ns -o wide
NAME                      READY   STATUS    RESTARTS   AGE    IP           NODE           NOMINATED NODE   READINESS GATES
my-dep-55464574c7-9xxcp   1/1     Running   0          4m5s   172.17.0.4   minikube-m03   <none>           <none>
my-dep-55464574c7-mfdxp   1/1     Running   0          4m5s   172.17.0.2   minikube-m03   <none>           <none>
my-dep-55464574c7-tsxbt   1/1     Running   0          4m5s   172.17.0.5   minikube-m03   <none>           <none>
[root@VM-12-5-centos ~]# kubectl get svc -n test-ns -o wide
NAME     TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE    SELECTOR
my-dep   NodePort   10.102.76.52   <none>        8000:32127/TCP   8m5s   app=my-dep

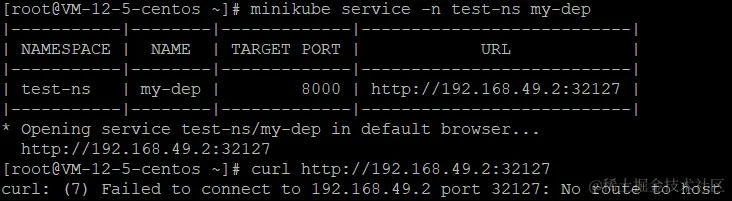

进入 minikube 访问 svc：

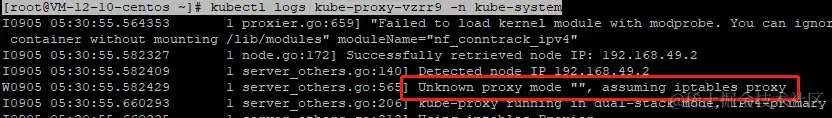

可能会出现上述错误，网络不通，查看kube-proxy代理日志：

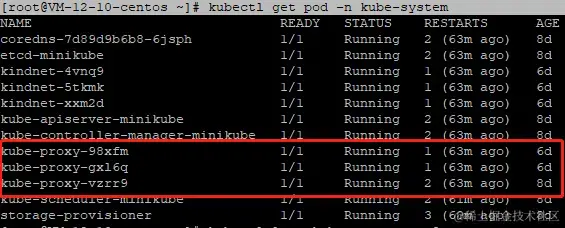

[root@VM-12-5-centos ~]# kubectl get pod -n kube-system

[root@VM-12-5-centos ~]# kubectl logs kube-proxy-vzrr9 -n kube-system

因为采用使用了多节点集群，本处是由于ipvs转发没有配置，导致Service无法访问pod。
为了应对大集群中 iptables 模式的性能问题，kubernetes v1.8 中引入了 ipvs 模式，ipvs 由两个部分组成，分别是用户空间的管理工具 ipvsadm 以及运行在内核中 ipvs 模块，由于没有安装ipvsadm工具，只能直接修改kube-proxy的配置。
扩展一下，ipvs 包含 tunnel（ipip）、direct、nat 三中工作模式，kube-proxy 基于 nat 模式工作。如果采用ipvsadma 工具，操作如上：

# 创建 server
$ ipvsadm -A -t 10.102.76.52:8000 -s rr

# 管理 Real Service
$ ipvsadm -a -t 10.102.76.52:8000 -r 172.17.0.4:80 -m
$ ipvsadm -a -t 10.102.76.52:8000 -r 172.17.0.2:80 -m
$ ipvsadm -a -t 10.102.76.52:8000 -r 172.17.0.5:80 -m

# 添加NAT
$ iptables -t nat -A POSTROUTING -m ipvs --vaddr 10.102.76.52 --vport 6789 -j MASQUERADE
# 绑定VIP到一张 dummy 网卡
$ ip link add ipvs0 type dummy
$ ip addr add 10.102.76.52/32 dev ipvs0
# 开启 contrack
$ echo 1 >  /proc/sys/net/ipv4/vs/conntrack

通过上述命令，即可实现主机 A 上对三个 kube-apisever 的负载均衡访问。kube-proxy 通过 kube-apiserver 获取集群中所有的 Service 和 Endpoint 信息，在每个节点上创建 ipvs service/real server。

回到本操作中，直接通过配置文件方式实现ipvs配置，在kube-proxy中配置mode设置为ipvs。

[root@VM-12-10-centos ~]# kubectl edit cm kube-proxy -n kube-system
ipvs:
    excludeCIDRs: null
    minSyncPeriod: 0s
    scheduler: ""
    strictARP: false
    syncPeriod: 30s
    kind: KubeProxyConfiguration
    metricsBindAddress: 127.0.0.1:10249
    mode: "ipvs"

[root@VM-12-5-centos ~]# cat /etc/sysconfig/modules/ipvs.modules
 #!/bin/bash
 modprobe -- ip_vs
 modprobe -- ip_vs_rr
 modprobe -- ip_vs_wrr
 modprobe -- ip_vs_sh
 modprobe -- nf_conntrack_ipv4
 保存退出，授权

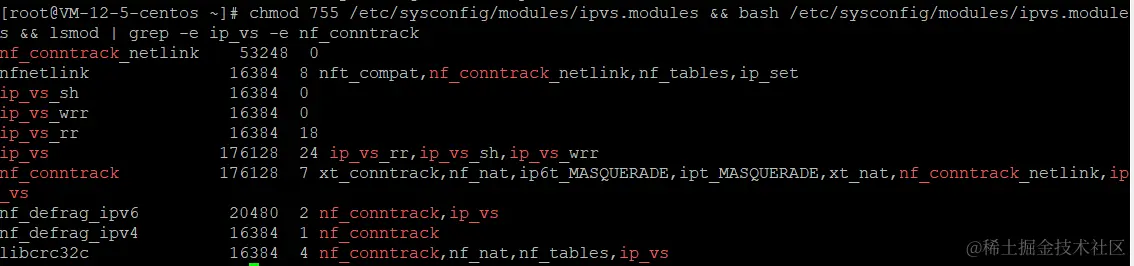

[root@VM-12-5-centos ~]# chmod 755 /etc/sysconfig/modules/ipvs.modules && bash

如果出现下列错误，是因为高版本的centos内核nf_conntrack_ipv4被nf_conntrack替换了，所以装不了。

重新编辑：

[root@VM-12-5-centos ~]# vi /etc/sysconfig/modules/ipvs.modules
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
保存退出：
[root@VM-12-5-centos ~]# chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack

删除现有kube-proxy pod
[root@VM-12-5-centos ~]# kubectl get pod -n kube-system | grep kube-proxy |awk '{system("kubectl delete pod "$1" -n kube-system")}'

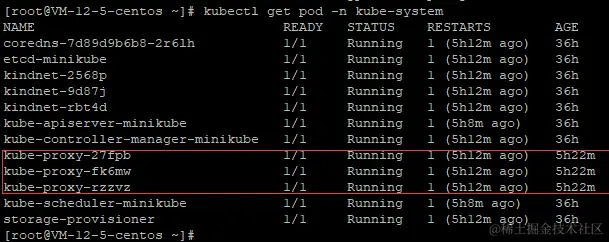

查看自动生成的kube-proxy情况
[root@VM-12-5-centos ~]#  kubectl get pod -n kube-system

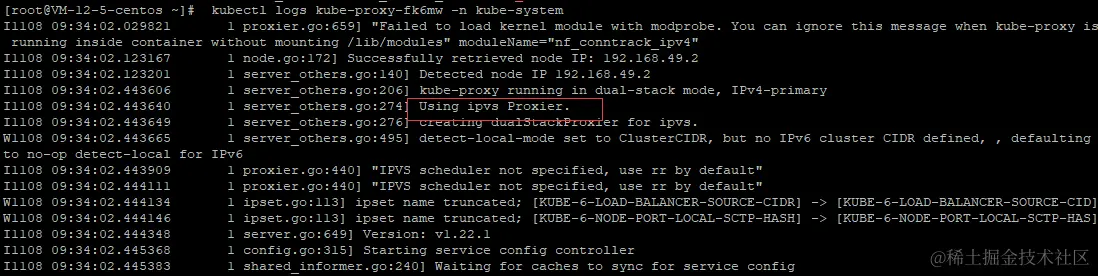

重新查看kubectl logs，ipvs已经生效，前面还是会错误，但已经不影响使用。

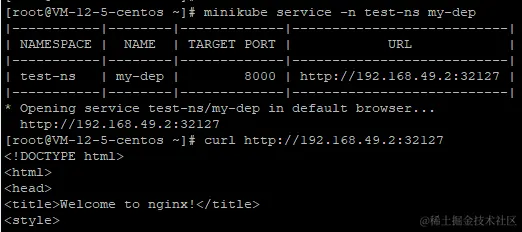

重新测试minikube service，访问正常，:

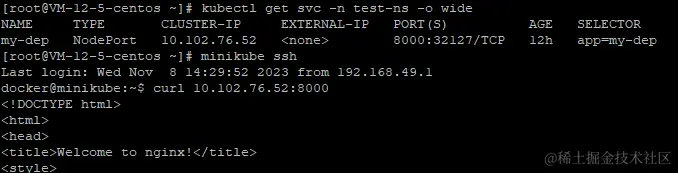

进入minikube访问pod,访问正常：

[root@VM-12-5-centos ~]# minikube ssh

删除测试用的deploay,pod,service,删除pod，deployment会自动重建，所以应该先删除deployment

# 查询deployment
[root@VM-12-5-centos ~]#  kubectl get deployment -n test-ns
# 删除所有
[root@VM-12-5-centos ~]# kubectl delete deployment -all
# 删除一个
[root@VM-12-5-centos ~]# kubectl delete deployment DEPLOYMENT_NAME -n NAMESPACE_NAME
# 查询pod
[root@VM-12-5-centos ~]#  kubectl get pod -n test-ns -o wide
# 删除所有pod
[root@VM-12-5-centos ~]# kubectl delete pod --all
# 删除一个pod
[root@VM-12-5-centos ~]# kubectl delete pod POD_NAME -n NAMESPACE_NAME
# 查询service
[root@VM-12-5-centos ~]#  kubectl get svc -n test-ns -o wide
# 因为pod都删除了，对应的service就没有用了
[root@VM-12-5-centos ~]# kubectl delete svc SERVICE_NAME -n NAMESPACE_NAME

二、Ingress

minikube addons enable ingress
minikube addons enable ingress-dns

kind: Pod
apiVersion: v1
metadata:
  name: foo-app
  labels:
    app: foo
spec:
  containers:
    - name: foo-app
      image: 'kicbase/echo-server:1.0'
---
kind: Service
apiVersion: v1
metadata:
  name: foo-service
spec:
  selector:
    app: foo
  ports:
    - port: 8080
---
kind: Pod
apiVersion: v1
metadata:
  name: bar-app
  labels:
    app: bar
spec:
  containers:
    - name: bar-app
      image: 'kicbase/echo-server:1.0'
---
kind: Service
apiVersion: v1
metadata:
  name: bar-service
spec:
  selector:
    app: bar
  ports:
    - port: 8080
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: example-ingress
spec:
  rules:
    - http:
        paths:
          - pathType: Prefix
            path: /foo
            backend:
              service:
                name: foo-service
                port:
                  number: 8080
          - pathType: Prefix
            path: /bar
            backend:
              service:
                name: bar-service
                port:
                  number: 8080
---

上述配置没有deployment方式进行管理pod，采用一个service管理一个pod的方式，这里没有使用默认ClusterIP 方式，只能采用Ingress方式访问。

# 安装 kubectl apply -f nginx-ingress.yaml
# 卸载 kubectl delete -f nginx-ingress.yaml

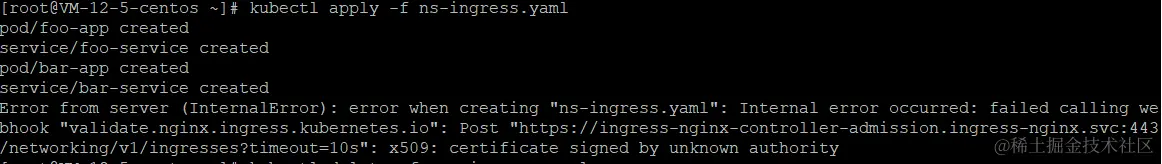

安装出现下列错误： 解决方法：

kubectl delete -A ValidatingWebhookConfiguration ingress-nginx-admission

重新安装成功
[root@VM-12-5-centos ~]# kubectl apply -f ns-ingress.yaml
pod/foo-app created
service/foo-service created
pod/bar-app created
service/bar-service created
ingress.networking.k8s.io/example-ingress created

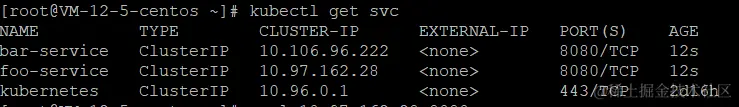

查看安装情况
[root@VM-12-5-centos ~]# kubectl get ingress -n test-ns -A

查看路由规则（Address的信息生成需求等几分钟才出现）：

[root@VM-12-5-centos ~]# kubectl describe ingress example-ingress

测试安装情况： 通过Ingress访问

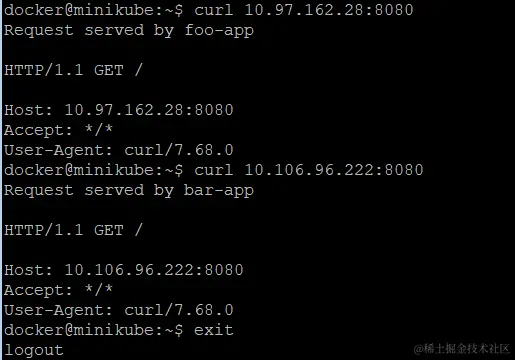

通过minikute ssh 内部访问pod

[root@VM-12-5-centos ~]# minikube ssh

加host访问：

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: example-ingress
  namespace: test-ns
spec:
  rules:
    - host: foss.test
      http:
        paths:
          - pathType: Prefix
            path: /foo
            backend:
              service:
                name: foo-service
                port:
                  number: 80
          - pathType: Prefix
            path: /bar
            backend:
              service:
                name: bar-service
                port:
                  number: 80

这里需要配置/etc/hosts增加下列一行：

[root@VM-12-5-centos ~]# vi /etc/hosts
192.168.49.2 foss.test foss.test
# 使用配置生效
[root@VM-12-5-centos ~]# nmcli c reload

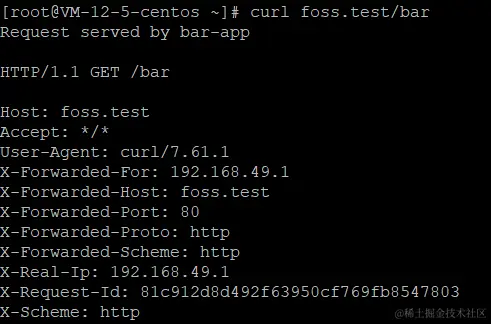

配置完成后，只需要访问 foss.test 即可访问到后端的 service，不用再访问 API。

目前测试只能foss.test访问，IP地址无法访问。

三、集群配置pod后的，Ingress访问配置

• deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-dep
  template:
    metadata:
      labels:
        app: my-dep
    spec:
      containers:
      - image: nginx
        name: nginx

• svc.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  selector:
    app: my-dep
  ports:
    - port: 8080
      protocol: TCP
      targetPort: 80
  type: NodePort

此处必须采用NodePort方式，不能只使用默认ClusterIP方式公布服务，这里使用一个Service服务下有pod。

• ns-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: example-ingress
spec:
  rules:
    - host: foss.test
      http:
        paths:
          - pathType: Prefix
            path: /
            backend:
              service:
                name: my-dep
                port:
                  number: 8080

执行yaml文件

[root@VM-12-5-centos ~]# kubectl apply -f deployment.yaml
[root@VM-12-5-centos ~]# kubectl apply -f svc.yaml
[root@VM-12-5-centos ~]# kubectl apply -f ns-ingress.yaml

[root@VM-12-5-centos ~]# kubectl get ingress
NAME              CLASS   HOSTS       ADDRESS        PORTS   AGE
example-ingress   nginx   foss.test   192.168.49.2   80      10m

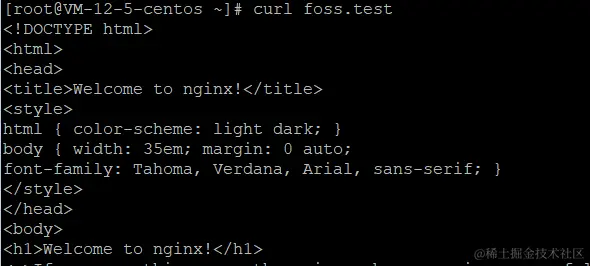

[root@VM-12-5-centos ~]# curl foss.test

Ingress 创建成功后，会在 pod 中的 nginx.conf 文件中创建 Server ：foss.test 和 foss2.test，并配置相应的路由规则进入pod，查看nginx配置

[root@VM-12-5-centos ~]# kubectl exec -it my-dep-5b7868d854-2mq62 -- /bin/bash
# 进入容器后，Nginx的配置文件通常位于 /etc/nginx 目录下。 你可以使用以下命令查看该目录下的文件： ls /etc/nginx 这将列出该目录下的文件和目录，其中主要的配置文件是 nginx.conf 。
[root@VM-12-5-centos ~]# cat /etc/nginx/nginx.conf

四、将 minikube 中的 service 暴露到公网 可采用Nginx，HAproxy, Traefik这些服务进行代理，如：利用 nginx，监听某个端口，再根据访问路径的不同进行转发，使用宿主上的docker部署。

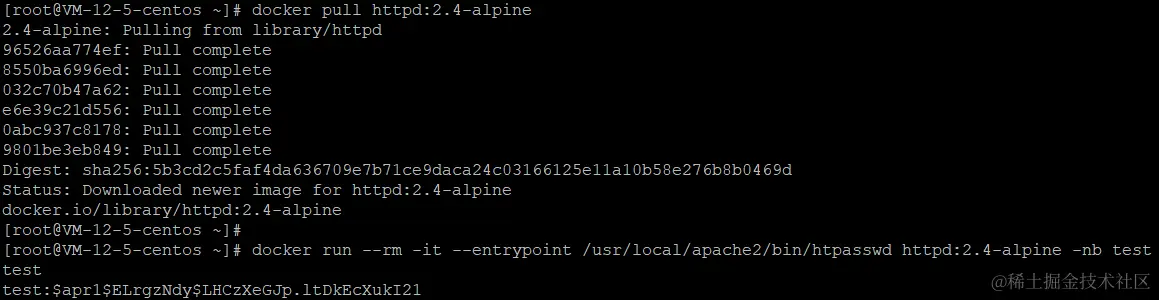

先使用httpd生生密钥：

[root@VM-12-5-centos ~]# docker run --rm -it --entrypoint /usr/local/apache2/bin/htpasswd httpd:2.4-alpine -nb test test
test:$apr1$ELrgzNdy$LHCzXeGJp.ltDkEcXukI21

再配置docker-compose.yml文件: [root@VM-12-5-centos ~]# vi docker-compose.yml

version: '3'

services:
  traefik:
    # The official v2 Traefik docker image
    image: "traefik:v2.9"
    container_name: "traefik"
    restart: always
    # Enables the web UI and tells Traefik to listen to docker
    command:
      - --api=true
      - --api.insecure=true
      - --api.dashboard=true
      - --providers.docker=true
      - --providers.docker.endpoint=unix:///var/run/docker.sock
      - --providers.docker.watch=true
      - --providers.file.directory=/etc/traefik
#      - --providers.file.filename=/etc/traefik/config.yml
      - --log.filePath=/var/log/traefik/traefik.log
      - --log.format=json
      - --log.level=DEBUG
      - --accesslog=true
      - --accesslog.filepath=/var/log/traefik/access.log
      - --accesslog.format=json
      - --entrypoints.http.address=:80
    ports:
      # The HTTP port
      - "8000:80"
      - "443:443"
      # The Web UI (enabled by --api.insecure=true)
      - "8080:8080"
    volumes:
      # So that Traefik can listen to the Docker events
      - /var/run/docker.sock:/var/run/docker.sock
      - /home/traefik/config:/etc/traefik
      - /home/traefik/dynamic:/data/traefik/conif
#     - /home/traefik/config/traefik-config.yml:/etc/traefik/config.yml
      - /home/traefik/logs/traefik:/var/log/traefik
      - /etc/localtime:/etc/localtime:ro
      - /etc/timezone:/etc/timezone:ro
    networks:
      - minikube
    extra_hosts:
      - "foss.test:192.168.49.2"
      - "foss2.test:192.168.49.2"
    labels:
      - "traefik.enable=true"
      - "traefik.docker.network=minikube"
      - "traefik.http.middlewares.my-dep-stripPrefixRegex.stripprefixregex.regex=/my-dep\\d*"
      - "traefik.http.middlewares.my-basic-auth.basicauth.users=test:$$apr1$$ELrgzNdy$$LHCzXeGJp.ltDkEcXukI21"
      - "traefik.http.middlewares.myHeader1.headers.customrequestheaders.host=foss.test"
      - "traefik.http.middlewares.myHeader2.headers.customrequestheaders.host=foss2.test"
      - "traefik.http.services.my-dep.loadbalancer.servers.url=http://foss.test"
      - "traefik.http.services.my-dep2.loadbalancer.servers.url=http://foss2.test"
      - "traefik.http.routers.router1.middlewares=my-basic-auth, my-dep-stripPrefixRegex, myHeader1"
      - "traefik.http.routers.router1.service=my-dep"
      - "traefik.http.routers.router1.rule=PathPrefix(`/my-dep`) || PathPrefix(`/my-dep{a:/*$$}`)"
      - "traefik.http.routers.router1.entrypoints=http"
      - "traefik.http.routers.router2.middlewares=my-basic-auth, my-dep-stripPrefixRegex, myHeader2"
      - "traefik.http.routers.router2.service=my-dep2"
      - "traefik.http.routers.router2.rule=PathPrefix(`/my-dep2`) || PathPrefix(`/my-dep2{a:/*$$}`)"
      - "traefik.http.routers.router2.entrypoints=http"
  whoami:
    image: "containous/whoami"
    container_name: "simple-service"
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.whoami.rule=Host(`traefik.pbeta.cn`) && Path(`/whoami`)"
    networks:
      - minikube
networks:
  minikube:
    external: true

在docker-compose.yml中的特殊符号"$"的转译为"$$"。

[root@VM-12-5-centos ~]# docker-compose -f docker-compose.yml down
[root@VM-12-5-centos ~]# docker-compose -f docker-compose.yml up -d
测试
[root@VM-12-5-centos ~]# curl -vvv http://localhost:80/my-dep

参考：juejin.cn/post/717537…
