Intro

the job of an operating system 操作系统的作用

• share a computer among multiple programs and to provide a more useful set of services than the hardware alone supports. 帮助多个程序共享电脑硬件资源，提供更为有效的服务
• manages and abstracts the low-level hardware 管控和抽象底层硬件

constituion of a process 进程组成成分

• instructions 指令: implement the program's computation
• data 数据: the variables on which the computation acts
• stack 栈: organizes the program's procedure calls

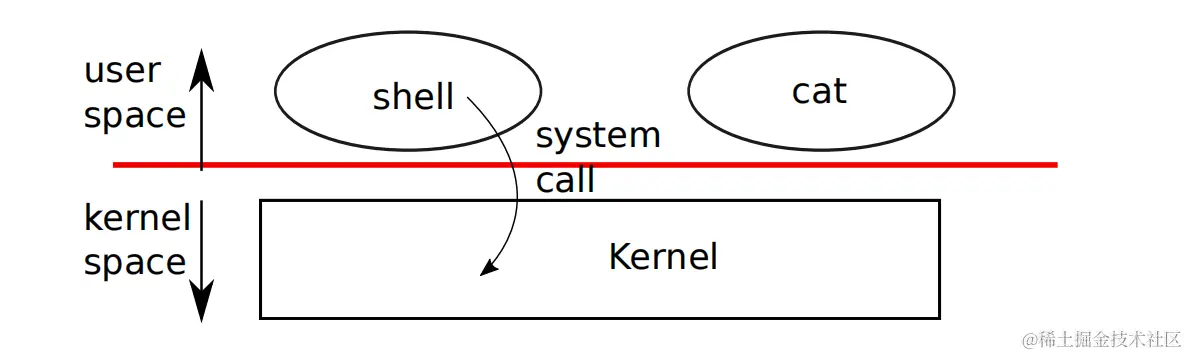

the interaction between user process and kernel

1. invokes a system call ：调用系统调用
2. enters the kernel ：进入内核
3. kernel performs the services and returns ：内核执行服务并返回结果

the job of the kernel

• uses the hardward protection mechanisms provided by a CPU to ensure that each process executing in user space can access only its own memory. 使用由cpu提供的硬件的保护机制来使得每个进程只能访问他们自己的内存
• the kernel executes with the hardware privileges required to implement these protections. 内核通过硬件访问特权来实现硬件保护机制

Processes and memory

constitution of an process

• user-space memory 用户态空间
• per-process state private to the kernel 仅有内核访问的进程状态

XV-6 time-shares programs

• it transparently switches the available CPUS among the set of processes waiting to execute
• when a process is not executing, xv6 saves its CPU registers, restoring them when it next runs the process

PID : kernel associates a process identifier or PID, with each process.

fork

• a system call that can be invoked by a process to create a new process 是一个可以创建新进程的系统调用
• 子进程只执行fork后面的代码，fork前的代码不执行
• the new process is called child process,with exactly the same memory contents as the calling process, called the parent processl 新进程被称为子进程，与父进程拥有相同的内存内容，但是存储其内容的地址不一样，所以父子进程的变量相互不影响
• Fork returns in both the parent and the child. In the parent, fork returns the child's PID; in the child, fork returns zero. fork同时向父进程和子进程返回返回结果。父进程中fork方法返回子进程的pid，子进程中，fork返回0

int pid = fork();
if(pid > 0){
printf("parent: child=%d\n", pid);
pid = wait((int *) 0);
printf("child %d is done\n", pid);
} else if(pid == 0){
printf("child: exiting\n");
exit(0);
} else {
printf("fork error\n");
}

the relation betweeen parent and child process

• although the child has the same memory contents as the parent initiallym the parent and child are executing with different memory and different rigisters: changing a variable in one does not affect the other. 只是相同的内容，但是位置不一样。

exit

• the exit system call causes the calling process to stop executing and to release resources such as memory and open files. Exit takes an integer status argument, conventionally 0 to indicate success and 1 to indicate failure.

wait

• the wait system call returens the PID od an exited(or killed) child of the current process and copies the exit status of the child to the address passed to wait; if non of the caller's children has exited, wait waits for one to do so.
• if the caller has no childrem, wait immediately returns -1
• if the parent doesn't care about the exit statues of a child, it can pass a 0 address to wait.

exec

• the exec system call replaces the calling process's memory with a new memory image loaded from a file stored in the file system.
• the file must have a particular format, which part is date, at which instruction to start
• when exec succeeds, it does not return to the calling program; instead, the instructions loaded from the file start executing at the entry point declared in the ELF header
• Exec takes two arguments: the name of the file containing the executable and an array of string arguments

I/O and File descriptors

file decriptor

• A file decriptor is a small integer representing a kernel-managed object that a process may read from or write to.
• the file decriptor interface abstracts away the differences between files, pipes, and devicesm making them all look like streams of bytes.
• By convention, a process reads from file descriptor 0(standard input), writes output to file descriptor 1(standard output), and writes error messages to file descriptor 2(standard error)

related system call

• write :The call write(fd, buf, n) writes n bytes from buf to the fifile descriptor fd and returns the number of bytes written.
• read : The call read(fd, buf, n) reads at most n bytes from the fifile descriptor fd, copies them into buf, and returns the number of bytes read.
• dup : the dup system call duplicates an existing file descriptor, returning a new one that refers to the same underlying I/O object. Both file descriptors share an offset, just as the file descriptors dumlicated by fork do.

Pipes

defination and job:

• A pipe is a small kernel buffer exposed to processes as a pair of fifile descriptors, one for reading and one for writing.
• Writing data to one end of the pipe makes that data available for reading from the other end of the pipe.
• Pipes provide a way for processes to communicate.

int p[2];
pipe(p);

• pipe, which creates a new pipe and records the read and write fifile descriptors in the array p ,
