Cocos Creator基础1.基础知识 1.1.cocos与CocosCreator编程思想差异 1.2.节点创建

1.基础知识

1.1.cocos与CocosCreator编程思想差异

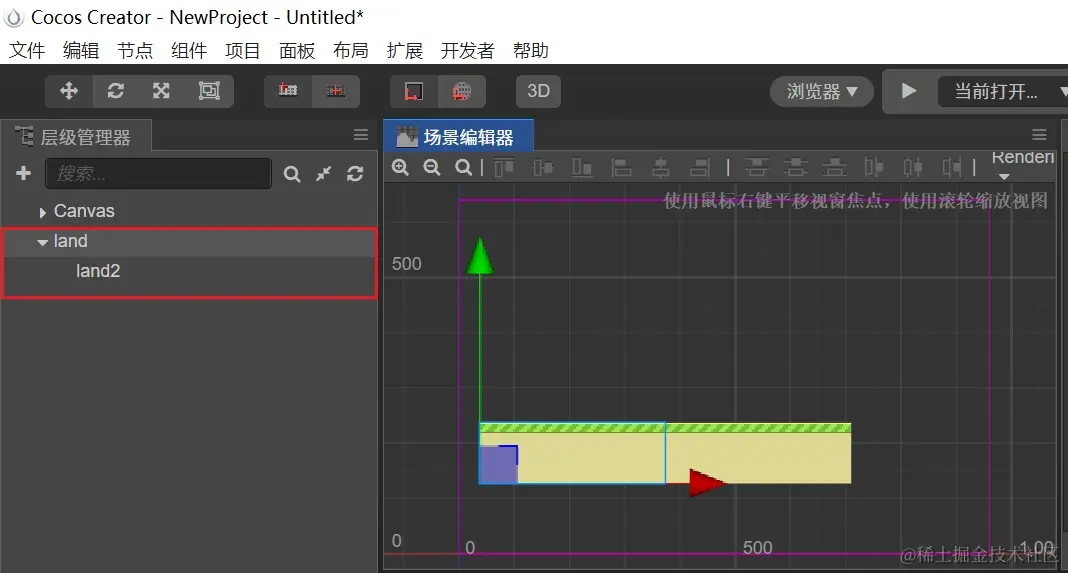

1.2.节点

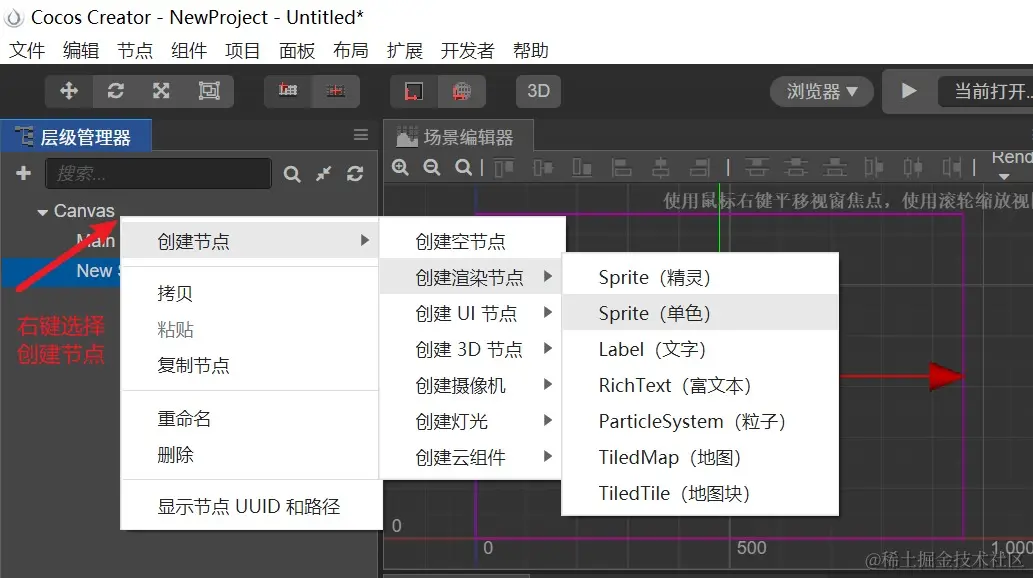

创建节点

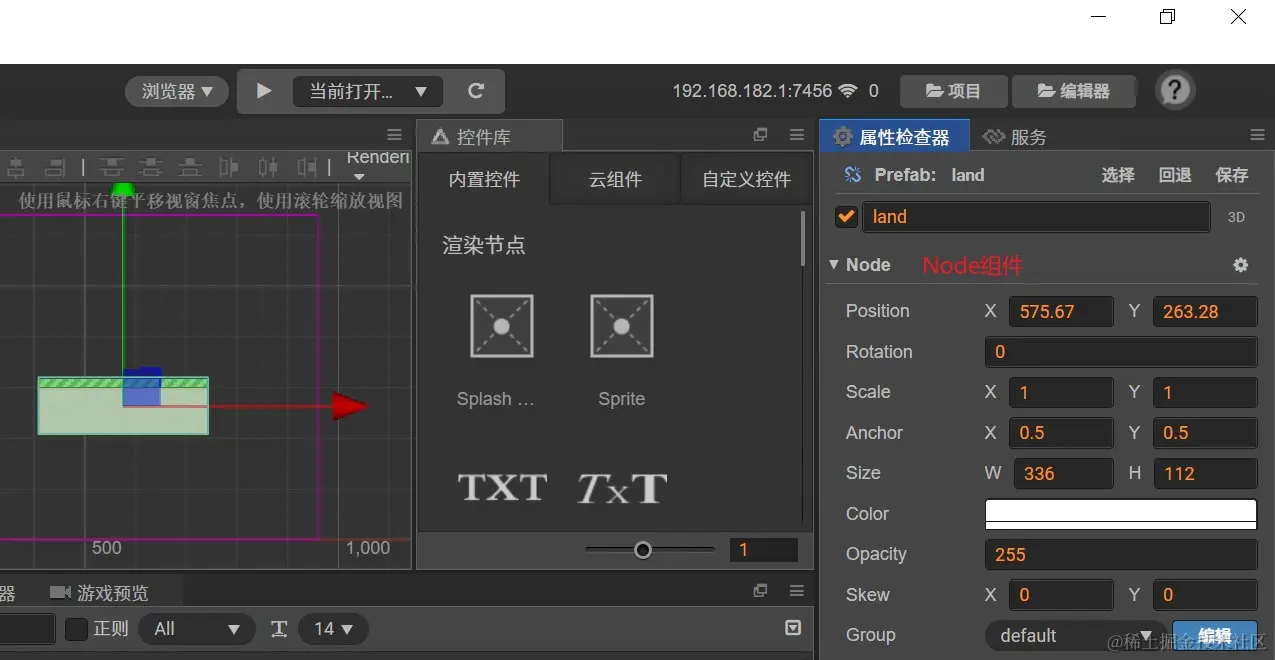

节点的属性设置

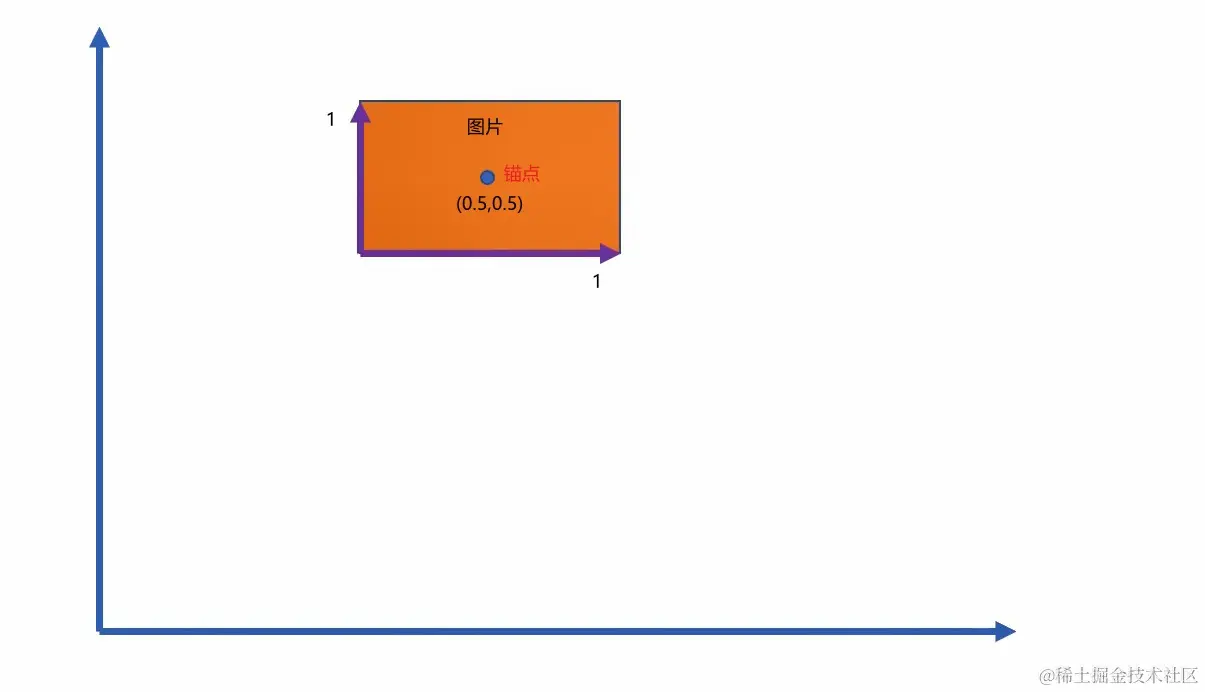

1.3.锚点与坐标系

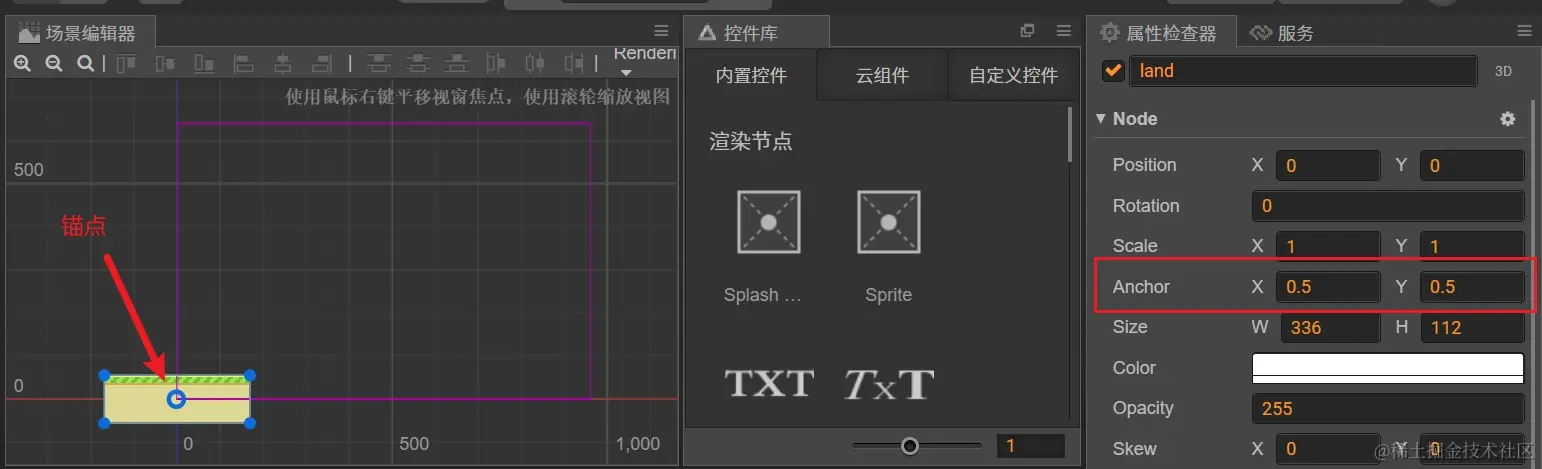

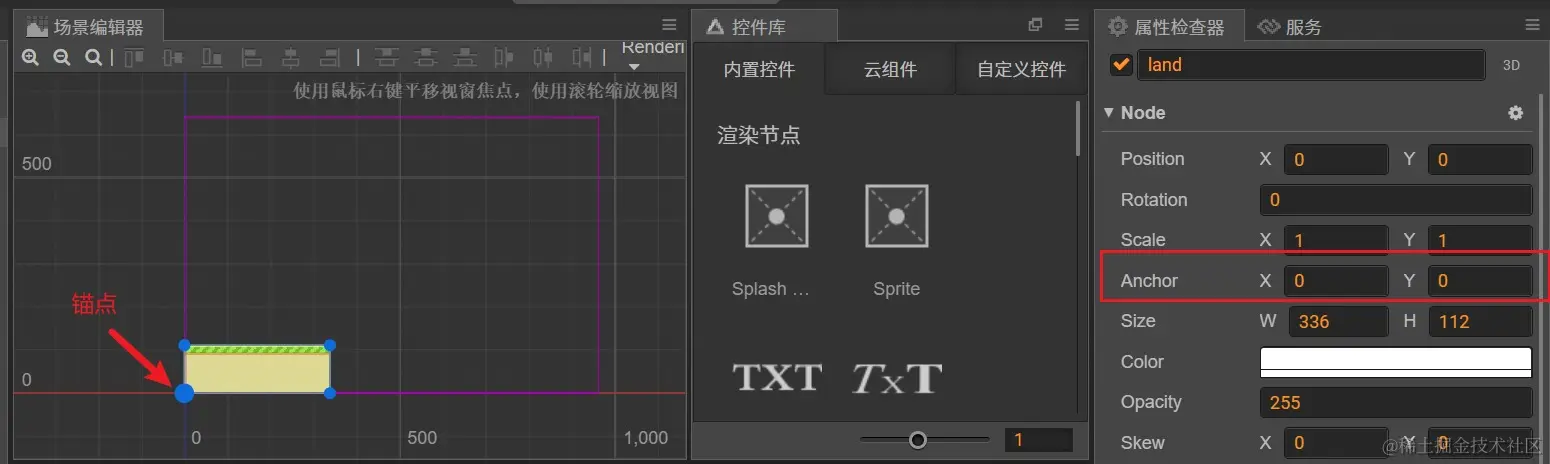

锚点的设置

坐标系

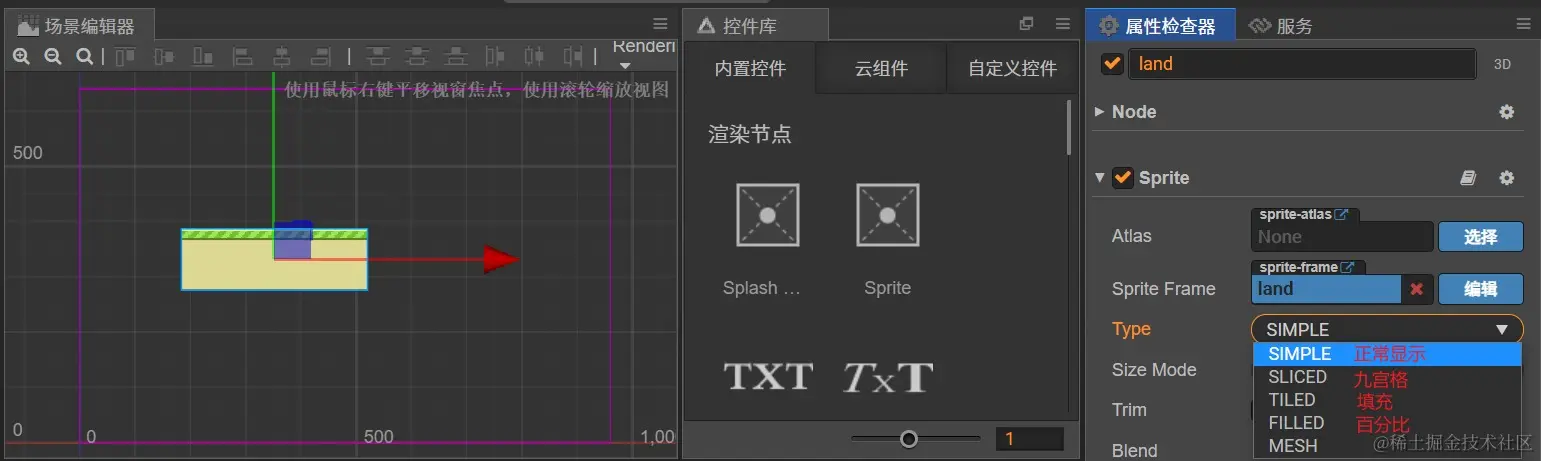

1.4.精灵的使用

九宫格

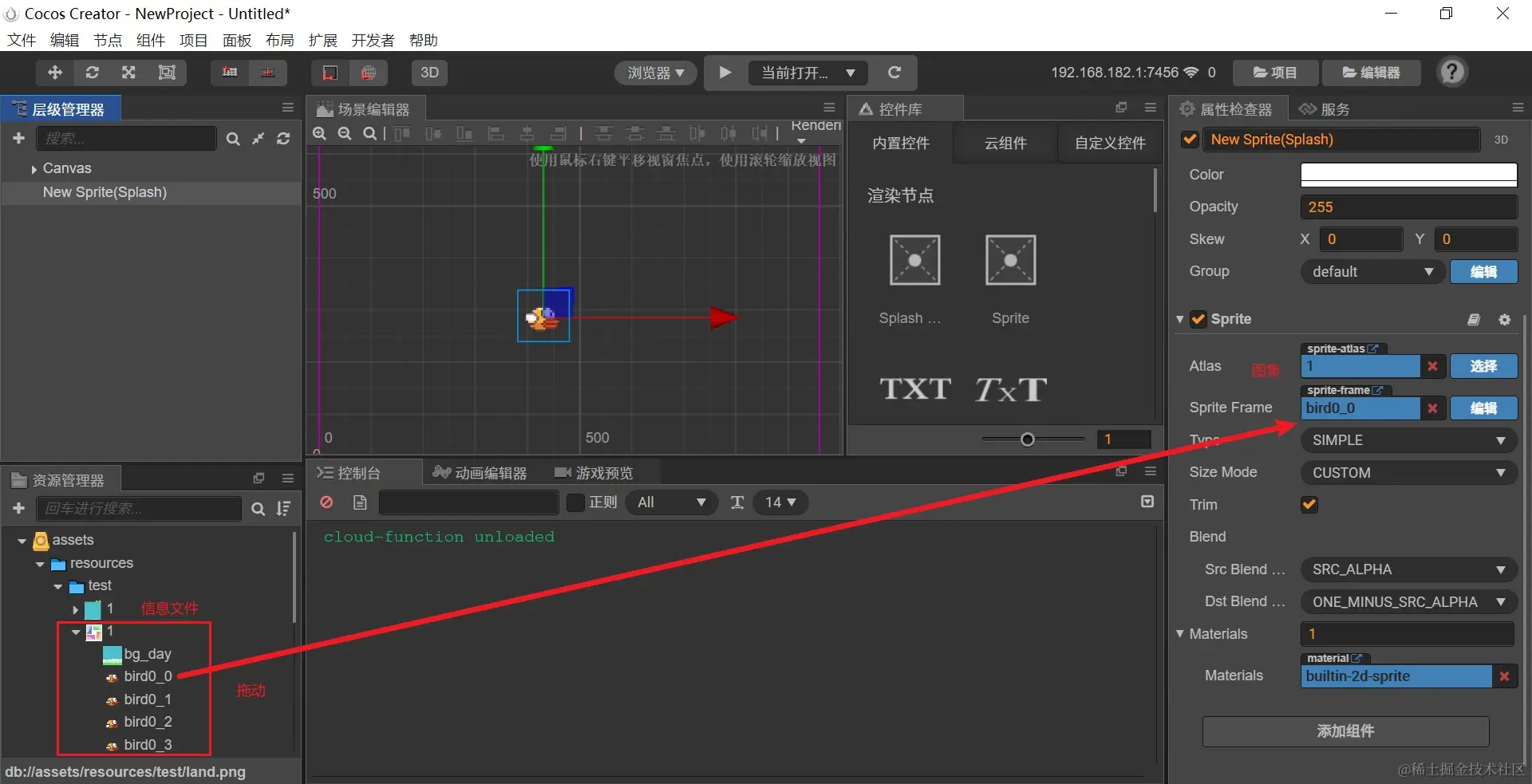

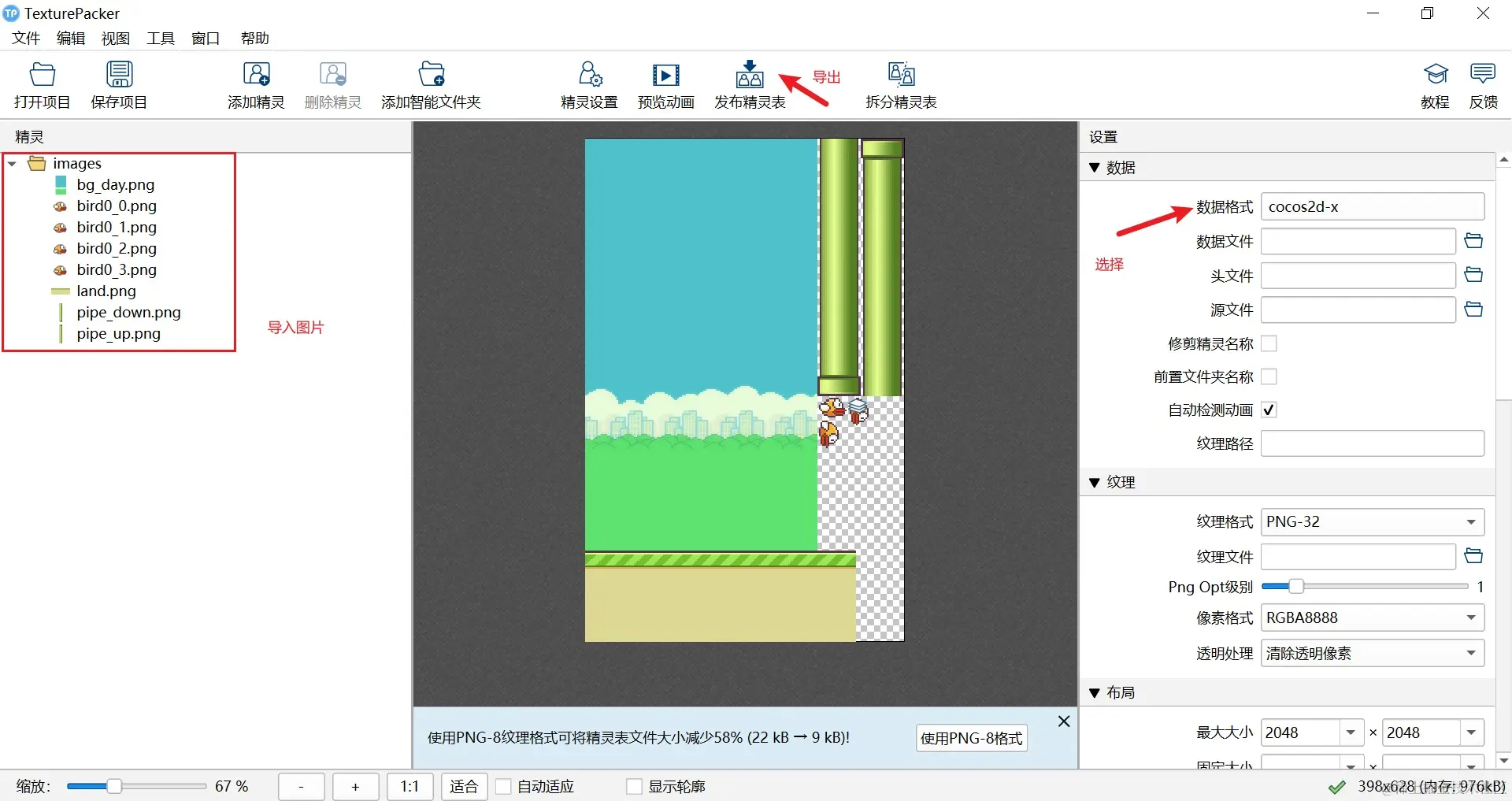

1.5.精灵图集

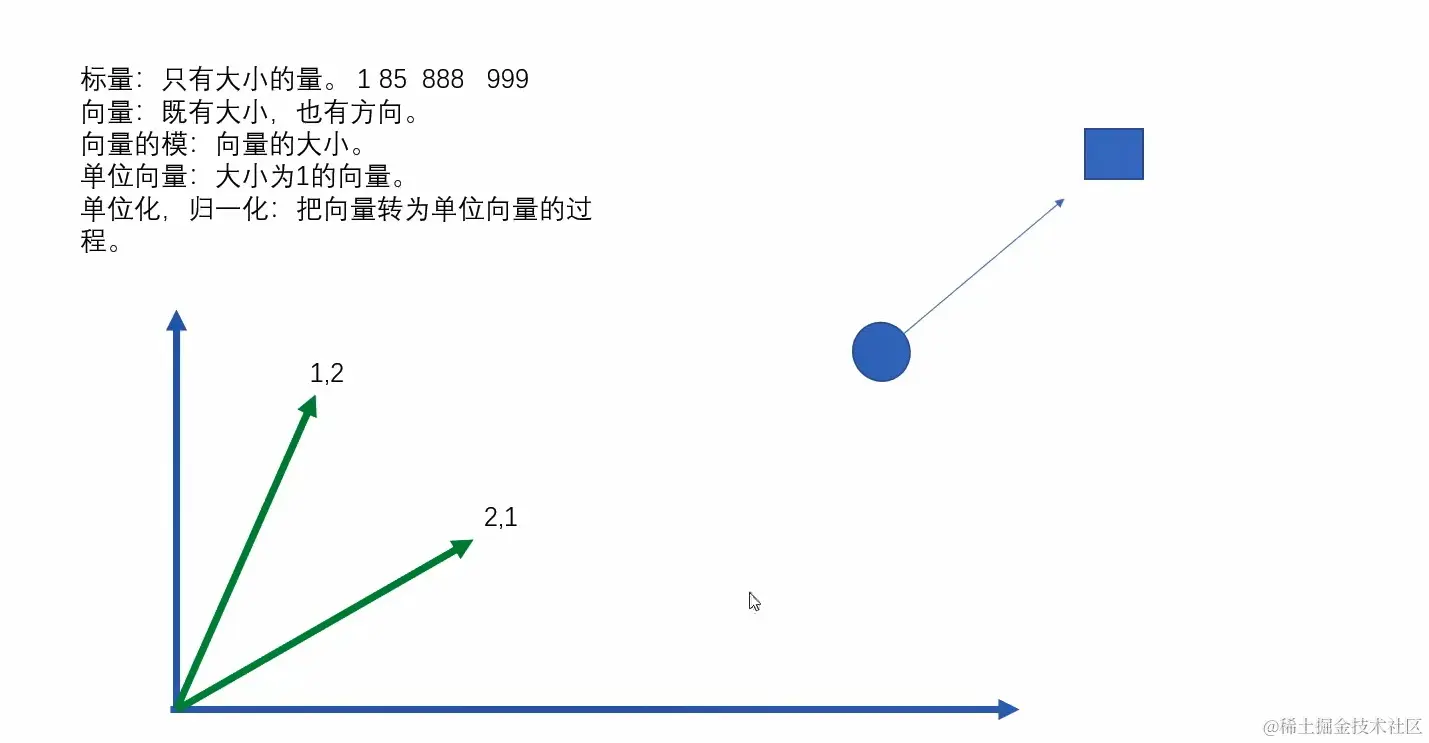

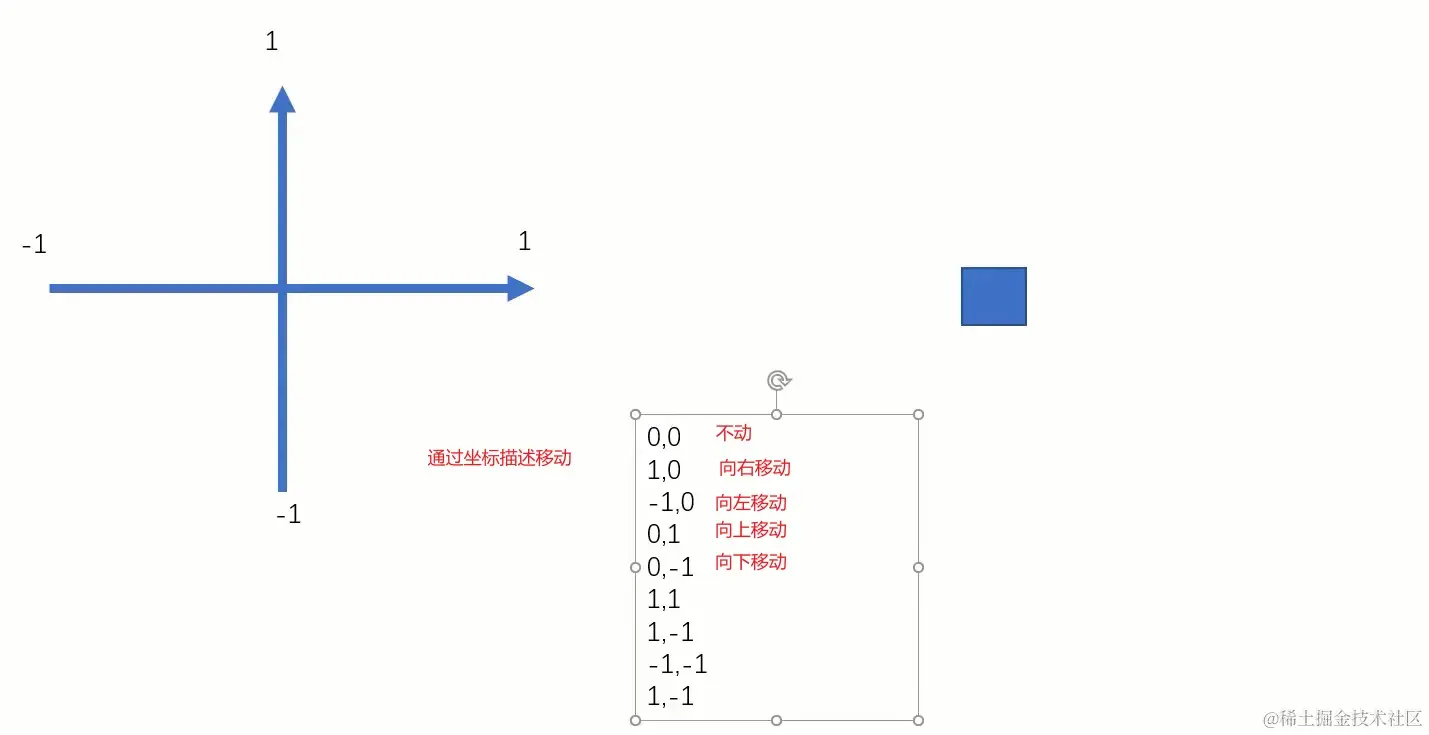

1.6.向量与标量

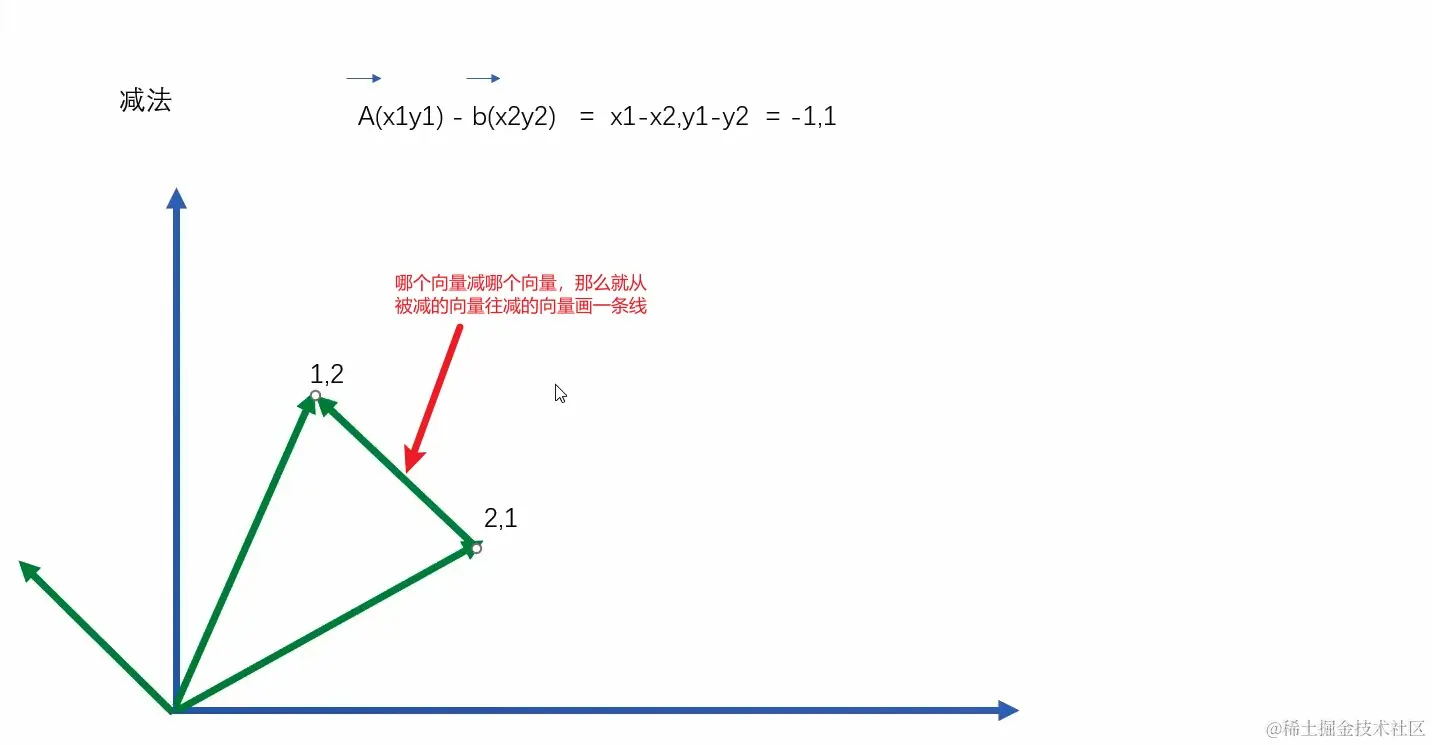

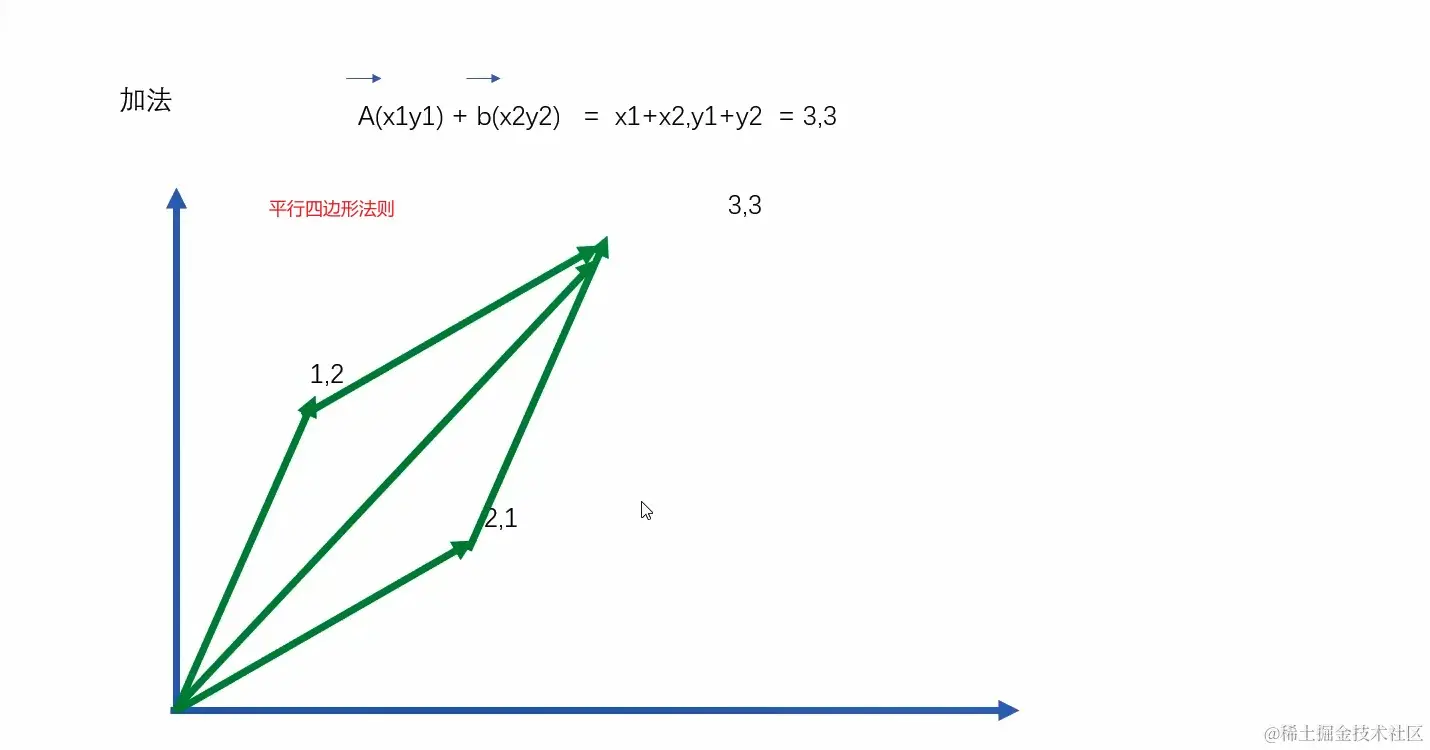

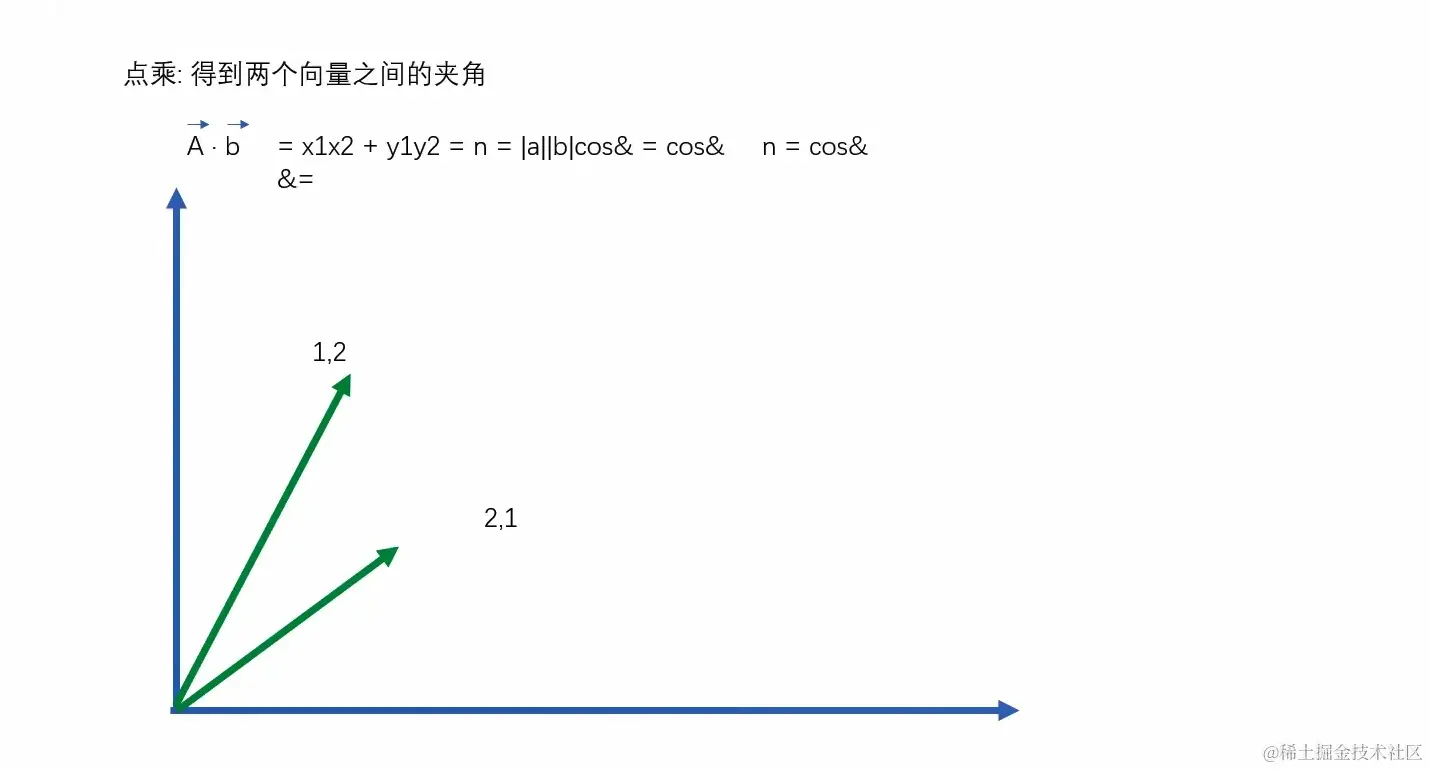

1.7.向量的运算及意义

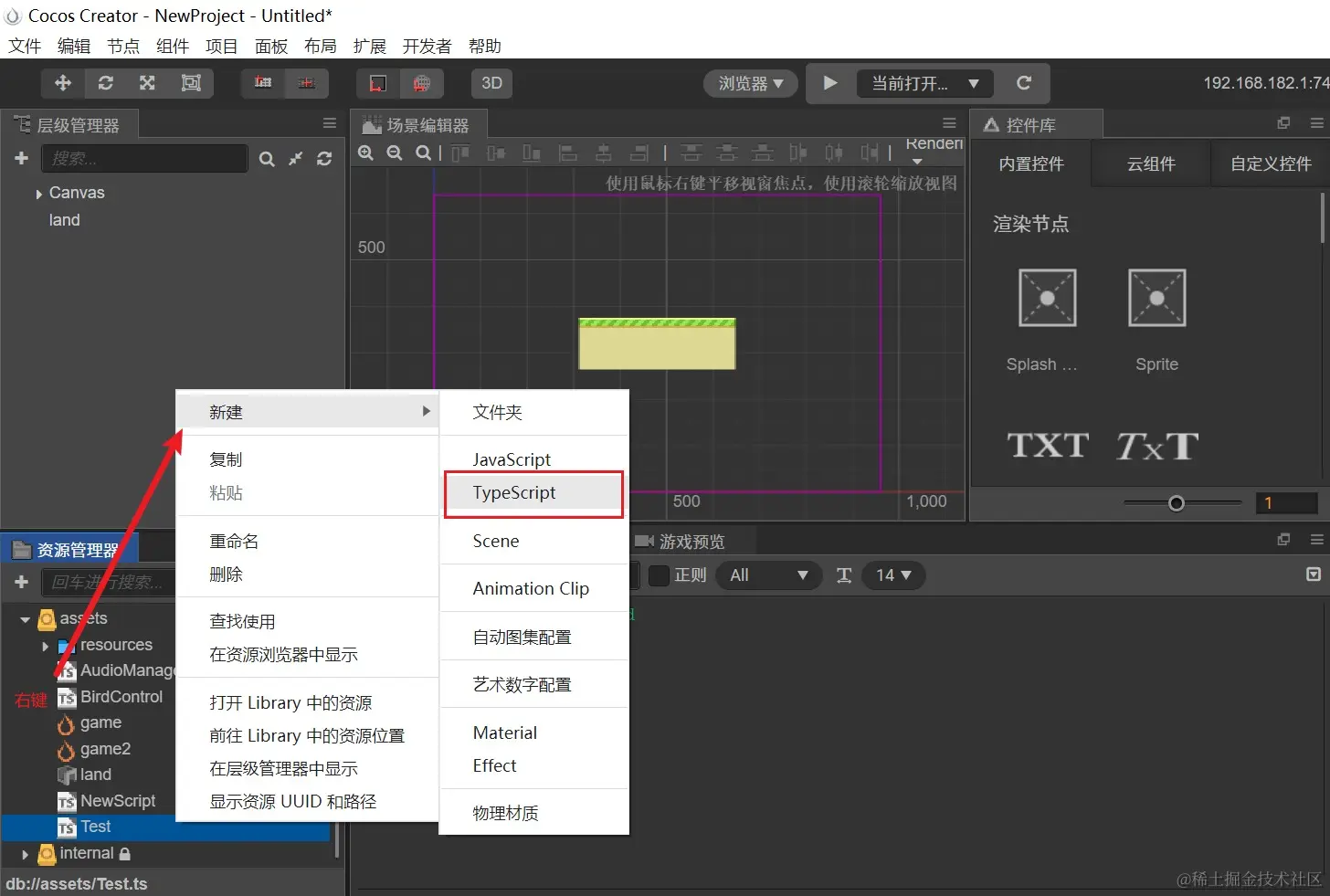

1.8.脚本解析

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  //@property能在面板上显示属性，括号里填写属性的类型能在面板显示属性类型
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:

  // onLoad () {}

  start() {

  }

  // update (dt) {}
}

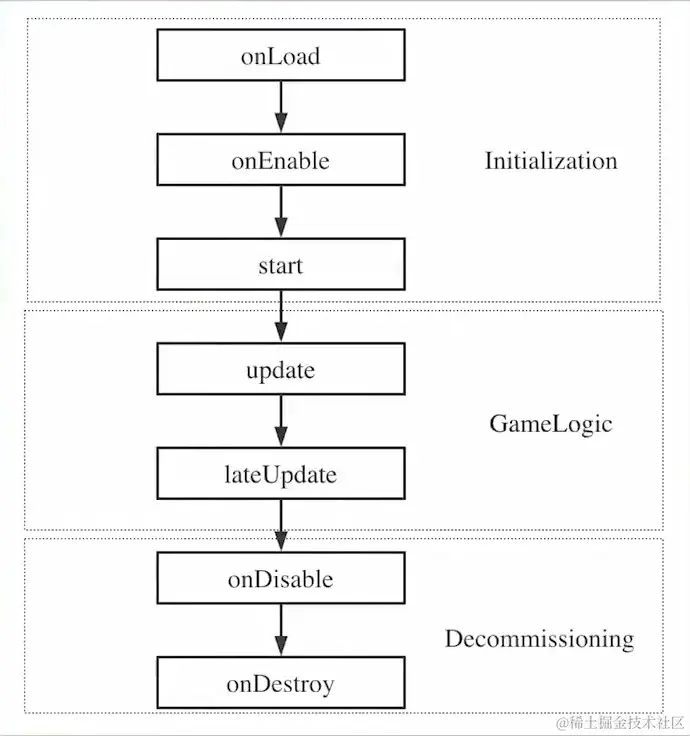

1.9.脚本生命周期

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:
  //初始化调用
  onLoad() {
    console.debug("onLoad");
  }

  onEnable() {
    console.debug("onEnable");
  }

  //初始化调用
  start() {
  }

  //每帧调用
  update (dt) {}

  lateUpdate() {}

  onDisable() {}
  //销毁时调用
  onDestroy() {
    console.debug("onDestroy");
  }

}

1.10.节点的常用属性方法

const { ccclass, property } = cc._decorator;

@ccclass
export default class Test extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:

  start() {
    console.debug("start");
    // 获得子节点
    // this.node.children[0];
    // this.node.getChildByName("abc");
    // cc.find("Canvas/Main Camera");
    // 获得父节点
    // this.node.getParent();
    // this.node.setParent('ddd');
    // 移除所有节点
    // this.node.removeAllChildren();
    // 移除某个节点
    // this.node.removeChild(ddd);
    // 从父节点中移除掉
    // this.node.removeFromParent();

    // 访问位置
    // this.node.x;
    // this.node.y;
    // this.node.setPosition(3, 4);
    // this.node.setPosition(cc.v2(3, 4));
    // 旋转
    // this.node.rotation;
    // 缩放
    // this.node.scale;
    // 锚点
    // this.node.anchorX;
    // this.node.color = cc.Color.BLUE;

    // 节点开关
    // this.node.active = false;
    // 组件开关
    // this.enabled = false;

    // 获取组件
    // let sprite = this.getComponent(cc.Sprite);
    // this.getComponentInChildren(cc.Sprite);
  }

  update(dt) {}
}

1.11.预设体的使用

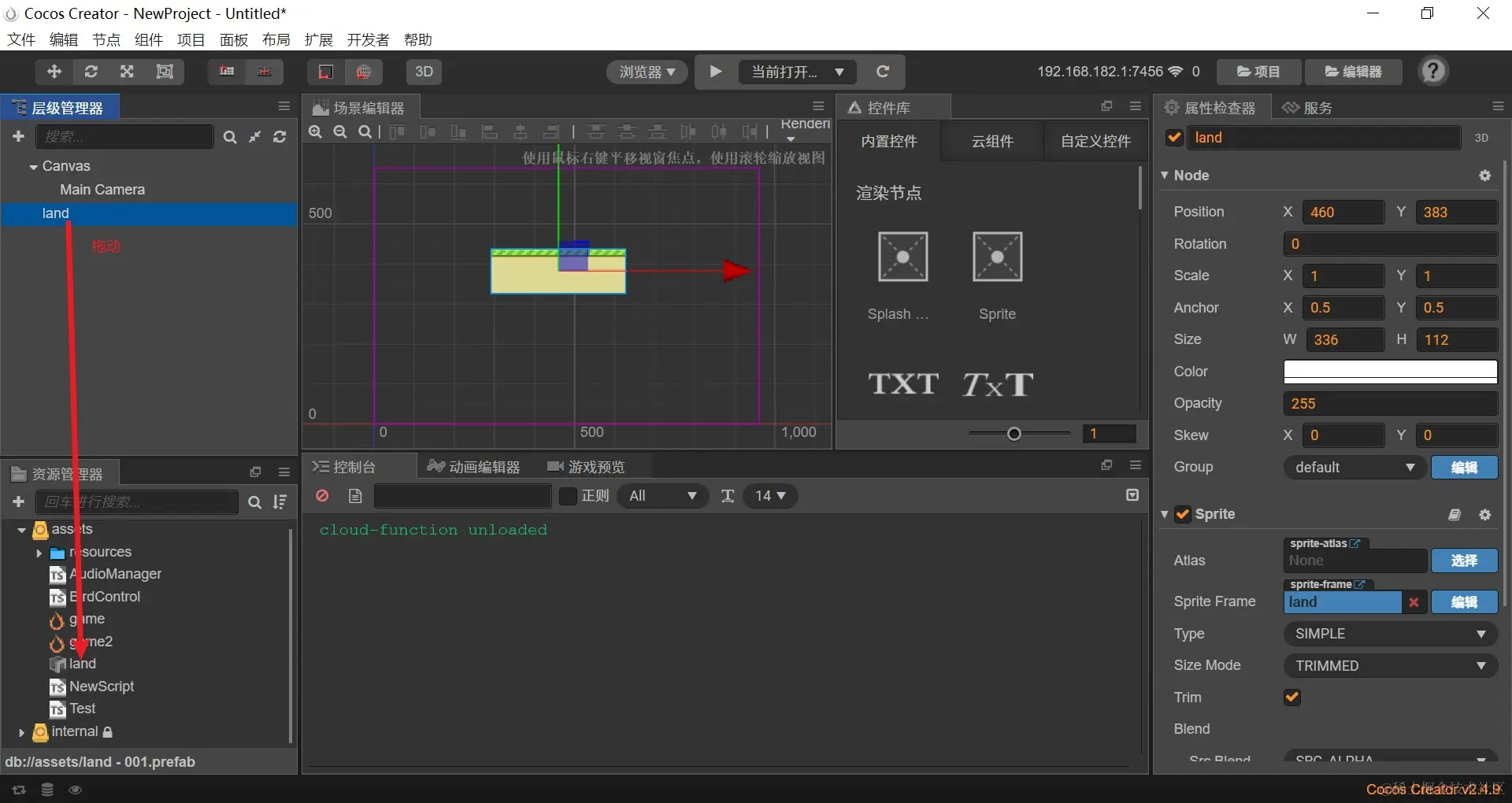

生成预设体

通过脚本创建节点、添加组件

    // 创建节点
    // let node = new cc.Node("new");
    // 添加组件
    // node.addComponent(cc.Sprite);

使用预设体

const { ccclass, property } = cc._decorator;

@ccclass
export default class Test extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // 预设体
  @property(cc.Prefab)
  pre: cc.Prefab = null;

  // LIFE-CYCLE CALLBACKS:

  // 初始化调用
  start() {
    // 实例化预设体
    let node = cc.instantiate(this.pre);
    // 设置父节点
    node.setParent(this.node);
  }

  update(dt) {}
}

1.12.资源动态加载

const { ccclass, property } = cc._decorator;

@ccclass
export default class Test extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:

  // 初始化调用
  start() {
    let that = this;
    cc.loader.loadRes("test/land", cc.SpriteFrame, function (err, sp) {
      that.getComponent(cc.Sprite).spriteFrame = sp;
    });

    //加载图集
    cc.loader.loadRes(
      "test/1",
      cc.SpriteAtlas,
      function (err, atlas: cc.SpriteAtlas) {
        that.getComponent(cc.Sprite).spriteFrame =
          atlas.getSpriteFrame("bg_day");
      }
    );
  }

  update(dt) {}
}

1.13.场景管理

const { ccclass, property } = cc._decorator;

@ccclass
export default class Test extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:

  // 初始化调用
  start() {
    //加载第二个场景
    cc.director.loadScene("game2", function () {
    //当前已经加载到新场景里了
     });

    // 预加载
    cc.director.preloadScene("game2", function () {
    //这个场景加载到内存了但是还没有用
    cc.director.loadScene("game2");
     });

    //添加常驻节点，切换场景不会被注销
    cc.game.addPersistRootNode(this.node);
    //移除常驻节点
    cc.game.removePersistRootNode(this.node);
  }

  update(dt) {}
}

1.14.键鼠事件

const { ccclass, property } = cc._decorator;

@ccclass
export default class Test extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:

  // 初始化调用
  start() {
    // 鼠标事件
    this.node.on(cc.Node.EventType.MOUSE_DOWN, function (event) {
      console.log("鼠标按下了" + event.getLocation());
      if (event.getButton() == cc.Event.EventMouse.BUTTON_RIGHT) {
        console.log("右键");
      }
      if (event.getButton() == cc.Event.EventMouse.BUTTON_LEFT) {
        console.log("左键");
      }
    });

    // 全局键盘事件
    cc.systemEvent.on(cc.SystemEvent.EventType.KEY_DOWN, function (event) {
      if (event.keyCode == cc.macro.KEY.w) {
        console.log("w");
      }
      if (event.keyCode == cc.macro.KEY.q) {
        console.log("q");
      }
    });
  }

  update(dt) {}
}

1.15.触摸与自定义事件

const { ccclass, property } = cc._decorator;

@ccclass
export default class Test extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:

  // 初始化调用
  start() {
    // 触摸事件
    let self = this;
    this.node.on(cc.Node.EventType.TOUCH_START, (event) => {
      console.log("触摸" + event.getID());
      console.log("触摸" + event.getLocation());
      // self.node.emit("myEvent1");
      // true:是否冒泡
      this.node.dispatchEvent(new cc.Event.EventCustom("myEvent1", true));
    });

    this.node.on("myEvent1", function (event) {
      console.log("自定义事件");
    });
  }

  update(dt) {}
}

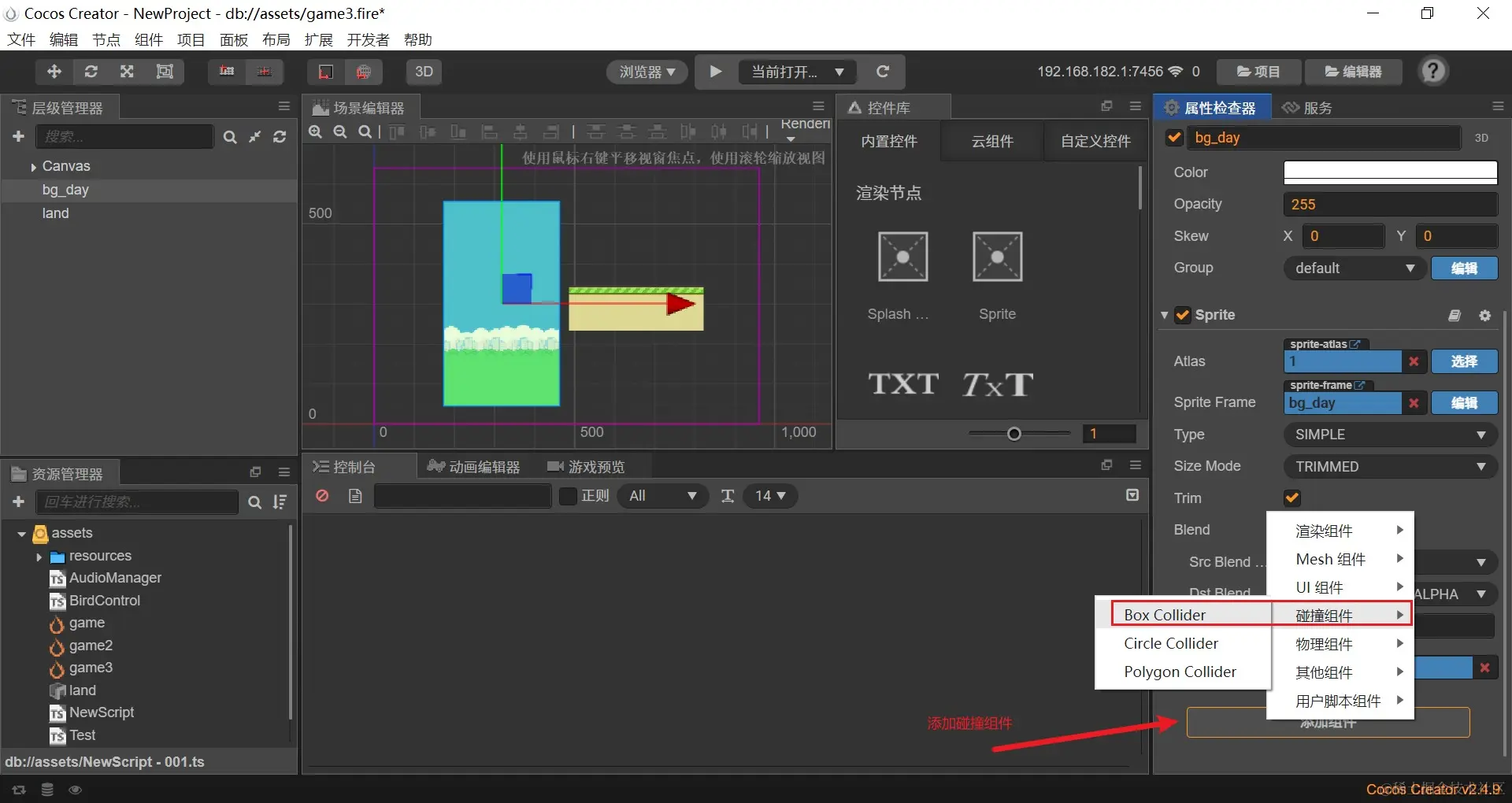

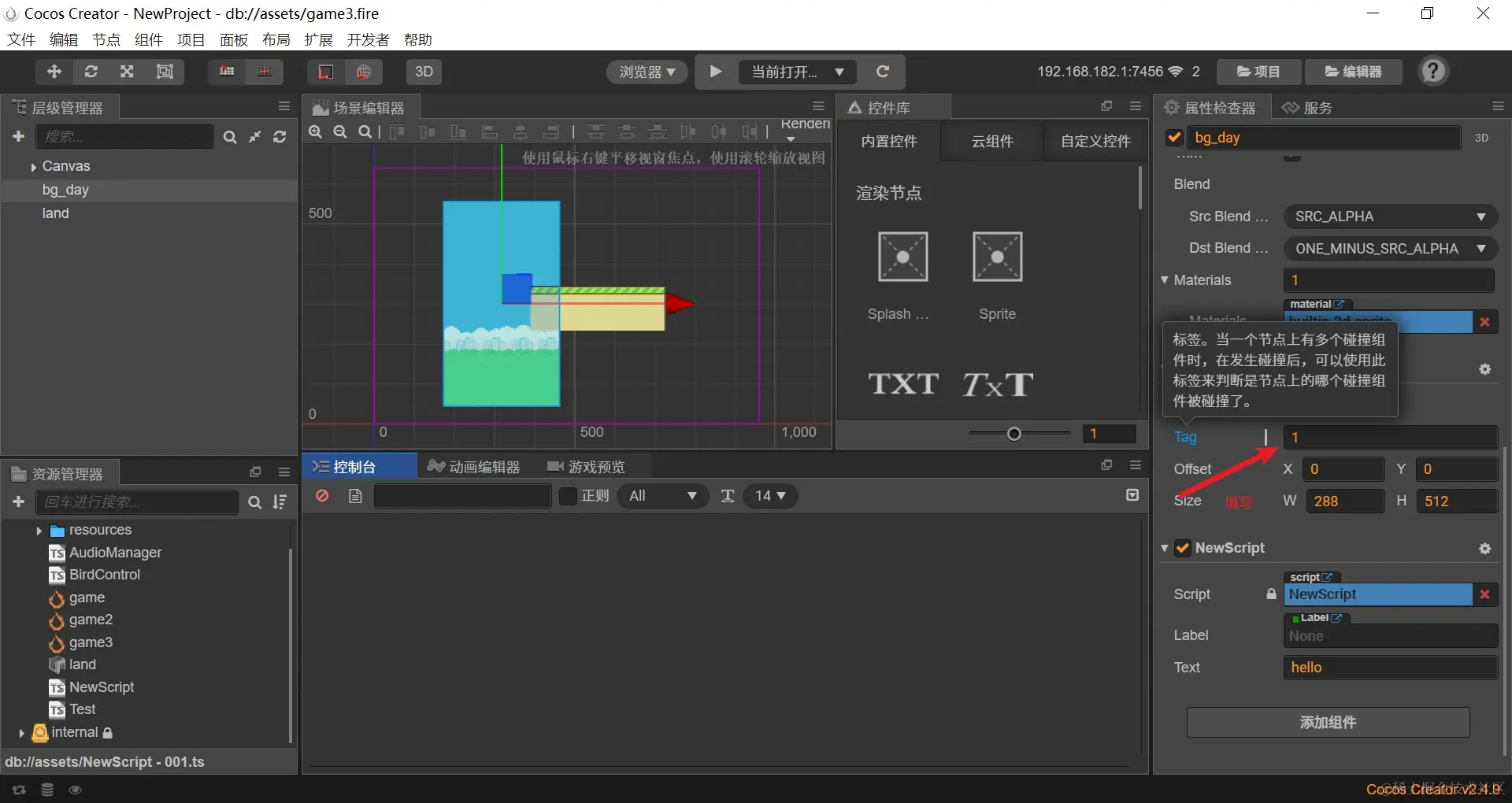

1.16.碰撞检测

不基于物理性的碰撞

在bg_day挂载脚本

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  @property(cc.Label)
  label: cc.Label = null;

  @property
  text: string = "hello";

  // LIFE-CYCLE CALLBACKS:

  // onLoad () {}

  start() {
    // 碰撞检测
    cc.director.getCollisionManager().enabled = true;
  }

  // 产生碰撞
  onCollisionEnter(other) {
    // tag用于辨识碰撞到的物体
    console.log("碰撞发生" + other.tag);
  }
  onCollisionStay(other) {
    console.log("碰撞持续");
  }
  onCollisionExit(other) {
    console.log("碰撞结束");
  }

  // update (dt) {}
}

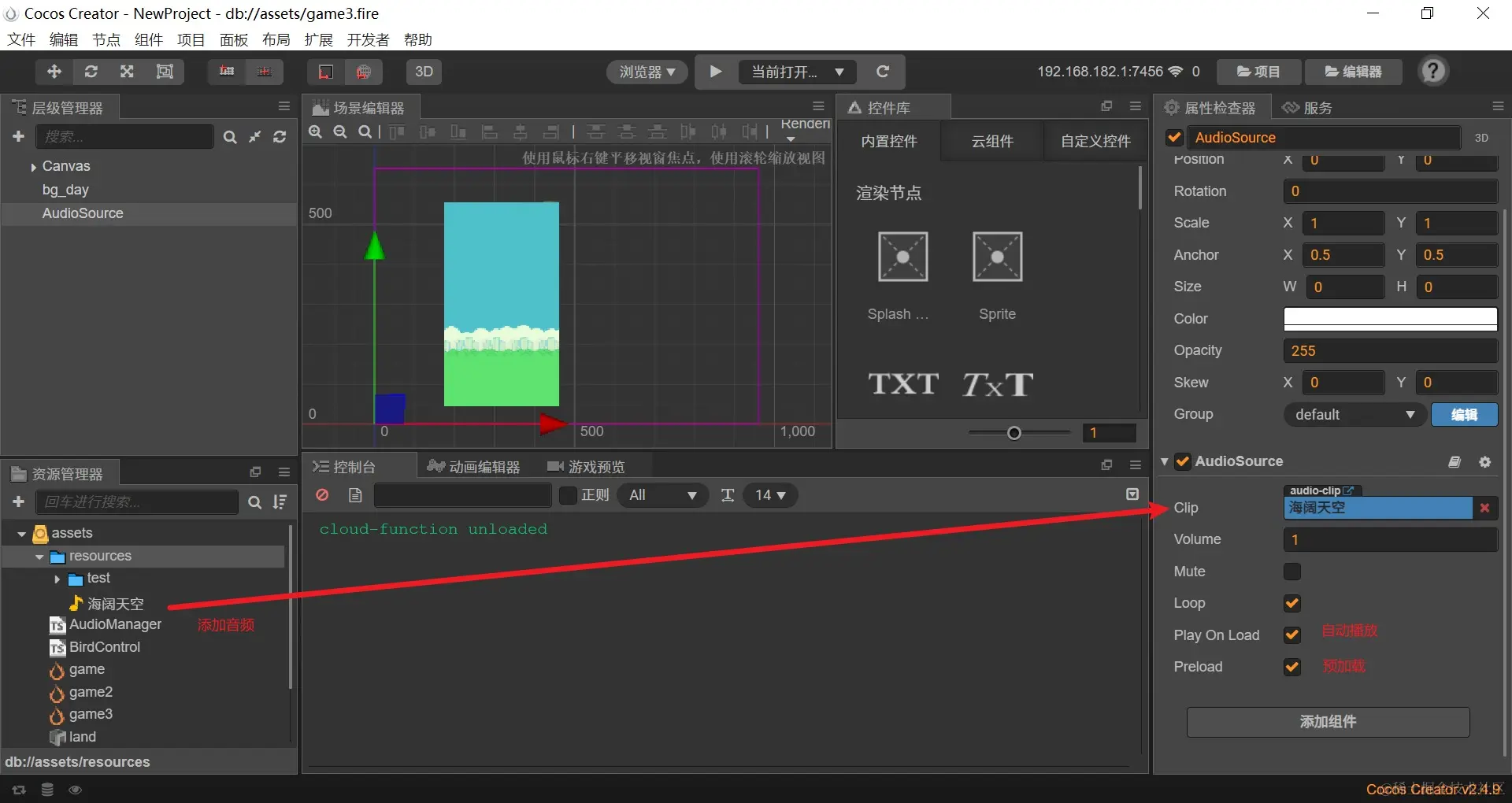

1.17.音频播放

以代码的方式播放音频

const { ccclass, property } = cc._decorator;

@ccclass
export default class AudioManager extends cc.Component {
  start() {
    // 组件的方式进行播放
    let player: cc.AudioSource = this.getComponent(cc.AudioSource);
    cc.loader.loadRes("海阔天空", cc.AudioClip, (res, clip) => {
      //赋值音频
      player.clip = clip;
      player.play();
      // 是否正在播放
      player.isPlaying;
      // 暂停
      player.pause();
      // 恢复
      player.resume();
      // 停止
      player.stop();
      // 循环
      player.loop = true;
      player.volume = 1;
    // });

    // 不依赖组件的播放方式
    cc.loader.loadRes("海阔天空", cc.AudioClip, (res, clip) => {
      // 播放
      let audioId: number = cc.audioEngine.playMusic(clip, true);
      // 是否正在播放
      cc.audioEngine.isMusicPlaying();
      // 暂停
      cc.audioEngine.pause(audioId);
      // 恢复
      cc.audioEngine.resume(audioId);
      // 停止
      cc.audioEngine.stop(audioId);
      // 循环
      cc.audioEngine.setLoop(audioId, true);
      // 声音大小
      cc.audioEngine.setVolume(audioId, 1);
    });
  }

  // update (dt) {}
}

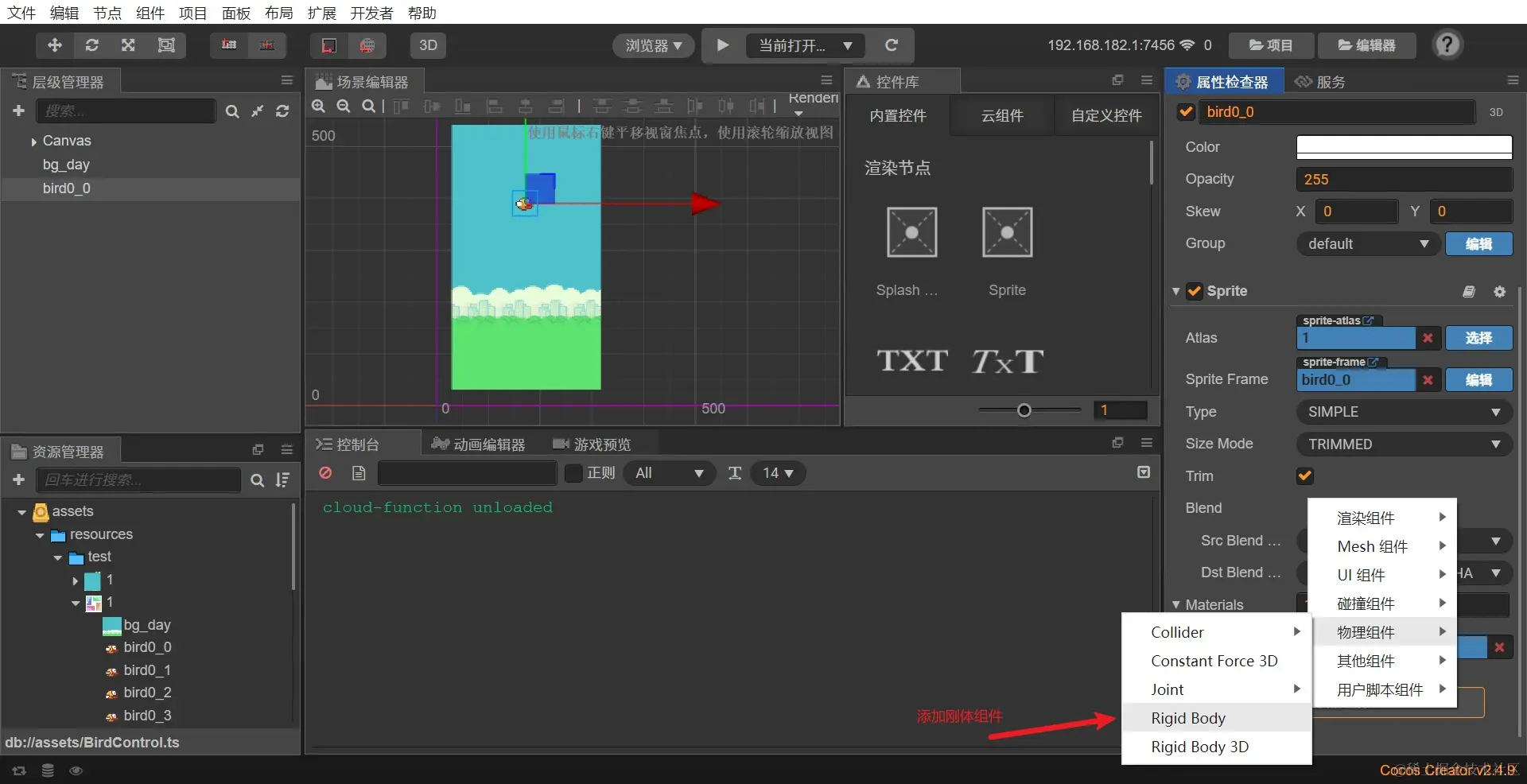

1.18.物理系统

const { ccclass, property } = cc._decorator;

@ccclass
export default class BirdControl extends cc.Component {
  onLoad() {
    // 启用物理系统
    cc.director.getPhysicsManager().enabled = true;
  }
}

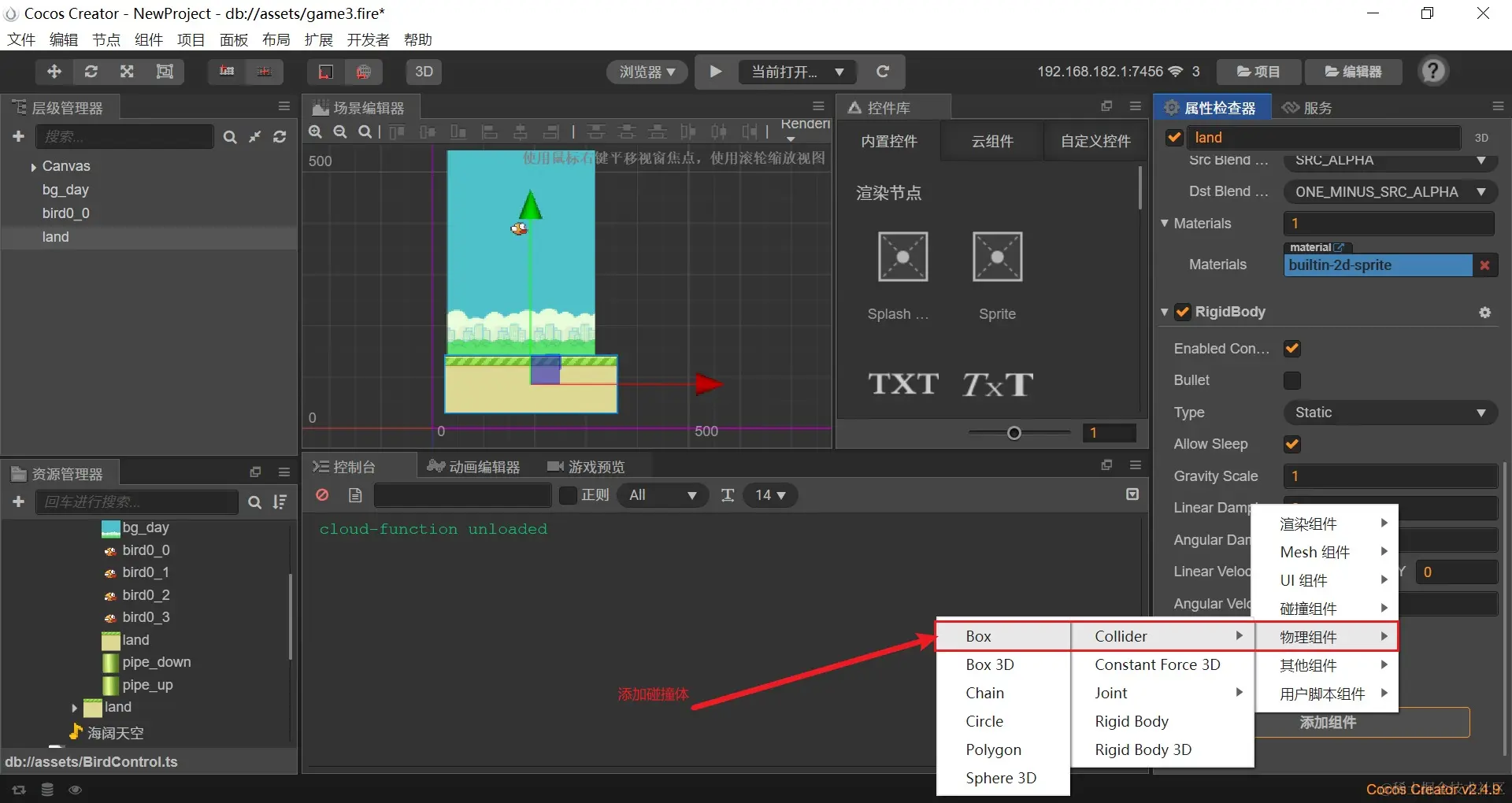

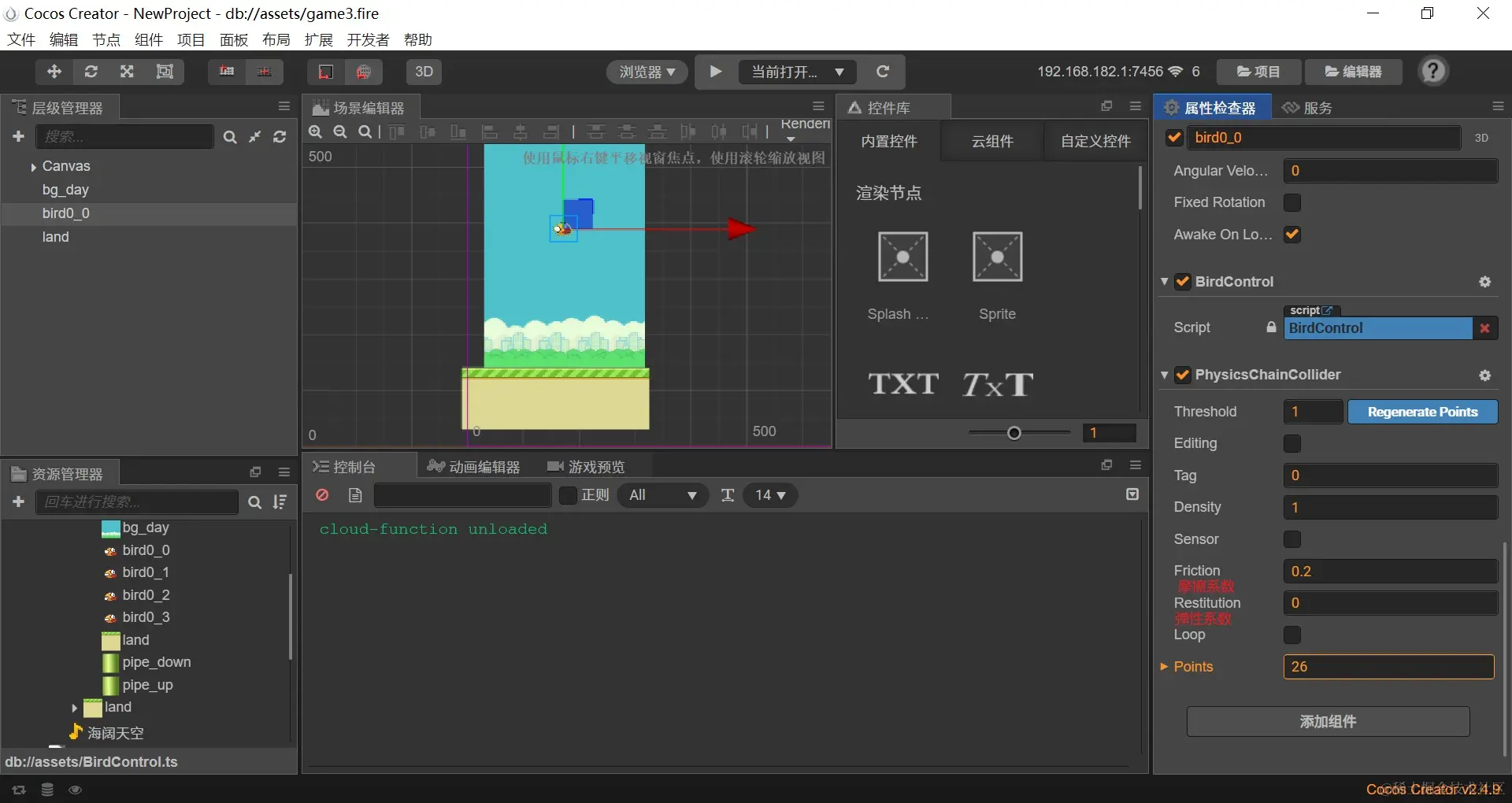

1.19.物理碰撞

碰撞检测

const { ccclass, property } = cc._decorator;

@ccclass
export default class BirdControl extends cc.Component {
  onLoad() {
    // 启用物理系统
    cc.director.getPhysicsManager().enabled = true;
  }

  start() {
    let rbody = this.getComponent(cc.RigidBody);
    //x轴y轴作用力 作用点 立刻运用
    // rbody.applyForce(cc.v2(1000, 0), cc.v2(0, 0), true);
    // rbody.applyForceToCenter(cc.v2(5000, 0), true);
    rbody.linearVelocity = cc.v2(50, 0);
  }

  onBeginContact(contact, self, other) {
    // 得到碰撞点
    let points = contact.getWorldManifold().points;
    // 法线
    let normal = contact.getWorldManifold().points;
    console.log("发生碰撞" + normal);
  }

  onEndContact(contact, self, other) {
    console.log("结束碰撞");
  }
}

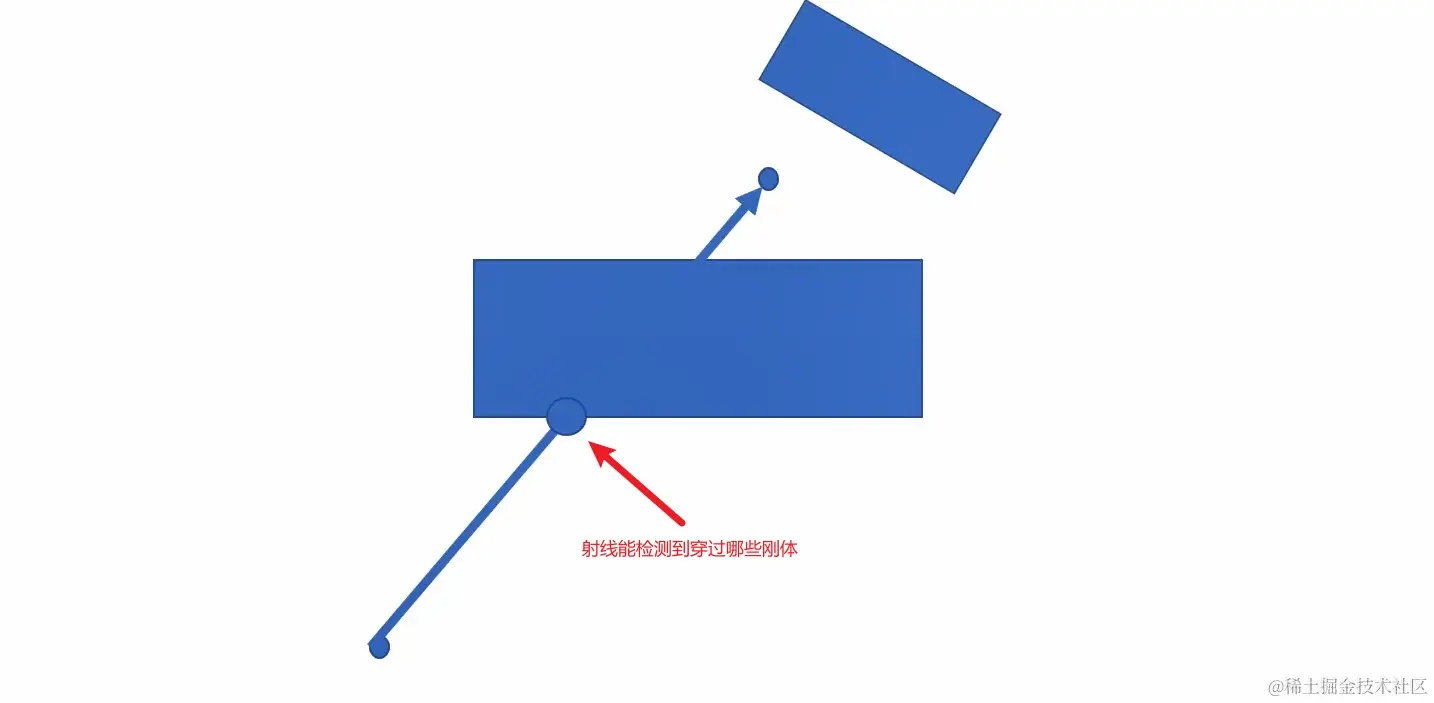

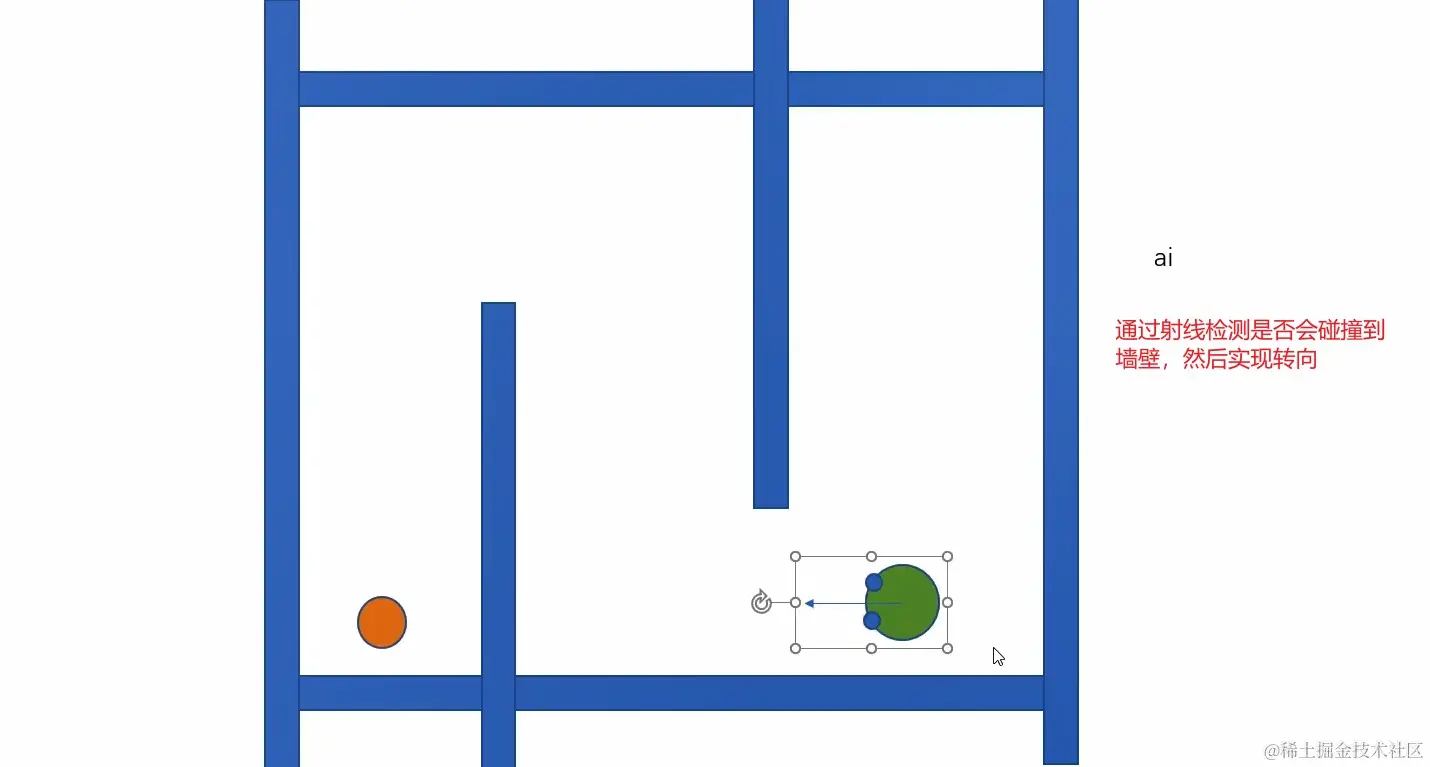

1.20.射线

const { ccclass, property } = cc._decorator;

@ccclass
export default class BirdControl extends cc.Component {
  onLoad() {
    // 启用物理系统
    cc.director.getPhysicsManager().enabled = true;

    let results = cc.director
      .getPhysicsManager()
      .rayCast(
        this.node.getPosition(),
        cc.v2(this.node.x, this.node.y + 100),
        cc.RayCastType.Closest
      );

    for (let i = 0; i < results.length; i++) {
      let res = results[i];
      //射线碰到的碰撞器
      //   res.collider;
      //碰到的点
      //   res.point;
      //碰到的法线
      //   res.normal;
    }
  }
}

1.21.动作系统

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  // onLoad () {}

  start() {
    // 动作
    // 移动到点
    let action = cc.moveTo(2, cc.v2(200, 200));
    // 移动多少
    action = cc.moveBy(2, cc.v2(200, 200));
    // 旋转
    action = cc.rotateTo(2, 100);
    // 缩放
    action = cc.scaleTo(2, 1.5, 0.5);
    // 跳跃
    action = cc.jumpBy(2, 200, 0, 100, 3);
    // 闪烁
    action = cc.blink(3, 5);
    // 淡出
    action = cc.fadeOut(3);
    // 淡入
    action = cc.fadeIn(3);
    // 渐变
    action = cc.fadeTo(3, 100);
    // 颜色
    action = cc.tintTo(3, 100, 30, 300);
    // 执行动作
    this.node.runAction(action);
    // 停止动作
    // this.node.stopAction(action);
    // this.node.stopAllActions();
    // action.setTag(33);
    // this.node.stopActionByTag(33);
    // this.node.pauseAllActions();
    // this.node.resumeAllActions();
  }
}

1.22.容器动作

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  // onLoad () {}

  start() {
    // 容器动作
    // 显示
    let action = cc.show();
    // 隐藏
    action = cc.hide();
    // 切换显示隐藏
    action = cc.toggleVisibility();
    // 翻转
    action = cc.flipX(true);
    action = cc.flipY(true);
    // 回调动作
    action = cc.callFunc(() => {});

    action = cc.fadeOut(1);
    let action2 = cc.fadeIn(1);
    // 队列/序列 动作
    let seq = cc.sequence(
      action,
      action2,
      cc.delayTime(1),
      cc.callFunc(() => {})
    );
    let repeat = cc.repeat(seq, 3);
    repeat = cc.repeatForever(seq);

    // 并列动作
    let move = cc.moveTo(3, 500, 500);
    let color = cc.tintTo(3, 100, 100, 20);
    let spawn = cc.spawn(move, color);
    this.node.runAction(spawn);
  }
}

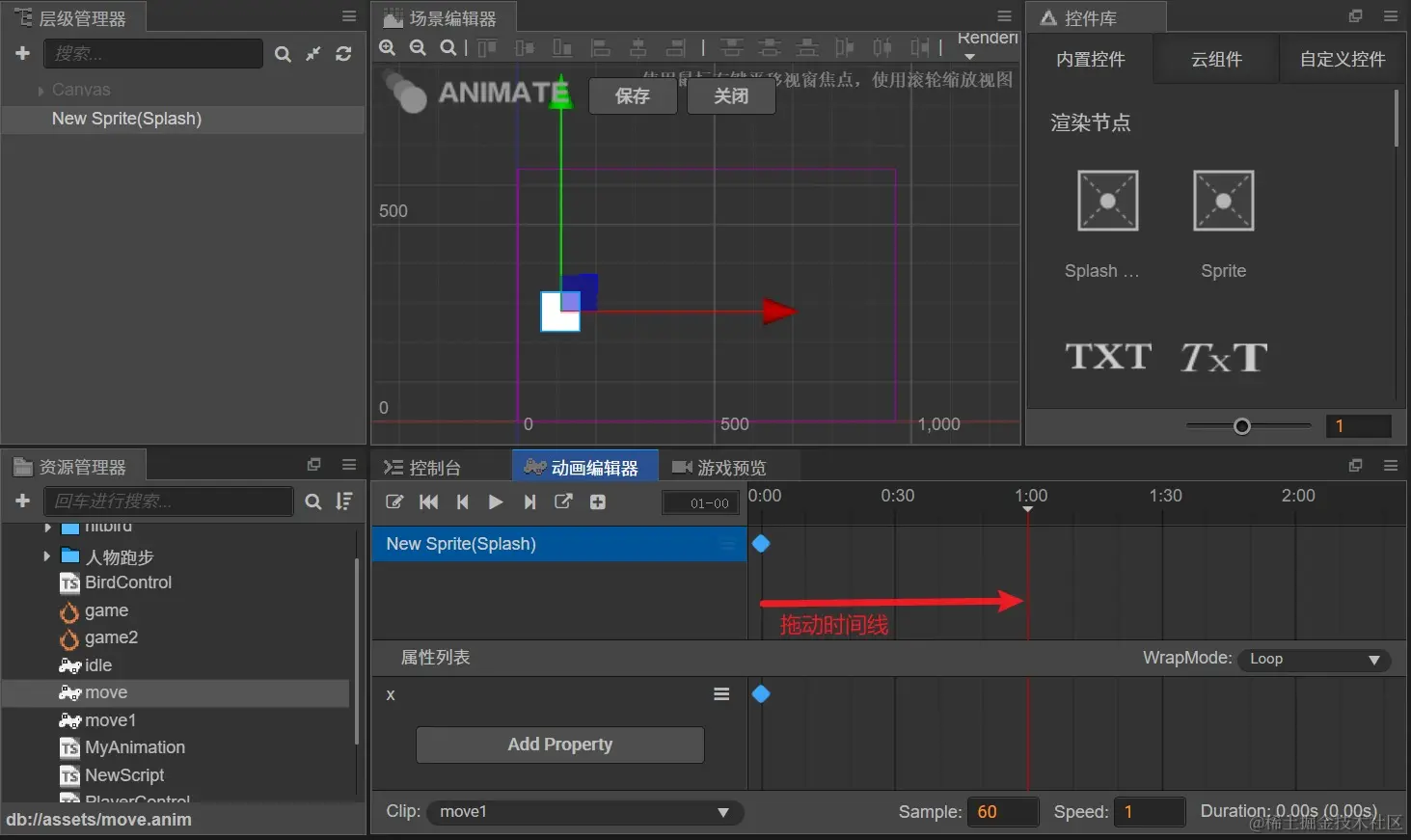

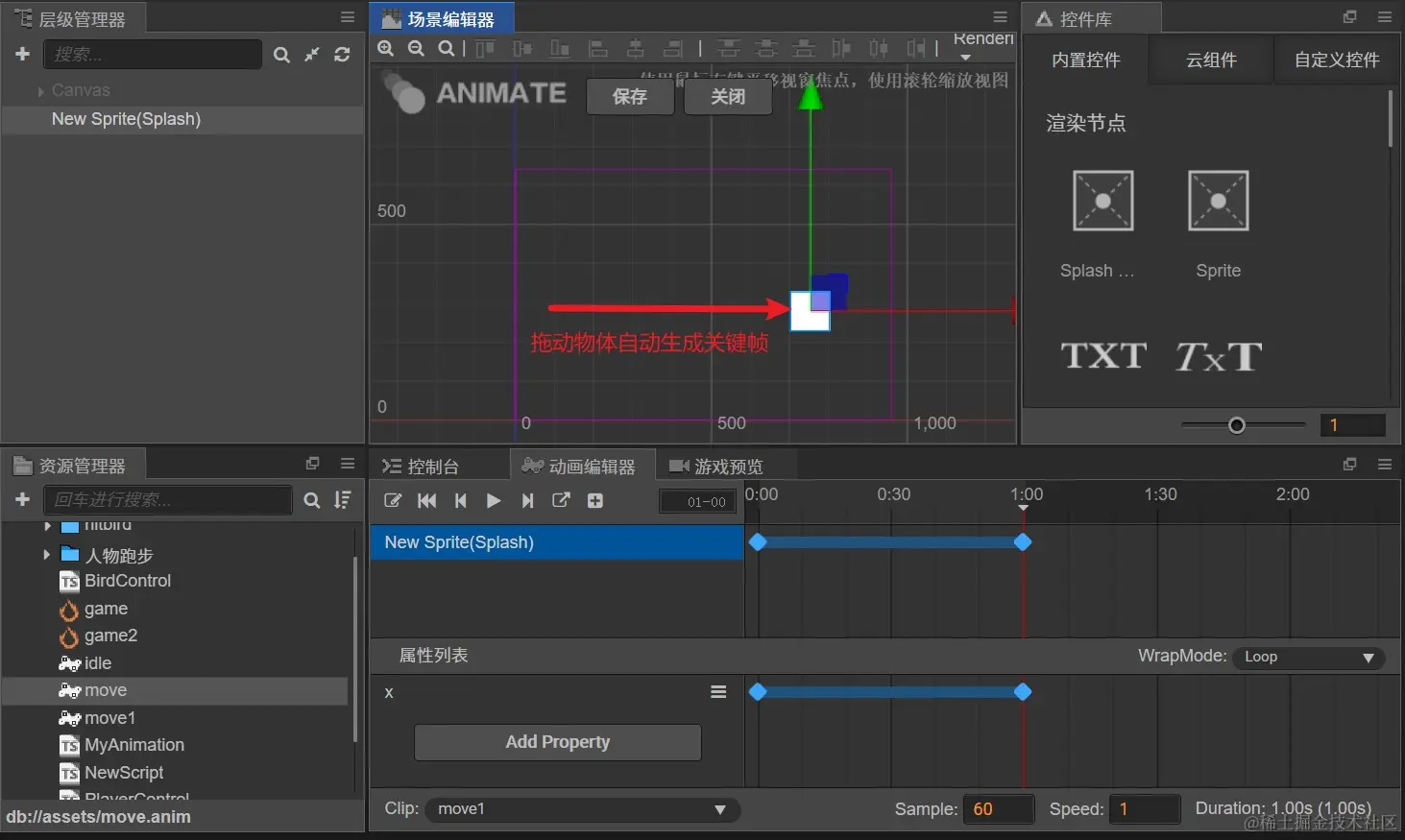

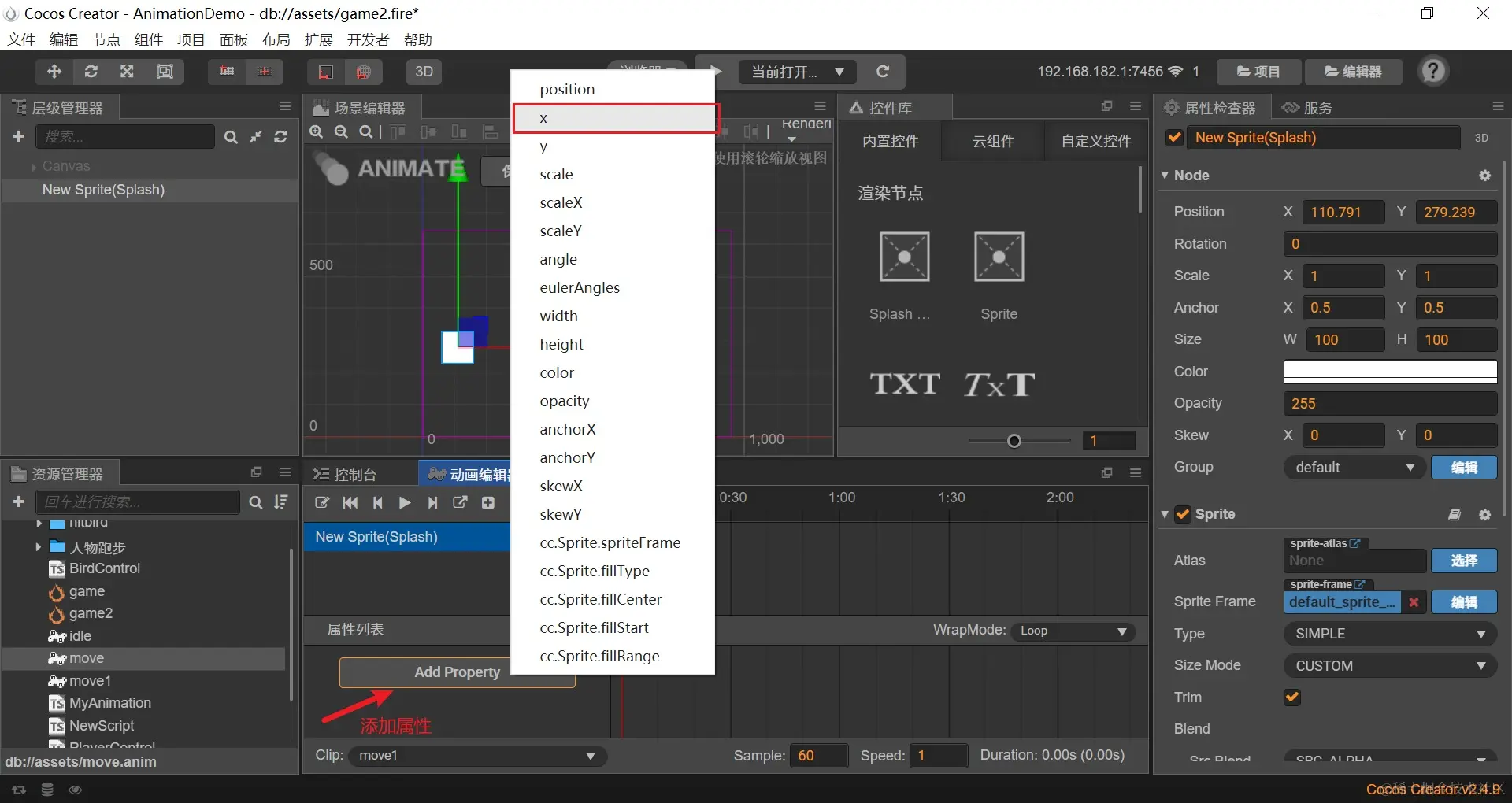

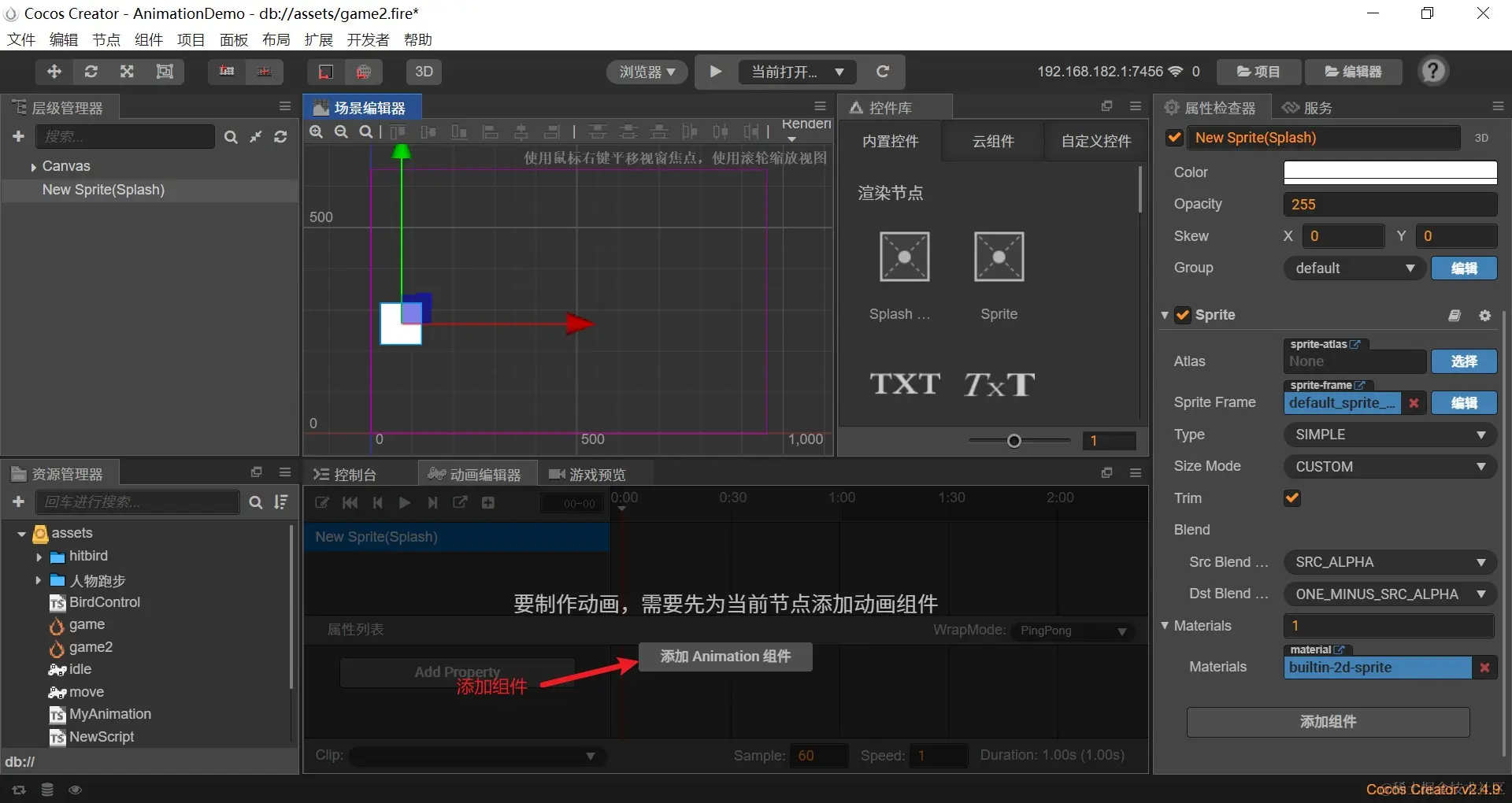

1.23.动画系统

GIF 2023-11-3 17-01-28.gif

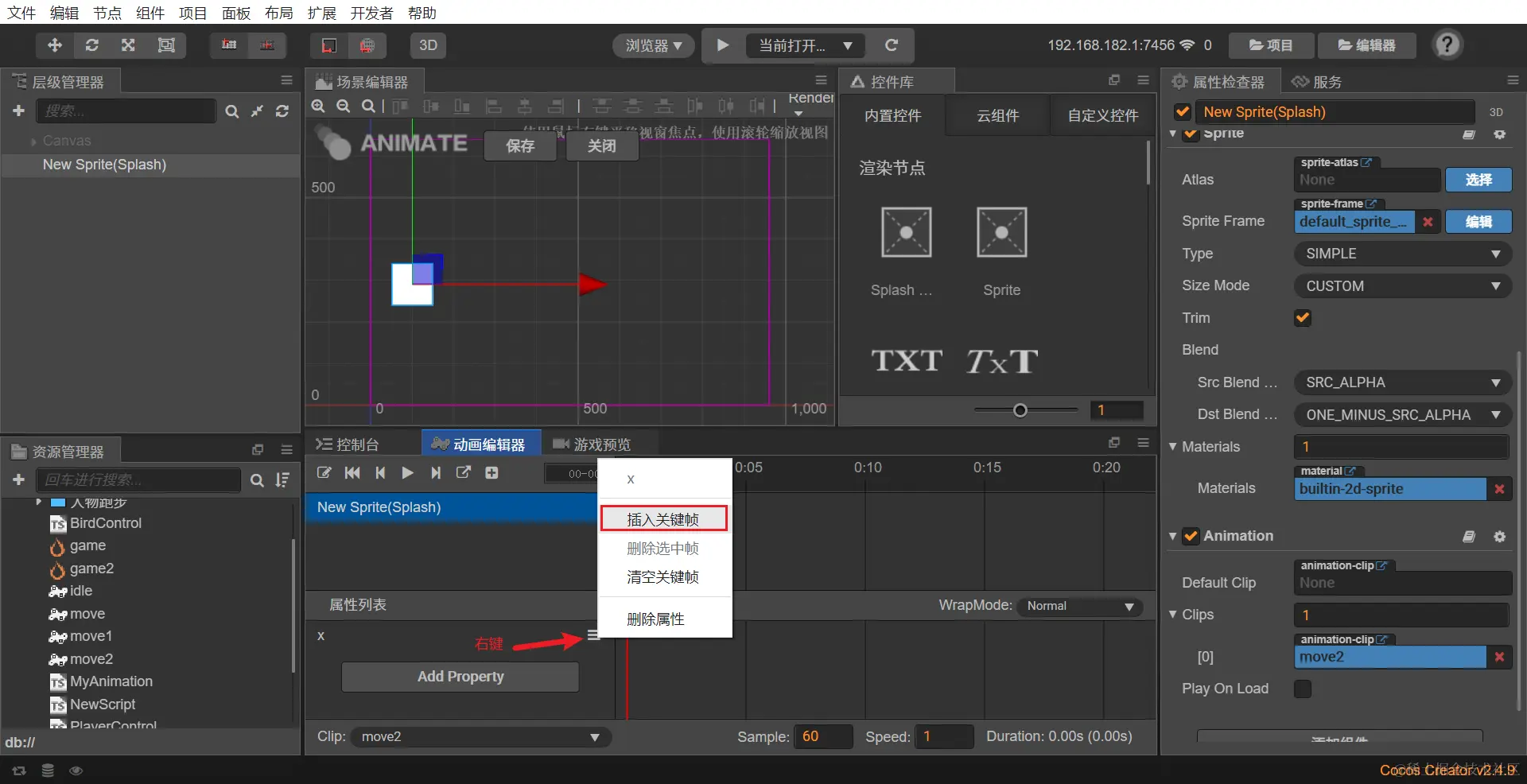

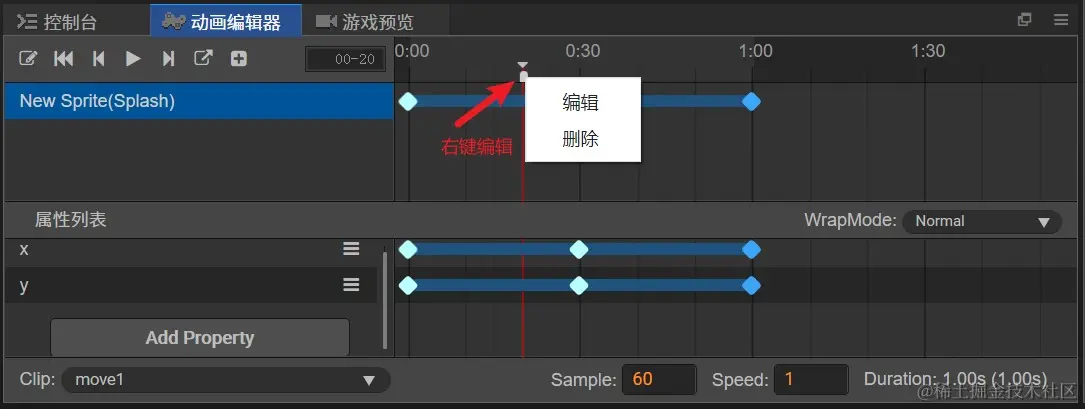

1.24.动画曲线与事件

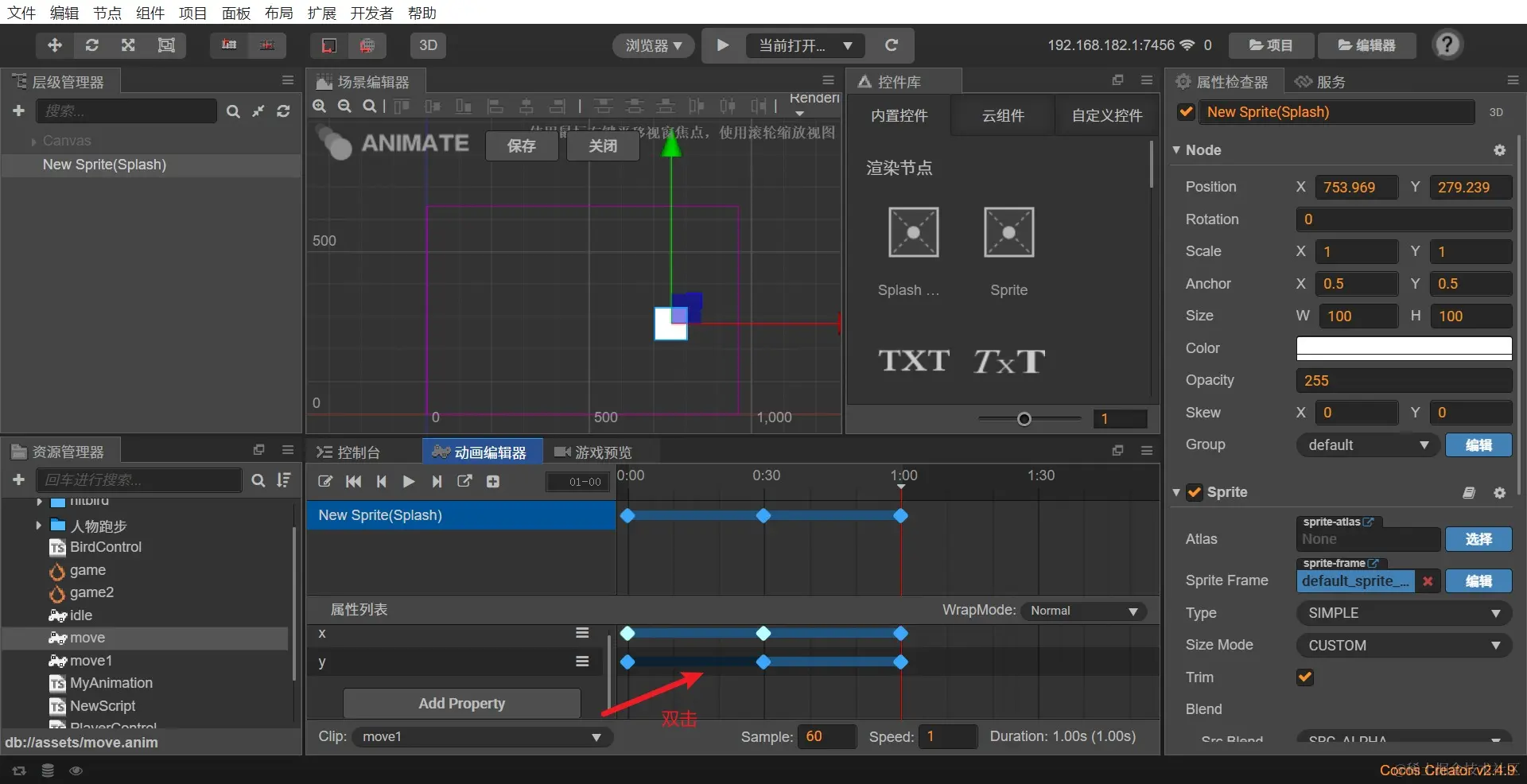

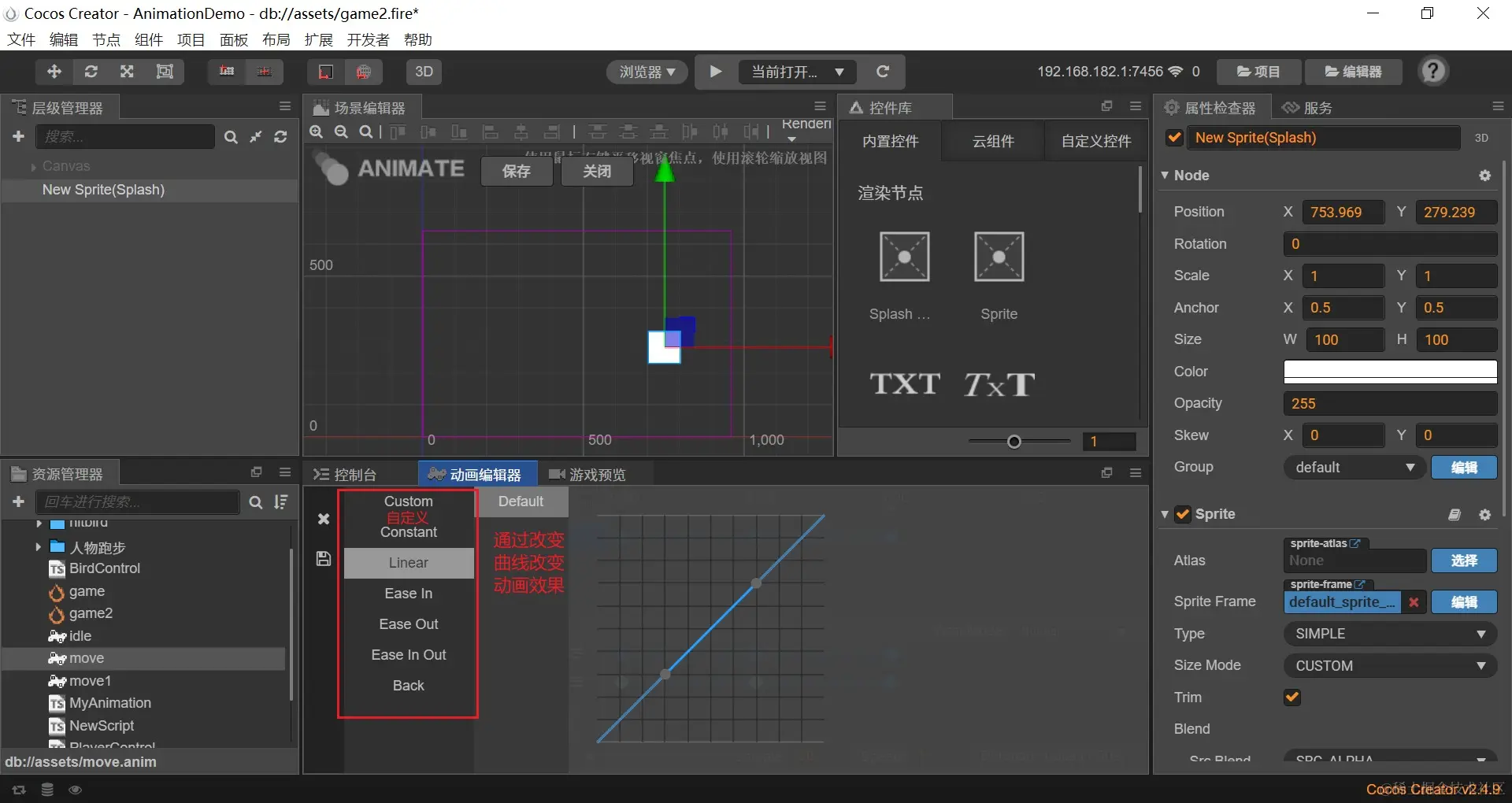

动画曲线

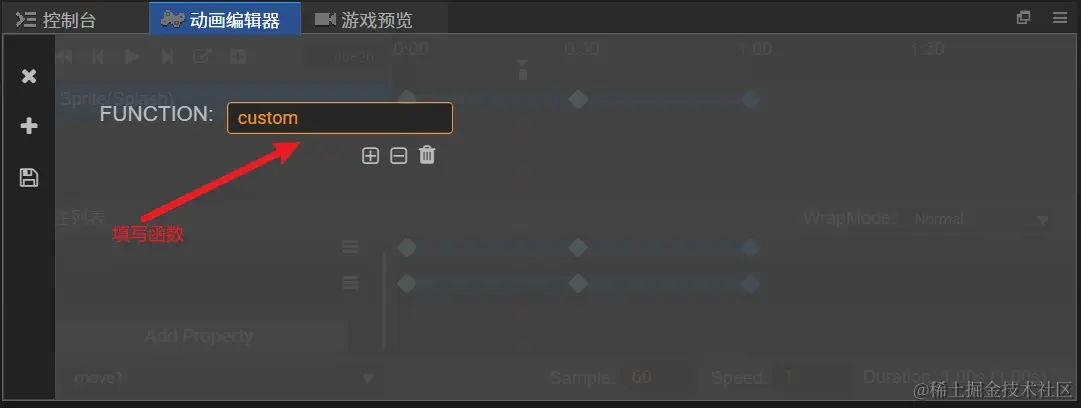

事件

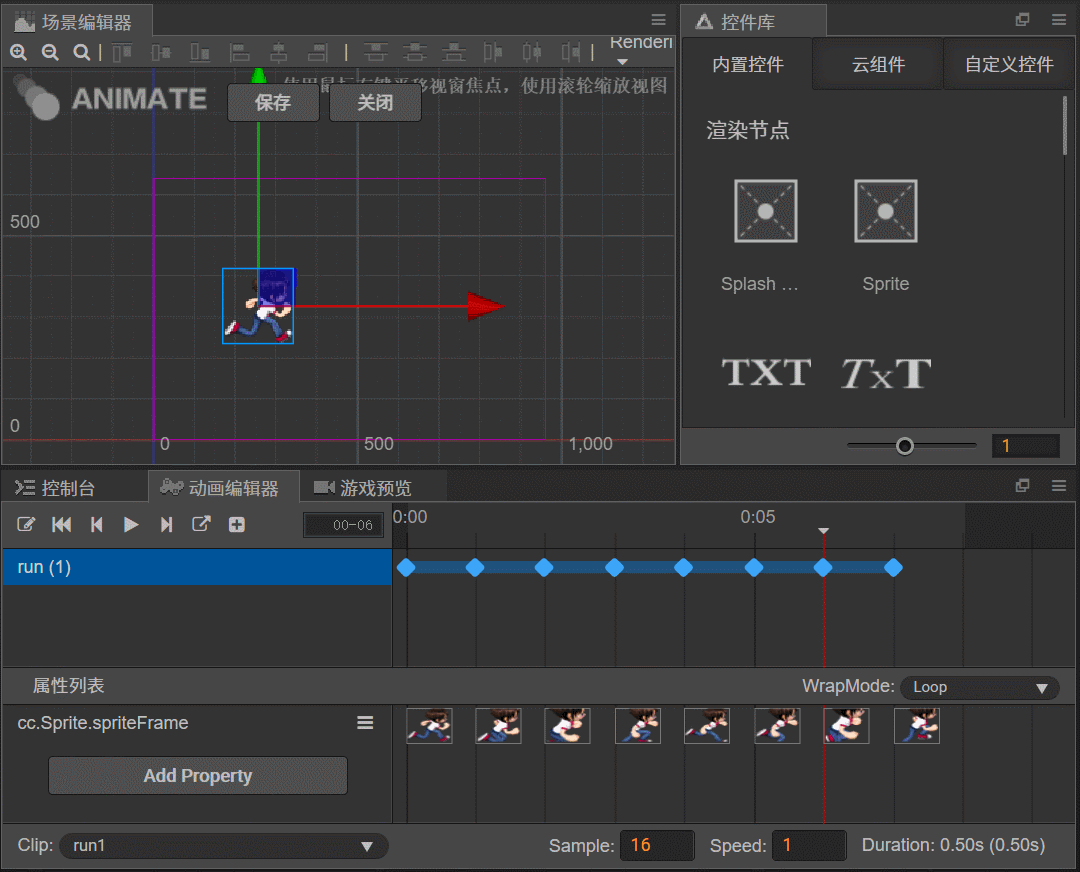

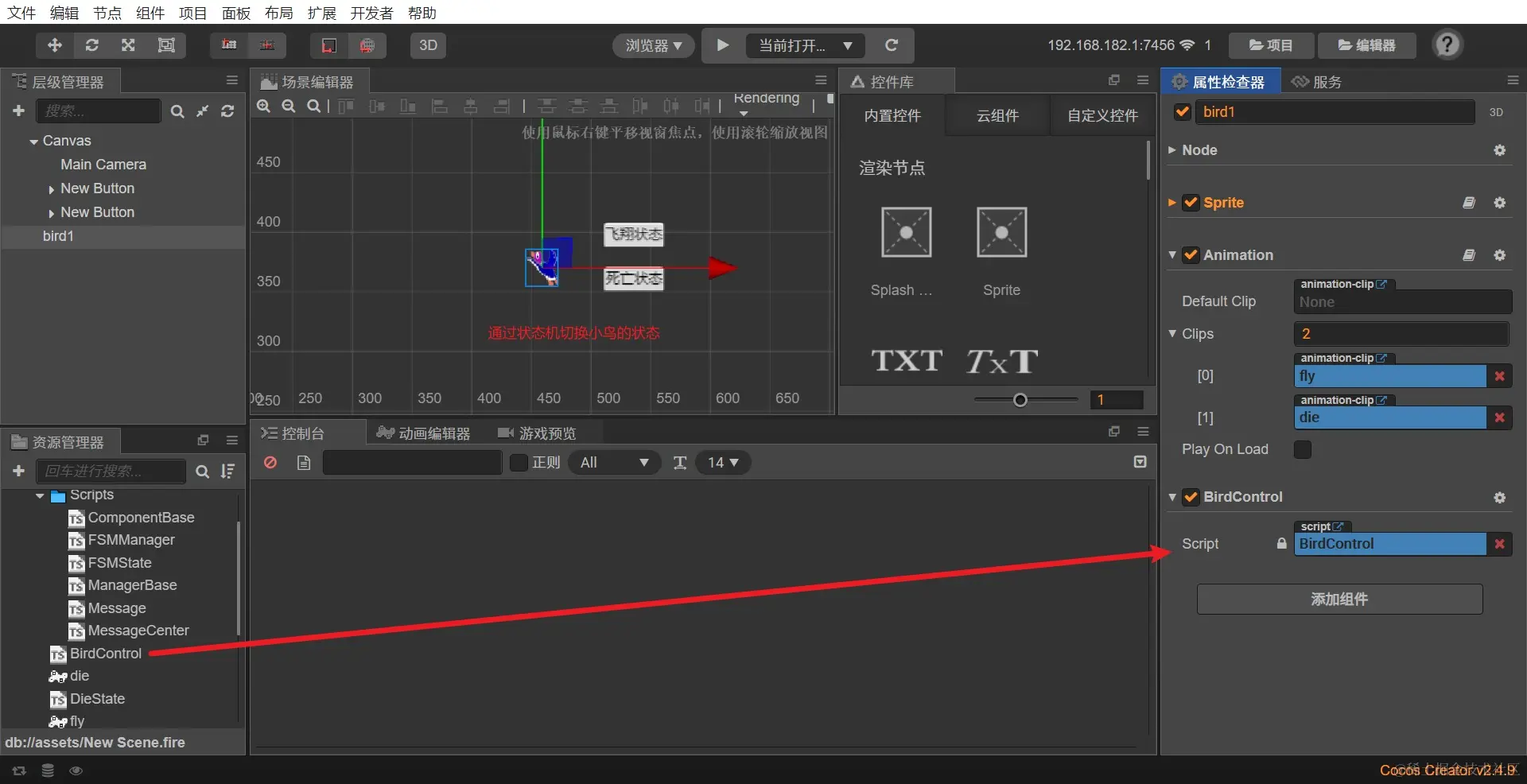

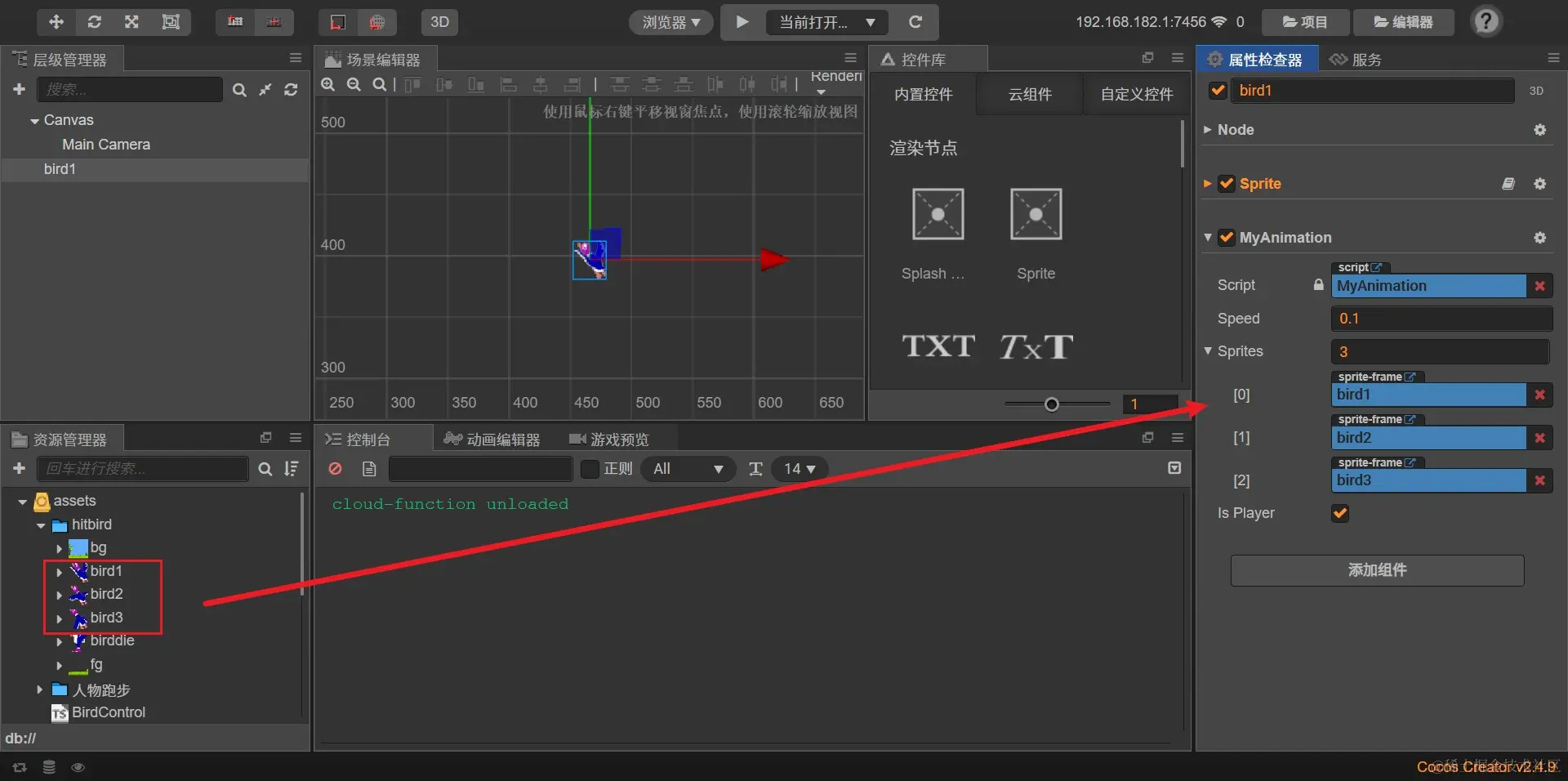

帧动画

GIF 2023-11-5 16-19-18.gif

代码控制播放动画

const { ccclass, property } = cc._decorator;

@ccclass
export default class PlayerControl extends cc.Component {
  // onLoad () {}

  start() {
    let ani = this.getComponent(cc.Animation);

    ani.play("run");
    ani.pause();
    ani.resume();
    ani.stop();
  }

  // update (dt) {}
}

1.25.屏幕Canvas

label文本

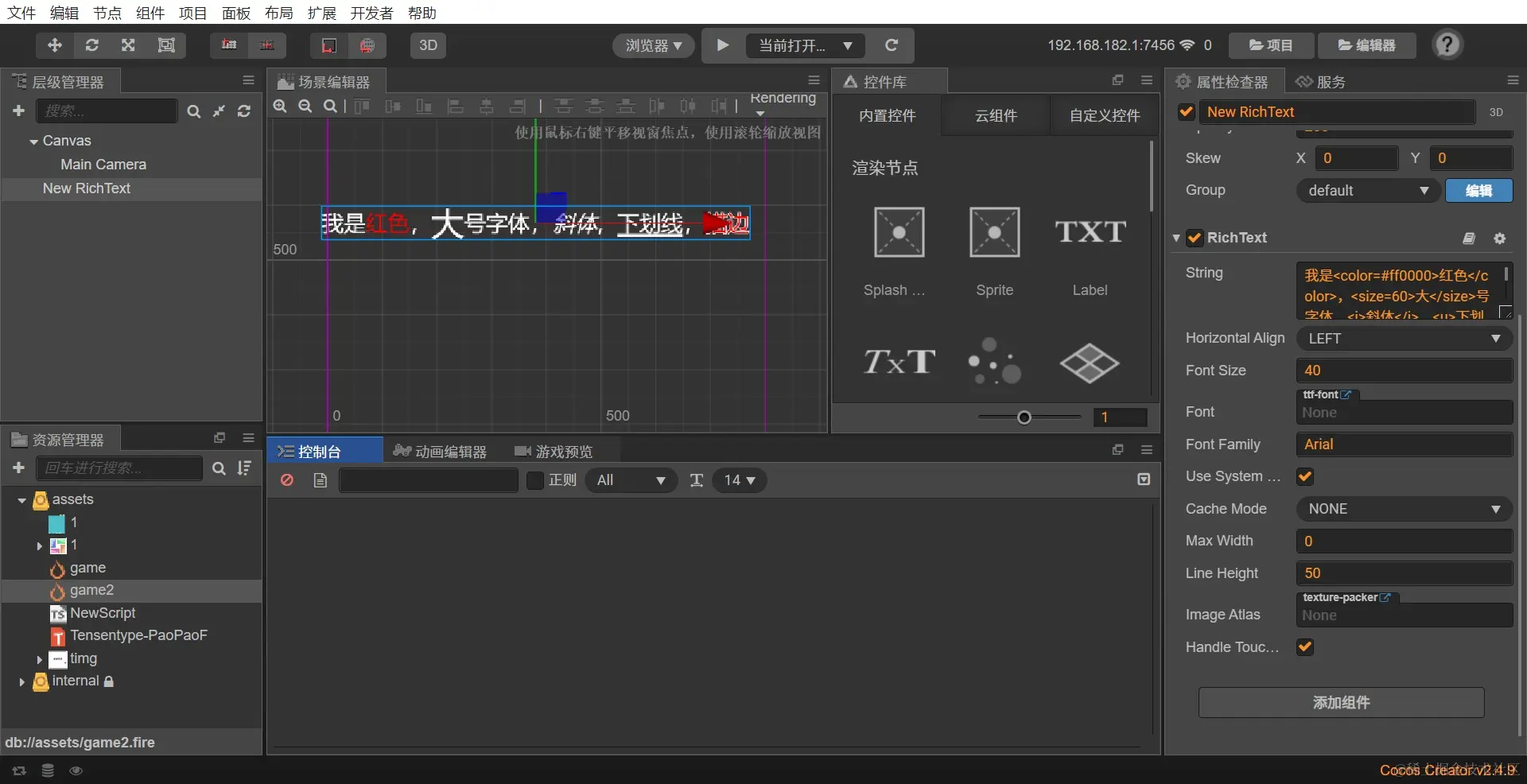

1.26.图文混排

RichText富文本

我是<color=#ff0000>红色</color>，<size=60>大</size>号字体，<i>斜体</i>，<u>下划线</u>，<color=#ff0000><outline>描边</outline></color>

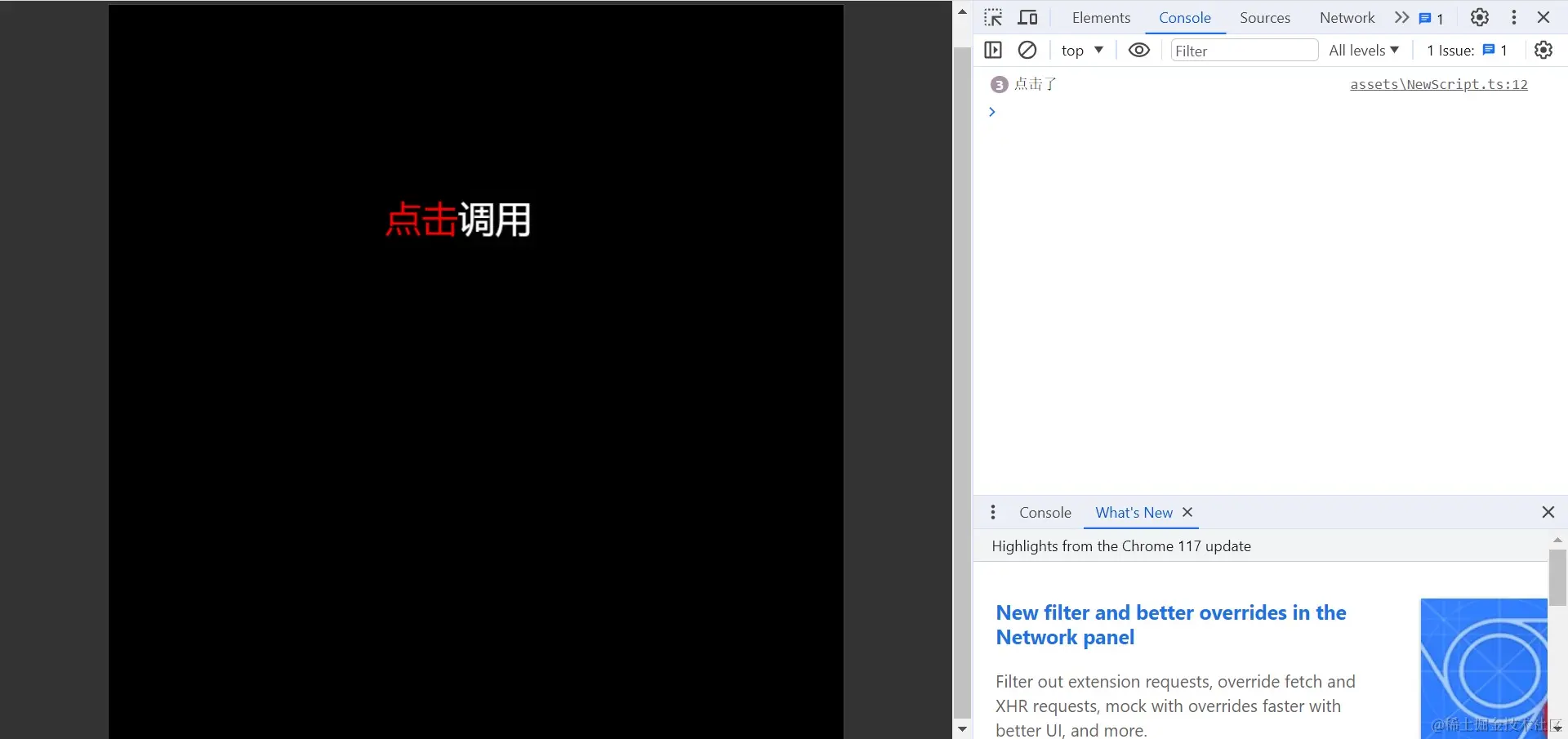

点击事件

图文混排

1.27.屏幕适配与遮罩

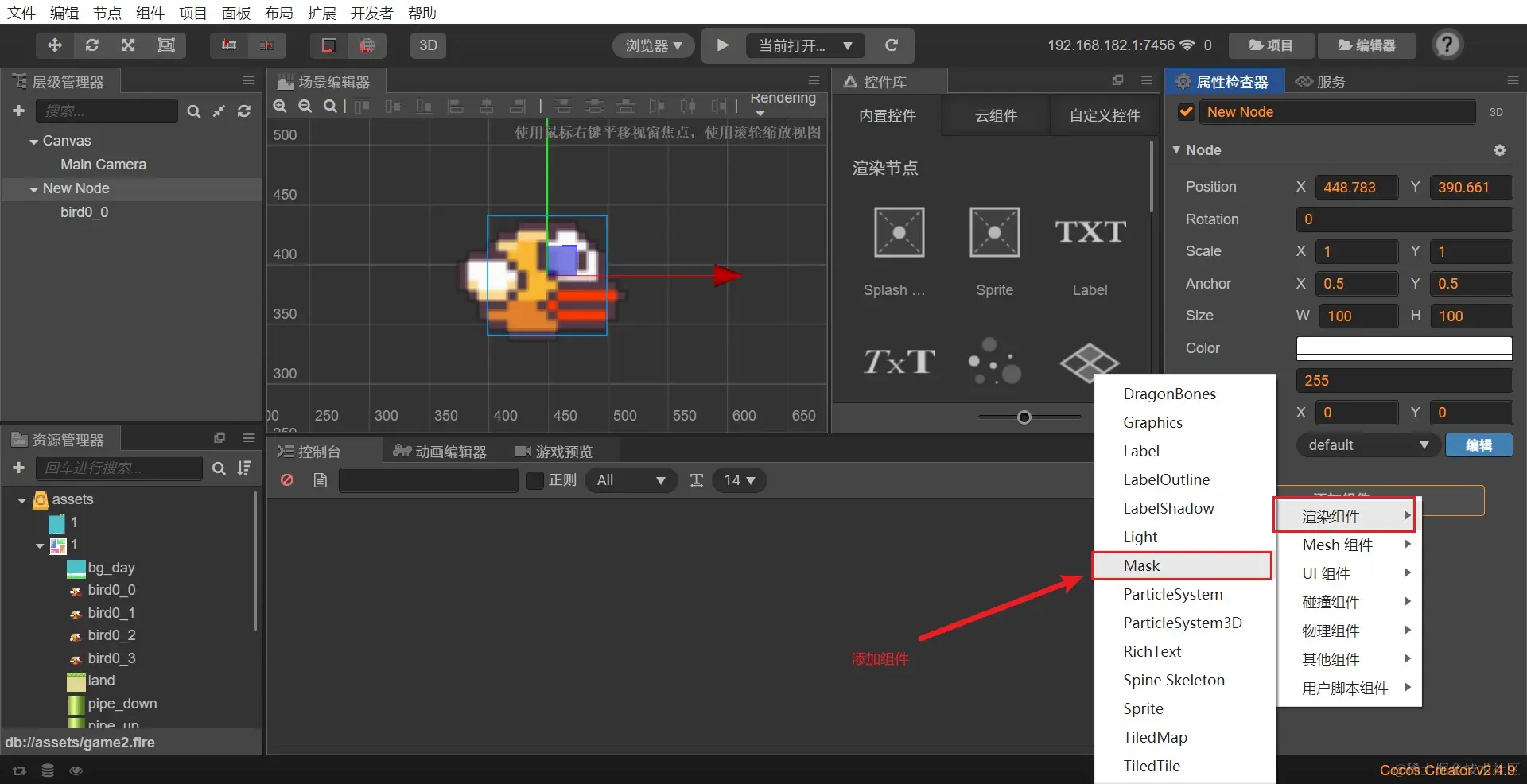

遮罩

屏幕适配

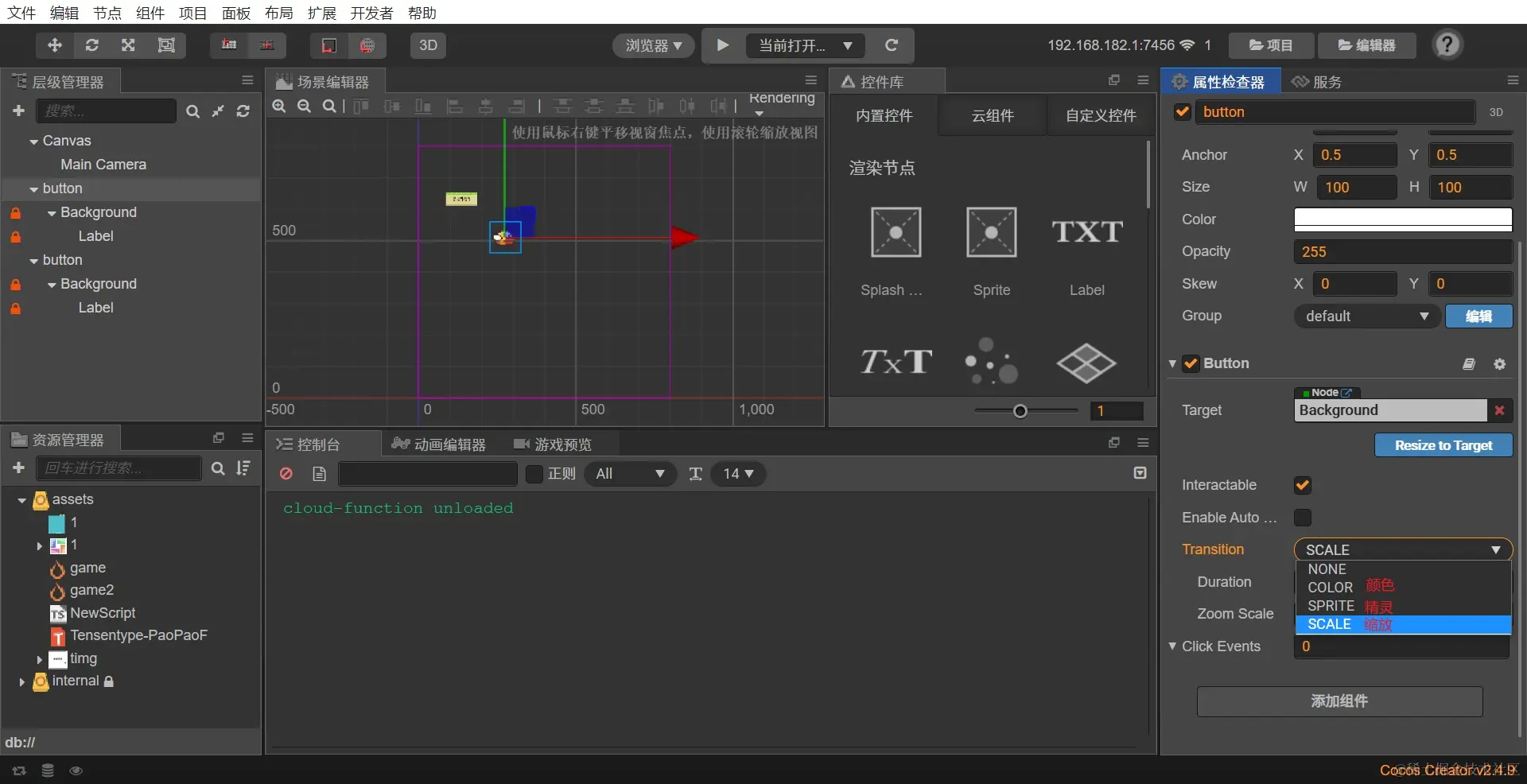

1.28.按钮与布局

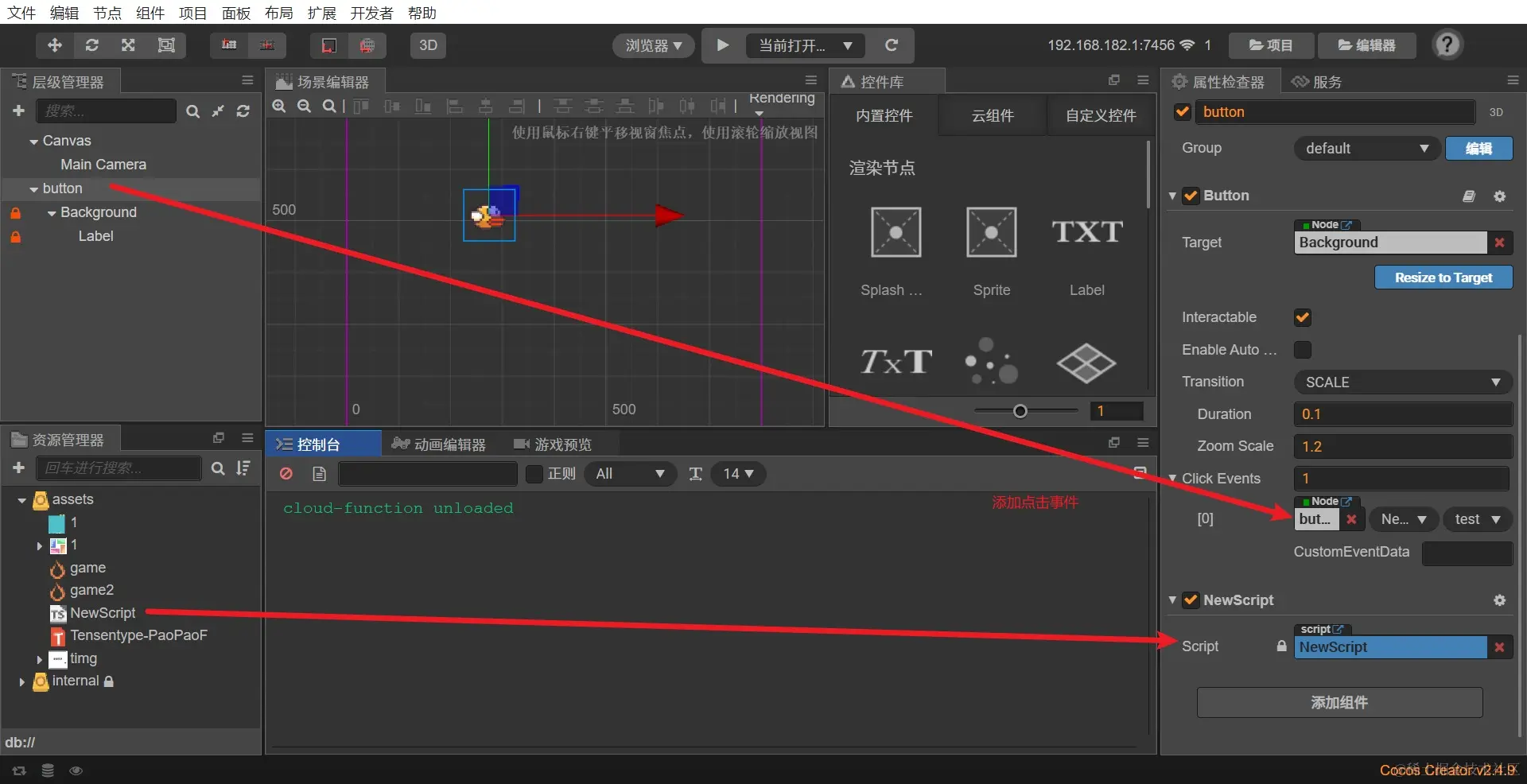

点击事件

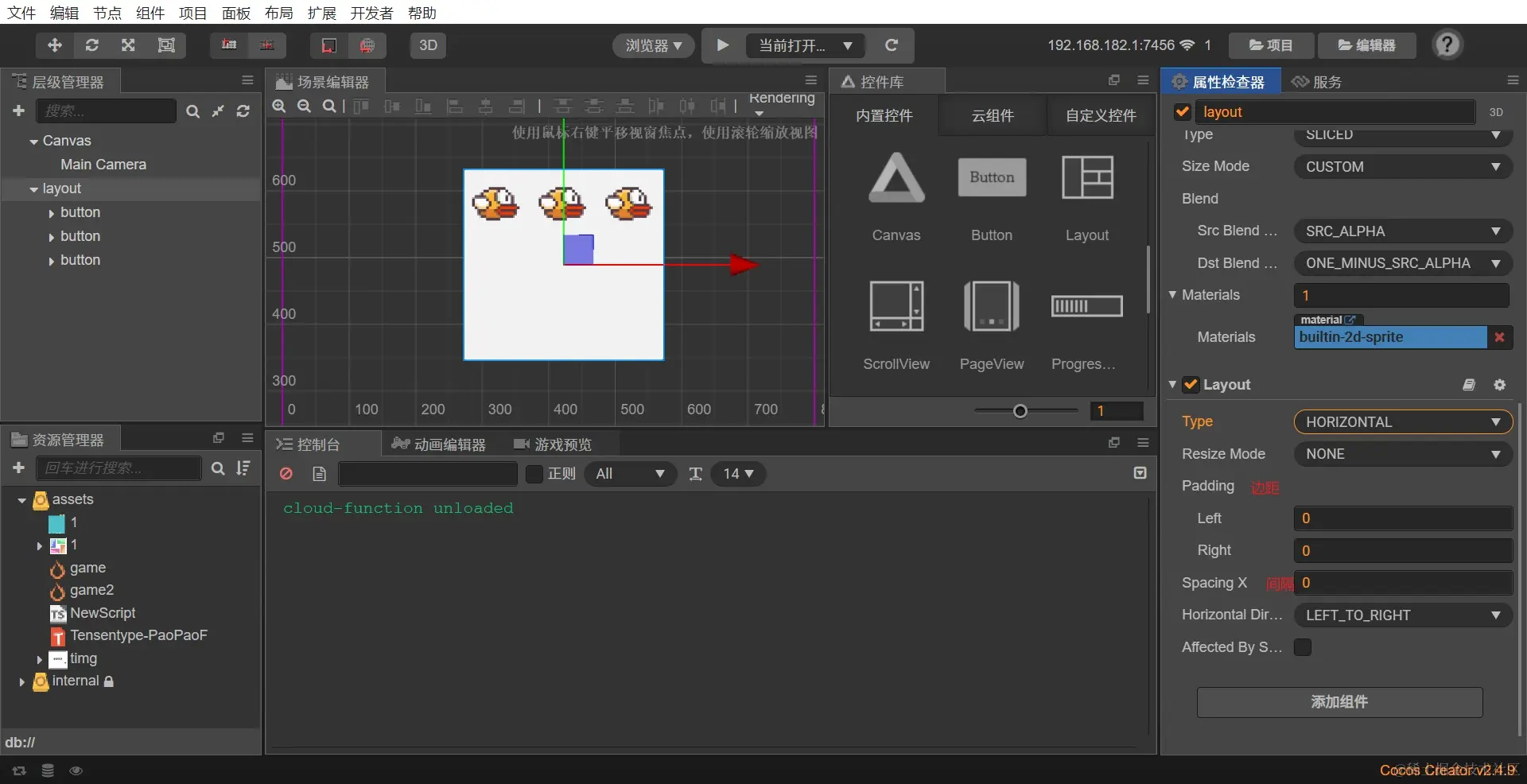

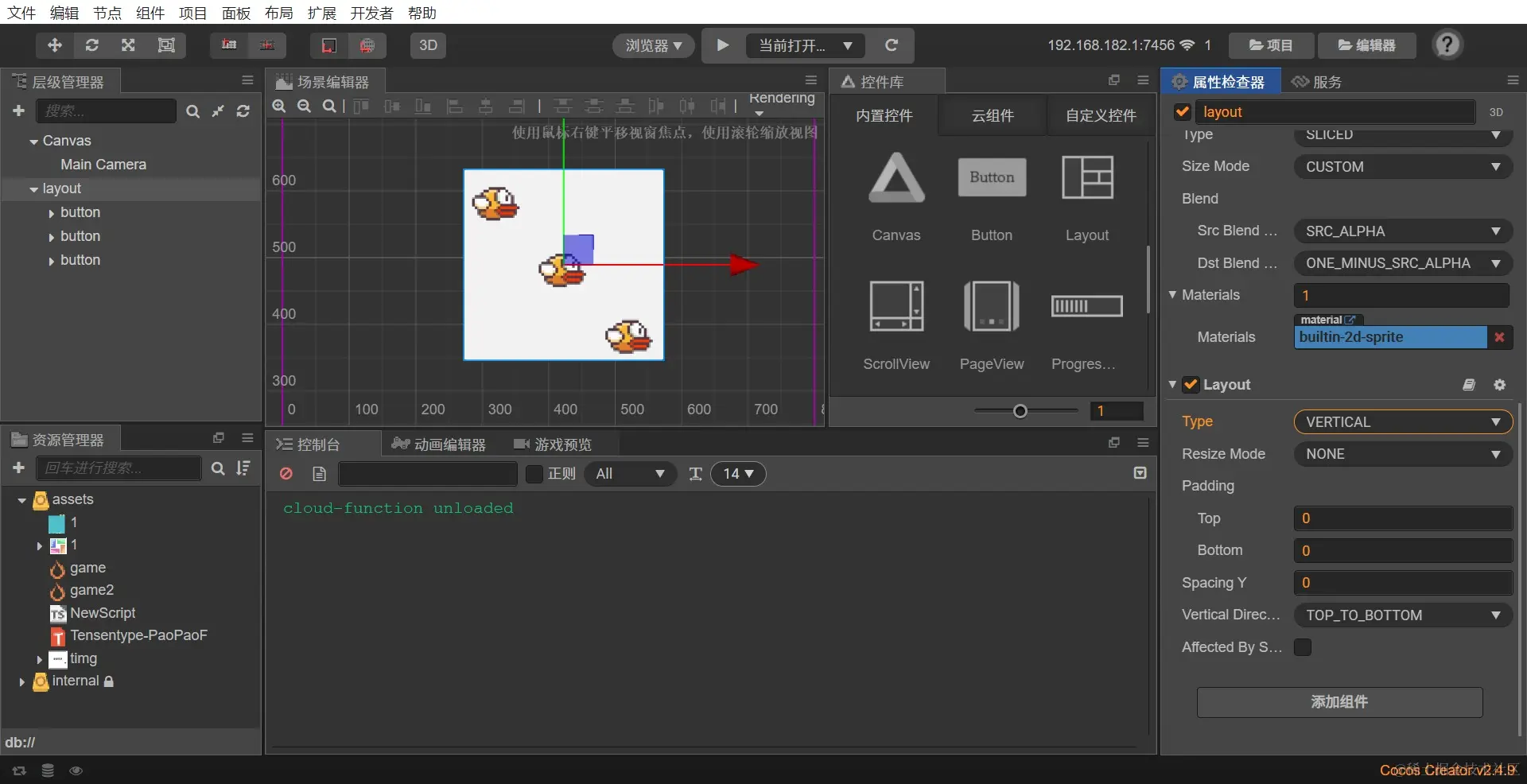

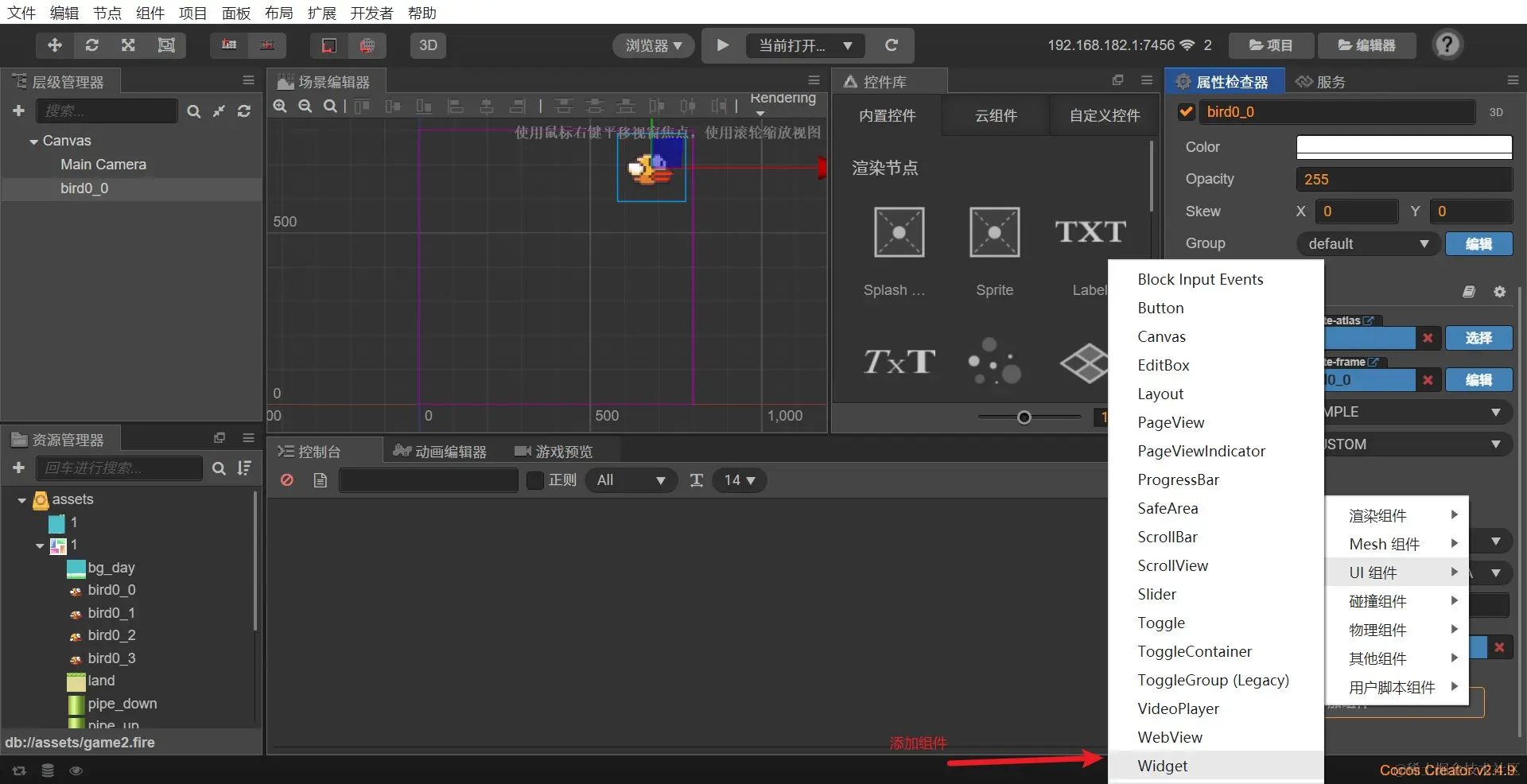

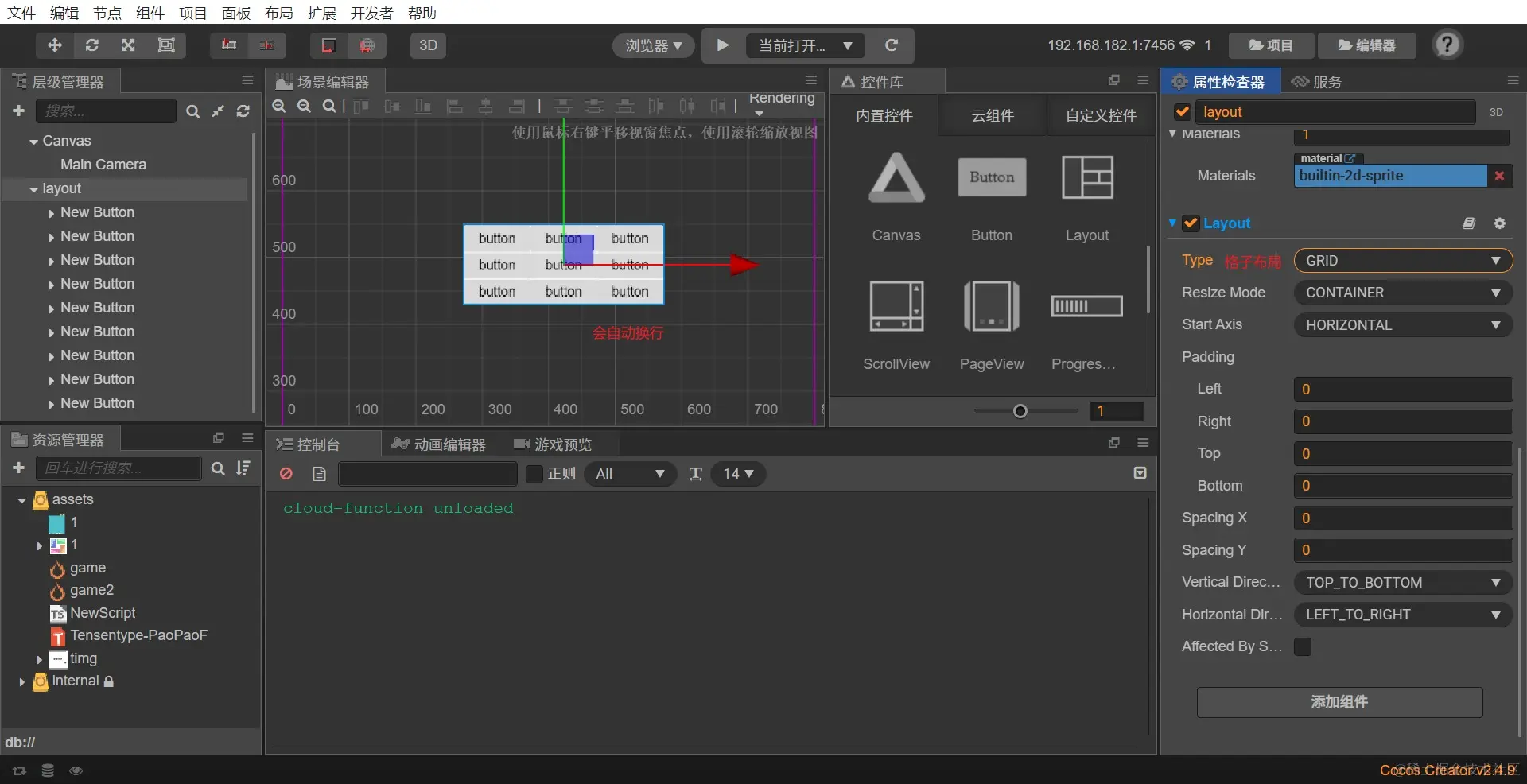

布局

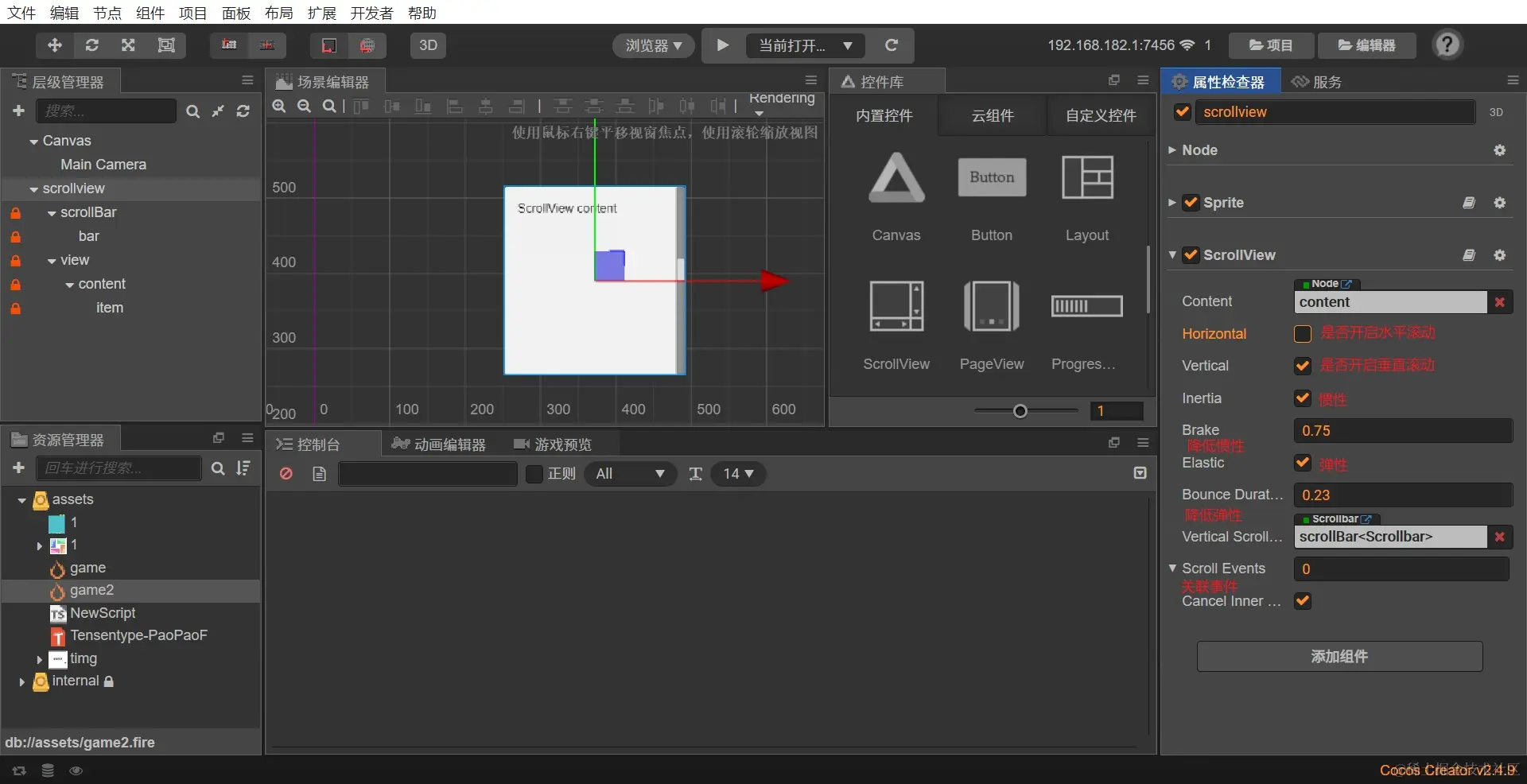

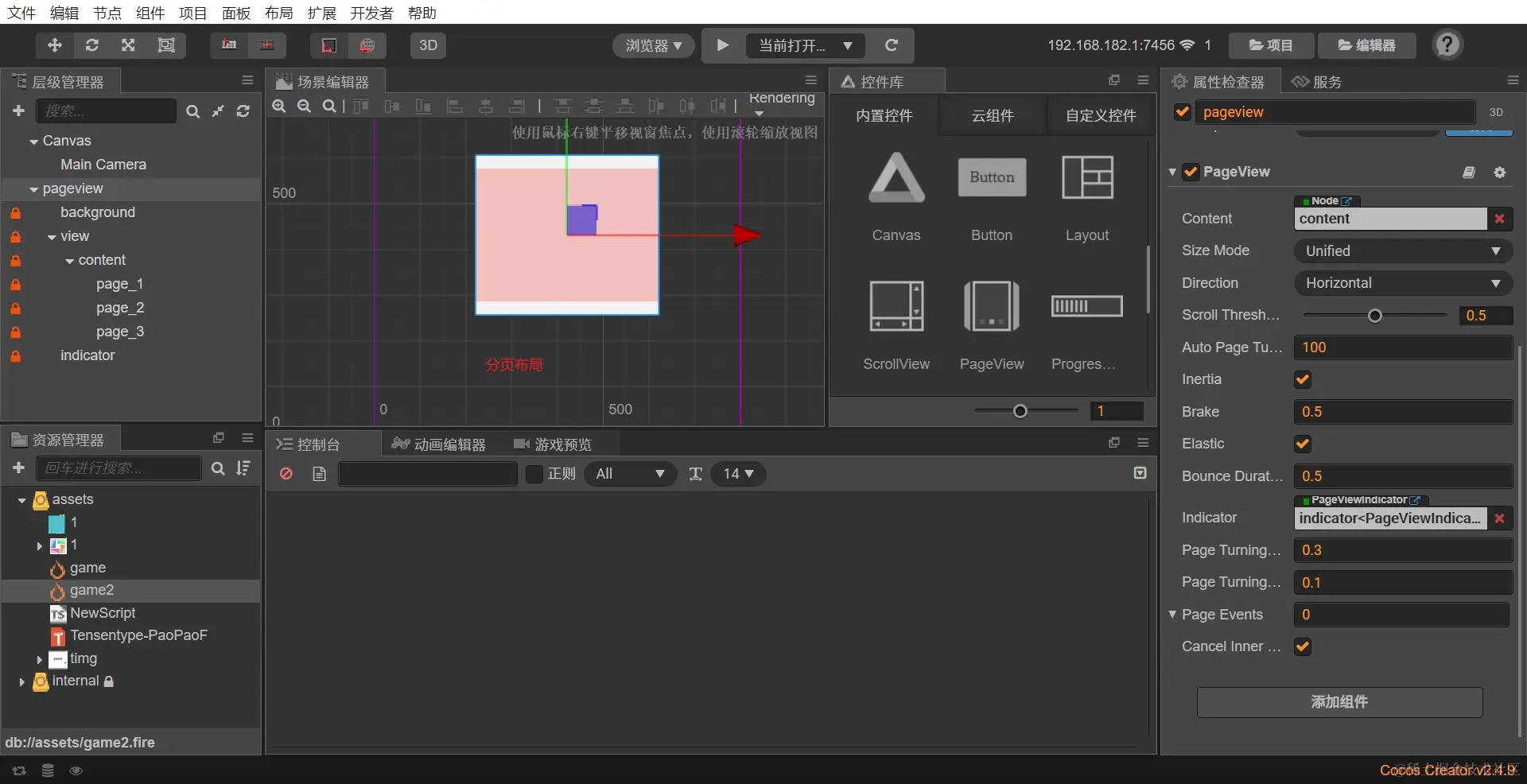

1.29.滑动进度控件

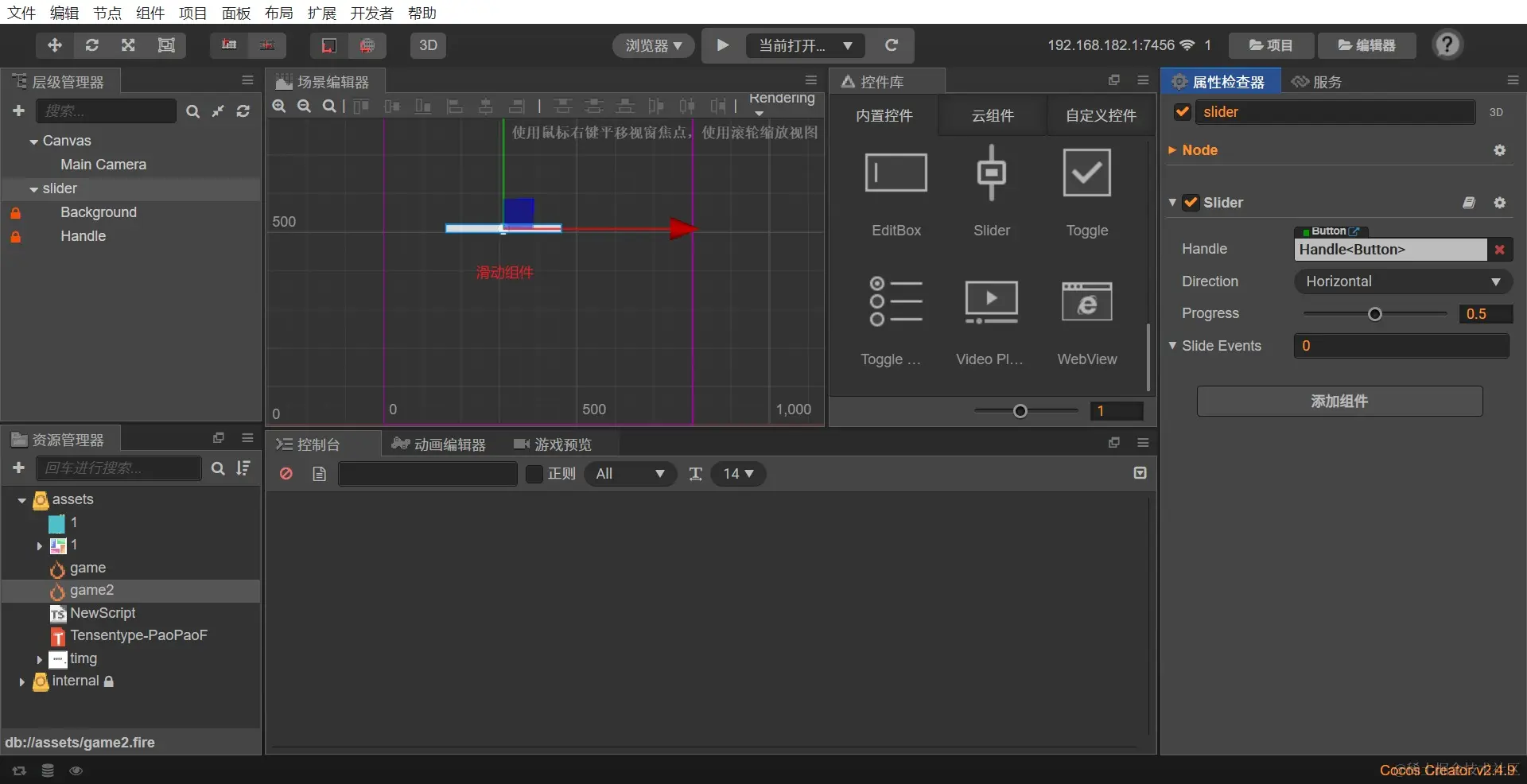

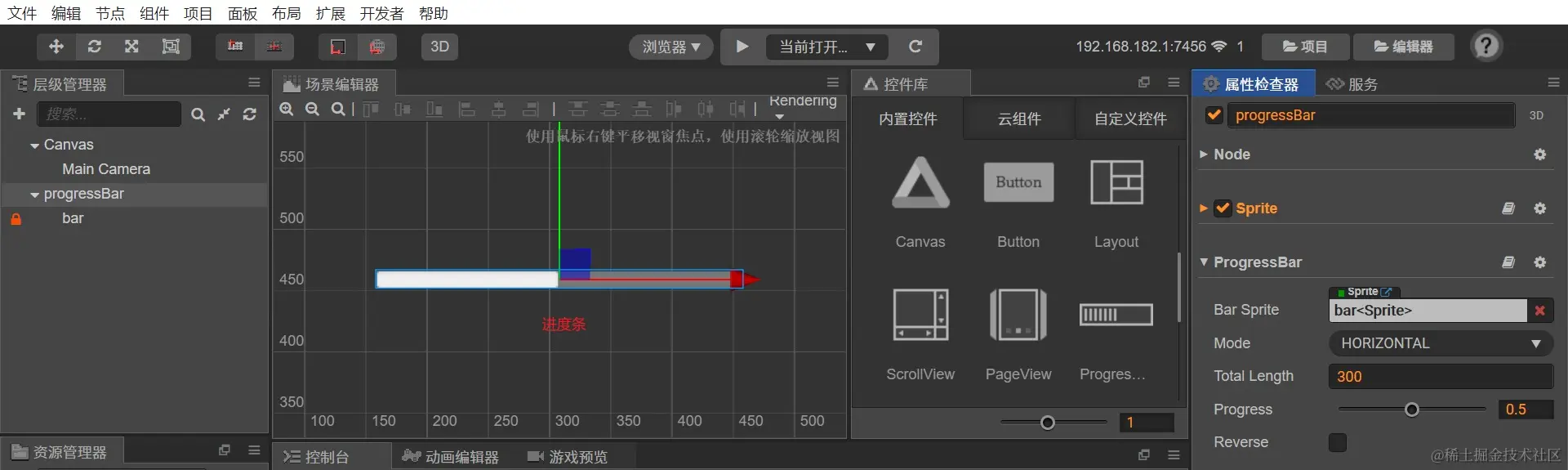

1.30.输入框

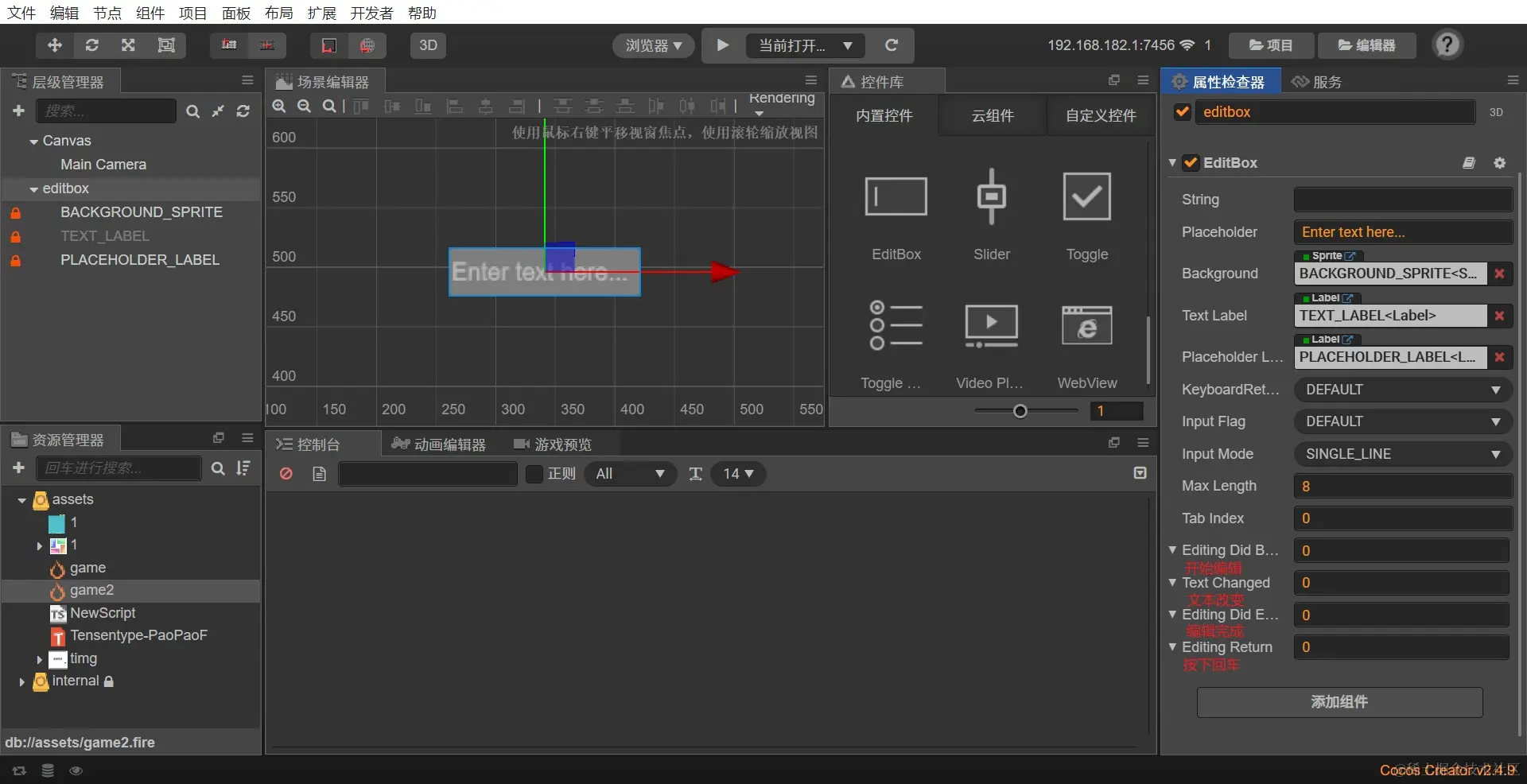

1.31.补充控件

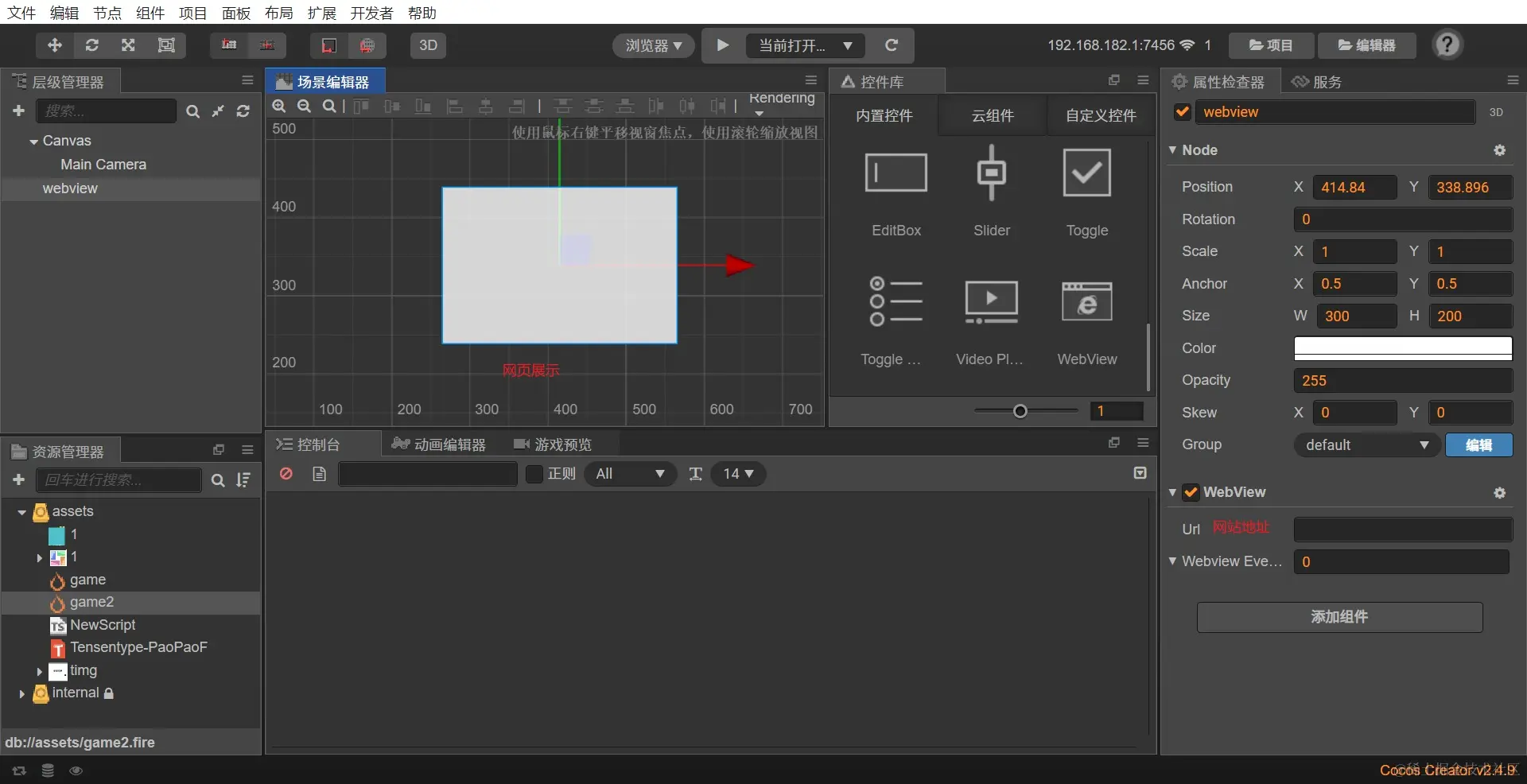

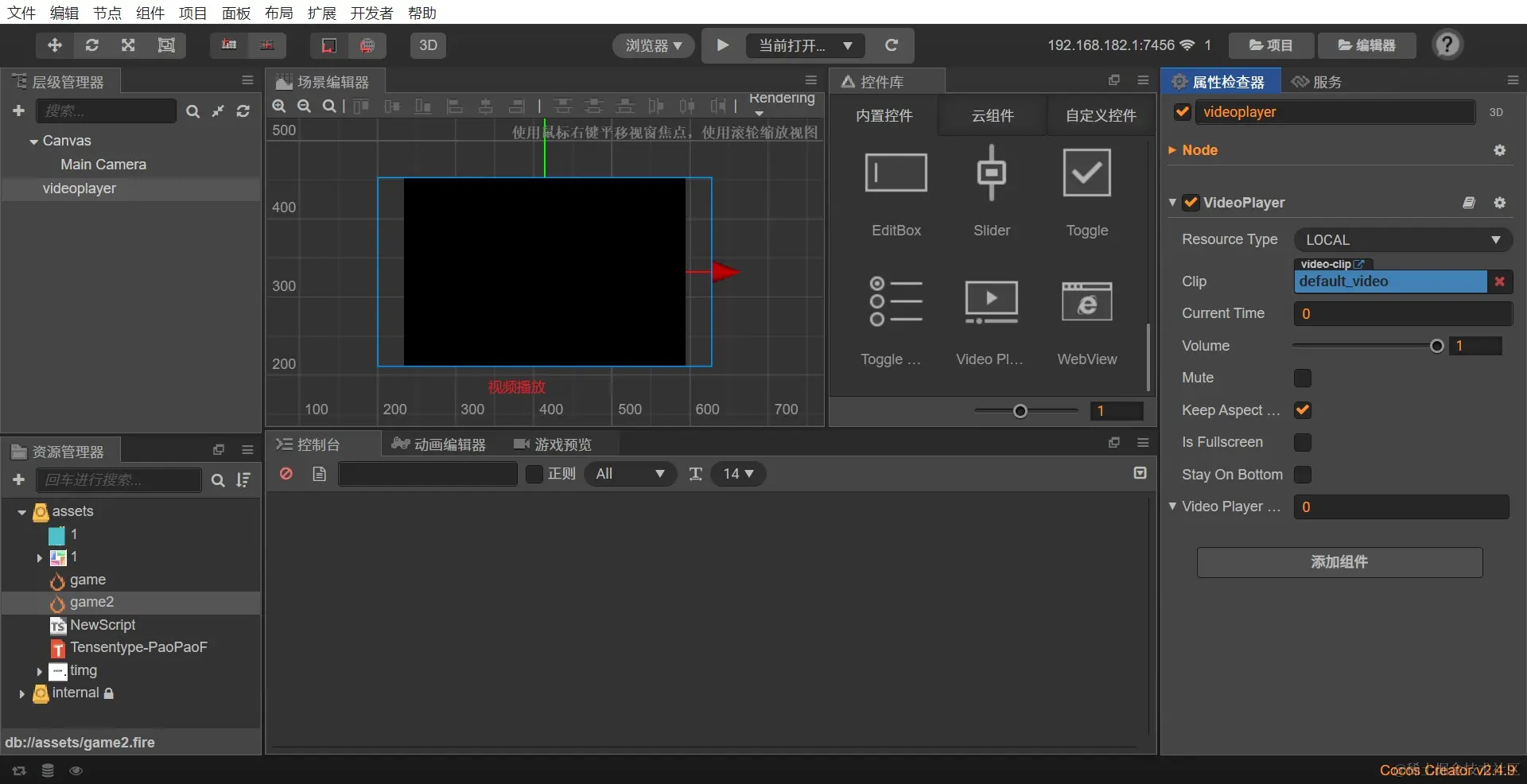

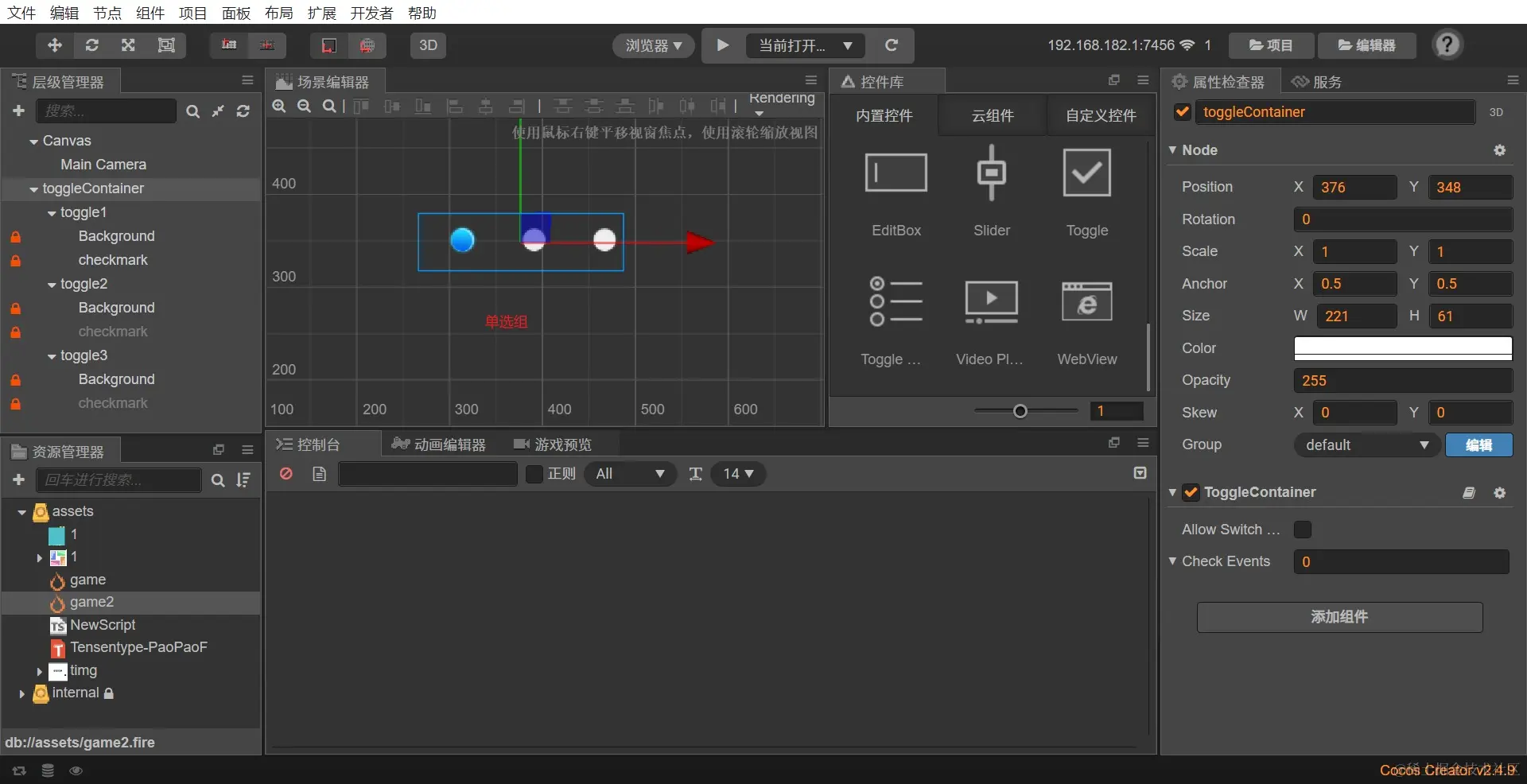

1.32.数据存储

const { ccclass, property } = cc._decorator;

@ccclass
export default class DataTest extends cc.Component {
  start() {
    // 储存数据
    cc.sys.localStorage.setItem("name", "蜘蛛侠");
    // 获取数据
    let name = cc.sys.localStorage.getItem("name");
    // 移除一个数据
    cc.sys.localStorage.removeItem("name");
    // 清除
    cc.sys.localStorage.clear();
  }

  // update (dt) {}
}

1.33.Json数据

const { ccclass, property } = cc._decorator;

class Person {
  id: number;
  name: string;
  wugong: string[];
}

@ccclass
export default class JsonTest extends cc.Component {
  start() {
    /*
    json:
    数据格式：json xml csv 写文本
    客户端-客户端
    游戏存档 -> 地图，坐标，等级，攻击，防御，物品，武功，好友度......
    */
    let person: Person = new Person();
    person.id = 10;
    person.name = "李逍遥";
    person.wugong = ["降龙十八掌", "独孤九剑"];
    //对象->字符串
    /*
    json：{} 对象 []数组
    '{"id":10,"name":"李逍遥","wugong":["降龙十八掌", "独孤九剑"]}'
     */
    //对象->json 序列化
    let json = JSON.stringify(person);
    console.log(json);
    cc.sys.localStorage.setItem("save1", person);
    //json->对象
    let person2: Person = Object.assign(new Person(), JSON.parse(json));
    console.log(person2.name);
  }
}

1.34.数字格式

const { ccclass, property } = cc._decorator;

class Person {
  id: number;
  name: string;
  wugong: string[];
}

@ccclass
export default class JsonTest extends cc.Component {
  start() {
    //person[] ->字符串
    //json
    /*
    [{
        "id":10,
        "name":"李逍遥",
        "wugong":[
            "降龙十八掌", "独孤九剑"
        ]
    },{
        "id":2,
        "name":"王小虎",
        "wugong":[
            "魔刀", "凌波微步"
        ]
    }]
    */
    //xml
    /*
        <root>
            <person id="10">
                <name>李逍遥</name>
                <wugong> 降龙十八掌,独孤九剑</wugong>
            </person>
            <person id="2">
                <name>王小虎</name>
                <wugong> 魔刀,凌波微步</wugong>
            </person>
        </root>
    */
    //csv
    /*
        10,李逍遥,降龙十八掌/独孤九剑
        2,王小虎,魔刀/凌波微步
    */
  }
}

1.35.网络请求

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  start() {
    let url = "http://iwenwiki.com:3000/search?keywords=海阔天空";
    // 请求
    let request = cc.loader.getXMLHttpRequest();
    request.open("GET", url, true); //异步 同步
    // 请求状态改变
    request.onreadystatechange = () => {
      // 请求结束后获取信息;
      if (request.readyState == 4 && request.status == 200) {
        console.log("请求完成");
        console.log(request.responseText);
      }
    };
    request.send();
  }

  // update (dt) {}
}

1.36.自定义Animation

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  //每秒播放速度
  @property
  speed: number = 0.1;
  //播放帧数组
  @property(cc.SpriteFrame)
  sprites: cc.SpriteFrame[] = [];
  //是否播放动画
  @property
  isPlayer: boolean = false;
  //当前播放帧
  index: number = 0;
  //计时器
  timer: number = 0;

  start() {}

  play() {
    this.isPlayer = true;
  }

  stop() {
    this.isPlayer = false;
  }

  update(dt) {
    if (this.isPlayer) {
      //播放动画
      //计时器增加
      this.timer += dt;
      if (this.timer > this.speed) {
        this.timer = 0;
        this.index++;
        if (this.index >= this.sprites.length) {
          this.index = 0;
        }
        this.getComponent(cc.Sprite).spriteFrame = this.sprites[this.index];
      }
    }
  }
}

1.37.nodejs服务端

let app = require("express")();
let http = require("http").Server(app);
let io = require("socket.io")(http);

http.listen(3000, () => {
  console.log("server listen on 3000");
});

// 监听所有客户端连接
io.on("connection", (socket) => {
  // 发送消息
  //   socket.emit("message", "连接成功了");
  console.log("有客户端连接");
  // 监听客户端发来的消息
  socket.on("message", (data) => {
    console.log("客户端发来消息：" + data);
    socket.emit("message", "world");
  });
});

1.38.Socket.io客户端

const { ccclass, property } = cc._decorator;

@ccclass
export default class NewClass extends cc.Component {
  socket: Socket = null;

  start() {
    //连接服务器
    this.socket = io.connect("http://localhost:3000");
    // 判断是否连接成功
    this.socket.on("connect", (data) => {
      console.log("连接成功");
      this.socket.emit("message", "hello");

      //客户端接受消息
      this.socket.on("message", function (data) {
        console.log(data);
      });
    });

    //判断是否断开
    this.socket.on("disconnect", (data) => {});
  }

  // update (dt) {}
}

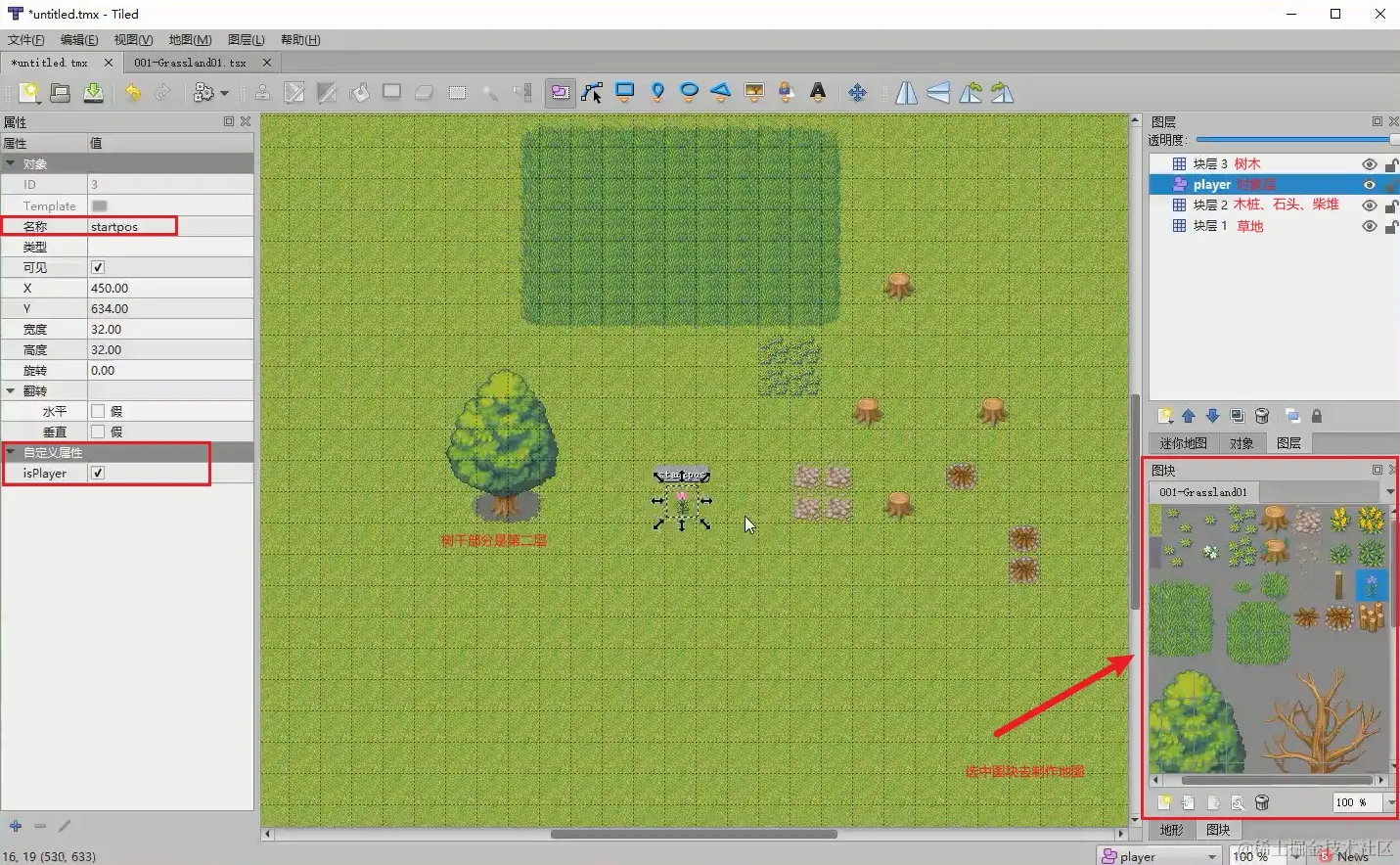

1.39.tielmap

const { ccclass, property } = cc._decorator;

@ccclass
export default class MapCOntrol extends cc.Component {
  map: cc.TiledMap;
  player: cc.Node = null;

  start() {
    //获取地图信息
    this.map = this.getComponent(cc.TiledMap);
    //普通层
    // this.map.getLayer("item");
    //对象层
    let playerLayer = this.map.getObjectGroup("player");
    //获取某个对象
    let playerObj = playerLayer.getObject("startpos");
    //判断是否是玩家对象
    if (playerObj.isPlayer == true) {
      //加载玩家预设体
      cc.loader.loadRes("player", cc.Prefab, (res, playerPre) => {
        //创建玩家
        this.player = cc.instantiate(playerPre);
        this.player.setParent(this.node.children[2].children[0]);
        this.player.x = playerObj.x;
        this.player.y = playerObj.y;
      });
    }
  }

  update(dt) {
    //摄像头跟随玩家
    if (this.player != null) {
      cc.Camera.main.node.x = this.player.x - 240;
      cc.Camera.main.node.y = this.player.y - 160;
    }
  }
}

1.40.控制封装

export default class Input {
  private static instance: Input = null;

  //水平轴
  horizontal: number = 0;
  //垂直轴
  vertical: number = 0;

  static get Instance() {
    if (this.instance == null) {
      this.instance = new Input();
    }
    return this.instance;
  }

  constructor() {
    //键盘按下
    cc.systemEvent.on(cc.SystemEvent.EventType.KEY_DOWN, (event) => {
      if (event.KeyCode == cc.macro.KEY.w) {
        this.vertical = 1;
      } else if (event.KeyCode == cc.macro.KEY.s) {
        this.vertical = -1;
      }
      if (event.KeyCode == cc.macro.KEY.a) {
        this.vertical = -1;
      } else if (event.KeyCode == cc.macro.KEY.d) {
        this.vertical = 1;
      }
    });

    //键盘抬起
    cc.systemEvent.on(cc.SystemEvent.EventType.KEY_UP, (event) => {
      if (event.KeyCode == cc.macro.KEY.w && this.vertical == 1) {
        this.vertical = 0;
      } else if (event.KeyCode == cc.macro.KEY.s && this.vertical == -1) {
        this.vertical = 0;
      }
      if (event.KeyCode == cc.macro.KEY.a && this.horizontal == -1) {
        this.vertical = 0;
      } else if (event.KeyCode == cc.macro.KEY.d && this.horizontal == 1) {
        this.vertical = 0;
      }
    });
  }
}

import Input from "./input";

const { ccclass, property } = cc._decorator;

@ccclass
export default class PlayerControl extends cc.Component {
  //速度
  speed: number = 20;

  start() {}

  update(dt) {
    this.node.x += this.speed * dt * Input.Instance.horizontal;
    this.node.y += this.speed * dt * Input.Instance.vertical;
  }
}

GIF 2023-11-8 21-28-14.gif

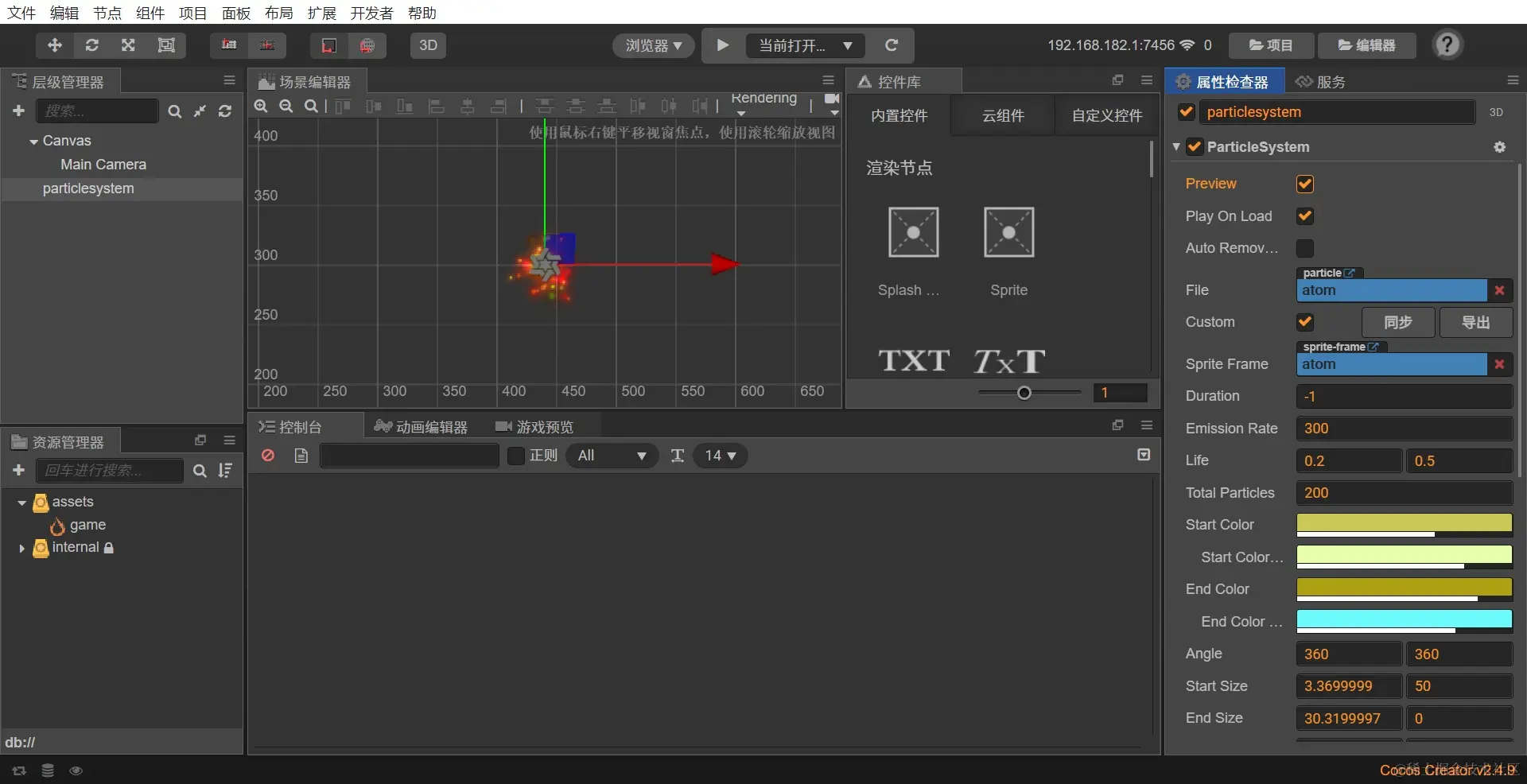

1.41.粒子系统

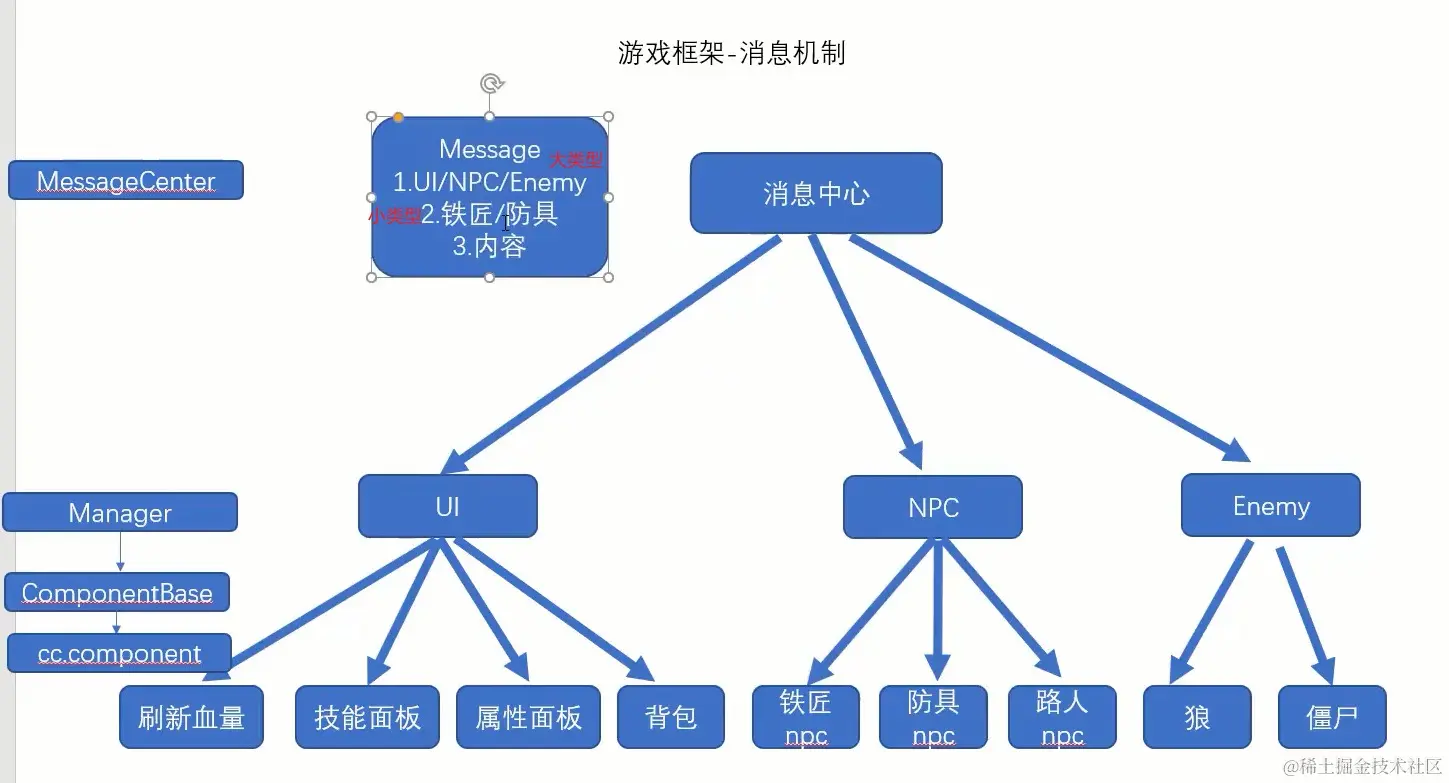

1.42.游戏框架

// Message.ts
const { ccclass, property } = cc._decorator;

@ccclass
export default class Message {
  //类型 1 2 3
  Type: number;
  //命令 100 101 200 201
  Command: number;
  //参数
  Content: any;

  //构造函数
  constructor(type: number, command: number, content: any) {
    this.Type = type;
    this.Command = command;
    this.Content = content;
  }
}

export class MessageType {
  static Type_UI = 1;
  static Type_NPC = 2;
  static Type_Enemy = 3;
  static Type_Audio = 4;

  static UI_RefreshHp = 101;
  static UI_RefreshScore = 102;
  static UI_RefreshInventory = 103;

  static NPC_npc1 = 201;
  static NPC_npc2 = 202;

  static Enemy_enemy1 = 301;
  static Enemy_enemy2 = 302;
}

// ComponentBase.ts
import Message from "./Message";

const { ccclass, property } = cc._decorator;

@ccclass
export default class ComponentBase extends cc.Component {
  //接受消息
  ReceiveMessage(message: Message) {}
}

// ManagerBase.ts
import ComponentBase from "./ComponentBase";
import Message, { MessageType } from "./Message";
import MessageCenter from "./MessageCenter";

const { ccclass, property } = cc._decorator;

@ccclass
export default class ManagerBase extends ComponentBase {
  //管理的消息接受者数组
  ReceiveList: ComponentBase[] = [];
  //当前管理类接收的具体消息类型
  messageType: number;

  onLoad() {
    //设置当前管理类接收的消息类型
    this.messageType = this.SetMessageType();
    //把管理类添加到消息中心列表中
    MessageCenter.Managers.push(this);
  }

  //设置当前管理类的消息类型
  SetMessageType() {
    return MessageType.Type_UI;
  }

  //注册消息监听
  RegisterReceiver(cb: ComponentBase) {
    this.ReceiveList.push(cb);
  }

  ReceiveMessage(message: Message) {
    super.ReceiveMessage(message);
    //判断消息类型
    if (message.Type != this.messageType) {
      return;
    }
    //向下层分发消息
    for (let cb of this.ReceiveList) {
      cb.ReceiveMessage(message);
    }
  }
}

// MessageCenter.ts
import ComponentBase from "./ComponentBase";
import Message from "./Message";

export default class MessageCenter {
  //管理类列表
  static Managers: ComponentBase[] = [];

  //发送消息
  static SendMessage(msg: Message) {
    for (let manager of this.Managers) {
      manager.ReceiveMessage(msg);
    }
  }

  //发送自定义消息
  static SendCustomMessage(type: number, command: number, content: any) {
    let msg = new Message(type, command, content);
    this.SendMessage(msg);
  }
}

示例：

// PlayerControl.ts
import { MessageType } from "./Scripts/Message";
import MessageCenter from "./Scripts/MessageCenter";

const { ccclass, property } = cc._decorator;

@ccclass
export default class PlayerControl extends cc.Component {
  start() {
    //点击
    this.node.on(cc.Node.EventType.MOUSE_DOWN, (event) => {
      //血量减少
      MessageCenter.SendCustomMessage(
        MessageType.Type_UI,
        MessageType.UI_RefreshHp,
        10
      );
    });
  }

  // update (dt) {}
}

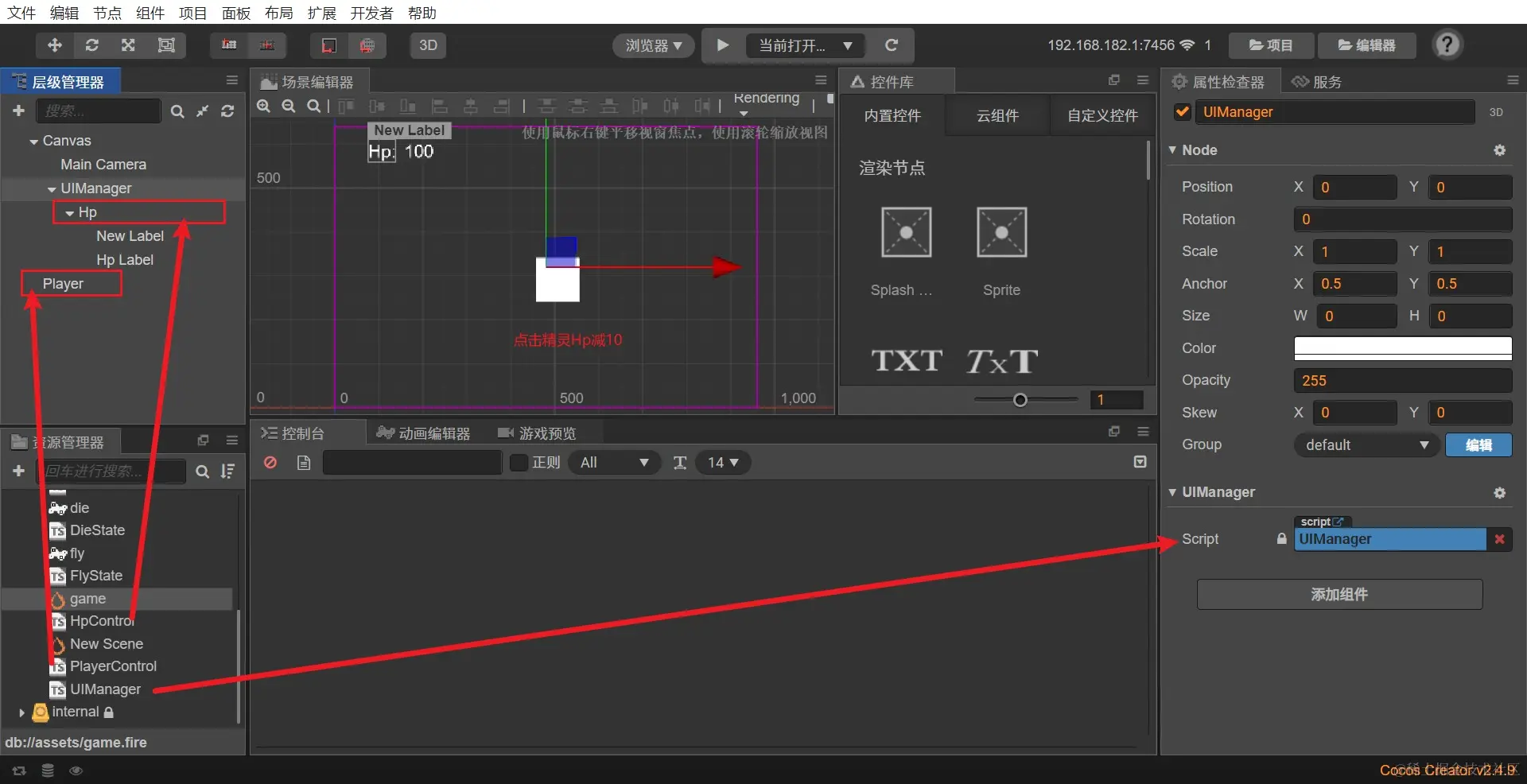

// UIManager.ts
import ManagerBase from "./Scripts/ManagerBase";
import { MessageType } from "./Scripts/Message";

const { ccclass, property } = cc._decorator;

@ccclass
export default class UIManager extends ManagerBase {
  static Instance: UIManager;

  onLoad() {
    super.onLoad();
    UIManager.Instance = this;
  }

  //接收消息的类型
  SetMessageType() {
    return MessageType.Type_UI;
  }
}

// HpControl.ts
import ComponentBase from "./Scripts/ComponentBase";
import Message, { MessageType } from "./Scripts/Message";
import UIManager from "./UIManager";

const { ccclass, property } = cc._decorator;

@ccclass
export default class HpControl extends ComponentBase {
  hp: number = 100;

  start() {
    //注册为ui的消息接收者
    UIManager.Instance.RegisterReceiver(this);
  }

  //接收到的消息
  ReceiveMessage(msg: Message) {
    super.ReceiveMessage(msg);
    if (msg.Command == MessageType.UI_RefreshHp) {
      //得到参数
      let num = <number>msg.Content;
      this.ChangeHp(num);
    }
  }

  //改变血量
  ChangeHp(attack) {
    this.hp -= attack;
    this.node.children[1].getComponent(cc.Label).string = this.hp + "";
  }
}

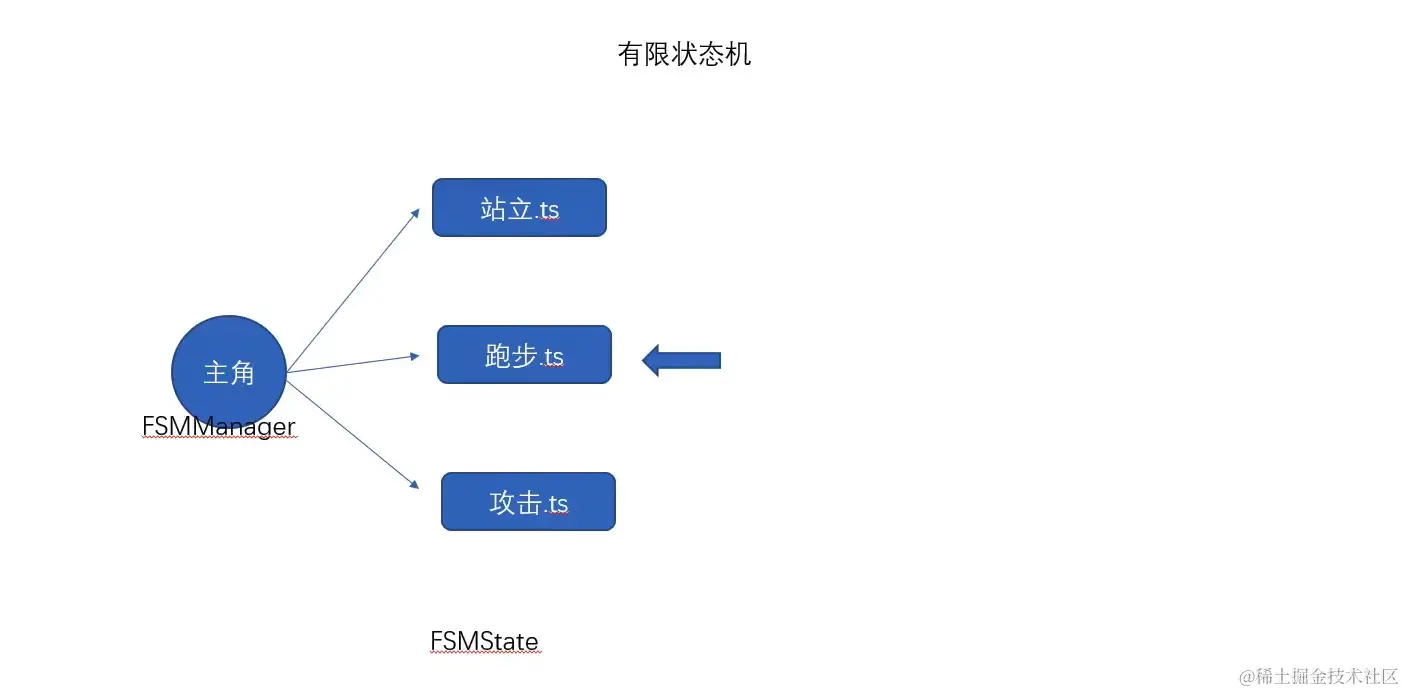

1.43.有限状态机

// FSMState.ts
import FSMManager from "./FSMManager";

const { ccclass, property } = cc._decorator;

export default class FSMState {
  //当前状态ID
  StateID: number;
  //状态拥有者
  component: cc.Component;
  //所属状态机
  fsmManager: FSMManager;

  constructor(
    stateID: number,
    component: cc.Component,
    fsmManager: FSMManager
  ) {
    this.StateID = stateID;
    this.component = component;
    this.fsmManager = fsmManager;
  }

  //进入状态
  OnEnter() {}

  //状态更新中
  OnUpdate() {}
}

// FSMManager.ts
import FSMState from "./FSMState";

const { ccclass, property } = cc._decorator;

export default class FSMManager {
  //状态列表
  StateList: FSMState[] = [];
  //当前状态ID
  CurrentIndex: number = -1;

  //改变状态
  ChangeState(StateID: number) {
    //改变状态ID
    this.CurrentIndex = StateID;
    //调用新状态的OnEnter方法
    this.StateList[this.CurrentIndex].OnEnter();
  }

  //更新调用
  OnUpdate() {
    if (this.CurrentIndex != -1) {
      //调用当前状态的update方法
      this.StateList[this.CurrentIndex].OnUpdate();
    }
  }
}

示例：

// BirdControl.ts
import DieState from "./DieState";
import FlyState from "./FlyState";
import FSMManager from "./Scripts/FSMManager";

const { ccclass, property } = cc._decorator;

enum BirdState {
  Fly,
  Die,
}

@ccclass
export default class BirdControl extends cc.Component {
  ani: cc.Animation;
  //状态机
  fsmManager: FSMManager;

  start() {
    this.fsmManager = new FSMManager();
    this.ani = this.getComponent(cc.Animation);
    let fly = new FlyState(BirdState.Fly, this, this.fsmManager);
    let die = new DieState(BirdState.Die, this, this.fsmManager);
    this.fsmManager.StateList = [fly, die];
    //开始执行状态
    this.fsmManager.ChangeState(BirdState.Fly);
  }

  update(dt) {
    if (this.fsmManager.CurrentIndex != -1) {
      this.fsmManager.OnUpdate();
    }
  }

  fly() {
    this.fsmManager.ChangeState(BirdState.Fly);
  }

  die() {
    this.fsmManager.ChangeState(BirdState.Die);
  }
}

// FlyState.ts
import FSMState from "./Scripts/FSMState";

const { ccclass, property } = cc._decorator;

@ccclass
export default class FlyState extends FSMState {
  start() {}

  //进入状态
  OnEnter() {
    super.OnEnter();
    this.component.getComponent(cc.Animation).play("fly");
  }

  //状态更新中
  OnUpdate() {
    super.OnUpdate();
  }
}

// DieState.ts
import FSMState from "./Scripts/FSMState";

const { ccclass, property } = cc._decorator;

@ccclass
export default class DieState extends FSMState {
  start() {}

  //进入状态
  OnEnter() {
    super.OnEnter();
    this.component.getComponent(cc.Animation).play("die");
  }

  //状态更新中
  OnUpdate() {
    super.OnUpdate();
  }
}

状态机的一些应用方面
