一、leader-line的用法

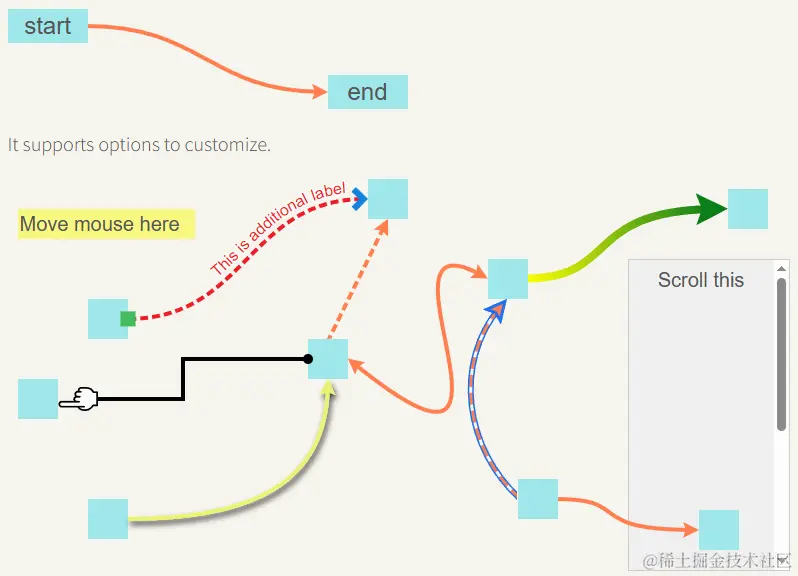

leaderLine不需要引入第三方库，用于连接两个dom，配置项丰富。(官网api)
cdn引入
<script src="https://cdn.jsdelivr.net/npm/leader-line@1.0.5/leader-line.min.js"></script>
NPM安装npm i leader-line import LeaderLine from leader-line
var startElement = document.getElementById('element-1'),
endElement = document.getElementById('element-2');
// startElement起始元素，endElement结束元素 连接线的大小和颜色
new LeaderLine(startElement, endElement, {color: 'red', size: 8,path: "fluid",
startPlug: 'disc',endPlug: 'arrow',startPlugColor: "#4D88FF",startLabel:'文字介绍'});
//animations
new LeaderLine(
LeaderLine.mouseHoverAnchor(startElement, 'draw', {
animOptions: {
duration: 3000,
timing: [0.5, 0, 1, 0.42]
}
}),
endElement
);
- startElement起始元素
- endElement结束元素
- option线条设置项
-
- color："#000"线条颜色
-
- size：3,线条粗细
-
- dash：true(虚线)
-
- endPlug:"arrow" 线尾类型
-
- endPlugSize:1, 线尾尺寸
-
- endPlugColor: '#000',线尾颜色
-
- endSocket:"bottom", 线头的位置 top/left/right/bottom/auto
-
- startPlug："disc" 线头类型
-
- startPlugSize:2,线头尺寸
-
- startPlugColor："#000" 线头颜色
-
- startSocket:"bottom", 线头的位置 top/left/right/bottom/auto
-
- path:"grid" 线的类型
-
- outline:true,开启连接线边框
-
- endPlugOutline/startPlugOutline:true,开启线尾/线头边框
-
- endPlugOutlineColor/startPlugOutlineColor:"#000",线尾/线头边框颜色
-
- endPlugOutlineSize/startPlugOutlineSize:1.5,线尾/线头边框大小
-
- animations 连接动画 timing参数 ease/linear/ease-in/ease-out/ease-in-out
-
- gradient{startColor:"#2e17c3",endColor:'#1df3f9'} 线条渐变色
-
- dropShadow:true 线条阴影 dropShaw;dropShaw{dx:0,dy:3} dx/dy 阴影距离线条的位置
-
- opacity：0.8 线条透明度
startPlug/endPlug 参数
| startPlug/endPlug | 含义 |
|---|---|
| disc | 圆形终端 |
| square | 方形终端 |
| arrow1 | 箭头终端1 |
| arrow2 | 箭头终端2 |
| arrow3 | 箭头终端3 |
| hand | 手型终端 |
| crosshair | 十字标靶型终端 |
| behind | 无 |
path参数
| path | 含义 |
|---|---|
| straight | 直线 |
| arc | 一般弧线 |
| fluid | 流体曲线 |
| magnet | 磁吸线 |
| grid | 网格型折线 |

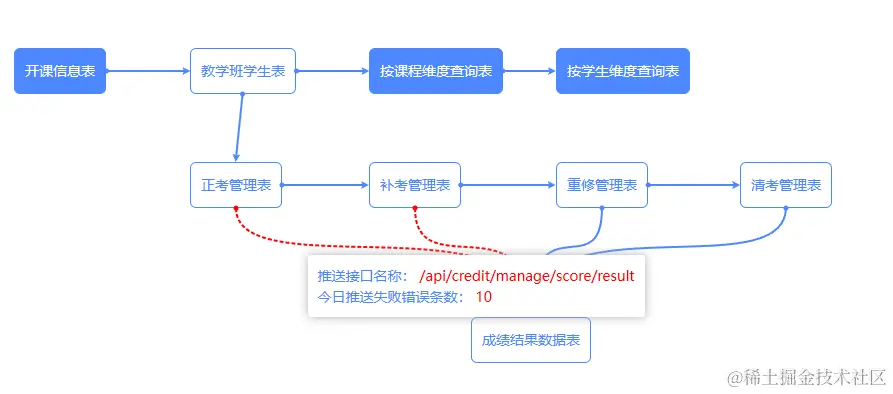

二、实现功能
.dataPreview {
width: 1000px;
height: 400px;
position: relative;
}
body .leader-line {
pointer-events: unset !important;
}
.tooltip {
position: absolute;
font-size: 12px;
text-align: left;
background-color: white;
border-radius: 3px;
box-shadow: rgb(174, 174, 174) 0px 0px 10px;
cursor: pointer;
display: inline-block;
padding: 10px;
z-index: 1001;
display: none;
}
.tooltip p {
line-height: 1.5;
color: #4D88FF;
}
.tooltip span {
color: red;
padding-left: 4px;
}
<div class="dataPreview">
<div id="id_1"></div>
</div>
<div class="tooltip">
<p>推送接口名称：<span></span></p>
<p>今日推送失败错误条数：<span>10</span></p>
</div>
<script src="jquery-3.3.1.min.js"></script>
<script src="leader-line.min.js"></script>
<script>
let dataset = {
nodes: [
{
id: 0, label: "开课信息表", left: 26, top: 66, bg: "#4D88FF"
},
{ id: 1, label: "教学班学生表", shape: "rect", left: 202, top: 66 },
{ id: 2, label: "按课程维度查询表", shape: "rect", left: 381, top: 66, bg: "#4D88FF" },
{ id: 3, label: "按学生维度查询表", shape: "rect", left: 568, top: 66, bg: "#4D88FF" },
{ id: 4, label: "正考管理表", shape: "rect", left: 202, top: 180 },
{ id: 5, label: "补考管理表", shape: "rect", left: 381, top: 180 },
{ id: 6, label: "重修管理表", shape: "rect", left: 568, top: 180 },
{ id: 7, label: "清考管理表", shape: "rect", left: 752, top: 180 },
{ id: 8, label: "成绩结果数据表", shape: "rect", left: 483, top: 335 }
],
edges: [
{ source: 0, target: 1, isDataLine: false },
{ source: 1, target: 2, isDataLine: false },
{ source: 2, target: 3, isDataLine: false },
{ source: 1, target: 4, isDataLine: false, straightLine: true },
{ source: 4, target: 5, isDataLine: false },
{ source: 5, target: 6, isDataLine: false },
{ source: 6, target: 7, isDataLine: false },
{ source: 4, target: 8, label: "/api/credit/manage/score/result", errorCount: 10, isDataLine: true, hasErrorData: true },
{ source: 5, target: 8, label: "/api/manage/score/create", errorCount: 16, isDataLine: true, hasErrorData: true },
{ source: 6, target: 8, isDataLine: true, hasErrorData: false },
{ source: 7, target: 8, isDataLine: true, hasErrorData: false },
]
}
let divStr = ""
dataset.nodes.map(item => {
if (item.bg) {
divStr += `<div id="id_${item.id}" style="position:absolute;left:${item.left}px;
top:${item.top}px;padding:0 10px;height:44px;border:1px solid #4D88FF; color:#4D88FF;background:${item.bg};color:#fff;
text-align:center;line-height:44px;border:1px solid ##4D88FF;border-radius:6px">${item.label}</div>`
} else {
divStr += `<div id="id_${item.id}" style="position:absolute;left:${item.left}px;
top:${item.top}px;padding:0 10px;height:44px;border:1px solid #4D88FF; color:#4D88FF;
text-align:center;line-height:44px;border:1px solid ##4D88FF;border-radius:6px">${item.label}</div>`
}
})
$(".dataPreview").html(divStr);
dataset.edges.map(item => {
let line = new LeaderLine(document.getElementById(`id_${item.source}`), document.getElementById(`id_${item.target}`), {
startPlug: 'disc',
endPlug: 'arrow',
color: "#4D88FF",
// startLabel: LeaderLine.pathLabel(item.label),
// endLabel: LeaderLine.pathLabel(item.label),
// middleLabel: LeaderLine.captionLabel(item.label),
startPlugColor: "#4D88FF",
path: "fluid",
size: 2,
});
if (item.hasErrorData) {
line.setOptions({ color: "#FF0000", startPlugColor: "#FF0000", dash: true })
}
if (item.straightLine) {
line.setOptions({ path: 'straight' })
}
if (item.isDataLine) {
line.setOptions({ startSocket: 'bottom', endSocket: 'top' });
}
})
$("#leader-line-10-line-path").parents('svg').css({ "z-index": 10 })
$(".leader-line").mouseenter(function () {
let id = $(this).find('defs').children().first().attr('id');
// 匹配数字正则
id = id.match(/\d+/)[0];
console.log(id);
if (id && dataset.edges[id - 1].label) {
$(".tooltip p:first-child span").text(dataset.edges[id - 1].label)
$(".tooltip p:last-child span").text(dataset.edges[id - 1].errorCount);
let x = parseInt($(this).css("left")) + parseInt($(this).css("width")) / 4;
let y = parseInt($(this).css("top")) + parseInt($(this).css("height")) / 2;
console.log(x, y);
$(".tooltip").css({ left: x, top: y }).show()
}
}).mouseleave(function () {
console.log(11);
$(".tooltip").hide()
})
</script>
