1. Window10 Install WSL

learn.microsoft.com/en-us/windo…

learn.microsoft.com/zh-tw/windo…

2. Plugin

2.1 Install nodejs

• Centos Image

  docker pull centos:7

  docker run --privileged=true -u=root -d -p 3000:3000 --name MyCentos centos:7 /usr/sbin/init

• yum download(版本受鏡像的限制)

  yum update

  wget -O /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo

  yum install nodejs

  yum install npm

• tar package

  wget https://nodejs.org/dist/v20.0.0/node-v20.0.0-linux-x64.tar.xz

  tar xvJf node-v20.0.0-linux-x64.tar.xz

• version

  mv node-v20.0.0-linux-x64 node

  cp -r node /usr/local/

  cd node

  ./bin/node -v

• 軟鏈

  ln -s /usr/local/node/bin/npm /usr/local/bin/

  ln -s /usr/local/node/bin/node /usr/local/bin/

  ln -s /usr/local/node/bin/npx /usr/local/bin/

2.2 Download plulgin

• npx download

  npx @grafana/create-plugin@latest

  npm install

  npm run dev

2.3 Local Run

• docker cp folder

  docker cp MyCentos:/opt/software/xxx E:\Grafana\

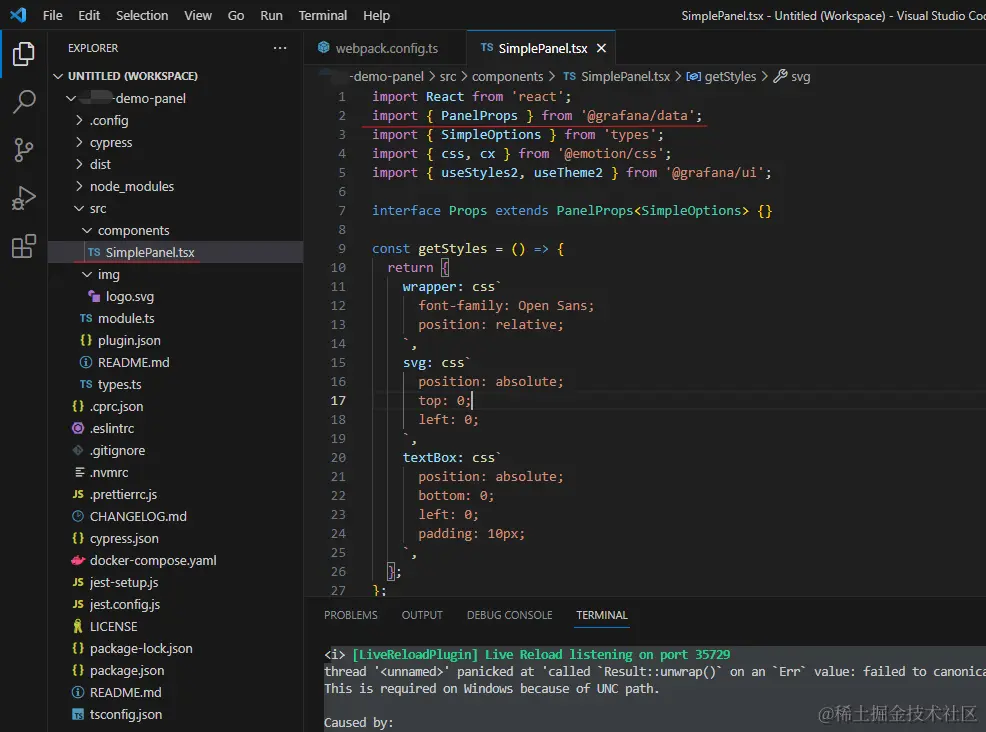

• run local

  npm install

  npm run dev

grafana.com/developers/…

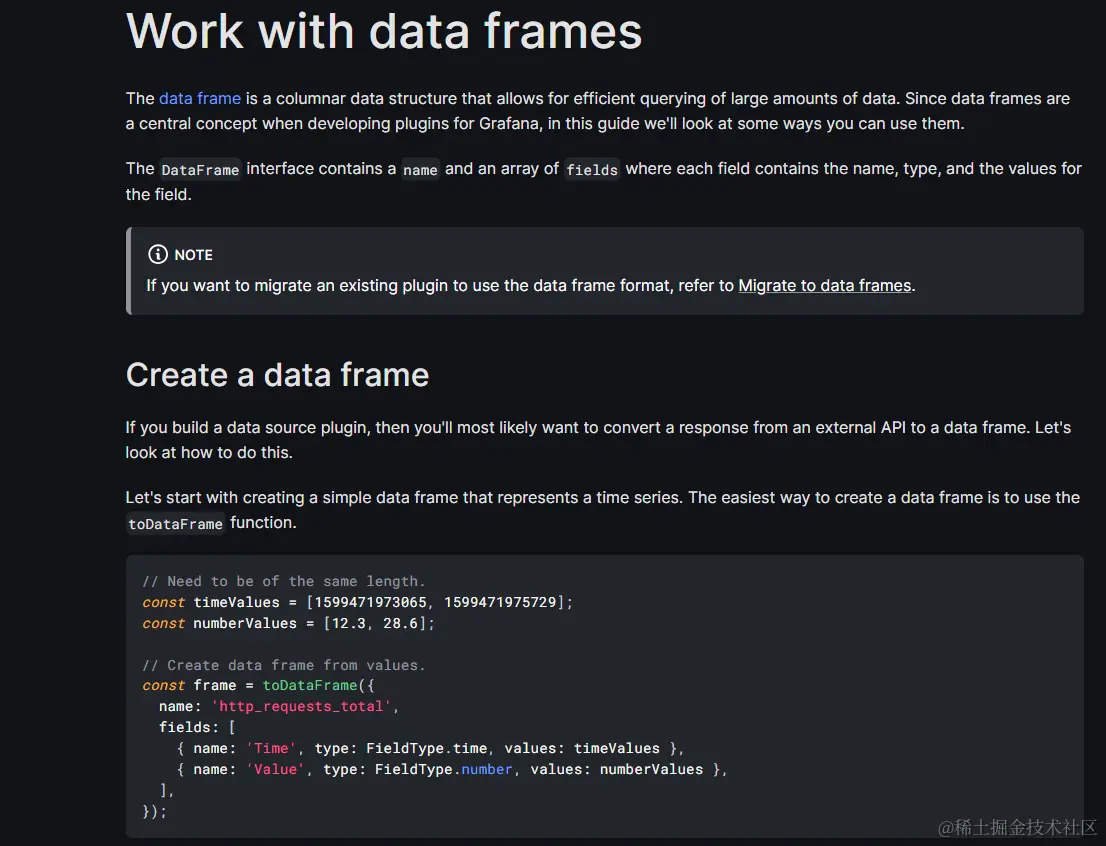

2.3 Work with data frames

grafana.com/developers/…

3. Github Demo

視頻教程： github.com/VolkovLabs/…

Github： github.com/VolkovLabs

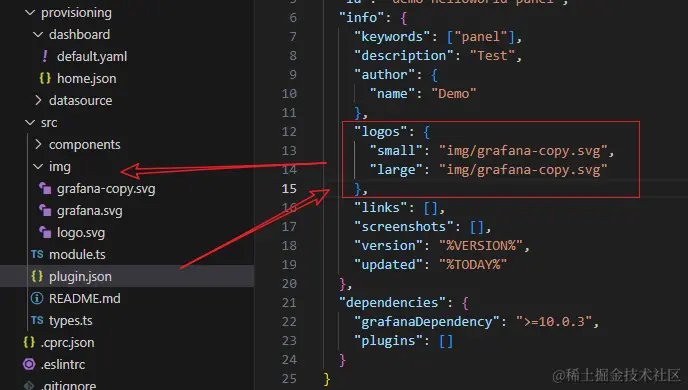

3.1 Logo

www.iconfont.cn/search/inde…

下載svg後,放入image目錄
