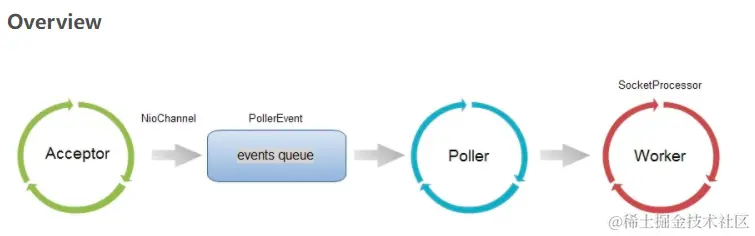

tomcat基于NIO的实现。 核心模型如下

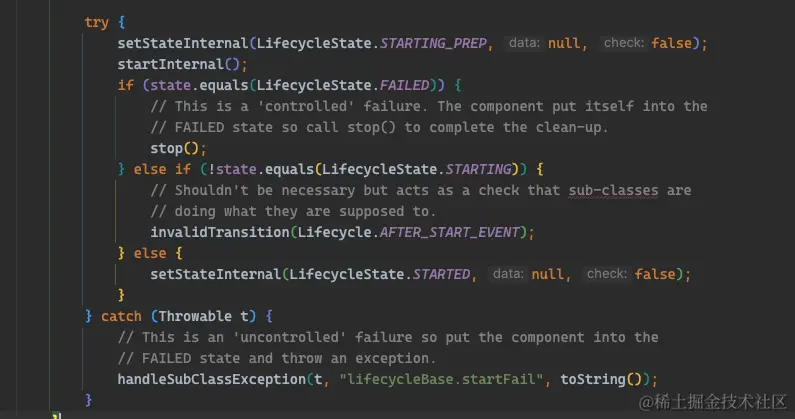

org.apache.catalina.util.LifecycleBase#start

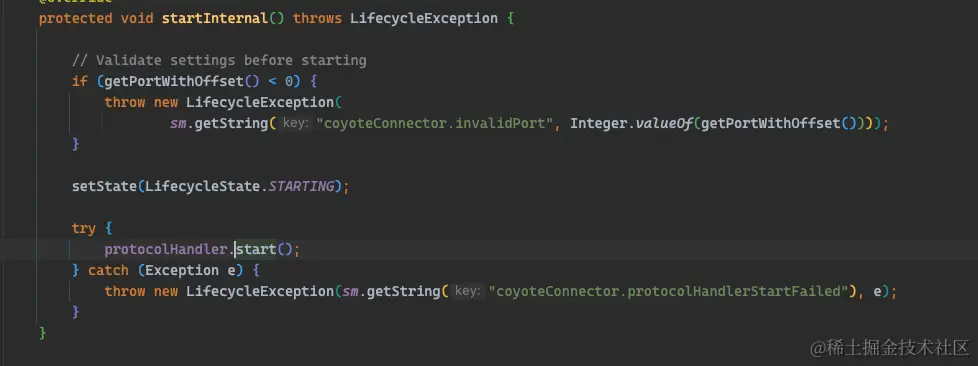

org.apache.catalina.connector.Connector#startInternal
org.apache.coyote.AbstractProtocol#start
org.apache.tomcat.util.net.AbstractEndpoint#start
public final void start() throws Exception {
if (bindState == BindState.UNBOUND) {
bindWithCleanup();
bindState = BindState.BOUND_ON_START;
}
startInternal();
}

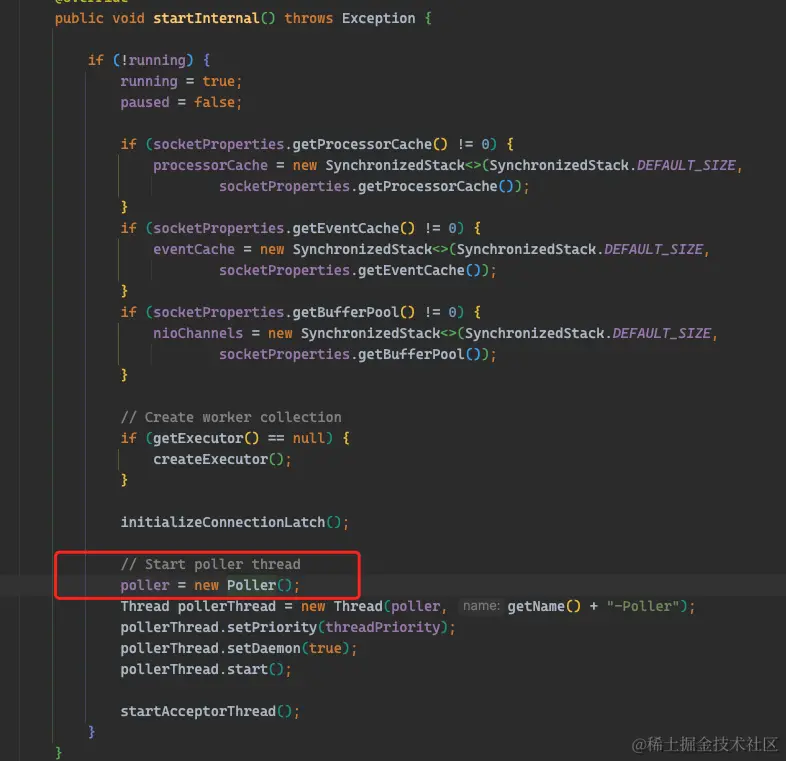

org.apache.tomcat.util.net.NioEndpoint#startInternal

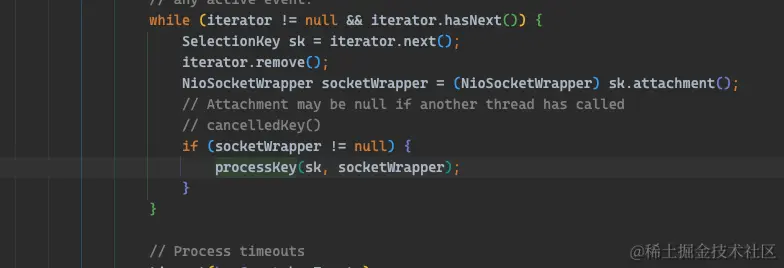

org.apache.tomcat.util.net.NioEndpoint.Poller
org.apache.tomcat.util.net.NioEndpoint.Poller#processKey

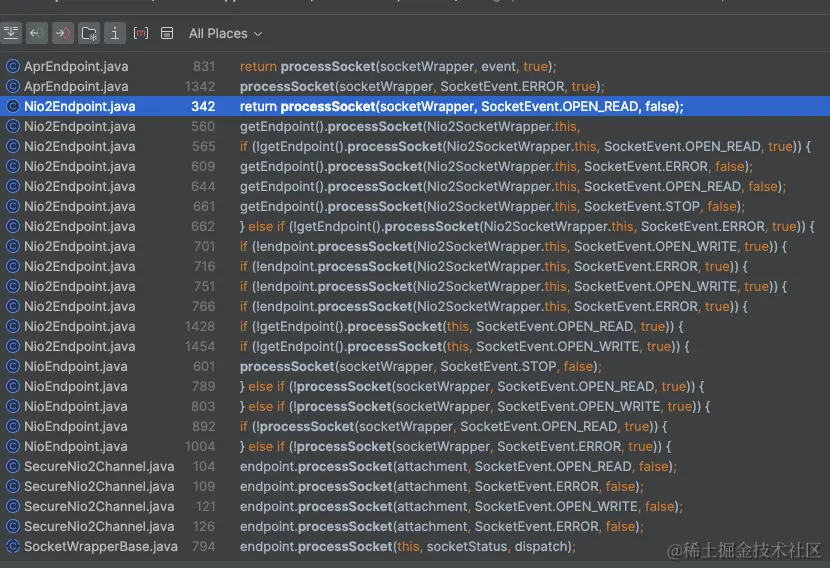

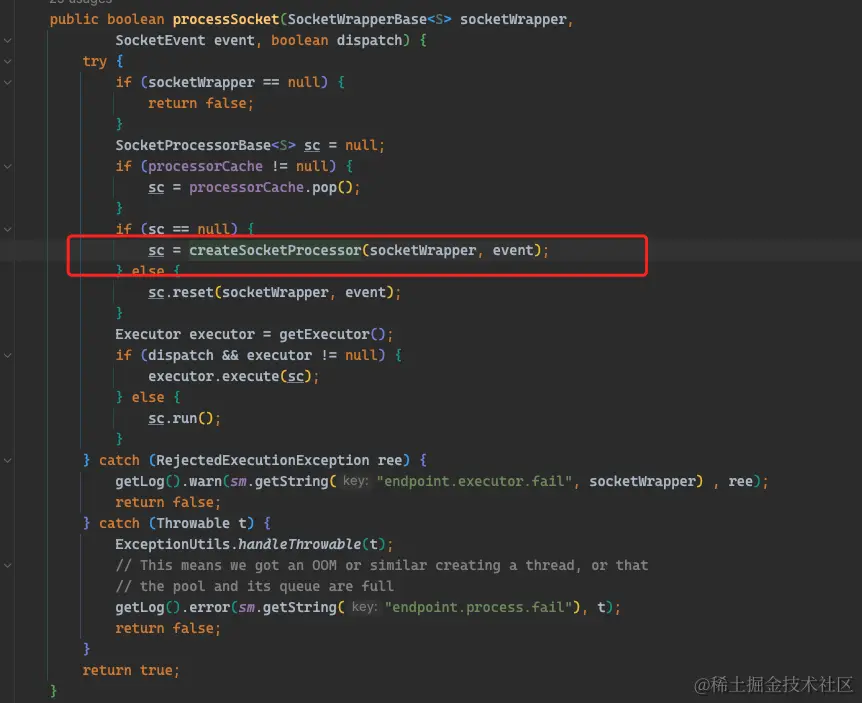

org.apache.tomcat.util.net.AbstractEndpoint#processSocket

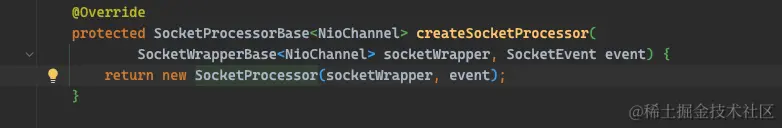

org.apache.tomcat.util.net.NioEndpoint#createSocketProcessor

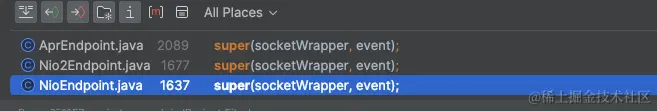

org.apache.tomcat.util.net.NioEndpoint.SocketProcessor

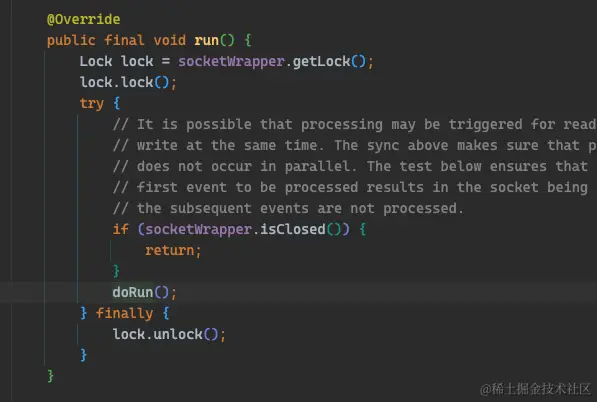

org.apache.tomcat.util.net.SocketProcessorBase

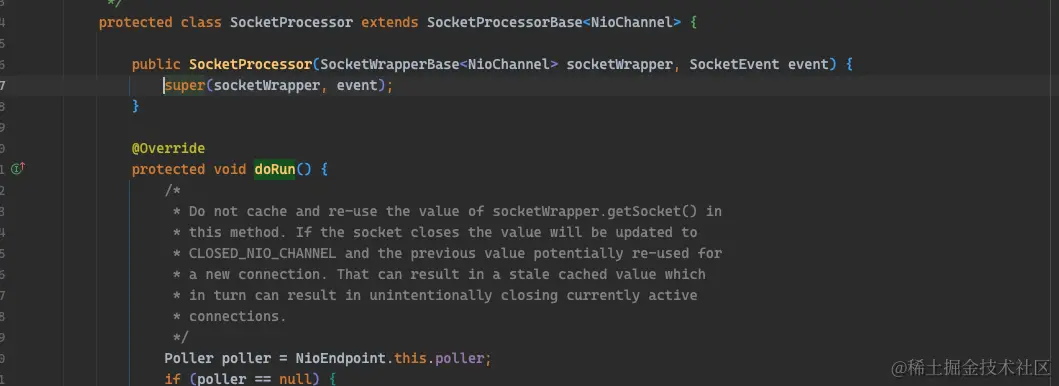

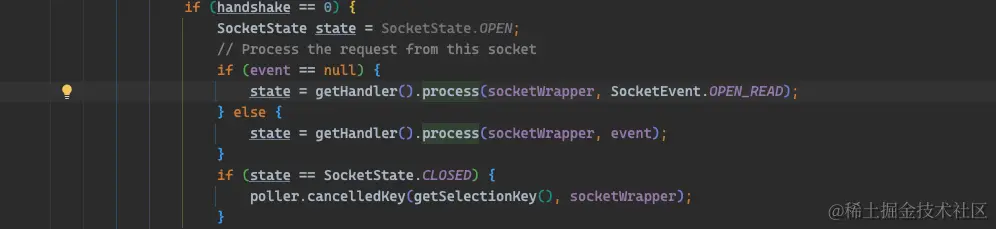

org.apache.tomcat.util.net.NioEndpoint.SocketProcessor#doRun

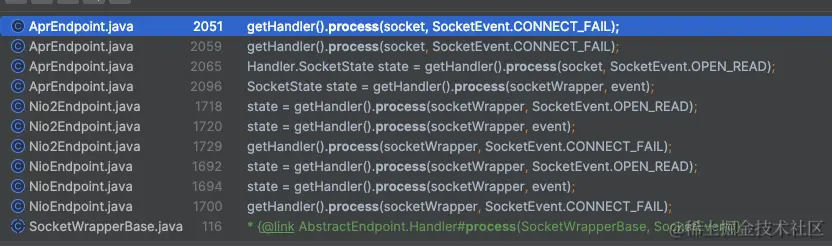

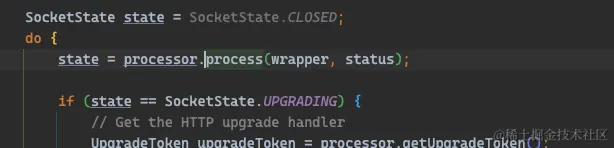

org.apache.coyote.AbstractProtocol.ConnectionHandler#process
org.apache.coyote.AbstractProcessorLight#process
org.apache.catalina.connector.CoyoteAdapter#service 核心逻辑 解析请求
postParseSuccess = postParseRequest(req, request, res, response);
执行功能
if (postParseSuccess) {
// check valves if we support async
request.setAsyncSupported(connector.getService().getContainer().getPipeline().isAsyncSupported());
// Calling the container
connector.getService().getContainer().getPipeline().getFirst().invoke(request, response);
}
全部源码
public void service(org.apache.coyote.Request req, org.apache.coyote.Response res) throws Exception {
Request request = (Request) req.getNote(ADAPTER_NOTES);
Response response = (Response) res.getNote(ADAPTER_NOTES);
if (request == null) {
// Create objects
request = connector.createRequest();
request.setCoyoteRequest(req);
response = connector.createResponse();
response.setCoyoteResponse(res);
// Link objects
request.setResponse(response);
response.setRequest(request);
// Set as notes
req.setNote(ADAPTER_NOTES, request);
res.setNote(ADAPTER_NOTES, response);
// Set query string encoding
req.getParameters().setQueryStringCharset(connector.getURICharset());
}
if (connector.getXpoweredBy()) {
response.addHeader("X-Powered-By", POWERED_BY);
}
boolean async = false;
boolean postParseSuccess = false;
req.setRequestThread();
try {
// Parse and set Catalina and configuration specific
// request parameters
postParseSuccess = postParseRequest(req, request, res, response);
if (postParseSuccess) {
// check valves if we support async
request.setAsyncSupported(connector.getService().getContainer().getPipeline().isAsyncSupported());
// Calling the container
connector.getService().getContainer().getPipeline().getFirst().invoke(request, response);
}
if (request.isAsync()) {
async = true;
ReadListener readListener = req.getReadListener();
if (readListener != null && request.isFinished()) {
// Possible the all data may have been read during service()
// method so this needs to be checked here
ClassLoader oldCL = null;
try {
oldCL = request.getContext().bind(false, null);
if (req.sendAllDataReadEvent()) {
req.getReadListener().onAllDataRead();
}
} finally {
request.getContext().unbind(false, oldCL);
}
}
Throwable throwable = (Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION);
// If an async request was started, is not going to end once
// this container thread finishes and an error occurred, trigger
// the async error process
if (!request.isAsyncCompleting() && throwable != null) {
request.getAsyncContextInternal().setErrorState(throwable, true);
}
} else {
request.finishRequest();
response.finishResponse();
}
} catch (IOException e) {
// Ignore
} finally {
AtomicBoolean error = new AtomicBoolean(false);
res.action(ActionCode.IS_ERROR, error);
if (request.isAsyncCompleting() && error.get()) {
// Connection will be forcibly closed which will prevent
// completion happening at the usual point. Need to trigger
// call to onComplete() here.
res.action(ActionCode.ASYNC_POST_PROCESS, null);
async = false;
}
// Access log
if (!async && postParseSuccess) {
// Log only if processing was invoked.
// If postParseRequest() failed, it has already logged it.
Context context = request.getContext();
Host host = request.getHost();
// If the context is null, it is likely that the endpoint was
// shutdown, this connection closed and the request recycled in
// a different thread. That thread will have updated the access
// log so it is OK not to update the access log here in that
// case.
// The other possibility is that an error occurred early in
// processing and the request could not be mapped to a Context.
// Log via the host or engine in that case.
long time = System.currentTimeMillis() - req.getStartTime();
if (context != null) {
context.logAccess(request, response, time, false);
} else if (response.isError()) {
if (host != null) {
host.logAccess(request, response, time, false);
} else {
connector.getService().getContainer().logAccess(request, response, time, false);
}
}
}
req.getRequestProcessor().setWorkerThreadName(null);
req.clearRequestThread();
// Recycle the wrapper request and response
if (!async) {
updateWrapperErrorCount(request, response);
request.recycle();
response.recycle();
}
}
}
最终会调用StandardWrapperValve#invoke org.apache.catalina.core.StandardWrapperValve#invoke
- 获取对应的过滤器链
- 调用filterChain.doFilter开始执行过滤器
public void invoke(Request request, Response response) throws IOException, ServletException {
// Initialize local variables we may need
boolean unavailable = false;
Throwable throwable = null;
// This should be a Request attribute...
long t1 = System.currentTimeMillis();
requestCount.incrementAndGet();
StandardWrapper wrapper = (StandardWrapper) getContainer();
Servlet servlet = null;
Context context = (Context) wrapper.getParent();
// Check for the application being marked unavailable
if (!context.getState().isAvailable()) {
response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE,
sm.getString("standardContext.isUnavailable"));
unavailable = true;
}
// Check for the servlet being marked unavailable
if (!unavailable && wrapper.isUnavailable()) {
container.getLogger().info(sm.getString("standardWrapper.isUnavailable", wrapper.getName()));
checkWrapperAvailable(response, wrapper);
unavailable = true;
}
// Allocate a servlet instance to process this request
try {
if (!unavailable) {
servlet = wrapper.allocate();
}
} catch (UnavailableException e) {
container.getLogger().error(sm.getString("standardWrapper.allocateException", wrapper.getName()), e);
checkWrapperAvailable(response, wrapper);
} catch (ServletException e) {
container.getLogger().error(sm.getString("standardWrapper.allocateException", wrapper.getName()),
StandardWrapper.getRootCause(e));
throwable = e;
exception(request, response, e);
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger().error(sm.getString("standardWrapper.allocateException", wrapper.getName()), e);
throwable = e;
exception(request, response, e);
servlet = null;
}
MessageBytes requestPathMB = request.getRequestPathMB();
DispatcherType dispatcherType = DispatcherType.REQUEST;
if (request.getDispatcherType() == DispatcherType.ASYNC) {
dispatcherType = DispatcherType.ASYNC;
}
request.setAttribute(Globals.DISPATCHER_TYPE_ATTR, dispatcherType);
request.setAttribute(Globals.DISPATCHER_REQUEST_PATH_ATTR, requestPathMB);
// Create the filter chain for this request
ApplicationFilterChain filterChain = ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);
// Call the filter chain for this request
// NOTE: This also calls the servlet's service() method
Container container = this.container;
try {
if ((servlet != null) && (filterChain != null)) {
// Swallow output if needed
if (context.getSwallowOutput()) {
try {
SystemLogHandler.startCapture();
if (request.isAsyncDispatching()) {
request.getAsyncContextInternal().doInternalDispatch();
} else {
filterChain.doFilter(request.getRequest(), response.getResponse());
}
} finally {
String log = SystemLogHandler.stopCapture();
if (log != null && log.length() > 0) {
context.getLogger().info(log);
}
}
} else {
if (request.isAsyncDispatching()) {
request.getAsyncContextInternal().doInternalDispatch();
} else {
filterChain.doFilter(request.getRequest(), response.getResponse());
}
}
}
} catch (ClientAbortException | CloseNowException e) {
if (container.getLogger().isDebugEnabled()) {
container.getLogger().debug(
sm.getString("standardWrapper.serviceException", wrapper.getName(), context.getName()), e);
}
throwable = e;
exception(request, response, e);
} catch (IOException e) {
container.getLogger()
.error(sm.getString("standardWrapper.serviceException", wrapper.getName(), context.getName()), e);
throwable = e;
exception(request, response, e);
} catch (UnavailableException e) {
container.getLogger()
.error(sm.getString("standardWrapper.serviceException", wrapper.getName(), context.getName()), e);
wrapper.unavailable(e);
checkWrapperAvailable(response, wrapper);
// Do not save exception in 'throwable', because we
// do not want to do exception(request, response, e) processing
} catch (ServletException e) {
Throwable rootCause = StandardWrapper.getRootCause(e);
if (!(rootCause instanceof ClientAbortException)) {
container.getLogger().error(sm.getString("standardWrapper.serviceExceptionRoot", wrapper.getName(),
context.getName(), e.getMessage()), rootCause);
}
throwable = e;
exception(request, response, e);
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger()
.error(sm.getString("standardWrapper.serviceException", wrapper.getName(), context.getName()), e);
throwable = e;
exception(request, response, e);
} finally {
// Release the filter chain (if any) for this request
if (filterChain != null) {
filterChain.release();
}
// Deallocate the allocated servlet instance
try {
if (servlet != null) {
wrapper.deallocate(servlet);
}
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger().error(sm.getString("standardWrapper.deallocateException", wrapper.getName()), e);
if (throwable == null) {
throwable = e;
exception(request, response, e);
}
}
// If this servlet has been marked permanently unavailable,
// unload it and release this instance
try {
if ((servlet != null) && (wrapper.getAvailable() == Long.MAX_VALUE)) {
wrapper.unload();
}
} catch (Throwable e) {
ExceptionUtils.handleThrowable(e);
container.getLogger().error(sm.getString("standardWrapper.unloadException", wrapper.getName()), e);
if (throwable == null) {
exception(request, response, e);
}
}
long t2 = System.currentTimeMillis();
long time = t2 - t1;
processingTime += time;
if (time > maxTime) {
maxTime = time;
}
if (time < minTime) {
minTime = time;
}
}
}
doFilter怼在会调用internalDoFilter
public void doFilter(ServletRequest request, ServletResponse response) throws IOException, ServletException {
if (Globals.IS_SECURITY_ENABLED) {
final ServletRequest req = request;
final ServletResponse res = response;
try {
java.security.AccessController.doPrivileged(new java.security.PrivilegedExceptionAction<Void>() {
@Override
public Void run() throws ServletException, IOException {
internalDoFilter(req, res);
return null;
}
});
} catch (PrivilegedActionException pe) {
Exception e = pe.getException();
if (e instanceof ServletException) {
throw (ServletException) e;
} else if (e instanceof IOException) {
throw (IOException) e;
} else if (e instanceof RuntimeException) {
throw (RuntimeException) e;
} else {
throw new ServletException(e.getMessage(), e);
}
}
} else {
internalDoFilter(request, response);
}
}
internalDoFilter会挨个执行每个Filter的doFilter。当所有的Filter都执行完了就会执行servoclet.service最后进入spring的dispatchServle的doService。 如果没有走到最后一个过滤器，提前最终了就不会执行了。 通过chain.doFilter来决定是否继续。一般的登录场景的话，验证通过了才执行以下代码，否则返回了
chain.doFilter(request, response);
internalDoFilter核心源码如下
private void internalDoFilter(ServletRequest request, ServletResponse response)
throws IOException, ServletException {
// Call the next filter if there is one
if (pos < n) {
ApplicationFilterConfig filterConfig = filters[pos++];
try {
Filter filter = filterConfig.getFilter();
if (request.isAsyncSupported() &&
"false".equalsIgnoreCase(filterConfig.getFilterDef().getAsyncSupported())) {
request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
}
if (Globals.IS_SECURITY_ENABLED) {
final ServletRequest req = request;
final ServletResponse res = response;
Principal principal = ((HttpServletRequest) req).getUserPrincipal();
Object[] args = new Object[] { req, res, this };
SecurityUtil.doAsPrivilege("doFilter", filter, classType, args, principal);
} else {
filter.doFilter(request, response, this);
}
} catch (IOException | ServletException | RuntimeException e) {
throw e;
} catch (Throwable e) {
e = ExceptionUtils.unwrapInvocationTargetException(e);
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("filterChain.filter"), e);
}
return;
}
// We fell off the end of the chain -- call the servlet instance
try {
if (ApplicationDispatcher.WRAP_SAME_OBJECT) {
lastServicedRequest.set(request);
lastServicedResponse.set(response);
}
if (request.isAsyncSupported() && !servletSupportsAsync) {
request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
}
// Use potentially wrapped request from this point
if ((request instanceof HttpServletRequest) && (response instanceof HttpServletResponse) &&
Globals.IS_SECURITY_ENABLED) {
final ServletRequest req = request;
final ServletResponse res = response;
Principal principal = ((HttpServletRequest) req).getUserPrincipal();
Object[] args = new Object[] { req, res };
SecurityUtil.doAsPrivilege("service", servlet, classTypeUsedInService, args, principal);
} else {
servlet.service(request, response);
}
} catch (IOException | ServletException | RuntimeException e) {
throw e;
} catch (Throwable e) {
e = ExceptionUtils.unwrapInvocationTargetException(e);
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("filterChain.servlet"), e);
} finally {
if (ApplicationDispatcher.WRAP_SAME_OBJECT) {
lastServicedRequest.set(null);
lastServicedResponse.set(null);
}
}
}
总结
大致梳理了核心的处理流程。可以跟着debug源码走一遍。
