Kubernetes 存储系统 动态供应

云原生 从docker、Jenkins、Kubernetes从入门到精通系列

1、动态供应

静态供应：

• 集群管理员创建若干 PV 卷。这些卷对象带有真实存储的细节信息，并且对集群 用户可用（可见）。PV 卷对象存在于 Kubernetes API 中，可供用户消费（使用）

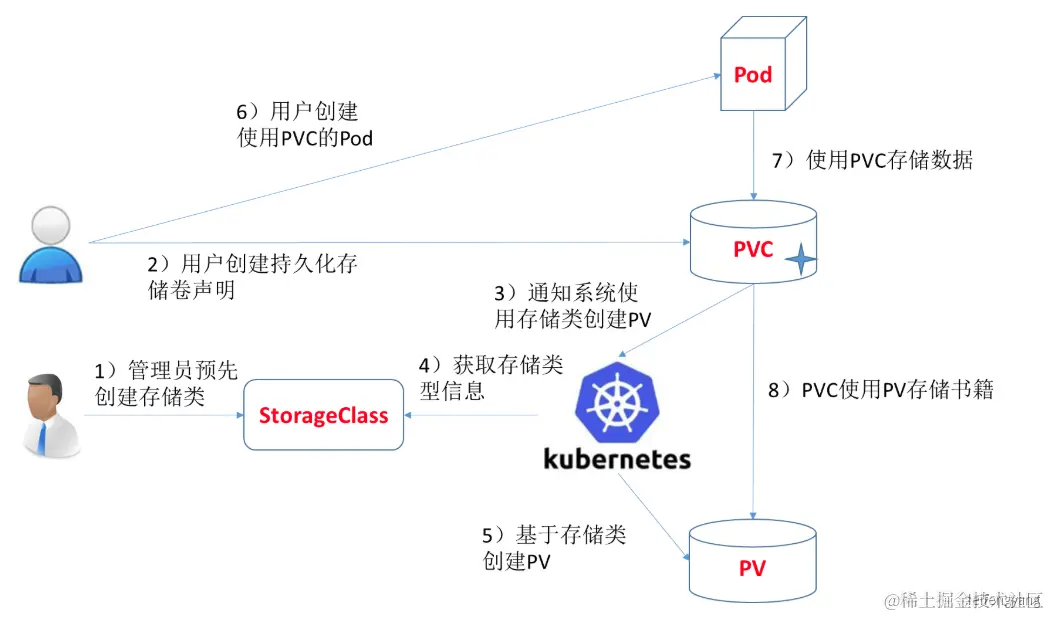

动态供应：

• 集群自动根据PVC创建出对应PV进行使用

1、设置nfs动态供应

设置nfs动态供应的git地址。 按照文档部署，并将镜像换成 registry.cn-hangzhou.aliyuncs.com/lfy\_k8s\_images/nfs-subdir-external-provisioner:v4.0.2 即可.

vi nfs-provisioner.yaml

## 创建了一个存储类
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: managed-nfs-storage
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"
provisioner: k8s-sigs.io/nfs-subdir-external-provisioner
#provisioner指定一个供应商的名字。
#必须匹配 k8s-deployment 的 env PROVISIONER_NAME的值
parameters:
  archiveOnDelete: "true"  ## 删除pv的时候，pv的内容是否要备份
  #### 这里可以调整供应商能力。

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-client-provisioner
  labels:
    app: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: default
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/nfs-subdir-external-provisioner:v4.0.2
          # resources:
          #    limits:
          #      cpu: 10m
          #    requests:
          #      cpu: 10m
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: k8s-sigs.io/nfs-subdir-external-provisioner
            - name: NFS_SERVER
              value: 192.168.219.130 ## 指定自己nfs服务器地址
            - name: NFS_PATH
              value: /nfs/data  ## nfs服务器共享的目录
      volumes:
        - name: nfs-client-root
          nfs:
            server: 192.168.219.130
            path: /nfs/data
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: default
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nfs-client-provisioner-runner
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: run-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: default
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: default
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: default
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: default
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io

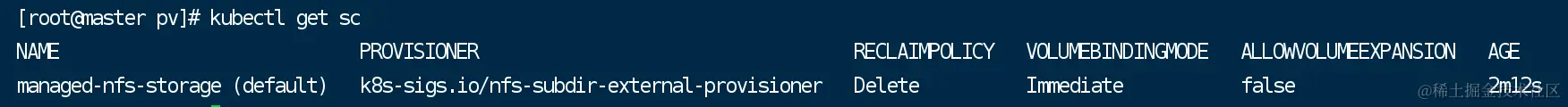

发现这是默认驱动,是因为我在命令里面已经更改过，如果是官方的则不是默认的,如果不是则需要再写PVC的时候指定。

2、测试nfs动态供应

新创建一个容器和PVC

apiVersion: v1
kind: Pod
metadata:
  name: "nginx-666-pvc-000"
  namespace: default
  labels:
    app: "nginx-666-pvc-000"
spec:
  containers:
  - name: nginx-666-pvc-000
    image: "nginx"
    ports:
    - containerPort:  80
      name:  http
    volumeMounts:
    - name: localtime
      mountPath: /etc/localtime
    - name: html
      mountPath: /usr/share/nginx/html
  volumes:
    - name: localtime
      hostPath:
        path: /usr/share/zoneinfo/Asia/Shanghai
    - name: html
      persistentVolumeClaim:
         claimName:  nginx-666-pvc  ### 你的申请书的名字
  restartPolicy: Always
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: nginx-666-pvc
  namespace: default
  labels:
    app: nginx-666-pvc
spec:
  storageClassName: managed-nfs-storage  ## 存储类的名字
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 70m
# ---
# apiVersion: v1
# kind: Service
# metadata:
#   name: MYAPP
#   namespace: default
# spec:
#   selector:
#     app: MYAPP
#   type: ClusterIP
#   ports:
#   - name: MYAPP
#     port:
#     targetPort:
#     protocol: TCP
#     nodePort:

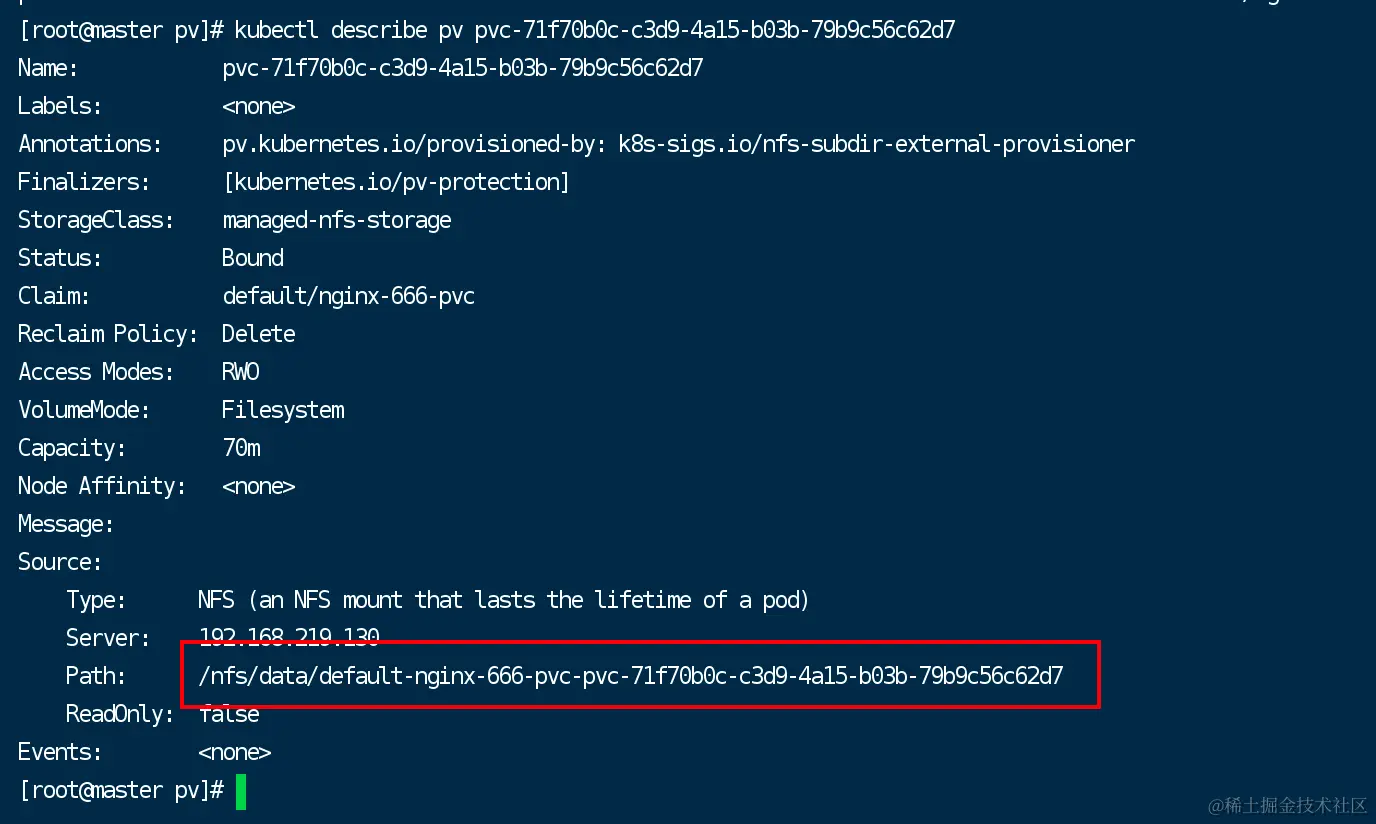

我们不用创建PV池，他帮我们创建好了。

2、指定一个sc为默认驱动

StorageClass

kubectl patch storageclass standard -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"false"}}}'
