一、springboot的默认异常处理规则

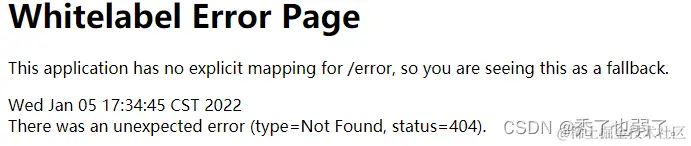

1.浏览器访问不存在的资源会返回404页面

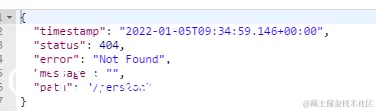

2.用postman访问不存在的资源会响应json
3.如果用浏览器访问资源后台报错，会响应500错误页面

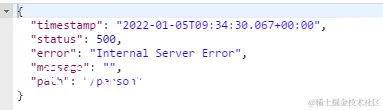

4.如果用postman访问资源后台报错，会响应json数据
二、自定义错误页面
1.设置自定义错误页面
（1）在静态资源目录下（/static (or /public or /resources or /META-INF/resources），或者模板目录下（/templates） 放一个/error目录。
然后在里面放上对应的4xx.html、5xx.html。
再在浏览器访问4xx错误、5xx错误，就会显示新增的4xx.html、5xx.html页面。
2.500页面取出错误信息
会将以下的信息放到请求域中。
${message} // 错误信息
${trace} // 堆栈信息
${status} // 错误码
三、异常处理的自动配置原理
1.ErrorMvcAutoConfiguration
ErrorMvcAutoConfiguration 自动配置了默认的异常处理规则
@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class })
// Load before the main WebMvcAutoConfiguration so that the error View is available
// 在mvc配置好之后再配置该类
@AutoConfigureBefore(WebMvcAutoConfiguration.class)
// 绑定一些配置属性
@EnableConfigurationProperties({ ServerProperties.class, ResourceProperties.class, WebMvcProperties.class })
public class ErrorMvcAutoConfiguration {
private final ServerProperties serverProperties;
public ErrorMvcAutoConfiguration(ServerProperties serverProperties) {
this.serverProperties = serverProperties;
}
// 注册一个DefaultErrorAttributes组件，id为errorAttributes，实现了ErrorAttributes, HandlerExceptionResolver, Ordered接口
@Bean
@ConditionalOnMissingBean(value = ErrorAttributes.class, search = SearchStrategy.CURRENT)
public DefaultErrorAttributes errorAttributes() {
return new DefaultErrorAttributes();
}
// 注册一个BasicErrorController，id为basicErrorController
@Bean
@ConditionalOnMissingBean(value = ErrorController.class, search = SearchStrategy.CURRENT)
public BasicErrorController basicErrorController(ErrorAttributes errorAttributes,
ObjectProvider<ErrorViewResolver> errorViewResolvers) {
return new BasicErrorController(errorAttributes, this.serverProperties.getError(),
errorViewResolvers.orderedStream().collect(Collectors.toList()));
}
// 错误页的定制化器
@Bean
public ErrorPageCustomizer errorPageCustomizer(DispatcherServletPath dispatcherServletPath) {
return new ErrorPageCustomizer(this.serverProperties, dispatcherServletPath);
}
@Bean
public static PreserveErrorControllerTargetClassPostProcessor preserveErrorControllerTargetClassPostProcessor() {
return new PreserveErrorControllerTargetClassPostProcessor();
}
@Configuration(proxyBeanMethods = false)
static class DefaultErrorViewResolverConfiguration {
private final ApplicationContext applicationContext;
private final ResourceProperties resourceProperties;
DefaultErrorViewResolverConfiguration(ApplicationContext applicationContext,
ResourceProperties resourceProperties) {
this.applicationContext = applicationContext;
this.resourceProperties = resourceProperties;
}
// 配置一个错误视图解析器
@Bean
@ConditionalOnBean(DispatcherServlet.class)
@ConditionalOnMissingBean(ErrorViewResolver.class)
DefaultErrorViewResolver conventionErrorViewResolver() {
return new DefaultErrorViewResolver(this.applicationContext, this.resourceProperties);
}
}
@Configuration(proxyBeanMethods = false)
@ConditionalOnProperty(prefix = "server.error.whitelabel", name = "enabled", matchIfMissing = true)
@Conditional(ErrorTemplateMissingCondition.class)
protected static class WhitelabelErrorViewConfiguration {
private final StaticView defaultErrorView = new StaticView();
// 容器中还会放一个View组件，id为error，该View会响应默认错误页
@Bean(name = "error")
@ConditionalOnMissingBean(name = "error")
public View defaultErrorView() {
return this.defaultErrorView;
}
// If the user adds @EnableWebMvc then the bean name view resolver from
// WebMvcAutoConfiguration disappears, so add it back in to avoid disappointment.
// 容器中放组件 BeanNameViewResolver（视图解析器）；按照返回的视图名作为组件的id去容器中找View对象。
@Bean
@ConditionalOnMissingBean
public BeanNameViewResolver beanNameViewResolver() {
BeanNameViewResolver resolver = new BeanNameViewResolver();
resolver.setOrder(Ordered.LOWEST_PRECEDENCE - 10);
return resolver;
}
}
/**
* {@link SpringBootCondition} that matches when no error template view is detected.
*/
private static class ErrorTemplateMissingCondition extends SpringBootCondition {
@Override
public ConditionOutcome getMatchOutcome(ConditionContext context, AnnotatedTypeMetadata metadata) {
ConditionMessage.Builder message = ConditionMessage.forCondition("ErrorTemplate Missing");
TemplateAvailabilityProviders providers = new TemplateAvailabilityProviders(context.getClassLoader());
TemplateAvailabilityProvider provider = providers.getProvider("error", context.getEnvironment(),
context.getClassLoader(), context.getResourceLoader());
if (provider != null) {
return ConditionOutcome.noMatch(message.foundExactly("template from " + provider));
}
return ConditionOutcome.match(message.didNotFind("error template view").atAll());
}
}
/**
* Simple {@link View} implementation that writes a default HTML error page.响应默认错误页
*/
private static class StaticView implements View {
private static final MediaType TEXT_HTML_UTF8 = new MediaType("text", "html", StandardCharsets.UTF_8);
private static final Log logger = LogFactory.getLog(StaticView.class);
@Override
public void render(Map<String, ?> model, HttpServletRequest request, HttpServletResponse response)
throws Exception {
if (response.isCommitted()) {
String message = getMessage(model);
logger.error(message);
return;
}
response.setContentType(TEXT_HTML_UTF8.toString());
StringBuilder builder = new StringBuilder();
Object timestamp = model.get("timestamp");
Object message = model.get("message");
Object trace = model.get("trace");
if (response.getContentType() == null) {
response.setContentType(getContentType());
}
builder.append("<html><body><h1>Whitelabel Error Page</h1>").append(
"<p>This application has no explicit mapping for /error, so you are seeing this as a fallback.</p>")
.append("<div id='created'>").append(timestamp).append("</div>")
.append("<div>There was an unexpected error (type=").append(htmlEscape(model.get("error")))
.append(", status=").append(htmlEscape(model.get("status"))).append(").</div>");
if (message != null) {
builder.append("<div>").append(htmlEscape(message)).append("</div>");
}
if (trace != null) {
builder.append("<div style='white-space:pre-wrap;'>").append(htmlEscape(trace)).append("</div>");
}
builder.append("</body></html>");
response.getWriter().append(builder.toString());
}
private String htmlEscape(Object input) {
return (input != null) ? HtmlUtils.htmlEscape(input.toString()) : null;
}
private String getMessage(Map<String, ?> model) {
Object path = model.get("path");
String message = "Cannot render error page for request [" + path + "]";
if (model.get("message") != null) {
message += " and exception [" + model.get("message") + "]";
}
message += " as the response has already been committed.";
message += " As a result, the response may have the wrong status code.";
return message;
}
@Override
public String getContentType() {
return "text/html";
}
}
……
}
2.BasicErrorController
处理默认 /error 路径的请求，可以通过配置server.error.path或者error.path修改。
页面响应 new ModelAndView("error", model)；
可以依据内容协商 响应白页（浏览器）、json（客户端）。
内容协商参考博文：blog.csdn.net/A_art_xiang…
@Controller
@RequestMapping("${server.error.path:${error.path:/error}}")
public class BasicErrorController extends AbstractErrorController {
private final ErrorProperties errorProperties;
/**
* Create a new {@link BasicErrorController} instance.
* @param errorAttributes the error attributes
* @param errorProperties configuration properties
*/
public BasicErrorController(ErrorAttributes errorAttributes, ErrorProperties errorProperties) {
this(errorAttributes, errorProperties, Collections.emptyList());
}
/**
* Create a new {@link BasicErrorController} instance.
* @param errorAttributes the error attributes
* @param errorProperties configuration properties
* @param errorViewResolvers error view resolvers
*/
public BasicErrorController(ErrorAttributes errorAttributes, ErrorProperties errorProperties,
List<ErrorViewResolver> errorViewResolvers) {
super(errorAttributes, errorViewResolvers);
Assert.notNull(errorProperties, "ErrorProperties must not be null");
this.errorProperties = errorProperties;
}
@Override
public String getErrorPath() {
return null;
}
// 写出html，寻找error视图
@RequestMapping(produces = MediaType.TEXT_HTML_VALUE)
public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {
HttpStatus status = getStatus(request);
Map<String, Object> model = Collections
.unmodifiableMap(getErrorAttributes(request, getErrorAttributeOptions(request, MediaType.TEXT_HTML)));
response.setStatus(status.value());
ModelAndView modelAndView = resolveErrorView(request, response, status, model);
return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);
}
// 写出去json数据
@RequestMapping
public ResponseEntity<Map<String, Object>> error(HttpServletRequest request) {
HttpStatus status = getStatus(request);
if (status == HttpStatus.NO_CONTENT) {
return new ResponseEntity<>(status);
}
Map<String, Object> body = getErrorAttributes(request, getErrorAttributeOptions(request, MediaType.ALL));
return new ResponseEntity<>(body, status);
}
@ExceptionHandler(HttpMediaTypeNotAcceptableException.class)
public ResponseEntity<String> mediaTypeNotAcceptable(HttpServletRequest request) {
HttpStatus status = getStatus(request);
return ResponseEntity.status(status).build();
}
……
}
3.DefaultErrorViewResolver
默认的错误视图解析器
public class DefaultErrorViewResolver implements ErrorViewResolver, Ordered {
private static final Map<Series, String> SERIES_VIEWS;
static {
Map<Series, String> views = new EnumMap<>(Series.class);
views.put(Series.CLIENT_ERROR, "4xx");
views.put(Series.SERVER_ERROR, "5xx");
SERIES_VIEWS = Collections.unmodifiableMap(views);
}
private ApplicationContext applicationContext;
private final ResourceProperties resourceProperties;
private final TemplateAvailabilityProviders templateAvailabilityProviders;
private int order = Ordered.LOWEST_PRECEDENCE;
/**
* Create a new {@link DefaultErrorViewResolver} instance.
* @param applicationContext the source application context
* @param resourceProperties resource properties
*/
public DefaultErrorViewResolver(ApplicationContext applicationContext, ResourceProperties resourceProperties) {
Assert.notNull(applicationContext, "ApplicationContext must not be null");
Assert.notNull(resourceProperties, "ResourceProperties must not be null");
this.applicationContext = applicationContext;
this.resourceProperties = resourceProperties;
this.templateAvailabilityProviders = new TemplateAvailabilityProviders(applicationContext);
}
DefaultErrorViewResolver(ApplicationContext applicationContext, ResourceProperties resourceProperties,
TemplateAvailabilityProviders templateAvailabilityProviders) {
Assert.notNull(applicationContext, "ApplicationContext must not be null");
Assert.notNull(resourceProperties, "ResourceProperties must not be null");
this.applicationContext = applicationContext;
this.resourceProperties = resourceProperties;
this.templateAvailabilityProviders = templateAvailabilityProviders;
}
// 解析得到视图对象
@Override
public ModelAndView resolveErrorView(HttpServletRequest request, HttpStatus status, Map<String, Object> model) {
ModelAndView modelAndView = resolve(String.valueOf(status.value()), model);
if (modelAndView == null && SERIES_VIEWS.containsKey(status.series())) {
modelAndView = resolve(SERIES_VIEWS.get(status.series()), model); //获取跳转的页面，以http状态码命名的html页面。
}
return modelAndView;
}
private ModelAndView resolve(String viewName, Map<String, Object> model) {
String errorViewName = "error/" + viewName; // 添加一个/errpr/+视图名
TemplateAvailabilityProvider provider = this.templateAvailabilityProviders.getProvider(errorViewName,
this.applicationContext);
if (provider != null) {
return new ModelAndView(errorViewName, model);
}
return resolveResource(errorViewName, model);
}
private ModelAndView resolveResource(String viewName, Map<String, Object> model) {
for (String location : this.resourceProperties.getStaticLocations()) {
try {
Resource resource = this.applicationContext.getResource(location);
resource = resource.createRelative(viewName + ".html");
if (resource.exists()) {
return new ModelAndView(new HtmlResourceView(resource), model);
}
}
catch (Exception ex) {
}
}
return null;
}
@Override
public int getOrder() {
return this.order;
}
public void setOrder(int order) {
this.order = order;
}
/**
* {@link View} backed by an HTML resource.
*/
private static class HtmlResourceView implements View {
private Resource resource;
HtmlResourceView(Resource resource) {
this.resource = resource;
}
@Override
public String getContentType() {
return MediaType.TEXT_HTML_VALUE;
}
@Override
public void render(Map<String, ?> model, HttpServletRequest request, HttpServletResponse response)
throws Exception {
response.setContentType(getContentType());
FileCopyUtils.copy(this.resource.getInputStream(), response.getOutputStream());
}
}
}
4.DefaultErrorAttributes
DefaultErrorAttributes：定义错误页面中可以包含哪些数据。
@Order(Ordered.HIGHEST_PRECEDENCE)
public class DefaultErrorAttributes implements ErrorAttributes, HandlerExceptionResolver, Ordered {
private static final String ERROR_ATTRIBUTE = DefaultErrorAttributes.class.getName() + ".ERROR";
private final Boolean includeException;
/**
* Create a new {@link DefaultErrorAttributes} instance.
*/
public DefaultErrorAttributes() {
this.includeException = null;
}
/**
* Create a new {@link DefaultErrorAttributes} instance.
* @param includeException whether to include the "exception" attribute
* @deprecated since 2.3.0 in favor of
* {@link ErrorAttributeOptions#including(Include...)}
*/
@Deprecated
public DefaultErrorAttributes(boolean includeException) {
this.includeException = includeException;
}
@Override
public int getOrder() {
return Ordered.HIGHEST_PRECEDENCE;
}
// 返回ModelAndview，一个最终跳转的页面地址
@Override
public ModelAndView resolveException(HttpServletRequest request, HttpServletResponse response, Object handler,
Exception ex) {
// 保存错误的属性
storeErrorAttributes(request, ex);
return null;
}
private void storeErrorAttributes(HttpServletRequest request, Exception ex) {
request.setAttribute(ERROR_ATTRIBUTE, ex);
}
// 可以保存的属性
@Override
public Map<String, Object> getErrorAttributes(WebRequest webRequest, ErrorAttributeOptions options) {
Map<String, Object> errorAttributes = getErrorAttributes(webRequest, options.isIncluded(Include.STACK_TRACE));
if (Boolean.TRUE.equals(this.includeException)) {
options = options.including(Include.EXCEPTION);
}
if (!options.isIncluded(Include.EXCEPTION)) {
errorAttributes.remove("exception");
}
if (!options.isIncluded(Include.STACK_TRACE)) {
errorAttributes.remove("trace");
}
if (!options.isIncluded(Include.MESSAGE) && errorAttributes.get("message") != null) {
errorAttributes.put("message", "");
}
if (!options.isIncluded(Include.BINDING_ERRORS)) {
errorAttributes.remove("errors");
}
return errorAttributes;
}
// 属性
@Override
@Deprecated
public Map<String, Object> getErrorAttributes(WebRequest webRequest, boolean includeStackTrace) {
Map<String, Object> errorAttributes = new LinkedHashMap<>();
errorAttributes.put("timestamp", new Date());
addStatus(errorAttributes, webRequest);
addErrorDetails(errorAttributes, webRequest, includeStackTrace);
addPath(errorAttributes, webRequest);
return errorAttributes;
}
// 属性
private void addStatus(Map<String, Object> errorAttributes, RequestAttributes requestAttributes) {
Integer status = getAttribute(requestAttributes, RequestDispatcher.ERROR_STATUS_CODE);
if (status == null) {
errorAttributes.put("status", 999);
errorAttributes.put("error", "None");
return;
}
errorAttributes.put("status", status);
try {
errorAttributes.put("error", HttpStatus.valueOf(status).getReasonPhrase());
}
catch (Exception ex) {
// Unable to obtain a reason
errorAttributes.put("error", "Http Status " + status);
}
}
// 异常信息
private void addErrorDetails(Map<String, Object> errorAttributes, WebRequest webRequest,
boolean includeStackTrace) {
Throwable error = getError(webRequest);
if (error != null) {
while (error instanceof ServletException && error.getCause() != null) {
error = error.getCause();
}
errorAttributes.put("exception", error.getClass().getName());
if (includeStackTrace) {
addStackTrace(errorAttributes, error);
}
}
addErrorMessage(errorAttributes, webRequest, error);
}
private void addErrorMessage(Map<String, Object> errorAttributes, WebRequest webRequest, Throwable error) {
BindingResult result = extractBindingResult(error);
if (result == null) {
addExceptionErrorMessage(errorAttributes, webRequest, error);
}
else {
addBindingResultErrorMessage(errorAttributes, result);
}
}
private void addExceptionErrorMessage(Map<String, Object> errorAttributes, WebRequest webRequest, Throwable error) {
Object message = getAttribute(webRequest, RequestDispatcher.ERROR_MESSAGE);
if (StringUtils.isEmpty(message) && error != null) {
message = error.getMessage();
}
if (StringUtils.isEmpty(message)) {
message = "No message available";
}
errorAttributes.put("message", message);
}
private void addBindingResultErrorMessage(Map<String, Object> errorAttributes, BindingResult result) {
errorAttributes.put("message", "Validation failed for object='" + result.getObjectName() + "'. "
+ "Error count: " + result.getErrorCount());
errorAttributes.put("errors", result.getAllErrors());
}
private BindingResult extractBindingResult(Throwable error) {
if (error instanceof BindingResult) {
return (BindingResult) error;
}
if (error instanceof MethodArgumentNotValidException) {
return ((MethodArgumentNotValidException) error).getBindingResult();
}
return null;
}
private void addStackTrace(Map<String, Object> errorAttributes, Throwable error) {
StringWriter stackTrace = new StringWriter();
error.printStackTrace(new PrintWriter(stackTrace));
stackTrace.flush();
errorAttributes.put("trace", stackTrace.toString());
}
// 错误路径
private void addPath(Map<String, Object> errorAttributes, RequestAttributes requestAttributes) {
String path = getAttribute(requestAttributes, RequestDispatcher.ERROR_REQUEST_URI);
if (path != null) {
errorAttributes.put("path", path);
}
}
@Override
public Throwable getError(WebRequest webRequest) {
Throwable exception = getAttribute(webRequest, ERROR_ATTRIBUTE);
return (exception != null) ? exception : getAttribute(webRequest, RequestDispatcher.ERROR_EXCEPTION);
}
@SuppressWarnings("unchecked")
private <T> T getAttribute(RequestAttributes requestAttributes, String name) {
return (T) requestAttributes.getAttribute(name, RequestAttributes.SCOPE_REQUEST);
}
}
5.总结
错误 -> /error -> BasicErrorController -> 按照bean名字查找错误view -> DefaultErrorViewResolver以http状态作为视图页地址找到视图（404/5xx） -> 如果是浏览器就响应白页，postman就响应json
四、默认异常处理流程
1.springmvc处理逻辑参考博文
springBoot-springMVC请求处理原理_私人博客，有需要请联系17854238061（vx同号）-CSDN博客
2.DispatcherServlet的doDispatch方法
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
HandlerExecutionChain mappedHandler = null;
boolean multipartRequestParsed = false;
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// Determine handler for the current request.
mappedHandler = getHandler(processedRequest);
if (mappedHandler == null) {
noHandlerFound(processedRequest, response);
return;
}
// Determine handler adapter for the current request.
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// 执行目标方法，目标方法有任何异常都会被catch住
// Actually invoke the handler.
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
applyDefaultViewName(processedRequest, mv);
mappedHandler.applyPostHandle(processedRequest, response, mv);
}
// 执行目标方法，目标方法运行期间有任何异常都会被catch、而且标志当前请求结束；并且用 dispatchException封装。
catch (Exception ex) {
dispatchException = ex;
}
catch (Throwable err) {
// As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err);
}
// 进入视图解析流程（是否出现异常都会执行），如果出现异常，mv就会是null
// 默认最终会抛出一个异常，被下面捕获（详见4、5）
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
}
// 异常被捕获，但是未处理，又抛出异常。
catch (Exception ex) {
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
}
catch (Throwable err) {
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
}
finally {
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
}
else {
// Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}
3.视图解析流程
private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
@Nullable Exception exception) throws Exception {
boolean errorView = false;
// 如果有异常，会进入异常处理
if (exception != null) {
if (exception instanceof ModelAndViewDefiningException) {
logger.debug("ModelAndViewDefiningException encountered", exception);
mv = ((ModelAndViewDefiningException) exception).getModelAndView();
}
else { //进入
Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
// 处理handler的异常。mv会被重新定义
mv = processHandlerException(request, response, handler, exception);
errorView = (mv != null);
}
}
// Did the handler return a view to render?
if (mv != null && !mv.wasCleared()) {
render(mv, request, response);
if (errorView) {
WebUtils.clearErrorRequestAttributes(request);
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace("No view rendering, null ModelAndView returned.");
}
}
if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Concurrent handling started during a forward
return;
}
if (mappedHandler != null) {
// Exception (if any) is already handled..
mappedHandler.triggerAfterCompletion(request, response, null);
}
}
4.处理handler发生的异常
处理handler发生的异常，处理完成返回ModelAndView
@Nullable
protected ModelAndView processHandlerException(HttpServletRequest request, HttpServletResponse response,
@Nullable Object handler, Exception ex) throws Exception {
// 移出request中的一些属性
// Success and error responses may use different content types
request.removeAttribute(HandlerMapping.PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE);
// Check registered HandlerExceptionResolvers...
ModelAndView exMv = null;

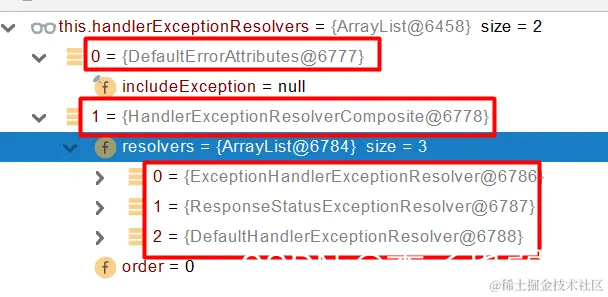

// 遍历所有的 handlerExceptionResolvers，看谁能处理当前异常【HandlerExceptionResolver是一个处理器异常解析器】
if (this.handlerExceptionResolvers != null) {
for (HandlerExceptionResolver resolver : this.handlerExceptionResolvers) {
// 调用异常解析器的resolveException方法，默认没有任何人能处理异常，所以异常会被抛出
exMv = resolver.resolveException(request, response, handler, ex);
if (exMv != null) {
break;
}
}
}
if (exMv != null) {
if (exMv.isEmpty()) {
request.setAttribute(EXCEPTION_ATTRIBUTE, ex);
return null;
}
// We might still need view name translation for a plain error model...
if (!exMv.hasView()) {
String defaultViewName = getDefaultViewName(request);
if (defaultViewName != null) {
exMv.setViewName(defaultViewName);
}
}
if (logger.isTraceEnabled()) {
logger.trace("Using resolved error view: " + exMv, ex);
}
else if (logger.isDebugEnabled()) {
logger.debug("Using resolved error view: " + exMv);
}
WebUtils.exposeErrorRequestAttributes(request, ex, getServletName());
return exMv;
}
// 默认没有任何人能处理异常，所以异常会被抛出
throw ex;
}
5.系统默认的异常解析器
（1）DefaultErrorAttributes先来处理异常。把异常信息保存到request域，并且返回null
// org.springframework.boot.web.servlet.error.DefaultErrorAttributes#resolveException
@Override
public ModelAndView resolveException(HttpServletRequest request, HttpServletResponse response, Object handler,
Exception ex) {
// 保存错误属性
storeErrorAttributes(request, ex);
return null;
}
（2）HandlerExceptionResolverComposite里面有三个resolver，会遍历执行
// org.springframework.web.servlet.handler.HandlerExceptionResolverComposite#resolveException
@Override
@Nullable
public ModelAndView resolveException(
HttpServletRequest request, HttpServletResponse response, @Nullable Object handler, Exception ex) {
if (this.resolvers != null) {
for (HandlerExceptionResolver handlerExceptionResolver : this.resolvers) {
ModelAndView mav = handlerExceptionResolver.resolveException(request, response, handler, ex);
if (mav != null) {
return mav;
}
}
}
return null;
}
（3）其他三个解析器会走父类
// org.springframework.web.servlet.handler.AbstractHandlerExceptionResolver#resolveException
@Override
@Nullable
public ModelAndView resolveException(
HttpServletRequest request, HttpServletResponse response, @Nullable Object handler, Exception ex) {
if (shouldApplyTo(request, handler)) {
prepareResponse(ex, response);
// 解析异常
ModelAndView result = doResolveException(request, response, handler, ex);
if (result != null) {
// Print debug message when warn logger is not enabled.
if (logger.isDebugEnabled() && (this.warnLogger == null || !this.warnLogger.isWarnEnabled())) {
logger.debug("Resolved [" + ex + "]" + (result.isEmpty() ? "" : " to " + result));
}
// Explicitly configured warn logger in logException method.
logException(ex, request);
}
return result;
}
else {
return null;
}
}
6.如果没有任何处理器能处理异常
（1）最终底层就会转发到 /error 请求，/error请求会被底层的BasicErrorController处理（详看上面）。
（2）解析错误视图；遍历所有的 ErrorViewResolver 看谁能解析。
（3）默认的 DefaultErrorViewResolver ,作用是把响应状态码作为错误页的地址，error/500.html
（4）模板引擎最终响应这个页面 error/500.html
五、自定义错误处理逻辑
1.自定义错误页面
详情见上面。
2.@ControllerAdvice+@ExceptionHandler处理全局异常（推荐）
@ControllerAdvice+@ExceptionHandler处理全局异常；底层是 ExceptionHandlerExceptionResolver 支持的
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;
/**
* 处理整个web controller的异常
*/
@Slf4j
@ControllerAdvice
public class GlobalExceptionHandler {
@ResponseBody // 可以不加，返回一个视图
@ExceptionHandler({ArithmeticException.class,NullPointerException.class}) //指定处理的异常
public String handleArithException(Exception e){
log.error("异常是：{}",e);
return "exception handle success";
}
}
3.@ResponseStatus+自定义异常
用处：发生该异常会响应指定的错误码，可以定义错误码对应的错误页面。
底层是 ResponseStatusExceptionResolver ，把responsestatus注解的信息底层调用 response.sendError(statusCode, resolvedReason)；相当于给tomcat发送的/error。
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ResponseStatus;
// 返回一个状态码
@ResponseStatus(value= HttpStatus.FORBIDDEN,reason = "我的自定义异常")
public class MyException extends RuntimeException {
public MyException(){}
public MyException(String message){
super(message);
}
}
4.Spring底层的异常
Spring底层封装了一些异常，这些异常会有默认的异常处理逻辑。
如：
参数类型转换异常；DefaultHandlerExceptionResolver，也是会调用 response.sendError(statusCode, resolvedReason)；相当于给tomcat发送的/error。
5.自定义异常解析器
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerExceptionResolver;
import org.springframework.web.servlet.ModelAndView;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
@Order(value= Ordered.HIGHEST_PRECEDENCE) //优先级，数字越小优先级越高
@Component
public class MyHandlerExceptionResolver implements HandlerExceptionResolver {
@Override
public ModelAndView resolveException(HttpServletRequest request,
HttpServletResponse response,
Object handler, Exception ex) {
try {
// 写出数据
response.sendError(511,"我喜欢的错误");
} catch (IOException e) {
e.printStackTrace();
}
return new ModelAndView();
}
}
