步骤
下载入门启动
需下载 docker
docker search jenkins
docker pull jenkins/jenkins:lts
docker run -d -u root -p 8080:8080 -p 50000:50000 -v /var/jenkins_home:/var/jenkins_home -v /etc/localtime:/etc/localtime --name jenkins jenkins/jenkins:lts
docker start jenkins
用 log 查看密码
67166b666c76 为启动容器编号
docker logs 67166b666c76
访问 8080 端口 也可也在上面命令自行定义

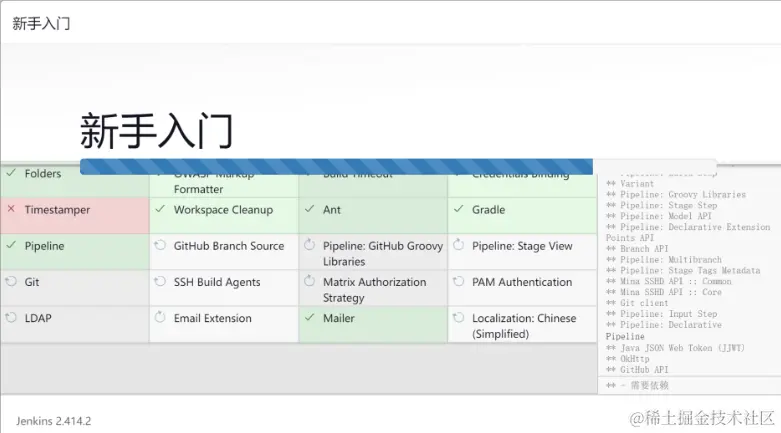

安装 推荐插件
创建第一个管理员用户
新建任务

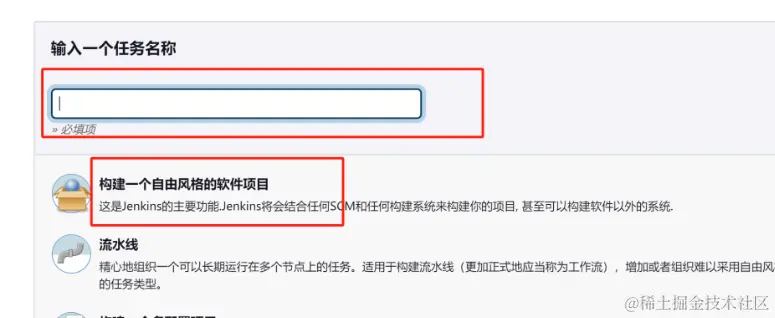

上面输入任务名称，下面选择构建自由风格

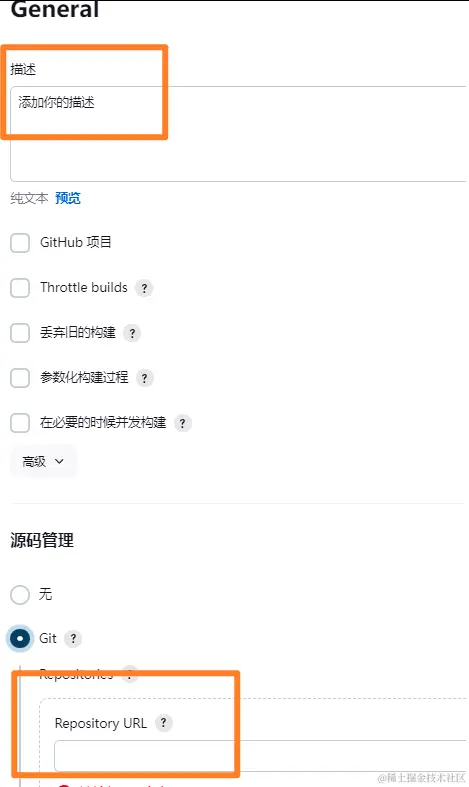

选择源码管理
Repositpry URL 输入 git 地址

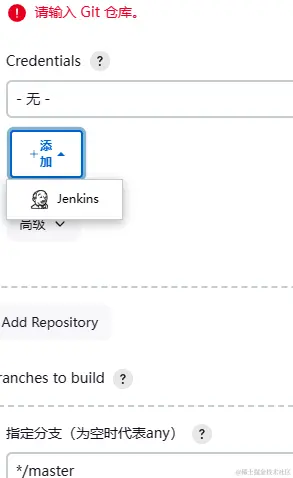

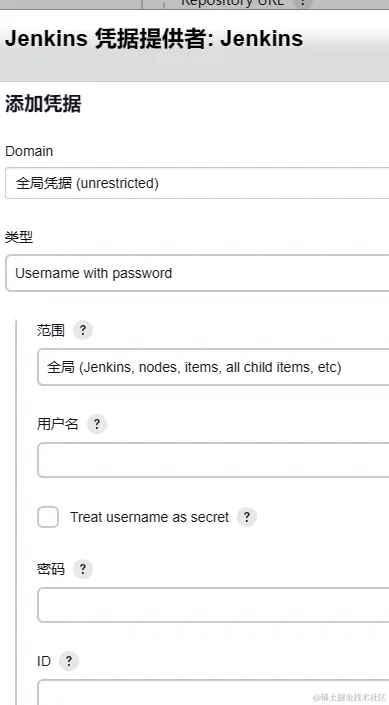

点击 jenkins后，输入账号和密码，id
maven 配置
全局配置
配置本地

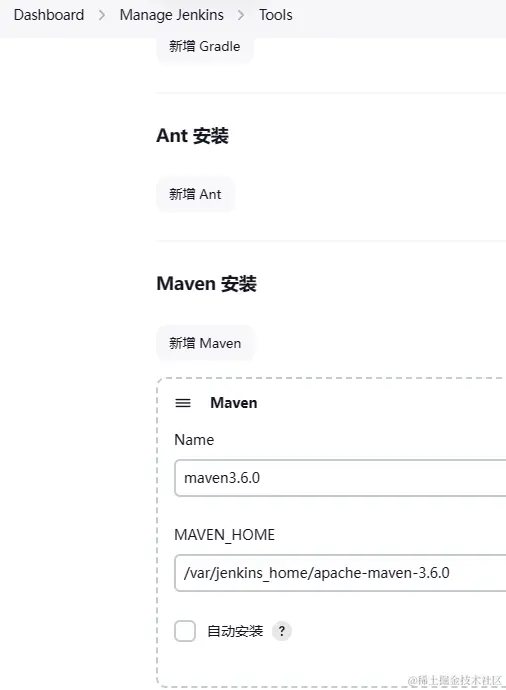

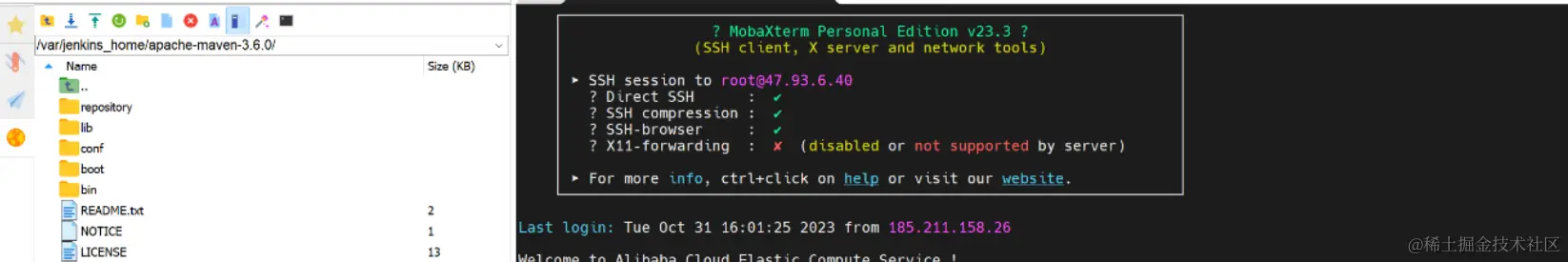

maven 放在 jk 目录下

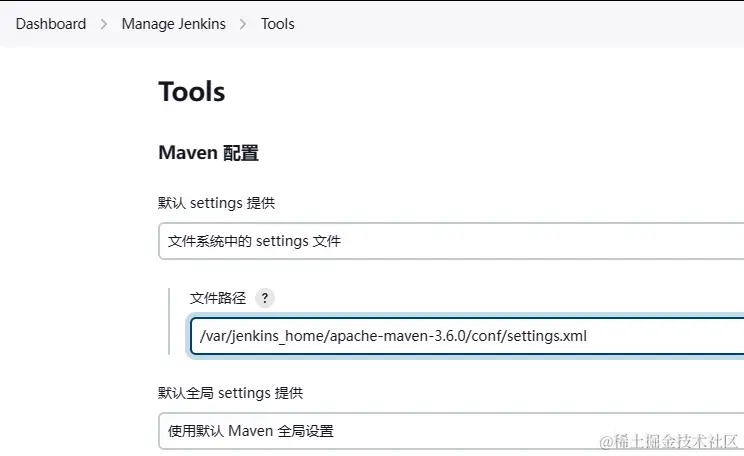

配置 setting 配置文件
MAVEN_HOME 是 maven 地址

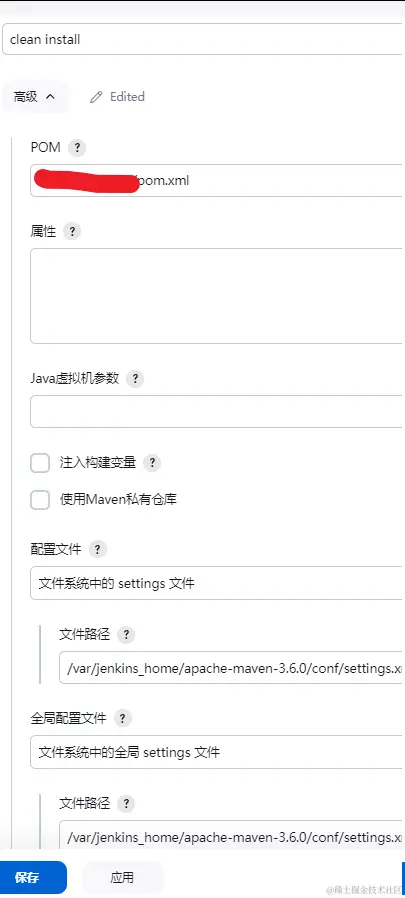

项目配置
注意：maven一定要放到Jenkins的数据挂载目录内，这样容器才能读到。参考开发工具选型里面的maven包。
记得改默认的
pom 地址
配置gitee WebHooks

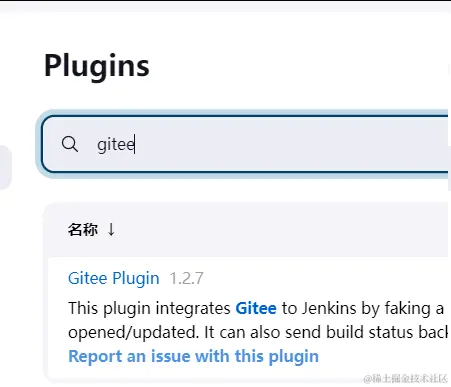

下载插件
到此，maven配置以及项目设置完成，可执行maven命令进行打包
打包命令
mvn clean package
mvn clean package -Pdev
mvn clean package -Ptest
mvn clean package -Pprod
执行命令，指定-P参数，启用指定的profile。
springboot+maven项目jenkins多环境打包设置
设置build信息
打开gitee WebHooks
生成密码
填写信息
gitLab

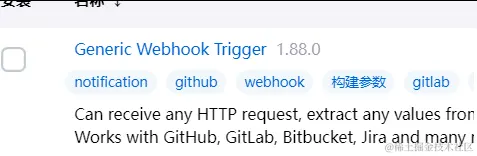

插件

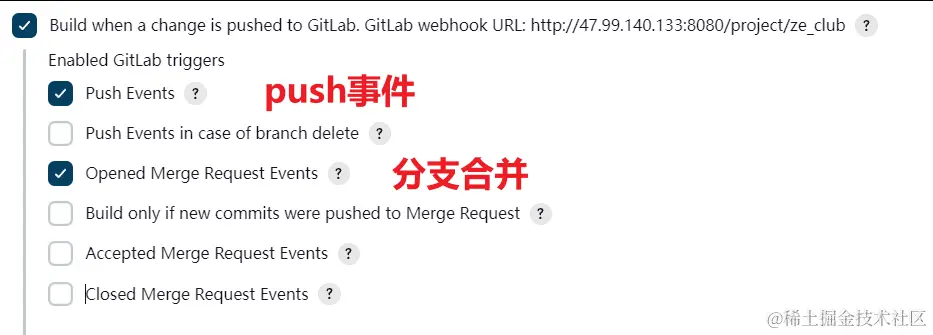

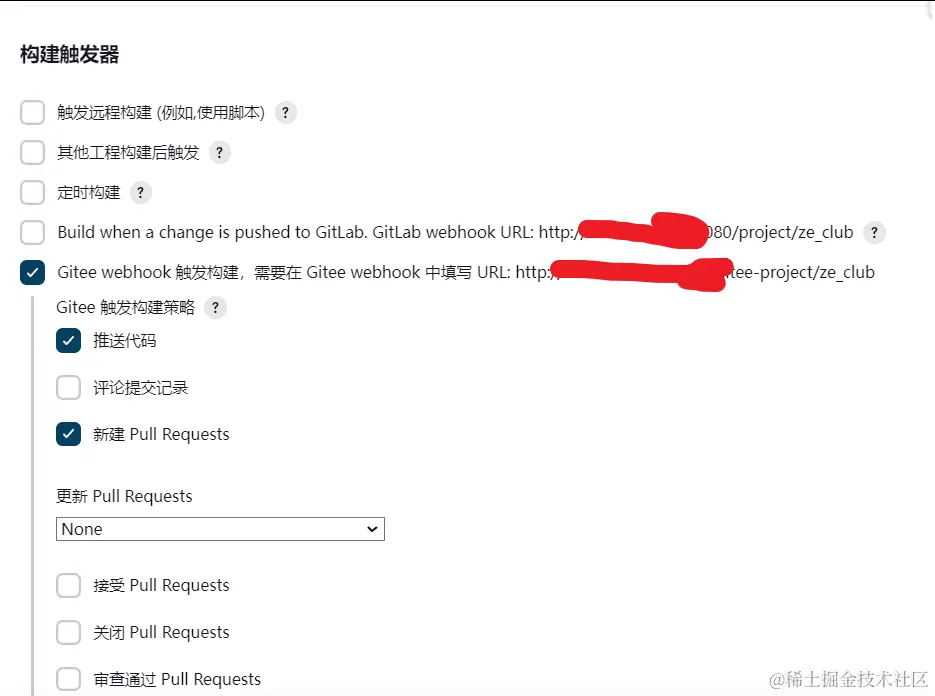

Configure -》构建触发器
jk配置
配置config

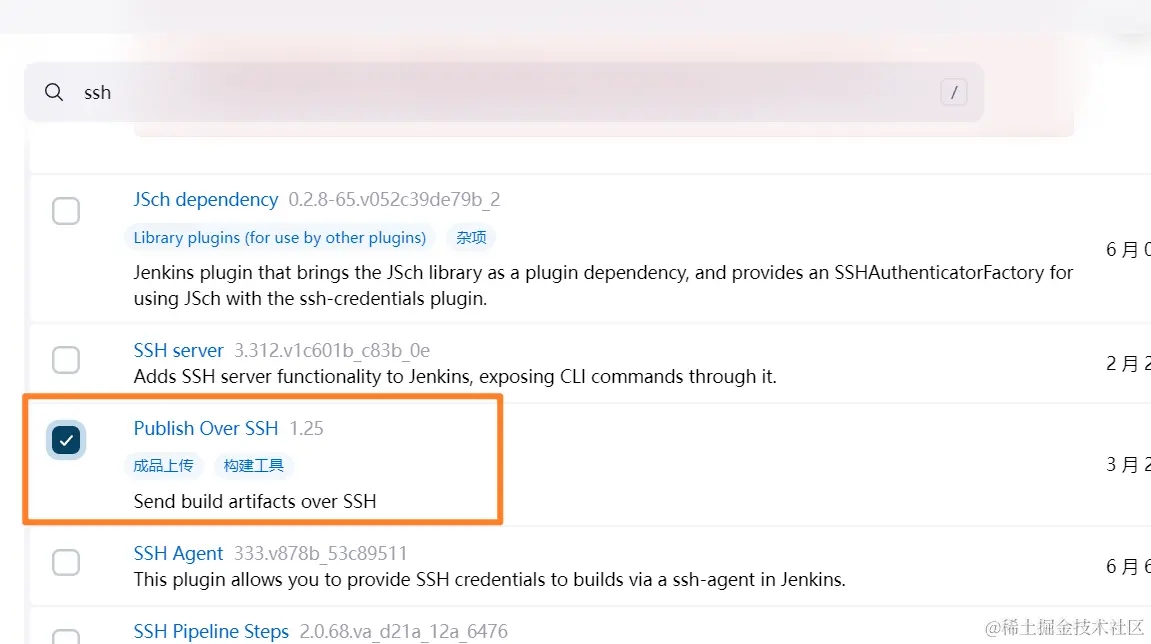

publish over ssh 下载这个插件
全局配置ssh
配置ssh服务器 （全局配置）
系统管理 -> System

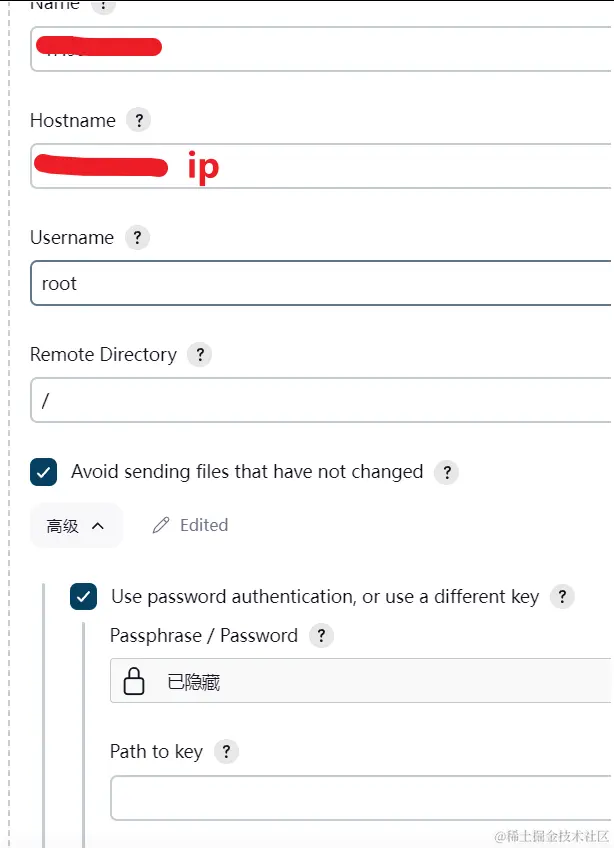

新增服务器 ssh server 输入 ip username password 点 Test Configurayion 点击是否成功

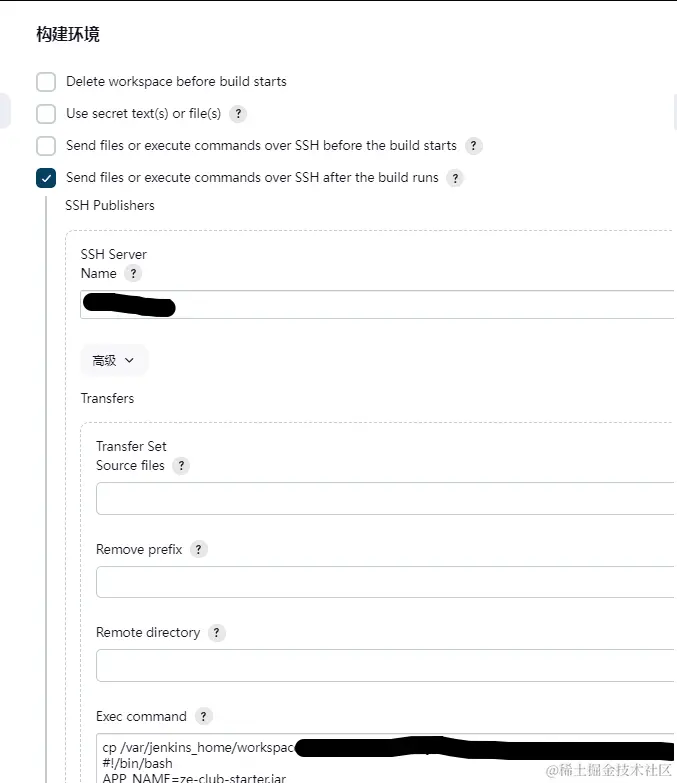

项目 -> Configuration
XXX 为 jar包 地址
cp XXX /var/jenkins_home/jar/
#!/bin/bash
APP_NAME=ze-club-starter.jar
LOG_NAME=ze-club-starter.log
pid=`ps -ef | grep $APP_NAME | grep -v grep|awk '{print $2}'`
# 进程是否存在
function is_exist(){
pid=`ps -ef | grep $APP_NAME | grep -v grep|awk '{print $2}'`
if [ -z ${pid} ]; then
String="notExist"
echo $String
else
String="exist"
echo $String
fi
}
# 判断程序有没有启动
str=$(is_exist)
if [ ${str} = "exist" ]; then
echo " 检测到已经启动的程序，pid 是 ${pid} "
kill -9 $pid
else
echo " 程序没有启动了 "
echo "${APP_NAME} is not running"
fi
str=$(is_exist)
if [ ${str} = "exist" ]; then
echo "${APP_NAME} 已经启动了. pid=${pid} ."
else
source /etc/profile
# 防止前面挂了 第二个启动不起来
BUILD_ID=dontKillMe
nohup java -Xms300m -Xmx300m -jar /var/jenkins_home/jar/$APP_NAME >$LOG_NAME 2>&1 &
echo "程序已重新启动..."
fi
保存确定
测试
ps -ef | grep java
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements. See the NOTICE file
distributed with this work for additional information
regarding copyright ownership. The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied. See the License for the
specific language governing permissions and limitations
under the License.
-->
<!--
| This is the configuration file for Maven. It can be specified at two levels:
|
| 1. User Level. This settings.xml file provides configuration for a single user,
| and is normally provided in ${user.home}/.m2/settings.xml.
|
| NOTE: This location can be overridden with the CLI option:
|
| -s /path/to/user/settings.xml
|
| 2. Global Level. This settings.xml file provides configuration for all Maven
| users on a machine (assuming they're all using the same Maven
| installation). It's normally provided in
| ${maven.conf}/settings.xml.
|
| NOTE: This location can be overridden with the CLI option:
|
| -gs /path/to/global/settings.xml
|
| The sections in this sample file are intended to give you a running start at
| getting the most out of your Maven installation. Where appropriate, the default
| values (values used when the setting is not specified) are provided.
|
|-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
<localRepository>/root/.m2/repository</localRepository>
<!-- interactiveMode
| This will determine whether maven prompts you when it needs input. If set to false,
| maven will use a sensible default value, perhaps based on some other setting, for
| the parameter in question.
|
| Default: true
<interactiveMode>true</interactiveMode>
-->
<!-- offline
| Determines whether maven should attempt to connect to the network when executing a build.
| This will have an effect on artifact downloads, artifact deployment, and others.
|
| Default: false
<offline>false</offline>
-->
<!-- pluginGroups
| This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
| when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
| "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
|-->
<pluginGroups>
<!-- pluginGroup
| Specifies a further group identifier to use for plugin lookup.
<pluginGroup>com.your.plugins</pluginGroup>
-->
</pluginGroups>
<!-- proxies
| This is a list of proxies which can be used on this machine to connect to the network.
| Unless otherwise specified (by system property or command-line switch), the first proxy
| specification in this list marked as active will be used.
|-->
<proxies>
<!-- proxy
| Specification for one proxy, to be used in connecting to the network.
|
<proxy>
<id>optional</id>
<active>true</active>
<protocol>http</protocol>
<username>proxyuser</username>
<password>proxypass</password>
<host>proxy.host.net</host>
<port>80</port>
<nonProxyHosts>local.net|some.host.com</nonProxyHosts>
</proxy>
-->
</proxies>
<!-- servers
| This is a list of authentication profiles, keyed by the server-id used within the system.
| Authentication profiles can be used whenever maven must make a connection to a remote server.
|-->
<servers>
<!-- server
| Specifies the authentication information to use when connecting to a particular server, identified by
| a unique name within the system (referred to by the 'id' attribute below).
|
| NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
| used together.
|
<server>
<id>deploymentRepo</id>
<username>repouser</username>
<password>repopwd</password>
</server>
-->
<!-- Another sample, using keys to authenticate.
<server>
<id>siteServer</id>
<privateKey>/path/to/private/key</privateKey>
<passphrase>optional; leave empty if not used.</passphrase>
</server>
-->
</servers>
<!-- mirrors
| This is a list of mirrors to be used in downloading artifacts from remote repositories.
|
| It works like this: a POM may declare a repository to use in resolving certain artifacts.
| However, this repository may have problems with heavy traffic at times, so people have mirrored
| it to several places.
|
| That repository definition will have a unique id, so we can create a mirror reference for that
| repository, to be used as an alternate download site. The mirror site will be the preferred
| server for that repository.
|-->
<mirrors>
<!-- mirror
| Specifies a repository mirror site to use instead of a given repository. The repository that
| this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
| for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
|
<mirror>
<id>mirrorId</id>
<mirrorOf>repositoryId</mirrorOf>
<name>Human Readable Name for this Mirror.</name>
<url>http://my.repository.com/repo/path</url>
</mirror>
-->
<!-- 阿里云仓库 -->
<mirror>
<id>alimaven</id>
<mirrorOf>central</mirrorOf>
<name>aliyun maven</name>
<url>https://maven.aliyun.com/nexus/content/repositories/central/</url>
</mirror>
</mirrors>
<!-- profiles
| This is a list of profiles which can be activated in a variety of ways, and which can modify
| the build process. Profiles provided in the settings.xml are intended to provide local machine-
| specific paths and repository locations which allow the build to work in the local environment.
|
| For example, if you have an integration testing plugin - like cactus - that needs to know where
| your Tomcat instance is installed, you can provide a variable here such that the variable is
| dereferenced during the build process to configure the cactus plugin.
|
| As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
| section of this document (settings.xml) - will be discussed later. Another way essentially
| relies on the detection of a system property, either matching a particular value for the property,
| or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
| value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
| Finally, the list of active profiles can be specified directly from the command line.
|
| NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
| repositories, plugin repositories, and free-form properties to be used as configuration
| variables for plugins in the POM.
|
|-->
<profiles>
<!-- profile
| Specifies a set of introductions to the build process, to be activated using one or more of the
| mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
| or the command line, profiles have to have an ID that is unique.
|
| An encouraged best practice for profile identification is to use a consistent naming convention
| for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
| This will make it more intuitive to understand what the set of introduced profiles is attempting
| to accomplish, particularly when you only have a list of profile id's for debug.
|
| This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
<profile>
<id>jdk-1.4</id>
<activation>
<jdk>1.4</jdk>
</activation>
<repositories>
<repository>
<id>jdk14</id>
<name>Repository for JDK 1.4 builds</name>
<url>http://www.myhost.com/maven/jdk14</url>
<layout>default</layout>
<snapshotPolicy>always</snapshotPolicy>
</repository>
</repositories>
</profile>
-->
<!--
| Here is another profile, activated by the system property 'target-env' with a value of 'dev',
| which provides a specific path to the Tomcat instance. To use this, your plugin configuration
| might hypothetically look like:
|
| ...
| <plugin>
| <groupId>org.myco.myplugins</groupId>
| <artifactId>myplugin</artifactId>
|
| <configuration>
| <tomcatLocation>${tomcatPath}</tomcatLocation>
| </configuration>
| </plugin>
| ...
|
| NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
| anything, you could just leave off the <value/> inside the activation-property.
|
<profile>
<id>env-dev</id>
<activation>
<property>
<name>target-env</name>
<value>dev</value>
</property>
</activation>
<properties>
<tomcatPath>/path/to/tomcat/instance</tomcatPath>
</properties>
</profile>
-->
</profiles>
<!-- activeProfiles
| List of profiles that are active for all builds.
|
<activeProfiles>
<activeProfile>alwaysActiveProfile</activeProfile>
<activeProfile>anotherAlwaysActiveProfile</activeProfile>
</activeProfiles>
-->
</settings>
问题
The JAVA_HOME environment variable is not defined correctly
The JAVA_HOME environment variable is not defined correctly
This environment variable is needed to run this program
NB: JAVA_HOME should point to a JDK not a JRE
Build step 'Invoke top-level Maven targets' marked build as failure
Finished: FAILURE
去掉全局依赖的 jdk
jenkins lombok does not exist
通过查找maven安装路径maven/conf/settings.xml，它的默认路径是：Default: ${user.home}/.m2/repository 。
开始我以为是Jenkins的home目录，查找对应的路径，根本没有这个目录。
通过确认，确认为：/root/.m2/repository

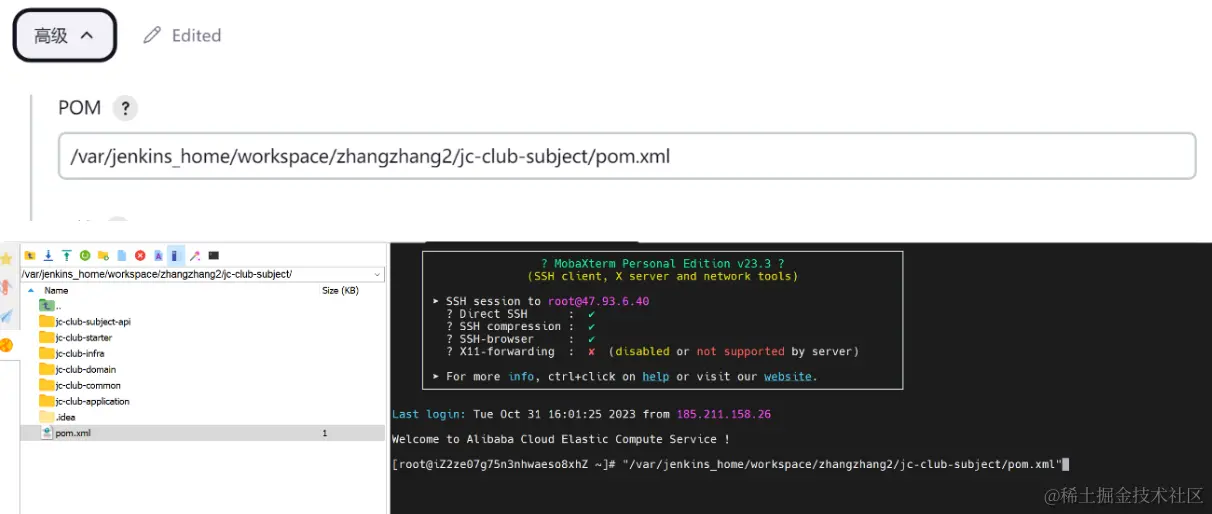

改 pom 路径
加阿里云盘

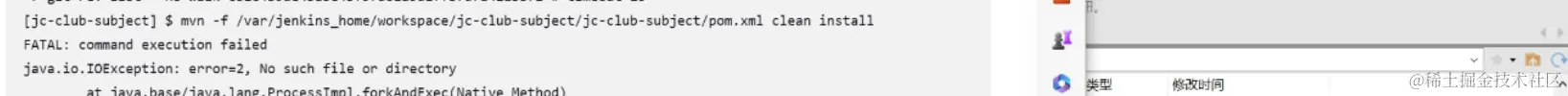

1:在调用顶层maven目标的pom输入项里，不是pom.xml，一般是自己项目里的地址，找出复制即可。比如:
2.默认生成的maven仓库的地址一般没有和settinasxml里设置的maven仓库地址保存一致，所以安装在jenkins home里的maven文件除了需要在setingsxml里设置国内镜像外，还需要自己新建maven仓库并修改setting.xml里面的maven仓库配置
3.Jenkins构建出现这个错误:
是没有操作maven权限输入以下命令获得操作maven的权限:sudo chmod -R 755 /var/ienkins home/apache-maven-3.6.3 4:如果Jenkins构建出现common的lombok的错误，将common的lombok版本改成1.18.22:
starter lombok 问题
如果Jenkins构建出现starter的lombok的错误，将lombok 1.18.22添加到starter模块的pomxml里面
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.22</version>
</dependency>
