为什么需要Ingress？
- Service可以使用NodePort暴露集群外访问端口，但是性能低下不安全
- 缺少Layer7的统一访问入口，可以负载均衡、限流等
- Ingress 公开了从集群外部到集群内服务的 HTTP 和 HTTPS 路由。 流量路由由 Ingress 资源上定义的规则控制。
- 我们使用Ingress作为整个集群统一的入口，配置Ingress规则转到对应的Service
1、Ingress nginx和nginx ingress

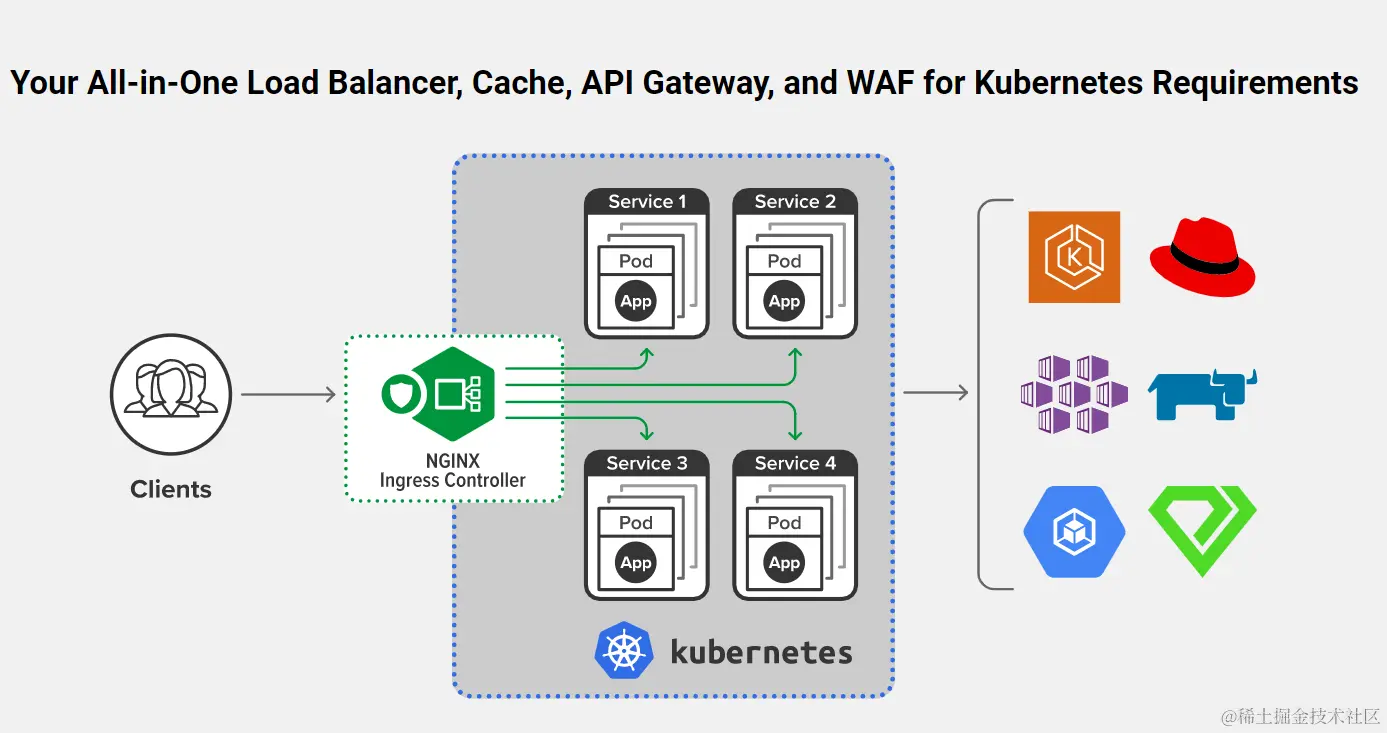

1、nginx ingress
这是nginx官方做的，适配k8s的，分为开源版和nginx plus版（收费） 。文档地址。[网址]（www.nginx.com/products/ng…
2、ingress nginx
这是k8s官方做的，适配nginx的。这个里面会及时更新一些特性，而且性能很高，也被广泛采用。文档地址
## 默认安装使用这个镜像
registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0
kubernetes.github.io/ingress-ngi… 文档地址
2、ingress nginx 安装
1、安装
自建集群使用裸金属安装方式
需要如下修改：
- 修改ingress-nginx-controller镜像为
registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0 - 修改Deployment为DaemonSet比较好
- Container使用主机网络，对应的dnsPolicy策略也需要改为主机网络的
- 修改Service为ClusterIP，无需NodePort模式了
- 修改DaemonSet的nodeSelector:
ingress-node=true。这样只需要给node节点打上ingress-node=true标签，即可快速的加入/剔除 ingress-controller的数量
修改好的yaml如下。大家直接复制使用
apiVersion: v1
kind: Namespace
metadata:
name: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
data:
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
name: ingress-nginx
rules:
- apiGroups:
- ''
resources:
- configmaps
- endpoints
- nodes
- pods
- secrets
verbs:
- list
- watch
- apiGroups:
- ''
resources:
- nodes
verbs:
- get
- apiGroups:
- ''
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- events
verbs:
- create
- patch
- apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io # k8s 1.14+
resources:
- ingressclasses
verbs:
- get
- list
- watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
name: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
rules:
- apiGroups:
- ''
resources:
- namespaces
verbs:
- get
- apiGroups:
- ''
resources:
- configmaps
- pods
- secrets
- endpoints
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+
resources:
- ingresses/status
verbs:
- update
- apiGroups:
- networking.k8s.io # k8s 1.14+
resources:
- ingressclasses
verbs:
- get
- list
- watch
- apiGroups:
- ''
resources:
- configmaps
resourceNames:
- ingress-controller-leader-nginx
verbs:
- get
- update
- apiGroups:
- ''
resources:
- configmaps
verbs:
- create
- apiGroups:
- ''
resources:
- events
verbs:
- create
- patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx
namespace: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx
subjects:
- kind: ServiceAccount
name: ingress-nginx
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller-admission
namespace: ingress-nginx
spec:
type: ClusterIP
ports:
- name: https-webhook
port: 443
targetPort: webhook
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml：不要
apiVersion: v1
kind: Service
metadata:
annotations:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
spec:
type: ClusterIP ## 改为clusterIP
ports:
- name: http
port: 80
protocol: TCP
targetPort: http
- name: https
port: 443
protocol: TCP
targetPort: https
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: controller
name: ingress-nginx-controller
namespace: ingress-nginx
spec:
selector:
matchLabels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
revisionHistoryLimit: 10
minReadySeconds: 0
template:
metadata:
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/component: controller
spec:
dnsPolicy: ClusterFirstWithHostNet ## dns对应调整为主机网络
hostNetwork: true ## 直接让nginx占用本机80端口和443端口，所以使用主机网络
containers:
- name: controller
image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0
imagePullPolicy: IfNotPresent
lifecycle:
preStop:
exec:
command:
- /wait-shutdown
args:
- /nginx-ingress-controller
- --election-id=ingress-controller-leader
- --ingress-class=nginx
- --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
- --validating-webhook=:8443
- --validating-webhook-certificate=/usr/local/certificates/cert
- --validating-webhook-key=/usr/local/certificates/key
securityContext:
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
runAsUser: 101
allowPrivilegeEscalation: true
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: LD_PRELOAD
value: /usr/local/lib/libmimalloc.so
livenessProbe:
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
timeoutSeconds: 1
successThreshold: 1
failureThreshold: 5
readinessProbe:
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
timeoutSeconds: 1
successThreshold: 1
failureThreshold: 3
ports:
- name: http
containerPort: 80
protocol: TCP
- name: https
containerPort: 443
protocol: TCP
- name: webhook
containerPort: 8443
protocol: TCP
volumeMounts:
- name: webhook-cert
mountPath: /usr/local/certificates/
readOnly: true
resources:
requests:
cpu: 100m
memory: 90Mi
nodeSelector: ## 节点选择器
node-role: ingress #以后只需要给某个node打上这个标签就可以部署ingress-nginx到这个节点上了
#kubernetes.io/os: linux ## 修改节点选择
serviceAccountName: ingress-nginx
terminationGracePeriodSeconds: 300
volumes:
- name: webhook-cert
secret:
secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
name: ingress-nginx-admission
webhooks:
- name: validate.nginx.ingress.kubernetes.io
matchPolicy: Equivalent
rules:
- apiGroups:
- networking.k8s.io
apiVersions:
- v1beta1
operations:
- CREATE
- UPDATE
resources:
- ingresses
failurePolicy: Fail
sideEffects: None
admissionReviewVersions:
- v1
- v1beta1
clientConfig:
service:
namespace: ingress-nginx
name: ingress-nginx-controller-admission
path: /networking/v1beta1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
rules:
- apiGroups:
- admissionregistration.k8s.io
resources:
- validatingwebhookconfigurations
verbs:
- get
- update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
namespace: ingress-nginx
rules:
- apiGroups:
- ''
resources:
- secrets
verbs:
- get
- create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: ingress-nginx-admission
annotations:
helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
namespace: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
name: ingress-nginx-admission
namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: ingress-nginx-admission-create
annotations:
helm.sh/hook: pre-install,pre-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
namespace: ingress-nginx
spec:
template:
metadata:
name: ingress-nginx-admission-create
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
containers:
- name: create
image: docker.io/jettech/kube-webhook-certgen:v1.5.1
imagePullPolicy: IfNotPresent
args:
- create
- --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
- --namespace=$(POD_NAMESPACE)
- --secret-name=ingress-nginx-admission
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
restartPolicy: OnFailure
serviceAccountName: ingress-nginx-admission
securityContext:
runAsNonRoot: true
runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: ingress-nginx-admission-patch
annotations:
helm.sh/hook: post-install,post-upgrade
helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
namespace: ingress-nginx
spec:
template:
metadata:
name: ingress-nginx-admission-patch
labels:
helm.sh/chart: ingress-nginx-3.30.0
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/version: 0.46.0
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/component: admission-webhook
spec:
containers:
- name: patch
image: docker.io/jettech/kube-webhook-certgen:v1.5.1
imagePullPolicy: IfNotPresent
args:
- patch
- --webhook-name=ingress-nginx-admission
- --namespace=$(POD_NAMESPACE)
- --patch-mutating=false
- --secret-name=ingress-nginx-admission
- --patch-failure-policy=Fail
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
restartPolicy: OnFailure
serviceAccountName: ingress-nginx-admission
securityContext:
runAsNonRoot: true
runAsUser: 2000
2、验证
访问部署了ingress-nginx主机的80端口，有nginx响应即可。
2、卸载
kubectl delete -f ingress-controller.yaml 即可
3、案例实战
1、基本配置
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: itdachang-ingress
namespace: default
spec:
rules:
- host: itdachang.com
http:
paths:
- path: /
pathType: Prefix
backend: ## 指定需要响应的后端服务
service:
name: my-nginx-svc ## kubernetes集群的svc名称
port:
number: 80 ## service的端口号
- pathType:描述
Prefix：基于以/分隔的 URL 路径前缀匹配。匹配区分大小写，并且对路径中的元素逐个完成。 路径元素指的是由/分隔符分隔的路径中的标签列表。 如果每个 p 都是请求路径 p 的元素前缀，则请求与路径 p 匹配。Exact：精确匹配 URL 路径，且区分大小写。ImplementationSpecific：对于这种路径类型，匹配方法取决于 IngressClass。 具体实现可以将其作为单独的pathType处理或者与Prefix或Exact类型作相同处理。
ingress规则会生效到所有按照了IngressController的机器的nginx配置。
2、默认后端
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: itdachang-ingress
namespace: default
spec:
defaultBackend: ## 指定所有未匹配的默认后端
service:
name: php-apache
port:
number: 80
rules:
- host: itdachang.com
http:
paths:
- path: /abc
pathType: Prefix
backend:
service:
name: my-nginx-svc
port:
number: 80
效果
- itdachang.com 下的 非 /abc 开头的所有请求，都会到defaultBackend
- 非itdachang.com 域名下的所有请求，也会到defaultBackend
nginx的全局配置
kubectl edit cm ingress-nginx-controller -n ingress-nginx
编辑配置加上
data:
配置项: 配置值
所有配置项参考 https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/configmap/
基于环境变量带去的
3、路径重写
Rewrite 功能，经常被用于前后分离的场景
- 前端给服务器发送 / 请求映射前端地址。
- 后端给服务器发送 /api 请求来到对应的服务。但是后端服务没有 /api的起始路径，所以需要ingress-controller自动截串
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
annotations: ## 写好annotion
#https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/
nginx.ingress.kubernetes.io/rewrite-target: /$2 ### 只保留哪一部分
name: rewrite-ingress-02
namespace: default
spec:
rules: ## 写好规则
- host: itzongchang.com
http:
paths:
- backend:
service:
name: php-apache
port:
number: 80
path: /api(/|$)(.*)
pathType: Prefix
4、配置SSL
生成证书：（也可以去腾讯云申请免费证书进行配置）
$ openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout ${KEY_FILE:tls.key} -out ${CERT_FILE:tls.cert} -subj "/CN=${HOST:itdachang.com}/O=${HOST:itdachang.com}"
kubectl create secret tls ${CERT_NAME:itdachang-tls} --key ${KEY_FILE:tls.key} --cert ${CERT_FILE:tls.cert}
## 示例命令如下 修改域名和组织名
openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.cert -subj "/CN=it666.com/O=it666.com"
kubectl get secret
# 查看
## 创建secret 修改：修改域名
kubectl create secret tls it666-tls --key tls.key --cert tls.cert
查看yaml信息：
kubectl get secret it666-tls -oyaml
apiVersion: v1
data:
tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURJekNDQWd1Z0F3SUJBZ0lKQVB6YXVMQ1ZjdlVKTUEwR0NTcUdTSWIzRFFFQkN3VUFNQ2d4RWpBUUJnTlYKQkFNTUNXbDBOalkyTG1OdmJURVNNQkFHQTFVRUNnd0phWFEyTmpZdVkyOXRNQjRYRFRJeE1EVXhNREV5TURZdwpNRm9YRFRJeU1EVXhNREV5TURZd01Gb3dLREVTTUJBR0ExVUVBd3dKYVhRMk5qWXVZMjl0TVJJd0VBWURWUVFLCkRBbHBkRFkyTmk1amIyMHdnZ0VpTUEwR0NTcUdTSWIzRFFFQkFRVUFBNElCRHdBd2dnRUtBb0lCQVFDbkNYa0wKNjdlYzNjYW5IU1V2VDR6YXZmMGpsOEFPWlBtUERhdUFRTElEby80LzlhV2JPSy9yZm5OelVXV3lTRFBqb3pZVApWa2xmQTZYRG1xRU5FSWRHRlhjdExTSlRNRkM5Y2pMeTlwYVFaaDVYemZId0ZoZXZCR1J3MmlJNXdVdk5iTGdWCmNzcmRlNXlKMEZYOFlMZFRhdjhibzhjTXpxN2FqZXhXMWc1dkxmTWZhczAvd2VyVk9Qc0ZmS3RwZ1dwSWMxMXEKekx6RnlmWHNjcVNhVTV2NFo5WHFqQjRtQjhZZ043U2FSa2pzU0VsSFU4SXhENEdTOUtTNGtkR2xZak45V2hOcAp6aG5MdllpSDIrZThQWE9LdU8wK2Jla1MrS3lUS2hnNnFWK21kWTN0MWJGenpCdjFONTVobTNQTldjNk9ROTh3CkYrQk9uUUNhWExKVmRRcS9BZ01CQUFHalVEQk9NQjBHQTFVZERnUVdCQlNzSUFvMHZ4RFZjVWtIZ1V1TFlwY0wKdjBFSERqQWZCZ05WSFNNRUdEQVdnQlNzSUFvMHZ4RFZjVWtIZ1V1TFlwY0x2MEVIRGpBTUJnTlZIUk1FQlRBRApBUUgvTUEwR0NTcUdTSWIzRFFFQkN3VUFBNElCQVFDSjFEdGJoQnBacTE1ODVEMGlYV1RTdmU3Q2YvQ3VnakxZCjNYb2gwSU9sNy9mVmNndFJkWXlmRFBmRDFLN0l4bElETWtUbTVEVWEyQzBXaFY5UlZLU0poSTUzMmIyeVRGcm8Kc053eGhkcUZpOC9CU1lsQTl0Tk5HeXhKT1RKZWNtSUhsaFhjRlEvUzFaK3FjVWNrTVh6UHlIcFl0VjRaU0hheQpFWVF2bUVBZTFMNmlnRk8wc2xhbUllTFBCTWhlTDNnSDZQNlV3TVpQbTRqdFR1d2FGSmZGRlRIakQydmhSQkJKCmZjTGY5QjN3U3k2cjBDaXF2VXQxQUNQVnpSdFZrcWJJV1d5VTBDdkdjVDVIUUxPLzdhTE4vQkxpNGdYV2o1MUwKVXdTQzhoY2xodVp3SmRzckNkRlltcjhTMnk0UDhsaDdBc0ZNOGorNjh1ZHJlYXovWmFNbwotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
tls.key: LS0tLS1CRUdJTiBQUklWQVRFIEtFWS0tLS0tCk1JSUV2QUlCQURBTkJna3Foa2lHOXcwQkFRRUZBQVNDQktZd2dnU2lBZ0VBQW9JQkFRQ25DWGtMNjdlYzNjYW4KSFNVdlQ0emF2ZjBqbDhBT1pQbVBEYXVBUUxJRG8vNC85YVdiT0svcmZuTnpVV1d5U0RQam96WVRWa2xmQTZYRAptcUVORUlkR0ZYY3RMU0pUTUZDOWNqTHk5cGFRWmg1WHpmSHdGaGV2QkdSdzJpSTV3VXZOYkxnVmNzcmRlNXlKCjBGWDhZTGRUYXY4Ym84Y016cTdhamV4VzFnNXZMZk1mYXMwL3dlclZPUHNGZkt0cGdXcEljMTFxekx6RnlmWHMKY3FTYVU1djRaOVhxakI0bUI4WWdON1NhUmtqc1NFbEhVOEl4RDRHUzlLUzRrZEdsWWpOOVdoTnB6aG5MdllpSAoyK2U4UFhPS3VPMCtiZWtTK0t5VEtoZzZxVittZFkzdDFiRnp6QnYxTjU1aG0zUE5XYzZPUTk4d0YrQk9uUUNhClhMSlZkUXEvQWdNQkFBRUNnZ0VBTDZ0Tlp6Q0MrdnB6cWRkd2VEcjhtS1JsckpXdkVxeVFaOW5mMnI4Ynpsd3IKdi9jTHB1dWJrTnBLZWx0OWFVNmZ1RlFvcDRZVmRFOG5MRlpocGNmVXd4UjNLV1piQ0dDZWVpSXdGaFIzVFloSApHb25FaE43WkxYSlVjN3hjemh5eTFGSTFpckZ5NFpoWVNTQXltYzdFSXNORFFKRVJ5ajdsdWF1TkNnOFdtWFdPCmd0OHIzZHVTazNHV2ZZeGdWclFZSHlGTVpCbUpvNDliRzVzdGcwR01JNUZRQXord3RERlIyaWk2NkVkNzBJOUwKYXJNMHpQZkM3Tk1acmhEcHVseVdVYWNXRDY1V1g1Yys5TnpIMW15MEVrbjJGOWQzNXE1czZRakdTVElMVXlhbwpJUVl5bGU0OVdKdlV4YjN2YTZ1OTVBUHAyWFFVaFEyS09GcGxabncwTVFLQmdRRFN2cDAzYlBvQVlEb3BqWGlxCndxemxKdk9IY2M4V3ZhVytoM0tvVFBLZ1dRZWpvVnNZTFEzM2lMeXdFY0FXaWtoSzE2UjVmTkt5VUFRZ2JDNm4KNTdkcUJ3L1RqYlV2UGR6K0llMnNKN1BlSlpCQktXZUNHNjBOeGgzUDVJcSsxRHVjdExpQTBKdVZyOUlaUzdqSApJOVpUMitDMTNlNkRlZkJaajFDb0ZhemJ1UUtCZ1FESzZCaVkzSk5FYVhmWVpKUzh1NFViVW9KUjRhUURBcmlpCjFGRlEzMDFPOEF0b1A2US9IcjFjbTdBNGZkQ3JoSkxPMFNqWnpldnF4NEVHSnBueG5pZGowL24yTHE3Z2x6Q2UKbVlKZFVVVFo0MkxJNGpWelBlUk1RaGhueW9CTHpmaEFYcEtZSU1NcmpTd1JUcnYyclRpQkhxSEZRbDN6YngvKwptcjdEVWtlR053S0JnRllPdEpDUGxiOVZqQ3F2dEppMmluZkE0aTFyRWcvTlBjT0IrQlkxNWRZSXhRL1NzaW83Cks3cnJRWEg4clo0R3RlS3FFR1h6ek80M3NwZXkxWktIRXVUZklWMVlQcWFkOG9Kc1JHdktncTZ5VkNmbnluYmMKNmx2M2pQRDUrSlpZZ0VkTG5SUXRHM3VTb283bDF2eXE2N2l1enlJMUVGTHNGblBjRENtM1FERXhBb0dBSDQrdQprOGhybDg2WDk2N2RlK1huTkhMSEZwbDBlNHRtME4wWnNPeXJCOFpLMy9KV1NBTXVEVU9pUzRjMmVCZHRCb0orClNqSy9xWXRTeEhRb3FlNmh6ZU5oRkN2Nnc3Q0F2WXEvUG1pdnZ2eWhsd0dvc3I1RHpxRFJUd091cFJ2cXE0aUsKWU9ObnVGU0RNRVlBOHNQSzhEcWxpeHRocGNYNVFnOHI4UkhSVWswQ2dZQlF3WFdQU3FGRElrUWQvdFg3dk1mTwp3WDdWTVFMK1NUVFA4UXNRSFo2djdpRlFOL3g3Vk1XT3BMOEp6TDdIaGdJV3JzdkxlV1pubDh5N1J3WnZIbm9zCkY3dkliUm00L1Y1YzZHeFFQZXk5RXVmWUw4ejRGMWhSeUc2ZjJnWU1jV25NSWpnaUh2dTA3cStuajFORkh4YVkKa2ZSSERia01YaUcybU42REtyL3RtQT09Ci0tLS0tRU5EIFBSSVZBVEUgS0VZLS0tLS0K
kind: Secret
metadata:
creationTimestamp: "2021-05-10T12:06:22Z"
name: it666-tls
namespace: default
resourceVersion: "2164722"
uid: 16f8a4b6-1600-4ded-8458-b0480ce075ba
type: kubernetes.io/tls
配置域名使用证书；
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: it666-tls-ingress
namespace: default
spec:
tls:
- hosts:
- it666.com
#秘钥的名字， kubectl get secret 这里查看的秘钥的名字
secretName: it666-tls
rules:
- host: it666.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
#到 session亲和的那个服务里面
name: session-affinity
port:
number: 80
配置好证书，访问域名，就会默认跳转到https；
5、限速
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-222333
namespace: default
annotations: ##注解
nginx.ingress.kubernetes.io/limit-rps: "1" ### 限流的配置
spec:
defaultBackend: ## 只要未指定的映射路径
service:
name: php-apache
port:
number: 80
rules:
- host: it666.com
http:
paths:
- path: /bbbbb
pathType: Prefix
backend:
service:
name: cluster-service-222
port:
number: 80
6、灰度发布-Canary

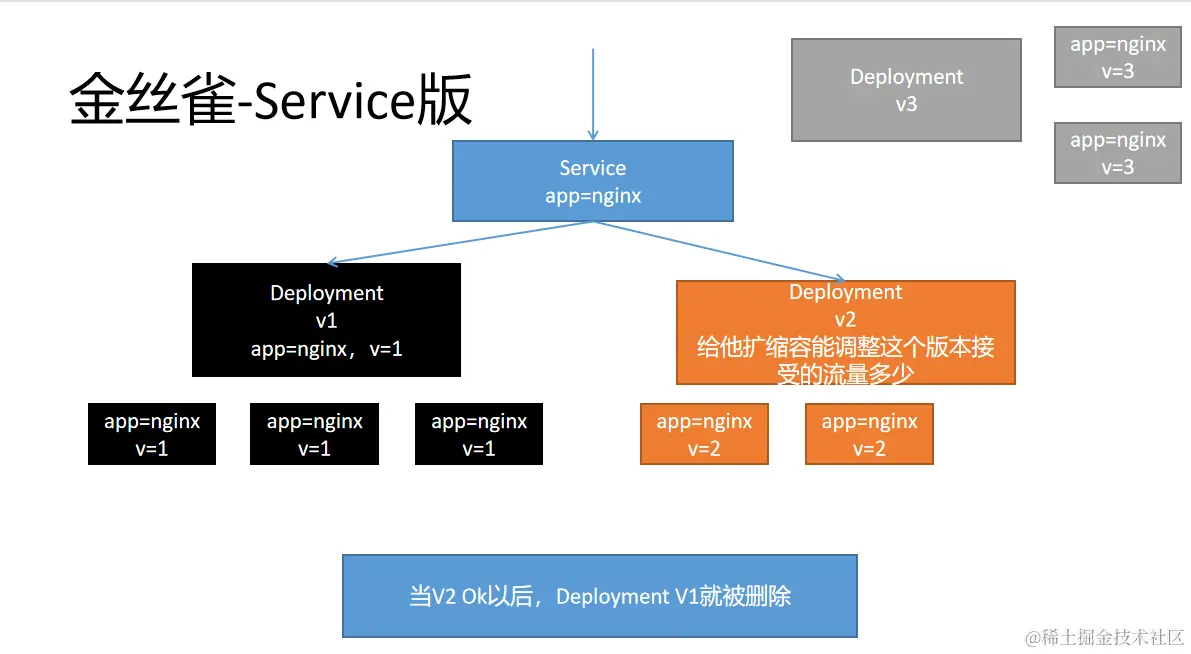

以前可以使用k8s的Service配合Deployment进行金丝雀部署。原理如下
缺点：
- 不能自定义灰度逻辑，比如指定用户进行灰度

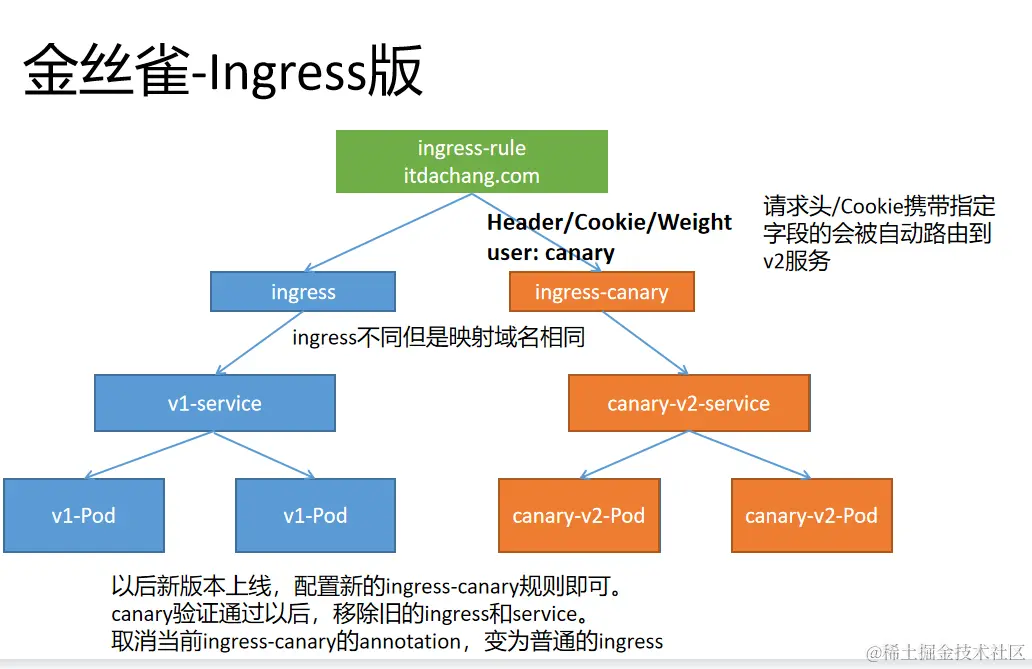

现在可以使用Ingress进行灰度。原理如下
## 使用如下文件部署两个service版本。v1版本返回nginx默认页，v2版本返回 11111
apiVersion: v1
kind: Service
metadata:
name: v1-service
namespace: default
spec:
selector:
app: v1-pod
type: ClusterIP
ports:
- name: http
port: 80
targetPort: 80
protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: v1-deploy
namespace: default
labels:
app: v1-deploy
spec:
selector:
matchLabels:
app: v1-pod
replicas: 1
template:
metadata:
labels:
app: v1-pod
spec:
containers:
- name: nginx
image: nginx
---
apiVersion: v1
kind: Service
metadata:
name: canary-v2-service
namespace: default
spec:
selector:
app: canary-v2-pod
type: ClusterIP
ports:
- name: http
port: 80
targetPort: 80
protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: canary-v2-deploy
namespace: default
labels:
app: canary-v2-deploy
spec:
selector:
matchLabels:
app: canary-v2-pod
replicas: 1
template:
metadata:
labels:
app: canary-v2-pod
spec:
containers:
- name: nginx
image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/nginx-test:env-msg
7、会话保持-Session亲和性
第一次访问，ingress-nginx会返回给浏览器一个Cookie，以后浏览器带着这个Cookie，保证访问总是抵达之前的Pod；
## 部署一个三个Pod的Deployment并设置Service
apiVersion: v1
kind: Service
metadata:
name: session-affinity
namespace: default
spec:
selector:
app: session-affinity
type: ClusterIP
ports:
- name: session-affinity
port: 80
targetPort: 80
protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: session-affinity
namespace: default
labels:
app: session-affinity
spec:
selector:
matchLabels:
app: session-affinity
replicas: 3
template:
metadata:
labels:
app: session-affinity
spec:
containers:
- name: session-affinity
image: nginx
编写具有会话亲和的ingress
### 利用每次请求携带同样的cookie，来标识是否是同一个会话
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: session-test
namespace: default
annotations:
nginx.ingress.kubernetes.io/affinity: "cookie"
nginx.ingress.kubernetes.io/session-cookie-name: "itdachang-session"
spec:
rules:
- host: it666.com
http:
paths:
- path: / ### 如果以前这个域名下的这个路径相同的功能有配置过，以最后一次生效
pathType: Prefix
backend:
service:
name: session-affinity ###
port:
number: 80
