linux内核分析,源码分析 - 中国科学技术大学软件学院MOOC 笔记3

mykernel模拟计算机硬件平台

中断:由CPU和内核代码共同实现保护现场和恢复现场

qemu -kernel arch/x86/boot/bzImage

mykernel

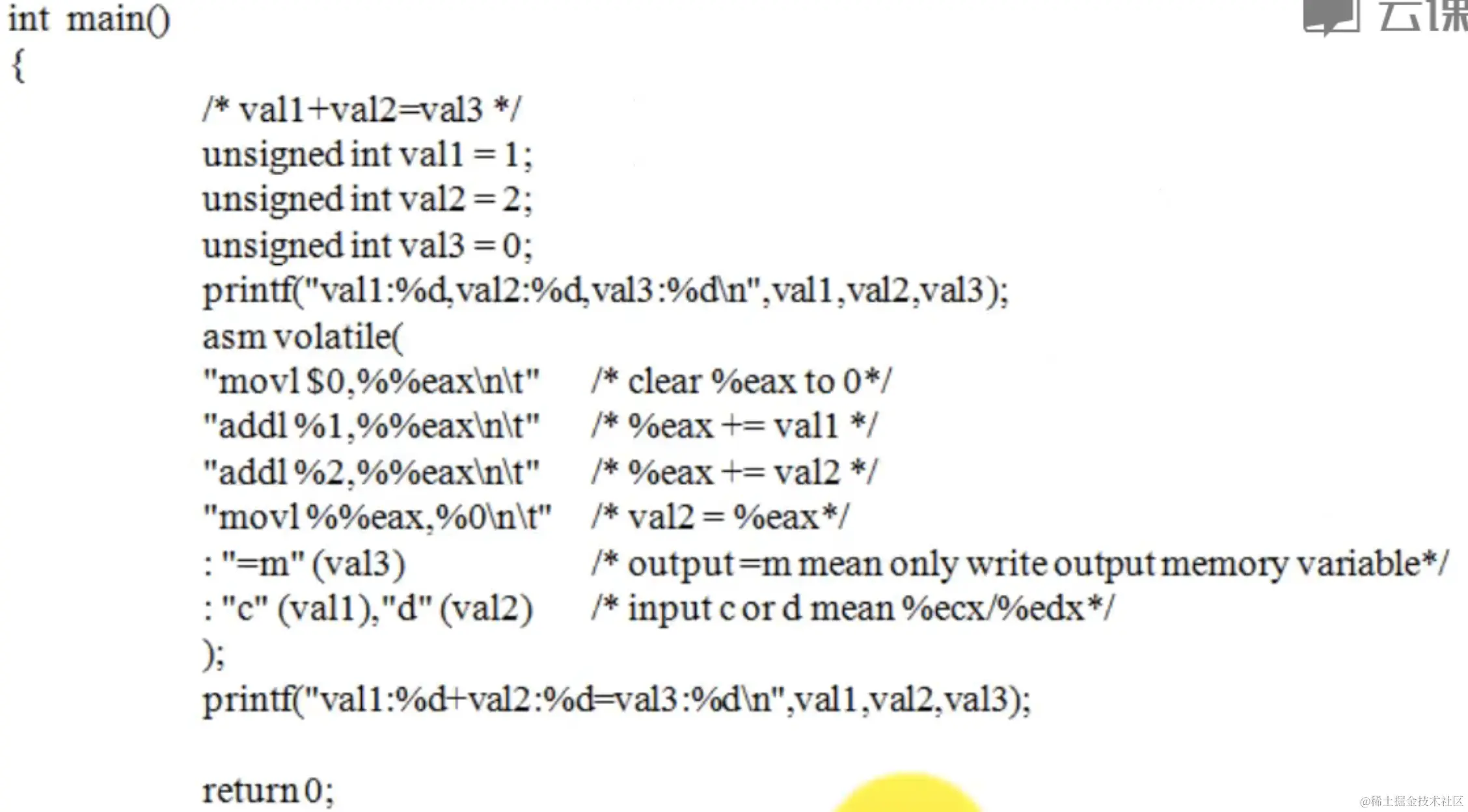

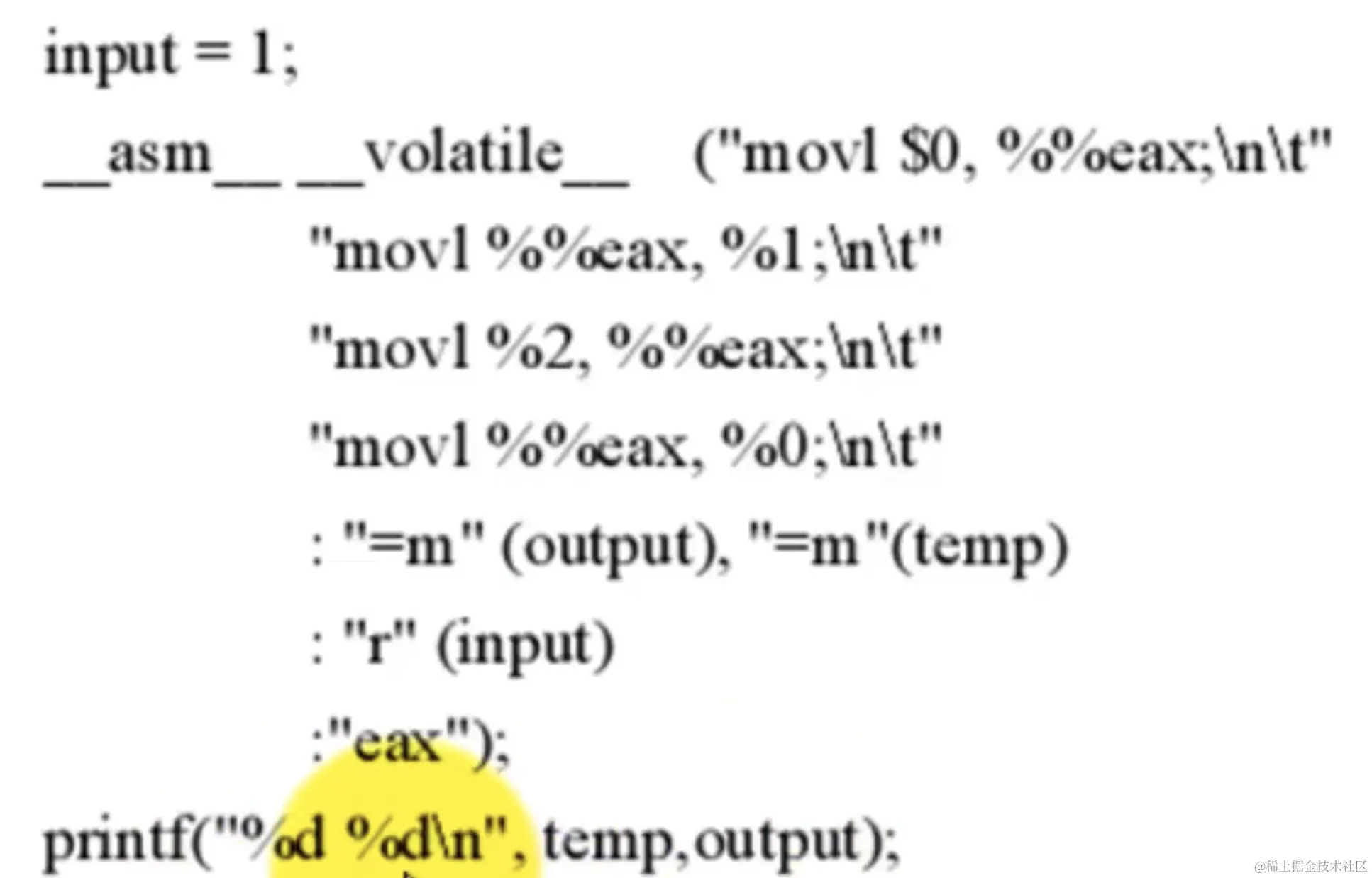

C代码嵌入汇编代码

语法:

asm 是 __asm__ 的别名,两者是等价的

案例:

一个简单的操作系统内核源代码

myinterrupt.c

/*
 *  linux/mykernel/myinterrupt.c
 *
 *  Kernel internal my_timer_handler
 *  Change IA32 to x86-64 arch, 2020/4/26
 *
 *  Copyright (C) 2013, 2020  Mengning
 *
 */
#include <linux/types.h>
#include <linux/string.h>
#include <linux/ctype.h>
#include <linux/tty.h>
#include <linux/vmalloc.h>

#include "mypcb.h"

extern tPCB task[MAX_TASK_NUM];
extern tPCB * my_current_task;
extern volatile int my_need_sched;
volatile int time_count = 0;

/*
 * Called by timer interrupt.
 * it runs in the name of current running process,
 * so it use kernel stack of current running process
 */
void my_timer_handler(void)
{
    if(time_count%1000 == 0 && my_need_sched != 1)
    {
        printk(KERN_NOTICE ">>>my_timer_handler here<<<\n");
        my_need_sched = 1;
    }
    time_count ++ ;
    return;
}

void my_schedule(void)
{
    tPCB * next;
    tPCB * prev;

    if(my_current_task == NULL
        || my_current_task->next == NULL)
    {
    	return;
    }
    printk(KERN_NOTICE ">>>my_schedule<<<\n");
    /* schedule */
    next = my_current_task->next;
    prev = my_current_task;
    if(next->state == 0)/* -1 unrunnable, 0 runnable, >0 stopped */
    {
    	my_current_task = next;
    	printk(KERN_NOTICE ">>>switch %d to %d<<<\n",prev->pid,next->pid);
    	/* switch to next process */
    	asm volatile(
        	"pushq %%rbp\n\t" 	    /* save rbp of prev */
        	"movq %%rsp,%0\n\t" 	/* save rsp of prev */
        	"movq %2,%%rsp\n\t"     /* restore  rsp of next */
        	"movq $1f,%1\n\t"       /* save rip of prev */
        	"pushq %3\n\t"
        	"ret\n\t" 	            /* restore  rip of next */
        	"1:\t"                  /* next process start here */
        	"popq %%rbp\n\t"
        	: "=m" (prev->thread.sp),"=m" (prev->thread.ip)
        	: "m" (next->thread.sp),"m" (next->thread.ip)
    	);
    }
    return;
}

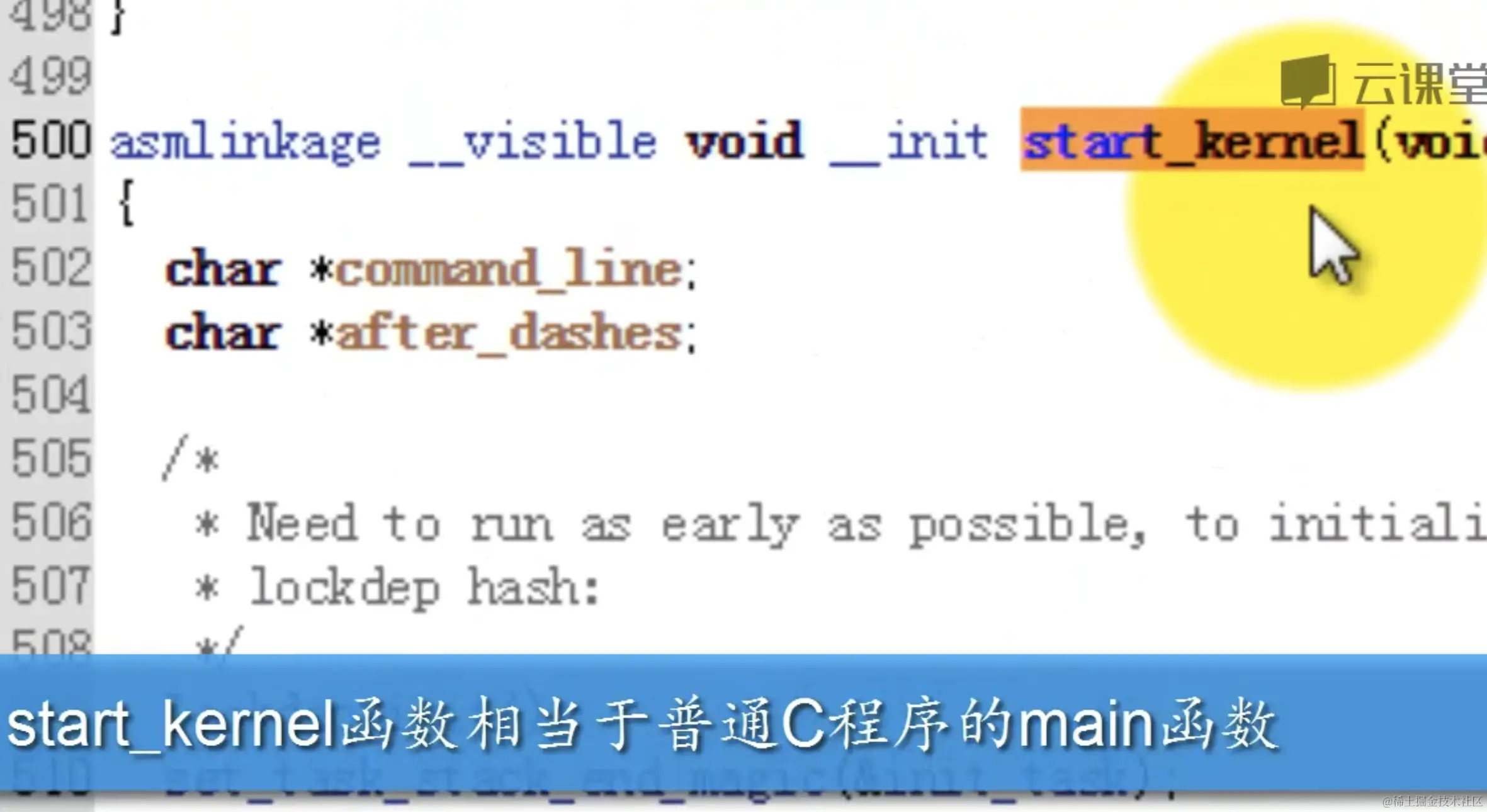

Linux内核源代码

/init/main.c

构建一个简单的Linux系统 : MenuOS

1. 构建 bzImage

wget https://mirrors.nju.edu.cn/kernel.org/linux/kernel/v3.x/linux-3.18.6.tar.xz

xz -d linux-3.18.6.tar.xz

tar -xvf linux-3.18.6.tar

cd linux-3.18.6

make i386_defconfig

make

2. 构建 rootfs.img

mkdir rootfs

git clone https://github.com/mengning/menu.git

cd menu

gcc -o init linktable.c menu.c test.c -m32 -static -lpthread

cd ../rootfs

cp ../menu/init ./

find . | cpio -o -Hnewc | gzip -9 > ../rootfs.img

3. 启动

qemu -kernel linux-3.18.6/arch/x86/boot/bzImage -initrd rootfs.img
