初衷

🤔️将一些比较少见但很有用的CSS记录并以demo的形式展示，以作为教程和参考的作用
此笔记📒作为长期更新

::view-transition相关

基础

参考文档：MDN: View Transitions API
兼容性：Chrome v111+
作用：A视图转换为B视图的过渡

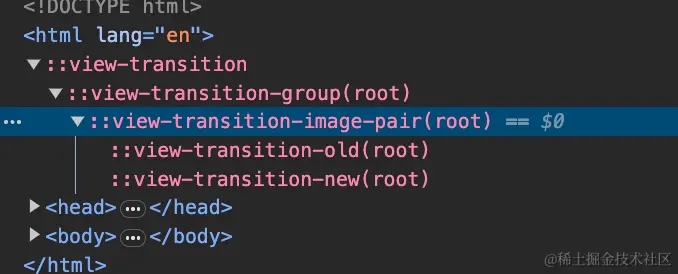

视图转换期间的view-transition伪类层级

::view-transition // 位于html下，唯一
└─ ::view-transition-group(root) // 可以有多个group
   └─ ::view-transition-image-pair(root)
      ├─ ::view-transition-old(root)
      └─ ::view-transition-new(root)

html::view-transition：视图转换根节点

// 默认样式
html::view-transition {
  position: fixed;
  inset: 0;
}

html::view-transition-group：表示单个视图转换组（设置整个组的通用样式，比如动画时间...）

html::view-transition-group(*) {} // 表示作用于所有转换组的样式
// 默认样式
html::view-transition-group(*) {
  position: absolute;
  top: 0;
  left: 0;

  animation-duration: 0.25s;
  animation-fill-mode: both;
}

默认最先呈现的是old视图，如果没有old则最先呈现new视图。如果同时存在则，old试图过渡到new视图。

html::view-tranisition-image-pair：承载new视图、old视图的伪类容器

html::view-transition-image-pair(*) {
  position: absolute;
  inset: 0;

  animation-duration: inherit;
  animation-fill-mode: inherit;
}

html::view-transition-old：视图转换前的截图节点

// 可以使用	object-fit 和 object-position 等属性操作。默认尺寸等于内容尺寸。
// 默认样式
@keyframes -ua-view-transition-fade-out {
  to {
    opacity: 0;
  }
}

html::view-transition-old(*) {
  position: absolute;
  inset-block-start: 0;
  inline-size: 100%;
  block-size: auto;

  animation-name: -ua-view-transition-fade-out;
  animation-duration: inherit;
  animation-fill-mode: inherit;
}

html::view-transition-new：视图转换后的截图节点

@keyframes -ua-view-transition-fade-in {
  from {
    opacity: 0;
  }
}

html::view-transition-new(*) {
  position: absolute;
  inset-block-start: 0;
  inline-size: 100%;
  block-size: auto;

  animation-name: -ua-view-transition-fade-in;
  animation-duration: inherit;
  animation-fill-mode: inherit;

流程：主要表现由new、old视图截图同时开始动画 -> 删除view-transition伪类 -> 呈现html内容

演示:切换过程

下面以Vue3演示

<script setup lang="ts">
import { onMounted } from "vue";

onMounted(() => {
  setTimeout(() => {
    if (document.startViewTransition) {
      // 1. API截取当前页面的屏幕截图
      /*
         该API构建的内容
         ::view-transition
          └─ ::view-transition-group(root)
             └─ ::view-transition-image-pair(root)
                ├─ ::view-transition-old(root)
                └─ ::view-transition-new(root)
         */
      // 2. 调用回调钩子
      const transition = document.startViewTransition(() => {
        console.log("记录快照");
        // ⚠️ 进入开始之前会记录一个old快照，执行完钩子则会记录new快照，后续需要在这两张快照上进行过渡
        const root = document.documentElement;
        root.style.setProperty("--bg", "#000000");
        root.style.setProperty("--txt", "#ffffff");
      });

      // 3. startViewTransition钩子执行完毕后，Promise执行
      transition.updateCallbackDone.then((res) => {
        console.log(res);
      });
    }
  }, 1000);
});
</script>

<template>
  <div class="view-transition">测试</div>
</template>

<style lang="scss">
:root {
  --bg: #ffffff;
  --txt: #000000;
}
body {
  background-color: var(--bg);
  color: var(--txt);
}

.view-transition {
  width: 100%;
  height: 500px;
}
html::view-transition {
}

// group编写old、new之间的公共样式(一般定义动画相关，子伪类继承这些属性即可)
html::view-transition-group(*) {
  animation-duration: 5s;
  animation-timing-function: ease;
}

// old、new内容变换的容器
html::view-transition-image-pair(*) {
  border: 5px solid red;
}

@keyframes old-animate {
  from {
    opacity: 1;
    border-color: rgba(104, 60, 241, 1);
  }
  to {
    opacity: 0;
    border-color: rgba(248, 45, 45, 0.5);
  }
}
html::view-transition-old(*) {
  width: 500px;
  animation-name: old-animate;
  border: 5px solid;
  right: 0;
}

@keyframes new-animate {
  from {
    opacity: 0;
    border-color: rgba(248, 45, 45, 0.5);
  }
  to {
    opacity: 1;
    border-color: rgba(104, 60, 241, 1);
  }
}
::view-transition-new(*) {
  width: 500px;
  animation-name: new-animate;
  border: 5px solid;
  left: 0;
}
</style>

展示：我是希望页面从白色主题转为黑色主题，但是为了让::view-transition转换过程更详细，故意展示成如下过渡


实战:主题切换过渡

思路
- 切为黑色主题时：old视图利用clip-path属性对其进行切割动画过渡，new视图不进行动画（new置于最低层）
- 切为白色主题是：new视图利用clip-path属性对其进行切割动画过渡，old视图不进行动画（old置于最低层）
最后new截图，与最后的html样式一致

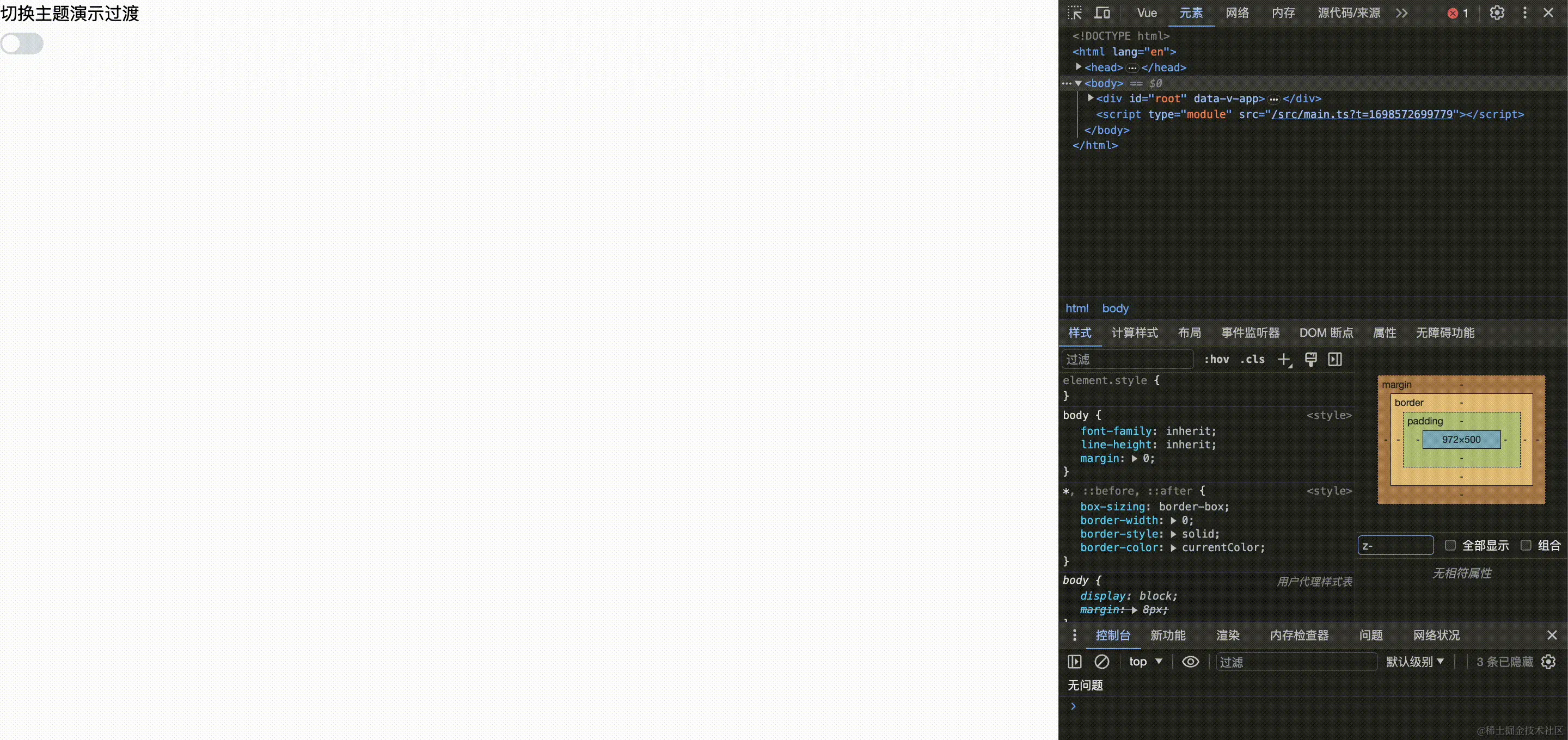

动图


<script setup lang="ts">
import { onMounted, ref, watch } from "vue";

// 当前主题
const isDark = ref(false);

// Switch组件的x、y坐标（避免重复计算）
const themeSwitchPos = { x: 0, y: 0 };
onMounted(() => {
  const themeSwitchEl = document.querySelector(".themeSwitch") as HTMLElement;
  const themeSwitchClient = themeSwitchEl.getBoundingClientRect();
  const x = themeSwitchClient.left + themeSwitchClient.width / 2;
  const y = themeSwitchClient.top + themeSwitchClient.height / 2;
  themeSwitchPos.x = x;
  themeSwitchPos.y = y;
});

// 监听主题色被Switch切换
watch(isDark, () => {
  if (!document.startViewTransition) {
    return;
  }

  const root = document.documentElement;

  const transition = document.startViewTransition(() => {
    if (isDark.value) {
      root.style.setProperty("--bg", "#000000");
      root.style.setProperty("--txt", "#ffffff");
    } else {
      root.style.setProperty("--bg", "#ffffff");
      root.style.setProperty("--txt", "#000000");
    }
  });
  transition.ready.then(() => {
    // 创建动画帧

    // 裁剪元素根据半径裁剪
    // 切换为黑色主题：circle(100%) -> circle(Switch组件中心位置)
    // 切换为白色主题：circle(Switch组件中心位置) -> circle(100%) 顺序要反转
    const clipPathList = [
      "circle(100%)",
      `circle(10px at ${themeSwitchPos.x}px ${themeSwitchPos.y}px)`,
    ];
    document.documentElement.animate(
      {
        clipPath: isDark.value ? clipPathList : clipPathList.reverse(),
      },
      {
        duration: 400,
        easing: "ease-out",
        pseudoElement: isDark.value
          ? "::view-transition-old(isDark)"
          : "::view-transition-new(isDark)",
      }
    );
  });
  transition.finished.then(() => {
    if (isDark.value) {
      root.classList.add("dark");
    } else {
      root.classList.remove("dark");
    }
  });
});
</script>

<template>
  <div class="view-transition2">
    <div>切换主题演示过渡</div>
    <el-switch class="themeSwitch" v-model="isDark" />
  </div>
</template>

<style lang="scss">
:root {
  --bg: #ffffff;
  --txt: #000000;
}

.view-transition2 {
  width: 100%;
  height: 500px;
  background-color: var(--bg);
  color: var(--txt);

  // 如果没有这个属性，改变默认受"root"影响
  view-transition-name: isDark; // .view-transition2 内部发生变化时，将生成名为"isDark" + "root"(默认)的伪类
}

html::view-transition-old(isDark),
html::view-transition-new(isDark) {
  animation: none;
}

// 截图旧视图做动画缩小
html::view-transition-old(isDark) {
  z-index: 2147483647; // 置于最上
}

// 截图新视图置于最后，且不做任何动画
html::view-transition-new(isDark) {
  z-index: 8;
}

// .dark类表示此时为黑色主题，所以截图z-index应该与白色主题相反
html.dark::view-transition-old(isDark) {
  z-index: 8;
}
html.dark::view-transition-new(isDark) {
  z-index: 2147483647;
}
</style>

封装:Vue3 hook

base.scss

#app {
  width: 100%;
  height: auto;
  background-color: var(--el-bg-color);

  // 如果没有这个属性，改变默认受"root"影响
  view-transition-name: isDark;
}

html::view-transition-old(isDark),
html::view-transition-new(isDark) {
  animation: none;
}

// 截图旧视图做动画缩小
html::view-transition-old(isDark) {
  z-index: 100000; // 置于最上
}
html::view-transition-new(isDark) {
  z-index: 2147483647;
}

// .dark类表示此时为黑色主题，所以截图z-index应该与白色主题相反
html.dark::view-transition-old(isDark) {
  z-index: 2147483647;
}
html.dark::view-transition-new(isDark) {
  z-index: 100000;
}

ViewTransition.hook.ts ⚠️ 依赖useDark、useToggle(@vueuse/core包内)

import { onMounted, type Ref, watch } from 'vue'
import { useDark, useToggle } from '@vueuse/core'

export function useViewTransition(focusClazz: string) {

  // 依赖：useDark、useToggle
  const isDark = useDark({ storageKey: "theme", disableTransition: false });
  const toggleDark = useToggle(isDark);

  const themeSwitchPos = { x: 0, y: 0 };
  onMounted(() => {
    const themeSwitchEl = document.querySelector(focusClazz);
    if (!themeSwitchEl) {
      throw TypeError("cannot find 'focusClazz' el, pls check your focusClazz");
    }
    const themeSwitchClient = themeSwitchEl.getBoundingClientRect();
    const x = themeSwitchClient.left + themeSwitchClient.width / 2;
    const y = themeSwitchClient.top + themeSwitchClient.height / 2;
    themeSwitchPos.x = x;
    themeSwitchPos.y = y;
  });

  function triggerSwitchTheme() {
    // 兼容 Chrome v111- 浏览器
    if (!document.startViewTransition) {
      toggleDark();
      return;
    }

    const root = document.documentElement;
    const transition = document.startViewTransition(toggleDark);

    // 设置view-transition-old/view-transition-new的伪类样式
    transition.ready.then(() => {
      // 创建动画帧
      // 裁剪元素根据半径裁剪
      // 切换为黑色主题：circle(100%) -> circle(Switch组件中心位置)
      // 切换为白色主题：circle(Switch组件中心位置) -> circle(100%) 顺序要反转
      const clipPathList = [
        "circle(100%)",
        `circle(10px at ${themeSwitchPos.x}px ${themeSwitchPos.y}px)`,
      ];
      document.documentElement.animate(
        {
          clipPath: isDark.value ? clipPathList : clipPathList.reverse(),
        },
        {
          duration: 400,
          easing: "ease-out",
          pseudoElement: isDark.value
            ? "::view-transition-old(isDark)"
            : "::view-transition-new(isDark)",
        }
      );
    });
  // 通过返回值暴露所管理的状态
  return triggerSwitchTheme;
}

/**
 * ⚠️ 依赖于下面的CSS样式
 * #app {
 *   width: 100%;
 *   height: auto;
 *   background-color: var(--el-bg-color);
 *
 *   // 如果没有这个属性，改变默认受"root"影响
 *   view-transition-name: isDark;
 * }
 *
 * html::view-transition-old(isDark),
 * html::view-transition-new(isDark) {
 *   animation: none;
 * }
 *
 * // 截图旧视图做动画缩小
 * html::view-transition-old(isDark) {
 *   z-index: 100000; // 置于最上
 * }
 * html::view-transition-new(isDark) {
 *   z-index: 2147483647;
 * }
 *
 * // .dark类表示此时为黑色主题，所以截图z-index应该与白色主题相反
 * html.dark::view-transition-old(isDark) {
 *   z-index: 2147483647;
 * }
 * html.dark::view-transition-new(isDark) {
 *   z-index: 100000;
 * }
 */

总结

View Transition适合new视图与old视图过渡场景，常用于SPA(单页面富应用)、MAP(多页面SSR)
兼容性：Chrome v111+
