三台服务器
192.168.0.184 node1 /dev/sda为多加的一块盘
192.168.0.100 node3 /dev/sda为多加的一块盘
192.168.0.164 node4 /dev/sda为多加的一块盘
集群一
三台服务器作为ceph集群OSD存储服务器
192.168.0.184 node1 /dev/sda为多加的一块盘
192.168.0.100 node3 /dev/sda为多加的一块盘
192.168.0.164 node4 /dev/sda为多加的一块盘
集群二
三台服务器作为ceph集群Mon监视服务器
192.168.0.184 node1
192.168.0.100 node3
192.168.0.164 node4
集群三
三个ceph-mgr管理服务器
192.168.0.184 node1
192.168.0.100 node3
192.168.0.164 node4
时间同步
# 设置时区为上海
timedatectl set-timezone Asia/Shanghai
# 安装chrony,用于同步时间
yum install chrony -y
# 启动chrony
systemctl enable chrony --now
配置hosts解析
修改/etc/hosts。添加如下内容
192.168.0.184 node1
192.168.0.100 node3
192.168.0.164 node4
配置ceph国内源
添加ceph仓库的配置文件
三台服务器都要配置上下面的源
tee /etc/yum.repos.d/ceph.repo << EOF
[ceph]
name=Ceph packages
baseurl=https://mirrors.tuna.tsinghua.edu.cn/ceph/rpm-reef/el9/x86_64/
enabled=1
priority=2
gpgcheck=0
[ceph-noarch]
name=Ceph noarch packages
baseurl=https://mirrors.tuna.tsinghua.edu.cn/ceph/rpm-reef/el9/noarch/
enabled=1
priority=2
gpgcheck=0
[ceph-source]
name=Ceph source packages
baseurl=https://mirrors.tuna.tsinghua.edu.cn/ceph/rpm-reef/el9/SRPMS/
enabled=0
priority=2
gpgcheck=0
EOF
更新仓库
[root@node1 ~]# dnf update
安装ceph-deploy
创建工作目录
因为ceph-deploy会有输出，后面执行ceph-deploy时候在该目录下进行
[root@node1 ~]# mkdir cephcluster
[root@node1 ~]# cd cephcluster/
[root@node1 cephcluster]#
安装ceph-deploy
# 安装python3和pip
dnf install python3-pip -y
# 配置pip国内源
pip config set global.index-url https://pypi.tuna.tsinghua.edu.cn/simple
# 克隆ceph-deploy
git clone https://github.com/ceph/ceph-deploy.git
cd ceph-deploy
#在执行下面命令前需要修改ceph_deploy/hosts/__init__.py 添加对rocky系统的支持，具体参照最后的问题一解决办法
#如果要使用ceph-deploy直接部署ceph那么需要修改以下这个文件
#vim /root/cephcluster/ceph-deploy/ceph_deploy/install.py
#将args.release = 'nautilus' 修改成 args.release = 'reef'
pip3 install setuptools
python3 setup.py install
在cephcluster目录下执行
new 命令作用: Start deploying a new cluster, and write a CLUSTER.conf and keyring for it
[root@node1 cephcluster]# ceph-deploy new node1 node3 node4
修改ceph配置文件
root@node1:~/cephcluster/ceph-deploy# cat ceph.conf
[global]
fsid = 9e7b59a6-c3ee-43d4-9baf-60d5bb05484a
mon_initial_members = node1,node3,node4
mon_host = 192.168.0.184,192.168.0.100,192.168.0.164
auth_cluster_required = cephx
auth_service_required = cephx
auth_client_required = cephx
public_network=192.168.0.0/24
#设置副本数
osd_pool_default_size = 3
#设置最小副本数
osd_pool_default_min_size = 2
#设置时钟偏移0.5s
mon_clock_drift_allowed = .50
每个节点安装需要的软件包
# 安装epel源
dnf install epel-release
# 安装ceph相关软件包
ceph-deploy install --no-adjust-repos --nogpgcheck node1 node3 node4
# 参数说明
# install 表示在指定的节点上安装ceph相关包
# --no-adjust-repos 不替换节点上的repo文件，因为我们已经配置了清华源了
# --nogpgcheck 不进行gpgcheck校验
初始化mon并生成秘钥
ceph-deploy mon create-initial
会生成如下文件
[root@node1 cephcluster]# ls
ceph.bootstrap-mds.keyring ceph.bootstrap-osd.keyring ceph.client.admin.keyring ceph-deploy ceph.mon.keyring
ceph.bootstrap-mgr.keyring ceph.bootstrap-rgw.keyring ceph.conf ceph-deploy-ceph.log
使用Ceph -deploy将配置文件和管理密钥复制到管理节点和Ceph节点
ceph-deploy admin node1 node3 node4
部署mgr服务
ceph-deploy mgr create node1 node3 node4
查看当前集群状态
[root@node1 cephcluster]# ceph status
cluster:
id: 9e7b59a6-c3ee-43d4-9baf-60d5bb05484a
health: HEALTH_WARN
mons are allowing insecure global_id reclaim
services:
mon: 3 daemons, quorum node3,node4,node1 (age 81s)
mgr: node1(active, since 3s), standbys: node3
osd: 0 osds: 0 up, 0 in
data:
pools: 0 pools, 0 pgs
objects: 0 objects, 0 B
usage: 0 B used, 0 B / 0 B avail
pgs:
解决mons are allowing insecure global_id reclaim错误
ceph config set mon auth_allow_insecure_global_id_reclaim false
添加osd
查看要部署osd的节点的磁盘信息
ceph-deploy disk list node1 node3 node4
擦除磁盘
ceph-deploy disk zap node1 /dev/sda
ceph-deploy disk zap node3 /dev/sda
ceph-deploy disk zap node4 /dev/sda
添加磁盘
# 添加node1的osd
ceph-deploy osd create node1 --data /dev/sda
# 添加node3的osd
ceph-deploy osd create node3 --data /dev/sda
# 添加node4的osd
ceph-deploy osd create node4 --data /dev/sda
查看ceph集群状态
[root@node1 cephcluster]# ceph status
cluster:
id: 9e7b59a6-c3ee-43d4-9baf-60d5bb05484a
health: HEALTH_OK
services:
mon: 3 daemons, quorum node3,node4,node1 (age 7m)
mgr: node1(active, since 6m), standbys: node4, node3
osd: 3 osds: 3 up (since 19s), 3 in (since 34s)
data:
pools: 1 pools, 1 pgs
objects: 2 objects, 769 KiB
usage: 82 MiB used, 477 GiB / 477 GiB avail
pgs: 1 active+clean
io:
client: 4.5 KiB/s rd, 255 KiB/s wr, 4 op/s rd, 10 op/s wr
遇到的问题
问题一：
出现了不支持的平台错误
[root@node1 ceph-deploy]# ceph-deploy new node1 node3 node4
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO ] Invoked (2.1.0): /usr/local/bin/ceph-deploy new node1 node3 node4
[ceph_deploy.cli][INFO ] ceph-deploy options:
[ceph_deploy.cli][INFO ] verbose : False
[ceph_deploy.cli][INFO ] quiet : False
[ceph_deploy.cli][INFO ] username : None
[ceph_deploy.cli][INFO ] overwrite_conf : False
[ceph_deploy.cli][INFO ] ceph_conf : None
[ceph_deploy.cli][INFO ] cluster : ceph
[ceph_deploy.cli][INFO ] mon : ['node1', 'node3', 'node4']
[ceph_deploy.cli][INFO ] ssh_copykey : True
[ceph_deploy.cli][INFO ] fsid : None
[ceph_deploy.cli][INFO ] cluster_network : None
[ceph_deploy.cli][INFO ] public_network : None
[ceph_deploy.cli][INFO ] cd_conf : <ceph_deploy.conf.cephdeploy.Conf object at 0x7ff2057cb730>
[ceph_deploy.cli][INFO ] default_release : False
[ceph_deploy.cli][INFO ] func : <function new at 0x7ff2055201f0>
[ceph_deploy.new][DEBUG ] Creating new cluster named ceph
[ceph_deploy.new][INFO ] making sure passwordless SSH succeeds
[node1][DEBUG ] connected to host: node1
[ceph_deploy][ERROR ] UnsupportedPlatform: Platform is not supported: rocky blue onyx 9.2
解决办法

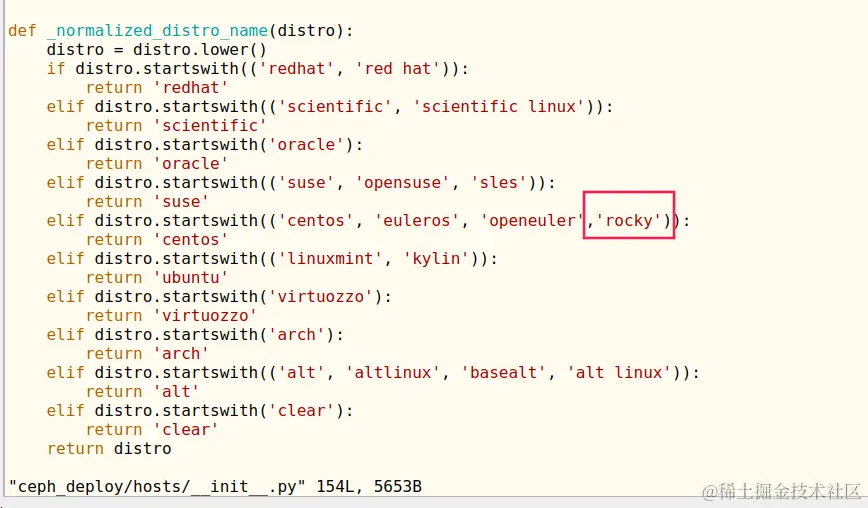

修改 ceph_deploy/hosts/init.py文件，添加如下内容
错误二

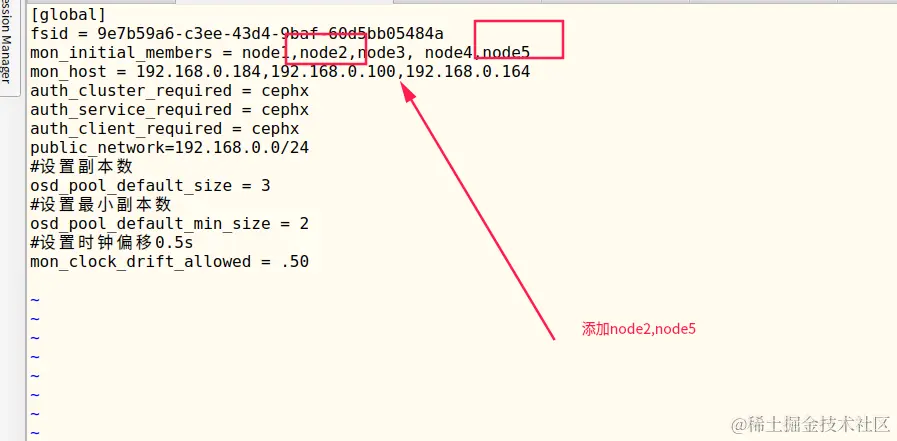

添加ceph-mon时候显示不是inital-members
解决办法
错误三
ceph_deploy.cli][INFO ] mon : ['node2']
[ceph_deploy.mon][INFO ] ensuring configuration of new mon host: node2
[ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to node2
[node2][DEBUG ] connected to host: node2
[ceph_deploy.mon][DEBUG ] Adding mon to cluster ceph, host node2
[ceph_deploy.mon][DEBUG ] using mon address by resolving host: 192.168.0.101
[ceph_deploy.mon][DEBUG ] detecting platform for host node2 ...
[node2][DEBUG ] connected to host: node2
[ceph_deploy.mon][INFO ] distro info: rocky 9.2 blue onyx
[node2][DEBUG ] determining if provided host has same hostname in remote
[node2][DEBUG ] adding mon to node2
[node2][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-node2/done
[node2][INFO ] Running command: systemctl enable ceph.target
[node2][INFO ] Running command: systemctl enable ceph-mon@node2
[node2][INFO ] Running command: systemctl start ceph-mon@node2
[node2][INFO ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.node2.asok mon_status
[node2][ERROR ] admin_socket: exception getting command descriptions: [Errno 2] No such file or directory
[node2][WARNIN] monitor node2 does not exist in monmap
[node2][WARNIN] neither `public_addr` nor `public_network` keys are defined for monitors
[node2][WARNIN] monitors may not be able to form quorum
[node2][INFO ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.node2.asok mon_status
[node2][ERROR ] admin_socket: exception getting command descriptions: [Errno 2] No such file or directory
[node2][WARNIN] monitor: mon.node2, might not be running yet
[root@node1 cephcluster]# ls /var/run/ceph/ceph-
