Kubernetes 简易安装【使用kubeadm引导-Containerd方式】1 安装方式二进制方式（建议生产环境

1 安装方式

二进制方式（建议生产环境使用）
kubeadm引导方式（官方推荐）

2、准备机器

一台兼容的 Linux 主机。Kubernetes 项目为基于 Debian 和 Red Hat 的 Linux 发行版以及一些不提供包管理器的发行版提供通用的指令
每台机器 2 GB 或更多的 RAM （如果少于这个数字将会影响你应用的运行内存)
2 CPU 核或更多
集群中的所有机器的网络彼此均能相互连接(公网和内网都可以)
节点之中不可以有重复的主机名、MAC 地址或 product_uuid。请参见这里了解更多详细信息。
开启机器上的某些端口。请参见这里了解更多详细信息。
禁用交换分区。为了保证 kubelet 正常工作，你必须禁用交换分区。

3、部署角色

IP	角色	安装软件
192.168.219.130	master	kube-apiserver kube-schduler kube-controller-manager docker flannel kubelet
192.168.219.140	node1	kubelet docker flannel kube-proxy
192.168.219.150	node2	kubelet docker flannel kube-proxy

4、安装前置环境（都执行）

关闭防火墙

如果是云服务器，需要设置安全组策略放行端口，需要放行哪些端口？请参见这里了解更多详细信息。

# 对于虚拟机，可以直接关闭防火墙如下命令：
#关闭运行的防火墙
systemctl stop firewalld.service
#禁止firewall开机启动
systemctl disable firewalld.service
#查看默认防火墙状态（关闭后显示notrunning，开启后显示running）
systemctl status firewalld.service

修改hostname

其他节点hostname都需要更改


hostnamectl set-hostname master		#192.168.219.130主机输入命令
hostnamectl set-hostname node01		#192.168.219.140主机输入命令
hostnamectl set-hostname node02 	        #192.168.219.150主机输入命令

修改host文件

修改其他节点的hostname后，将域名绑定到hostname中保证其他节点能够通过hostname进行访问其他节点

cat >> /etc/hosts << EOF
192.168.219.130   master
192.168.219.140   node01
192.168.219.150   node02
EOF

关闭防火墙

systemctl stop firewalld && systemctl disable  firewalld
systemctl stop NetworkManager && systemctl disable  NetworkManager

关闭selinux

setenforce 0
sed -i s/SELINUX=enforcing/SELINUX=disabled/ /etc/selinux/config

关闭swap

swapoff -a
sed -ri 's/.*swap.*/#&/' /etc/fstab

安装工具包

安装其他必要组件和常用工具包

yum install -y chrony yum-utils zlib zlib-devel openssl openssl-devel \
net-tools vim wget lsof unzip zip bind-utils lrzsz telnet

时间同步

systemctl enable chronyd --now
chronyc sources

配置ipvs

将桥接的IPv4流量传递到iptables的链

modprobe br_netfilter
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF
sysctl --system

参数说明

bridge-nf 使得 netfilter 可以对 Linux 网桥上的 IPv4/ARP/IPv6 包过滤，常用的选项包括

net.bridge.bridge-nf-call-arptables：是否在 arptables 的 FORWARD 中过滤网桥的 ARP 包
net.bridge.bridge-nf-call-ip6tables：是否在 ip6tables 链中过滤 IPv6 包
net.bridge.bridge-nf-call-iptables：是否在 iptables 链中过滤 IPv4 包
net.bridge.bridge-nf-filter-vlan-tagged：是否在 iptables/arptables 中过滤打了 vlan 标签的包。

安装生效ipvs

cat > /etc/sysconfig/modules/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack_ipv4
EOF

chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4

yum install -y ipset ipvsadm

使用说明

使用描述上面脚本创建了的/etc/sysconfig/modules/ipvs.modules文件，保证在节点重启后能自动加载所需模块，使用lsmod | grep -e ip_vs -e nf_conntrack_ipv4命令查看是否已经正确加载所需的内核模块;
要确保各个节点上已经安装了 ipset 软件包，因此需要：yum install ipset -y
为了便于查看 ipvs 的代理规则，最好安装一下管理工具 ipvsadm：yum install ipvsadm -y

5、containerd

安装 containerd

执行安装命令

下面的脚本就是安装containerd的

cd /root/ # 注意需要是使用root用户进行安装
yum install libseccomp -y

wget https://download.fastgit.org/containerd/containerd/releases/download/v1.5.5/cri-containerd-cni-1.5.5-linux-amd64.tar.gz
tar -C / -xzf cri-containerd-cni-1.5.5-linux-amd64.tar.gz

echo "export PATH=$PATH:/usr/local/bin:/usr/local/sbin" >> ~/.bashrc
source ~/.bashrc

mkdir -p /etc/containerd
containerd config default > /etc/containerd/config.toml

systemctl enable containerd --now
ctr version

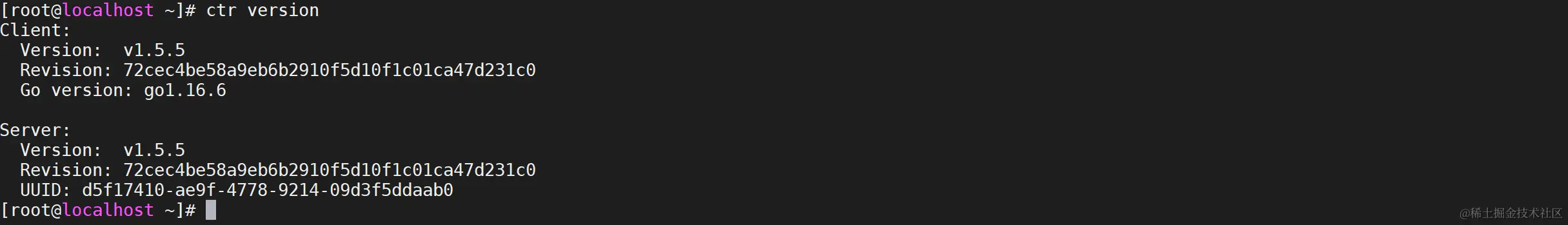

安装完成containerd之后，执行ctr version将出现如下界面

配置containerd

将 containerd 的 cgroup driver 配置为 systemd

对于使用 systemd 作为 init system 的 Linux 的发行版，使用 systemd 作为容器的 cgroup driver 可以确保节点在资源紧张的情况更加稳定，所以推荐将 containerd 的 cgroup driver 配置为 systemd.

修改前面生成的配置文件 /etc/containerd/config.toml，在 plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options 配置块下面将 SystemdCgroup 设置为 true

具体操作

#可以通过搜索SystemdCgroup进行定位
vi /etc/containerd/config.toml

[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
  ...
  [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
    SystemdCgroup = true
    ....

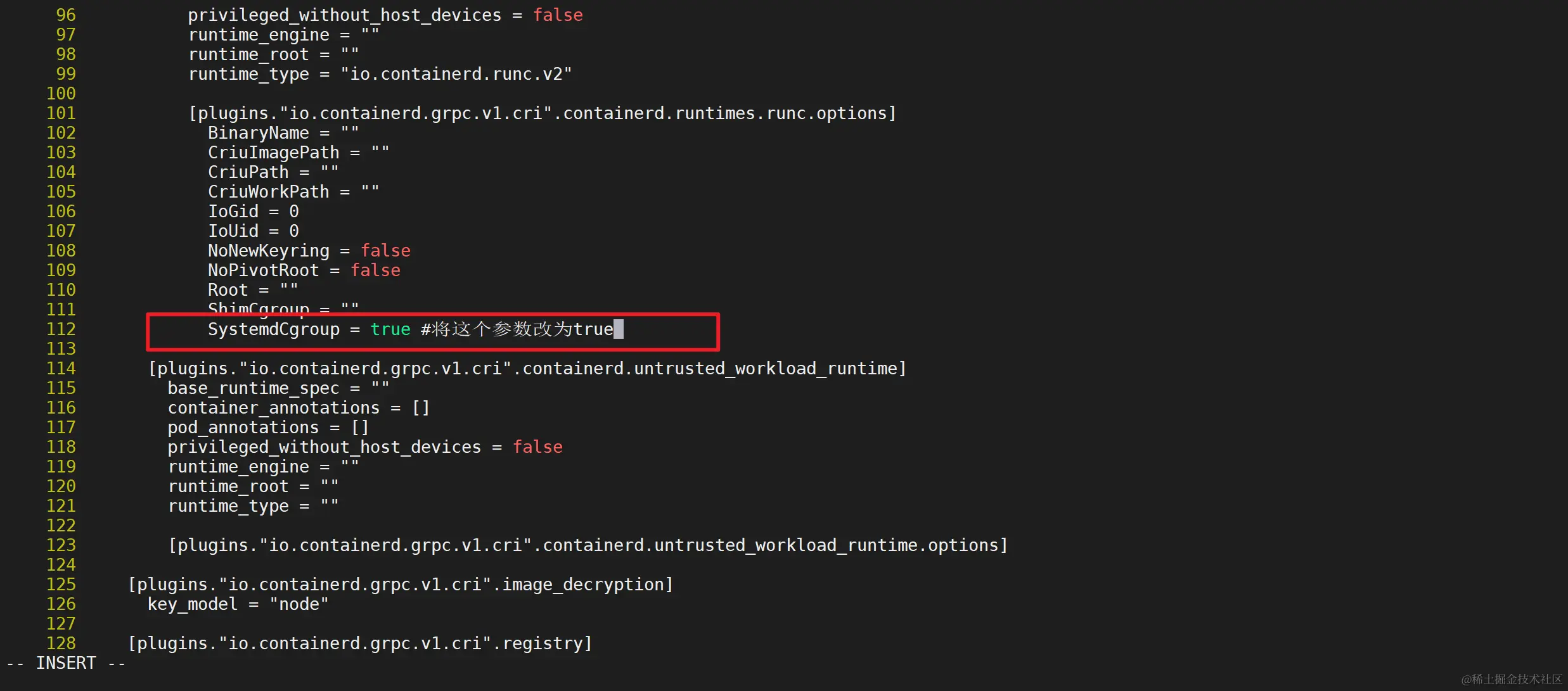

具体操作步骤

配置镜像加速器地址

然后再为镜像仓库配置一个加速器，需要在 cri 配置块下面的 registry 配置块下面进行配置 registry.mirrors

vi /etc/containerd/config.toml #可以通过搜索registry.mirrors快速定位

在这个操作需要在plugins."io.containerd.grpc.v1.cri".registry.mirrors下面新增仓库镜像

[plugins."io.containerd.grpc.v1.cri".registry]
  [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
  # 在这个地方新增镜像仓库地址
    [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
      endpoint = ["https://kvuwuws2.mirror.aliyuncs.com"]
    [plugins."io.containerd.grpc.v1.cri".registry.mirrors."k8s.gcr.io"]
      endpoint = ["https://registry.aliyuncs.com/k8sxio"]

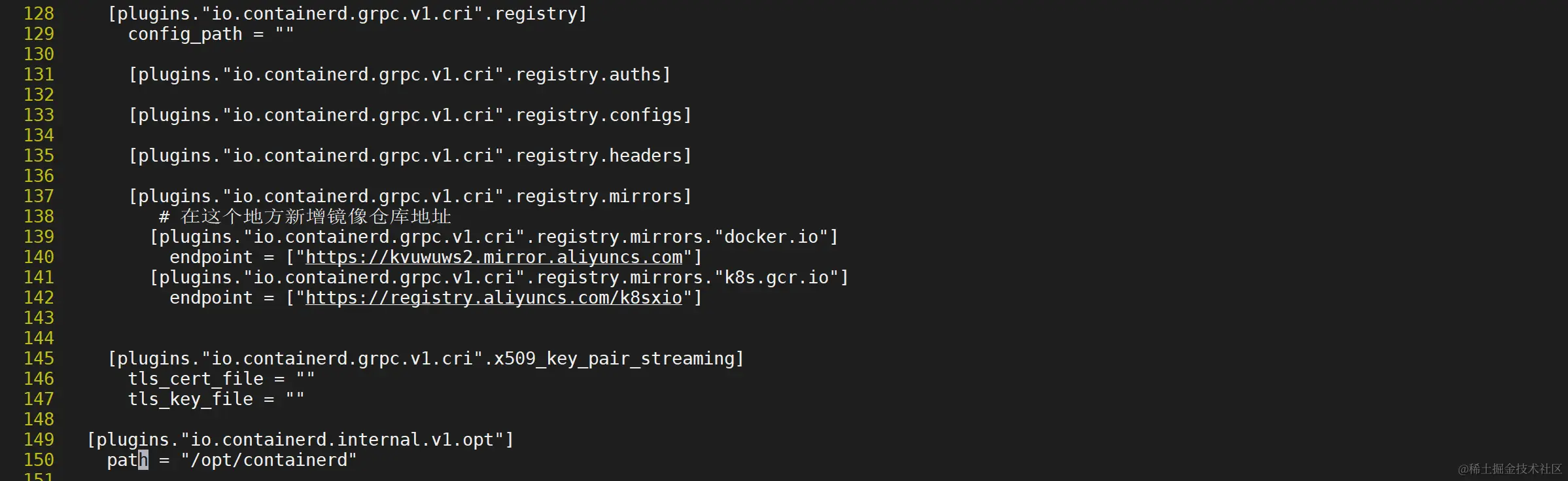

操作如下图

完整配置如下

vi /etc/containerd/config.toml

disabled_plugins = []
imports = []
oom_score = 0
plugin_dir = ""
required_plugins = []
root = "/var/lib/containerd"
state = "/run/containerd"
version = 2

[cgroup]
  path = ""

[debug]
  address = ""
  format = ""
  gid = 0
  level = ""
  uid = 0

[grpc]
  address = "/run/containerd/containerd.sock"
  gid = 0
  max_recv_message_size = 16777216
  max_send_message_size = 16777216
  tcp_address = ""
  tcp_tls_cert = ""
  tcp_tls_key = ""
  uid = 0

[metrics]
  address = ""
  grpc_histogram = false

[plugins]

  [plugins."io.containerd.gc.v1.scheduler"]
    deletion_threshold = 0
    mutation_threshold = 100
    pause_threshold = 0.02
    schedule_delay = "0s"
    startup_delay = "100ms"

  [plugins."io.containerd.grpc.v1.cri"]
    disable_apparmor = false
    disable_cgroup = false
    disable_hugetlb_controller = true
    disable_proc_mount = false
    disable_tcp_service = true
    enable_selinux = false
    enable_tls_streaming = false
    ignore_image_defined_volumes = false
    max_concurrent_downloads = 3
    max_container_log_line_size = 16384
    netns_mounts_under_state_dir = false
    restrict_oom_score_adj = false
    sandbox_image = "k8s.gcr.io/pause:3.5"
    selinux_category_range = 1024
    stats_collect_period = 10
    stream_idle_timeout = "4h0m0s"
    stream_server_address = "127.0.0.1"
    stream_server_port = "0"
    systemd_cgroup = false
    tolerate_missing_hugetlb_controller = true
    unset_seccomp_profile = ""

    [plugins."io.containerd.grpc.v1.cri".cni]
      bin_dir = "/opt/cni/bin"
      conf_dir = "/etc/cni/net.d"
      conf_template = ""
      max_conf_num = 1

    [plugins."io.containerd.grpc.v1.cri".containerd]
      default_runtime_name = "runc"
      disable_snapshot_annotations = true
      discard_unpacked_layers = false
      no_pivot = false
      snapshotter = "overlayfs"

      [plugins."io.containerd.grpc.v1.cri".containerd.default_runtime]
        base_runtime_spec = ""
        container_annotations = []
        pod_annotations = []
        privileged_without_host_devices = false
        runtime_engine = ""
        runtime_root = ""
        runtime_type = ""

        [plugins."io.containerd.grpc.v1.cri".containerd.default_runtime.options]

      [plugins."io.containerd.grpc.v1.cri".containerd.runtimes]

        [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
          base_runtime_spec = ""
          container_annotations = []
          pod_annotations = []
          privileged_without_host_devices = false
          runtime_engine = ""
          runtime_root = ""
          runtime_type = "io.containerd.runc.v2"

          [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
            BinaryName = ""
            CriuImagePath = ""
            CriuPath = ""
            CriuWorkPath = ""
            IoGid = 0
            IoUid = 0
            NoNewKeyring = false
            NoPivotRoot = false
            Root = ""
            ShimCgroup = ""
            SystemdCgroup = true

      [plugins."io.containerd.grpc.v1.cri".containerd.untrusted_workload_runtime]
        base_runtime_spec = ""
        container_annotations = []
        pod_annotations = []
        privileged_without_host_devices = false
        runtime_engine = ""
        runtime_root = ""
        runtime_type = ""

        [plugins."io.containerd.grpc.v1.cri".containerd.untrusted_workload_runtime.options]

    [plugins."io.containerd.grpc.v1.cri".image_decryption]
      key_model = "node"

    [plugins."io.containerd.grpc.v1.cri".registry]
      config_path = ""

      [plugins."io.containerd.grpc.v1.cri".registry.auths]

      [plugins."io.containerd.grpc.v1.cri".registry.configs]

      [plugins."io.containerd.grpc.v1.cri".registry.headers]

      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
      # 在这个地方新增镜像仓库地址
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://kvuwuws2.mirror.aliyuncs.com"]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."k8s.gcr.io"]
          endpoint = ["https://registry.aliyuncs.com/k8sxio"]

    [plugins."io.containerd.grpc.v1.cri".x509_key_pair_streaming]
      tls_cert_file = ""
      tls_key_file = ""

  [plugins."io.containerd.internal.v1.opt"]
    path = "/opt/containerd"

  [plugins."io.containerd.internal.v1.restart"]
    interval = "10s"

  [plugins."io.containerd.metadata.v1.bolt"]
    content_sharing_policy = "shared"

  [plugins."io.containerd.monitor.v1.cgroups"]
    no_prometheus = false

  [plugins."io.containerd.runtime.v1.linux"]
    no_shim = false
    runtime = "runc"
    runtime_root = ""
    shim = "containerd-shim"
    shim_debug = false

  [plugins."io.containerd.runtime.v2.task"]
    platforms = ["linux/amd64"]

  [plugins."io.containerd.service.v1.diff-service"]
    default = ["walking"]

  [plugins."io.containerd.snapshotter.v1.aufs"]
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.btrfs"]
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.devmapper"]
    async_remove = false
    base_image_size = ""
    pool_name = ""
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.native"]
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.overlayfs"]
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.zfs"]
    root_path = ""

[proxy_plugins]

[stream_processors]

  [stream_processors."io.containerd.ocicrypt.decoder.v1.tar"]
    accepts = ["application/vnd.oci.image.layer.v1.tar+encrypted"]
    args = ["--decryption-keys-path", "/etc/containerd/ocicrypt/keys"]
    env = ["OCICRYPT_KEYPROVIDER_CONFIG=/etc/containerd/ocicrypt/ocicrypt_keyprovider.conf"]
    path = "ctd-decoder"
    returns = "application/vnd.oci.image.layer.v1.tar"

  [stream_processors."io.containerd.ocicrypt.decoder.v1.tar.gzip"]
    accepts = ["application/vnd.oci.image.layer.v1.tar+gzip+encrypted"]
    args = ["--decryption-keys-path", "/etc/containerd/ocicrypt/keys"]
    env = ["OCICRYPT_KEYPROVIDER_CONFIG=/etc/containerd/ocicrypt/ocicrypt_keyprovider.conf"]
    path = "ctd-decoder"
    returns = "application/vnd.oci.image.layer.v1.tar+gzip"

[timeouts]
  "io.containerd.timeout.shim.cleanup" = "5s"
  "io.containerd.timeout.shim.load" = "5s"
  "io.containerd.timeout.shim.shutdown" = "3s"
  "io.containerd.timeout.task.state" = "2s"

[ttrpc]
  address = ""
  gid = 0
  uid = 0

启动containerd

由于上面我们下载的 containerd 压缩包中包含一个 etc/systemd/system/containerd.service 的文件，这样我们就可以通过 systemd 来配置 containerd 作为守护进程运行了，现在我们就可以启动 containerd 了，直接执行下面的命令即可

systemctl daemon-reload
systemctl enable containerd --now

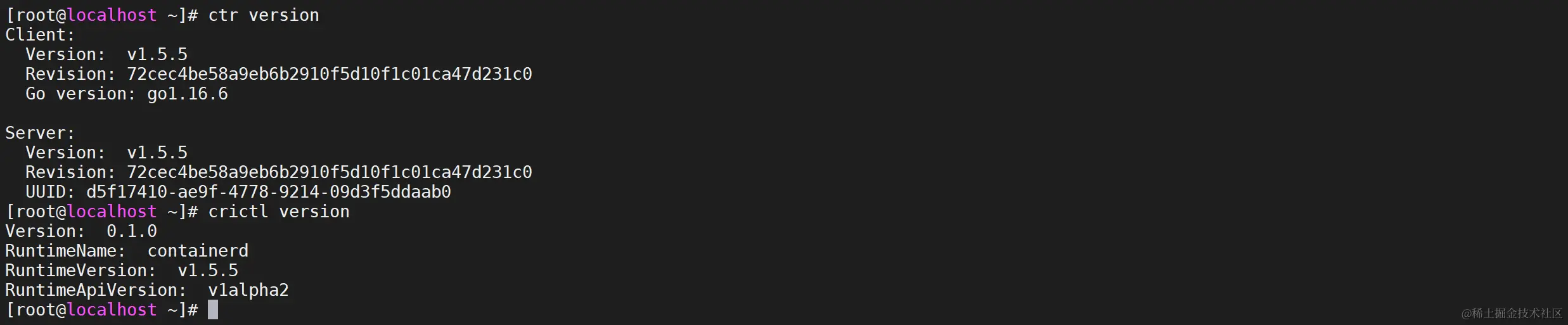

验证

启动完成后就可以使用 containerd 的本地 CLI 工具 ctr 和 crictl 了，比如查看版本：

ctr version
crictl version

执行后出现如下界面

6、安装kubeadm

这里我们使用 kubeadm 部署Kubernetes，该操作需要在所有节点执行

添加阿里云镜像源

我们使用阿里云的源进行安装：

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

安装组件

安装kubelat、kubectl、kubeadm，说明：–disableexcludes 禁掉除了kubernetes之外的别的仓库

#因为在线安装速度稍微有点慢
yum makecache fast
yum install -y kubelet-1.22.10 kubeadm-1.22.10 kubectl-1.22.10 --disableexcludes=kubernetes
kubeadm version

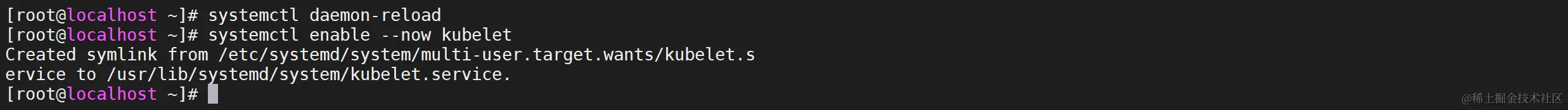

设置开机自启

启动kubeadm，并配置开启启动

systemctl daemon-reload
systemctl enable --now kubelet

验证

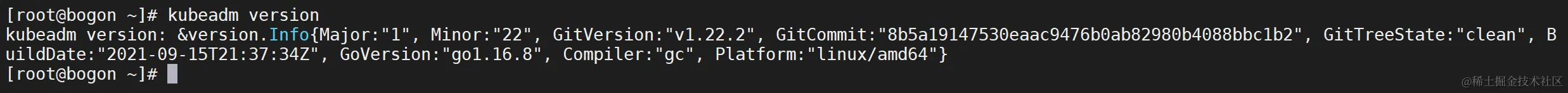

执行以下命令进行验证我们的kubeadm是否安装成功

kubeadm version

出现如下界面表示已经安装成功

命令自动补全

yum install -y bash-completion
source <(crictl completion bash)
crictl completion bash >/etc/bash_completion.d/crictl
source <(kubectl completion bash)
kubectl completion bash >/etc/bash_completion.d/kubectl
source /usr/share/bash-completion/bash_completion

提前拉取镜像

因为需要一些镜像，我们需要提前进行拉取

拉取coredns

ctr -n k8s.io i pull docker.io/coredns/coredns:1.8.4
ctr -n k8s.io i tag docker.io/coredns/coredns:1.8.4 registry.aliyuncs.com/k8sxio/coredns:v1.8.4

ctr -n k8s.io i pull registry.aliyuncs.com/k8sxio/pause:3.5
ctr -n k8s.io i tag registry.aliyuncs.com/k8sxio/pause:3.5 k8s.gcr.io/pause:3.5

7、部署K8s-Master

下面的操作只在master节点执行

kubeadm常用命令

编辑配置文件

vi kubeadm.yaml

apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 192.168.219.130  #1.指定master节点内网IP
  bindPort: 6443
nodeRegistration:
  criSocket: /run/containerd/containerd.sock    #2.修改为containerd的socket地址
  imagePullPolicy: IfNotPresent
  name: master    #3.设置为master的主机名称
  taints:
  - effect: "NoSchedule" #4.给master添加污点，master节点不能调度应用
    key: "node-role.kubernetes.io/master"
---
# 新增如下kubeproxy的配置
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs  # 修改kube-proxy 模式为ipvs，默认为iptables
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/k8sxio #修改成阿里云的image镜像地址
kind: ClusterConfiguration
kubernetesVersion: 1.22.10  #指定k8s版本号，默认这里忽略了小版本号
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
  podSubnet: 10.244.0.0/16  #添加 pod 子网地址
scheduler: {}
---
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 0s
    cacheUnauthorizedTTL: 0s
cgroupDriver: systemd # 默认已经是`systemd`，最好再检查下,如果不是改过来
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging: {}
memorySwap: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
rotateCertificates: true
runtimeRequestTimeout: 0s
shutdownGracePeriod: 0s
shutdownGracePeriodCriticalPods: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s

配置镜像

在开始初始化集群之前可以使用 kubeadm config images pull --config kubeadm.yaml 预先在各个服务器节点上拉取所k8s需要的容器镜像。

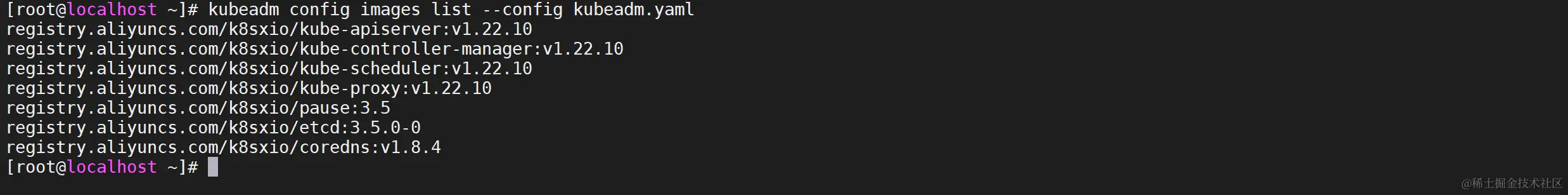

kubeadm config images list --config kubeadm.yaml

拉取镜像

做了这么多工作就是为了最后的拉取镜像，配置文件准备好过后，可以使用如下命令先将相关镜像 pull下来

# 速度可能有点慢
kubeadm config images pull --config kubeadm.yaml

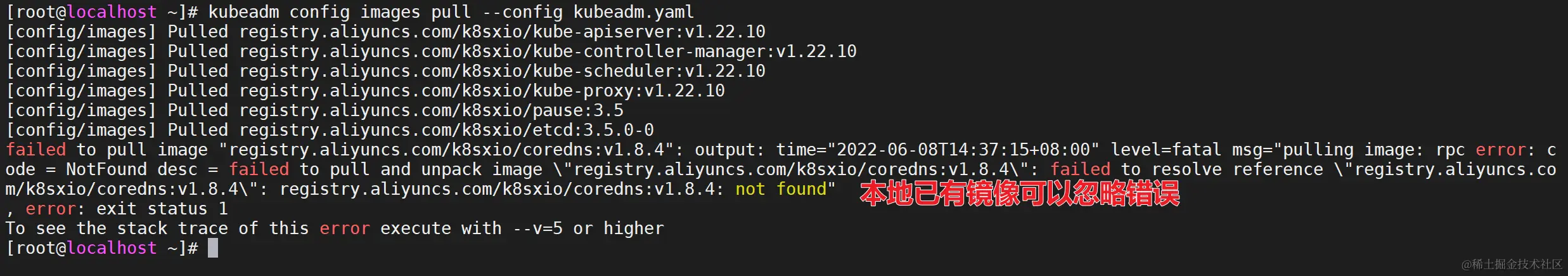

因为本地已经有了registry.aliyuncs.com/k8sxio/coredns:v1.8.4镜像，但是注意，如果重新执行拉取命令还是回报错的，这个只要保证本地有镜像，错误可以忽略

初始化k8s

然后就可以使用上面的配置文件在 master 节点上进行初始化

执行命令

执行命令完成进行初始化工作

kubeadm init --config kubeadm.yaml

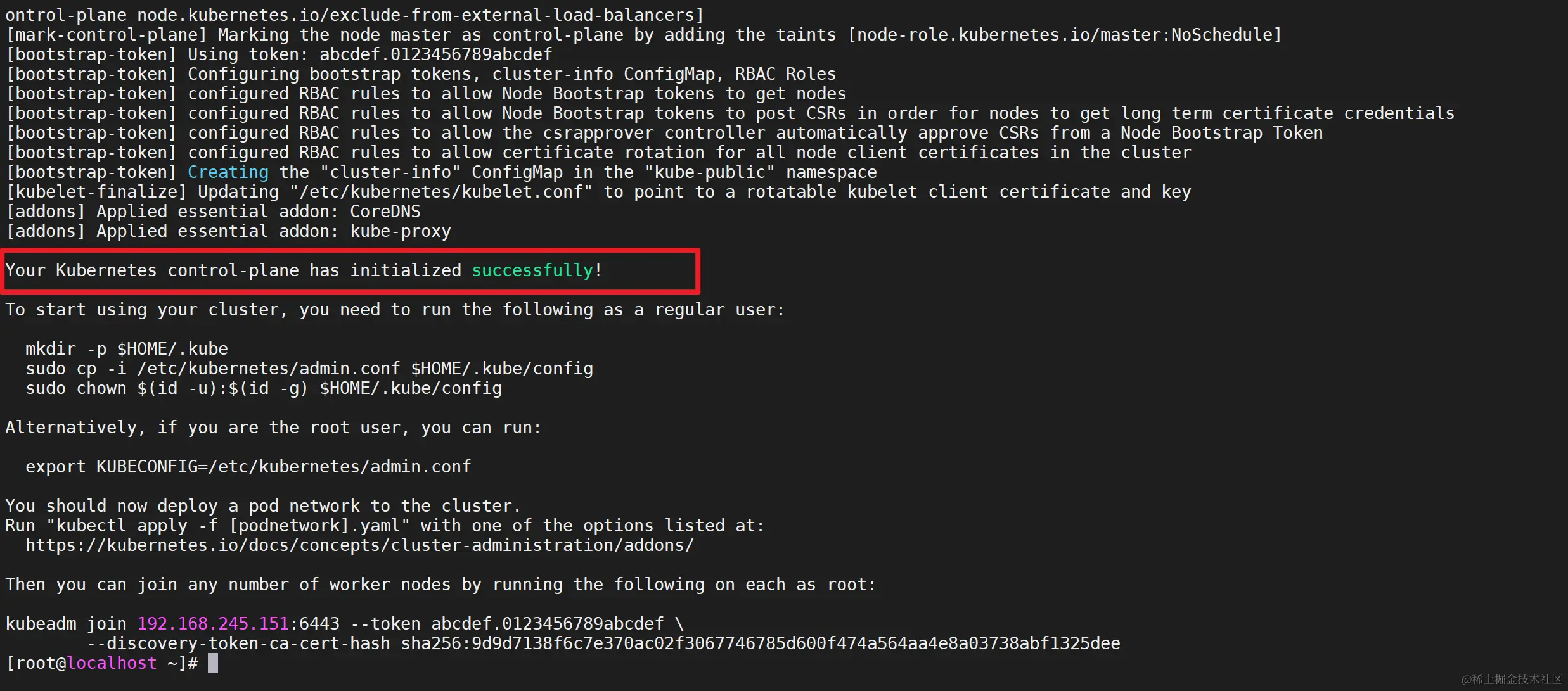

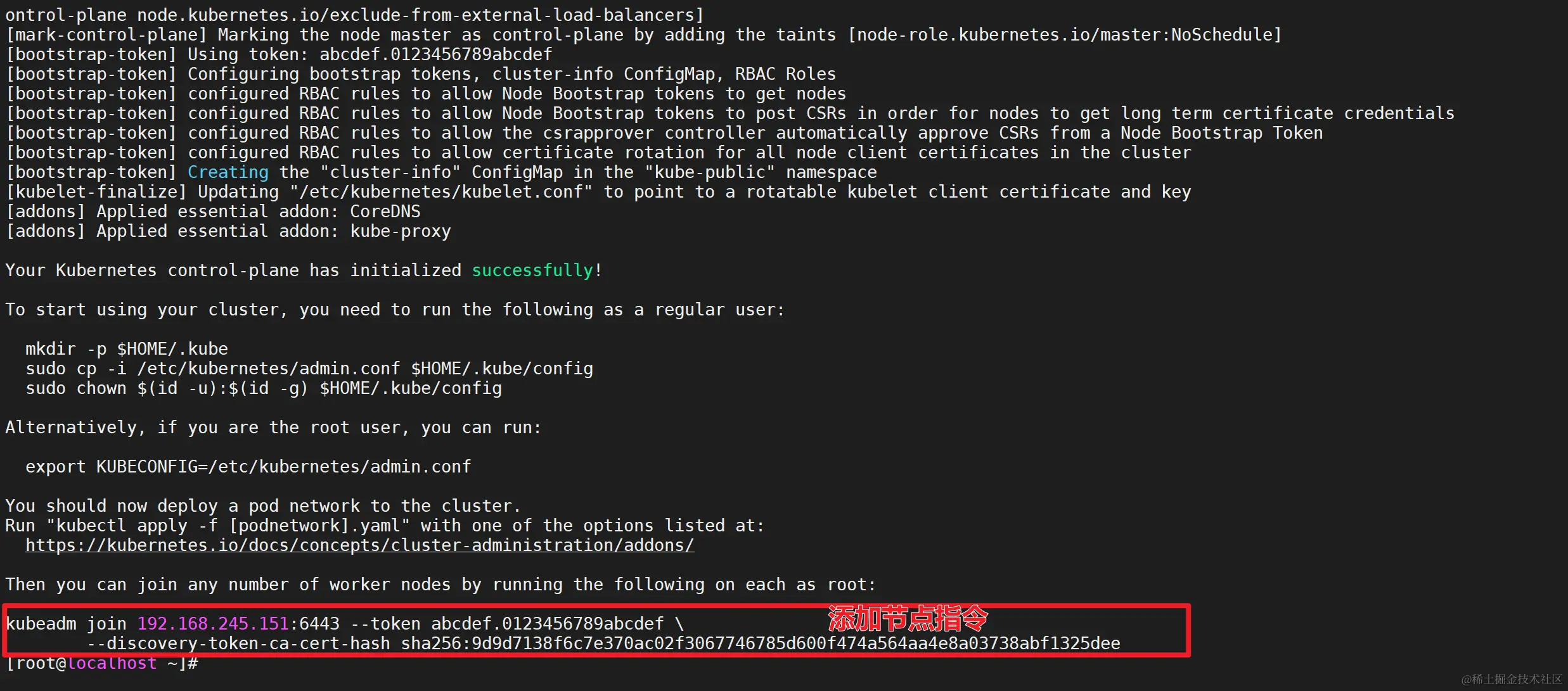

出现如下界面表示我们k8s的master节点已经初始化完成了

执行后续命令

安装成功后，提示我们需要执行一些命令，我们执行以下就好

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
#如果root用户安装k8s需要执行以下命令，如果非root忽略
export KUBECONFIG=/etc/kubernetes/admin.conf

验证

我们可以执行以下命令验证一下k8s是否安装成功

kubectl get node

出现如下界面表示安装成功

8、添加从节点

找到添加节点信息

记住初始化集群上面的配置和操作要提前做好，将 master 节点上面的 $HOME/.kube/config 文件拷贝到 node 节点对应的文件中，安装 kubeadm、kubelet、kubectl（可选），然后执行上面初始化完成后提示的 join 命令即可：

如果忘记了上面的 join 命令可以使用命令 kubeadm token create --print-join-command 重新获取。

执行命令

再从节点执行相关命令即可，多少个node节点执行多少次

kubeadm join 192.168.245.151:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:9d9d7138f6c7e370ac02f3067746785d600f474a564aa4e8a03738abf1325dee

这样我们就加入到了k8s集群了

验证

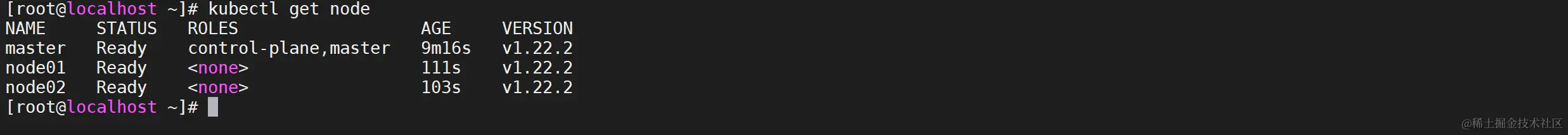

执行成功后运行 kubectl get node命令

kubectl get node

9、安装网络插件flannel

这个时候其实集群还不能正常使用，因为还没有安装网络插件，接下来安装网络插件

编辑配置文件

我们通过以下配置文件进行创建flannel网络

vi kube-flannel.yml

---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: psp.flannel.unprivileged
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
    seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
    apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
    apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
  privileged: false
  volumes:
  - configMap
  - secret
  - emptyDir
  - hostPath
  allowedHostPaths:
  - pathPrefix: "/etc/cni/net.d"
  - pathPrefix: "/etc/kube-flannel"
  - pathPrefix: "/run/flannel"
  readOnlyRootFilesystem: false
  # Users and groups
  runAsUser:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  fsGroup:
    rule: RunAsAny
  # Privilege Escalation
  allowPrivilegeEscalation: false
  defaultAllowPrivilegeEscalation: false
  # Capabilities
  allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
  defaultAddCapabilities: []
  requiredDropCapabilities: []
  # Host namespaces
  hostPID: false
  hostIPC: false
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  # SELinux
  seLinux:
    # SELinux is unused in CaaSP
    rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
rules:
- apiGroups: ['extensions']
  resources: ['podsecuritypolicies']
  verbs: ['use']
  resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes/status
  verbs:
  - patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: flannel
  namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni-plugin
        image: rancher/mirrored-flannelcni-flannel-cni-plugin:v1.2
        command:
        - cp
        args:
        - -f
        - /flannel
        - /opt/cni/bin/flannel
        volumeMounts:
        - name: cni-plugin
          mountPath: /opt/cni/bin
      - name: install-cni
        image: quay.io/coreos/flannel:v0.15.0
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.15.0
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
            add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
      - name: run
        hostPath:
          path: /run/flannel
      - name: cni-plugin
        hostPath:
          path: /opt/cni/bin
      - name: cni
        hostPath:
          path: /etc/cni/net.d
      - name: flannel-cfg
        configMap:
          name: kube-flannel-cfg

运行网络

这个文件不用修改什么，直接apply即可

kubectl apply -f kube-flannel.yml # 安装 flannel 网络插件

查看pod状态

我们通过如下命令查看下pod的状态

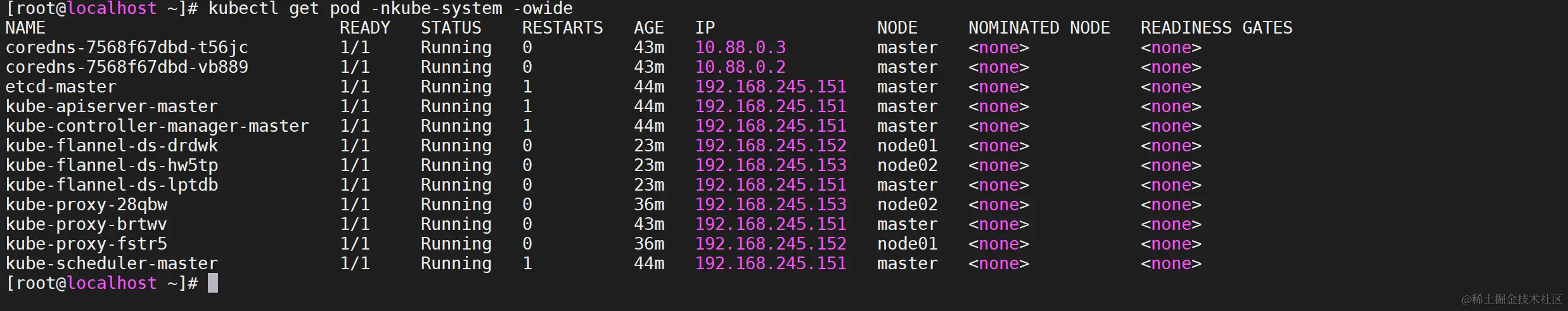

kubectl get pod -nkube-system -owide

我们发现所有节点都是正常的就代表已经安装成功了

10、安装Dashboard

v1.22.10 版本的集群需要安装最新的 2.0+ 版本的 Dashboard，需要在master节点执行

编辑配置文件

修改Service增加 type: NodePort 的配置，该配置已经配置完成可以直接使用

vi kube-dashboard.yaml

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard
  type: NodePort  # 加上type=NodePort变成NodePort类型的服务
---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.4.0
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
    spec:
      securityContext:
        seccompProfile:
          type: RuntimeDefault
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.7
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

部署Dashboard

在 YAML 文件中可以看到新版本 Dashboard 集成了一个 metrics-scraper 的组件，可以通过 Kubernetes 的 Metrics API 收集一些基础资源的监控信息，并在 web 页面上展示，所以要想在页面上展示监控信息就需要提供 Metrics API，比如安装 Metrics Server

kubectl apply -f kube-dashboard.yaml

新版本的 Dashboard 会被默认安装在 kubernetes-dashboard 这个命名空间下面：

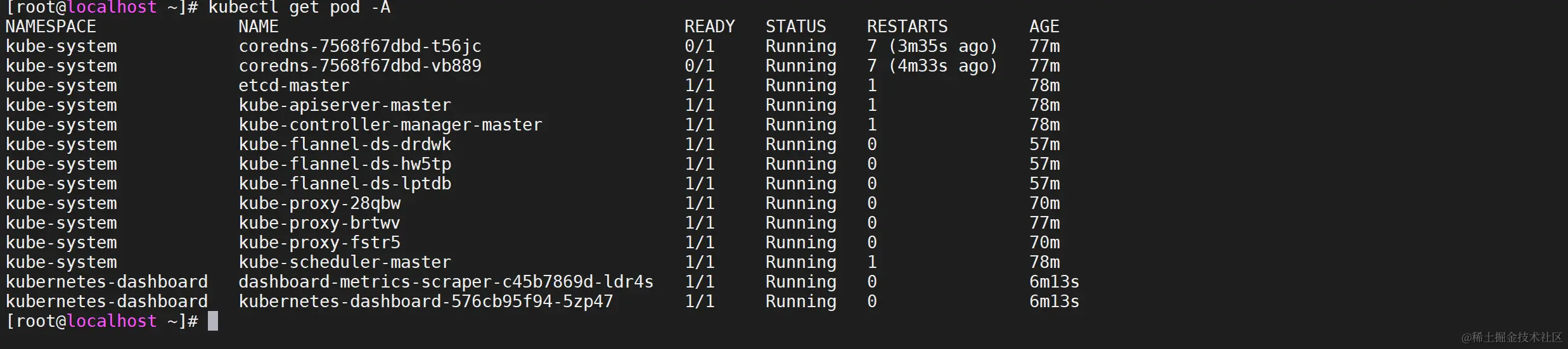

kubectl get pod -A

配置CNI

我们仔细看可以发现上面的 Pod 分配的 IP 段是 10.88.xx.xx，包括前面自动安装的 CoreDNS 也是如此，我们前面不是配置的 podSubnet 为 10.244.0.0/16 吗？

kubectl get pod -A -o wide

查看CNI 配置

我们先去查看下 CNI 的配置文件

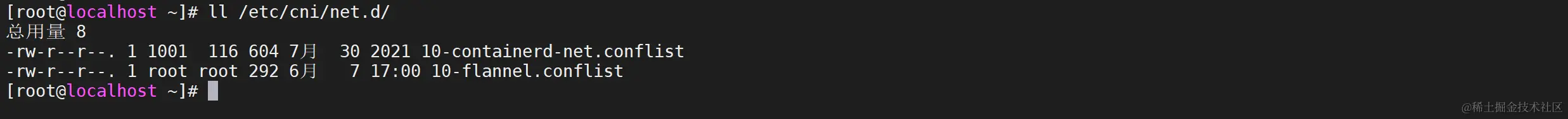

ll /etc/cni/net.d/

可以看到里面包含两个配置，一个是 10-containerd-net.conflist，另外一个是我们上面创建的 Flannel 网络插件生成的配置，我们的需求肯定是想使用 Flannel 的这个配置，我们可以查看下 containerd 这个自带的 cni 插件配置：

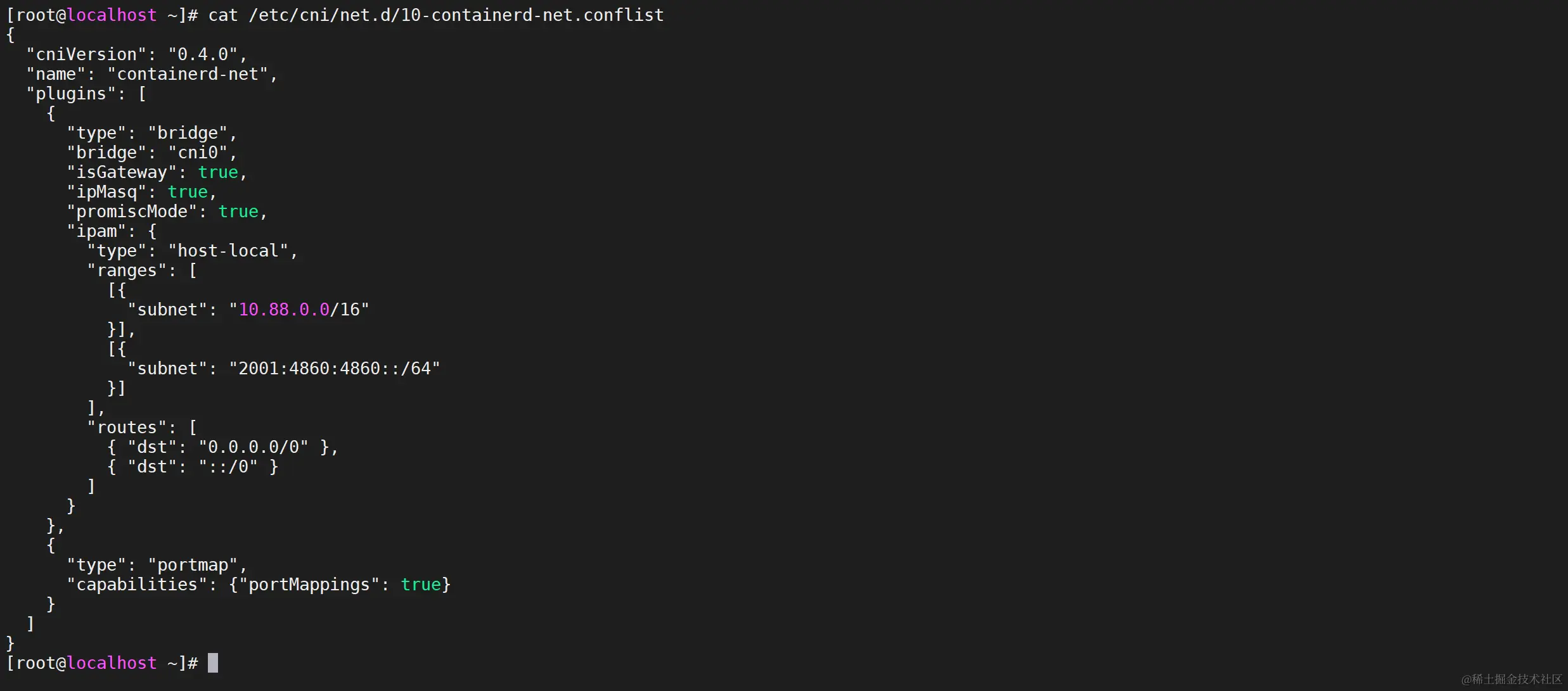

cat /etc/cni/net.d/10-containerd-net.conflist

可以看到上面的 IP 段恰好就是 10.88.0.0/16，但是这个 cni 插件类型是 bridge 网络，网桥的名称为 cni0：

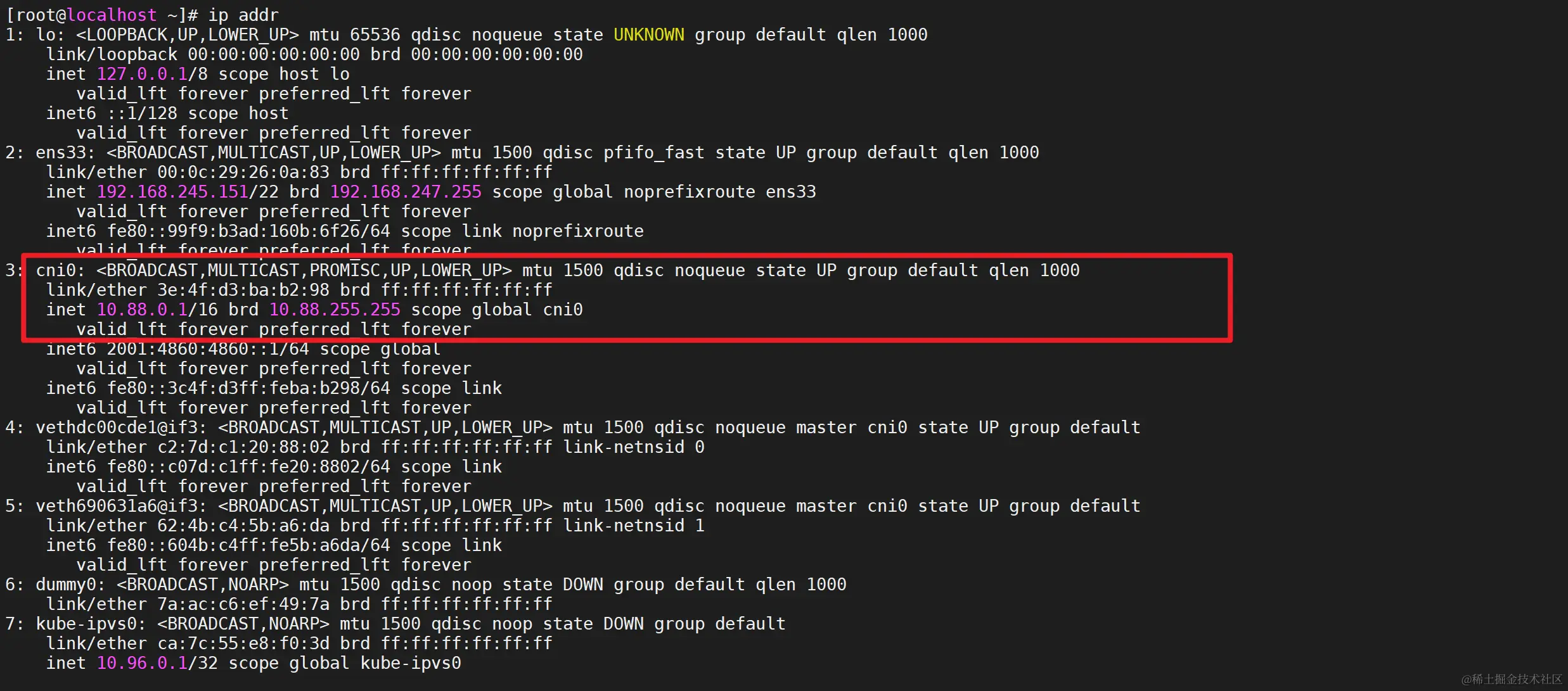

ip addr

配置CNI

该操作只在node节点进行操作

但是使用 bridge 网络的容器无法跨多个宿主机进行通信，跨主机通信需要借助其他的 cni 插件，比如上面我们安装的 Flannel，或者 Calico 等等，由于我们这里有两个 cni 配置，所以我们需要将 10-containerd-net.conflist 这个配置删除，因为如果这个目录中有多个 cni 配置文件，kubelet 将会使用按文件名的字典顺序排列的第一个作为配置文件，所以前面默认选择使用的是 containerd-net 这个插件

按删除方法把所有的节点都节点也配置下

mv /etc/cni/net.d/10-containerd-net.conflist{,.bak}
ifconfig  cni0 down && ip link delete cni0
systemctl daemon-reload
systemctl restart containerd kubelet

重建POD

然后记得重建 coredns 和 dashboard 的 Pod，重建后 Pod 的 IP 地址就正常了：

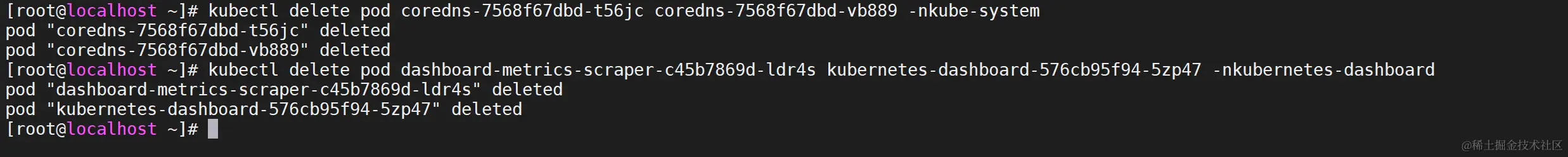

kubectl delete pod coredns-7568f67dbd-t56jc coredns-7568f67dbd-vb889 -nkube-system
kubectl delete pod dashboard-metrics-scraper-c45b7869d-ldr4s kubernetes-dashboard-576cb95f94-5zp47 -nkubernetes-dashboard

查看Pod

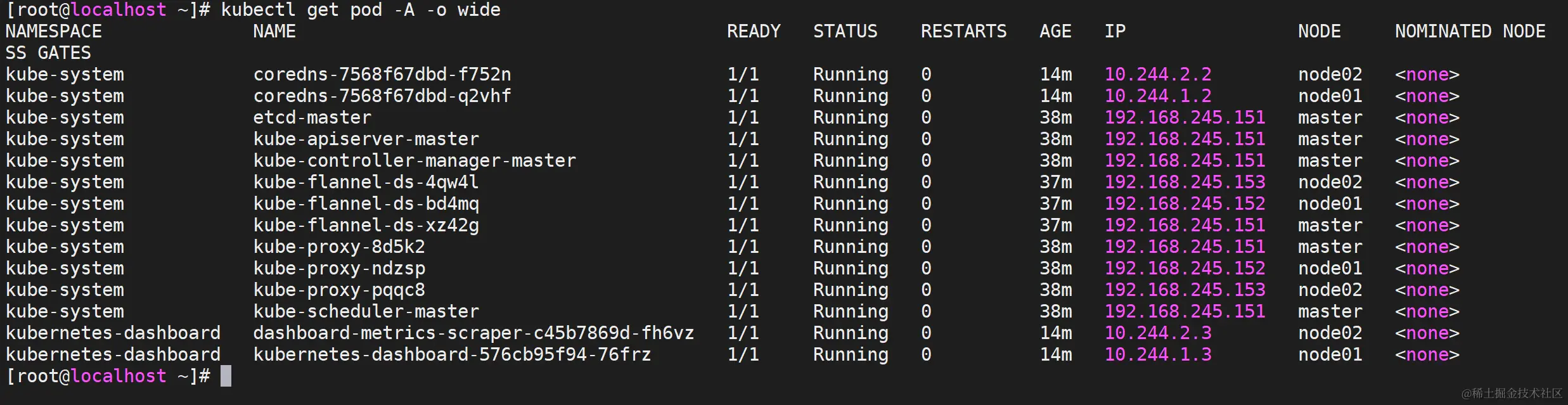

kubectl get pod -A -o wide

我们发现所有的节点都是正常状态

查看Dashboard 端口

查看 Dashboard 的 NodePort 端口

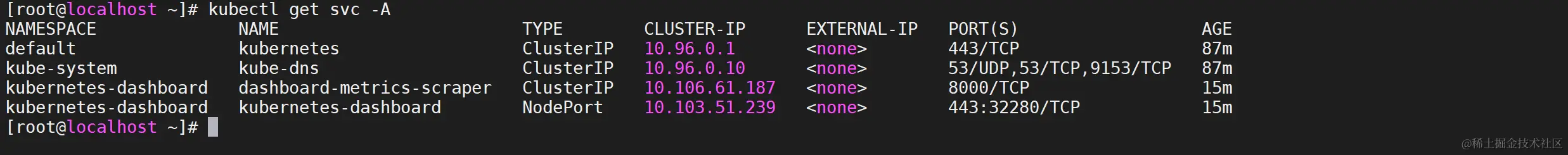

kubectl get svc -A

访问Dashboard

打开访问页面

然后可以通过上面的 32280端口去访问 Dashboard，要记住使用 https，Chrome 不生效可以使用Firefox 测试，如果没有 Firefox 下面打不开页面，可以点击下页面中的信任证书即可：

https://192.168.245.151:32280/

信任后就可以访问到 Dashboard 的登录页面了：

创建访问用户

然后创建一个具有全局所有权限的用户来登录 Dashboard：(admin.yaml)

vi admin.yaml

kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: admin
roleRef:
  kind: ClusterRole
  name: cluster-admin
  apiGroup: rbac.authorization.k8s.io
subjects:
- kind: ServiceAccount
  name: admin
  namespace: kubernetes-dashboard
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin
  namespace: kubernetes-dashboard

直接应用即可

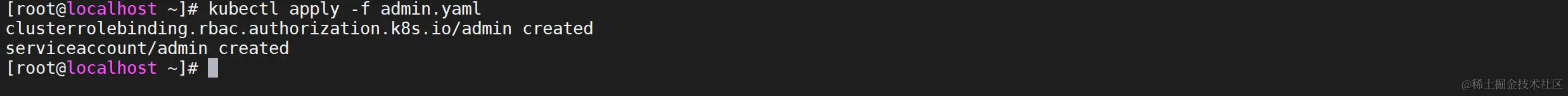

kubectl apply -f admin.yaml

查看secret对象

kubectl get secret -n kubernetes-dashboard

我们是以admin开头的，所有找到以admin开头的secret即可

生成密钥

会生成一串很长的base64后的字符串

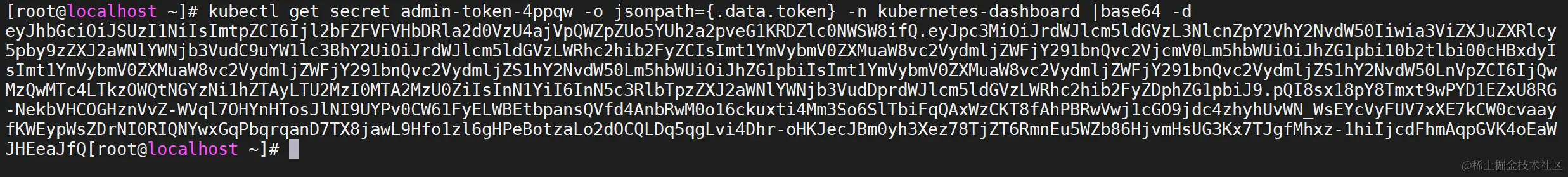

kubectl get secret admin-token-4ppqw -o jsonpath={.data.token} -n kubernetes-dashboard |base64 -d

输入密钥

然后用上面的 base64 解码后的字符串作为 token 登录 Dashboard 即可，新版本还新增了一个暗黑模式：

点击登录就会登录进去

十年饮冰，难凉热血

Kubernetes 简易安装【使用kubeadm引导-Containerd方式】

1 安装方式

2、准备机器

3、部署角色

4、安装前置环境（都执行）

关闭防火墙

修改hostname

修改host文件

关闭防火墙

关闭selinux

关闭swap

安装工具包

时间同步

配置ipvs

安装生效ipvs

5、containerd

安装 containerd

配置containerd

配置镜像加速器地址

完整配置如下

启动containerd

验证

6、安装kubeadm

添加阿里云镜像源

安装组件

设置开机自启

验证

命令自动补全

提前拉取镜像

7、部署K8s-Master

kubeadm常用命令

编辑配置文件

配置镜像

拉取镜像

初始化k8s

执行命令

执行后续命令

验证

8、 添加从节点

找到添加节点信息

执行命令

验证

9、安装网络插件flannel

编辑配置文件

运行网络

查看pod状态

10、安装Dashboard

编辑配置文件

部署Dashboard

配置CNI

重建POD

查看Dashboard 端口

访问Dashboard

8、添加从节点
