1.XML文件
XML文件是一种通用的数据格式,可以适用于各种类型的数据。
在Unity中,我们可以使用XmlSerializer类来将对象序列化为XML格式的数据或将XML格式的数据反序列化为对象。
使用XML文件作为序列化配表可以使数据结构更清晰,易于修改和维护。
xml使用XmlDocument类来保存和加载xml文档,静态方法提供创建、保存、读取、添加、删除xml文件,命名为System.xml;

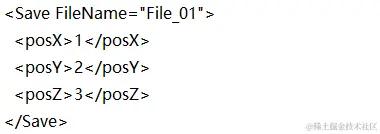

XML文件格式:
1.1 对象模型
public class Save
{
public int m_posX;
public int m_posY;
public int m_posZ;
public Save(int posX, int posY, int posZ)
{
m_posX = posX;
m_posY = posY;
m_posZ = posZ;
}
}
1.2 写xml
private void SaveByXML1()
{
//创建对象模型
Save save = new Save(1,2,3);
XmlDocument xmlDoc = new XmlDocument();
//创建根节点
XmlElement root=xmlDoc.CreateElement("Save");
root.SetAttribute("FileName", "File_01"); //可选
XmlElement posXElement = xmlDoc.CreateElement("posX");
posXElement.InnerText=save.m_posX.ToString();
root.AppendChild(posXElement);
XmlElement posYElement = xmlDoc.CreateElement("posY");
posYElement.InnerText=save.m_posY.ToString();
root.AppendChild(posYElement);
XmlElement posZElement = xmlDoc.CreateElement("posZ");
posZElement.InnerText=save.m_posZ.ToString();
root.AppendChild(posZElement);
xmlDoc.AppendChild(root);
xmlDoc.Save(Application.streamingAssetsPath + "/DataXml.text");
Debug.Log("------Save------");
}
1.3 读xml
private void LoadByXML()
{
if (File.Exists(Application.streamingAssetsPath + "/DataXML.text"))
{
Save save = new Save(0,0,0);
XmlDocument xmlDocument = new XmlDocument();
xmlDocument.Load(Application.streamingAssetsPath + "/DataXML.text");
//通过Tag标签访问元素中具体的数值,返回的是List列表,第一个是posX[0],第二个是posX[1];
XmlNodeList posX = xmlDocument.GetElementsByTagName("posX");
int pos_X = int.Parse(posX[0].InnerText);
save.m_posX = pos_X;
XmlNodeList posY = xmlDocument.GetElementsByTagName("posY");
int pos_Y = int.Parse(posY[0].InnerText);
save.m_posY = pos_Y;
XmlNodeList posZ = xmlDocument.GetElementsByTagName("posZ");
int pos_Z = int.Parse(posZ[0].InnerText);
save.m_posZ = pos_Z;
gameObject.transform.position = new Vector3(save.m_posX, save.m_posY,save.m_posZ);
Debug.Log("------Load-------");
}
else
{
Debug.Log("NOT FOUND THIS FILE!");
}
}
1.4序列化Save
List<Save> saves = new List<Save>()
{
new Save() {PosX = 10,PosY = 10,PosZ = 10},
new Save() {PosX = 11,PosY=11,PosZ=11},
new Save() {PosX = 12,PosY=12,PosZ=12}
};

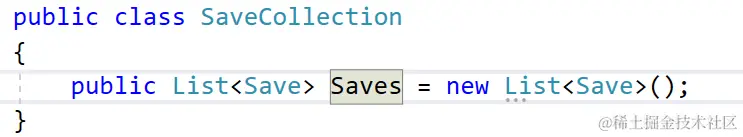

//创建包含Save集合的对象
SaveCollection saveCollection = new SaveCollection {Saves=saves};
//将对象集合序列化为XML格式数据
XmlSerializer xmlSerializer = new XmlSerializer(typeof(SaveCollection));
using (TextWriter writer = new StreamWriter(Application.streamingAssetsPath + "/savesList.xml"))
{
xmlSerializer.Serialize(writer, saveCollection);
}
1.5反序列化Save集合
// 将XML格式数据反序列化为对象集合
using (TextReader reader = new StreamReader(Application.streamingAssetsPath+ "/savesList.xml"))
{
SaveCollection deserializedCollection = (SaveCollection)xmlSerializer.Deserialize(reader);
List<Save> deserializedPlayers = deserializedCollection.Saves;
foreach (Save player in deserializedPlayers)
{
Debug.LogFormat($"posX: {player.PosX}, posY: {player.PosY},posZ:{player.PosZ}");
}
}
2.JSON文件
JSON文件是一种轻量级的数据交换格式,具有良好的可读性和可扩展性。
在Unity中,我们可以使用JsonUtility类将对象序列化为JSON格式的数据或将JSON格式的数据反序列化为对象。
使用JSON文件作为序列化配表可以使数据格式更紧凑,易于传输和存储。
3.ScriptableObject
ScriptableObject是Unity中的一种特殊类型,可以用于存储数据和对象,具有良好的可扩展性和可重用性。
在Unity中,我们可以创建一个ScriptableObject对象,将需要序列化的数据存储在其中,
然后将ScriptableObject对象保存为.asset文件。
使用ScriptableObject作为序列化配表可以使数据结构更灵活,易于修改和扩展。
4.CSV文件
CSV文件是一种简单的文本格式,可以用于存储表格数据。
在Unity中,我们可以使用第三方插件或自己编写代码来读取和写入CSV文件。
使用CSV文件作为序列化配表可以使数据结构更简单,易于编辑和查看
