Dockerfile
FROM alpine:latest
ENV NGINX_VERSION=1.25.2
# 使用国内源
RUN sed -i 's/dl-cdn.alpinelinux.org/mirrors.ustc.edu.cn/g' /etc/apk/repositories
RUN GPG_KEYS=13C82A63B603576156E30A4EA0EA981B66B0D967 \
&& CONFIG="\
--prefix=/etc/nginx \
--sbin-path=/usr/sbin/nginx \
--modules-path=/usr/lib/nginx/modules \
--conf-path=/etc/nginx/nginx.conf \
--error-log-path=/var/log/nginx/error.log \
--http-log-path=/var/log/nginx/access.log \
--pid-path=/var/run/nginx.pid \
--lock-path=/var/run/nginx.lock \
--http-client-body-temp-path=/var/cache/nginx/client_temp \
--http-proxy-temp-path=/var/cache/nginx/proxy_temp \
--http-fastcgi-temp-path=/var/cache/nginx/fastcgi_temp \
--http-uwsgi-temp-path=/var/cache/nginx/uwsgi_temp \
--http-scgi-temp-path=/var/cache/nginx/scgi_temp \
--user=nginx \
--group=nginx \
--with-http_ssl_module \
--with-http_realip_module \
--with-http_addition_module \
--with-http_sub_module \
--with-http_dav_module \
--with-http_flv_module \
--with-http_mp4_module \
--with-http_gunzip_module \
--with-http_gzip_static_module \
--with-http_random_index_module \
--with-http_secure_link_module \
--with-http_stub_status_module \
--with-http_auth_request_module \
--with-http_xslt_module=dynamic \
--with-http_image_filter_module=dynamic \
--with-http_geoip_module=dynamic \
--with-http_perl_module=dynamic \
--with-threads \
--with-stream \
--with-stream_ssl_module \
--with-stream_ssl_preread_module \
--with-stream_realip_module \
--with-stream_geoip_module=dynamic \
--with-http_slice_module \
--with-mail \
--with-mail_ssl_module \
--with-compat \
--with-file-aio \
--with-http_v2_module \
--with-http_v3_module \
--with-cc-opt=-I/usr/src/boringssl/.openssl/include \
--with-ld-opt=-L/usr/src/boringssl/.openssl/lib \
--add-dynamic-module=/usr/src/ngx_headers_more \
--add-dynamic-module=/usr/src/ngx_brotli \
--add-dynamic-module=/usr/src/njs/nginx \
" \
&& addgroup -S nginx \
&& adduser -D -S -h /var/cache/nginx -s /sbin/nologin -G nginx nginx \
&& apk add --no-cache --virtual .build-deps \
autoconf \
automake \
bind-tools \
binutils \
build-base \
ca-certificates \
cmake \
curl \
gcc \
gd-dev \
geoip-dev \
git \
gnupg \
go \
libc-dev \
libgcc \
libstdc++ \
libtool \
libxslt-dev \
linux-headers \
make \
pcre \
pcre-dev \
perl-dev \
su-exec \
tar \
tzdata \
zlib \
zlib-dev \
mercurial \
&& curl -fSL https://nginx.org/download/nginx-$NGINX_VERSION.tar.gz -o nginx.tar.gz \
&& curl -fSL https://nginx.org/download/nginx-$NGINX_VERSION.tar.gz.asc -o nginx.tar.gz.asc \
&& export GNUPGHOME="$(mktemp -d)" \
&& found=''; \
for server in \
ha.pool.sks-keyservers.net \
hkp://keyserver.ubuntu.com:80 \
hkp://p80.pool.sks-keyservers.net:80 \
pgp.mit.edu \
; do \
echo "Fetching GPG key $GPG_KEYS from $server"; \
gpg --keyserver "$server" --keyserver-options timeout=10 --recv-keys "$GPG_KEYS" && found=yes && break; \
done; \
test -z "$found" && echo >&2 "error: failed to fetch GPG key $GPG_KEYS" && exit 1; \
gpg --batch --verify nginx.tar.gz.asc nginx.tar.gz \
&& rm -rf "$GNUPGHOME" nginx.tar.gz.asc \
&& mkdir -p /usr/src \
\
&& git clone --depth=1 --recurse-submodules https://github.com/google/ngx_brotli /usr/src/ngx_brotli \
&& git clone --depth=1 https://github.com/openresty/headers-more-nginx-module /usr/src/ngx_headers_more \
&& hg clone http://hg.nginx.org/njs /usr/src/njs \
&& (git clone --depth=1 https://boringssl.googlesource.com/boringssl /usr/src/boringssl \
&& mkdir -p /usr/src/boringssl/build /usr/src/boringssl/.openssl/lib /usr/src/boringssl/.openssl/include \
&& ln -sf /usr/src/boringssl/include/openssl /usr/src/boringssl/.openssl/include/openssl \
&& touch /usr/src/boringssl/.openssl/include/openssl/ssl.h \
&& cmake -B/usr/src/boringssl/build -H/usr/src/boringssl -DCMAKE_BUILD_TYPE=RelWithDebInfo \
&& make -C/usr/src/boringssl/build -j$(getconf _NPROCESSORS_ONLN) \
&& cp /usr/src/boringssl/build/crypto/libcrypto.a /usr/src/boringssl/build/ssl/libssl.a /usr/src/boringssl/.openssl/lib) \
\
&& tar -zxC /usr/src -f nginx.tar.gz \
&& rm nginx.tar.gz \
&& cd /usr/src/nginx-$NGINX_VERSION \
&& curl -fSL https://raw.githubusercontent.com/nginx-modules/ngx_http_tls_dyn_size/master/nginx__dynamic_tls_records_1.25.1%2B.patch -o dynamic_tls_records.patch \
&& patch -p1 < dynamic_tls_records.patch \
&& ./configure $CONFIG --with-debug \
&& make -j$(getconf _NPROCESSORS_ONLN) \
&& mv objs/nginx objs/nginx-debug \
&& mv objs/ngx_http_xslt_filter_module.so objs/ngx_http_xslt_filter_module-debug.so \
&& mv objs/ngx_http_image_filter_module.so objs/ngx_http_image_filter_module-debug.so \
&& mv objs/ngx_http_geoip_module.so objs/ngx_http_geoip_module-debug.so \
&& mv objs/ngx_http_perl_module.so objs/ngx_http_perl_module-debug.so \
&& mv objs/ngx_stream_geoip_module.so objs/ngx_stream_geoip_module-debug.so \
&& ./configure $CONFIG \
&& make -j$(getconf _NPROCESSORS_ONLN) \
&& make install \
&& rm -rf /etc/nginx/html/ \
&& mkdir /etc/nginx/conf.d/ \
&& mkdir -p /usr/share/nginx/html/ \
&& install -m644 html/index.html /usr/share/nginx/html/ \
&& install -m644 html/50x.html /usr/share/nginx/html/ \
&& install -m755 objs/nginx-debug /usr/sbin/nginx-debug \
&& install -m755 objs/ngx_http_xslt_filter_module-debug.so /usr/lib/nginx/modules/ngx_http_xslt_filter_module-debug.so \
&& install -m755 objs/ngx_http_image_filter_module-debug.so /usr/lib/nginx/modules/ngx_http_image_filter_module-debug.so \
&& install -m755 objs/ngx_http_geoip_module-debug.so /usr/lib/nginx/modules/ngx_http_geoip_module-debug.so \
&& install -m755 objs/ngx_http_perl_module-debug.so /usr/lib/nginx/modules/ngx_http_perl_module-debug.so \
&& install -m755 objs/ngx_stream_geoip_module-debug.so /usr/lib/nginx/modules/ngx_stream_geoip_module-debug.so \
&& ln -s ../../usr/lib/nginx/modules /etc/nginx/modules \
&& strip /usr/sbin/nginx* \
&& strip /usr/lib/nginx/modules/*.so \
&& rm -rf /usr/src/nginx-$NGINX_VERSION \
&& rm -rf /usr/src/boringssl /usr/src/ngx_* /usr/src/njs \
\
# Bring in gettext so we can get `envsubst`, then throw
# the rest away. To do this, we need to install `gettext`
# then move `envsubst` out of the way so `gettext` can
# be deleted completely, then move `envsubst` back.
&& apk add --no-cache --virtual .gettext gettext \
&& mv /usr/bin/envsubst /tmp/ \
\
&& runDeps="$( \
scanelf --needed --nobanner /usr/sbin/nginx /usr/lib/nginx/modules/*.so /tmp/envsubst \
| awk '{ gsub(/,/, "\nso:", $2); print "so:" $2 }' \
| sort -u \
| xargs -r apk info --installed \
| sort -u \
) tzdata ca-certificates" \
&& apk add --no-cache --virtual .nginx-rundeps $runDeps \
&& apk del .build-deps \
&& apk del .gettext \
&& mv /tmp/envsubst /usr/local/bin/ \
\
# forward request and error logs to docker log collector
&& ln -sf /dev/stdout /var/log/nginx/access.log \
&& ln -sf /dev/stderr /var/log/nginx/error.log
COPY nginx.conf /etc/nginx/nginx.conf
COPY nginx.vh.no-default.conf /etc/nginx/conf.d/default.conf
LABEL description="NGINX Docker built top of rolling release BoringSSL" \
maintainer="Denis Denisov <denji0k@gmail.com>" \
openssl="BoringSSL" \
nginx="nginx $NGINX_VERSION"
EXPOSE 80 443 443/udp
STOPSIGNAL SIGTERM
CMD ["nginx", "-g", "daemon off;"]
克隆仓库
git clone https://github.com/nginx-modules/docker-nginx-libressl.git
目录结构
├── generate-stackbrew-library.sh
├── mainline
│ └── alpine
│ ├── Dockerfile
│ ├── nginx.conf
│ └── nginx.vh.no-default.conf
├── README.md
└── stable
└── alpine
├── Dockerfile
├── nginx.conf
└── nginx.vh.no-default.conf
4 directories, 8 files
进入目录
cd /root/docker-nginx-libressl/mainline/alpine
开始构建Docker镜像
docker build . --tag postkarte/nginx-quic:alpine-v1.0
上传docker镜像到dockerhub
docker push postkarte/nginx-quic:alpine-v1.0
运行测试
编写server
创建site.conf文件，内容如下
server {
server_name www.tang520.top;
# for better compatibility it's recommended
# to use the same port for http/3 and https
listen 443 quic reuseport;
listen 443 ssl;
ssl_certificate /etc/nginx/certs/cert.pem;
ssl_certificate_key /etc/nginx/certs/key.pem;
ssl_protocols TLSv1.3; # QUIC requires TLS 1.3
root /usr/share/nginx/html;
location / {
# used to advertise the availability of HTTP/3
add_header Alt-Svc 'h3=":443"; ma=86400';
}
}
文件夹目录结构如下
.
├── site.conf
└── ssl
├── cert.pem
└── key.pem
创建容器
docker run -d -p 443:443/tcp -p 443:443/udp -v /root/nginx-alpine/site.conf:/etc/nginx/conf.d/default.conf -v /root/nginx-alpine/ssl:/etc/nginx/certs postkarte/nginx-quic:alpine-v1.0
测试连接

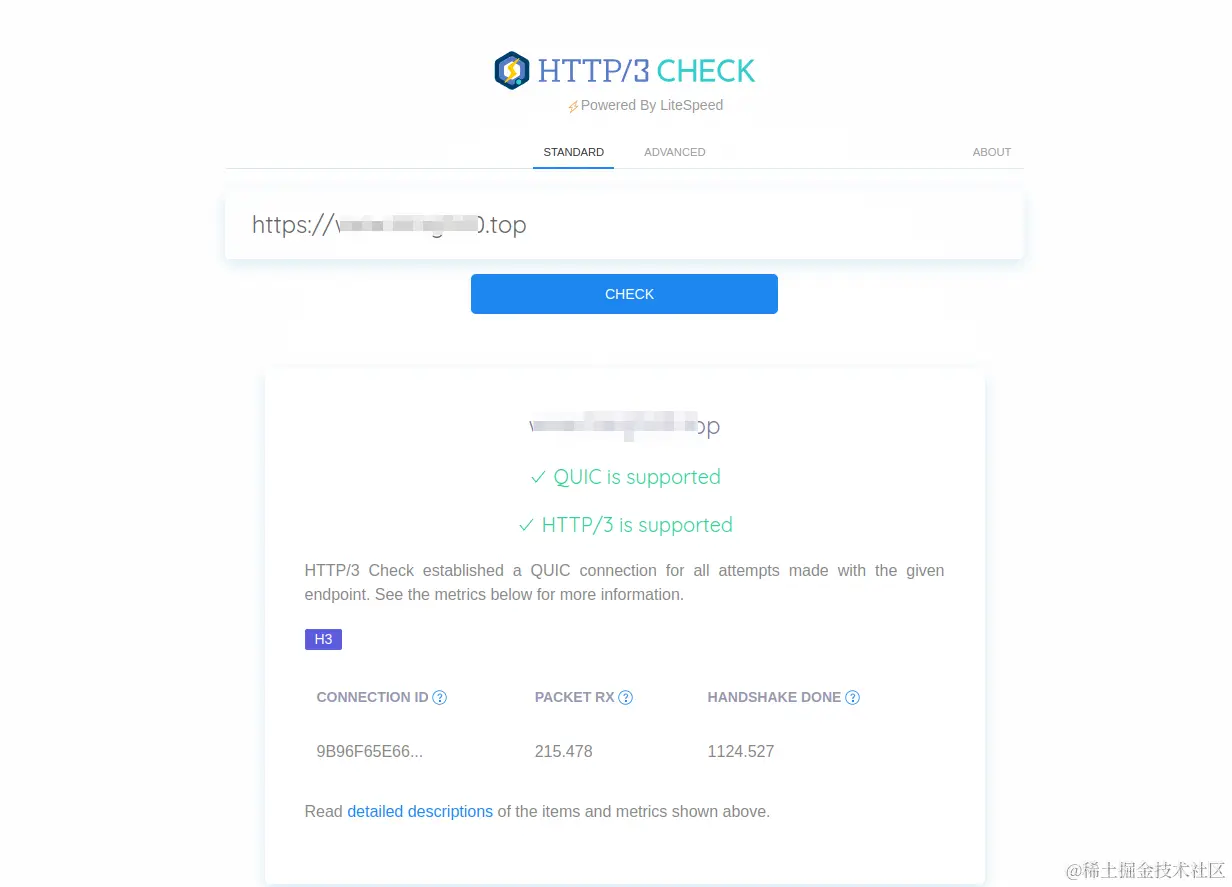

访问http3check.net/ 可以测试网站支不支持HTTP3
