cesium加载点线面和模型。

1.绘制点

使用entity

  // 点
    var addPoint = {
      id: 'point',
      name: '点',
      show: true, //显示.
      position: Cesium.Cartesian3.fromDegrees(118, 32, 0.0),
      point: {
        color: Cesium.Color.BLUE, //颜色
        pixelSize: 5, //点大小
      }
    }

使用primitive

// Create a pointPrimitive collection with two points
const points = scene.primitives.add(new Cesium.PointPrimitiveCollection());
points.add({
  position : new Cesium.Cartesian3(1.0, 2.0, 3.0),
  color : Cesium.Color.YELLOW
});
points.add({
  position : new Cesium.Cartesian3(4.0, 5.0, 6.0),
  color : Cesium.Color.CYAN
});

2.绘制线

使用entity

    // 线
    var addLine = {
      id: 'line',
      name: '线',
      show: true, //显示
      polyline: {
        positions: Cesium.Cartesian3.fromDegreesArray([108.0, 31.0, 100.0, 36.0, 105.0, 39.0]),
        width: 1, //线条粗细
        material: Cesium.Color.RED, //线条材质
        //clampToGround: true
      }
    }

使用Primitive

//绘制线
		//定义几何形状
		var polyline = new Cesium.GeometryInstance({
			geometry: new Cesium.PolylineGeometry({
				positions: Cesium.Cartesian3.fromDegreesArray([
					108.0, 31.0,
					100.0, 36.0,
					105.0, 39.0
				]),
				width: 2.0
			})
		});
		//定义外观
		var polylineAppearance = new Cesium.PolylineMaterialAppearance({
			material: Cesium.Material.fromType('Color')
		})
		//创建Primitive
		var addPolylineGeometry = new Cesium.Primitive({
			geometryInstances: polyline,
			appearance: polylineAppearance
		})

3.绘制面

entity

 //面
    var addPolygon = {
      id: 'polygon',
      name: '面',
      show: true,
      polygon: {
        hierarchy: Cesium.Cartesian3.fromDegreesArray([118, 30, 119, 32, 116, 32, 116, 30]),
        //outline: false,
        material: Cesium.Color.RED.withAlpha(0.4),
      }
    }

使用Primitive

//绘制面
		//定义几何形状
		var polygon = new Cesium.GeometryInstance({
			geometry: new Cesium.PolygonGeometry({
				polygonHierarchy: new Cesium.PolygonHierarchy(
					Cesium.Cartesian3.fromDegreesArray([
						108, 45,
						109, 48,
						104, 48,
						103, 45
					])
				)
			})
		});
		//定义外观
		var polygonAppearance = new Cesium.MaterialAppearance({
			material: Cesium.Material.fromType('Dot'),
		})
		//创建Primitive
		var addPolygonGeometry = new Cesium.Primitive({
			geometryInstances: polygon,
			appearance: polygonAppearance
		})

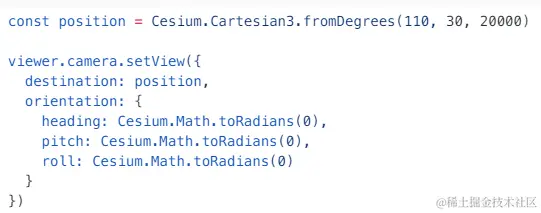

定位到某视图
