说明
Nginx从1.25.0开始支持QUIC和HTTP/3协议。此外，从1.25.0开始，Linux二进制包中提供了QUIC和HTTP/3支持。这里构建一个Nginx的镜像，支持HTTP3
所使用的的Dockerfile
# 基础镜像
FROM ubuntu:jammy
# 安装依赖
RUN apt-get update
RUN apt-get install build-essential cmake libpcre3 libpcre3-dev openssl libssl-dev zlib1g-dev git wget software-properties-common -y
RUN add-apt-repository ppa:longsleep/golang-backports -y
RUN apt-get update
RUN apt-get install golang-go -y
# 克隆boringssl
RUN git clone --depth=1 https://github.com/google/boringssl.git
# 编译boringssl
RUN cd boringssl && mkdir build && cd build && cmake .. && make && cd ../../
# 下载Nginx源码
RUN wget https://nginx.org/download/nginx-1.25.2.tar.gz
# 解压源码
RUN tar xf nginx-1.25.2.tar.gz
# 编译Nginx
RUN cd nginx-1.25.2 && ./configure --prefix=/usr/local/nginx \
--with-debug \
--with-http_v3_module \
--with-http_v2_module \
--with-cc-opt="-I../boringssl/include" --with-ld-opt="-L../boringssl/build/ssl -L../boringssl/build/crypto" && make && make install
# 基础镜像
FROM ubuntu:jammy
# 将第一阶段生成的文件拷贝到当前镜像中
COPY --from=0 /usr/local/nginx /usr/local/nginx
# 开放端口
EXPOSE 80 443
CMD ["/usr/local/nginx/sbin/nginx", "-g", "daemon off;"]
构建镜像
docker build . -t postkarte/nginx-quic:v1.0
将镜像上传到DockerHub
docker push postkarte/nginx-quic:v1.0
运行测试
由于HTTP3底层基于UDP，所以在docker暴露端口时候需要暴露udp的443端口
docker run -d -p 443:443/tcp -p 443:443/udp -v /root/nginx-quic/nginx.conf:/usr/local/nginx/conf/nginx.conf -v /root/nginx-quic/ssl:/etc/nginx/certs postkarte/nginx-quic:v1.0
nginx.conf配置文件如下
worker_processes 1;
events {
worker_connections 65535;
}
http {
log_format quic '$remote_addr - $remote_user [$time_local] '
'"$request" $status $bodNginx从1.25.0开始支持QUIC和HTTP/3协议。此外，从1.25.0开始，Linux二进制包中提供了QUIC和HTTP/3支持。y_bytes_sent '
'"$http_referer" "$http_user_agent" "$http3"';
access_log logs/access.log quic;
server {
server_name www.example.top;
# for better compatibility it's recommended
# to use the same port for http/3 and https
listen 443 quic reuseport;
listen 443 ssl;
ssl_certificate /etc/nginx/certs/cert.pem;
ssl_certificate_key /etc/nginx/certs/key.pem;
ssl_protocols TLSv1.3; # QUIC requires TLS 1.3
location / {
# used to advertise the availability of HTTP/3
add_header Alt-Svc 'h3=":443"; ma=86400';
}
}
}

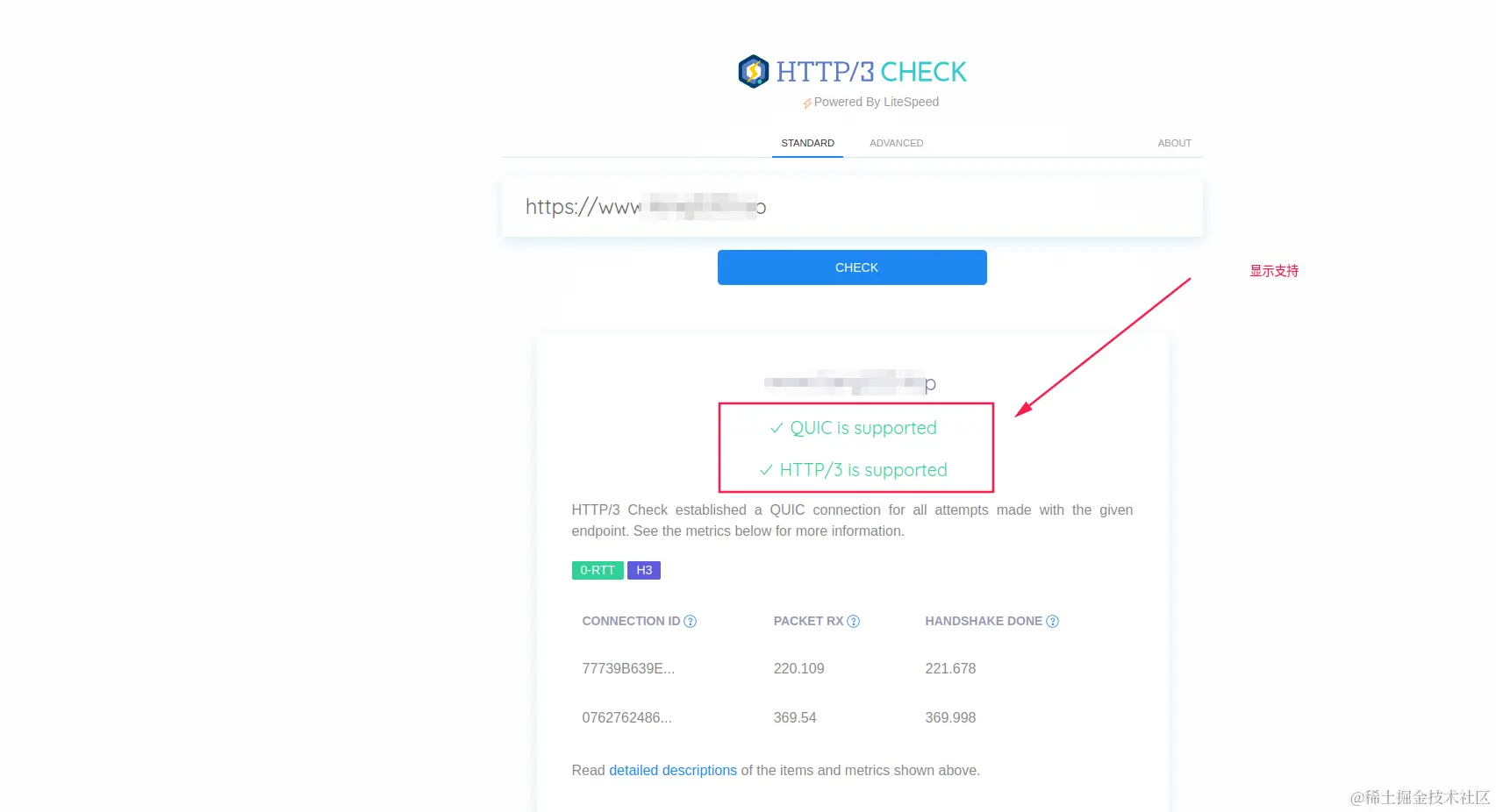

使用网站测试
可以使用该网站进行测试 http3check.net/
