自定义recyclerView实现时光轴效果

不秃头的程序猿
99 阅读5分钟

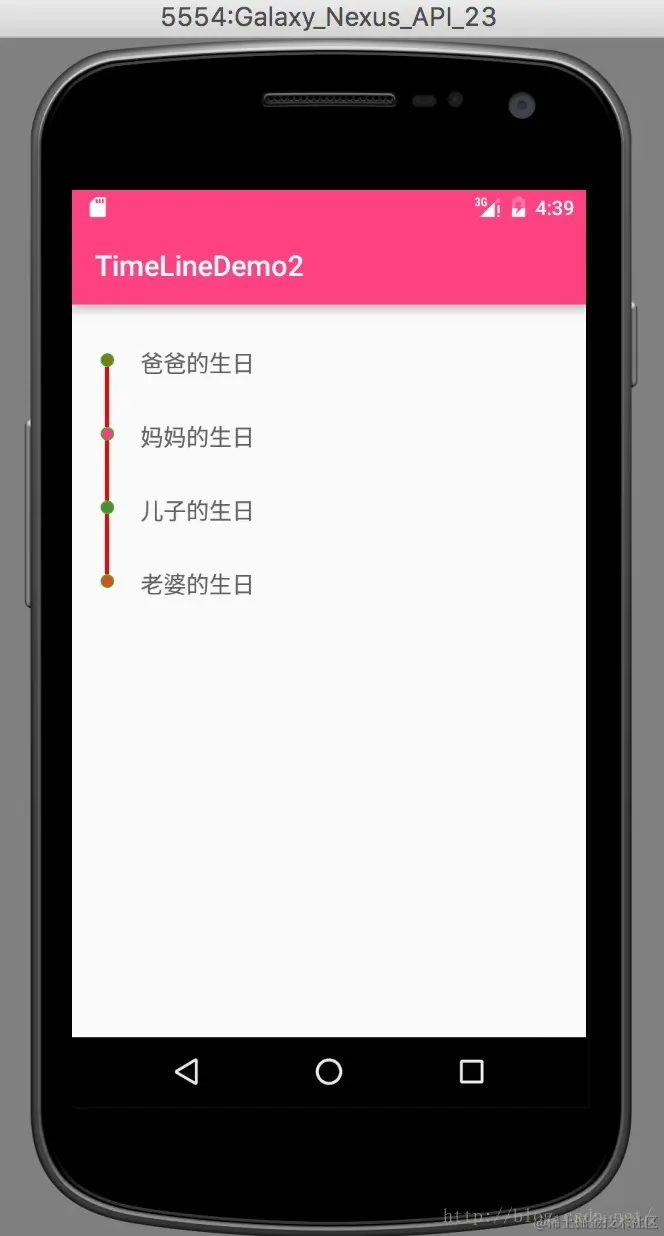

时光轴效果在很多app上都有出现，例如淘宝中快递的跟踪，本文将使用recyclerView实现时光轴效果，我们会到自定义控件，首先先看一下效果图：


接下来是步骤分析

1自定义属性

这个大家应该都了解了，根据我们之前的分析，直接在attrs.xml中进行声明

进行一下各个属性的声明

• beginLine:开始的线条

• endLine:下面的线条

• lineWidth:线条的宽度

• timeLineImage:中间的圆形

• timeLineImageSize:中间的圆形的大小，这里默认他的宽高一致

2.自定义TimeLine继承View，构造方法如下

private int lineWidth; private Drawable mBeginLine; private Drawable mEndLine; private Drawable mTimeLineImage; private int mTimeLineImageSize; ​ public TimeLine(Context context) { this(context,null); } ​ public TimeLine(Context context, AttributeSet attrs) { this(context,attrs,0); } ​ public TimeLine(Context context, AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.TimeLine); lineWidth = a.getDimensionPixelOffset(R.styleable.TimeLine_lineWidth,15); mBeginLine = a.getDrawable(R.styleable.TimeLine_beginLine); mEndLine = a.getDrawable(R.styleable.TimeLine_endLine); mTimeLineImage = a.getDrawable(R.styleable.TimeLine_timeLineImage); mTimeLineImageSize = a.getDimensionPixelSize(R.styleable.TimeLine_timeLineImageSize,25); a.recycle(); ​ }

3.复写onMeasure方法

我们都知道自定义控件，一般需要重写onMeasure，onDraw,onLayout方法,这里onMeasure需要对wrap_content的情况进行特殊处理，具体原因请看源码

protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { super.onMeasure(widthMeasureSpec, heightMeasureSpec); int w = timeLineMarkerSize + getPaddingLeft() + getPaddingRight(); int h = timeLineMarkerSize + getPaddingTop() + getPaddingBottom(); int widthSize = resolveSizeAndState(w, widthMeasureSpec, 0); int heightSize = resolveSizeAndState(h, heightMeasureSpec, 0);

    int widthSpecMode = MeasureSpec.getMode(widthMeasureSpec);
    int widthSpecSize = MeasureSpec.getSize(widthMeasureSpec);
    int heightSpecMode = MeasureSpec.getMode(heightMeasureSpec);
    int heightSpecSize = MeasureSpec.getSize(heightMeasureSpec);

​ // 处理宽高都为 wrap_content 的情况 if (widthSpecMode == MeasureSpec.AT_MOST && heightSpecMode == MeasureSpec.AT_MOST) { setMeasuredDimension(DEFAULT_WIDTH, DEFAULT_HEIGHT); } // 处理宽为 wrap_content 的情况 else if (widthSpecMode == MeasureSpec.AT_MOST) { setMeasuredDimension(DEFAULT_WIDTH, widthSize); } // 处理高为 wrap_content 的情况 else if (heightSpecMode == MeasureSpec.AT_MOST) { setMeasuredDimension(heightSize, DEFAULT_HEIGHT); } }

看过View源码的同学应该知道，在控件进行测量的时候，需要根据

specMode来进行具体的操作，View中提供了resolveSizeAndState方法来进行判断，该方法源码如下：

public static int resolveSizeAndState(int size, int measureSpec, int childMeasuredState) { int result = size; int specMode = MeasureSpec.getMode(measureSpec); int specSize = MeasureSpec.getSize(measureSpec); switch (specMode) { case MeasureSpec.UNSPECIFIED: result = size; break; case MeasureSpec.AT_MOST: if (specSize < size) { result = specSize | MEASURED_STATE_TOO_SMALL; } else { result = size; } break; case MeasureSpec.EXACTLY: result = specSize; break; } return result | (childMeasuredState&MEASURED_STATE_MASK); }

4.onDraw方法

@Override protected void onDraw(Canvas canvas) { super.onDraw(canvas); if (mBeginLine != null) { mBeginLine.draw(canvas); } if (mEndLine != null) { mEndLine.draw(canvas); } ​ if (mTimeLineImage!=null){ mTimeLineImage.draw(canvas); } }

5.onSizeChange

@Override protected void onSizeChanged(int w, int h, int oldw, int oldh) { int paddingLeft = getPaddingLeft(); int paddingRight = getPaddingRight(); int paddingTop = getPaddingTop(); int paddingBottom = getPaddingBottom(); //父容器的宽高 int width = getWidth(); int height = getHeight(); ​ int childWidth = width - paddingLeft - paddingRight; int childHeight = height - paddingTop - paddingBottom; ​ mTimeLineImageSize = Math.min(mTimeLineImageSize, Math.min(childHeight, childWidth)); if (mTimeLineImage != null) { mTimeLineImage.setBounds(paddingLeft, paddingTop, paddingLeft + mTimeLineImageSize, paddingTop + mTimeLineImageSize); bounds = mTimeLineImage.getBounds(); } else { bounds = new Rect(paddingLeft, paddingTop, paddingLeft + childWidth, paddingTop + childHeight); } ​ if (mBeginLine != null) { int lineLeft = mTimeLineImage.getBounds().centerX() - (lineWidth >> 1); mBeginLine.setBounds(lineLeft, 0, lineLeft + lineWidth, mTimeLineImage.getBounds().top); } if (mEndLine != null) { int lineLeft = mTimeLineImage.getBounds().centerX() - (lineWidth >> 1); mEndLine.setBounds(lineLeft, mTimeLineImage.getBounds().bottom, lineLeft + lineWidth, height); ​ } }

这里需要说明的是，我们的mBeginLine的长度，其实是我们自定义控件的paddingTop高度，同理mEndLine的长度是paddingBottom高度，所以我们在使用这个控件时，一般都会设置paddingTop和paddingBottom

6.使用TimeLine控件

以下是recyclerView中一个item的布局，多个item拼接起来就是一条时光轴，这里需要说明的是，我们的 LinearLayout使用的高度模式是wrap_content，这里我的TextView设置了android:paddingTop="30dp"，如果不对TextView设置android:paddingTop，会发现TimeLineView控件是看不见的，这是由于父控件wrap_content，那么父控件包裹TextView的内容，那么父控件的高度就是TextView的高度，这样TimeLineView设置了android:paddingTop="34dp"，这个高度是大于父控件的高度的，所以就看不到TimeLineView了，除非我们给LinearLayout的android:layout_height="wrap_content"，修改成固定的高度

​ <com.example.jikeyoujikeyou.timelinedemo2.TimeLineView android:id="@+id/timeLineView" android:layout_width="wrap_content" android:layout_height="match_parent" android:clickable="true" android:focusable="true" android:focusableInTouchMode="true" android:paddingBottom="8dp" android:paddingLeft="4dp" android:paddingRight="4dp" android:paddingTop="34dp" app:beginLine="#ff0000" app:endLine="#ff0000" app:lineWidth="3dp" app:timeLineMarker="@drawable/timeline_marker" app:timeLineMarkerSize="24dp" /> ​ ​

7.最后就是recyclerView的使用

recyclerView的使用大家应该都很熟悉了，无非就是设置adapter,viewHolder等，这里不再赘述，还有一点需要强调的是ItemViewType有四种情况，第一个，最后一个，中间，还有只有一个四种情况情况，根据这几种情况，有选择设置mBeginLine与 mEndLine是否进行绘制

TimeLineAdapter代码：

package com.example.jikeyoujikeyou.timelinedemo; ​ import android.annotation.TargetApi; import android.content.Context; import android.graphics.drawable.Drawable; import android.os.Build; import android.support.v7.widget.RecyclerView; import android.view.LayoutInflater; import android.view.View; import android.view.ViewGroup; import android.widget.TextView; ​ import java.util.ArrayList; import java.util.List; import java.util.Random; ​ /**

  • Created by jikeyoujikeyou on 16/7/22. */ public class TimeLineAdapter extends RecyclerView.Adapter<TimeLineAdapter.ViewHolder> { private List datas ; ​ public TimeLineAdapter(List datas) { super(); this.datas = datas; } ​ @Override public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) { LayoutInflater layoutInflater = LayoutInflater.from(parent.getContext()); View view = layoutInflater.inflate(R.layout.item_timeline, null); return new ViewHolder(view, parent.getContext(), viewType); } ​ @Override public void onBindViewHolder(ViewHolder holder, int position) { TimeLineItem timeLineItem = datas.get(position); holder.tv_name.setText(timeLineItem.getTimeLineName()); } ​ @Override public int getItemCount() { return datas.size(); } ​ @Override public int getItemViewType(int position) { int size = datas.size() - 1; if (size == 0) { return TimeLineItemType.ATOM; } else if (position == 0) { return TimeLineItemType.START; } else if (position == size) { return TimeLineItemType.END; } else { return TimeLineItemType.NORMAL; } ​ } ​ class ViewHolder extends RecyclerView.ViewHolder { ​ ​ private TextView tv_name; private TimeLine timeLine; ​ public ViewHolder(View itemView, Context context, int viewType) { super(itemView); tv_name = (TextView) itemView.findViewById(R.id.name); timeLine = (TimeLine) itemView.findViewById(R.id.timeLineView); ​ Drawable drawable = context.getResources().getDrawable(R.drawable.timeline_marker); Drawable drawable2 = context.getResources().getDrawable(R.drawable.timeline_marker2); Drawable drawable3 = context.getResources().getDrawable(R.drawable.timeline_marker3); Drawable drawable4 = context.getResources().getDrawable(R.drawable.timeline_marker4); Drawable drawable5 = context.getResources().getDrawable(R.drawable.timeline_marker5); ​ Random random = new Random(); final int i = random.nextInt(5); final Drawable drawables[] = {drawable, drawable2, drawable3, drawable4, drawable5}; ​ timeLine.setTimeLineImage(drawables[i]); ​ if (viewType == TimeLineItemType.START) { timeLine.setBeginLine(null); ​ } else if (viewType == TimeLineItemType.END) { timeLine.setEndLine(null); } else if (viewType == TimeLineItemType.ATOM) { timeLine.setBeginLine(null); timeLine.setEndLine(null); } } } ​ class TimeLineItemType { //正常 public final static int NORMAL = 0; //开始 public final static int START = 1; //结束 public final static int END = 2; //只有一条数据,那么beginLine和endLine都没有 public final static int ATOM = 3; } ​ }

MainActivity代码：

public class MainActivity extends AppCompatActivity {
​
    private List mDatas;
​
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initData();
        RecyclerView recyclerView = (RecyclerView) findViewById(R.id.recyclerview);
        LinearLayoutManager linearLayoutManager = new LinearLayoutManager(this);
        linearLayoutManager.setOrientation(LinearLayoutManager.VERTICAL);
        recyclerView.setLayoutManager(linearLayoutManager);
        TimeLineAdapter adapter = new TimeLineAdapter(mDatas);
        recyclerView.setAdapter(adapter);
​
​
    }
​
    private void initData() {
        mDatas = new ArrayList<>();
        mDatas.add(new TimeLineItem("爸爸生日"));
        mDatas.add(new TimeLineItem("妈妈生日"));
        mDatas.add(new TimeLineItem("姐姐生日"));
        mDatas.add(new TimeLineItem("女神生日"));
        mDatas.add(new TimeLineItem("前任生日"));
​
    }
}


运行项目，就会呈现本文一开始的效果。
