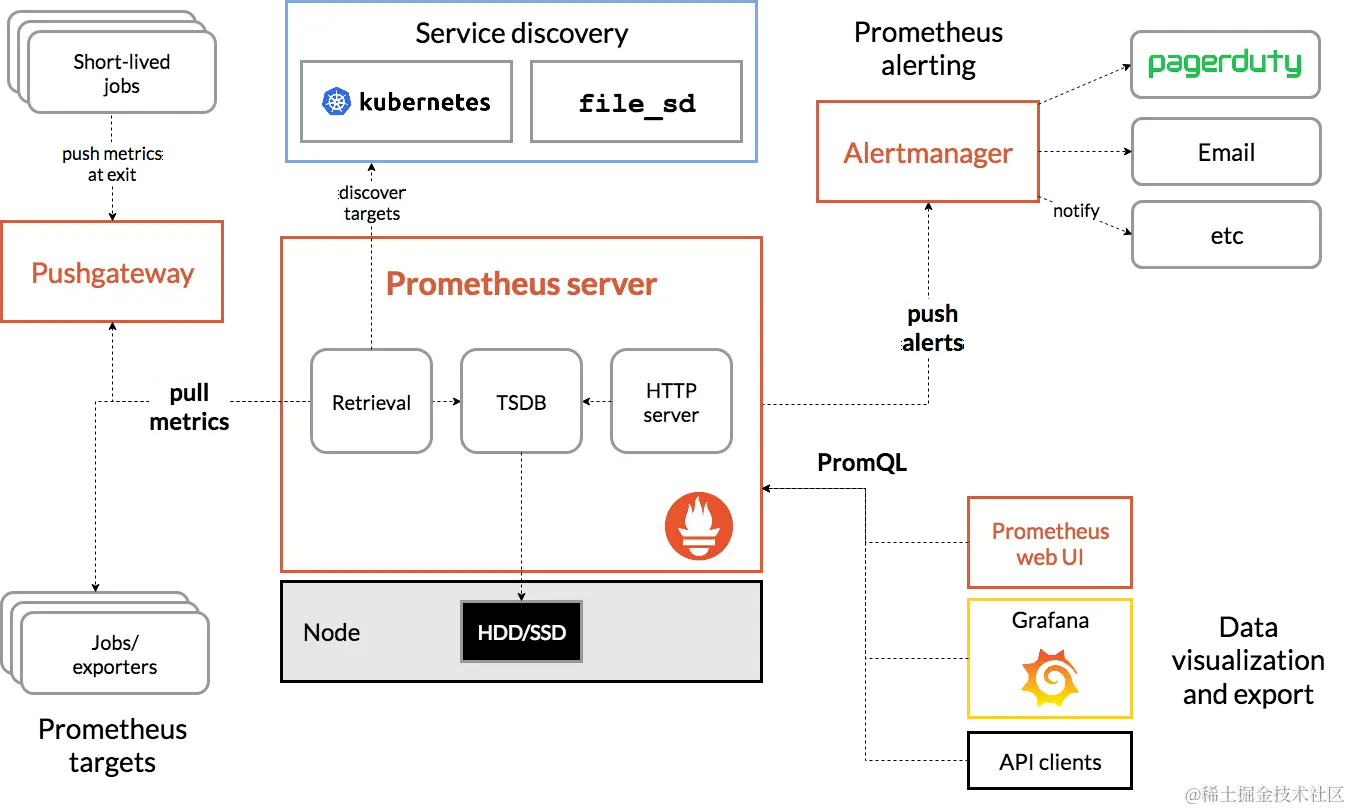

Prometheus组件介绍

  • prometheus server： 主服务，接受外部http请求，收集、存储与查询数据
  • promeheus targets：静态收集的目标服务数据
  • service discovery：动态发现服务
  • prometheus alerting: 报警通知
  • push gateway：数据收集代理服务器（类似于zabbix proxy）
  • data visualization and export：数据可视化与数据导出（访问客户端）


使用Operator部署Prometheus

克隆Operator仓库

git clone https://github.com/prometheus-operator/kube-prometheus.git

进入目录应用yaml文件

# 进入项目目录
[root@node1 ~]# cd kube-prometheus/

查看项目使用的谷歌镜像有哪些

可以看到kube-state-metrics和prometheus-adapter使用了google官方的镜像仓库，国内无法访问，所以后面得替换下

[root@node1 kube-prometheus]# grep image: ./* -R | grep registry.k8s.io
./manifests/kubeStateMetrics-deployment.yaml:        image: registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2
./manifests/prometheusAdapter-deployment.yaml:        image: registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1

使用docker hub的镜像替换registry.k8s.io的镜像

该步骤需要自己将上面的两个镜像推送到自己的docker hub仓库里面

sed -i "s#registry.k8s.io/kube-state-metrics/kube-state-metrics.*#postkarte/kube-state-metrics:v2.9.2#g" manifests/kubeStateMetrics-deployment.yaml

sed -i "s#registry.k8s.io/prometheus-adapter.*#postkarte/prometheus-adapter:v0.11.1#g" manifests/prometheusAdapter-deployment.yaml

首先应用setup目录里面的yaml文件

注意应用时候需要加上--server-side，表示Server-side Apply

该目录包括创建名称空间等初始化资源清单文件

[root@node1 kube-prometheus]# kubectl apply --server-side -f manifests/setup/
customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/prometheusagents.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/scrapeconfigs.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com serverside-applied
customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com serverside-applied
namespace/monitoring serverside-applied

等待上一步资源创建成功

kubectl wait \
	--for condition=Established \
	--all CustomResourceDefinition \
	--namespace=monitoring

此命令的含义是:

  • kubectl wait:等待某个事件满足条件之后再返回

  • --for condition=Established:等待条件为"Established",即等待到达"Established"状态

  • --all CustomResourceDefinition:等待的对象是所有类型为CustomResourceDefinition的资源

  • --namespace=monitoring:限定查看monitoring命名空间下的CRD

这个命令在monitoring命名空间下,等待所有的CustomResourceDefinition资源对象都进入"Established"状态之后才返回。

CustomResourceDefinition (CRD)需要一段时间从定型状态变成已建立状态,这期间CRD资源还无法正常使用。

此命令就是等待所有的CRD建立完成,确保它们都能正常工作后,kubectl命令才继续执行后面的操作。

使用kubectl wait可以避免在CRD还未完全就绪的情况下进行后续操作,从而避免因CRD状态不全导致的处理失败。这对于需要依赖CRD定义的其他资源来说,是必要的同步机制。

在上一步资源创建成功后，应用Prometheus和grafana的yaml文件

修改下prometheus的service类型为NodePort

编辑manifests/prometheus-service.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: prometheus
    app.kubernetes.io/instance: k8s
    app.kubernetes.io/name: prometheus
    app.kubernetes.io/part-of: kube-prometheus
    app.kubernetes.io/version: 2.47.0
  name: prometheus-k8s
  namespace: monitoring
spec:
  type: NodePort   # 修改Service类型为NodePort
  ports:
  - name: web
    port: 9090
    nodePort: 30099  # 对外暴露30099端口
    targetPort: web
  - name: reloader-web
    port: 8080
    targetPort: reloader-web
  selector:
    app.kubernetes.io/component: prometheus
    app.kubernetes.io/instance: k8s
    app.kubernetes.io/name: prometheus
    app.kubernetes.io/part-of: kube-prometheus
  sessionAffinity: ClientIP

修改grafana的service类型为NodePort

修改manifests/grafana-service.yaml， 内容如下

apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: grafana
    app.kubernetes.io/name: grafana
    app.kubernetes.io/part-of: kube-prometheus
    app.kubernetes.io/version: 9.5.3
  name: grafana
  namespace: monitoring
spec:
  type: NodePort  # 修改Service类型为NodePort
  ports:
  - name: http
    port: 3000
    nodePort: 30100  # 对外暴露30100端口
    targetPort: http
  selector:
    app.kubernetes.io/component: grafana
    app.kubernetes.io/name: grafana
    app.kubernetes.io/part-of: kube-prometheus

应用yaml

[root@node1 kube-prometheus]# kubectl apply -f manifests/

查看资源部署情况

查看Service

[root@node1 kube-prometheus]# kubectl get service -n monitoring
NAME                  TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                         AGE
alertmanager-main     ClusterIP   10.104.94.183    <none>        9093/TCP,8080/TCP               39s
blackbox-exporter     ClusterIP   10.103.146.184   <none>        9115/TCP,19115/TCP              38s
grafana               NodePort    10.97.17.194     <none>        3000:30100/TCP                  38s
kube-state-metrics    ClusterIP   None             <none>        8443/TCP,9443/TCP               37s
node-exporter         ClusterIP   None             <none>        9100/TCP                        37s
prometheus-adapter    ClusterIP   10.98.202.192    <none>        443/TCP                         36s
prometheus-k8s        NodePort    10.107.150.96    <none>        9090:30099/TCP,8080:32682/TCP   37s
prometheus-operator   ClusterIP   None             <none>        8443/TCP                        36s

查看Pod

[root@node1 ~]# kubectl get pods -n monitoring
NAME                                   READY   STATUS    RESTARTS   AGE
alertmanager-main-0                    2/2     Running   0          7h32m
alertmanager-main-1                    2/2     Running   0          7h32m
alertmanager-main-2                    2/2     Running   0          7h32m
blackbox-exporter-d9597b5ff-qzzrn      3/3     Running   0          7h33m
grafana-748964b847-868mr               1/1     Running   0          7h33m
kube-state-metrics-64b967c498-q57d6    3/3     Running   0          7h30m
node-exporter-7vxcn                    2/2     Running   0          7h33m
node-exporter-dgw6q                    2/2     Running   0          7h33m
node-exporter-p5kx2                    2/2     Running   0          7h33m
node-exporter-sl9ns                    2/2     Running   0          7h33m
node-exporter-wvvwg                    2/2     Running   0          7h33m
prometheus-adapter-65f6855fcd-dh2rk    1/1     Running   0          7h33m
prometheus-adapter-65f6855fcd-sqv7m    1/1     Running   0          7h33m
prometheus-k8s-0                       2/2     Running   0          7h32m
prometheus-k8s-1                       2/2     Running   0          7h32m
prometheus-operator-749b97889c-77v6p   2/2     Running   0          7h33m

访问Prometheus

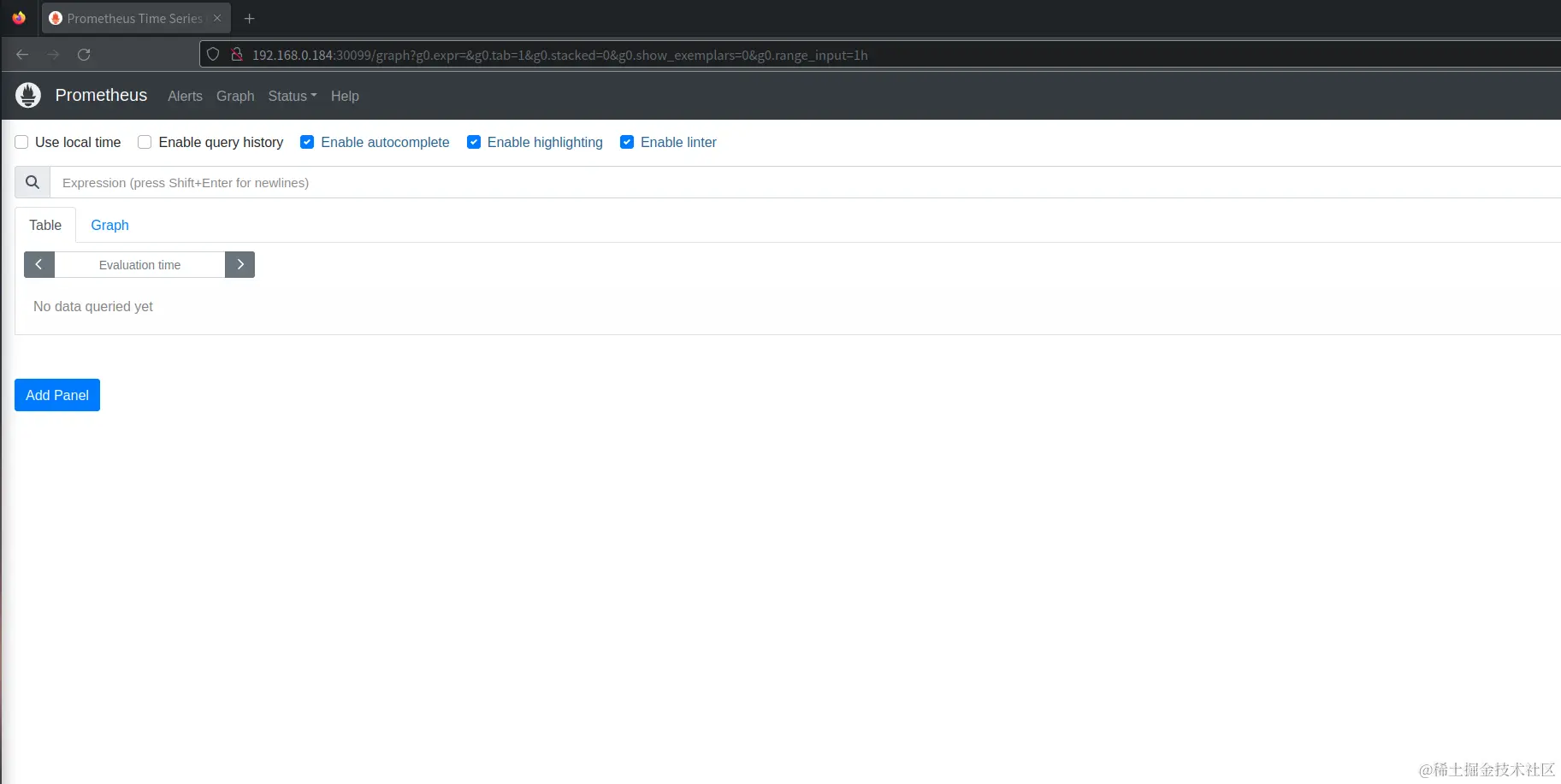

访问 http://192.168.0.184:30099/


访问Grafana

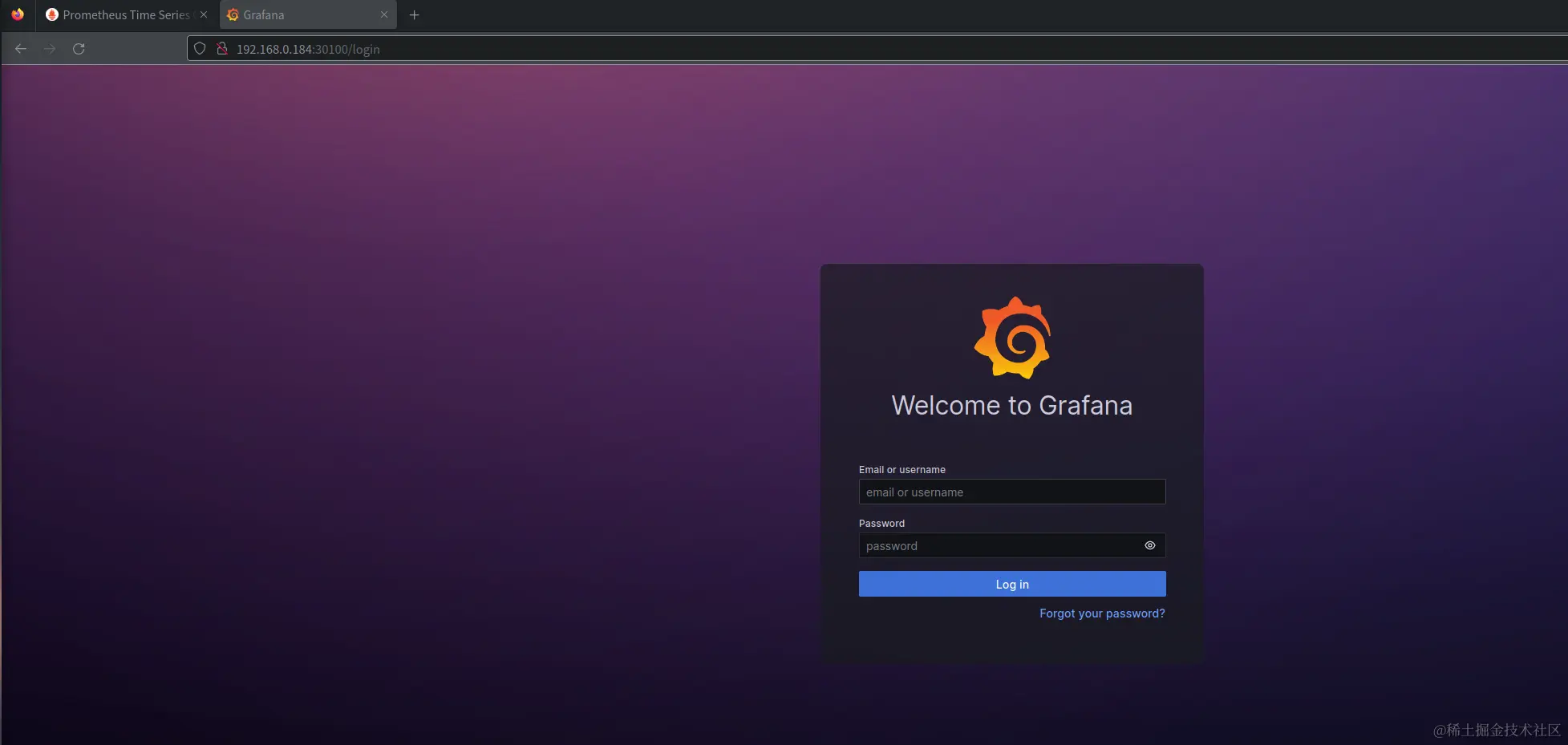

默认用户admin，默认密码admin

查看dashboard

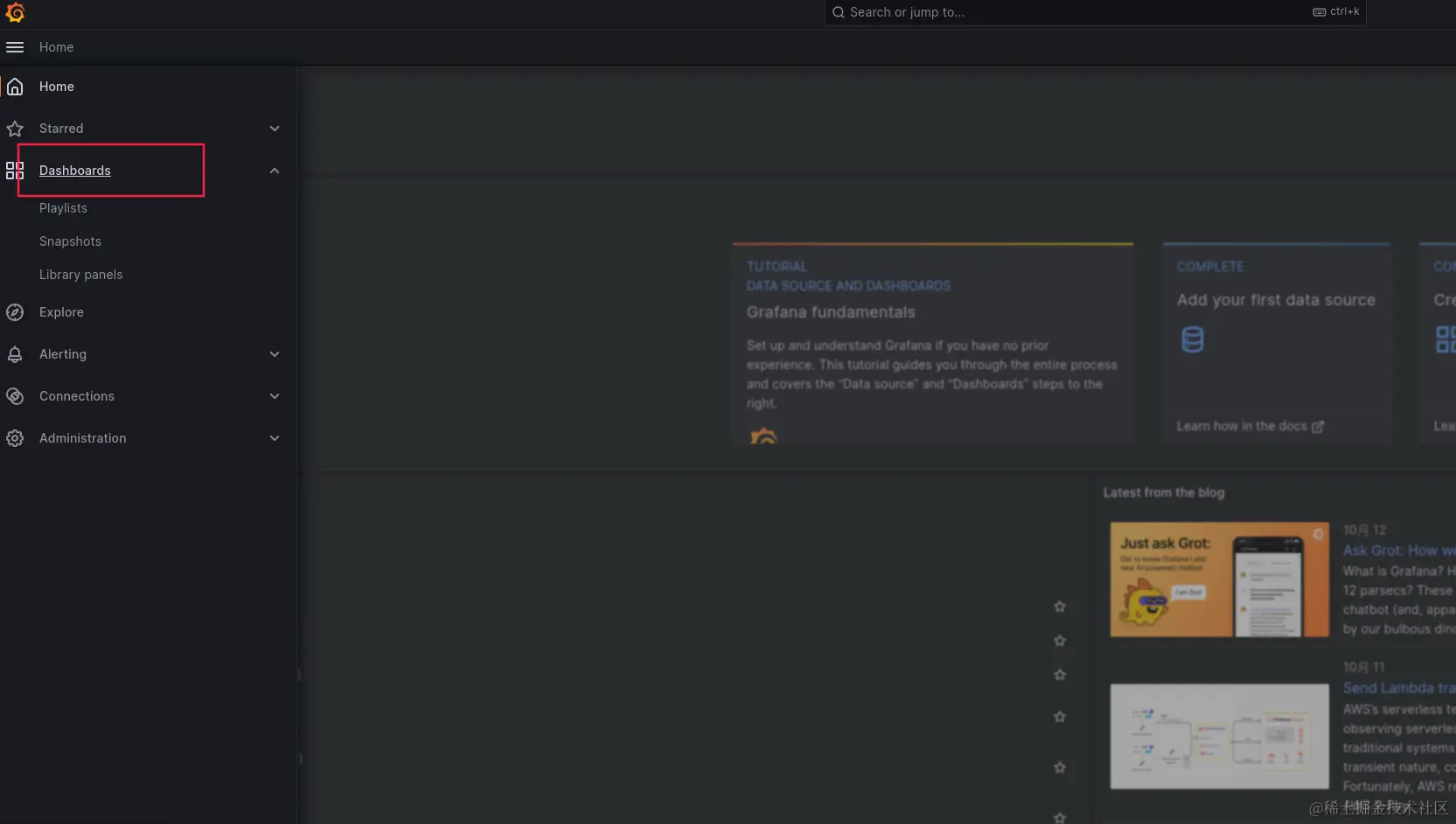

点击Dashboad栏

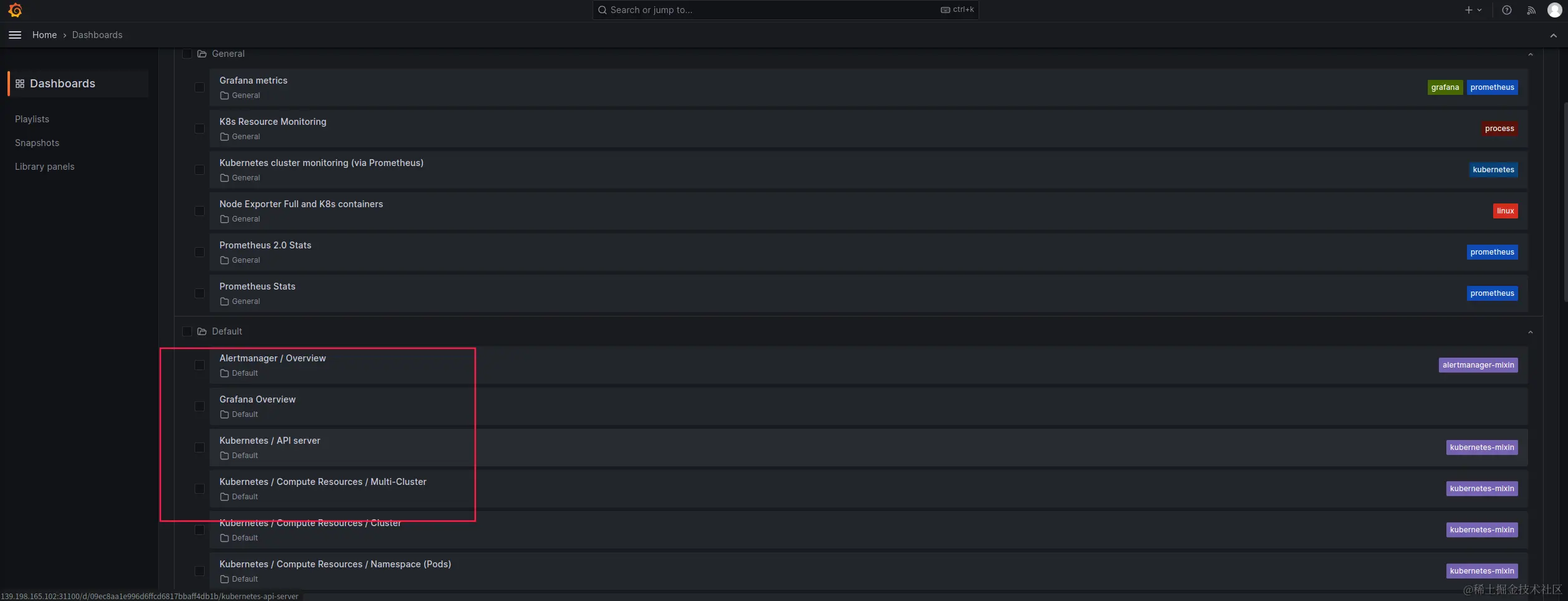

可以看到有很多dashboard，同时除了默认的这些dashboard之外还可以自己创建和导入


遇到的错误

在应用manifests/setup/文件中的yaml文件时候出现如下错误，解决办法是加上--server-side

Error from server (Invalid): error when creating "manifests/setup/0prometheusCustomResourceDefinition.yaml": CustomResourceDefinition.apiextensions.k8s.io "prometheuses.monitoring.coreos.com" is invalid: metadata.annotations: Too long: must have at most 262144 bytes
Error from server (Invalid): error when creating "manifests/setup/0prometheusagentCustomResourceDefinition.yaml": CustomResourceDefinition.apiextensions.k8s.io "prometheusagents.monitoring.coreos.com" is invalid: metadata.annotations: Too long: must have at most 262144 bytes
